Whirlpool MT7116XD, MT7118XD, MT7078XD User Manual

Specifications and Main Features
  • Models: MT7076XD, MT7078XD, MT7116XD, MT7118XD

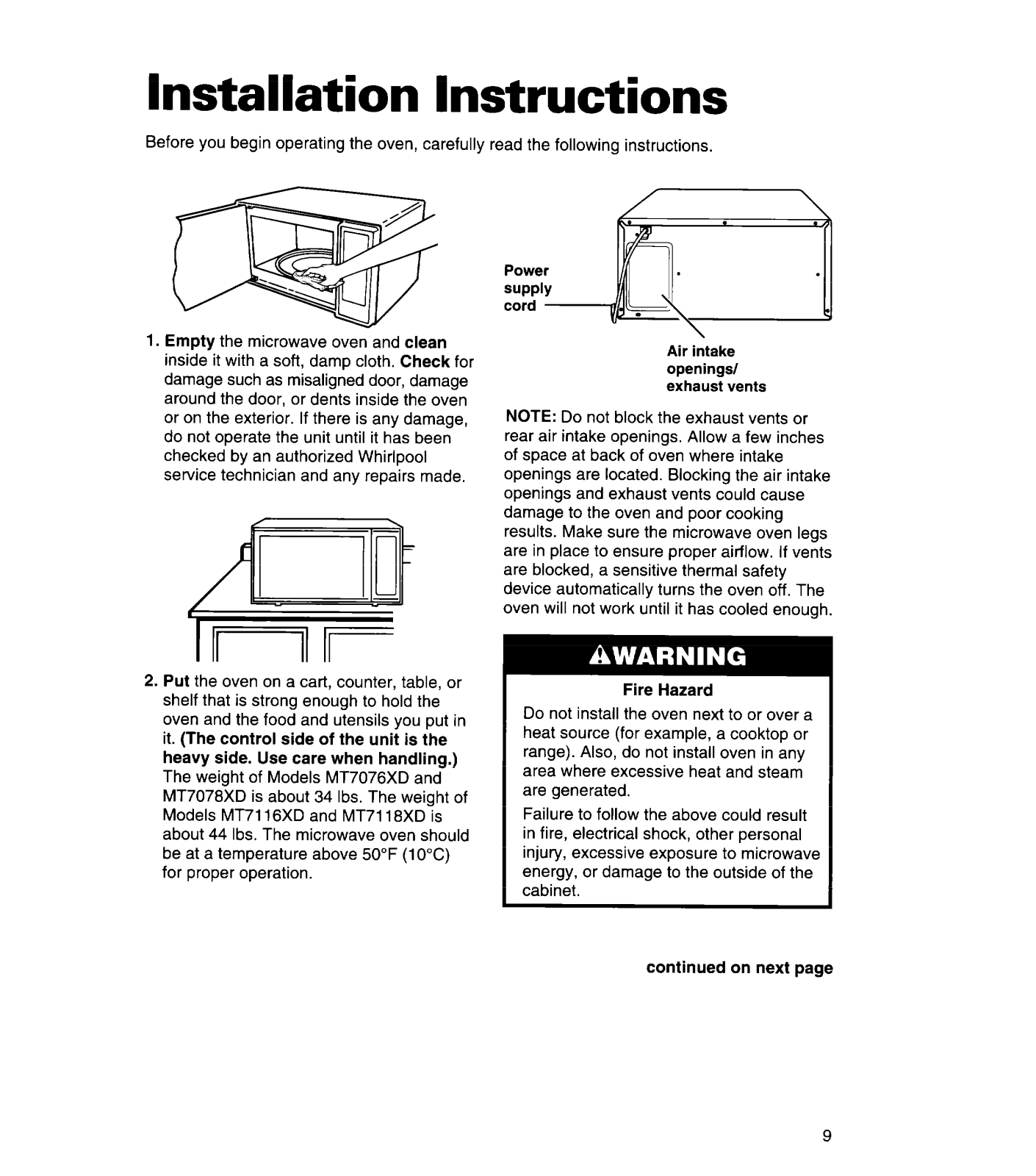

  • Weight: MT7076XD and MT7078XD approximately 15.75 Kilograms; MT7116XD and MT7118XD approximately 19.845 Kilograms

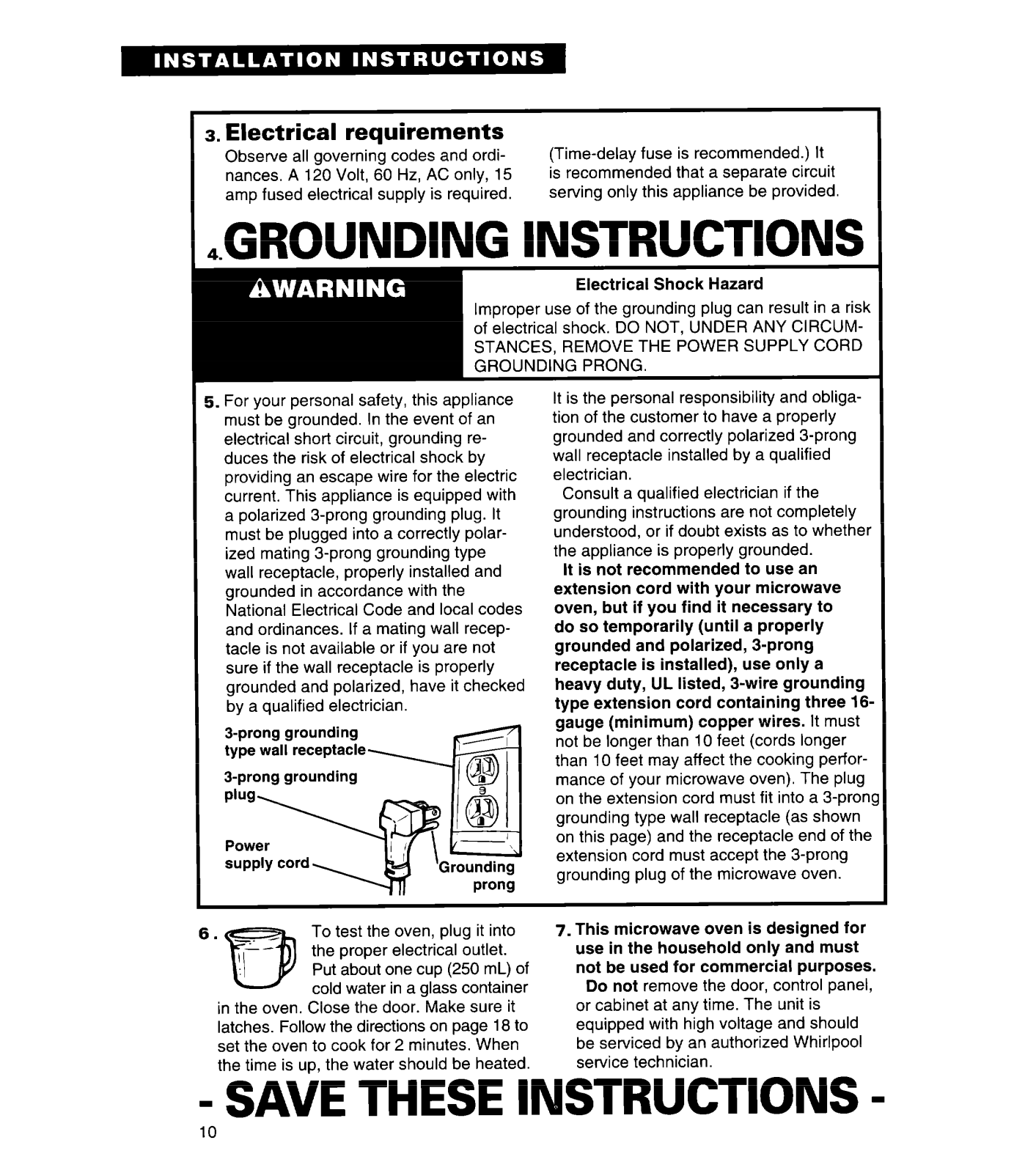

  • Power Supply: 120 Volt, 60 Hz, only AC, 15 amp fuse supply
  • Cooking Power: Maximum output rated 850 watts (according to IEC-705 standard)
  • Turn Table: Glass turn table for late cooking

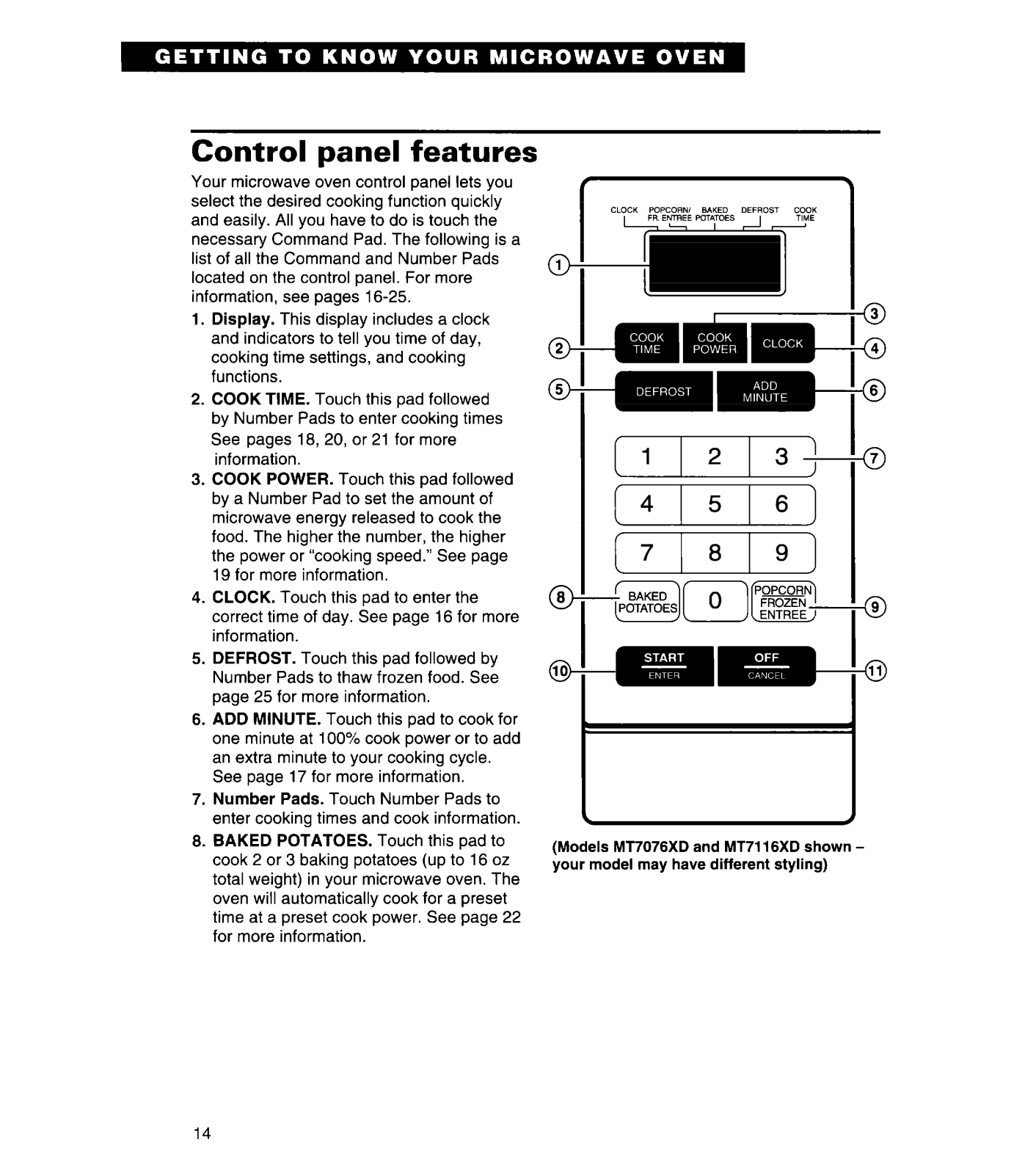

  • Control Panel: Touch pad controls for ease of use

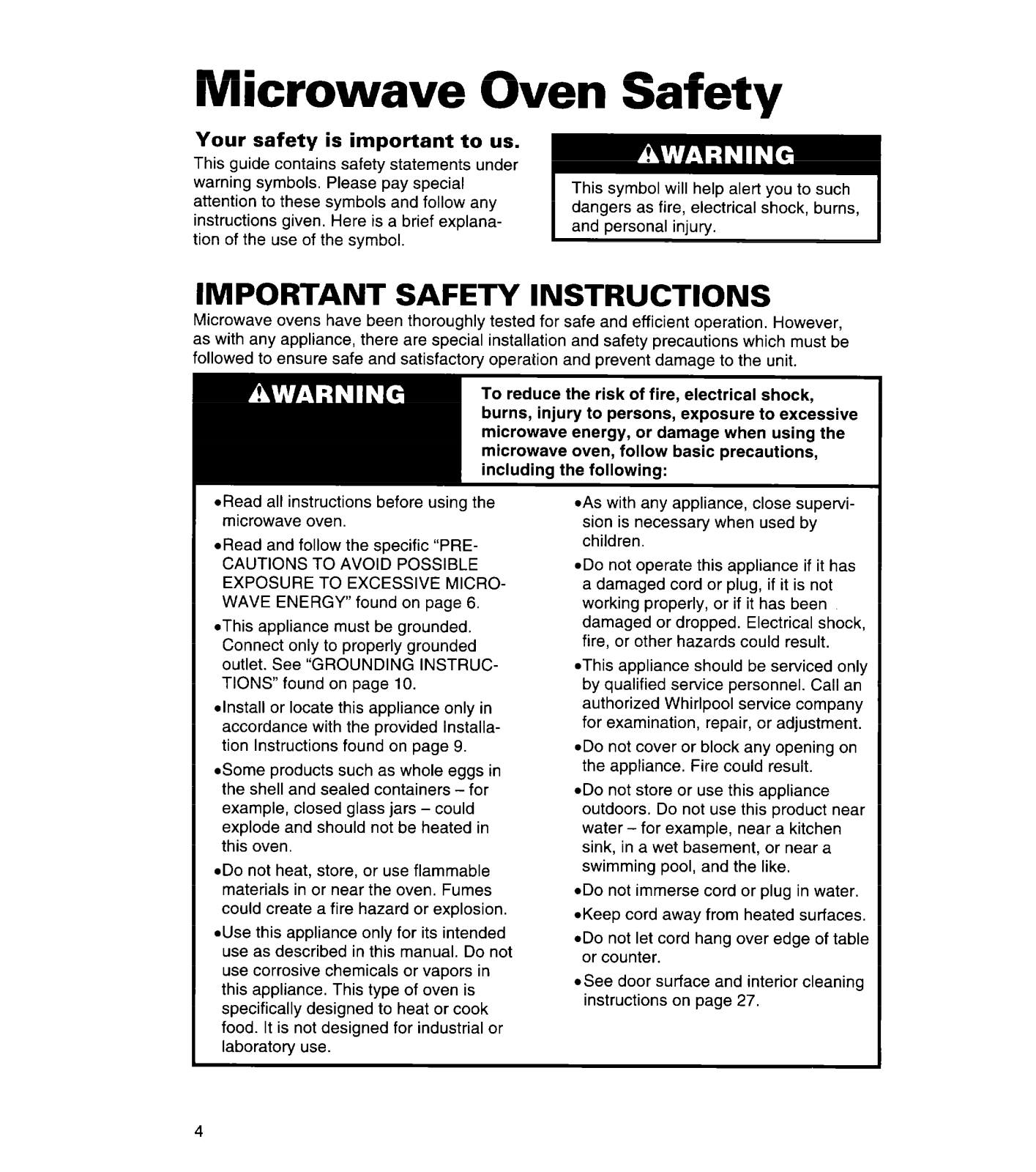

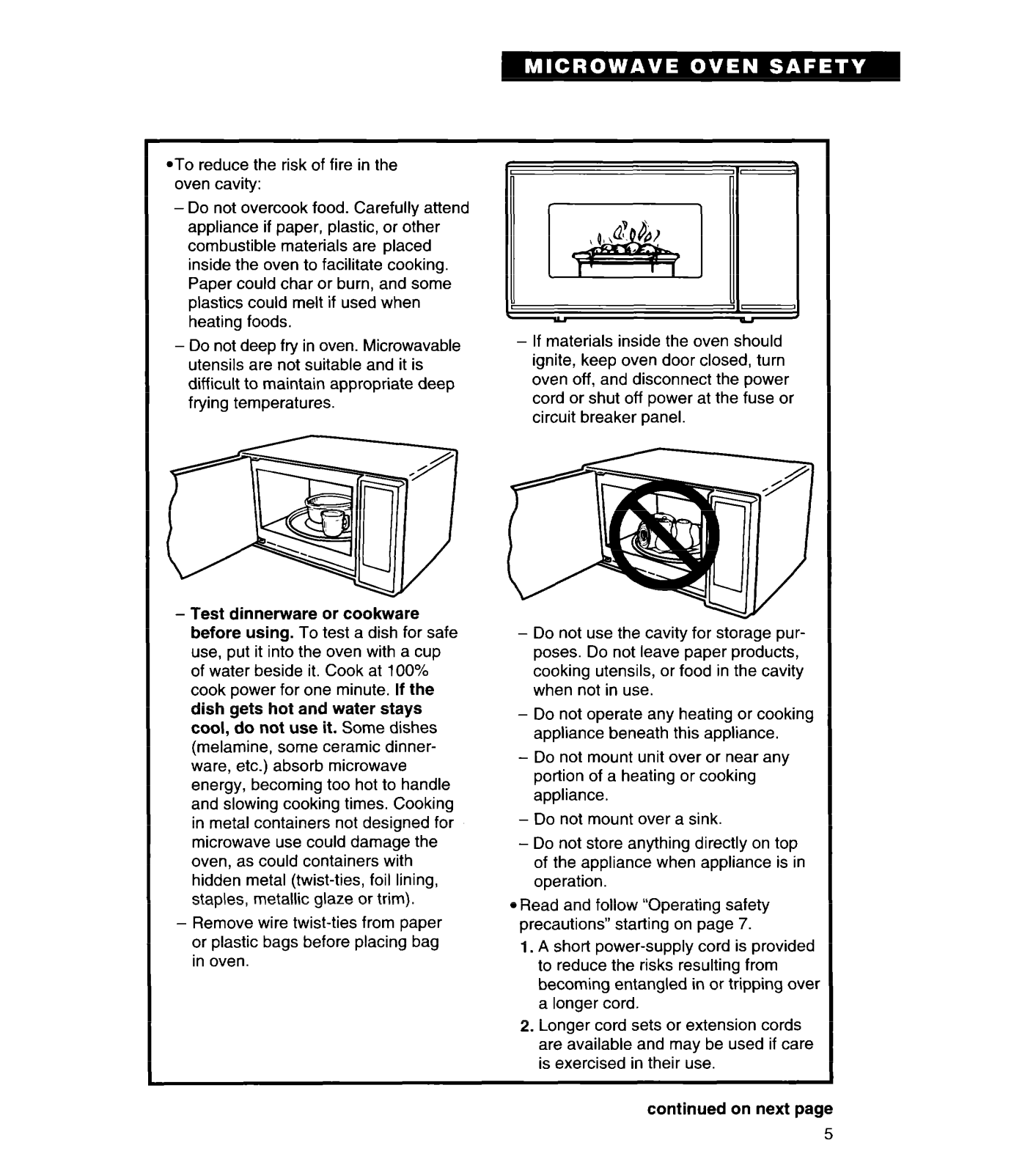

  • Safety Features: Door safety lock system, grounded power supply

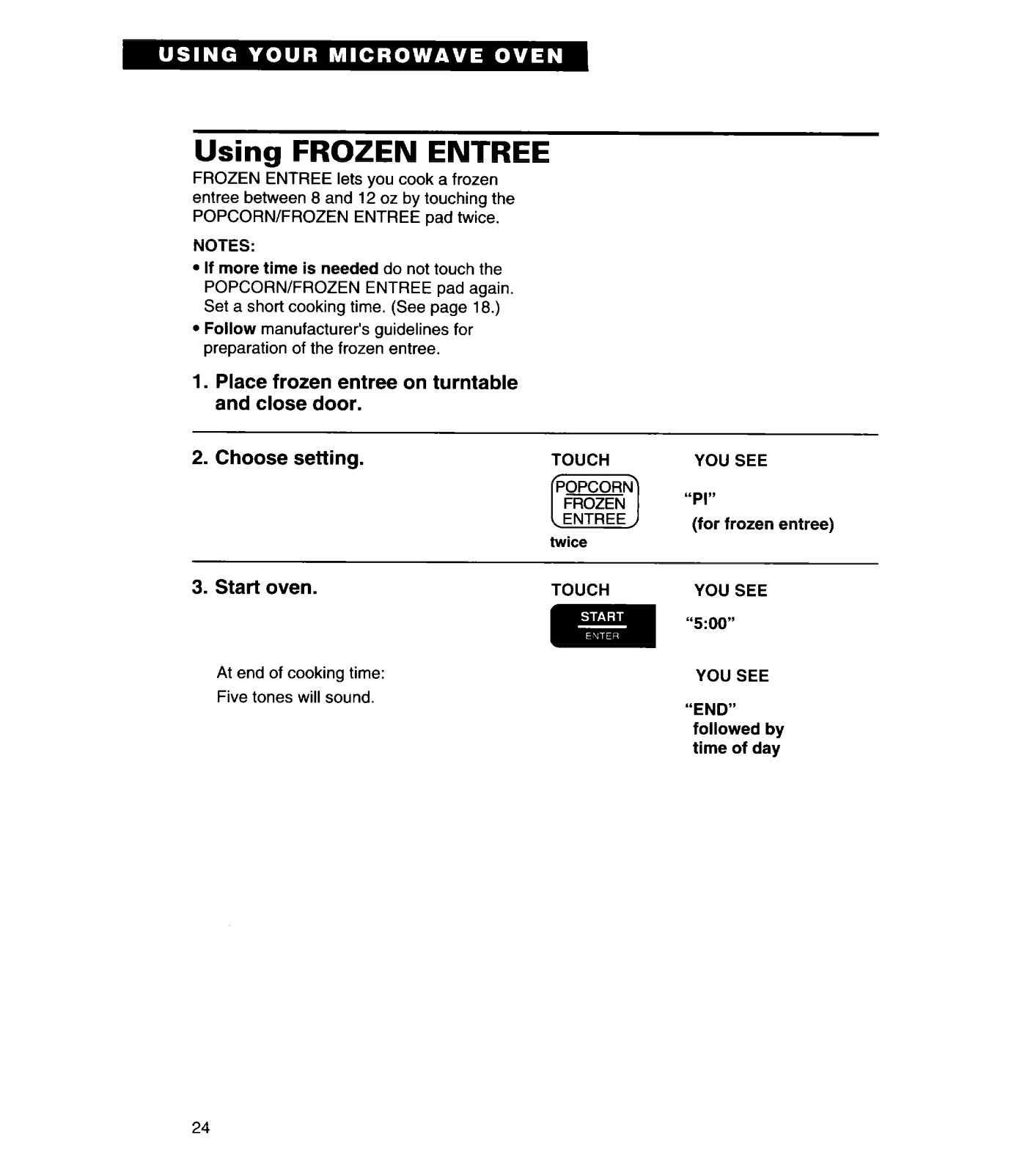

  • Pre-set cooking wants: Baked potatoes, Popcorn, Frozen Entree

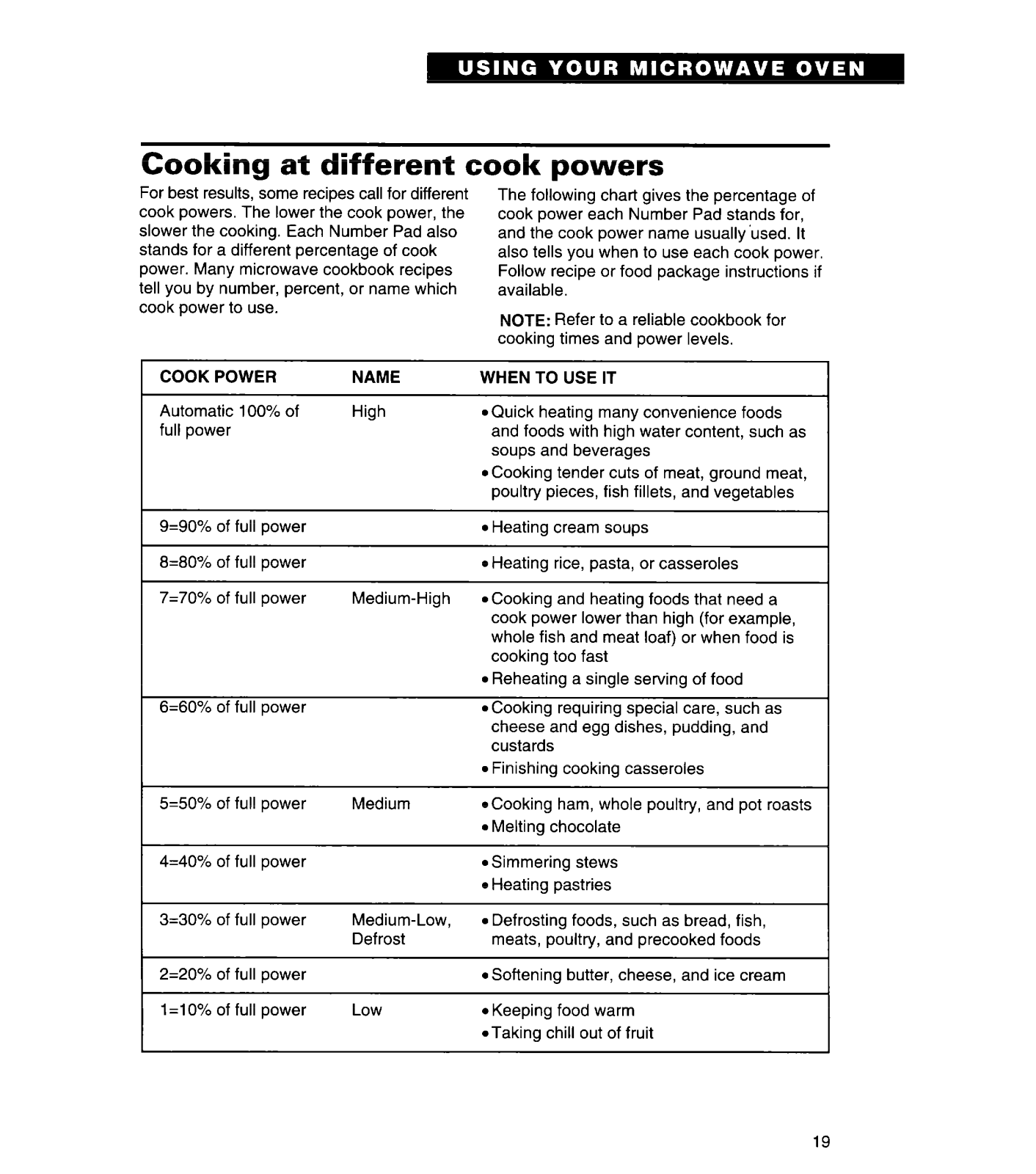

  • Adjustable Cook Power Levels: High, Medium High, Medium, Medium Low and Low (100%-10% power settings)

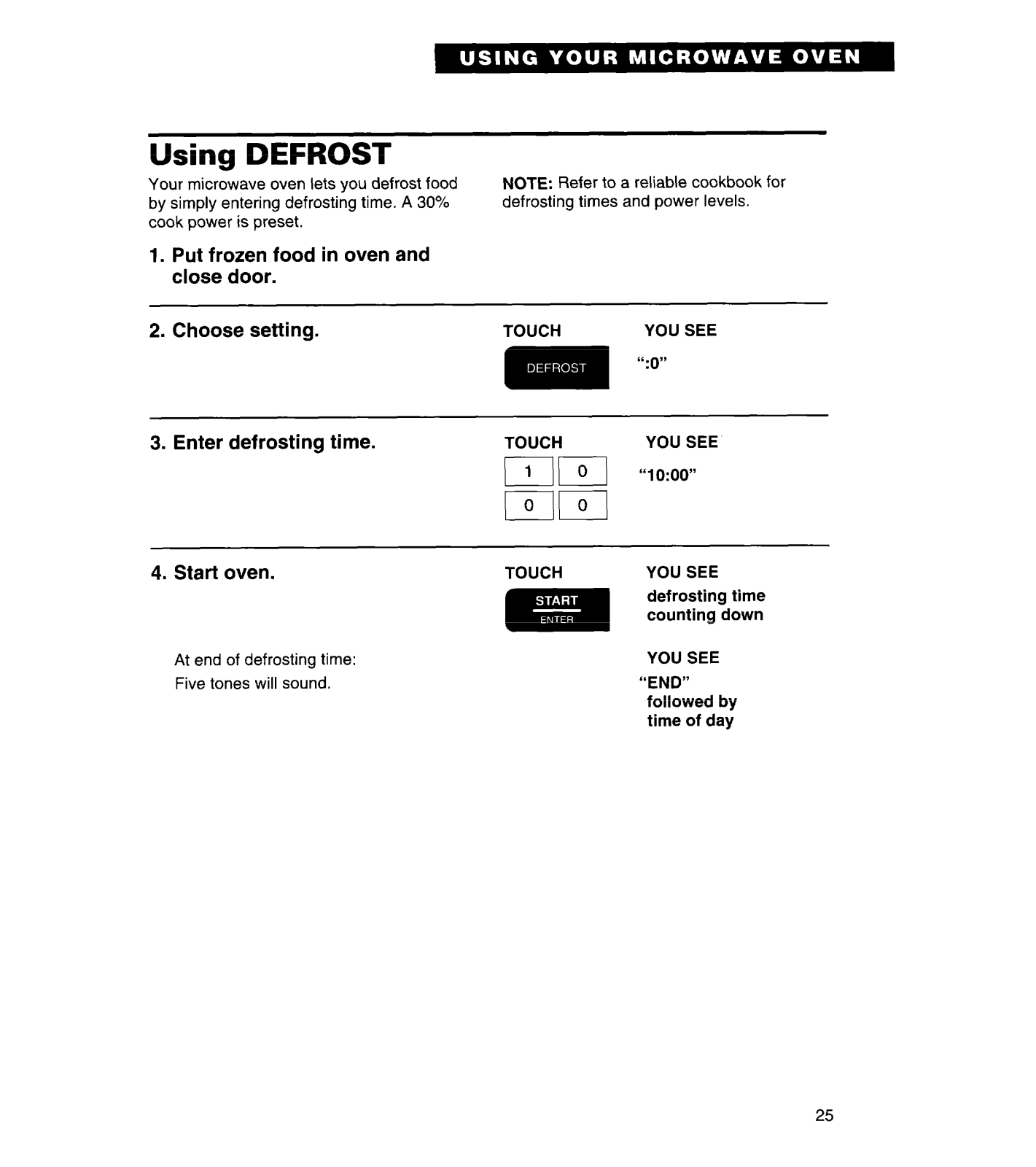

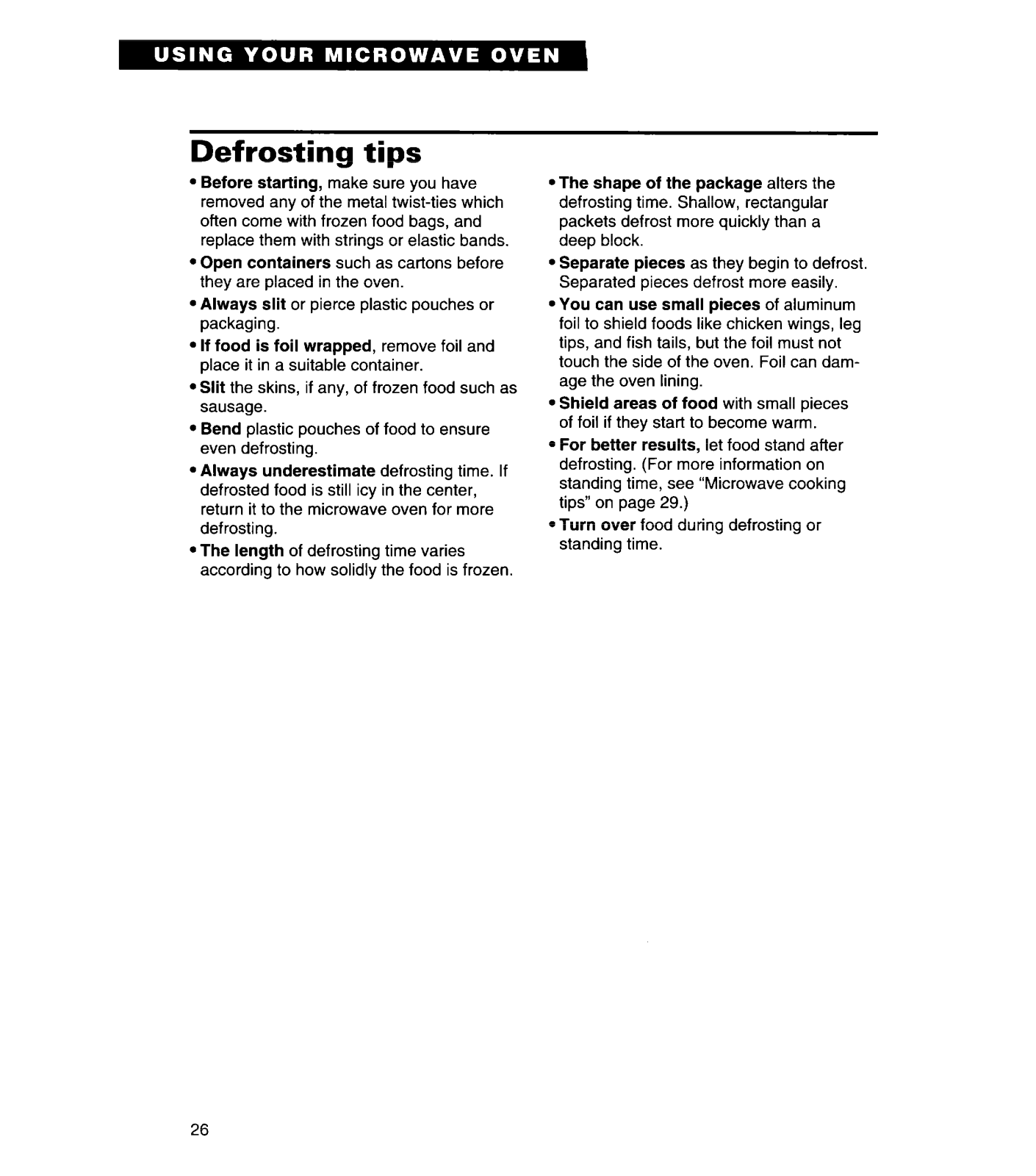

  • Defrost Function: of timed defrosting

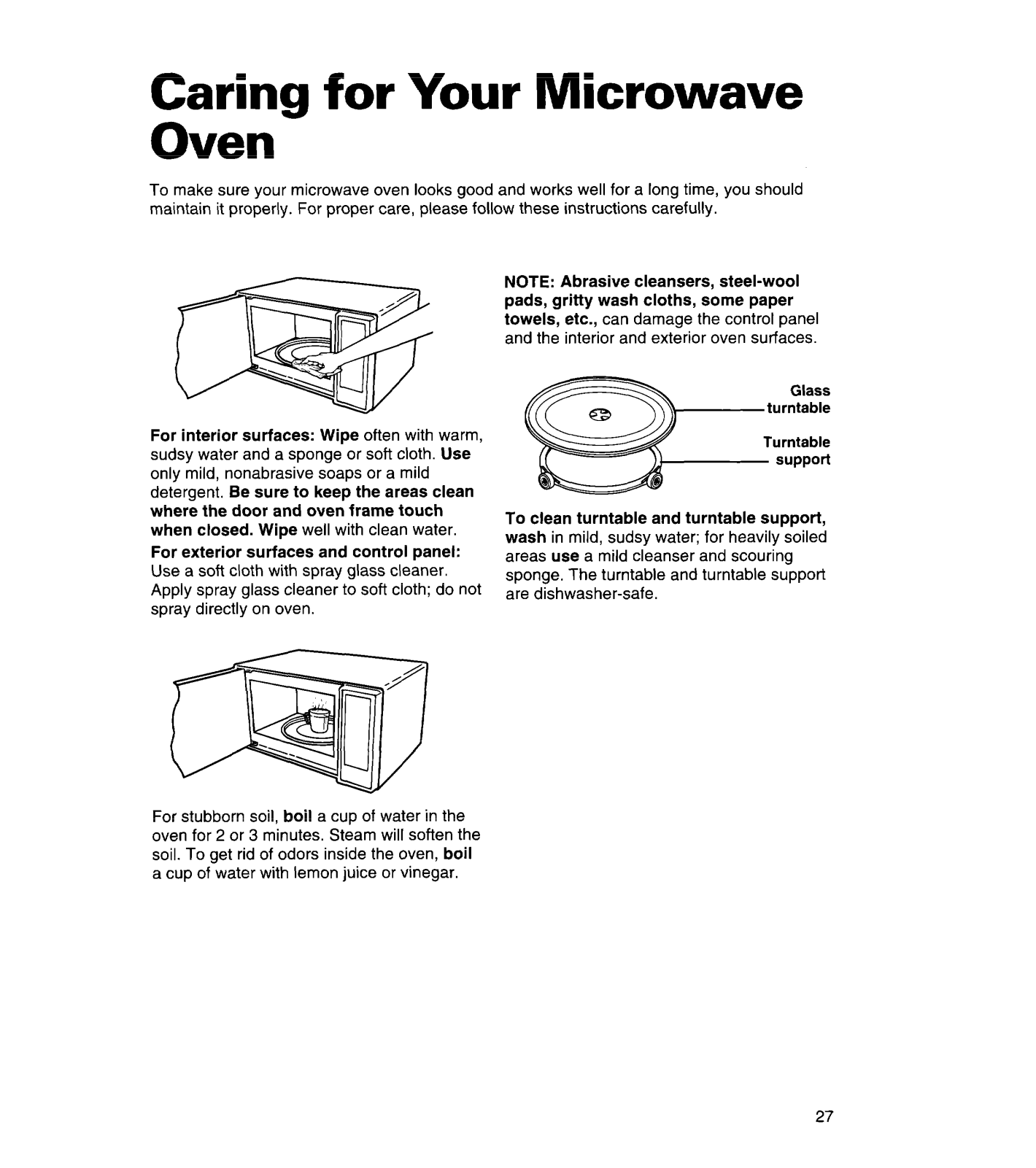

  • Cleaning: Removable turntable and turntable support, easy cleaned surfaces

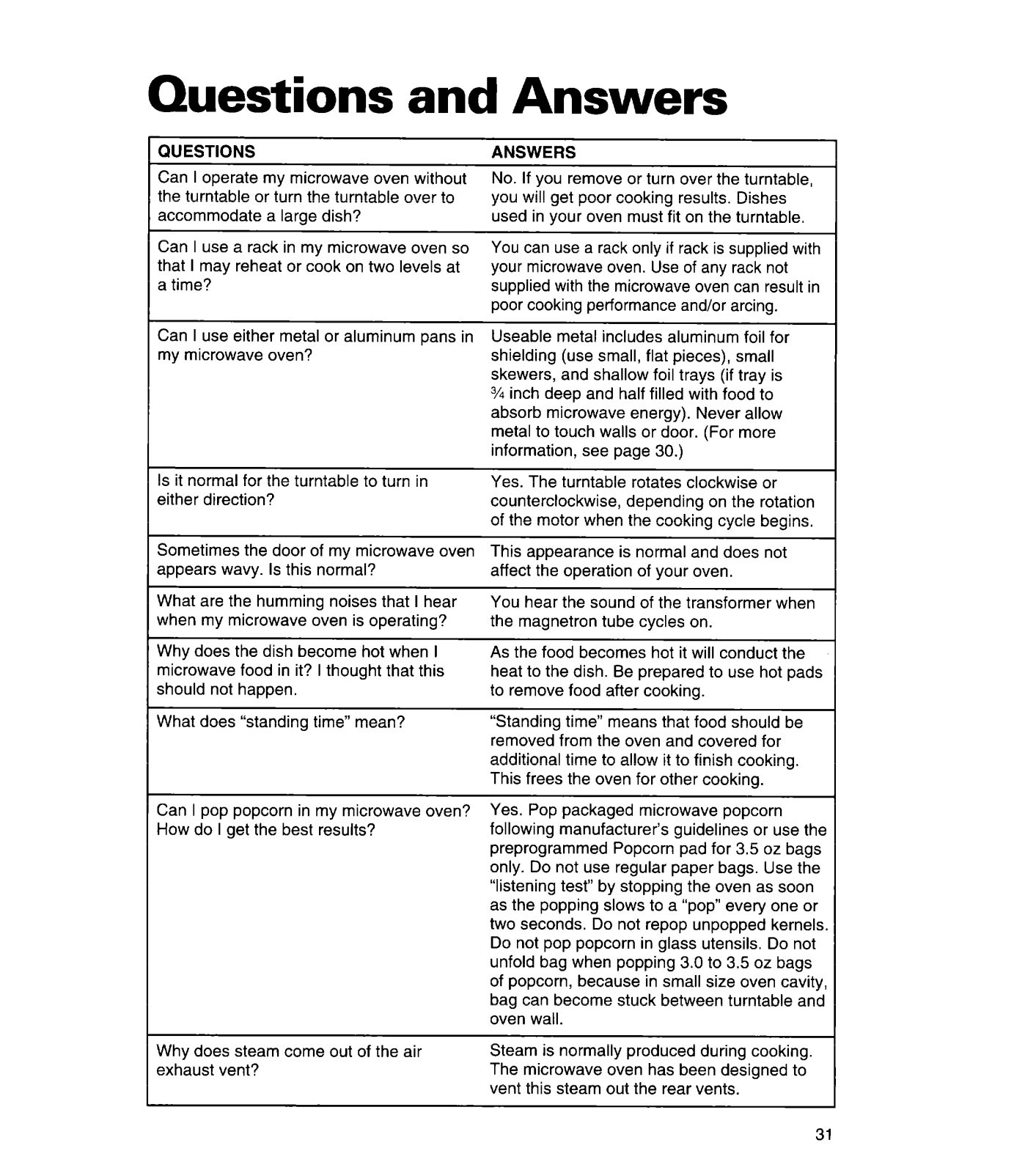

Frequently Asked Questions

Can I operate my microwave oven without the turntable, or flip the turntable upside down to be able to fit a large dish in?

No. If the turntable is removed or turned over then cooking results will be poor. The dishes you use in the oven will require the turntable to rotate.

My question is whether I can place a rack in my microwave for double level reheating or cooking?

A rack may be used only if it is originally provided with the microwave. The use of racks outside those provided may risk poor performance and/or arcing of the microwave.

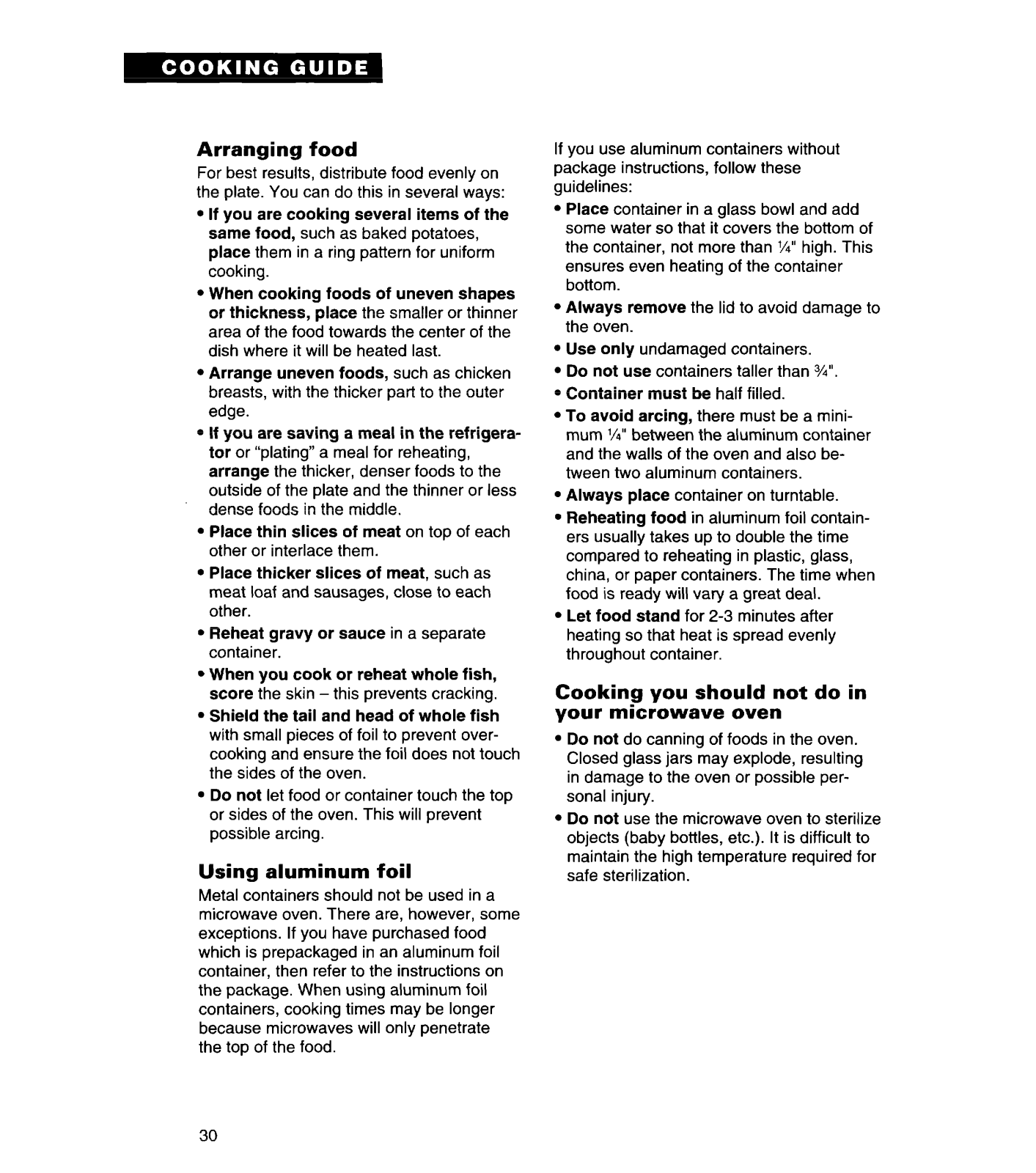

My question is whether I can use either a metal or aluminum pan with my microwave oven?

Aluminum foil for shielding can be used as metal along small flat pieces, shallow skewers and shallow foil trays contains foil that is more than ¾ inch deep filled with food to absorb microwave energy. Never let metal rods touch the walls or door.

Is it strange for the turntable to rotate in any direction?

Yes, the direction in which the turntable goes when a new cooking cycle starts is determined by its position at the end of the previous cycle.

On occasions, the door of my microwave oven is shown to be quite wavy, is this correct?

This is how it looks, and rest assured that this does not impact how well your oven works.

Why are there humming sounds coming from my microwave oven when it is set to run?

The sound which you hear is that of the transformer when magnetron tube is switched on and off.

Why does the dish become hot when I microwave food in it? I thought This ought not to happen.

After cooking, since the food gets hot, it will transfer the heat towards the dish. Thus, be ready to apply hot pads while removing food after cooking.

Explain the term “standing time.”

“Standing time” refers to the time which food is covered with a cloth after being taken out from the microwave oven in order to complete the cooking process.

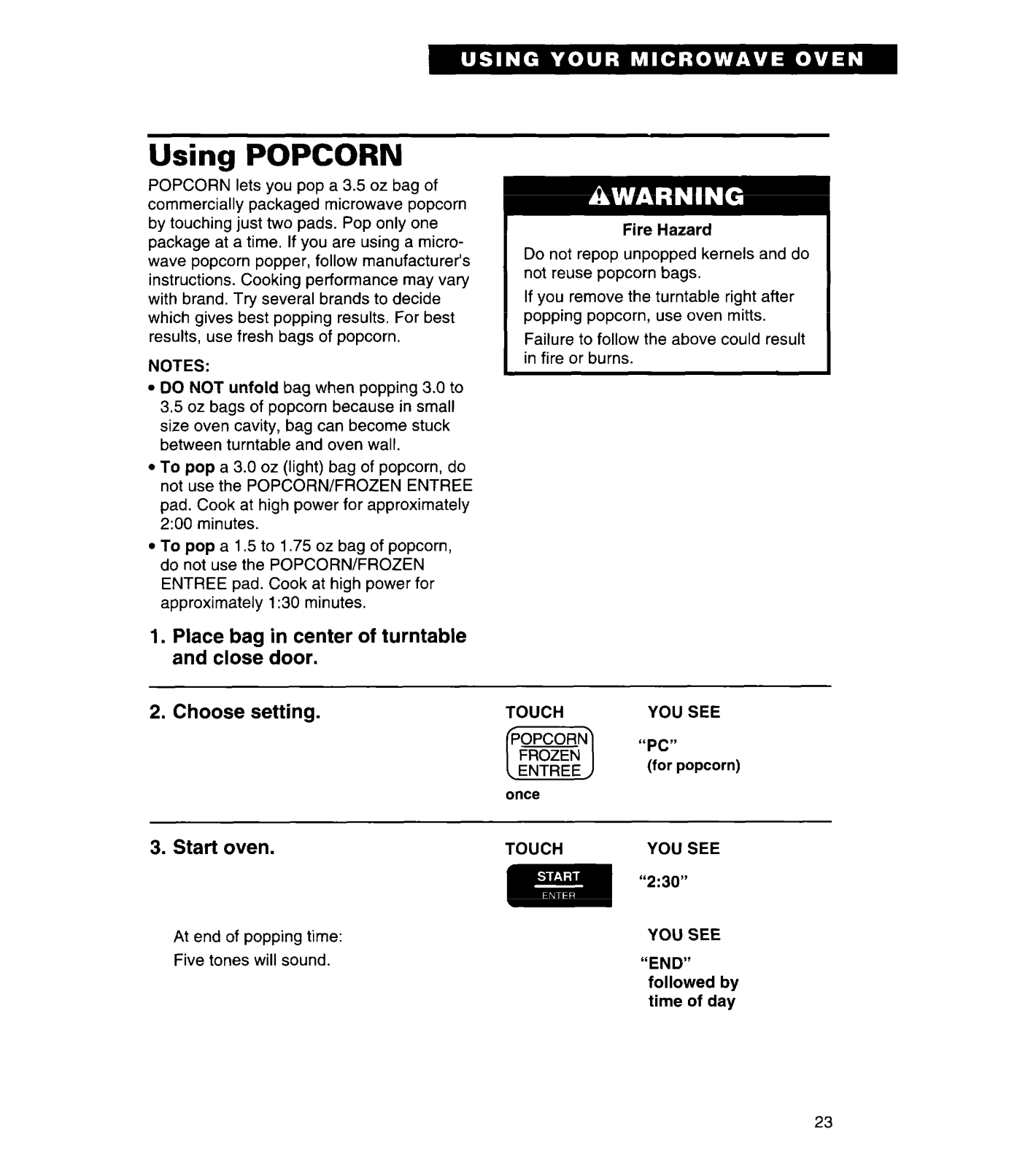

Am I allowed to fulgurate popcorn in the microwave oven? What procedure do I follow to achieve the better outcomes?

Yes. Use packaged microwave popcorn that describes how to use. Alternatively, use the Popcorn pad on the microwave, but this is designed only for 3.5 oz bags. The normal paper bags should not be used.

What is the reason for steam to come out of the air exhaust vent?

During the preparation of food, steam is usually released. Engineers of the microwave oven have provided for the removal of this steam from the rear vents of the appliance.
