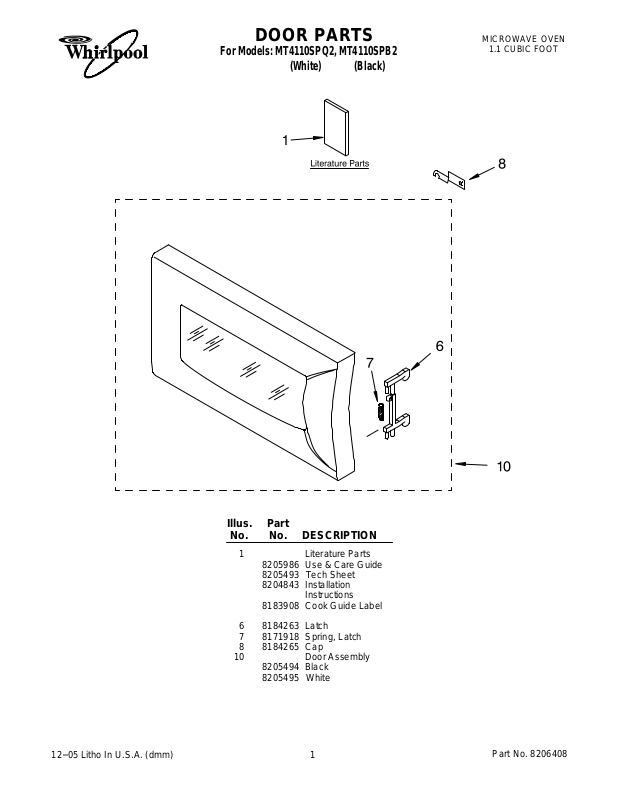

DOOR PARTS
For Models: MT4110SPQ2, MT4110SPB2
(White) (Black)
MICROWAVE OVEN
1.1 CUBIC FOOT
12−05 Litho In U.S.A. (dmm)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8205986 Use & Care Guide
8205493 Tech Sheet
8204843 Installation
Instructions
8183908 Cook Guide Label
6 8184263 Latch
7 8171918 Spring, Latch
8 8184265 Cap
10 Door Assembly
8205494 Black
8205495 White
1
Part No. 8206408
Page 2
CONTROL PANEL PARTS
For Models: MT4110SPQ2, MT4110SPB2
(White) (Black)
Illus. Part
No. No. DESCRIPTION
1 Window
4359720 White Model
8204891 Black Model
2 Button
8204895 Black
8204894 White
3 Switch, Membrane
8204890 Black
8204889 White 4 8184269 Lever, Release 5 Control Panel
8204893 Black
8204892 White
6 8204896 Microcomputer
7 8184272 Spring
10 8184272 Screw
2
8206408
Page 3

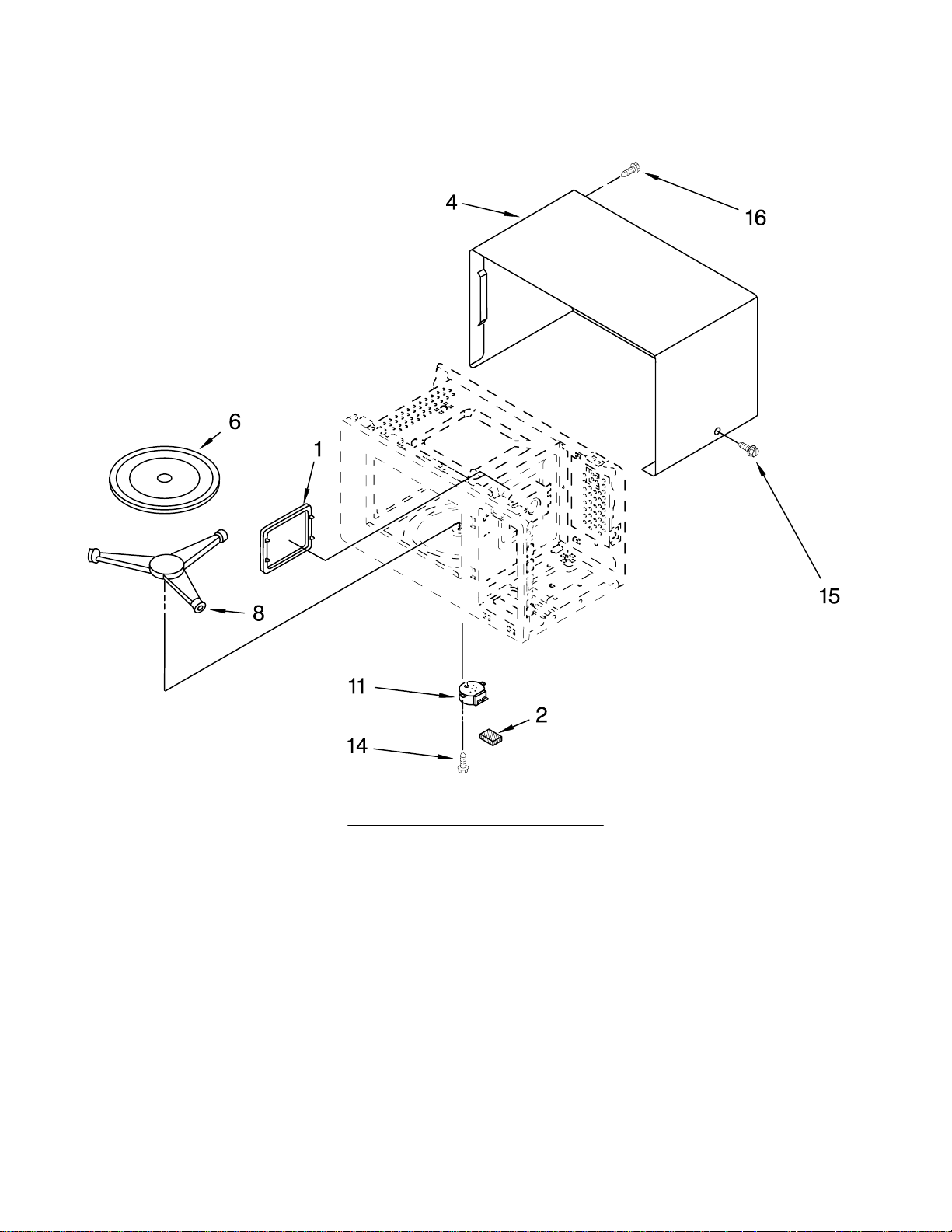

OVEN CAVITY PARTS
For Models: MT4110SPQ2, MT4110SPB2
(White) (Black)
8206408
Illus. Part
No. No. DESCRIPTION
1 8184278 Canopy
2 4359781 Cushion
4 Outer Case
8205496 Black
8184280 White
6 8204899 Tray, Glass
8 8184282 Turntable Support
11 8184283 Motor, Synchronous
14 4358188 Screw
15 Screw
4358829 Black
4358362 White
16 8171862 Screw
3
Page 4

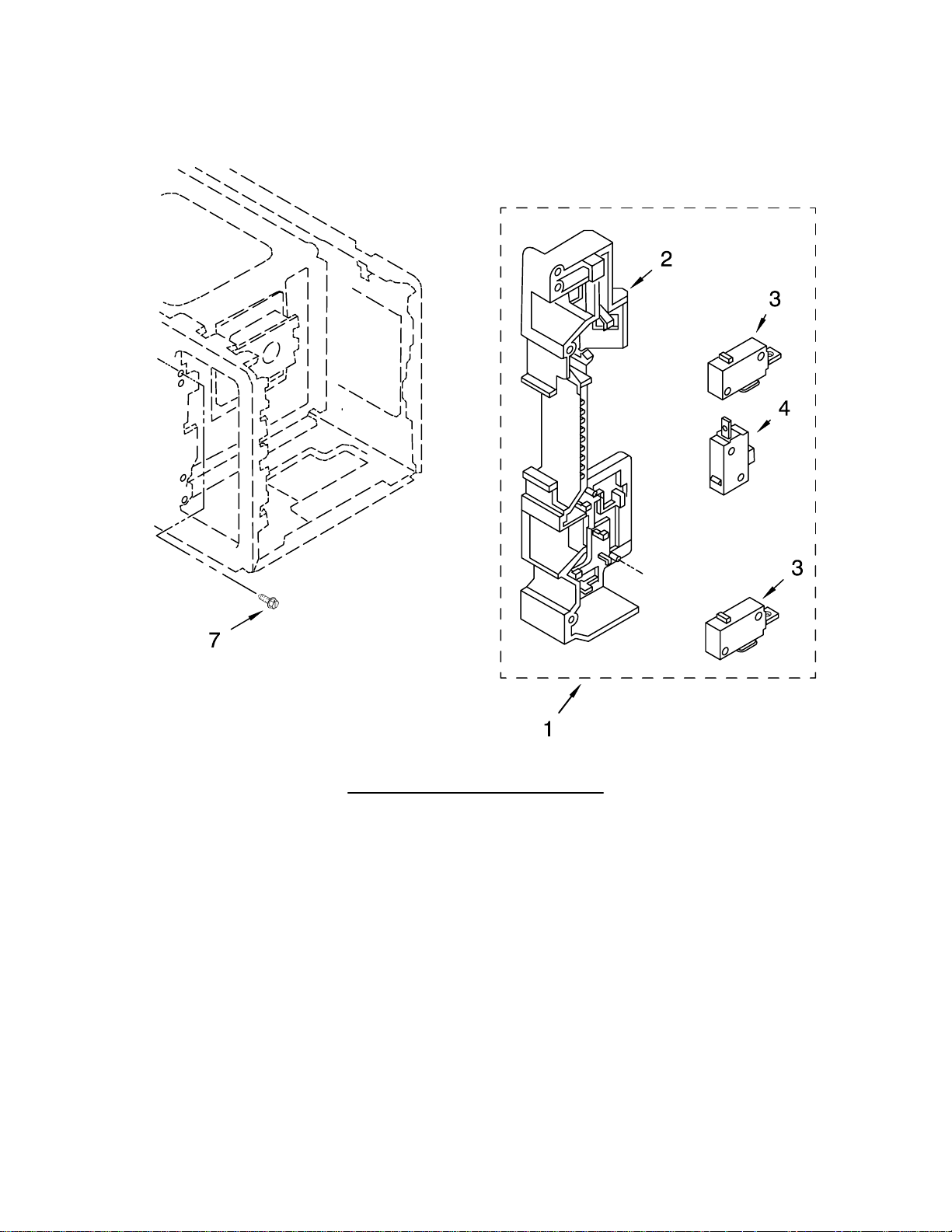

LATCH BOARD PARTS
For Models: MT4110SPQ2, MT4110SPB2
(White) (Black)
Illus. Part
No. No. DESCRIPTION
1 Latch Board Assembly
(Non−Serviceable)
2 8185271 Latch Board
3 8184285 Switch Micro
Primary/Secondary
4 8184286 Switch, Micro
Monitor
7 4358271 Screw
4
8206408
Page 5

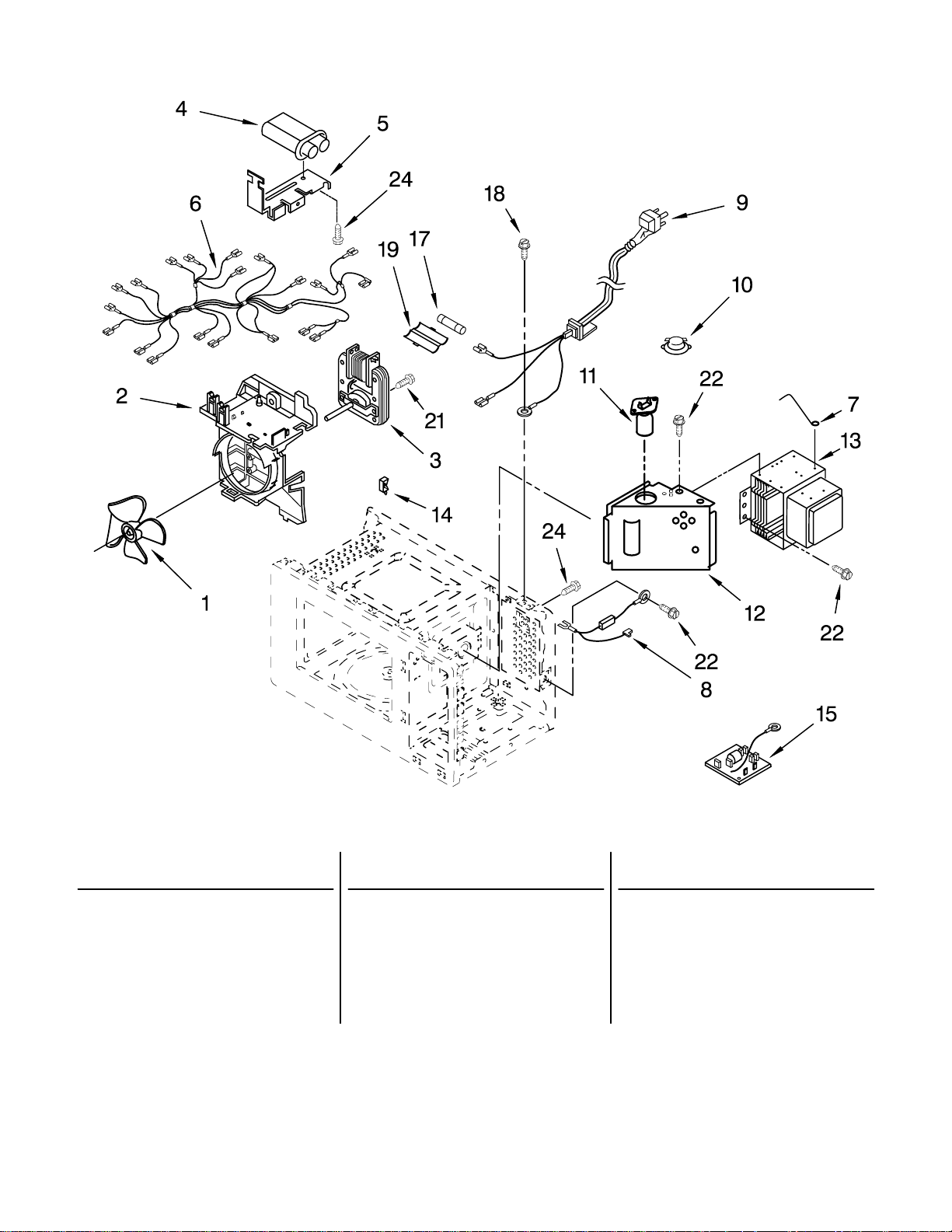

OVEN INTERIOR PARTS
For Models: MT4110SPQ2, MT4110SPB2
(White) (Black)
Illus. Part
No. No. DESCRIPTION
1 8184292 Blade, Fan
2 8184289 Guide, Suction
3 8183767 Motor, Fan
4 8184619 H.V. Capacitor
5 8184288 H.V.C Bracket
6 8206311 Leadwire Assembly
7 8184290 Bracket, Support
8206408
Illus. Part
No. No. DESCRIPTION
8 8184295 H.V. Diode Cable
9 8184381 Power Cord
10 4359164 Thermostat
11 8171810 Lamp, Baseless
12 8184291 Duct, Air
13 8205460 Magnetron
14 4359794 Holder
15 8206270 Filter, Noise
5
Illus. Part
No. No. DESCRIPTION
17 8183507 Fuse
18 8204902 Screw, Ground
19 8205483 Cap
21 4358190 Screw
22 4358489 Screw
24 4358381 Screw
Page 6

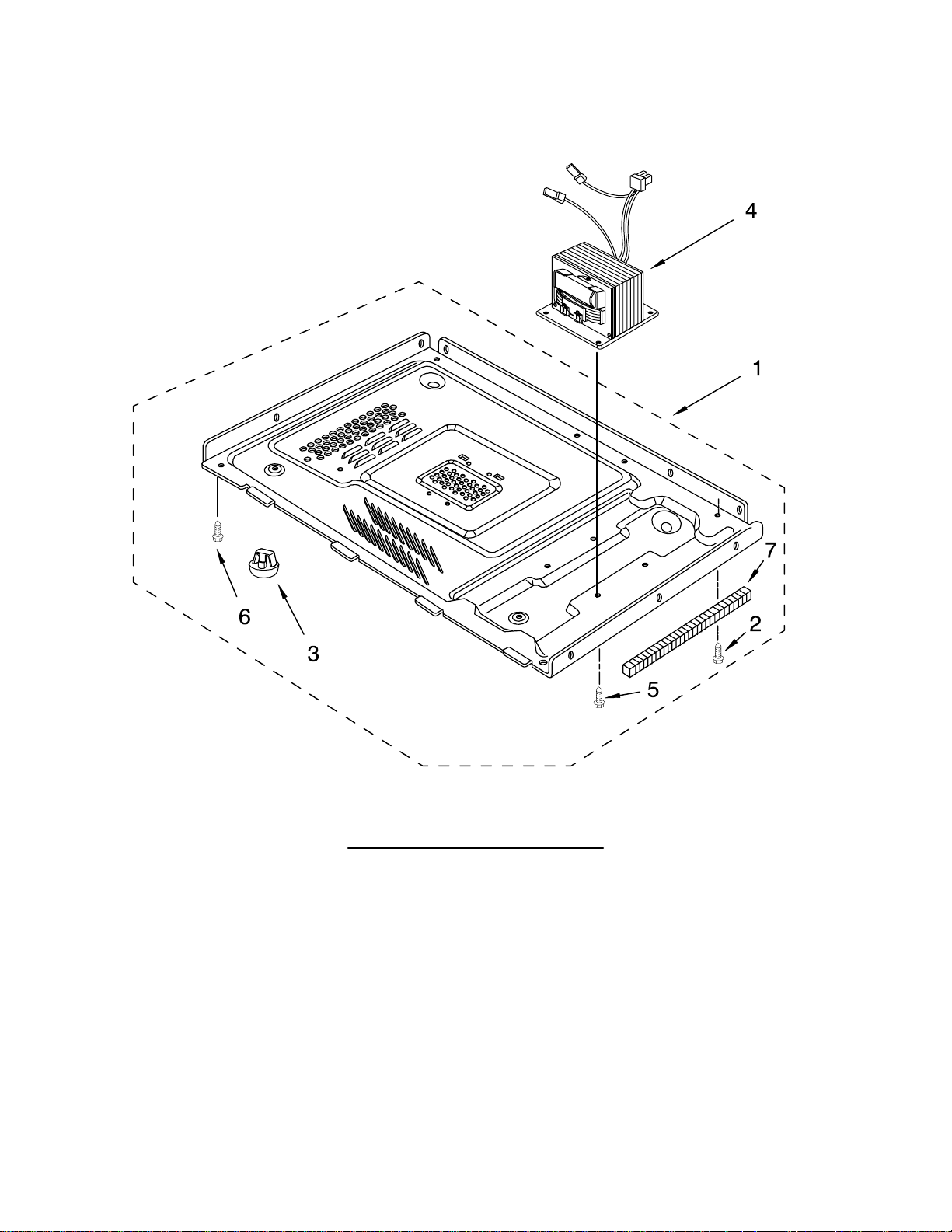

BASE PLATE PARTS
For Models: MT4110SPQ2, MT4110SPB2
(White) (Black)
Illus. Part
No. No. DESCRIPTION
1 8184297 Base Plate
2 4358192 Screw
3 8184298 Leg
4 8184293 Transformer
5 4358489 Screw
6 4358381 Screw
7 4158967 Cushion
6
8206408
