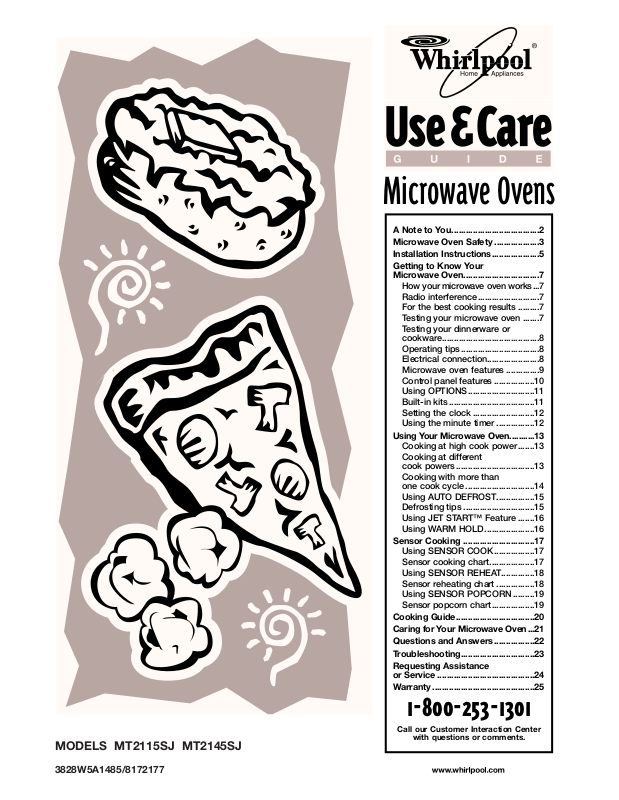

MODELS MT2115SJ MT2145SJ
3828W5A1485/8172177
Microwave Ovens
A Note to You.....................................2
Microwave Oven Safety ...................3
Installation Instructions....................5
Getting to Know Your
Microwave Oven................................7
How your microwave oven works...7
Radio interference..........................7
For the best cooking results .........7
Testing your microwave oven .......7
Testing your dinnerware or
cookware.........................................8
Operating tips.................................8
Electrical connection......................8
Microwave oven features ..............9
Control panel features .................10
Using OPTIONS............................11
Built-in kits ....................................11
Setting the clock ..........................12
Using the minute timer ................12
Using Your Microwave Oven...........13
Cooking at high cook power.......13
Cooking at different
cook powers.................................13
Cooking with more than
one cook cycle .............................14
Using AUTO DEFROST................15
Defrosting tips ..............................15
Using JET START™ Feature .......16
Using WARM HOLD.....................16
Sensor Cooking ..............................17
Using SENSOR COOK.................17
Sensor cooking chart...................17
Using SENSOR REHEAT..............18
Sensor reheating chart ................18
Using SENSOR POPCORN .........19
Sensor popcorn chart..................19
Cooking Guide.................................20
Caring for Your Microwave Oven...21
Questions and Answers.................22
Troubleshooting...............................23
Requesting Assistance
or Service .........................................24
Warranty...........................................25
1-800-253-1301
Call our Customer Interaction Center
with questions or comments.
2
A NOTE TO YOU
Thank you for buying a WHIRLPOOL®appliance.
The Whirlpool®Brand is committed to designing quality products that consistently perform for you to make your
life easier. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide.
It is full of valuable information about how to operate and maintain your appliance properly. Please read it
carefully.
Also, complete and mail the Product Registration Card provided with your appliance. The card helps us
notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service for your appliance,
you need to know your complete model number and
serial number. You can find this information on the
model and serial number label/plate (see the diagram in
the “Getting to Know Your Microwave Oven” section).
Please also record the purchase date of your appliance
and your dealer's name, address, and telephone number.
Keep this book and the sales slip together in a safe place for future reference. It is important
for you to save your sales receipt showing the date of purchase. Proof of purchase will assure
you of in-warranty service.
Our Customer Interaction Center number is toll free.
1-800-253-1301
Model Number ________________________________
Serial Number ________________________________
Purchase Date ________________________________
Dealer Name __________________________________
Dealer Address________________________________
Dealer Phone ________________________________
To find detailed product information, the location of the nearest Whirlpool dealer or designated servicer, to
purchase an accessory item, or register your appliance on-line, please visit our Web site at
www.whirlpool.com
3
continued on next page
MICROWAVE OVEN SAFETY
•
As with any appliance, close supervision is
necessary when used by children.
•
Do not operate the microwave oven if it has a
damaged cord or plug, if it is not working properly,
or if it has been damaged or dropped.
•
The microwave oven should be serviced only by
qualified service personnel. Call an authorized
service company for examination, repair or
adjustment.
•
Do not cover or block any openings on the
microwave oven.
•
Do not store the microwave oven outdoors. Do
not use the microwave oven near water – for
example, near a kitchen sink, in a wet basement,
or near a swimming pool, and the like.
•
Do not immerse cord or plug in water.
•
Keep cord away from heated surfaces.
•
Do not let cord hang over edge of table or
counter.
•
See door surface cleaning instructions in the
“Caring for Your Microwave Oven” section.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the following:
WARNING: To reduce the risk of burns,
electric shock, fire, injury to persons or exposure
to excessive microwave energy:
•
Read all instructions before using the
microwave oven.
•
Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” found in this section.
•
The microwave oven must be grounded. Connect
only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found in the “Installation
Instructions” section.
•
Install or locate the microwave oven only in
accordance with the installation instructions.
•
Some products such as whole eggs and sealed
containers – for example, closed glass jars –
may explode and should not be heated in the
microwave oven.
•
Use the microwave oven only for its intended use
as described in this manual. Do not use corrosive
chemicals or vapors in the microwave oven. This
type of oven is specifically designed to heat,
cook, or dry food. It is not designed for industrial
or laboratory use.
SAVE THESE INSTRUCTIONS
Your safety and the safety of others are very important.
wDANGER
wWARNING
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or
“WARNING.” These words mean:
4
MICROWAVE OVEN SAFETY
SAVE THESE INSTRUCTIONS
•
Do not operate any heating or cooking appliance
beneath the microwave oven.
•
Do not mount microwave oven over or near any
portion of a heating or cooking appliance.
•
Do not mount over a sink.
•
Do not store anything directly on top of the
microwave oven surface when the microwave
oven is in operation.
•
To reduce the risk of fire in the oven cavity:
– Do not overcook food. Carefully attend the
microwave oven if paper, plastic, or other
combustible materials are placed inside the
oven to facilitate cooking.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a)Do not attempt to operate this oven with the
door open since open-door operation can result
in harmful exposure to microwave energy. It is
important not to defeat or tamper with the safety
interlocks.
(b)Do not place any object between the oven front
face and the door or allow soil or cleaner residue
to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is
particularly important that the oven door close
properly and that there is no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by
anyone except properly qualified service personnel.
IMPORTANT SAFETY INSTRUCTIONS
– Remove wire twist-ties from paper or plastic
bags before placing bag in oven.
– If materials inside the oven should ignite, keep
oven door closed, turn oven off, and disconnect
the power cord, or shut off power at the fuse or
circuit breaker panel.
– Do not use the cavity for storage purposes. Do
not leave paper products, cooking utensils, or
food in the cavity when not in use.
5
INSTALLATION INSTRUCTIONS
Before you begin operating the oven, carefully read the following instructions.
1. Empty the microwave oven and clean inside it with
a soft, damp cloth. Check for damage such as a
door that isn’t lined up correctly, damage around
the door, or dents inside the oven or on the
exterior. If there is any damage, do not operate the
oven until a designated service technician has
checked it and made any needed repairs.
2. Put the oven on a cart, counter, table, or shelf that is
strong enough to hold the oven and the food and
utensils you put in it. (The control side of the unit
is the heavy side. Use care when handling the
oven.) The weight of the oven is about 35 lbs
(16 kg). The microwave oven should be at a
temperature above 50°F (10°C) for proper operation.
NOTE: (For Model MT2145SJ only) You can build
your microwave oven into a wall or cabinet by using
one of the trim kits listed in the “Built-in kits” section.
NOTE: Do not block the exhaust vents or air intake
openings. Allow a few inches of space at the back
and side of the oven where the exhaust vents are located. Blocking the exhaust vents could cause
damage to the oven and poor cooking results. Make
sure the microwave oven legs are in place to ensure
proper airflow. If vents are blocked, a sensitive
thermal safety device
automatically turns the oven off. The oven should
work properly once it has cooled.
wWARNING
Fire Hazard
Do not install the oven next to or over a heat
source without a UL approved trim kit.
Doing so can result in death, fire,
or electrical shock.
Observe all governing codes and ordinances. A 120
Volt, 60 Hz, AC only, 15- or 20-amp fused electrical
supply is required. (A time-delay fuse is
recommended.) It is recommended that a separate
circuit serving only this appliance be provided.
wWARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
ELECTRICAL REQUIREMENTS
Air intake
opening
(in rear)
Power
supply cord
Exhaust vent
(on side)
6
INSTALLATION INSTRUCTIONS
ELECTRICAL REQUIREMENTS (CONT.)
GROUNDING INSTRUCTIONS
•
For all cord connected appliances:
The microwave oven must be grounded. In the
event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an
escape wire for the electric current. The
microwave oven is equipped with a cord having
a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly
installed and grounded.
WARNING: Improper use of the grounding plug
can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely
understood
, or if doubt exists as to whether the
microwave oven is properly grounded.
Do not use an extension cord. If the power supply
cord is too short, have a qualified electrician or
serviceman install an outlet near the microwave oven.
•
For a permanently connected appliance:
The microwave oven must be connected to a
grounded, metallic, permanent wiring system, or
an equipment grounding conductor should be run
with the circui
t conductors and connected to the
equip
ment grounding terminal or lead on the
microwave oven.
SAVE THESE INSTRUCTIONS
7
GETTING TO KNOW YOUR MICROWAVE OVEN
This section discusses the concepts behind microwave cooking. It also shows you the basics
you need to know to operate your microwave oven. Please read this information before you use
your oven.
RADIO INTERFERENCE
Using your microwave oven may cause interference
to your radio, TV, or similar equipment. When there is
interference, you can reduce it or remove it by:
•
Cleaning the door and sealing surfaces of the oven.
•
Adjusting the receiving antenna of the radio or
television.
•
Moving the receiver away from the microwave oven.
•
Plugging the microwave oven into a different outlet
so that the microwave oven and receiver are on
different branch circuits.
FOR THE BEST COOKING RESULTS
•
Always cook food for the shortest cooking time
recommended. Check to see how the food is
cooking. If needed, touch JET START™ Feature
pad while the oven is operating or after the cooking
cycle is over (see the “Using JET START™ Feature”
section).
•
Stir, turn over, or rearrange the food being cooked
about halfway through the cooking time for all
recipes. This will help make sure the food is evenly
cooked.
•
If you do not have a cover for a dish, use wax
paper, or microwave-approved paper towels or
plastic wrap. Remember to turn back a corner of
the plastic wrap to vent steam during cooking.
TESTING YOUR MICROWAVE OVEN
To test the oven, put 1 cup (250 mL) of cold water in
a glass container in the oven. Close the door. Make
sure it latches. Cook at 100% power for 2 minutes.
When the time is up, the water should be heated.
HOW YOUR MICROWAVE
OVEN WORKS
Microwave energy is not hot. It causes food to make
its own heat, and it’s this heat that cooks the food.
Microwaves are like TV waves, radio waves, or light
waves. You cannot see them, but you can see what
they do.
A magnetron in the microwave oven produces
microwaves. The microwaves move into the oven
where they contact food as it turns on the turntable.
Your oven has a MAXWAVE™ multiple microwave
distribution system. Microwave energy is released
from two locations, giving you better, more even
cooking.
The glass turntable of your microwave oven lets
microwaves pass through. Then they bounce off a
metal floor, back through the glass turntable, and are
absorbed by the food.
Microwaves pass through most glass, paper, and
plastics without heating them so food absorbs the
energy. Microwaves bounce off metal containers so
food does not absorb the energy.
Oven cavity
Metal floor
Glass turntable
Magnetron
8
GETTING TO KNOW YOUR MICROWAVE OVEN
•
Never cook or reheat a whole egg inside the
shell. Steam buildup in whole eggs may cause
them to burst, and possibly damage the oven.
Slice hard-boiled eggs before heating. In rare
cases, poached eggs have been known to explode.
Cover poached eggs and allow a standing time of
one minute before cutting into them.
•
For best results, stir any liquid several times
during heating or reheating. Liquids heated in
certain containers (especially containers shaped like
cylinders) may become overheated. The liquid may
splash out with a loud noise during or after heating
or when adding ingredients (coffee granules, tea
bags, etc.). This can harm the oven.
•
Microwaves may not reach the center of a roast.
The heat spreads to the center from the outer,
cooked areas just as in regular oven cooking. This is
one of the reasons for letting some foods (for
example, roasts or baked potatoes) stand for a while
after cooking, or for stirring some foods during the
cooking time.
•
Do not deep fry in the oven. Microwavable
utensils are not suitable and it is difficult to maintain
appropriate deep-frying temperatures.
•
Do not overcook potatoes. At the end of the
recommended cooking time, potatoes should be
slightly firm because they will continue cooking
during standing time. After microwaving, let
potatoes stand for 5 minutes. They will finish
cooking while standing.
ELECTRICAL CONNECTION
If your electric power line or outlet voltage is less
than 110 volts, cooking times may be longer. Have a
qualified electrician check your electrical system.
TESTING YOUR DINNERWARE
OR COOKWARE
Test dinnerware or cookware before using.
To test a dish for safe use, put it into the oven
with 1 cup (250 mL) of water beside it. Cook at 100%
cook power for one minute. If the dish gets hot and
water stays cool, do not use it. Some dishes
(melamine, some ceramic dinnerware, etc.) absorb
microwave energy, slowing cooking times. Cooking in
metal containers not designed for
microwave use could damage the oven, as could
containers with hidden metal (twist-ties, foil lining,
staples, metallic glaze or trim).
OPERATING TIPS
•
Never lean on the door or allow a child to swing on
it when the door is open.
•
Use hot pads. Microwave energy does not heat
containers, but the heat from the food can make the
container hot.
•
Do not use newspaper or other printed paper in the
oven.
•
Do not dry flowers, fruit, herbs, wood, paper,
gourds, or clothes in the oven.
•
Do not start a microwave oven when it is empty.
Product life may be shortened. If you practice
programming the oven, put a container of water in
the oven. It is normal for the oven door to look
wavy after the oven has been running for a while.
•
Do not try to melt paraffin wax in the oven. Paraffin
wax will not melt in a microwave oven because it
allows microwaves to pass through it.
•
Do not operate the microwave oven unless the
glass turntable is securely in place and can rotate
freely. The turntable can rotate in either direction.
Make sure the turntable is correct-side up in the
oven. Handle your turntable with care when
removing it from the oven to avoid possibly break-
ing it. If your turntable cracks or breaks, contact
your dealer for a replacement.
•
When you use a browning dish, the browning
dish bottom must be at least 3⁄16 in. (5 mm) above
the turntable. Follow the directions supplied with
the browning dish.
Loading...
