Page 1
\Vhi-rlp<M)l
/ htome^K Applances

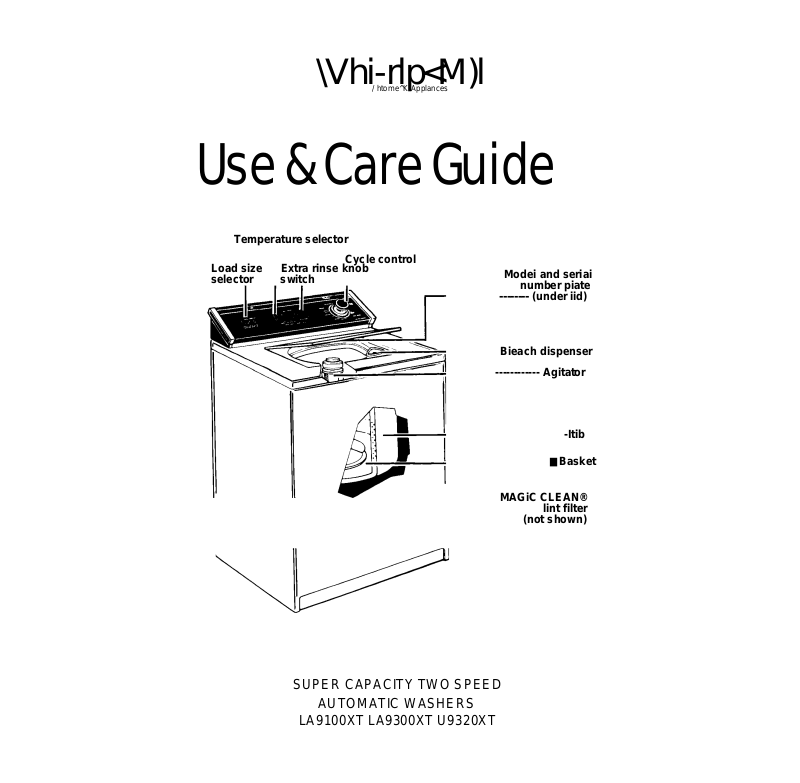

Use & Care Guide
Temperature selector
Load size
selector
Extra rinse knob
switch
Cycle control
Modei and seriai
number piate
--------
(under iid)
Bieach dispenser
------------ Agitator
-Itib
SUPER CAPACITY TWO SPEED
AUTOMATIC WASHERS
LA9100XT LA9300XT U9320XT
■ Basket
MAGiC CLEAN®
lint filter
(not shown)
Page 2
Contents
Important Safety
Instructions.................................... 3
Operating Instructions
Starting your washer ................ 4-5
What happens in each cycle .. 5-9
Other Operating instructions
Rinse and spin
Extra rinse option....................... 10
Drain and spin............................ 10

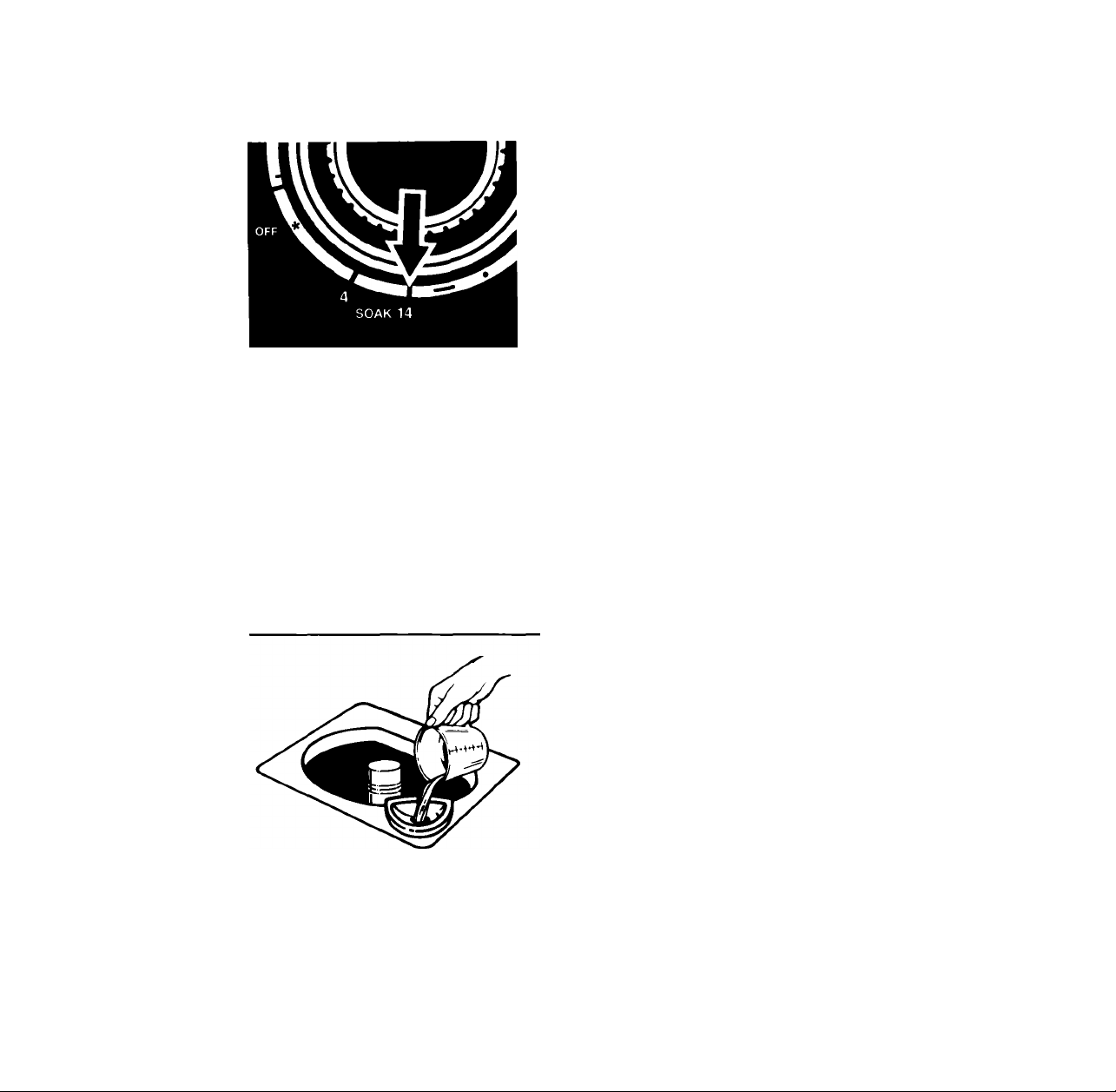

Soak cycle................................. 11
MAGIC CLEAN® lint filter .... 11
Liquid bleach dispenser
If You Need Service Or
Assistance
Whirlpooi Automatic
Washer Warranty
©1989 Whirlpool Corporation
..........................
.........
...............................
.........................
Page
10
11
12-13
16
* •
Thank you for buying a Whirlpool
appliance. Please complete and mail
the Owner Registration Card provided
with this product. Then complete the
form below. Have this information ready
if you need service or call with a
question.
• Copy model and serial numbers
from plate (under lid near hinge) and
the purchase date from the sales slip.
• Keep this book, the Laundry Guide
and the sales slip together in a
handy place.
Model Number
Serial Number
Purchase Date
Service Company Phone Number
If your washer has a Consumer Buy
Guide label, remove it. It will be easier
to remove before the washer is used.
To remove any remaining glue:
• Rub briskly with thumb to make a ball,
then remove.
or
• Soak area with liquid hand dishwash
ing detergent before removing glue as
described above.
Do not use sharp instruments,
rubbing alcohol, flammable fluids or
abrasive cleaners. These can damage
the finish. See “Important Safety
Instructions" on page 3.
Page 3
Important Safety Instructions
AWARNING
To reduce the risk of fire, electrical shock, or
injury to persons when using your washer, fol
low basic precautions, including the foilowing:
• Read all instructions before
using the washer.
• NEVER wash items cleaned,
washed, soaked in or spotted with
wax, paint, gasoline, or in flamma
ble fluids in the washer. The fumes
can create a FiRE HAZARD or
EXPLOSION. ALWAYS hand
launder and air dry fabrics contain
ing these materials.
• NEVER allow children to operate,
play with, or crawl inside the
washer. Close supervision of
children is necessary when the
washer is used near children.
• When discarding an old washer,
ALWAYS remove the lid to prevent
accidental entrapment.
• NEVER put your hands into the
washer until all motion stops. If the
lid is opened while the basket is
spinning, the basket will automati
cally stop in a few seconds.
• DO NOT tamper with controls.
• NEVER use or store flammable
fluids (dry-cleaning solvents,
kerosene) in or near your washer.
DO NOT add flammable fluids to the
wash water. These substances
- SAVE THESE INSTRUCTIONS -
give off vapors that can create a
FIRE HAZARD or EXPLOSION.
• If hot water has not been used
recently (usually 2 weeks or
longer), hydrogen gases may build
up in the water heater and the hot
water pipes. HYDROGEN GAS IS
EXPLOSIVE. To prevent injury or
damage, before using your washer,
turn on all hot water faucets and
allow water to run for several
minutes. This will allow gases to
escape. DO NOT smoke or use
any open flame near the faucet
while it is open.
• You are responsible for mak
ing sure that your washer:
- is installed, repaired, and has
parts replaced by a qualified
person.
- is properly installed and leveled
on a floor that can support the
weight.*
- is connected to the right kind of
outlet, electric supply, water
supply and drain.*
- is properly grounded.*
- is properly maintained.*
- is protected from the weather
and kept where the temperature
will not fall below freezing.
*See the Installation Instructions.
Additional safety instructions and your responsibilities
• ALWAYS store detergent, laundry
aids and other materials in a cool, dry
place where children can't reach them
- in a locked cabinet if possible.
• ALWAYS read and follow instructions
on packages of detergent and laundry
aids - especially warnings and
precautions.
• HAZARDOUS FUMES can be
formed if chlorine bleach is used in
the same wash as ammonia or acids
such as vinegar or rust remover.
• ALWAYS unplug the power supply
cord before attempting to sen/ice
the washer.
• DO NOT machine wash glass fiber
materials. Small particles can stick to
fabrics washed in following loads and
cause skin irritation.
• You are responsible for making
sure that your washer:
- is used only for jobs normally ex
pected of home automatic washers.
- is not run by children or anyone
unable to operate it properly.
Page 4
Operating Instructions
The drawings in this book may vary slightly from your washer model. They are
designed to show the different features of all the models covered by this book.
NOTE: Your model may not include all the features shown.
Starting your washer
Be sure to measure and add detergent, then place a sorted load in the washer before
starting it.
1. Select a load size
• Position the Load Size Selector at the
setting that describes the size of load
you want to wash.
• The selector can be set anywhere on
EX SMALL MEDIUM EX LARGE
INFINITE WATER SAVING
LOAD SIZE SELECTOR
or between EX SMALL (a few small
items) and EX LARGE (a full load).
• To change the water level after the
washer has started to fill, slide the
selector to RESET, then to the desired
water level.
NOTE: For best washing results, items
should move freely in the washer. Do
not overload the washer or choose a
water level that is too low for your wash
load.
For best results with permanent
press clothes, use the EX LARGE water
level.
Reduce wash time when using EX
SMALL or SMALL water level settings.
Loads with only a few small items need
less wash time for best results.
•
(models LA9300XT, LA9320XT)
2. Touch a temperature selection
• Match the water temperature to the
type of fabric and soils being washed.
• The top temperature is the wash
selection and the bottom temperature
is the rinse selection.
• An indicator shows which temperature
has been selected.
NOTE: Use warm wash water with the
PERMANENT PRESS or KNITS/
GENTLE Cycles.
For heavily soiled permanent press
or knit clothes, pre-soak before washing
in warm water.
ALWAYS use cold rinse water for
permanent press fabrics.
Page 5

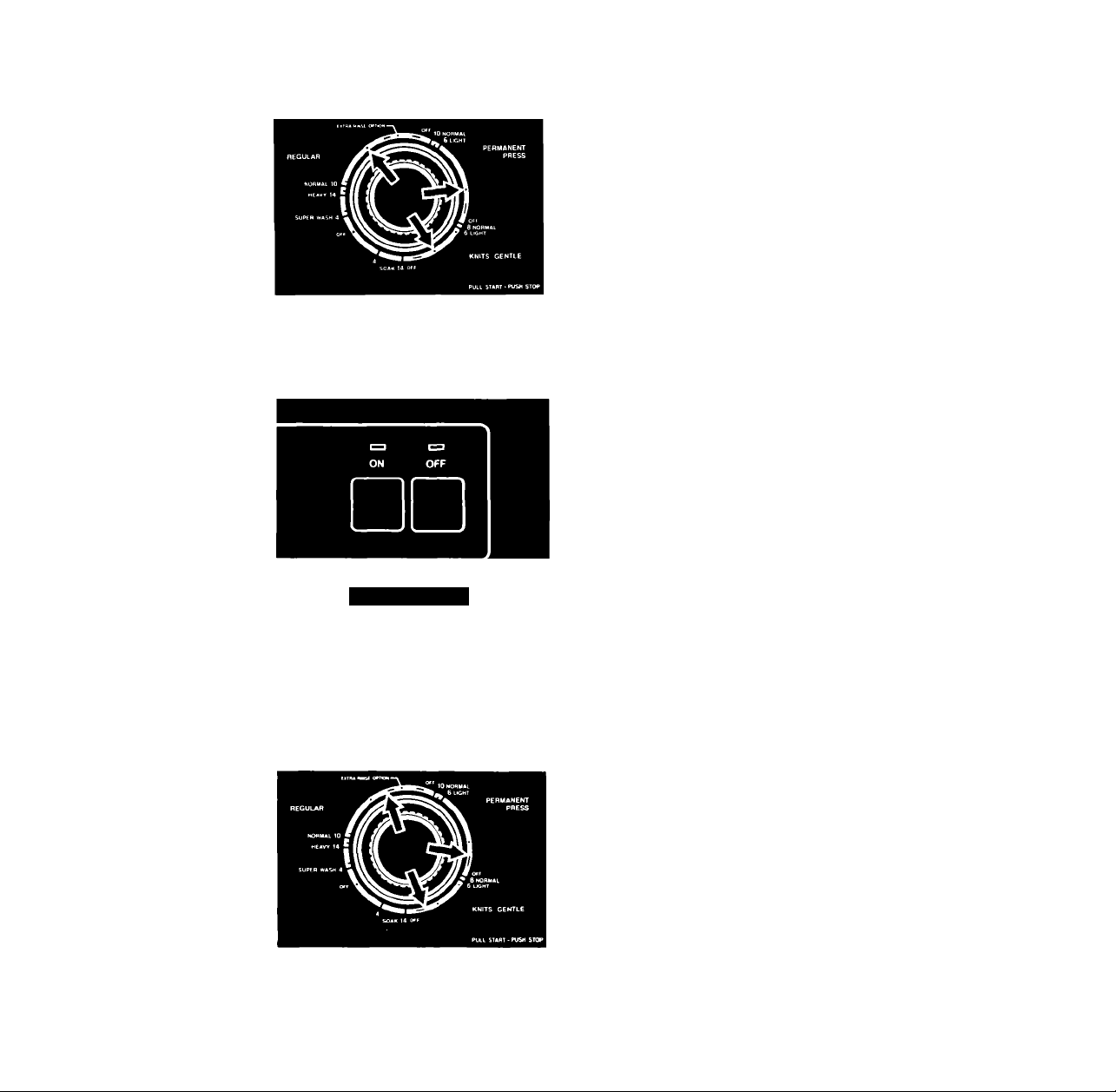

3. Select cycle and wash time
Start the washer
• Push in the Cycle Control Knob and
turn it to the right.
• Stop on the number in the wash cycle
you want. The numbers are minutes of
wash time.
• Start the washer by pulling out the
Cycle Control Knob. The washer will
fill to the selected water level with the
selected wash water temperature.
After filling, the washer will agitate for
the selected number of minutes.
• To stop the washer at any time, push
in the Cycle Control Knob. To restart
the washer, pull out the Cycle
Control Knob.
What happens in each cycle
Each cycle has different agitation and
spin speeds designed for different kinds
of fabrics.
Numbers on the dial in each cycle are
the minutes of wash agitation time.
When the Cycle Control Knob is set
to a number and pulled out, the washer
fills before agitation and timing starts.
After agitation starts, the knob turns
clockwise until it points to OFF and the
cycle ends.
Gentle Wash System
For better fabric care in the REGULAR
and PERMANENT PRESS Cycles, the
agitation speed is reduced during the
last few minutes of wash agitation time.
NOTE: You may hear the sound of
water spraying during the spin parts of
some cycles. In some cycles, water is
sprayed on the spinning load to help
with the rinsing.
The washer will pause briefly
throughout each cycle. These pauses
are normal. They allow for the reversing
of the motor, normal washer operation
and the cool-down portion of the
PERMANENT PRESS Cycle.
Page 6
Operating Instructions
Continued
Regular/Heavy Cycle
A cycle for sturdily constructed fabrics
that are heavily soiled.
^ FILL
[ WASH
[ WASH
[ DRAIN
[ SPIN
to Selected Level
8-6 Minutes High Speed
6 Minutes Low Speed
No Agitation
High Speed
Regular/Normal Cycle
A cycle for regular loads of fabrics that
are moderately soiled.
FILL
[ RINSE
[ DRAIN
SPIN
for Deep Rinse
High Speed |
No Agitation
High Speed, Spray Rinses j
The washer will proceed to Extra
Rinse, if selected. See page 10.
The washer will proceed to Extra
Rinse, if selected. See page 10.
Page 7
Permanent Press/Normal Cycle
A cycle designed for moderately soiled
permanent press and some synthetic
fabrics. The cool-down rinse helps keep
wrinkles from setting into these items.
Permanent Press/Light Cycle
A cycle designed for lightly soiled per
manent press and some synthetic fab
rics. The cool-down rinse helps keep
wrinkles from setting into these items.
10 NORMAL
6 LIGHT
FILL to Selected Level
WASH
WASH
PARTIAL DRAIN (Pause)
REFILL COOL-DOWN
WASH
DRAIN
6 Minutes High Speed
PERMANENT
PRESS
4 Minutes Low Speed
Low Speed
No Agitation
10 NORMAL
^ 6 LIGHT
FILL to Selected Level
WASH 2 Minutes High Speed
WASH
PARTIAL DRAIN (Pause)
REFILL COOL-DOWN
WASH Low Speed
DRAIN
4 Minutes Low Speed
No Agitation
PERMANENT
PRESS
SPIN
FILL
RINSE High Speed
DRAIN
SPIN Low Speed, Spray Rinse
Low Speed
for Deep Rinse
No Agitation
SPIN
FILL
RINSE
DRAIN
SPIN Low Speed, Spray Rinse
Low Speed
for Deep Rinse
High Speed
No Agitation
Page 8
Operating Instructions
Continued
Knits Gentle/Normal Cycle
(models LA9300XT, LA9320XT)
A cycle that gently washes and spins
moderately soiled delicate items and
washable knits.
B NORMAL
6 LIGHT
KNITS GENTLE
PULL START • PUSH STOP
FILL
WASH
ASOAK
to Selected Level
4 Minutes Low Speed
2 Minutes No Agitation
WASH 2 Minutes Low Speed
Knits Gentle/Light Cycle
(models LA9300XT, LA9320XT)
Knits Gentle Cycle
(model LA9100XT)
A cycle that gently washes and spins
lightly soiled delicate items and
washable knits.
8 NORMAL
6 LIGHT
KNITS GENTLE
PULL START • PUSH STOP
FILL to Seiected Level
WASH
ASOAK
WASH
2 Minutes Low Speed |
2 Minutes No /^itation j
2 Minutes Low Speed
DRAIN
No Agitation
SPIN Low Speed
FILL
1 RINSE
[ DRAIN
SPIN
for Deep Rinse
Low Speed
No Agitation
Low Speed, Spray Rinse
DRAIN
SPIN
FILL for Deep Rinse
1 RINSE
DRAIN
SPIN
AIndicates that machine is pausing for a brief soak period.
No Agitation
Low Speed
Low Speed
No Agitation
Low Speed, Spray Rinse
______________
______
j
|
Page 9
Soak Cycle
Brief periods of agitation and soak time
help remove heavy soils and certain
stains that need extra pretreatment.
Use recommended amount of
detergent or pre-soak additive. The
SOAK Cycle should always be followed
by a wash cycle.
4
bCAK 14
Super Wash Cycle
Use for washing heavily soiled loads
that require maximum soil removal.
Double the amount of detergent
recommended when using the
SUPER WASH Cycle.
[^FILL ^
WASH^
I^SOAK^
WASH
to Selected Level
2 Minutes High Speed j
8 Minutes No Agitation
4 Minutes High Speed
_______
NOTE: Special care is needed when
soaking laundry. See the Laundry
Guide for proper use of this cycle.
J
After the partial drain, the washer
automatically refills and goes into the
REGULAR/HEAVY Cycle. Be sure to
use enough detergent for the double
wash.
Page 10
other Operating Instructions
Rinse and spin
When using extra detergent for heavily
soiled clothes, or washing special-care
items, you may want an extra rinse
and spin.
1. Push Cycle Control Knob in.
2. Turn clockwise to one of the dots on
the dial, as illustrated.
3. Pull Cycle Control Knob out. The
washer will fill to selected level,
agitate 2-4 minutes depending on
the cycle selected, drain and spin.
Extra rinse option
You can automatically add an extra
rinse and spin to the REGULAR Cycle,
using the extra rinse option.
• Touch the Extra Rinse ON pad before
the REGULAR Cycle starts. The
washer will automatically go to an
extra rinse and spin after the
REGULAR Cycle is completed.
• If no extra rinse and spin is wanted in
the REGULAR Cycle, touch the Extra
EXTRA RINSE
Rinse OFF pad. Make sure the OFF
indicator is showing. If extra rinse is
not selected, the Cycle Control Knob
will stop at the orange line before
EXTRA RINSE OPTION when the
REGULAR Cycle is completed.
For an extra rinse in other cycles, see
“Rinse and spin."
10
Drain and spin
A drain and spin may help shorten
drying times for some heavy fabrics or
special-care items by removing excess
water.
1. Push Cycle Control Knob in.
2. Turn clockwise to any bar just before
an OFF area on the dial, as illustrated.
3. Pull Cycle Control Knob out. The
washer will drain and spin.
Page 11
Soak cycle
For best results, use warm water for
soaking stained iaundry. Hot water can
set stains.
1. Use recommended amount of
pre-soak product or detergent.
2. Push Cycle Control Knob in.
3. Turn clockwise to point to a number
next to SOAK.
4. Puli the Cycle Control Knob out.
The washer will start.
5. When the cycle is over, add
detergent for the next selected wash
cycle. The SOAK Cycle should
always be followed by a wash cycle.
NOTE: See the Laundry Guide for
additional soaking information.
MAGIC CLEAN» lint filter
The lint filter in your washer cleans
itself. Collected lint is drained away with
the wash and rinse water.
If your washer drains into a tub,
remove any lint collected in the drain or
strainer.
Liquid bleach dispenser
Always measure bleach. Do not guess.
Never use more than 1 cup (250 mL) for
a full load. Use less with lower water
level settings. Follow directions on
bottle for safe use. Use a cup with a
pouring spout to avoid spilling.
1. Load the washer first.
2. Pour measured bleach carefully into
dispenser. Do not let bleach splash,
drip or run down into washer basket.
Undiluted bleach will damage any
fabric it touches.
3. Start the washer. Bleach will be
diluted automatically during the
wash part of the cycle.
11
Page 12
If You Need Service Or Assistance
We suggest you follow
these steps:
1. Before calling for assistance...
Performance problems often result from
little things you can find and fix yourself
without tools of any kind.
If your washer does not fill:
• Is the power supply cord plugged into
a live circuit with the proper voltage?
• Are both water faucets open?
• Have you checked your home’s main
fuses or circuit breaker box?
• Are the water supply hoses kinked?
• Is the Cycle Control Knob set and
pulled out?
If your washer does not spin:
• Is the lid closed?
• Is the power supply cord plugged into
a live circuit with the proper voltage?
• Have you checked your home's main
fuses or circuit breaker box?
If your washer stops during
a cycle:
• Remember, the washer pauses briefly
at different times in each cycle. These
pauses are normal.
If your washer fills and drains
without running:
• Make sure that the Cycle Control Knob
is pointing to a number in the cycle.
Make sure the drain hose is higher
than the water level in the washer.
If it isn’t:
• The washer may seem to be draining
during wash and rinse cycles.
• Water can siphon out.
(See Installation Instructions.)
2. If you need assistance*... Call Whirlpool COOL-LINE» serv
ice assistance telephone number.
Dial free from anywhere in the U.S.:
1-800-253-1301
and talk with one of our trained consul
tants. The consultant can instruct you
in how to obtain satisfactory operation
from your appliance or, if service is nec
essary, recommend a qualified service
company in your area.
3. If you need service*...
Whirlpool has a
nationwide network
Whiflp<K)l
SERVICE Whirlpool®“ service
of authorized
companies.
Whirlpool service technicians are trained
to fulfill the product warranty and provide
after-warranty service, anywhere in the
United States. To locate the authorized
Whirlpool service company in your area,
call our COOL-LINE® service assistance
telephone number (see Step 2) or look in
your telephone directory Yellow Pages
under:
APPLIANCES - HOUSEHOLD - ELECTRICAL APPLIANCES -
MAJOR - SERVICE & REPAIR MAJOR - REPAIRING & PARTS
OR
WASHING MACHINES, DRYERS
& IRONERS - SERVICING
WHIRLPOOL APPLIANCES
AUTHORIZED WHIRLPOOL SERVICE
SERVICE COMPANIES
XYZ SERVICE CO
123 MAPLE
..........................
999-9999
12
Page 13
4. If you have a problem*...
Call our COOL-LINE service assistance
telephone number (see Step 2) and talk
with one of our consultants, or if you
prefer, write to:
Mr. Donald Skinner
Director of Consumer Relations
Whirlpool Corporation
2000 M-63
Benton Harbor, Ml 49022
Please include a daytime phone
number in your correspondence.
5. If you need FSP’
replacement parts*...
FSP is a registered trademark of
Whirlpool Corporation for quality parts.
Look for this symbol of quality when
ever you need a replacement part for
your Whirlpool appliance. FSP replace
ment parts will fit right and work right,
because they are made to the same
exacting specifications used to build
every new Whirlpool appliance.
To locate FSP replacement parts
in your area, refer to Step 3 or call the
Whirlpool COOL-LINE service
assistance number in Step 2.
6. If you are not satisfied with
how the problem was solved*...
• Contact the Major Appliance
Consumer Action Panel (MACAP).
MACAP is a group of independent
consumer experts that voices con
sumer views at the highest levels of
the major appliance industry.
• Contact MACAP only when the
dealer, authorized servicer or
Whirlpool have failed to resolve
your problem.
Major Appliance Consumer
Action Panel
20 North Wacker Drive
Chicago, IL 60606
• MACAP will in turn inform us of
your action.
'When requesting assistance, please
provide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor
mation is needed in order to better
respond to your request.
13
Page 14
Notes
14
Page 15
Notes
15
Page 16
Whirlpool Automatic Washer Warranty
AW003
LENGTH OF WARRANTY
FULL ONE-YEAR
WARRANTY
From Date of Purchase
LIMITED FIVE-YEAR
WARRANTY
From Date of Purchase
LIMITED TEN-YEAR
WARRANTY
From Date of Purchase
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of the washer.
2. Instruct you how to use the washer.
3. Replace house fuses or correct house wiring or plumbing.
B. Repairs when washer is used in other than normal, single-family
household use.
C. Pick up and delivery. This product is designed to be repaired in
the home.
D. Damage to washer caused by accident, misuse, fire, flood, acts of
God or use of products not approved by Whirlpool.
E. Any labor costs during the limited warranties.
WHIRLPOOL WILL PAY FOR
FSP® replacement parts and repair labor to
correct defects in materials (including top and lid
rust) or workmanship. Service must be provided
by an authorized WhirlpooF“ service company.
FSP replacement parís for any part of
gearcase assembly if defective in materials
or workmanship. The gearcase assembly
is shown below.
FSP replacement parts for any top and lid rust.
FSP replacement of outer tub should it crack, or
fail to contain water, due to defective materials
OF workmanship.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation
of incidental or consequential damages so this limitation or exclusion may not
apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please
contact your franchised Whirlpool distributor or military exchange.
If you need service, first see the “Service and Assistance" section of this book.
After checking “Service and Assistance," additional help can be found by calling
our COOL-LINE® service assistance telephone number, 1-800-253-1301, from
anywhere in the U.S. „
Part No. 3353299
©1989 Whirlpool Corporation
Gearcase assembly g
covered by your
warranty
Printed in U.S.A.
Loading...
