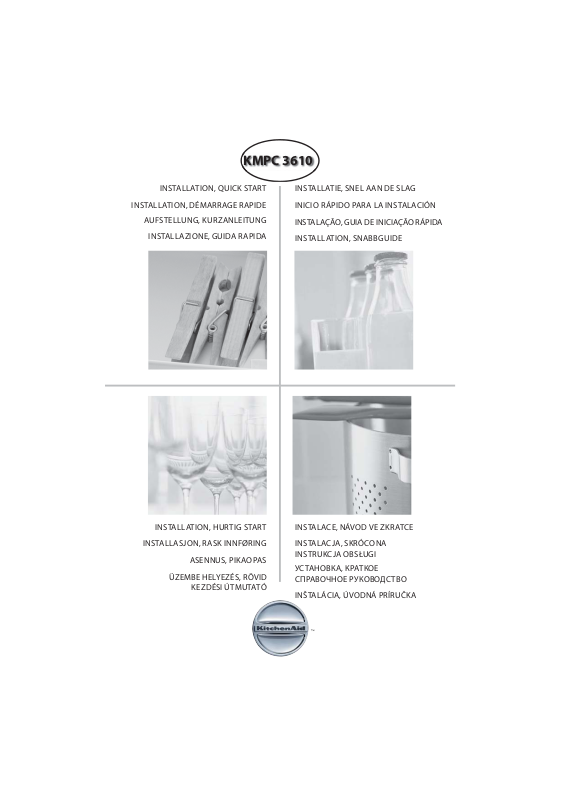

Whirlpool KMPC 3610 User Manual
KMPC 3610
INSTALLATION, QUICK START
INSTALLATION, DÉMARRAGE RAPIDE
AUFSTELLUNG, KURZANLEITUNG
INSTALLAZIONE, GUIDA RAPIDA
INSTALLATIE, SNEL AAN DE SLAG
INICIO RÁPIDO PARA LA INSTALACIÓN
INSTALAÇÃO, GUIA DE INICIAÇÃO RÁPIDA
INSTALLATION, SNABBGUIDE
INSTALLATION, HURTIG START
INSTALLASJON, RASK INNFØRING
ASENNUS, PIKAOPAS
ÜZEMBE HELYEZÉS, RÖVID
KEZDÉSI ÚTMUTATÓ
INSTALACE, NÁVOD VE ZKRATCE
INSTALACJA, SKRÓCONA
INSTRUKCJA OBSŁUGI
,
INŠTALÁCIA, ÚVODNÁ PRÍRUČKA
1
INSTALLATION
MOUNTING THE APPLIANCE
FOLLOW THE SUPPLIED separate mounting instructions when installing the appliance.
PRIOR TO CONNECTING
C
HECK THAT THE VOLTAGE on the rating plate corre-
sponds to the voltage in your home.
D
O NOT REMOVE THE MICROWAVE INLET PROTECTION
PLATES located on the side
of the oven cavity wall.
They prevent grease & food
particles from entering the
microwave inlet channels.
NSURE the oven cavity is
E
empty before mounting.
E
NSURE THAT THE APPLIANCE IS NOT DAMAGED. Check
that the oven door closes firmly against the
door support and that the internal door seal is
not damaged. Empty the oven and clean the
interior with a soft, damp cloth.
D
O NOT OPERATE THIS APPLIANCE if it has a damaged
mains cord or plug, if it is not working properly, or if it has been damaged or dropped. Do
not immerse the mains cord or plug in water.
Keep the cord away from hot surfaces. Electrical shock, fire or other hazards may result.
DO NOT USE EXTENSION CORD:
I
F THE POWER SUPPLY CORD IS TOO SHORT, have
a qualified electrician or serviceman install an outlet near the appliance.
AFTER CONNECTING
HE OVEN CAN BE OPERATED ONLY if the oven door is
T
firmly closed.
THE EARTHING OF THIS APPLIANCE is compulsory. The
manufacturer will accept no responsibility for
injury to persons, animals or damage to objects arising from the non-observance of this
requirement.
The manufacturers are not liable for any
problems caused by the user’s failure to observe these instructions.
2
HE FIRST TIME THE OVEN IS SWITCHED ON, you will be
T
asked to set the language and current time.
Follow the instructions under the headline
“Changing settings” in this instructions for use.
The appliance is ready to use after these two
steps have been taken.
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
DO NOT HEAT, OR USE FLAMMABLE MATERIALS in or
near the oven. Fumes can create a fire hazard
or explosion.
DO NOT USE YOUR MICROWAVE oven for drying textiles, paper, spices, herbs, wood, flowers, fruit
or other combustible materials. Fire could result.
I
F MATERIAL INSIDE / OUTSIDE THE OVEN SHOULD IGNITE
OR SMOKE IS OBSERVED, keep oven door closed and
turn the oven off. Disconnect the power cord
or shut off power at the fuse or circuit breaker panel.
D
O NOT OVER-CO OK FOOD. Fire could result.
O NOT LEAVE THE OVEN UNATTENDED, especially
D
when using paper, plastic or other combustible materials in the cooking process. Paper can
char or burn and some plastics can melt if used
when heating foods.
NLY ALLOW CHILDREN to use the appliance under
O
adult supervision and after adequate instructions
have been given, so that the child is able to use
the appliance in a safe way and understands the
hazards of improper use.
THIS APPLIANCE IS NOT INTENDED FOR use by persons
(including children) with reduced physical,
sensory or mental capabilities, unless used under
the supervision of a person responsible for their
safety.
WARNING!
ACCESSI BLE PART S MAY BECOME HOT during use, young
children should be kept away.
D
O NOT USE YOUR MICROWAVE
oven for heating anything in
airtight sealed containers.
The pressure increases and may
cause damage when opening or may explode.
T
HE DOOR SEALS AND THE DOOR SEAL AREAS must be
regularly inspected for damage. If these areas are
damaged the appliance should not be operated
until it has been repaired by a trained service
technician.
D
O NOT USE corrosive chemicals or vapors in this
appliance. This type of oven is specifically designed to heat or cook food. It is not designed
for industrial or laboratory use.
EGGS
D
O NOT USE YOUR MICROWAVE oven for cook-
ing or reheating whole eggs with or
without shell since they may
explode even after microwave
heating has ended.
3
IMPORTANT PRECAUTIONS
GENERAL
HIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!
T
HE APPLIANCE SHOULD NOT BE OPERATED without food
T
in the oven when using microwaves. Operation in
this manner is likely to damage the appliance.
I
F YOU PRAC TICE OPERATING the oven, put a glass
of water inside. The water will absorb the microwave energy and the oven will not be damaged.
O NOT USE THE CAVITY for any storage purposes.
D
REMOVE WIRE TWIST-TIES from paper or
plastic bags before placing bag in
the oven.
DEEPFRYING
D
O NOT USE YOUR MICROWAVE oven for deep-frying,
because the oil temperature cannot be
controlled.
USE HOT PADS OR OVEN MITTS to prevent burns,
when touching containers, oven parts, and
pan after cooking.
LIQUIDS
E.
G. BEVERAGES OR WATER. Overheating the liquid
beyond boiling point can occur
without evidence of bubbling.
This could result in a sudden
boil over of the hot liquid.
To prevent this possibility the
following steps should be taken:
1. Avoid using straight-sided containers with
narrow necks.
2. Stir the liquid before placing the container
in the oven and let the teaspoon remain
in the container.
3. After heating, allow standing for a short
time, stirring again before carefully removing the container from the oven.
CAREFUL
A
LWAYS REFER to a microwave cookbook for de-
tails. Especially, if cooking or reheating food
that contains alcohol.
A
FTER HEATING BABY FOOD or liquids in a
baby bottle or in a baby food
jar, always stir and check the
temperature before serving.
This will ensure that the heat is evenly distributed
and the risk of scalding or burns can be avoided.
Ensure the Lid and the Teat is removed before heating!
4
ACCESSORIES
GENERAL
HERE ARE a number of accessories available on
T
the market. Before you buy, ensure they are
suitable for microwave use.
E
NSURE THAT THE UTENSILS YOU USE are oven proof
and allow microwaves to
pass through them before
cooking.
W
HEN YOU PUT FOOD AND ACC ESSORIES in the micro-
wave oven, ensure that they do not come in
contact with the interior of the oven.
This is especially important with accessories made of metal or metal parts.
F ACCESSOR IES CONTAIN ING METAL comes in contact
I
with the oven interior, while the oven is in operation, sparking can occur and the oven could
be damaged.
LWAYS ENSURE that the turntable is able to turn
A
freely before starting the oven.
TURNTABLE SUPPORT
USE THE TURNTABLE SUPPORT under the
Glass turntable. Never put any other utensils on the turntable support.
Fit the turntable support in the oven.
GLASS TURNTABLE
U
SE THE GLASS TURNTABLE with all cooking meth-
ods. It collects the dripping juices and food particles that otherwise would stain and soil the interior of the oven.
Place the Glass turntable on the turntable
support.
WIRE RACK
SE THE HIGH WIRE RACK when
U
grilling using the Grill functions.
ALWAYS USE THE LOW WIRE RACK
to put food on to allow the
air to circulate properly
around the food when using the Forced Air functions.
CRISP HANDLE
U
SE THE SUPPLIED SPECIAL CRISP HAN-
DLE to remove the hot Crisp plate
from the oven.
CRISP-PLATE
LACE THE FOOD DIRECTLY ON THE CRISP-PLATE.
P
Always use the Glass turntable as support when using the Crisp-plate.
DO NOT PLACE ANY UTENSILS on the
Crisp-plate since it will quickly become very hot and is likely to cause
damage to the utensil.
THE CRISP-PLATE may be preheated before use
(max. 3 min..). Always use the Crisp function
when preheating the crisp-plate.
STEAMER
U
SE THE STEAMER WITH THE
STRAINER in place for foods
such as fish, vegetables and
potatoes.
USE THE STEAMER WITHOUT THE
STRAINER in place for foods such as rice, pasta
and white beans.
ALWAYS place the steamer on the Glass Turntable.
BAKING PLATE
SE THE BAKING PLATE when
U
cooking in forced air. Never
use it in combination with
microwaves.
COVER
THE COVER is used to cover food during cooking and reheating with microwaves only and helps to reduce
spattering, retain food moisture as
well as reducing the time needed.
USE the cover for two level reheating
5
START PROTECTION
THE STAR T PROTECTION FUNCTIO N IS ACTIVATED ONE
MINUTE AFTER the oven has returned to
“stand by mode“.
THE DOOR MUST BE OPENED AND CLOSED e.g. putting
food into it, before the safety lock is released.
Safety Lock is activated
close door and press
KEY LOCK
19:30
PRESS THE BACK AND OK buttons simultaneously and keep pressed until two beeps are heard
(3 seconds).
SE THIS FUNCTIO N to hinder children from using the oven unattended.
U
CONFIR MATION MESSAGE is displayed for 3 seconds be-
A
fore returning to the previous view.
WHEN THE LOCK IS ACTIVE , all buttons and knobs except
the off button are non-responsive.
Key Lock
has been activated
HE KEY LOCK ID DEACTIVATED by pressing the off button
T
or opening the door.
Key Lock
has been deactivated
6
DONENESS (auto functions only)
D
ONENESS IS AVAILA BLE in most of the auto func-
tions. You have the possibility to personally
control the end result through the Adjust doneness feature. This feature enables you to
achieve higher or lower end temperature compared to the default standard setting.
HEN USING one of these functions the oven
W
chooses the default standard setting. This setting normally gives you the best result. But if
the food you heated became too warm to eat
at once, you can easily adjust this before you
use that function the next time.
THIS IS DONE BY SELECTING A DONENESS LEVEL with the
Up & Down buttons before pressing the Start
button.
DONENESS
Level Effect
XTRA YIELDS HIGHEST END TEMPERATURE
E
NORMAL DEFAULT STANDARD SETTING
LIGHT YIELDS LOWEST END TEMPERATURE
400g
WEIGHT
Fruit Pie
8
AMOUNT
Extra
DONENESS
30:00300g
COOK TIME
19:30
END TIME
WEIGHT
Normal
DONENESS
Light
DONENESS
Steamed Fillets
Rolls
MESSAGES
HEN USING SOME OF THE FUNCTION S the oven may
W
stop and prompt you to perform an action or
simply advice on which accsessoire to use.
Insert food in steamer
Press when done
Cooking nearly finished
Please check on food
Please add milk
Press when done
W
HEN A MESSAGE APPEAR:
Open the door (if needed).
Perform the action (if needed).
Close the door and restart by pressing the
Start button.
Please use
high wire rack
Please stir food
Please turn food
Temperature reached
Insert food and press
7
COOLING DOWN
WHEN A FUNCTION IS FIN ISHED, the oven may carry
out a cooling procedure. This is normal.
After this procedure the oven switches off automatically.
I
F THE TEMPERATURE IS HIGHER THAN 100°C, the cur-
rent cavity temperature is displayed. Be careful
not to touch the cavity inside when removing
food. Use oven mittens.
IF THE TEMPERATURE IS LESS THAN 50°C, the 24 hour
clock is displayed.
THE COOLING PROCED URE can be interrupted without any harm to the oven by opening the door.
SHORTCUTS
TO FAVOR THE EASE OF USE, the oven automatically compiles a list of your favorite shortcuts for
you to use.
WHEN YOU BEGIN using your oven, the list consists of 10 empty positions marked “shortcut”.
As you use the oven over time, it will automatically fill in the list with shortcuts to your most
frequently used functions.
WHEN YOU ENTER THE SHORTCUT MENU, the function
you have been using mostly, will be pre-selected and positioned as shortcut #1.
NOTE: the order of functions presented in the
shortcut menu will automatically change according to your cooking habits.
180°c 35:00
TEMPERATURE
Oven is Hot!
COOK TIME
--:--
END TIME
168°C
Residual Heat
168°C
Active Cooling
Shortcut
Shortcut
Shortcut
Your most used cooking functions
French Fries
Shortcut
Your most used cooking functions
French Fries
Pan Pizza
Lasagna
Your most used cooking functions
French Fries
Pan Pizza
Lasagna
Your most used cooking functions
TURN THE MULTIFUNCTION KNOB until Shortcut is displayed
TURN THE ADJUST KNOB to choose your favorite shortcut. The most frequently used function is
.
pre-selected.
PRESS THE OK BUTTON to confirm your selection.
TURN THE ADJUST KNOB / OK BUT TON to make the needed adjustments.
PRESS THE START BUTTON.
8
ON/OFF
T
HE APPLIANCE IS TURNED ON OR OFF
using the On/Off button or simply
by turning the Multifunction Knob.
W
HEN THE APPLIANCE IS TURNED ON , all
buttons & knobs function normally and the 24 hour clock is not displayed.
WHEN THE APPLIANCE IS TURNED OFF . The 24 hour
clock is displayed.
OTE: The oven behavior may differ from the
N
above described, depending on the ECO function being turned ON or OFF (see ECO for more
information).
T
HE DESCRIPTIONS IN THIS IFU assume that the
oven is turned ON .
CHANGING SETTINGS
Settings
TURN THE MULTIFUNCTION KNOB until Settings is shown.
TURN THE ADJUST KNOB to choose one of the settings to adjust.
WHEN THE APPLIANCE IS FIRST PLUGGED IN it will ask you to set the Language and 24 hour Clock.
AFTER A POWER FAILUR E the Clock will flash and needs to be reset.
YOUR OVEN HAS a number of functions which can be adjusted to your
personal taste.
LANGUAGE
Eco Mode
Language
Appliance and display settings
PRESS THE OK BUTTON .
TURN THE ADJUST KNOB to choose one of the available lan-
guages.
PRESS THE OK BUTTON again to confirm the change.
Time
Turkçe
English
Français
Please select language
Language
has been set
9
CHANGING SETTINGS
CLOCK SETTING
Brightness
Appliance and display settings
TURN THE ADJUST KNOB until Time is displayed.
PRESS THE OK BUTTON . (The digits flicker).
TURN THE ADJUST KNOB to set the 24 hour clock.
PRESS THE OK BUTTON again to confirm the change.
T
HE CLOCK IS SET AND IN OPERATION.
Volume
Time
00 : 00
(HH) (MM)
^
^
Press to set time, to confirm
Time
has been set
SOUND SETTING
Time
Volume
Brightness
Appliance and display settings
TURN THE ADJUST KNOB until Volume is displayed.
PRESS THE OK BUTTON .
TURN THE ADJUST KNOB to set the volume on high, medium, low
or mute.
PRESS THE OK BUTTON again to confirm the change.
10
For normal living conditions
has been set
Volume
High
Medium
Low
CHANGING SETTINGS
BRIGHTNESS
Volume
Brightness
Eco Mode
Appliance and display settings
TURN THE ADJUST KNOB until Brightness is displayed.
PRESS THE OK BUTTON .
TURN THE ADJUST KNOB to set the level of brightness suitable to your
preference.
PRESS THE OK BUTTON again to confirm your selection.
For normal living conditions
Brightness
has been set
High
Medium
Low
e e
e
Appliance and display settings
TURN THE ADJUST KNOB until Eco Mode is displayed.
PRESS THE OK BUTTON .
TURN THE ADJUST KNOB to turn the ECO setting ON or OFF.
PRESS THE OK BUTTON again to confirm the change.
W
HEN ECO IS ON, the display will automatically turn off after a while
to save energy. It will automatically light up again when a button is
pressed or the door is opened.
WHEN OFF IS SET, the display will not turn off and the 24 h clock will
always be visible.
ECO
Brightness
Eco Mode
Language
e
Off
On
Minimal power consumption
e
Eco Mode
has been set
11
CHANGING SETTINGS
DURING COOKING
O
NCE THE COOKIN G PROCESS HAS BEEN STARTED:
The time can easily be increased in 30-second steps by pressing
the Start button. Each press increases the time with 30 seconds. You
may also Turn the Adjust Knob to increase or decrease the time.
BY TURNING THE ADJUST KNOB, you may toggle between the parameters to select which you wish
to alter.
RESSING THE OK BUTTON selects and enables it to be changed (it
P
High 07:00
GRILL POWER COOK TIME
200 g
WEIGHT
flashes). Turn the Adjust Knob to alter your setting.
PRESS THE OK BUTTON AGAIN to confirm your selection. The oven continues automatically with the new setting.
Y PRESSING THE BACK BUTTON you may return directly to the last pa-
B
rameter you changed.
12
KITCHEN TIMER
00 : 00 : 00
(HH) (MM) (SS)
^
^
Press to set Timer, to Start
TURN THE OVEN OFF by turning theMultifunction Knob to the Zero position or pressing the On
/ Off button.
PRESS THE OK BUTTON .
TURN THE ADJUST KNOB to set the desired length of the timer.
PRESS THE OK BUTTON to start the timer countdown
USE THIS FUNCTIO N when you need a kitchen timer to
measure exact time for various purposes such as cooking eggs or letting the dough rise before baking etc.
THIS FUNCTION IS ONLY AVALIAB LE when the oven is switched
off or in standby mode.
A
N ACOUSTI C SIGNAL will be heard when the timer has fin-
ished to count down.
RESSING THE ON / OFF BUTTON before the timer has finished will switch
P
the timer off.
.
00 : 59 : 59
Timer
00 : 00 : 00
Press to prolong, to switch off
^
COOK & REHEAT WITH MICROWAVES
Microwave
TURN THE MULTIFUNCTION KNOB until Microwave is shown.
TURN THE ADJUST KNOB to set the cooking time.
PRESS THE OK BUTTON to confirm your setting.
TURN THE ADJUST KNOB to set the microwave power level.
PRESS THE START BUTTON.
SE THIS FUNCTIO N for normal cooking and reheating, such as vegeta-
U
bles, fish, potatoes and meat.
750 w 00:05
POWER
Microwave
COOK TIME
19:00
END TIME
13
COOK & REHEAT WITH MICROWAVES
POWER LEVEL
MICROWAVES ONLY
Power Suggested use:
R
900 W
750 W C
EHEATING OF BEVERAGES, water, clear soups, coffee, tea or other food with a high water
content. If the food contains egg or cream choose a lower power.
OOKING OF VEGETABLES, meat etc.
650 W C
500 W
350 W S
160 W D
90 W S
0 W W
OOKING OF fish.
ORE CAREFUL COOKING e.g. high protein sauces, cheese and egg dishes and to finish cook-
M
ing casseroles.
IMMERING STEWS, melting butter & chocolate.
EFROSTING. Softening butter, cheeses.
OFTENING Ice cream
HEN USING the Timer only.
14
JET START
900 w 00:30
POWER
Cooking
MM:SS
19:03
END TIME
TURN THE MULTIFUNCTION KNOB until Microwave is shown.
PRESS THE ON / OFF BUTTON.
PRESS THE START BUTTON TO AUT OMATICALLY START with full microwave
power level and the cooking time set to 30 seconds. Each additional press increases the time with 30 seconds.
HIS FUNCTIO N IS USED for quick reheating of food with a high water
T
content such as; clear soups, coffee or tea.
THIS FUNCTION IS ONLY AVALIAB LE when the oven is switched off or in
standby mode while the Multifunction Knob is in the Microwave
position.
750 w 00:05
POWER
Microwave
COOK TIME
19:00
END TIME
15
Loading...
