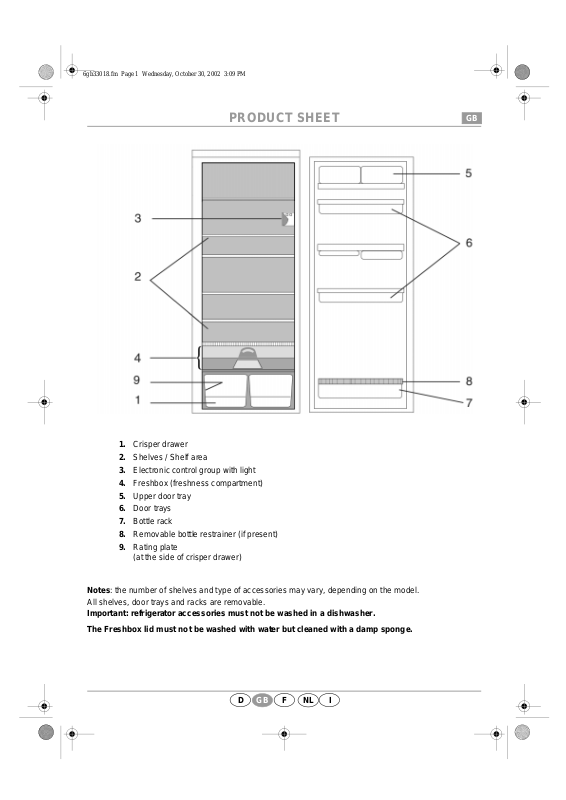

PRODUCT SHEET

GB

1. Crisper drawer

2. Shelves / Shelf area

3. Electronic control group with light

4. Freshbox (freshness compartment)

5. Upper door tray

6. Door trays

7. Bottle rack

8. Removable bottle restrainer (if present)

9. Rating plate

(at the side of crisper drawer)

Notes: the number of shelves and type of accessories may vary, depending on the model.
All shelves, door trays and racks are removable.

Important: refrigerator accessories must not be washed in a dishwasher.
The Freshbox lid must not be washed with water but cleaned with a damp sponge.

D I

F

NLGB

Printed in Italy 10/02

6gb33018.fm Page 2 Wednesday, October 30, 2002 3:09 PM

Refrigerator compartment controls

Refrigerator compartment temperature control buttons (+/-)

A.

Displays indicating selected temperature in °C

B.

ON/OFF button for refrigerator compartment

C.

“Meat/Fish” compartment function deselect button

D.

Light diffuser release button

E.

Light diffuser

F.

Bulb (max 25 W)

G.

Removing the light diffuser

1 - Press button
2 - Push the diffuser (F) toward the rear of the appliance

5019 608 33018

E

D I

F
