2

Introduction

Dear customer

Congratulations on your choice of a quality hob
which has been designed to give you lasting service.

The hob must be installed by a qualified electrician in
accordance with current regulations and used in a
well-ventilated space.

Please read these instructions thoroughly before
installing or using the appliance and keep them for
handy reference. Make sure you understand the
controls prior to using your appliance. This hob must
only be used for its intended purpose, i.e. the
cooking of food in the home. Failure to observe these
instructions may invalidate your right to free service
during the guarantee period.

If you have any questions, or if you are not sure about
any information contained in this booklet please
contact us - details are on the back cover.

Welcome

The use of any electrical appliance in particular
(which uses high temperatures) requires the
following of basic common sense safety rules.

There is a danger of injury to the person and of
damage to the appliance, the kitchen and your
home.

These are itemised in the first section “Important
safety information”. Where accidents are most
common, we repeat these warnings in the main text
using the following symbols:

WARNING

DANGER

Where you, other people, toddlers
and children are at risk.

Where there is a danger of damage
to the appliance, utensils,
surrounding areas and property.

Safety symbols

Please note them for your own safety.

3

Important safety information

Precautions and advice

WARNING

Keep children away from the appliance in order to
avoid the risk of scalding and burns.

This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge unless they have been given initial
supervision or instruction concerning use of the
appliance by a person responsible for their safety.

Accessible parts become very hot
when the equipment is in
operation.

Make sure children do not play with the appliance

• Before any maintenance on the appliance,
disconnect it from the electrical power supply.

• Keep children away form the appliance when it is
in use and also when it has been just switched off.

• The appliances must be repaired or adjusted
exclusively by a qualified technician.

• Make sure that the electrical wires of other
electrical appliances near the hob do not come
into contact with hot parts.

• Do not switch on the hotplates/cooking zones
when there is no pan in position.

• Do not leave the appliance unattended when
frying food -risk of fire.

• If the glass ceramic surface should break or crack
due to violent impact (falling objects, etc.) do not
use it and call the After-Sales Service immediately.

• Do not place food wrapped in aluminium foil,
plastic containers or cloths on the hot cooking
zones.

• Do not drag pans across the glass-ceramic surface

- risk of scratches.

• Avoid spilling sugar and similar substances on the
cooktop. If necessary, clean the cooktop
immediately following the care and maintenance
instructions in this handbook.

• If the hob is fitted with halogen lamps, do not
stare at the bulbs directly.

Before use

To make the most of your new appliance, please read
the user instructions carefully and keep them handy
for future consultation.

Energy saving tips

For optimum results, observe the following advice:

• Use pots and pans whose bottom diameter is
equal to that of the cooking zone or slightly
larger.

• Avoid the use of high pressure water or steam
cleaning equipment.

• If liquid spills or boils over, the hob may switch off:
to enable it to be switched back on again,
carefully dry the controls zone.

• The cooktop features different size
hotplates/cooking zones. Use pots whose base
diameter is the same as that of the
hotplate/cooking zone.
To avoid permanently damaging the glass
ceramic cooktop, do not use:

- pots with bottoms that are not perfectly flat;

- metal pots with enamelled bottom.

• When finished cooking, press button .

• Do not use the cooktop as a work surface or a
support surface.

• Only use flat-bottomed pots and pans.

• If possible, keep pot lids on when cooking.

• Cook vegetables, potatoes, etc. with little water in
order to cut down cooking time.

• A pressure cooker allows you to save even more
energy and time.

4

Installation instructions

Installation

Cooktop

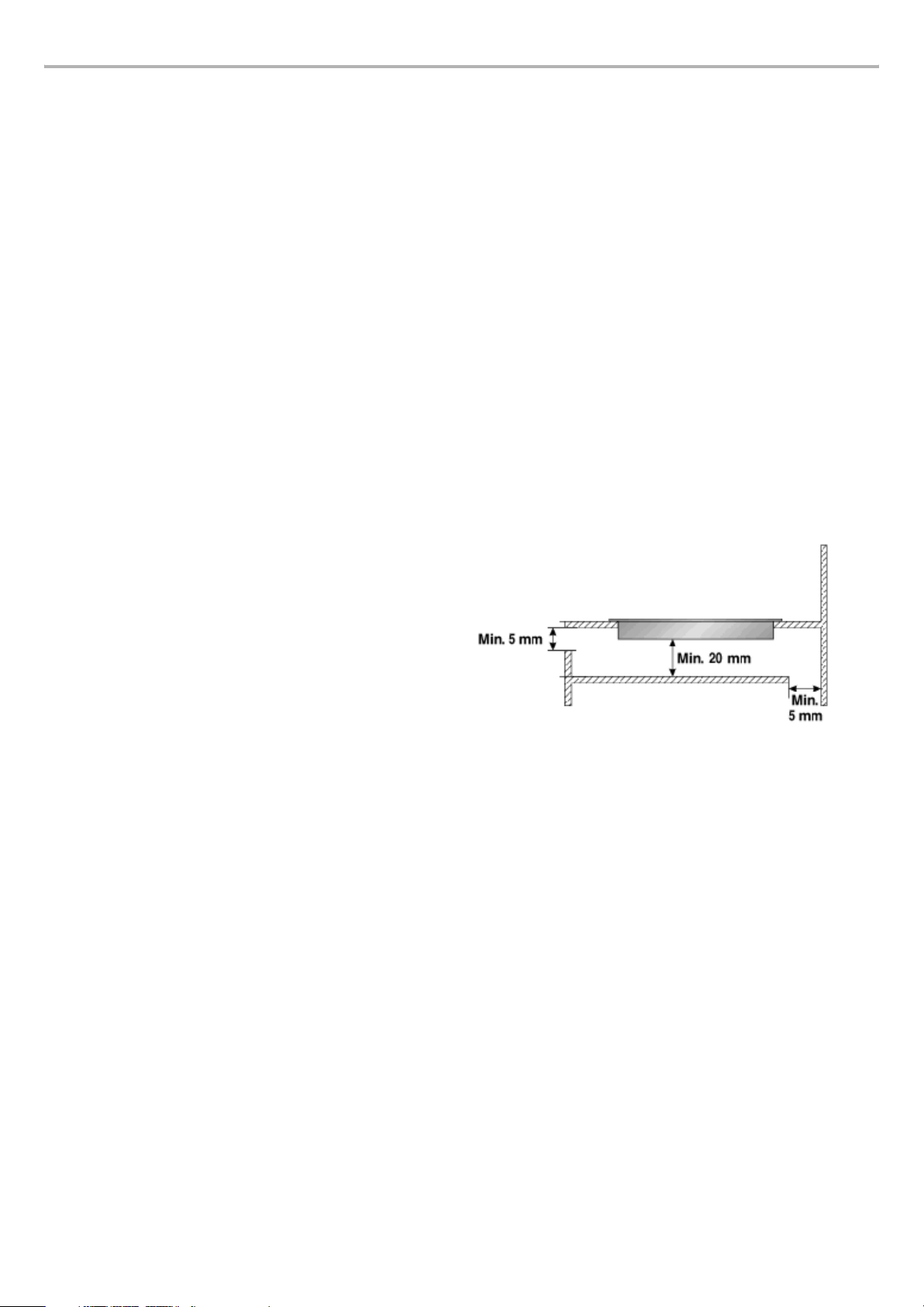

• The cooktop must be set into a worktop between
20 mm and 50 mm deep

• There must be nothing between the cooktop and
the oven (cross rails, brackets, etc.).

• The distance between the lower face of the glass
ceramic hob and the cupboard or separating
panel must be at least 20 mm.

• If the cooktop is to be installed next to a column
unit, leave a distance of at least 100 mm from the
edge of the cooktop to the side of the column
unit.

• Make an opening in the worktop, respecting the
dimensions indicated in the enclosed product
description sheet.

• Apply the supplied gasket to the cooktop (unless
it has already been fitted), after having cleaned its
surface.

Important! In order to prevent the electronic circuits
from overheating, and therefore from being
damaged, we recommend the following:

• Do not install the cooktop near a dishwasher or
washing machine, so that the electronic circuits
do not come into contact with steam or moisture,
which could damage them.

If an hob from our range is installed beneath the
cooktop, make sure that it is equipped with a cooling
system.

If the temperature of the electronic circuits exceeds
the maximum permitted temperature, the cooktop
will switch off automatically; in this case, wait for a
few minutes until the internal temperature of the
electronic circuits reaches a tolerable level, at which
point it will be possible to switch the hob on again.

• Switch the hob off after use.

Rear wall

Front

5

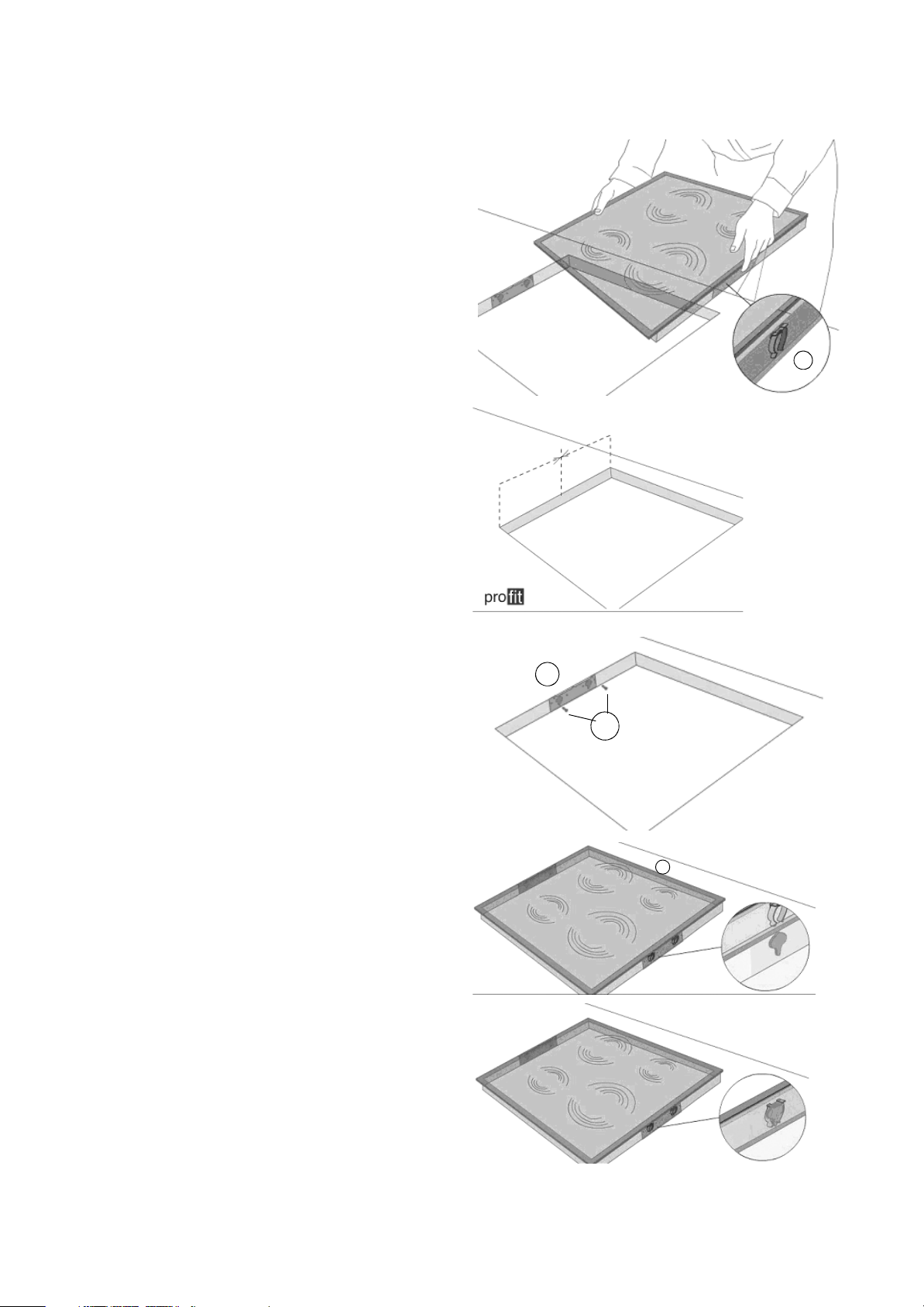

Assembly

a. If the worktop is made of wood, use the

appropriate brackets, spring clips and screws
provided.

- Position the 4 clips (A) around the cooktop
frame, in the slots provided, see Fig. 1

- Measure the centre of the vertical sides of the
cut out a shown in Fig. 2.

- Position the centre of the brackets (C) on the
centre of the side previously identified.

- The upper edge of the brackets must be flush
with the worktop surface.

b. If the worktop is made of marble, ceramic,

stone, plastic materials, etc., order the
installation kit, code 4812 310 19277 from an
authorized after-sales service.

- Secure using the 4 screws (B) provided that
should be screwed into the pre-prepared
holes.

- Insert the hob into the pre-prepared hole
ensuring that the clips (A) lodge into the
bracket slots provided (C) (Fig. 4 and 5).

A

Fig. 1

Fig. 2

C

B

Fig. 3

Fig. 4

Fig. 5

A

6

Electrical connection

Electrical connections

Electrical connection must be made before
connecting the appliance to the electricity supply.
The appliance must be installed by a qualified
electrician who is fully aware of current safety and
installation regulations. Specifically, installation must
be carried out in compliance with the regulations of
the local electricity supply company. Make sure that
the voltage shown on the rating plate is the same as
the power supply voltage in your home. Regulations
require that the appliance be earthed: use
conductors (including the earth conductor) of the
appropriate size only. The manufacturer declines all
liability for injury to persons or animals and for
damage to property resulting from failure to observe
the above regulations. For the electrical connection
use a H05 RR-F type cable as indicated in the table
below:

Power supply voltage

Conductors Amount x size

230V ~ +

3 X 4 mm

2

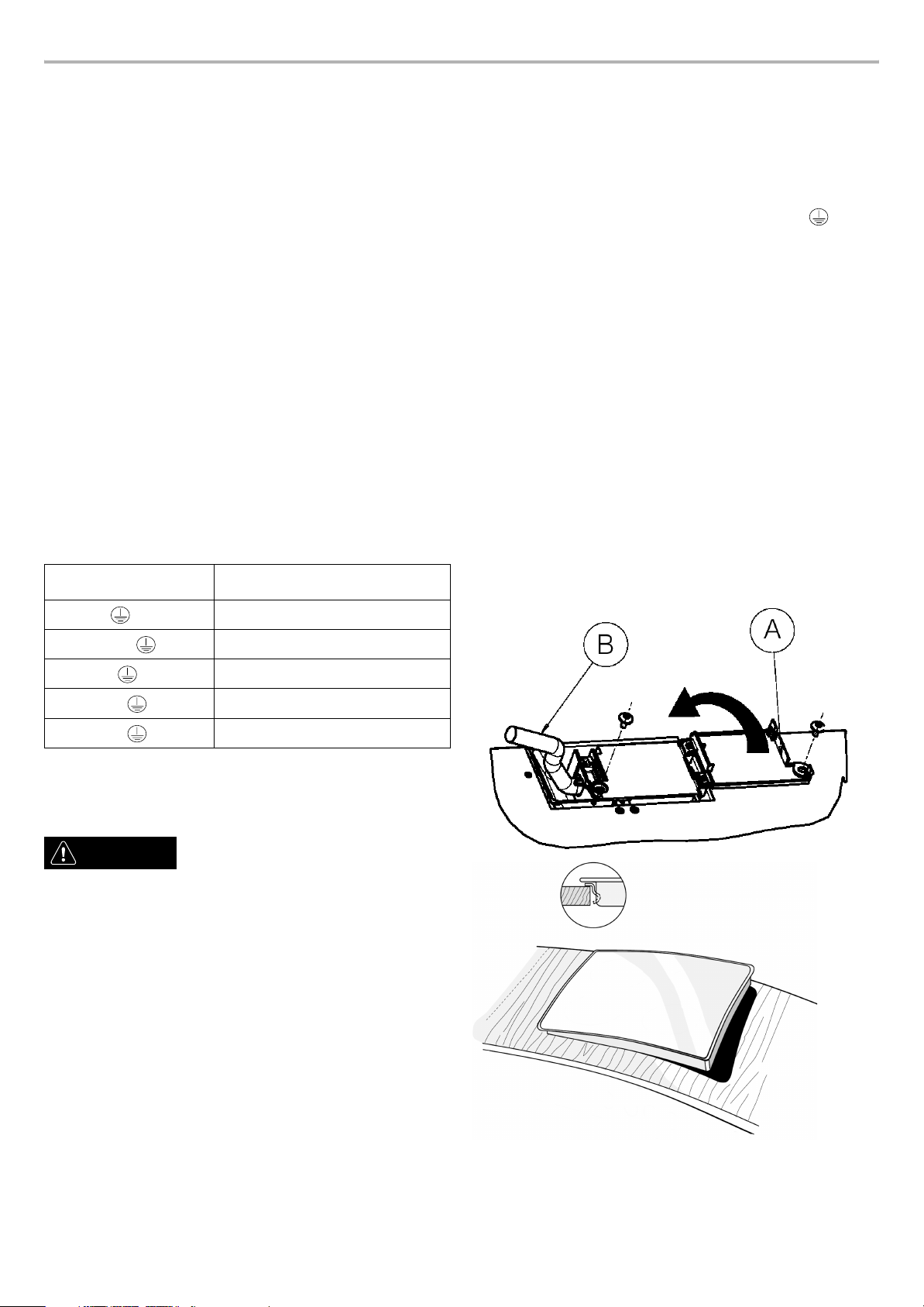

Connecting to the terminal board

Note: the yellow/green earth wire must be

connected to the terminal with the symbol and
must be longer than the other wires.

• Remove approx. 70 mm of the cable sheath from
the power supply cable (B).

• Strip approx. 10 mm of sheath from the wires.
Then insert the power supply cable into the cable
clamp and connect the wires to the terminal
block as indicated in the connection diagram
placed close to the terminal block itself.

• Secure the power supply cable (B) by means of
the cable clamp.

• Close the terminal board with the cover (A)
securing it with the screw provided.

• After the electrical connection, fit the hob from
the top and hook it to the support springs,
according to the illustration.

230-240V ~ +

230V 3~

400V 3N ~ +

400V 2N ~ +

+

3 X 4 mm2 (Australia only)

4 X 1.5 mm

5 X 1.5 mm

4 X 1.5 mm

2

2

2

The appliance must be connected to the electricity
supply by means of an all-pole disconnect switch
with minimum contact gap of 3 mm.

WARNING

The power supply cable must be
long enough to allow the cooktop
to be removed from the worktop
and must be positioned so as to
avoid damage or overheating
caused by contact with the base.

7

Operating

Operating the hob

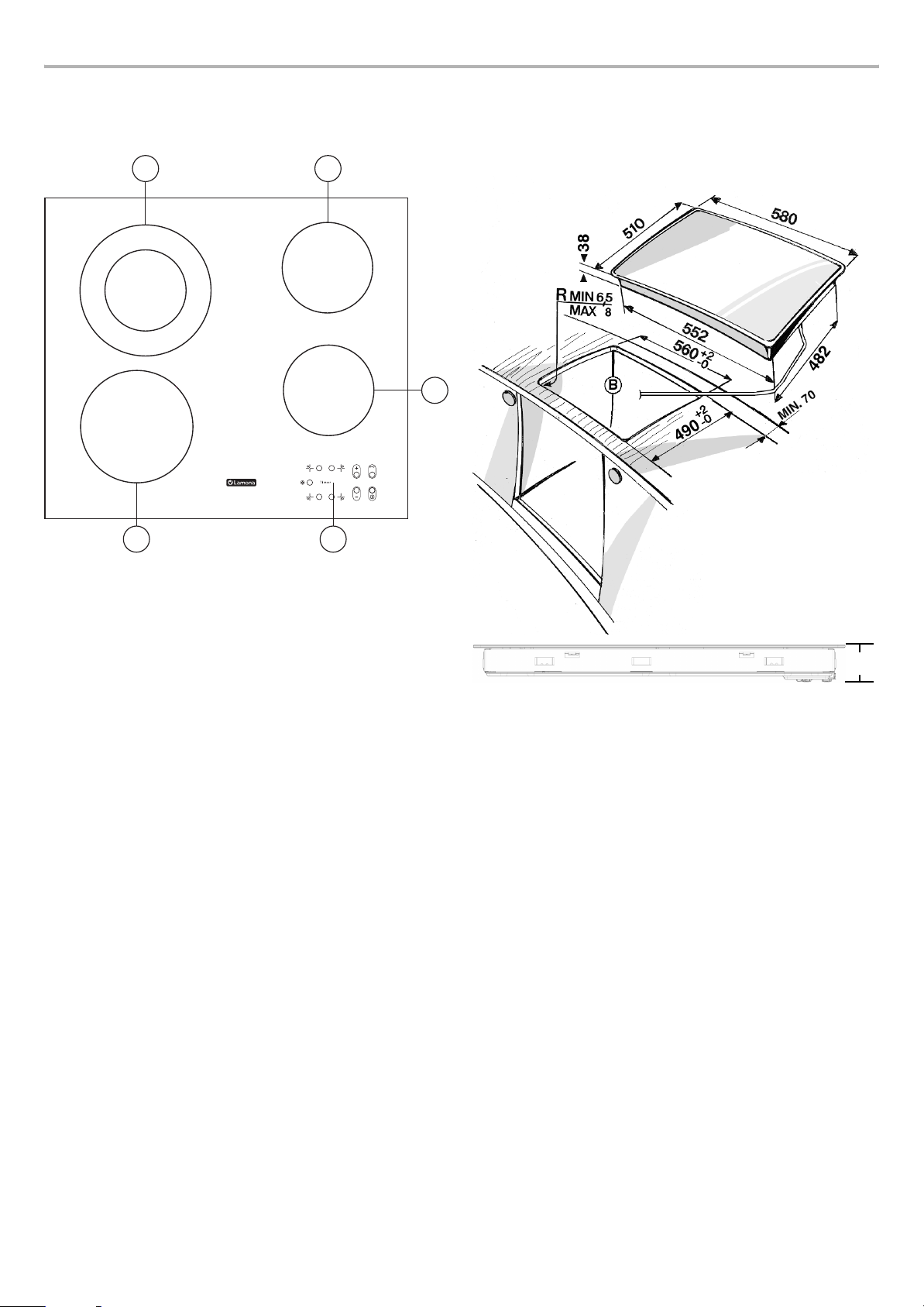

Hob description

2 3

4

1 5

1. Radiant cooking zone Ø 180

Dimensions of the hob

Dimensions
in mm

2. Radiant dual cooking zone Ø 210

3. Radiant cooking zone Ø 145

4. Radiant cooking zone Ø 145

5. Display

Be careful:

To avoid permanently damaging the glass-ceramic
top, do not use:

• - Pots with bottoms that are not perfectly flat.

• - Metal pots with enamelled bottom.

Any aesthetic defects (scratches, surface marks, etc.)
must be reported immediately upon installation.

42

mm

8

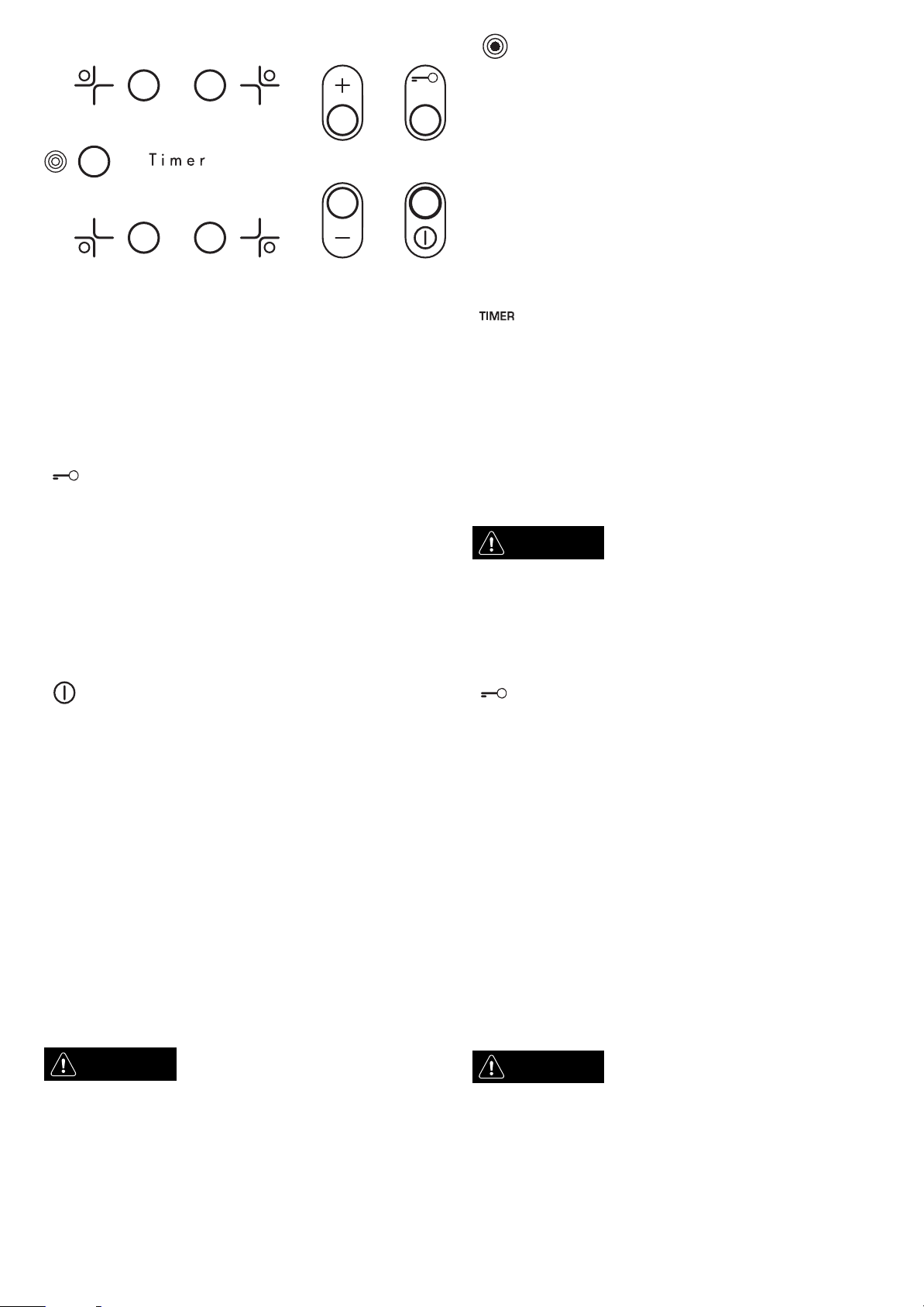

Control panel

BB

F

BB

a. On/Off

b. Cooking zone and timer selection

c. Heat setting increase

d. Key lock

e. Heat setting decrease

f. Multiple zone Activation/Deactivation

Upon first installation, the control panel
performs a functional test for about 1 second,
after which it automatically switches to the
“Key lock” function.

To deactivate the function, press and hold
button “D”; an acoustic signal will sound and
the corresponding led will turn off.

NOTE: If a reset occurs, repeat the procedure
described above.

To switch the hob on, keep button “A”
pressed for approx. 2 seconds. The 4 cooking
zone displays show “0”. If within 20 seconds
none of the cooking zones is activated, the
hob switches off automatically as a safety
precaution.

Press one of the buttons “B” corresponding
to the cooking zone you intend to use.

Select the heat setting required with buttons
“E” or “C”. The other selectable cooking
settings go from 1 to 9. Press buttons +/- at
the same time to cancel all settings.

Pressing button “+” when level 9 is reached,
the “Booster” function is activated and the
letter “A” appears on the display.

C

E

D

A

Multiple zone: After selecting the desired

zone and setting the level (as described in the
previous section) press “F”: an indicator
above the button turns on, activating the
additional zone. The multiple zone can only
be used if:

1) The cooking zone is provided with multiple
zone;

2) The power level selected is greater than 0.

To deactivate the multiple zone, press button
“B” of the desired zone, then press “F” again.

To set the Timer function, select the desired
cooking zone and power setting then press
the cooking zone key again and a luminous
dot will appear on the display of the timer­controlled cooking zone.

The indication “00” blinks on the 2 displays.
Press buttons “C” or “E” to set the time from
1 to 99.

WARNING

The KEY LOCK function is switched on by
holding down button “D” until a dot lights
up above the function button. The Key lock
function locks all the hob’s other functions,
with the exception of the On/Off button “A”.
The function remains on even after the hob is
switched off and on again and can be
deactivated by pressing button “D” again
until the dot above the function button goes
off.

H Residual heat indicator

When the cooking zone is switched off, the
residual heat indicator “H” remains on or
flashes alternating with “0” until the
temperature of the hob returns within safety
levels.

After 10 seconds the timer displays
will show the power setting of the
other cooking zones. To view the
remaining cooking time, press the
timer-controlled cooking zone key
twice.

WARNING

The control is deactivated 10
seconds after the heat setting has
been selected. To change the heat
setting, first press the selection
button “B” again, then proceed to
change the setting, using buttons

“E” or “C”.

WARNING

9

The hob’s safety features include
an automatic switching off
function. Prolonged use of the
same heat setting triggers
automatic switch-off of the
cooking zone (for example, after
around 1 hour at maximum heat
setting, the cooking zone switches
off).

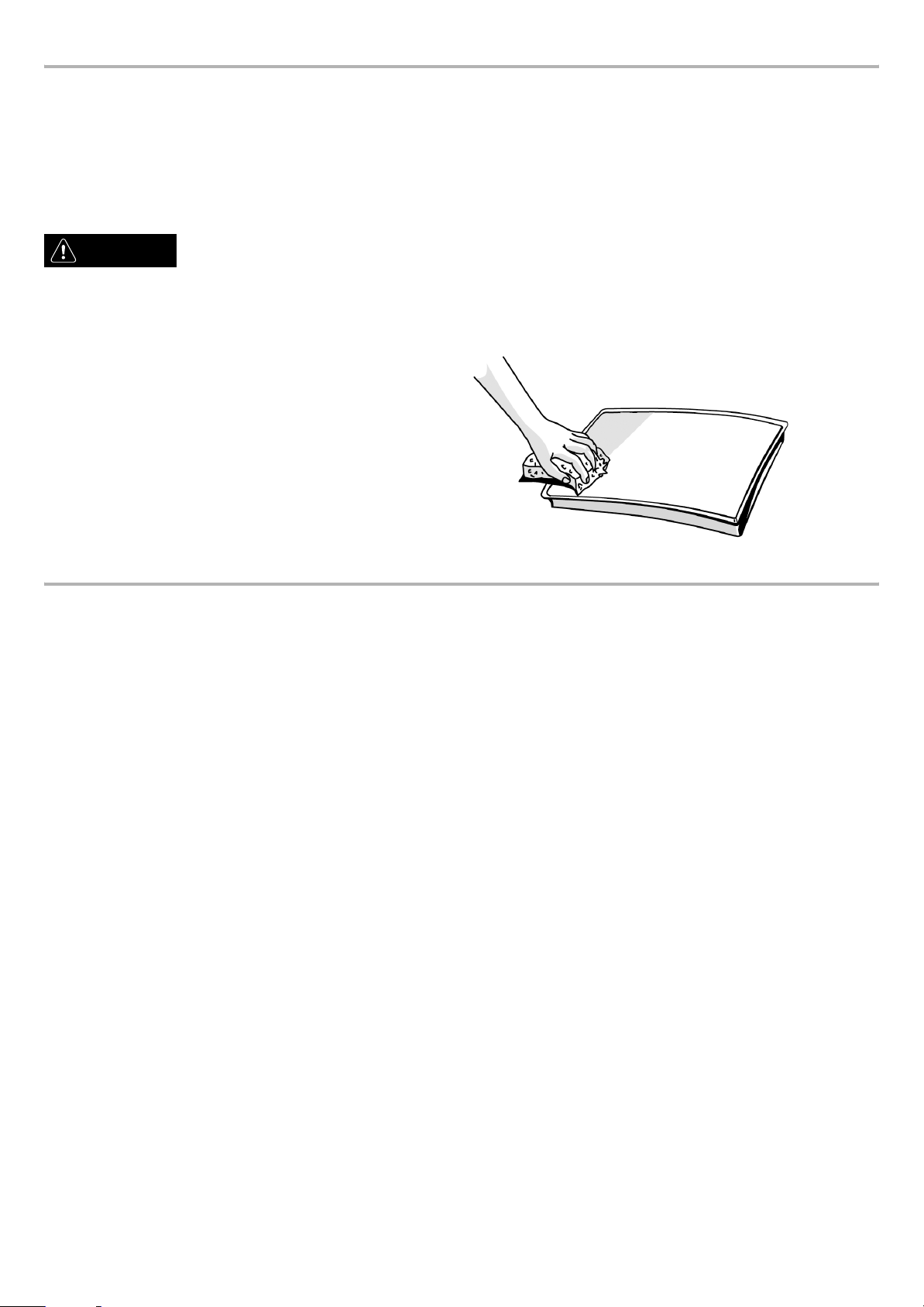

Cooker care

Care & maintenance

Care and maintenance

Clean the cooktop, when it is cool, after each use. This
will prevent the build-up of dirt and make cleaning
easier.

WARNING

• Use a clean cloth, absorbent kitchen wipes and
washing up liquid or a specific glass ceramic
cleaner.

• Remove baked-on dirt with the supplied scraper
tool and specific cleaning products.

• Food spills should be cleaned off before they bake
onto the glass ceramic surface.

At all costs avoid the use of high
pressure water or steam cleaning
equipment.

• Foods with high sugar content (toffee, fruit juice,
jam, etc.) that boil over while cooking, or
spattered sugar stains must be immediately
removed using a scraper even if hot.

• Do not use abrasive products, bleach, hob­cleaner spray or pan scourers.

The cooktop should be treated periodically with a
proprietary brand of protective wax for glass-ceramic
hobs.

Troubleshooting guide

Cooktop not working

• When pressing the control buttons, did you follow
the instructions in the section “Using the hob” in
the enclosed ”Product Description Sheet”?

• Is there perhaps a power failure?

• Did you dry the hob carefully after cleaning it?

1. If a cooking zone has been selected and an “F” or
an “ER” appear on the display followed by a
number, contact the After Sales Service and
inform them.

- With the exception of the message “F03” or

“ER03” that identifies the incorrect cleaning of
the controls area.

- To solve the problem follow the instruction in

the “Care and maintenance” of the glass­ceramic hob paragraph.

2. If the hob does not work following intensive use,
the hob internal temperature is too high. Wait a
few minutes until the hob cools down.

10

After-sales service

Before contacting After-sales Service

• Try to solve the problem (see “Troubleshooting
guide”).

• Switch the appliance off, wait 30 seconds then
switch it on again to see if the fault persists.

If after the above checks the fault persists, contact the
nearest After-sales Service.

Safeguarding the environment

Packaging

The packaging material is 100% recyclable and

marked with the recycling symbol .

Always provide

• A brief description of the fault.

• The exact type and model.

• The service number (number after the word
Service on the rating plate on the metallic
surface) is located on the underside of the
cooktop or on the warranty booklet.

• Your complete address and phone number.

• If any repairs are required, please contact an
authorized After-sales Service as indicated in the
warranty.

Declaration of conformity

• This hob has been designed, constructed and
marketed in compliance with:

Electrical appliances

This appliance is marked in compliance with
European Directive 2002/96/EC on Waste Electrical
and Electronic Equipment (WEEE). By ensuring that
this appliance is scrapped suitably, you can help
prevent potentially damaging consequences for the
environment and health.

The symbol on the appliance, or on
documentation enclosed with the appliance,
indicates that this product must not be treated as
household waste, but must be delivered to the
nearest collection centre for the recycling of
electrical and electronic appliances. Disposal must be
carried out in accordance with local environmental
regulations for waste disposal. For further
information on the treatment, recovery and recycling
of this appliance, contact your competent local
authority, the collection service for household waste.

- safety requirements of “Gas” Directive

2009/142/EC (ex: EEC 90/396);

- safety objectives of the “Low Voltage” Directive

2006/95/CE (which replaces 73/23/CEE and
subsequent amendments);

- protection requirements of EEC Directive

“EMC” 2004/108/EC.

• This hob is suitable for contact with foodstuffs and
complies with EEC (CE) Regulation 1935/2004.

11

12 months guarantee

Guarantee conditions

a. Any claim during the guarantee period MUST BE ACCOMPANIED BY THE RECEIPT related to the

original purchase.

b. The unit must be correctly installed and operated in accordance with the manufacturer’s instructions

and used for normal domestic purposes.

c. The guarantee does not cover accidental damage, missuse or alterations which are likely to affect the

units.

d. The guarantee is invalid if the unit is tampered with, or repaired by any unauthorised person.

e. The guarantee in no way affects your statutory rights.

f. U.K only.

Procedure when reporting a fault

1. Give full name, address including post code, home telephone number and business telephone number if
appropriate.

2. Quote sales receipt number, make and model number of faulty appliance.

3. Give a summary of the problem.

5019 619 01455

12
