Whirlpool HD1000JS User Manual

®

Hot Water Dispenser

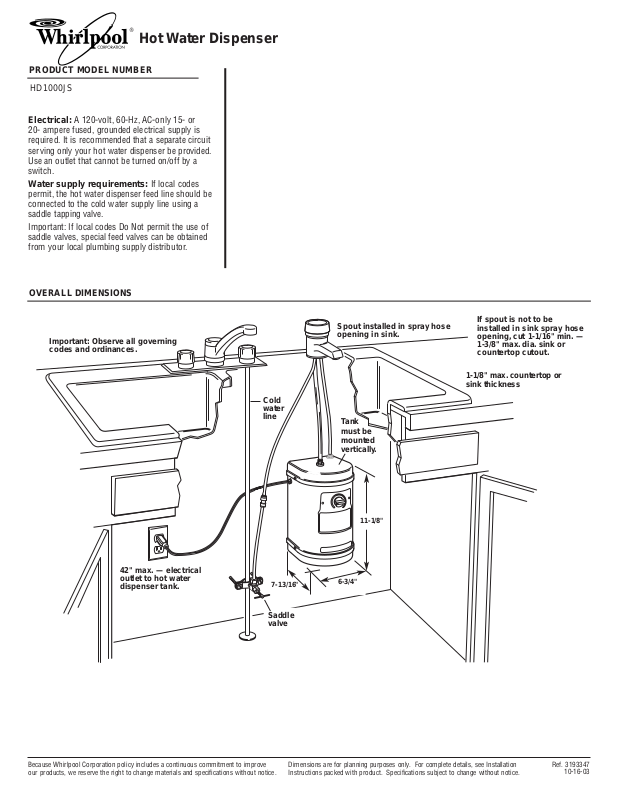

OVERALL DIMENSIONS

HD1000JS

Electrical: A 120-volt, 60-Hz, AC-only 15- or
20- ampere fused, grounded electrical supply is
required. It is recommended that a separate circuit
serving only your hot water dispenser be provided.
Use an outlet that cannot be turned on/off by a
switch.

Water supply requirements: If local codes
permit, the hot water dispenser feed line should be
connected to the cold water supply line using a
saddle tapping valve.

Important: If local codes Do Not permit the use of
saddle valves, special feed valves can be obtained
from your local plumbing supply distributor.

Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.

Ref. 3193347

10-16-03

PRODUCT MODEL NUMBER

42" max. — electrical
outlet to hot water
dispenser tank.

Tank
must be
mounted
vertically.

Spout installed in spray hose
opening in sink.

If spout is not to be
installed in sink spray hose
opening, cut 1-1/16" min. —
1-3/8" max. dia. sink or
countertop cutout.

Saddle
valve

1-1/8" max. countertop or
sink thickness

Important: Observe all governing
codes and ordinances.

Cold
water
line

6-3/4"

7-13/16"

11-1/8"
