GY397LXUS
®
ELECTRIC RANGE
Use & Care Guide
For questions about features, operation/performance, parts,
accessories or service, call: 1-800-253-1301 or visit our website
In Canada, call for assistance, installation or service, call:
at...www.whirlpool.com
1-800-807-6777 or visit our website at...
www.whirlpool.ca
CUISINIÈRE
ÉLECTRIQUE
Guide d’utilisation
et d’entretien
Au Canada, pour assistance, installation ou service, composez le
1-800-807-6777
ou visitez notre site Web à
www.whirlpool.ca
8113P680-60
Table of Contents/Table des matières.................. 2
TABLE OF CONTENTS
TABLE DES MATIÈRES
RANGE SAFETY .............................................................................3
The Anti-Tip Bracket ....................................................................3
COOKTOP USE ..............................................................................5
Cooktop Controls.........................................................................5
Dual Size Element ........................................................................5
Ceramic Glass..............................................................................6
Home Canning .............................................................................6
Cookware .....................................................................................6
ELECTRONIC OVEN CONTROL................................................... 7
Display..........................................................................................8
Cancel .......................................................................................... 8
Clock ............................................................................................8
Timer.............................................................................................8
Control Panel and Oven Door Lock.............................................8
Oven Temperature Control ..........................................................8
OVEN USE.......................................................................................9
Aluminum Foil...............................................................................9
Positioning Racks and Bakeware ................................................9
Bakeware......................................................................................9
Meat Thermometer.....................................................................10
Oven Vent...................................................................................10
Baking.........................................................................................10
Broiling........................................................................................10
Convection Cooking...................................................................11
Convect Bake.............................................................................11
Convect Roast............................................................................12
Cook & Hold ...............................................................................12
Favorite.......................................................................................13
Warm ..........................................................................................13
Automatic Shut-Off/Sabbath Mode...........................................13
RANGE CARE ...............................................................................14
Self-Cleaning Cycle....................................................................14
General Cleaning........................................................................15
Oven Light ..................................................................................16
Storage Drawer ..........................................................................16
Oven Door ..................................................................................17
TROUBLESHOOTING ..................................................................17
ASSISTANCE OR SERVICE.........................................................18
In the U.S.A. ...............................................................................18
In Canada ...................................................................................18
WARRANTY ..................................................................................19
SÉCURITÉ DE LA CUISINIÈRE ...................................................20
La bride antibasculement...........................................................20
UTILISATION DE LA TABLE DE CUISSON................................22
Commandes de la table de cuisson ..........................................23
Élément à dimension double......................................................23
Vitrocéramique ...........................................................................24
Préparation de conserves à la maison.......................................24
Ustensiles de cuisson ................................................................24
COMMANDE ÉLECTRONIQUE DU FOUR.................................25
Afficheur .....................................................................................26
Cancel (annulation).....................................................................26
Horloge .......................................................................................26
Minuterie.....................................................................................26
Verrouillage du tableau de commande et
de la porte du four......................................................................27
Commande de la température du four ......................................27
UTILISATION DU FOUR...............................................................27
Papier d’aluminium.....................................................................27
Positionnement des grilles et des ustensiles de cuisson..........27
Ustensiles de cuisson ................................................................28
Thermomètre à viande ...............................................................28
Évent du four ..............................................................................28
Cuisson au four ..........................................................................28
Cuisson au gril............................................................................29
Cuisson par convection .............................................................30
Cuisson par convection .............................................................30
Rôtissage par convection(..........................................................30
Cuisson et maintien au chaud....................................................31
Programme préféré ....................................................................32
Maintien au chaud......................................................................32
Arrêt automatique/Mode Sabbat ...............................................32
ENTRETIEN DE LA CUISINIÈRE.................................................33
Programme d'autonettoyage .....................................................33
Nettoyage général ......................................................................35
Lampe du four............................................................................36
Tiroir de remisage.......................................................................36
Porte du four...............................................................................37
DÉPANNAGE.................................................................................37
ASSISTANCE OU SERVICE.........................................................38
GARANTIE.....................................................................................39
2

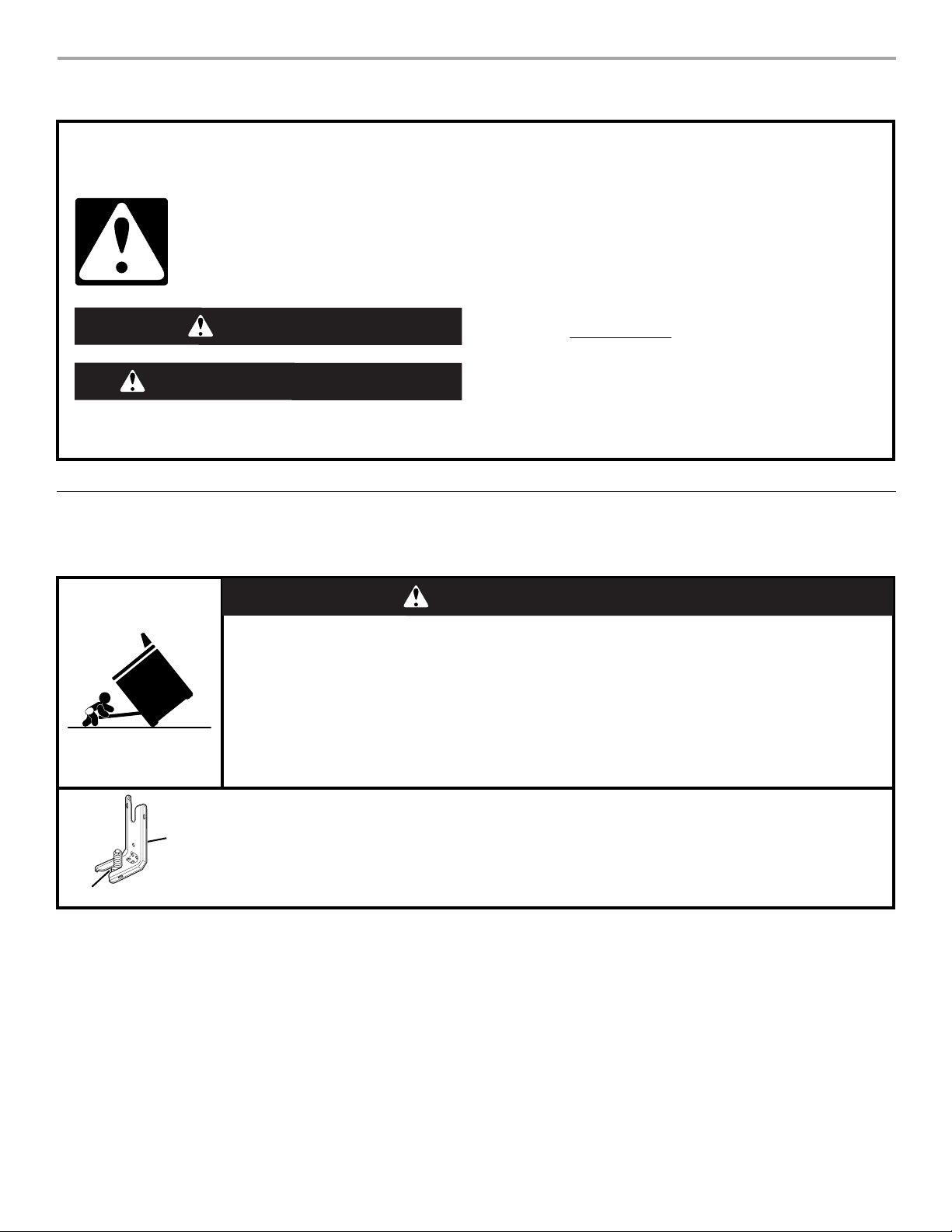

RANGE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
The Anti-Tip Bracket
The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without
having the anti-tip bracket fastened down properly.
follow instructions.
can be killed or seriously injured if you don't
You
instructions.
follow
WARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns to children and adults.
Making sure the anti-tip bracket is installed:
Anti-Tip
Bracket
Range Foot
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances
known to the State of California to cause cancer, birth defects, or other reproductive harm, and requires businesses to warn of
potential exposure to such substances.
WARNING: This product contains a chemical known to the State of California to cause cancer, birth defects, or other
reproductive harm.
This appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde, carbon
monoxide, and toluene.
• Slide range forward.
• Look for the anti-tip bracket securely attached to floor or wall.
• Slide range back so rear range foot is under anti-tip bracket.
3
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical shock,
injury to persons, or damage when using the range, follow
basic precautions, including the following:
■ WARNING: TO REDUCE THE RISK OF TIPPING OF
THE RANGE, THE RANGE MUST BE SECURED BY
PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK
IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE
RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET
SECURELY ATTACHED TO FLOOR OR WALL, AND
SLIDE RANGE BACK SO REAR RANGE FOOT IS
UNDER ANTI-TIP BRACKET.
■ CAUTION: Do not store items of interest to children in
cabinets above a range or on the backguard of a range –
children climbing on the range to reach items could be
seriously injured.
■ Proper Installation – Be sure the range is properly installed
and grounded by a qualified technician.
■ Never Use the Range for Warming or Heating the Room.
■ Do Not Leave Children Alone – Children should not be left
alone or unattended in area where the range is in use.
They should never be allowed to sit or stand on any part of
the range.
■ Wear Proper Apparel – Loose-fitting or hanging garments
should never be worn while using the range.
■ User Servicing – Do not repair or replace any part of the
range unless specifically recommended in the manual. All
other servicing should be referred to a qualified technician.
■ Storage in or on the Range – Flammable materials should
not be stored in an oven or near surface units.
■ Do Not Use Water on Grease Fires – Smother fire or flame
or use dry chemical or foam-type extinguisher.
■ Use Only Dry Potholders – Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
potholder touch hot heating elements. Do not use a towel
or other bulky cloth.
■ DO NOT TOUCH SURFACE UNITS OR AREAS NEAR
UNITS – Surface units may be hot even though they are
dark in color. Areas near surface units may become hot
enough to cause burns. During and after use, do not touch,
or let clothing or other flammable materials contact surface
units or areas near units until they have had sufficient time
to cool. Among those areas are the cooktop and surfaces
facing the cooktop.
■ Use Proper Pan Size – The range is equipped with one or
more surface units of different size. Select utensils having
flat bottoms large enough to cover the surface unit heating
element. The use of undersized utensils will expose a
portion of the heating element to direct contact and may
result in ignition of clothing. Proper relationship of utensil to
burner will also improve efficiency.
■ Never Leave Surface Units Unattended at High Heat
Settings – Boilover causes smoking and greasy spillovers
that may ignite.
■ Make Sure Reflector Pans or Drip Bowls Are in Place –
Absence of these pans or bowls during cooking may
subject wiring or components underneath to damage.
■ Protective Liners – Do not use aluminum foil to line surface
unit drip bowls or oven bottoms, except as suggested in
the manual. Improper installation of these liners may result
in a risk of electric shock, or fire.
■ Glazed Cooking Utensils – Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for range-top service without breaking
due to the sudden change in temperature.
■ Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface Units – To reduce the risk of burns,
ignition of flammable materials, and spillage due to
unintentional contact with the utensil, the handle of a
utensil should be positioned so that it is turned inward, and
does not extend over adjacent surface units.
■ Do Not Soak Removable Heating Elements – Heating
elements should never be immersed in water.
■ Do Not Cook on Broken Cooktop – If cooktop should
break, cleaning solutions and spillovers may penetrate the
broken cooktop and create a risk of electric shock. Contact
a qualified technician immediately.
■ Clean Cooktop With Caution – If a wet sponge or cloth is
used to wipe spills on a hot cooking area, be careful to
avoid steam burn. Some cleaners can produce noxious
fumes if applied to a hot surface.
■ Use Care When Opening Door – Let hot air or steam
escape before removing or replacing food.
■ Do Not Heat Unopened Food Containers – Build-up of
pressure may cause container to burst and result in injury.
■ Keep Oven Vent Ducts Unobstructed.
■ Placement of Oven Racks – Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot, do not let potholder contact hot heating
element in oven.
■ DO NOT TOUCH HEATING ELEMENTS OR INTERIOR
SURFACES OF OVEN – Heating elements may be hot even
though they are dark in color. Interior surfaces of an oven
become hot enough to cause burns. During and after use,
do not touch, or let clothing or other flammable materials
contact heating elements or interior surfaces of oven until
they have had sufficient time to cool. Other surfaces of the
appliance may become hot enough to cause burns – among
these surfaces are oven vent openings and surfaces near
these openings, oven doors, and windows of oven doors.
For self-cleaning ranges –
■ Do Not Clean Door Gasket – The door gasket is essential
for a good seal. Care should be taken not to rub, damage,
or move the gasket.
■ Do Not Use Oven Cleaners – No commercial oven cleaner
or oven liner protective coating of any kind should be used
in or around any part of the oven.
■ Clean Only Parts Listed in Manual.
■ Before Self-Cleaning the Oven – Remove broiler pan and
other utensils.
For units with ventilating hood –
■ Clean Ventilating Hoods Frequently – Grease should not
be allowed to accumulate on hood or filter.
■ When flambeing foods under the hood, turn the fan on.
SAVE THESE INSTRUCTIONS
4

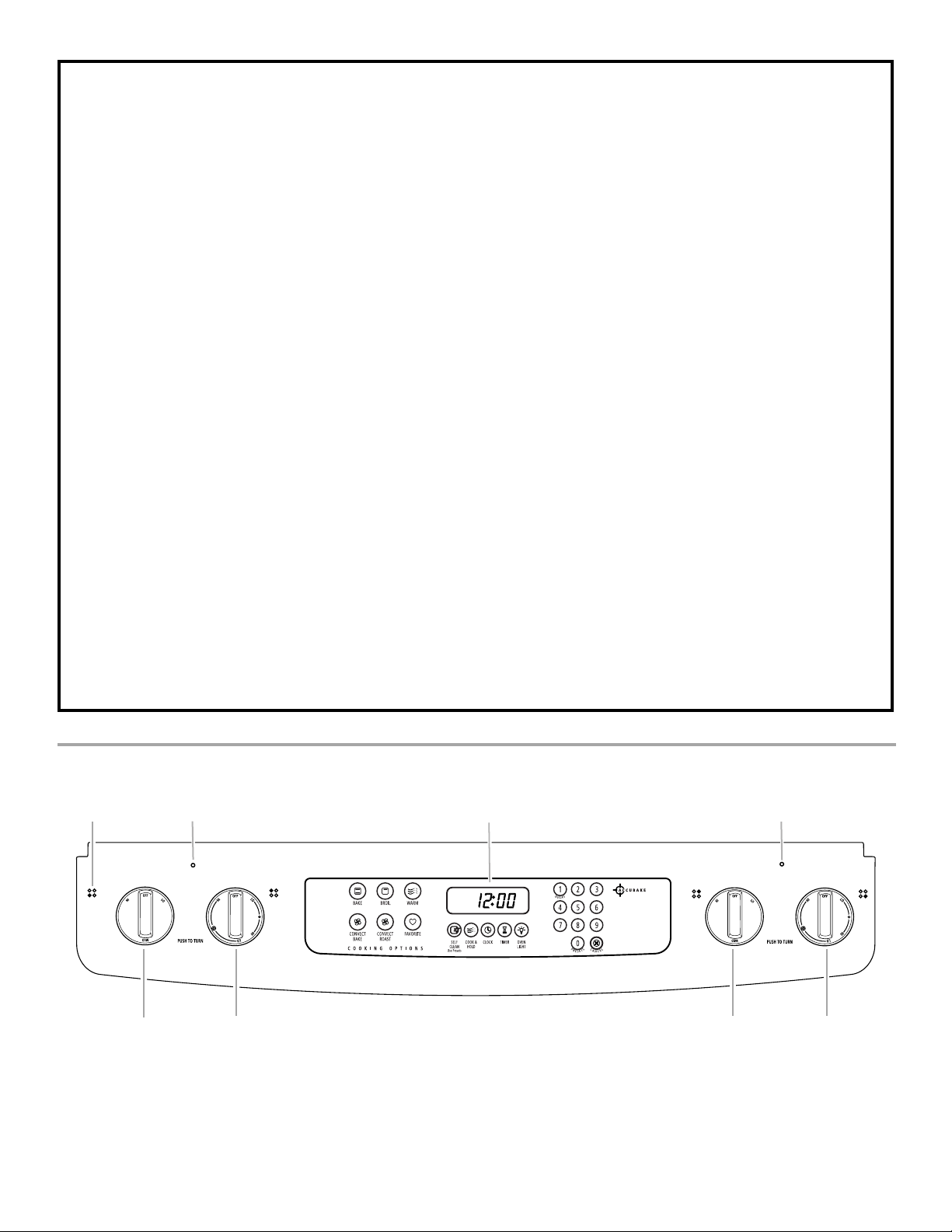

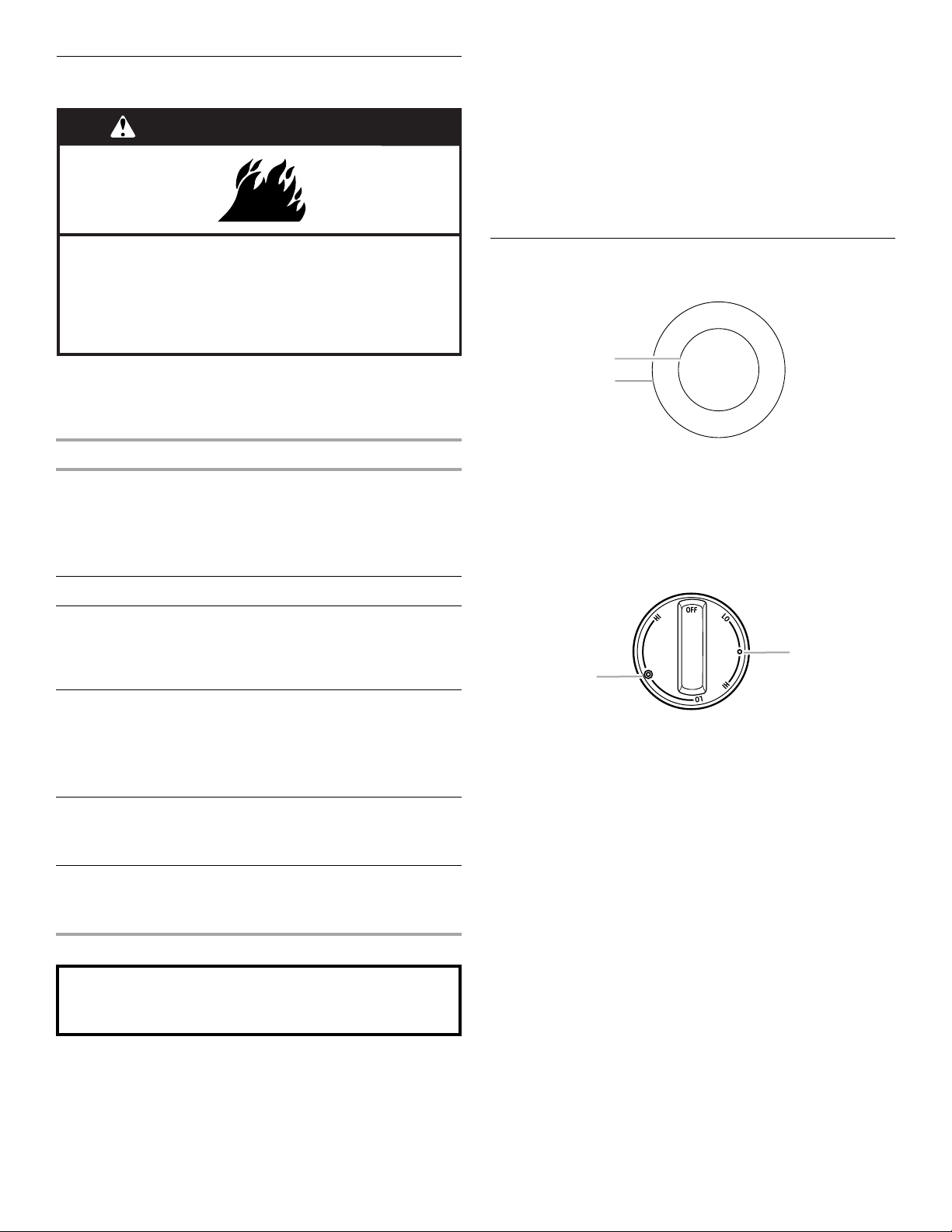

COOKTOP USE
A
C
B
D
A. Surface cooking area locator
B. Cooktop on indicator light
C. Left front control knob
D. Left rear control knob
E
F
E. Electronic oven control
F. Ri g ht r ear c on t ro l kno b
G. Right front control knob
B
G
Cooktop Controls
WARNING
REMEMBER: When range is in use or (on some models)
during the Self-Cleaning cycle, the entire cooktop area may
become hot.
Fire Hazard
Turn off all controls when done cooking.
Failure to do so can result in death or fire.
The control knobs can be set anywhere between HI and LO. Push
in and turn to setting. Use the following chart as a guide when
setting heat levels.
SETTING RECOMMENDED USE
Dual Elements
HI (High)
Medium High
Between
HI and MED
MED (Medium)
■ Large diameter cookware.
■ Large quantities of food.
■ Home canning.
■ Bring liquid to a boil.
■ Hold a rapid boil.
■ Quickly brown or sear food.
■ Maintain a slow boil.
■ Fry or sauté foods.
■ Cook soups, sauces and gravies.
Cooktop On Indicator Lights
Each set of control knobs, left and right of the oven control, have
a Cooktop On indicator light. When either control on a side is on,
the light will glow.
Hot Surface Indicator Light
The hot surface indicator light, located on the cooking surface,
will glow as long as any surface cooking area is too hot to touch,
even after the surface cooking area(s) is turned off.
Dual Size Element
(on some models)
A
B
A. Single size (6" [15.24 cm])
B. Dual size (10" [25.4 cm])
Medium Low
Between
MED and LO
LO (Low)
■ Stew or steam food.
■ Simmer.
■ Keep food warm.
■ Melt chocolate or butter.
5
The dual size elements offer flexibility to cook using different
C
sizes of cookware. The single element can be used in the same
way as a regular element. The dual element combines both the
inner and outer elements and is recommended for larger
cookware.
B
A
A. Dual element control - left side
B. Single element control - right side
To Use Single Element:
1. Push in and turn the control knob counterclockwise from the
OFF position to the Singe zone anywhere between HI and LO.
2. Push in and turn knob to OFF when finished.
To Use Dual Element:
1. Push in and turn the control knob clockwise from the OFF
position to the Dual zone anywhere between HI and LO.
2. Push in and turn knob to OFF when finished.

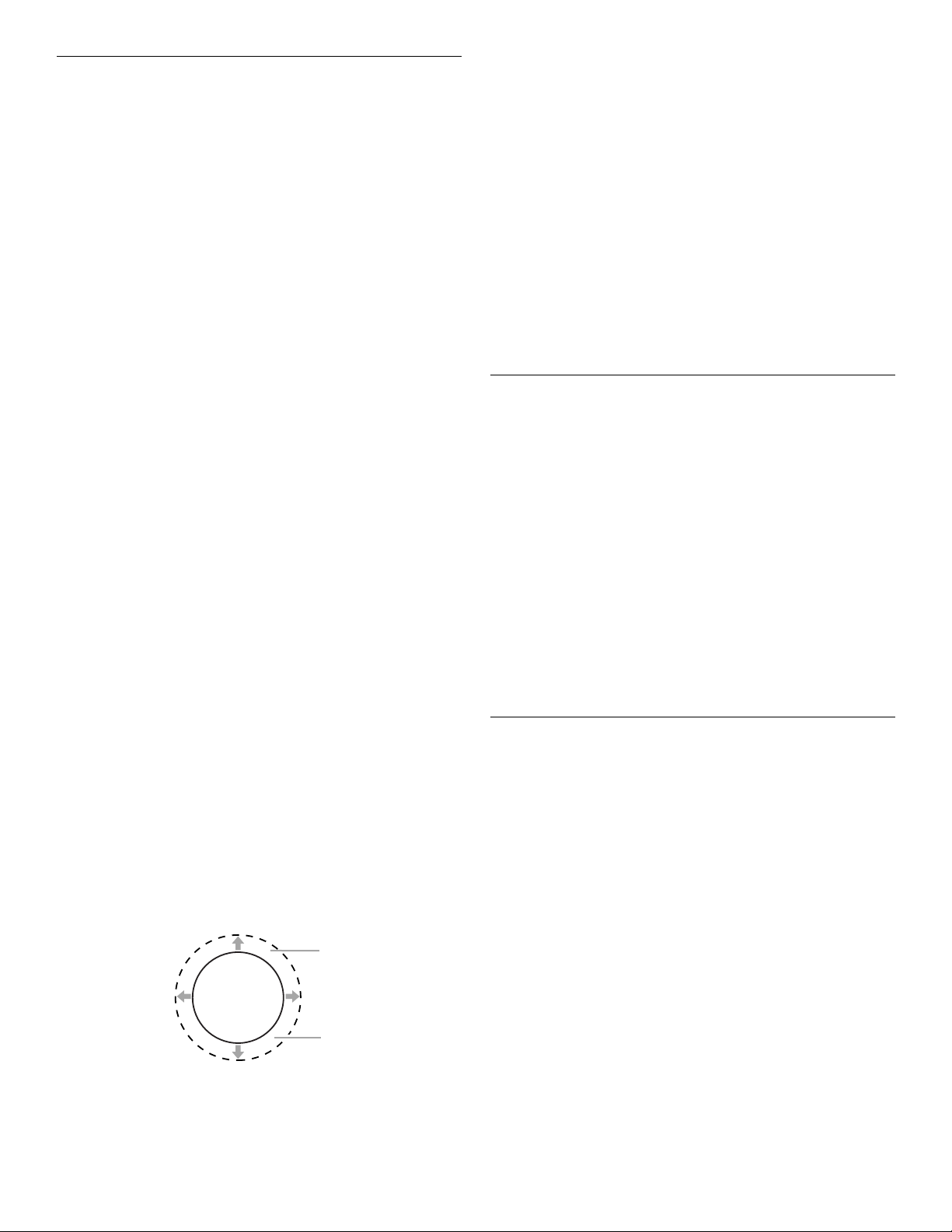

Ceramic Glass
The surface cooking area will glow red when an element is on. It
may cycle on and off to maintain the selected heat level.
It is normal for the surface of light colored ceramic glass to
appear to change color when surface cooking areas are hot. As
the glass cools, it will return to its original color.
Cleaning off the cooktop before and after each use will help keep
it free from stains and provide the most even heating. On
cooktops with light colored ceramic glass, soils and stains may
be more visible, and may require more cleaning and care.
Cooktop cleaner and a cooktop scraper are recommended. For
more information, see “General Cleaning” section.
■ Avoid storing jars or cans above the cooktop. Dropping a
heavy or hard object onto the cooktop could crack the
cooktop.
■ To avoid damage to the cooktop, do not leave a hot lid on the
cooktop. As the cooktop cools, air can become trapped
between the lid and the cooktop, and the ceramic glass could
break when the lid is removed.
■ For foods containing sugar in any form, clean up all spills and
soils as soon as possible. Allow the cooktop to cool down
slightly. Then, while wearing oven mitts, remove the spills
while the surface is still warm. If sugary spills are allowed to
cool down, they can adhere to the cooktop and can cause
pitting and permanent marks.
■ To avoid scratches, do not slide cookware or bakeware
across the cooktop. Aluminum or copper bottoms and rough
finishes on cookware or bakeware could leave scratches or
marks on the cooktop.
■ Do not cook popcorn in prepackaged aluminum containers
on the cooktop. They could leave aluminum marks that
cannot be removed completely.
■ To avoid damage to the cooktop, do not allow objects that
could melt, such as plastic or aluminum foil, to touch any part
of the entire cooktop.
■ To avoid damage to the cooktop, do not use the cooktop as a
cutting board.
■ Use cookware about the same size as the surface cooking
area. Cookware should not extend more than ½" (1.3 cm)
outside the area.
B
A
A. Surface cooking area
B. Cookware/canner
C. ½" (1.3 cm) Maximum overhang
■ Use flat-bottomed cookware for best heat conduction and
energy efficiency. Cookware with rounded, warped, ribbed or
dented bottoms could cause uneven heating and poor
cooking results.
■ Determine flatness by placing the straight edge of a ruler
across the bottom of the cookware. While you rotate the ruler,
no space or light should be visible between it and the
cookware.
■ Cookware designed with slightly indented bottoms or small
expansion channels can be used.
■ Make sure the bottoms of pots and pans are clean and dry
before using them. Residue and water can leave deposits
when heated.
■ To avoid damage to the cooktop, do not cook foods directly
on the cooktop.
Home Canning
When canning for long periods, alternate the use of surface
cooking areas, elements or surface burners between batches.
This allows time for the most recently used areas to cool.
■ Center the canner on the grate or largest surface cooking
area or element. On electric cooktops, canners should not
extend more than ½" (1.3 cm) beyond the surface cooking
area or element.
■ Do not place canner on 2 surface cooking areas, elements or
surface burners at the same time.
■ On ceramic glass models, use only flat-bottomed canners.
■ For more information, contact your local agricultural
department. Companies that manufacture home canning
products can also offer assistance.
Cookware
IMPORTANT: Do not leave empty cookware on a hot surface
cooking area, element or surface burner.
Ideal cookware should have a flat bottom, straight sides and a
well-fitting lid, and the material should be of medium-to-heavy
thickness.
Rough finishes may scratch the cooktop or grates. Aluminum and
copper may be used as a core or base in cookware. However,
when used as a base they can leave permanent marks on the
cooktop or grates.
Cookware material is a factor in how quickly and evenly heat is
transferred, which affects cooking results. A nonstick finish has
the same characteristics as its base material. For example,
aluminum cookware with a nonstick finish will take on the
properties of aluminum.
Cookware with nonstick surfaces should not be used under the
broiler.
6
Use the following chart as a guide for cookware material
characteristics.
COOKWARE CHARACTERISTICS
Aluminum ■ Heats quickly and evenly.
■ Suitable for all types of cooking.
■ Medium or heavy thickness is best for
most cooking tasks.
Cast iron
Ceramic or
Ceramic glass
■ Heats slowly and evenly.
■ Good for browning and frying.
■ Maintains heat for slow cooking.
■ Follow manufacturer’s instructions.
■ Heats slowly, but unevenly.
■ Ideal results on low to medium heat
settings.

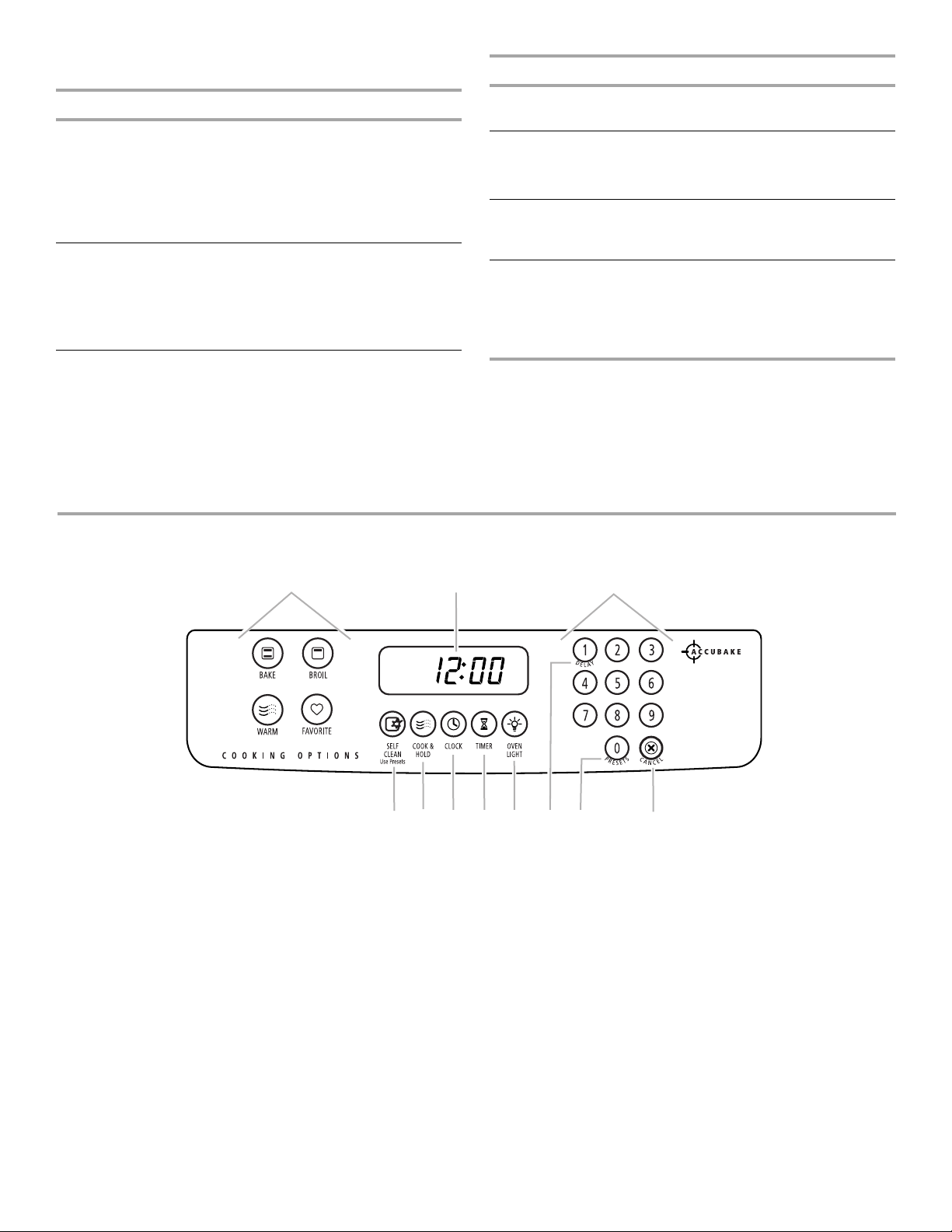

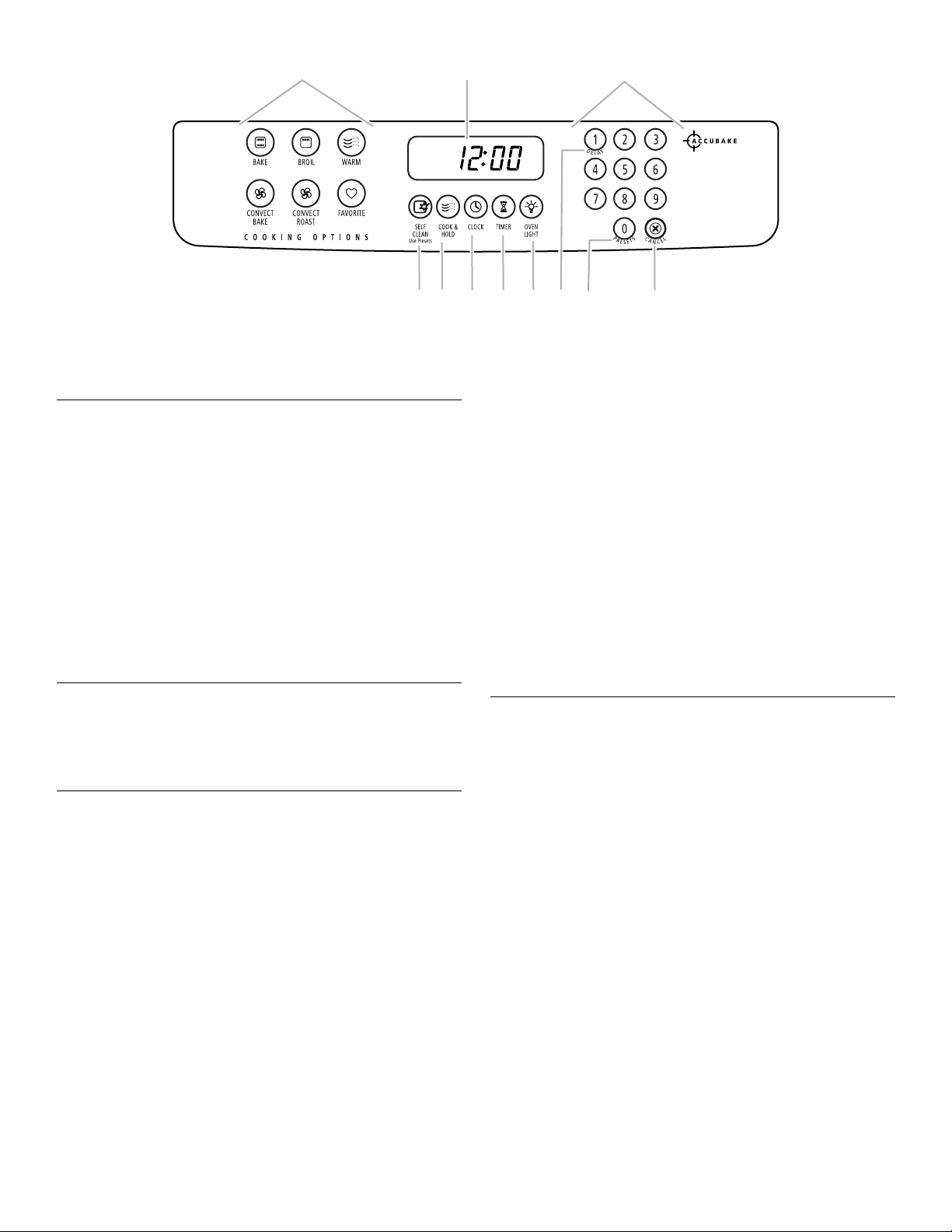

ELECTRONIC OVEN CONTROL
ABC
COOKWARE CHARACTERISTICS
Copper ■ Heats very quickly and evenly.
Earthenware ■ Follow manufacturer’s instructions.
■ Use on low heat settings.
Porcelain
■ See stainless steel or cast iron.
enamel-onsteel or cast
iron
Stainless steel ■ Heats quickly, but unevenly.
■ A core or base of aluminum or copper
on stainless steel provides even
heating.
A. Oven functions
B. Oven display
C. Number pad
D. Cancel
A. Oven functions
B. Oven display
C. Number pad
D. Cancel
GHIJK
F
E. Presets keypad
F. Delay keypad
G. Oven light
H. Timer
DE
I. Clock
J. Cook and hold
K. Self-clean
ABC
E
E. Presets keypad
F. Delay keypad
G. Oven light
H. Timer
F
GHIJK
D
I. Clock
J. Cook and hold
K. Self-clean
7
Display
When power is supplied to the range or after a power
interruption, the last clock time before power was interrupted will
flash.
Bake or Lock may flash rapidly in the display to alert you if there
is an error or problem. Press CANCEL and reset clock if needed.
When the oven is in use, the display shows the temperature and
oven setting.
When the oven is not in use, the display shows the time of day.
When using the TIMER, for settings of 1 to 59 minutes, the
display will count down in minutes. For settings of 1 hour or
more, the display will count down hours and minutes.
Cancel
The CANCEL button stops any function except the Clock, Timer
and Control Lock. When you press the CANCEL button, the
display will show the time of day, or the time remaining if the
TIMER is being used.
Clock
The clock can be set to display time in a 12-hour or 24-hour
format. The clock is set at the factory for the 12-hour format.
To recall the time of day when another time function is showing,
press the Clock pad.
Clock time cannot be changed when the oven has been
programmed for Delay Cook, Clean, or Cook & Hold.
2. Press the appropriate number pads to set the length of time.
The selected time appears in the display and “TIMER”
continues to flash.
3. Press TIMER again or wait 4 seconds. Time will begin
counting down and “TIMER” is displayed.
When the set time ends, 1 long beep will sound and “TIMER”
and “End” will be displayed.
4. Press TIMER to clear the display.
To Cancel:
1. Press TIMER and set time to “0:00.”
Control Panel and Oven Door Lock
The lock feature shuts down the control panel pads (buttons) and
locks the oven door to prevent unintended use of the oven(s).
The lock feature is preset unlocked, but can be locked.
If the oven is currently in use, the controls cannot be locked.
To Lock Control Panel and Oven Door:
Press and hold CANCEL and COOK & HOLD for 3 seconds
(Press the CANCEL pad first.) “OFF” appears in the display and
“LOCK” flashes while the door is locking. Once the oven door is
locked “LOCK” is displayed.
To Unlock Control Panel and Oven Door:
Press and hold CANCEL and COOK & HOLD for 3 seconds
(Press the CANCEL pad first.) “OFF” disappears in the display
and “LOCK” flashes while the door is unlocking. Once the oven
door is unlocked “LOCK” disappears from the display.
To Change the Clock to 24-hour Format:
1. Press and hold CANCEL and FAVORITE for 3 seconds.
2. Press PRESETS 0 on the number pad to select 24 hour. Press
again to select 12 hour.
To S et :
1. Press CLOCK. The time of day will flash in the display.
2. Press the appropriate number pads to set the time of day.
The colon flashes.
3. Press CLOCK or wait 4 seconds. The colon stops flashing.
To Cancel the Clock Display:
If you do not want the time of day to display:
Press and hold CANCEL and CLOCK for 3 seconds. The time of
day will disappear from the display.
When the clock display is canceled, press CLOCK to briefly
display the time of day.
To Restore the Clock Display:
Press and hold CANCEL and CLOCK for 3 seconds. The time of
day will reappear in the display.
Timer
The Timer can be set in hours or minutes up to 99 hours and
59 minutes, and counts down the set time.
The Timer can be used independently of any other oven function.
It can also be set while another oven function is operating.
NOTE: The Timer does not start or stop the oven.
To S et :
1. Press TIMER.
“0:00” and “TIMER” will flash in the display.
Oven Temperature Control
IMPORTANT: Do not use a thermometer to measure oven
temperature because opening the oven door and element or
burner cycling may give incorrect readings.
The oven provides accurate temperatures; however, it may cook
faster or slower than your previous oven, so the temperature
calibration can be adjusted. It can be changed in Fahrenheit or
Celsius.
A minus sign means the oven will be cooler by the displayed
amount. The absence of a minus sign means the oven will be
warmer by the displayed amount. Use the following chart as a
guide.
ADJUSTMENT °F
(ADJUSTMENT °C)
5° to 10°F (3° to 6°C) ...a little more
15° to 20°F (9° to 12°C) ...moderately more
25° to 35°F (15° to 21°C) ...much more
-5° to -10°F (-3° to -6°C) ...a little less
-15° to -20°F (-9° to -12°C) ...moderately less
-25° to -35°F (-15°C to -21°C) ...much less
To A dj us t O ve n Te mp er at ure C alib ration:
1. Press BAKE.
2. Enter 550° by pressing the appropriate number pads.
3. Immediately press and hold BAKE pad for several seconds or
until “0°” appears in the display.
If the oven temperature was previously adjusted, the change
will be displayed. For example, if the oven temperature was
reduced by 15 degrees the display will show “-15°.”
COOKS FOOD
8
4. Press the PRESETS 0 number pad to adjust the temperature.
Each time PRESET 0 is pressed, the temperature changes by
5 degrees, rising from “0°” to “35°” and then continuing from
“-35°” to “0°”. If in Celcuis mode, the temperature changes
by 3 degrees, rising from “0°” to “21°” and then continuing
from “-21°” to “0°.”
5. The time of day will automatically reappear in the display.
You do not need to readjust the oven temperature if there is a
power failure or interruption. Temperature adjustments can be
made to Bake, Convect Bake (on some models) and Convect
Roast (on some models) only. Broil, Warm and Self Clean
temperatures cannot be adjusted.
To Display Temperatures in °C instead of °F:
1. Press and hold the CANCEL and BAKE buttons for
3 seconds. A single beep will sound and the current setting
will be displayed.
If no change is made, the range will return to the existing
setting after 30 seconds.
2. Press the PRESETS 0 number pad to change the setting.
Wait 5 seconds and the setting will be complete.
OVEN USE

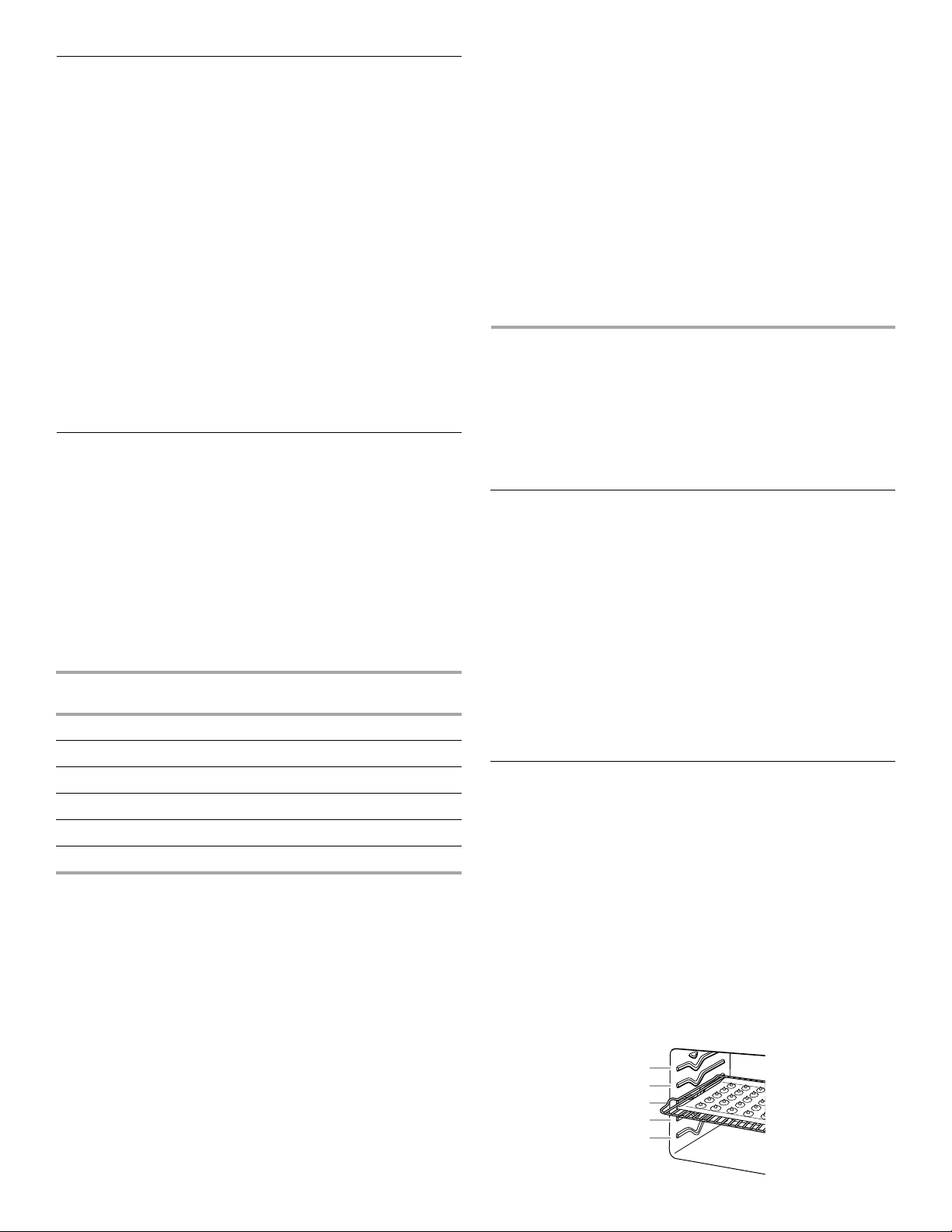

To move a rack, pull it out to the stop position, raise the front
edge, then lift out. Use the following illustration and chart as a
guide.
5
4
3
2
1
FOOD RACK POSITION(S)
Large roasts, turkeys, angel food,
1 or 2
bundt cakes, quick breads, pies
Yeast breads, casseroles, meat and
2
poultry
Cookies, biscuits, muffins, cakes 2 or 3
BAKEWARE
Hot air must be able to circulate around food to cook evenly, so
allow 2" (5 cm) of space around bakeware and oven walls. Use
the following chart as a guide.
Odors and smoke are normal when the oven is used the first few
times, or when it is heavily soiled.
IMPORTANT: The health of some birds is extremely sensitive to
the fumes given off. Exposure to the fumes may result in death to
certain birds. Always move birds to another closed and wellventilated room.
Aluminum Foil
IMPORTANT: To avoid permanent damage to the oven bottom
finish, do not line the oven bottom with any type of foil, liners or
cookware.
■ On those models with bottom vents, do not block or cover
the oven bottom vents.
■ For best cooking results, do not cover entire rack with foil
because air must be able to move freely.
■ To catch spills, place foil on rack below dish. Make sure foil is
at least ¹⁄₂" (1.3 cm) larger than the dish and that it is turned
up at the edges.
Positioning Racks and Bakeware
IMPORTANT: To avoid permanent damage to the porcelain
finish, do not place food or bakeware directly on the oven door or
bottom.
RACKS
■ Position racks before turning on the oven.
■ Do not move racks with bakeware on them.
■ Make sure racks are level.
NUMBER OF
POSITION ON RACK
PAN(S)
1 Center of rack.
2 Side by side or slightly staggered.
3 or 4 Opposite corners on each rack. Make sure
that no bakeware piece is directly over
another.
Bakeware
The bakeware material affects cooking results. Follow
manufacturer’s recommendations and use the bakeware size
recommended in the recipe. Use the following chart as a guide.
BAKEWARE/
RESULTS
Light colored
aluminum
■ Light golden crusts
■ Even browning
Dark aluminum and
other bakeware with
dark, dull and/or
nonstick finish
■ Brown, crisp
crusts
RECOMMENDATIONS
■ Use temperature and time
recommended in recipe.
■ May need to reduce baking
temperatures slightly.
■ Use suggested baking time.
■ For pies, breads and casseroles,
use temperature recommended in
recipe.
■ Place rack in center of oven.
Insulated cookie
sheets or baking
pans
■ Little or no bottom
browning
Stainless steel
■ Light, golden
crusts
■ Uneven browning
■ Place in the bottom third of oven.
■ May need to increase baking time.
■ May need to increase baking time.
9
BAKEWARE/
RECOMMENDATIONS
RESULTS
Stoneware/Baking
■ Follow manufacturer’s instructions.
stone
■ Crisp crusts
Ovenproof
glassware, ceramic
■ May need to reduce baking
temperatures slightly.
glass or ceramic
■ Brown, crisp
crusts
Meat Thermometer
On models without a temperature probe, use a meat
thermometer to determine doneness of meat, poultry and fish.
The internal temperature, not appearance, should be used to
determine doneness. A meat thermometer is not supplied with
this appliance.
■ Insert the thermometer into the center of the thickest portion
of the meat or inner thigh or breast of poultry. The tip of the
thermometer should not touch fat, bone or gristle.
■ After reading the thermometer once, push it into the meat
½" (1.3 cm) more and read again. If the temperature drops,
cook the meat or poultry longer.
■ Check all meat, poultry and fish in 2 or 3 different places.
Press the appropriate number pads to select the bake
temperature. The Bake temperature can be set from
170°F (75°C) to 550°F (290°C).
3. Press BAKE again or wait 4 seconds. Bake will stop flashing
and light in the display.
“100°” or the actual temperature will display. The temperature
will rise in 5° increments until the preset temperature is
reached.
4. For best results, allow oven to fully preheat.
When the set oven temperature is reached, 1 long beep will
sound.
To recall the set temperature during preheat, press the BAKE
pad.
To change the oven temperature during preheat, press BAKE
twice, then PRESETS 0 or the appropriate number pads until
the desired temperature is displayed.
To change the oven temperature during cooking, press BAKE,
then PRESETS 0 or the appropriate number pads until the
desired temperature is displayed.
5. When cooking is finished, press CANCEL.
Preheating
Preheat temperatures are affected by varying factors such as
room temperature and peak energy usage times. It is normal for
the temperature showing on the display and the actual oven
temperature to differ.

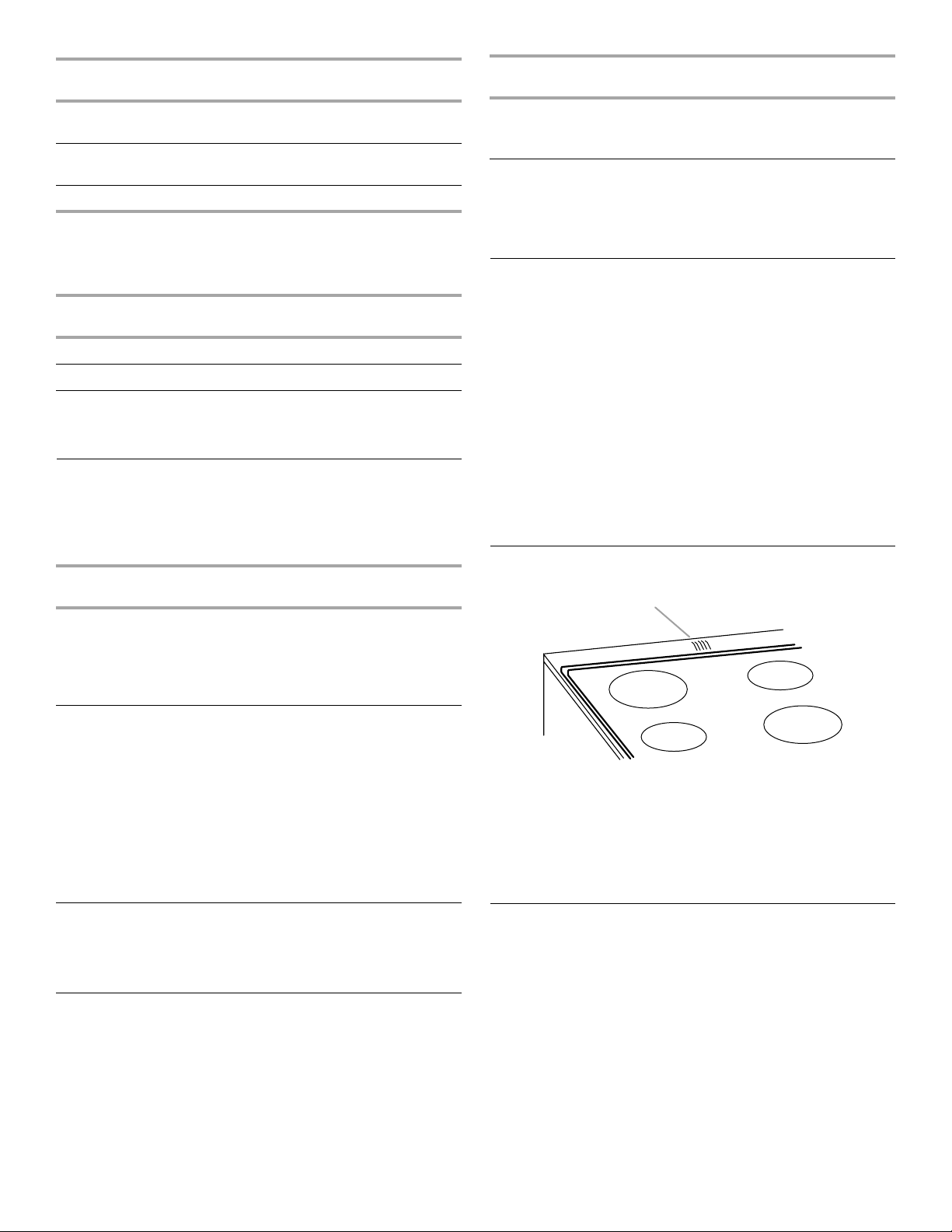

Oven Vent
A
A. Oven vent
The oven vent releases hot air and moisture from the oven, and
should not be blocked or covered. Blocking or covering the vent
will cause poor air circulation, affecting cooking and cleaning
results. Do not set plastics, paper or other items that could melt
or burn near the oven vent.
Baking
The oven automatically regulates the heat levels and both the top
and bottom burners cycle on and off accordingly during preheat
and bake to maintain a precise temperature range for optimal
cooking results.
To Bake or Roast:
Before baking, position the racks according to the “Positioning
Racks and Bakeware” section.
1. Press BAKE. “BAKE” and “000” will flash in the display.
2. Press PRESETS 0 on the number pad.
“350°” (“175°” Celsuis) will appear when PRESETS 0 is first
pressed. Each additional press of PRESETS 0 will increase
the temperature in 25° increments, rising to 550°F (275°C)
and then continuing from 175°F (75°C) upward.
Broiling
Broiling uses direct radiant heat to cook food. Changing the
temperature when broiling allows more precise control when
cooking. The lower the temperature, the slower the cooking.
Thicker cuts and unevenly shaped pieces of meat, fish and
poultry may cook better at lower broiling temperatures.
■ For best results, use a broiler pan and grid (provided on some
models). They are designed to drain juices and help avoid
spatter and smoke.
If you would like to purchase a broiler pan, one may be
ordered. See “Assistance or Service” section to order. Ask for
Part Number 12500100.
■ For proper draining, do not cover the grid with foil. The
bottom of the pan may be lined with aluminum foil for easier
cleaning.
■ Trim excess fat to reduce spattering. Slit the remaining fat on
the edges to avoid curling.
■ Pull out oven rack to stop position before turning or removing
food. Use tongs to turn food to avoid the loss of juices. Very
thin cuts of fish, poultry or meat may not need to be turned.
■ After broiling, remove the pan from the oven when removing
the food. Drippings will bake on the pan if left in the heated
oven, making cleaning more difficult.
Before broiling, position rack according to the Broiling Chart.
Preheat broil about 4 minutes. Position food on grid in the broiler
pan, then place it in the center of the oven rack. Close the door.
To Broil:
1. Press BROIL. “BROIL” and “SEt” will flash in the display until
the door is closed.
2. Press the PRESETS 0 number pad once to set HI Broil or
twice to set LO Broil. “HI” or “LO” will be displayed.
10
Select HI Broil (550°F/288°C) for normal broiling or LO Broil
(450°F/232°C) for low-temperature broiling.
After 4 seconds, the oven will start. “BROIL” and “HI” or “LO”
will remain lit.
3. Press CANCEL when finished broiling.
BROILING CHART
For best results, place food 3" (7.0 cm) or more from the broil
element. Times are guidelines only and may need to be adjusted
for individual tastes. Recommended rack positions are numbered
from the bottom (1) to the top (5). For diagram, see the
“Positioning Racks and Bakeware” section.
FOOD RACK
POSITION
Steak
1" (2.5 cm) thick
medium
well-done
4
4
APPROXIMATE
TIME (minutes)
15-20
18-24
■ Test baked goods for doneness a few minutes before the
minimum cooking time with a method such as a toothpick.
■ Use a meat thermometer to determine the doneness of meats
and poultry. Check the temperature of pork and poultry in 2 or
3 different places.
■ Before convection cooking, position the rack(s) according to
the “Positioning Racks and Bakeware” section.
■ When using more than one rack, position bakeware/
cookware on the racks to allow movement of the fan
circulated air around the food. See the “Positioning Racks
and Bakeware” section.
■ If the oven is full, extra cooking time may be needed.
■ For optimal cooking results, do not cover food with aluminum
foil.
■ When roasting poultry and meat, use a broiler pan and grid. It
is not necessary to wait for the oven to preheat, unless
recommended in the recipe.
Ground meat patties*
³⁄₄" (2 cm) thick
well-done 4 15-18
Pork chops
1" (2.5 cm) thick
well-done 4 22-26
Ham slice, precooked
¹₂" (1.25 cm) thick
warm 4 8-12
Bacon
well-done 4 6-10
Chicken
bone-in pieces
well-done 3 or 4
LO Broil
30-45
Fish Fillets
flaky
4
8-12
Fish Steaks
1" (2.5 cm) thick
flaky
4
10-15
*Place up to 9 patties, equally spaced, on broiler grid.
Convection Cooking
(on some models)
During convection cooking, the fan provides increased hot air
circulation continuously and more consistently throughout the
oven. The movement of heated air around the food helps to
speed up cooking by penetrating the cooler outer surfaces. Food
cooks more evenly, browning and crisping outer surfaces while
sealing moisture inside.
During the Convect function, the ring element operates, along
with the fan, to provide an indirect source of heat in the oven
cavity.
If the oven door is opened during convection cooking or
preheating, the element(s) and fan will turn off immediately. Once
the door is closed, they will come back on.
■ It is important not to cover foods so that surface areas remain
exposed to the circulating air, allowing browning and crisping.
■ Keep heat loss to a minimum by only opening the oven door
when necessary.
■ Choose cookie sheets without sides and roasting pans with
lower sides to allow air to move freely around the food.
A
B

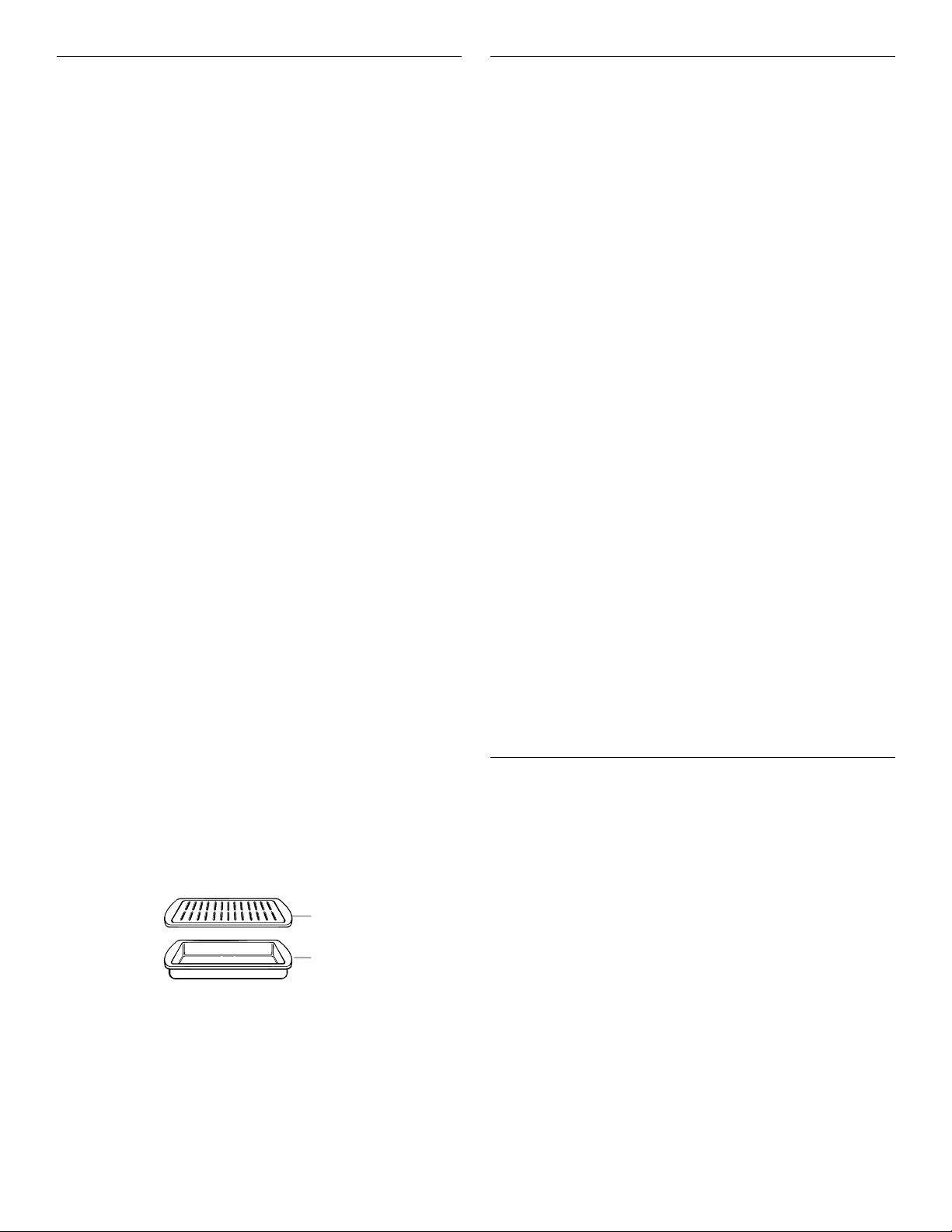

A. Broiler grid
B. Broiler pan
Convect Bake
(on some models)
Use Convect for single or multiple rack baking. When convection
baking, enter your normal baking temperature. The control will
automatically reduce the set oven temperature by 25°F (15°C)
(even though normal baking temperature is displayed).
To Set Convect Bake:
1. Press CONVECT BAKE.
“BAKE,” and the Fan icon will flash. “000” will flash in the
display.
2. Select the oven temperature.
Press AUTOSET 0 for 350°F (175°C) or the appropriate
number pads. Each additional press of the Autoset pad will
increase the temperature by 25°F (15°C).
The oven temperature can be set between 170°F and 550°F
(75°C and 288°C).
3. Press CONVECT BAKE again or wait 4 seconds.
“BAKE” will stop flashing. “100°” (35°C) or the actual oven
temperature if over 100°F (35°C) will display. The temperature
will rise in 5° increments until the preset temperature is
reached.
The Fan icon will start to rotate.
Allow the oven to preheat for 8 to 15 minutes.
When the set oven temperature is reached, one long beep will
sound. The set temperature will display.
To recall the set temperature during preheat, press CONVECT
BAKE.
4. Place food in the oven.
5. Press CANCEL when finished.
6. Remove food from the oven.
11
Convect Roast
(on some models)
When convection roasting, enter your normal roasting time and
temperature. The control will automatically prompt you to check
the food for doneness at 75% of the set time. The convection fan
will come on immediately after the oven has turned on.
NOTE: When convection roasting, the cooking time must be set
before setting the temperature.
To Set Convect Roast:
1. Press CONVECT ROAST.
“ROAST,” and the Fan icon will flash. “00:00” will flash in the
display.
2. Enter the roasting time using the number pads. Time can be
set from 10 minutes (00:10) to 11 hours, 59 minutes (11:59).
If preheating is required, add 15 minutes to the programmed
cooking time.
3. Press CONVECT ROAST again or wait 4 seconds.
“ROAST,” and the fan icon will flash in the display. “000” will
flash in the display.
4. Select the oven temperature.
Press AUTOSET 0 for 325°F (165°C) or the appropriate
number pads. Each additional press of the Autoset pad will
increase the temperature by 25°F (15°C).
The oven temperature can be set between 170°F and 550°F
(75°C and 288°C).
5. Press CONVECT ROAST again or wait 4 seconds.
6. “ROAST” will stop flashing and light in the display.
100°F (35°C) or the actual oven temperature if over
100°F (35°C) will display. The temperature will rise in
5° increments until the preset temperature is reached.
The Fan icon will start to rotate.
7. Place food in the oven.
Time will start counting down once oven starts heating up. To
recall the set temperature during preheat, press the Convect
Roast pad.
8. When 75% of the set cooking time has elapsed, the oven will
signal you to check the cooking progress. Cook longer if
needed.
Press any pad to recall the cook time remaining.
9. Press CANCEL when finished.
10. Remove food from the oven.
Cook & Hold
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
Cook & Hold allows the oven to cook for a set length of time,
followed by a 1-hour Keep Warm cycle.
To Set Cook & Hold:
1. Press COOK & HOLD. “HOLD” and “00:00” will flash in the
display.
2. Press the appropriate number pads to select an amount of
time to cook. The time selected will show in the display while
“HOLD” continues to flash. Bake time can be set from
10 minutes to 11 hours and 59 minutes.
3. While “HOLD” is still flashing press BAKE, CONVECT BAKE
or CONVECT ROAST (on some models).
4. Press PRESETS 0 or the appropriate number pads to select
the oven temperature. The selected function will flash. The
oven temperature can be set from 170°F (75°C) to
550°F (290°C).
5. Press the selected function pad again or wait 4 seconds.
The selected function will remain lit in the display and the
cooking time will be displayed.
The actual oven temperature will display during preheat. The
set temperature will display when preheating is completed.
When the cooking time has elapsed:
Four beeps will sound, “BAKE” will turn off and “HOLD,”
“WARM,” and “170°” (“75°” Celcius) will appear in the display.
After 1 hour in Hold Warm:
Four beeps will sound, “End” will appear and the time of day will
reappear.
To cancel Cook & Hold at any time:
Press CANCEL. Remove food from oven.
To Set a Delayed Cook & Hold cycle:
Cook & Hold allows the oven to be set to turn on at a certain time
of day, cook for a set length of time, followed by a 1-hour Keep
Warm cycle.
Delay start should not be used for food such as breads and
cakes because they may not bake properly. Do not use delayed
baking if oven is already hot.
Before setting, make sure the clock is set to the correct time of
day. See “Clock” section.
1. Press DELAY 1 pad. “DELAY” will flash and “00:00” appears
in the display.
2. Press the appropriate number pads to set a delay time.
3. While “DELAY” is still flashing, press COOK & HOLD. “HOLD”
and “DELAY” and “00:00” will flash in the display.
4. Press the appropriate number pads to set the baking time.
5. Press BAKE, CONVECT BAKE or CONVECT ROAST (on
some models).
6. Set the oven temperature desire by pressing PRESETS 0 or
appropriate number pads.
“350°” (“175°” Celcuis) will light when PRESETS 0 is pressed.
After 4
seconds, the entered delay time will appear in the
display and “HOLD” disappears from the display.
The selected function and “DELAY” remain lit to remind that a
delayed Cook & Hold cycle has been programmed.
When the Delay time has expired:
“DELAY” will turn off. The selected function and the baking time
will be displayed. Baking will begin.
When the cooking time has elapsed:
Four beeps will sound, the selected function will turn off and
“HOLD,” “WARM,” and “170°” (“75°” Celcius) will appear in the
display.
After 1 hour in Hold Warm:
Four beeps will sound, “End” will appear and the time of day will
reappear.
To cancel:
Press CANCEL. All timed and untimed cooking functions will be
canceled. The time of day will reappear in the display.
12
Loading...
