Whirlpool GSU 4644 RW-BR PROGRAM CHART
GB
GSU 4644
Further indications are given in the pages to follow and in the user instructions.
Salt level indicator
Add regeneration salt; only add regeneration salt
immediately before starting a wash programme.

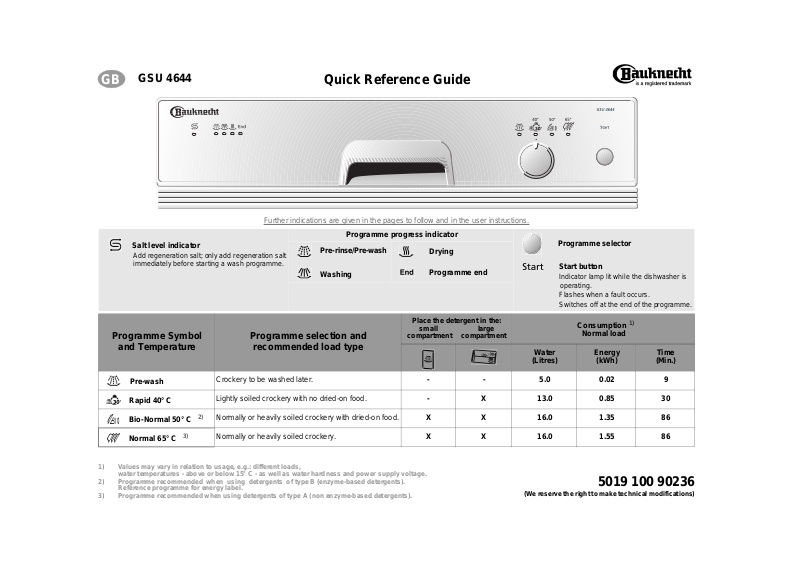

Quick Reference Guide
Programme progress indicator
Pre-rinse/Pre-wash
Washing
Drying
Programme end
Programme selector
Start button
Indicator lamp lit while the dishwasher is
operating.
Flashes when a fault occurs.
Switches off at the end of the programme.
Programme Symbol
and Temperature
Pre-wash
Rapid 40° C
Bio-Normal 50° C
Normal 65° C
1) Values may vary in relation to usage, e.g.: different loads,
water temperatures - above or below 15° C - as well as water hardness and power supply voltage.
2) Programme recommended when using detergents of type B (enzyme-based detergents).
Reference programme for energy label.
3) Programme recommended when using detergents of type A (non enzyme-based detergents).
3)
Crockery to be washed later.
Lightly soiled crockery with no dried-on food.
2)
Normally or heavily soiled crockery with dried-on food.
Normally or heavily soiled crockery.
Programme selection and
recommended load type
Place the detergent in the:
small large
compartment compartment
Water
(Litres)
- - 5.0 0.02 9
- X 13.0 0.85 30
X X 16.0 1.35 86
X X 16.0 1.55 86
Consumption
Normal load
Energy
(kWh)
5019 100 90236
(We reserve the right to make technical modifications)
1)
Time
(Min.)
C
How to use the dishwasher
1. After loading the dishwasher, cl ose the
door properly and open the water
supply tap.
2. The dishwasher switches on
automatically as soon as the programme
selector knob is turned.
programme indicator lamps will
switch on.
3. Turn the selector knob to select the
desired programme.
indicator lamp lights up.
select options (if supplied).
4. Press the Start button to start the
selected wash programme.
indicator light will light up.
the programmed data cannot be altered
by turning the programme selector knob.
once the Start button has been
Note:
pressed, the dishwasher memorises the
last programme selected. This
information remains in the memory even
during interruption of the power supply.
To change the selected
programme, press the Start button
for about 5 seconds,
indicator lamp switches off.
Select a new programme using the
programme selector knob and
press the Start button.
If the dishwasher is switched off
Note:
during a wash programme, when
switched on again it will resume the wash
cycle from where it was interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
steam.
5. To indicate the end of the programme,
the Start indicator lamp switches off
and
the End indicator lamp (if fitted)
lights up
(for about 30 min.)
One of the
The corresponding
If required,
The Start
Once set,
until the Start
.
6. Turn the programme selector knob
counter clockwise to the initial position
to switch off the dishwasher (only after
the Start indicator lamp has switched
off).
All the indicator lamps switch
off.
7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.

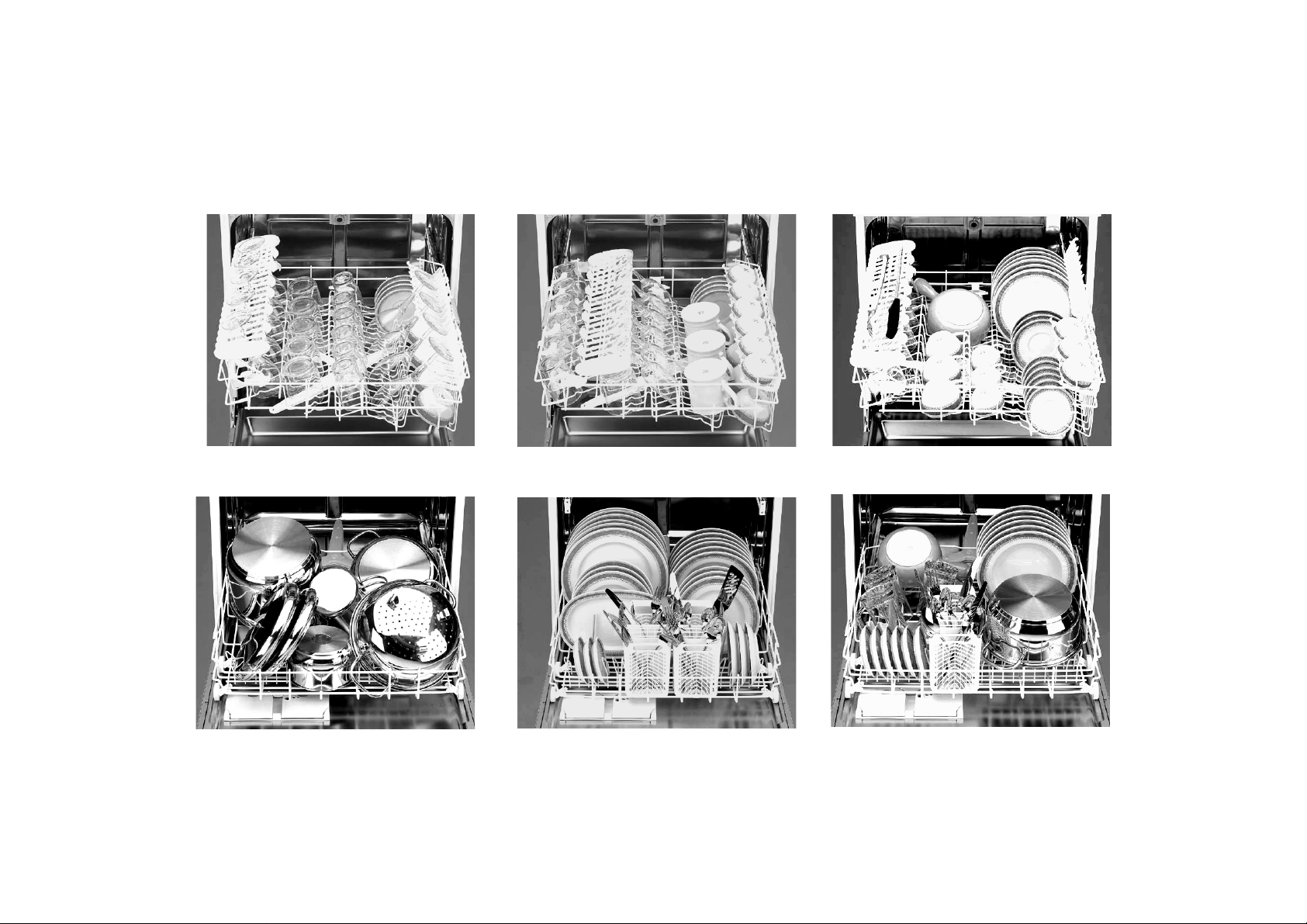

Upper rack
.
Rack height adjustment:
(The dishwasher is delivered with the upper
rack in the top position).
The rack height can also be changed
when loaded.
• To lower: pull out the
handles and gently lower the rack.
two
side
Upper and lower rack
• To raise: pull up the
until the rack clicks into place.
• The rack must be level on both
sides.
Crockery Holders:
• Down: cups and long-stemmed glasses.
•
Up: plates.
"Vario Organizer ” multi-purpose support:
• To be used, for example, for longhandled utensils
with the blade facing downwards),
cups and glasses.
• May be used in three different
positions (see also “Dishwasher
loading instructions” on Page 4).
1. Upon the left-hand side of the rack.
2. Upside-down, towards the centre of
the rack.
3. Upside-down, towards the left side.
Glass holder:
side handles
two
(arrange knives
Lower rack
B
A
Plate holders:
• May be lowered to increase
available space (A).
• May be removed to increase available
space (B). To remove: pull the
handle up.
B
A
Cutlery basket:
The cutlery basket can be removed to
increase (C) available space.
C
Please read the user instructions carefully.
