Whirlpool GSF 5349 TW-BR, GSF 5349 TW-WS PROGRAM CHART

GB

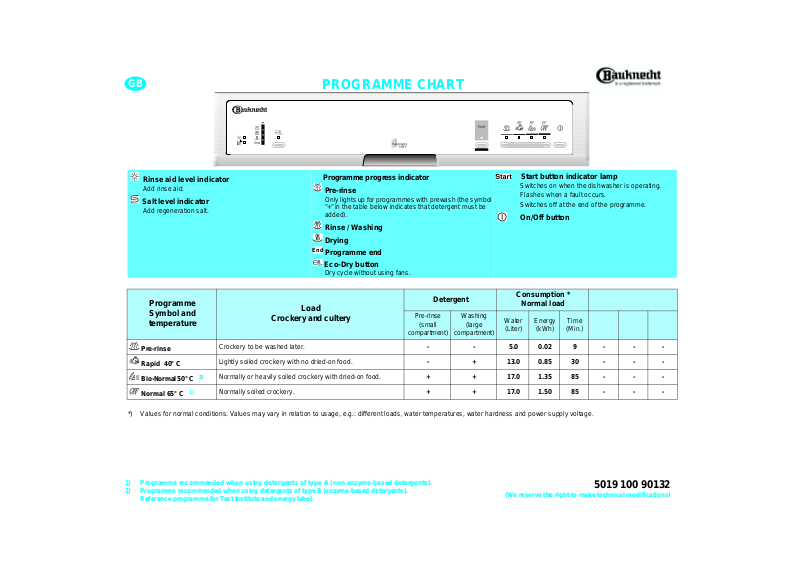

PROGRAMME CHART

Rinse aid level indicator

Add rinse aid.

Salt level indicator

Add regeneration salt.

Programme progress indicator

Pre-rinse

Only lights up for programmes with prewash (the symbol “+” in the table below indicates that detergent must be added).

Rinse / Washing Drying

End Programme end

Eco-Dry button

Dry cycle without using fans.

Start button indicator lamp

Switches on when the dishwasher is operating.

Flashes when a fault occurs.

Switches off at the end of the programme.

On/Off button

	Programme		Detergent		Consumption *
		Load			Normal load
	Symbol and	Crockery and cultery	Pre-rinse	Washing	Water	Energy		Time
	temperature
			(small	(large
					(Liter)	(kWh)		(Min.)
			compartment)	compartment)
	Pre-rinse	Crockery to be washed later.	-	-	5.0	0.02		9	-	-	-
	Rapid 40° C	Lightly soiled crockery with no dried-on food.	-	+	13.0	0.85		30	-	-	-
	Bio-Normal 50° C 2)	Normally or heavily soiled crockery with dried-on food.	+	+	17.0	1.35		85	-	-	-
	Normal 65° C 1)	Normally soiled crockery.	+	+	17.0	1.50		85	-	-	-

*) Values for normal conditions. Values may vary in relation to usage, e.g.: different loads, water temperatures, water hardness and power supply voltage.

1)	Programme recommended when using detergents of type A (non enzyme-based detergents).	5019 100 90132
2)	Programme recommended when using detergents of type B (enzyme-based detergents).	(We reserve the right to make technical modifications)
	Reference programme for Test Institute and energy label.

Daily check list

1. Arrange crockery so that items do not touch each other.

2. Load cups at an inclination to facilitate water circulation.

3. In general, place the cutlery in the basket with the handles positioned downwards, but ensure that sharp knives and forks that might cause injury are placed in the basket with

the handles positioned upwards.

4. Make sure the water jet can reach all loaded items and that the spray

arms rotate freely.

5. Turn on the water supply tap before starting the dishwasher.

Important

•Switch off the dishwasher: switch

off the dishwasher once the “Start” indicator lamp has switched off. If you switch off the dishwasher during a wash cycle, when switched on again the dishwasher resumes the cycle from where it was interrupted.

•If a fault occurs or you wish to

change the current programme, press the “START” button for about 5 seconds until the Start indicator lamp switches off ! Refer to the “Troubleshooting Guide” in these user instructions to remedy any problems.

• If a regeneration salt is to be added, IMMEDIATELY start a washing programme, in order to eliminate any residual salt.

Quick Reference Guide

Upper Rack

Crockery holders:

•Down: cups and long-stemmed glasses.

• Raised: plates.

Glass holder:

•The glass holder can be moved sideways.

•Below: small glasses.

•Above: long-stemmed glasses.

Height adjustment:

(The dishwasher is delivered with the upper rack in the top position).

The rack height can also be changed when loaded.

• To lower: pull out the two side handles and gently lower the rack.

• To raise: pull up the two side handles until the rack clicks into place.

• The rack must be level on both sides.

GB

Lower Rack

Cutlery basket:

The cutlery basket can be removed to increase available space.

Plate holder:

•May be removed to increase available space.

•To remove: pull the handle up.

•To reposition, simply insert in the required position (normal or crosswise).
