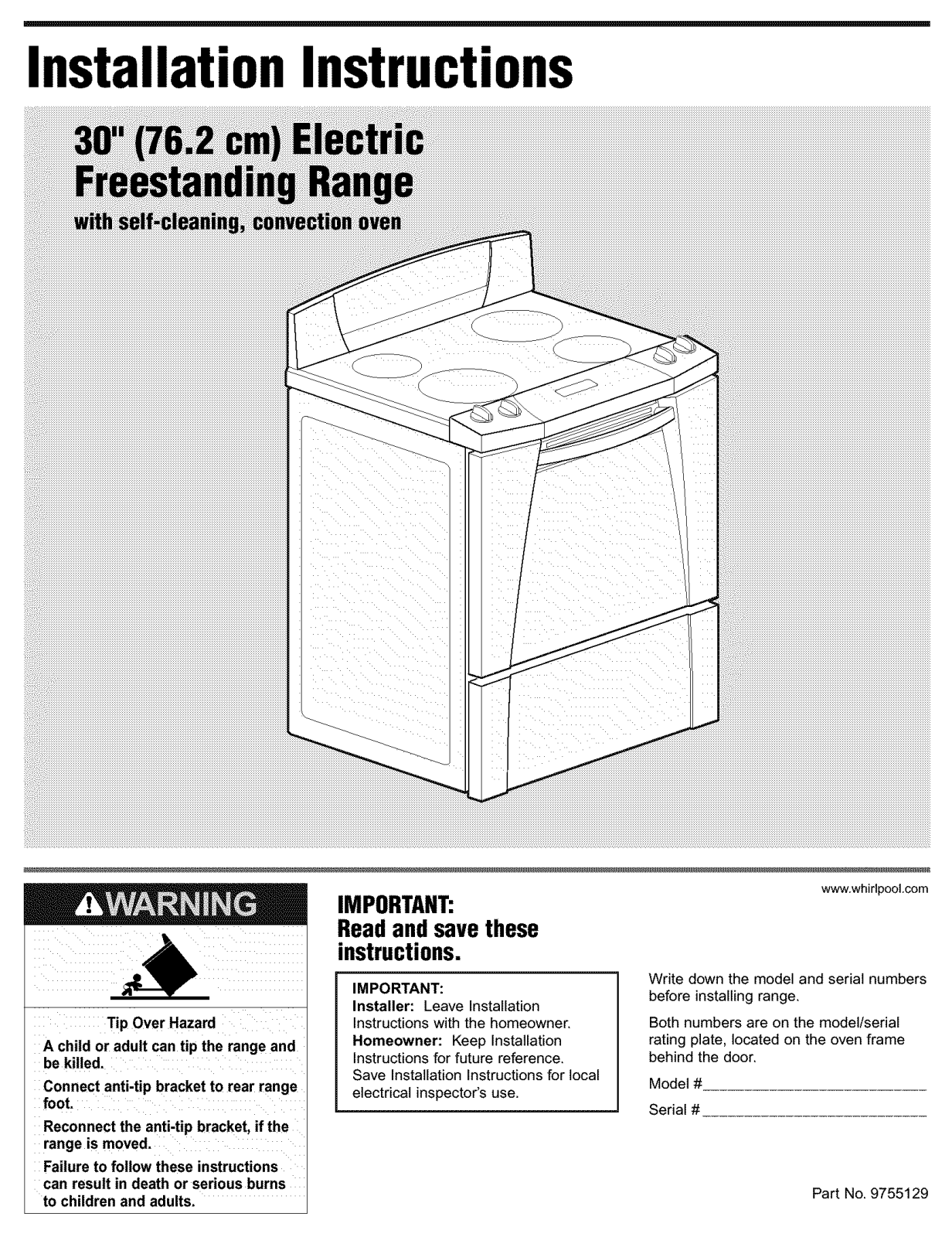

Whirlpool GR556LRKS0, GR556LRKB0, GR556LRKP0 Installation Guide

InstallationInstructions

Tip Over Hazard

A child or adult can tip the range and

be killed.

Connect anti-tip bracket to rear range

foot.

Reconnect the anti-tip bracket if the
range is moved.

Failureto follow these instructions

can result in death or serious burns
to children and adults.

IMPORTANT:

Readandsavethese

instructions.

IMPORTANT:
Installer: Leave Installation

Instructions with the homeowner.

Homeowner: Keep Installation

Instructions for future reference.

Save Installation Instructions for local
electrical inspector's use.

www.whidpool.com

Write down the model and serial numbers
before installing range.

Both numbers are on the model/serial

rating plate, located on the oven frame
behind the door.

Model #

Serial #

Part No. 9755129

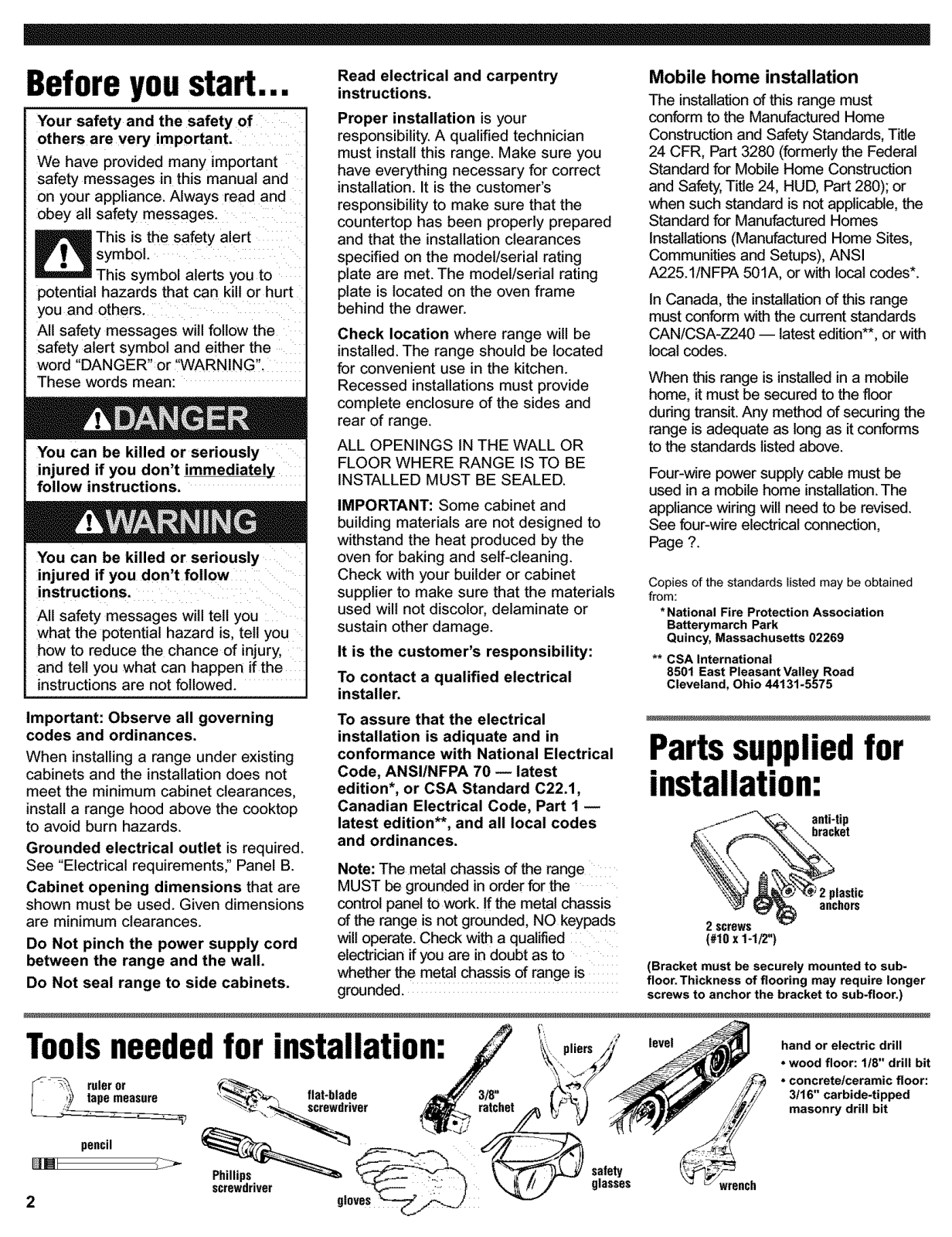

Beforeyoustart...

Your safety and the safety of

others are very important.

We have provided many important
safety messages in this manual and

on your appliance. Always read and

obey all safety messages.

This is the safety alert
symbol.

This symbol alerts you to

potential hazards that can kilt or hurt
you and others.

All safety messages will

safety alert symbol and either the

word "DANGER" or "WARNING".
These words mean:

You Can be killed or seriously

injured if you don't immediately

follow instructions.

You can be killed or seriously
injured if you don't follow

instructions.

All safety messages will tell you
what the potential hazard is, tell you

how to reduce the chance of injury,
and tell you what can happen if the

instructions are not followed.

Important: Observe all governing
codes and ordinances.

When installing a range under existing
cabinets and the installation does not

meet the minimum cabinet clearances,
install a range hood above the cooktop

to avoid burn hazards.
Grounded electrical outlet is required.

See "Electrical requirements:' Panel B.
Cabinet opening dimensions that are

shown must be used. Given dimensions
are minimum clearances.

Do Not pinch the power supply cord
between the range and the wall.

Do Not seal range to side cabinets.

Read electrical and carpentry
instructions.

Proper installation is your

responsibility. A qualified technician
must install this range. Make sure you

have everything necessary for correct
installation. It is the customer's

responsibility to make sure that the
countertop has been properly prepared

and that the installation clearances
specified on the model/serial rating

plate are met. The model/serial rating
plate is located on the oven frame

behind the drawer.
Check location where range will be

installed. The range should be located
for convenient use in the kitchen.

Recessed installations must provide

complete enclosure of the sides and
rear of range.

ALL OPENINGS iN THE WALL OR

FLOOR WHERE RANGE iS TO BE
INSTALLED MUST BE SEALED.

IMPORTANT: Some cabinet and
building materials are not designed to
withstand the heat produced by the

oven for baking and self-cleaning.
Check with your builder or cabinet

supplier to make sure that the materials
used will not discolor, delaminate or

sustain other damage.

It is the customer's responsibility:
To contact a qualified electrical

installer.

To assure that the electrical

installation is adiquate and in

conformance with National Electrical
Code, ANSI/NFPA 70 -- latest

edition*, or CSA Standard C22.1,
Canadian Electrical Code, Part 1 --

latest edition**, and all local codes

and ordinances.

Note: The metal chassis of the range
MUST be grounded in order for the

control panel to work. !f the metal chassis
of the range is not grounded, NO keypads

wilt operate. Check with a qualified
electrician if you are in doubt as to

whether the metal chassis of range is
grounded, screws to anchor the bracket to sub-floor.)

Mobile home installation

The installationof this range must
conform to the Manufactured Home

Construction and Safety Standards, Title
24 CFR, Part 3280 (formerly the Federal

Standard for Mobile Home Construction
and Safety, Title 24, HUD, Part 280); or

when such standard is not applicable, the
Standard for Manufactured Homes

Installations (Manufactured Home Sites,

Communities and Setups), ANSI
A225.1/NFPA 501A, or with local codes*.

in Canada, the installationof this range

must conform with the current standards
CAN/CSA-Z240 -- latest edition**, or with

local codes.
When this range isinstalled ina mobile

home, it must be secured to the floor
during transit. Any method of securing the

range is adequate as long as it conforms
to the standards listed above.

Four-wire power supply cable must be

used in a mobile home installation. The
appliance wiring will need to be revised.

See four-wire electrical connection,

Page ?.

Copies of the standards listed may be obtained
from:

*National Fire Protection Association

Satterymarch Park
Quincy, Massachusetts 02269

** CSA International

8501 East Pleasant Valley Road
Cleveland, Ohio 44131.5575

Partssu

• .ppliedfor
installation:

_: bracket

'_ .W_._.'_ . plastic

aec,eo

(#tox1.1/2"1

(Bracket must be securely mounted to sub-
floor. Thickness of flooring may require longer

Toolsneededfor installation: _ 'i level hand or electric drill

_ ruler or .F-_t_ fl -I " _'///_"" • concrete/ceramic floor:

/_ tape measure _ sca_e°wlz_°ever _/_chet 3116" carbide-tipped

Phillips _ _ _ _ _, -l_r/, i/_...Jv safety

screwdriver _ - I "_ glasses

2 gloves

• wood floor: 1/8" drill bit

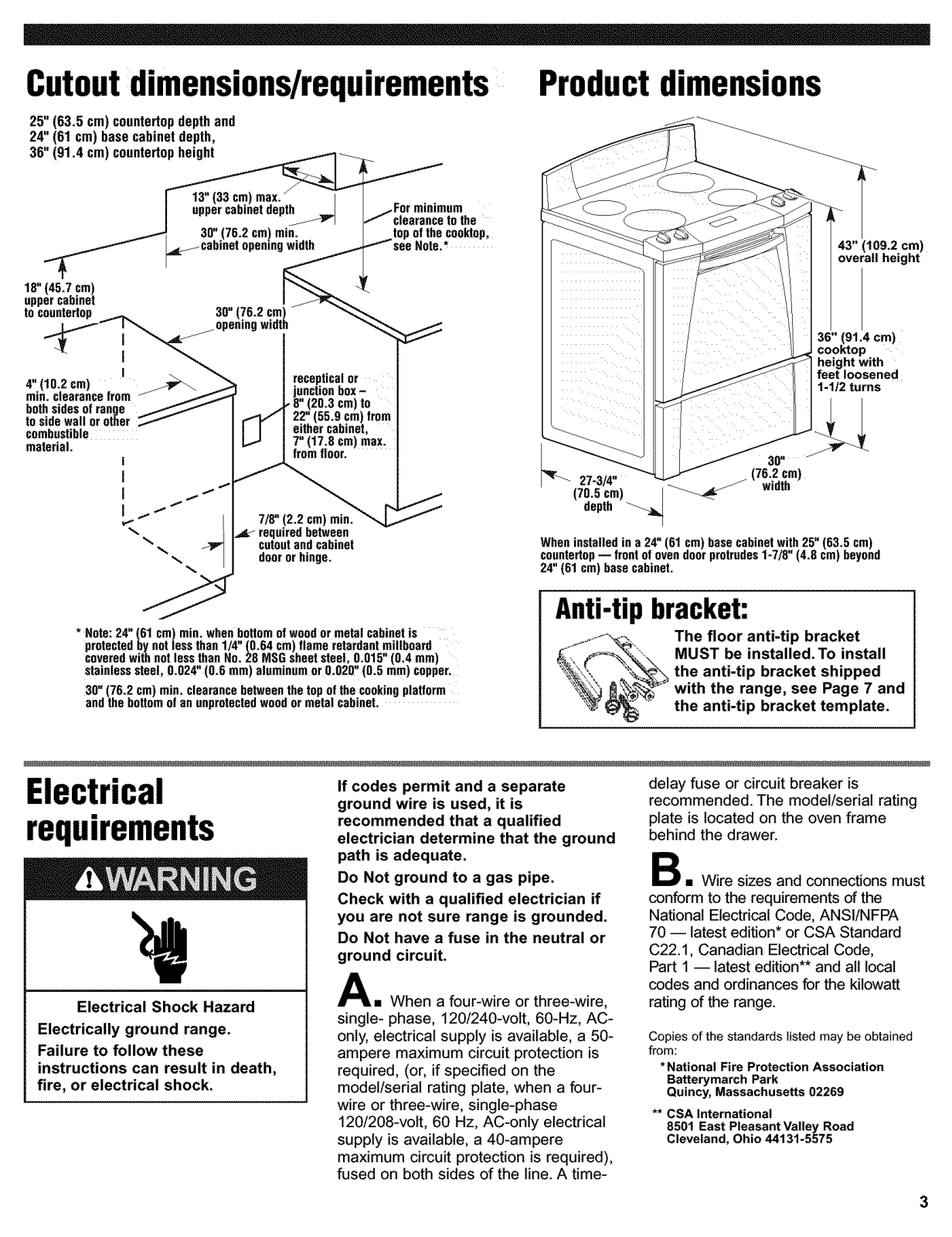

Cutoutdimensions/requirements

25"(63.5cm)countertopdepthand
24"(61cm)basecabinetdepth,

36"(91.4cm)countertopheight _

jFor minimum

I 2.... --clearancntothe

30" (76.2 cm) rain. topof thecooktop,

t8°(46.7cm)

upper cabinet I
to counterlop _ 30" 76.2 cm) _

] opening width _'_

I

4" 10.2 cm
m n. Cearance from f

bothsidesofrange
tosidewallorother
combustible

I

material.

i

I
i

I 1 -_

_ required between

recepticalor

unctionbox-

• 8 20.3cmto

ethercabnet,
7" 17.8cm)max.

fromfnor.

22"55.9cm) from

cutout and cabinet
door or hinge.

Productdimensions

43" (109.2 cm)

overall height

36" (91.4 cm)
cooktop

height with

feet loosened

1=1/2 turns

30"

27-3/4" _ J w dth

(70.5cm) ]

depth "_

When installed in a 24" 61 cm) base cabinet with 25" (63.5 cm)
countertop-- font o oven door protrudes1-7/8" 4.8 cm beyond
24" (61 cm) base cabinet.

76.2 cm)

* Note:24"(61cm)rain.whenbottomofwoodormetalcabinetis

protectedby notlessthan1/4"(0.64 cm)flameretardantmillboard

coveredwithnotlessthanNo.28MSGsheetsteel,0.015"0.4mm

stanessstee,0.024"0.6mm aumnoraor0.020"(0.5ram)copper.
30" 76.2cm)rain.clearancebetweenthetopofthecooking platform

andthebottomo anunprotectedwoodormetacabnet.

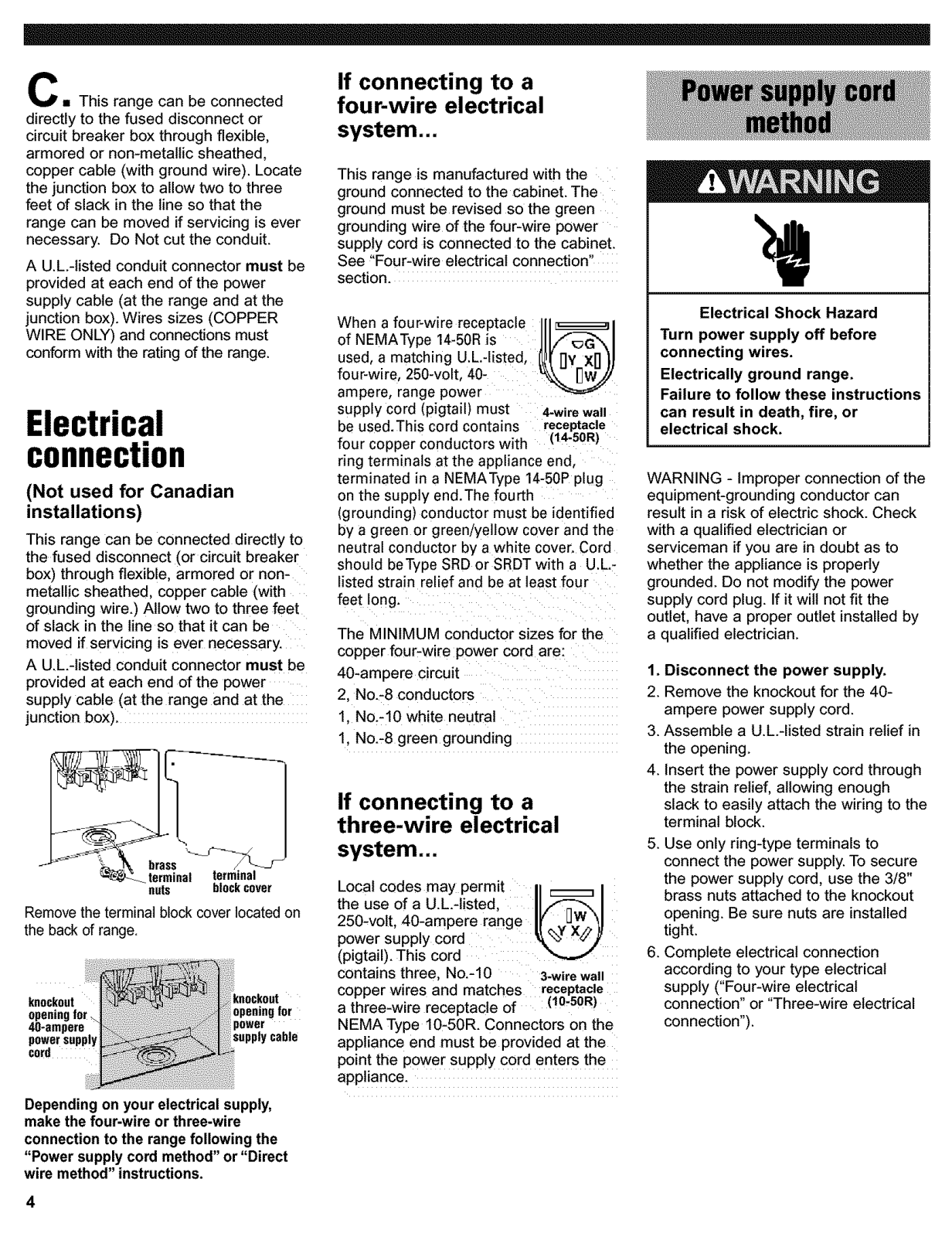

Electrical
requirements

Electrical Shock Hazard

Electrically ground range.
Failure to follow these
instructions can result in death,

fire, or electrical shock.

Anti-tipbracket:

....... The floor anti-tip bracket

i _ MUST be installed.To install

"_ , _ the anti-tip bracket shipped

_ _.';_,_ with the range, see Page 7 and

If codes permit and a separate
ground wire is used, it is

recommended that a qualified

electrician determine that the ground

path is adequate.
Do Not ground to a gas pipe.

Check with a qualified electrician if
you are not sure range is grounded.

Do Not have a fuse in the neutral or

ground circuit.

A= When a four-wire or three-wire,

single- phase, 120/240wolt, 60-Hz, AC-
only, electrical supply is available, a 50-
ampere maximum circuit protection is
required, (or, if specified on the
model/serial rating plate, when a four-
wire or three-wire, single-phase

120/208-volt, 60 Hz, AC-only electrical
supply is available, a 40-ampere
maximum circuit protection is required),

fused on both sides of the line. A time-

the anti-tip bracket template.

delay fuse or circuit breaker is
recommended. The model/serial rating
plate is located on the oven frame

behind the drawer.

B= Wire sizes and connections must

conform to the requirements of the

National Electrical Code, ANSI/NFPA

70 -- latest edition* or CSA Standard
C22.1, Canadian Electrical Code,

Part 1 -- latest edition** and all local

codes and ordinances for the kilowatt
rating of the range.

Copies of the standards listed may be obtained
from:

*National Fire Protection Association

Batterymarch Park
Qoincy, Massachusetts 02269

** CSA International

8501 East Pleasant Valley Road
Cleveland, Ohio 44131.5575
