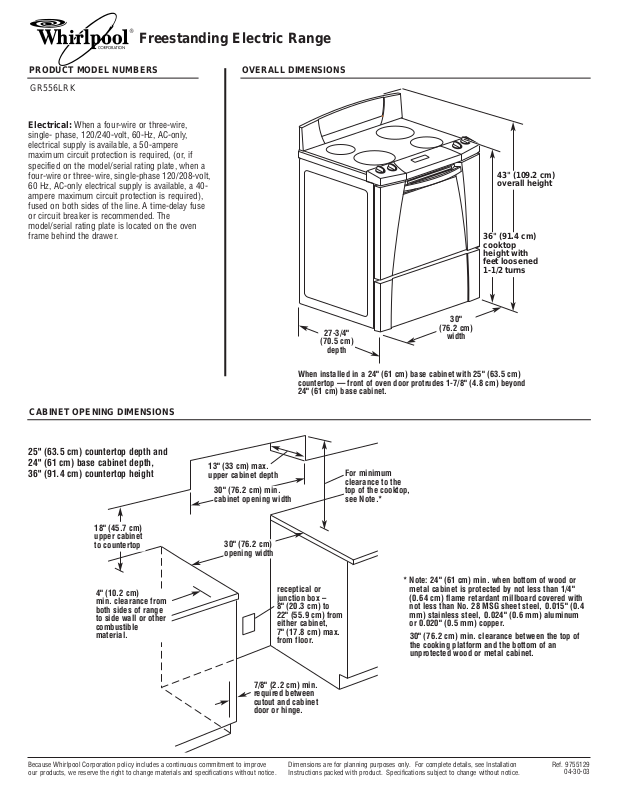

Whirlpool GR556LRK Dimension Guide

Freestanding Electric Range

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

CABINET OPENING DIMENSIONS

GR556LRK

Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.

Electrical: When a four-wire or three-wire,
single- phase, 120/240-volt, 60-Hz, AC-only,
electrical supply is available, a 50-ampere
maximum circuit protection is required, (or, if
specified on the model/serial rating plate, when a
four-wire or three-wire, single-phase 120/208-volt,
60 Hz, AC-only electrical supply is available, a 40­ampere maximum circuit protection is required),
fused on both sides of the line. A time-delay fuse
or circuit breaker is recommended. The
model/serial rating plate is located on the oven
frame behind the drawer.

Ref. 9755129

04-30-03

®

When installed in a 24" (61 cm) base cabinet with 25" (63.5 cm)
countertop — front of oven door protrudes 1-7/8" (4.8 cm) beyond
24" (61 cm) base cabinet.

36" (91.4 cm)
cooktop
height with
feet loosened
1-1/2 turns

43" (109.2 cm)
overall height

27-3/4"

(70.5 cm)

depth

30"

(76.2 cm)

width

7/8" (2.2 cm) min.
required between
cutout and cabinet
door or hinge.

receptical or
junction box –
8" (20.3 cm) to
22" (55.9 cm) from
either cabinet,
7" (17.8 cm) max.
from floor.

30" (76.2 cm)
opening width

4" (10.2 cm)
min. clearance from
both sides of range
to side wall or other
combustible
material.

30" (76.2 cm) min.
cabinet opening width

For minimum
clearance to the
top of the cooktop,
see Note.*

18" (45.7 cm)
upper cabinet
to countertop

13" (33 cm) max.
upper cabinet depth

25" (63.5 cm) countertop depth and
24" (61 cm) base cabinet depth,
36" (91.4 cm) countertop height

* Note: 24" (61 cm) min. when bottom of wood or

metal cabinet is protected by not less than 1/4"
(0.64 cm) flame retardant millboard covered with
not less than No. 28 MSG sheet steel, 0.015" (0.4
mm) stainless steel, 0.024" (0.6 mm) aluminum
or 0.020" (0.5 mm) copper.

30" (76.2 cm) min. clearance between the top of
the cooking platform and the bottom of an
unprotected wood or metal cabinet.
