Page 1

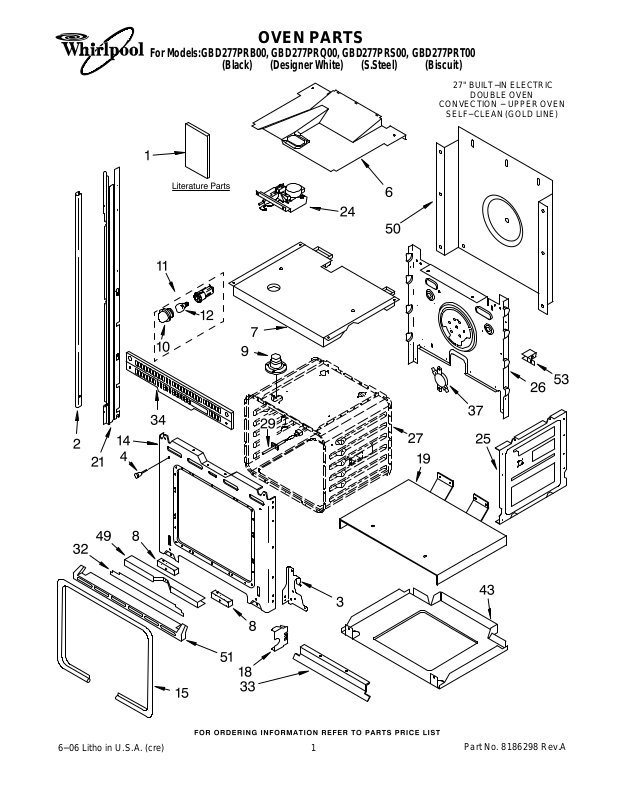

OVEN PARTS
For Models:GBD277PRB00, GBD277PRQ00, GBD277PRS00, GBD277PRT00
(Black) (Designer White) (S.Steel) (Biscuit)
27" BUILT−IN ELECTRIC
CONVECTION − UPPER OVEN
DOUBLE OVEN
SELF−CLEAN (GOLD LINE)
6−06 Litho in U.S.A. (cre)
1
Part No. 8186298 Rev.A
Page 2
OVEN PARTS
For Models:GBD277PRB00, GBD277PRQ00, GBD277PRS00, GBD277PRT00
(Black) (Designer White) (S.Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8303648 Installation
Instructions
8303645 Use & Care Guide
8302068 Tech Sheet (Oven)
3191638 Safer Cooking Tips
9759133 Safe Cookting Tips
2 Trim, Side
8302917 RH Black
8302919 RH White
8302921 RH Biscuit
8303210 RH S.Steel
8302918 LH Black
8302920 LH White
8302922 LH Biscuit
8303209 LH S.Steel
Screw
8281236 Black
694091 White
3 Receiver, Hinge
4455605 Left Hand
4455606 Right Hand
4 4448520 Bumper, Door
6 8302348 Divider, Vent
4449809 Screw
7 4455864 Top Chassis
4449809 Screw
8 4452490 Spacer, Foam
Illus. Part
No. No. DESCRIPTION
9 4452158 Tube, Vent
3196176 Screw
10 4452165 Lens, Light
11 4452368 Light Assy, Rear
12 4452166 Bulb, Light
14 4455611 Frame, Front
4449040 Screw
4450118 Nut
15 4455381 Gasket, Door
18 4452152 Bracket, Mounting
19 4451477 Support, Insulation
4449809 Screw
21 Rail, Side
8302793 Right
8302794 Left
4448444 Grommet
4449154 Screw
24 9759481 Latch, Motorized
4449809 Screw
25 4455641 Side, Chassis
(R.H. & L.H.)
4449809 Screw
26 4452233 Back, Chassis
4449809 Screw
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
4449154 Screw
32 8300154 Insulation,
Bottom Vent
Illus. Part
No. No. DESCRIPTION
33 9760676 Deflector, Vent
4449154 Screw
34 4452266 Vent, Center
3400832 Screw
37 Safety (TOD) Swtch
Thermostat (temp)
9759242 Upper Oven
9759243 Lower Oven
4449809 Screw
43 4455529 Base, Chassis
4449809 Screw
49 4448933 Retainer, Gasket
4449154 Screw
50 4451747 Cover, Back
4449809 Screw
51 Trim, Bottom
8302937 Black
8302938 White
8302939 Biscuit
8302940 S.Steel
3400832 Screw
53 4449845 Support, Bracket
4449809 Screw
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449315 Insulation, Wrap
4450364 Insulation, Back
2
8186298
Page 3
CONTROL PANEL PARTS
For Models:GBD277PRB00, GBD277PRQ00, GBD277PRS00, GBD277PRT00
(Black) (Designer White) (S.Steel) (Biscuit)
8186298
Illus. Part
No. No. DESCRIPTION
1 Control Panel
8302844 Black
8302845 White
8302846 Biscuit
2 Assy, Switch
8303182 Black
8303224 White
8303230 Biscuit
3 8303817 Assy, Control
8301848 Latch, Sister
Board
3400832 Screw
4 8302991 Control, Bracket
4449745 Screw
5 8302878 Trim−Panel
(Use on S.Steel
model only)
3
Page 4

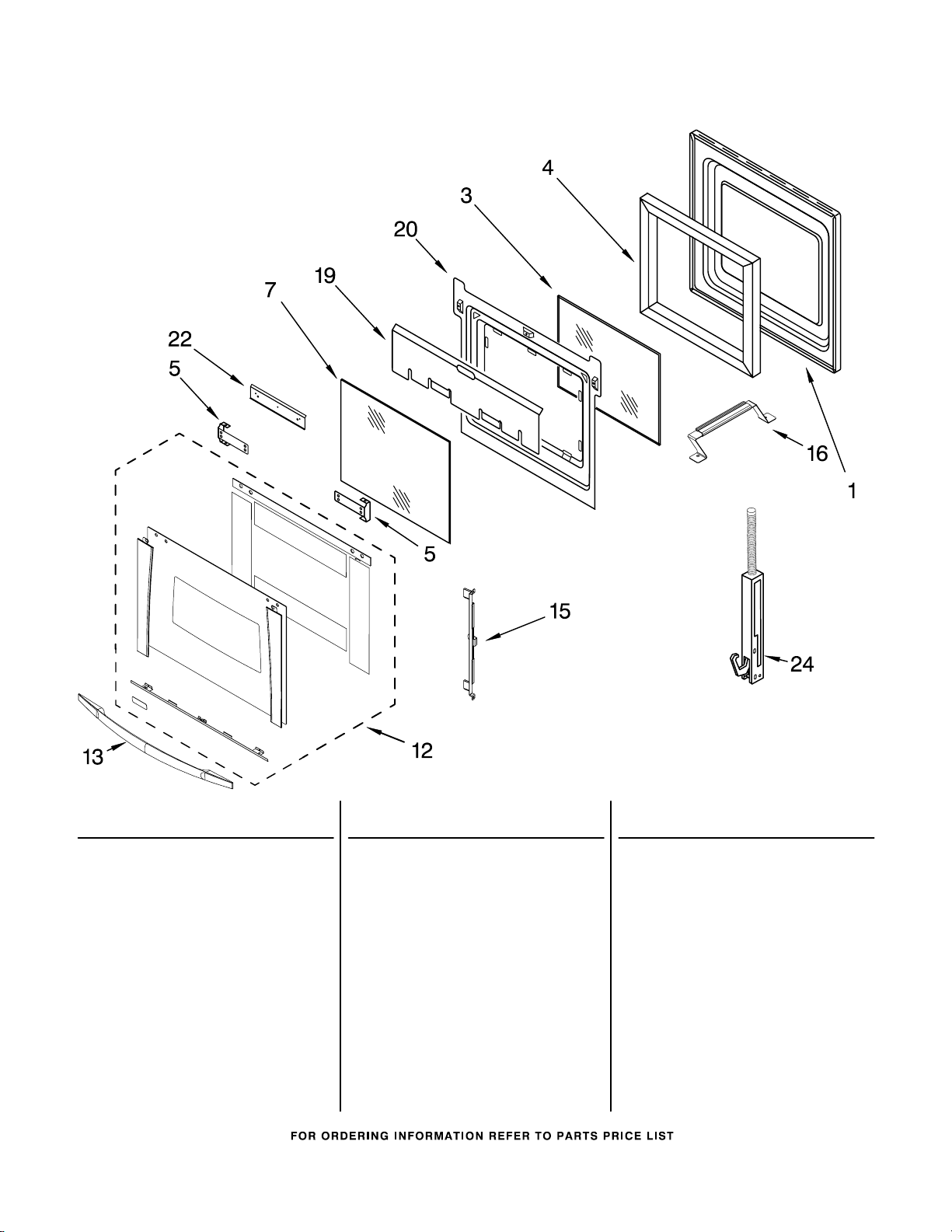

OVEN DOOR PARTS
For Models:GBD277PRB00, GBD277PRQ00, GBD277PRS00, GBD277PRT00
(Black) (Designer White) (S.Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 8303699 Door Liner
3 4449253 Glass, Inner
4 4451721 Insulation, Door
5 8303166 Bracket, Handle
4451040 Screw
3400832 Screw
7 9759224 Glass, Inner
Illus. Part
No. No. DESCRIPTION
12 Door Glass, Assy
(Upper)
8303298 Black
8303304 White
8303308 Biscuit
8303286 S.Steel
(Lower)
8303299 Black
8303305 White
8303309 Biscuit
8303287 S.Steel
4
Illus. Part
No. No. DESCRIPTION
13 Door Handle
8302810 Black
8302811 White
8302812 Biscuit
8303163 S.Steel
15 9759229 Bracket(2nd Glass)
16 9759230 Bracket(3rd Glass)
19 4457102 Shield, Heat
4449809 Screw
20 4457131 Retainer, Glass
4449809 Screw
22 4457113 Shield, Heat (Btm)
24 Hinge, Door
8300575 Right Hand
8300576 Left Hand
4449743 Screw
8186298
Page 5

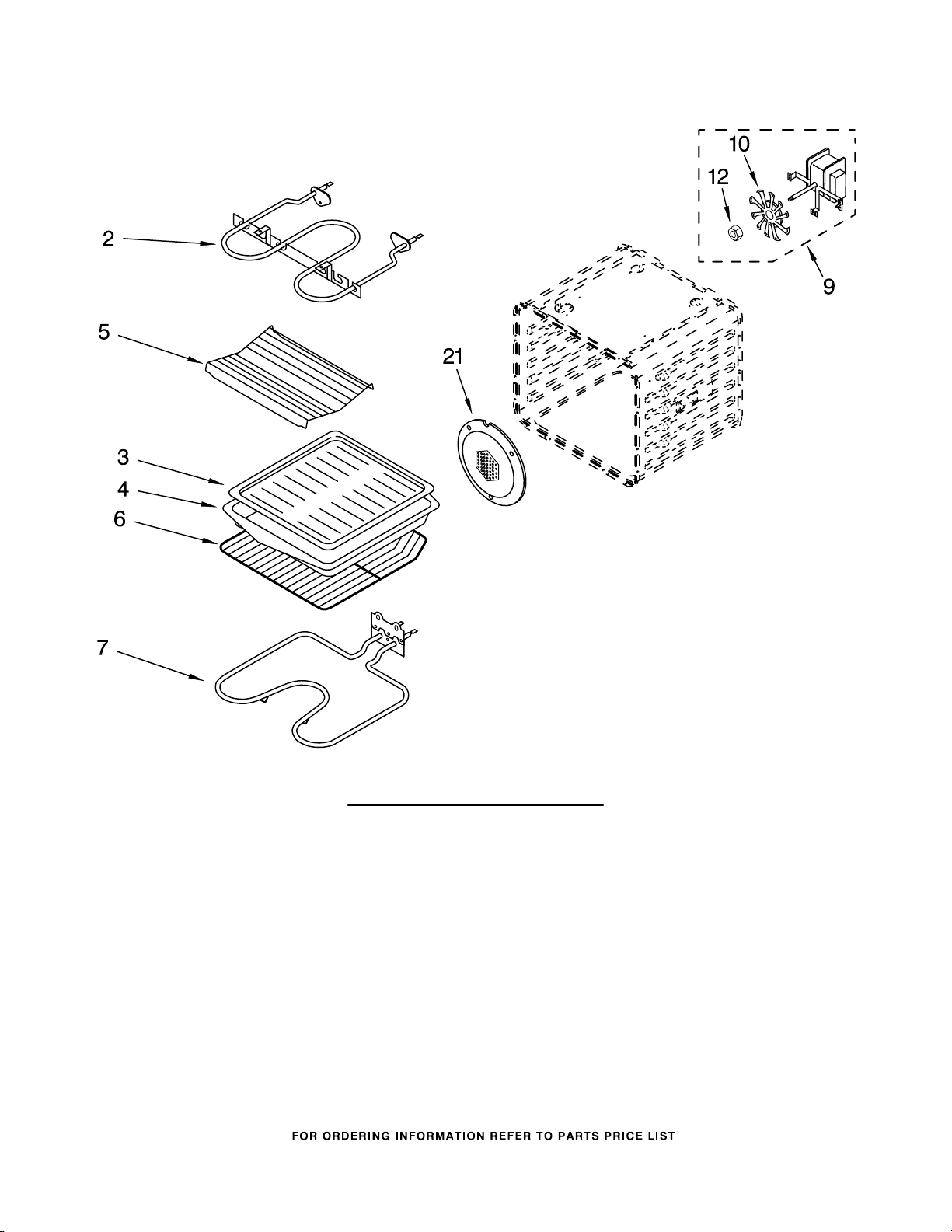

INTERNAL OVEN PARTS
For Models:GBD277PRB00, GBD277PRQ00, GBD277PRS00, GBD277PRT00
(Black) (Designer White) (S.Steel) (Biscuit)
8186298
Illus. Part
No. No. DESCRIPTION
2 4456103 Element, Broil
4449154 Screw
3 4457277 Grill, Broiler
4 4457276 Pan, Broiler
5 3181534 Rack, Roasting
6 4448715 Rack, Oven
9759322 Pad, Rack
7 4452153 Element, Bake
9 4451583 Motor, Convection
4449154 Screw
10 4452226 Blade, Fan
12 4452227 Nut
21 4448988 Cover, Fan
4449154 Screw
5
Page 6

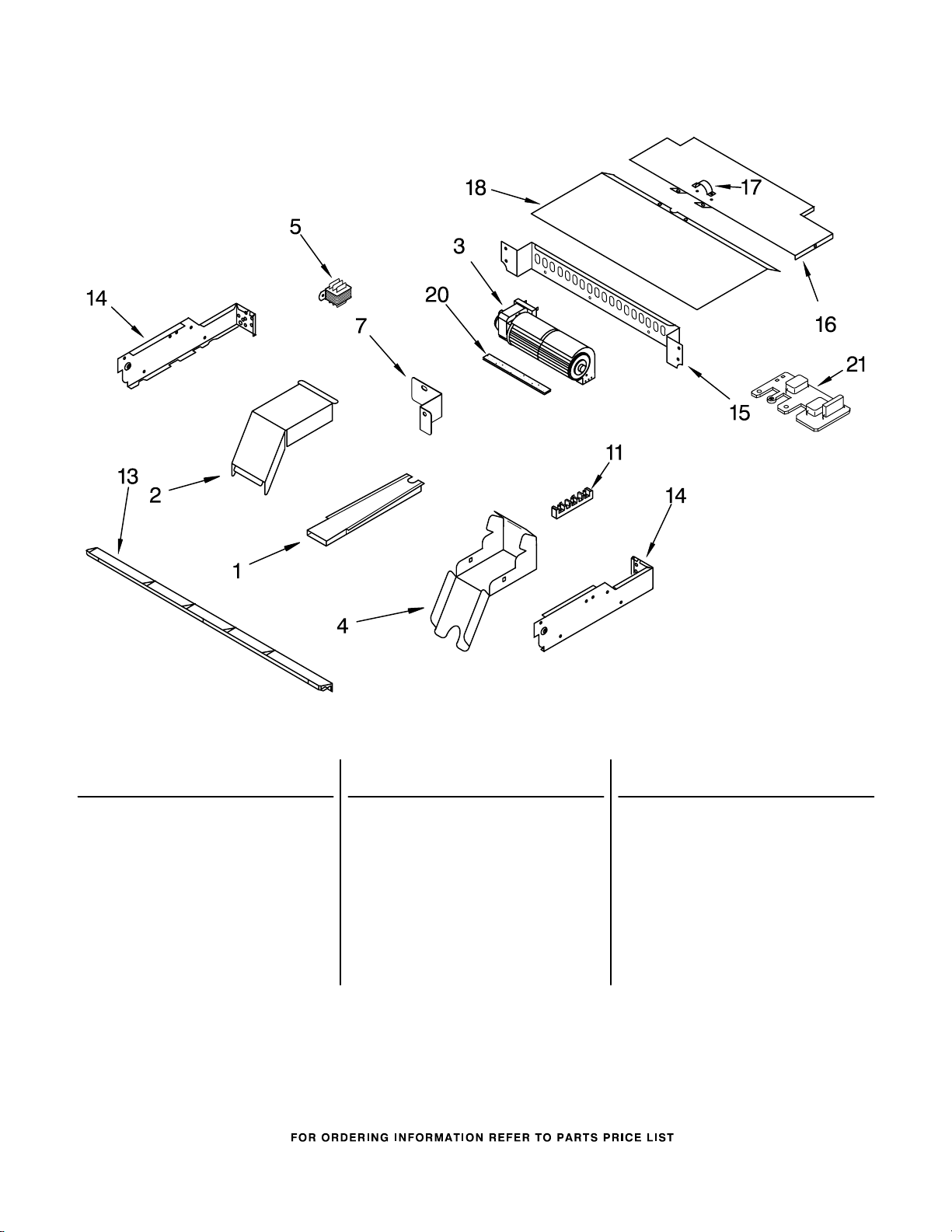

TOP VENTING PARTS
For Models:GBD277PRB00, GBD277PRQ00, GBD277PRS00, GBD277PRT00
(Black) (Designer White) (S.Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
2 4455178 Elbow, Vent−Top
3 Blower
4452003 45MM Lower Oven
4457289 65MM Upper Oven
4449809 Screw
4 4455177 Elbow, Vent−Bottom
5 8300642 Transformer,
Control
7 8302390 Bracket, Control
(Air Stop)
Illus. Part
No. No. DESCRIPTION
11 4449868 Block, Terminal
3400080 Screw
13 8303498 Vent,
(Control Panel)
4450038 Screw
14 Side, Control Top
4451597 Right
4451598 Left
4449809 Screw
4449154 Screw
6
Illus. Part
No. No. DESCRIPTION
15 9759135 Back, Control
4449809 Screw
16 4450550 Cover, Top Rear
4449809 Screw
17 4448664 Clamp
4449809 Screw
18 4452366 Cover, Top Front
4449809 Screw
20 4451758 Seal, Foam
21 8302143 Suppressor
4452260 Spacer, Foam
8186298
Page 7
OPTIONAL PARTS
For Models:GBD277PRB00, GBD277PRQ00, GBD277PRS00, GBD277PRT00
(Black) (Designer White) (S.Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
Illus. Part
No. No. DESCRIPTION
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242829 Wire (12 Ga.
150 c Red)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242826 Wire (14 Ga.
150 c White)
242827 Wire (14 Ga.
150 c Yellow)
242832 Wire (14 Ga.
200 c Yellow)
Illus. Part
No. No. DESCRIPTION
WIRING HARNESS PARTS
8301909 Harness, Wire
(Latch)
4450953 Conduit, Double
4448664 Clamp
4449809 Screw
112432 Nut
4450800 Screw, Ground
8301777 Harness, Wire
(Main)
4452222 Spacer, Harness
4454835 Tie, Cable
4451761 Support, Wiring
4454842 Tie, Cable
Miscellaneous
814381 Pin Hinge Kit
4448950 Screw, Install (4)
8186298
7
