WHIRLPOOL FSCR80415 Daily Reference Guide
DAILY REFERENCE
GUIDE
EN
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance,
please register your appliance on www.whirlpool.eu/register
Before using the appliance, carefully read the Health and Safety and Use and Care guides.
Before using the machine, it is imperative that the transport bolts are removed.
For more detailed instructions on how to remove them, see the Installation Guide.

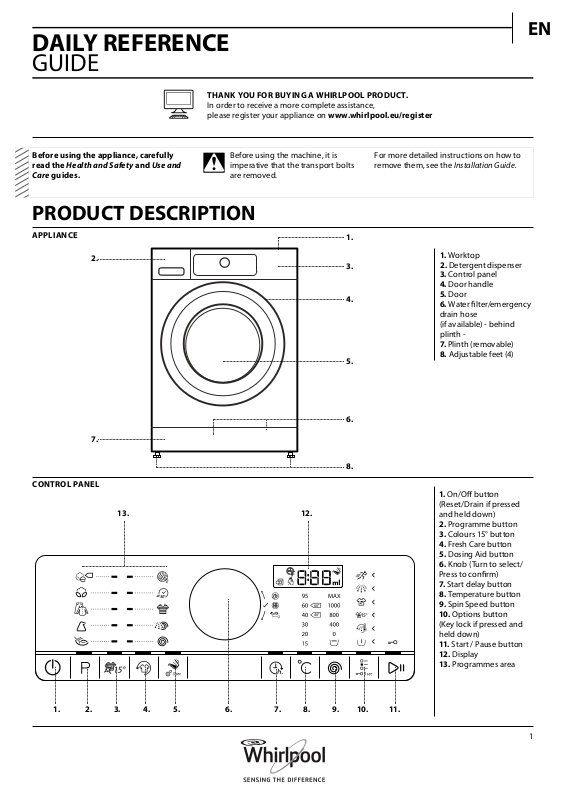

PRODUCT DESCRIPTION |
|
|
|
|
|
|
|
|
|
|
|
APPLIANCE |
1. |
|
|
|
|
|
|
|
|
|
|
2. |
|
|
|
1. Worktop |
|
|
|
|
|||
|
3. |
|
2. |
Detergent dispenser |
|
|
|
|
|||
|
|
|
|
3. |
Control panel |
|
|
|
|
4. |
Door handle |
|
|
4. |
|
5. |
Door |
|
|
|
6. |
Water filter/emergency |
|
|
|
|
|
||
|
|
|
|
drain hose |
|
|
|
|
|
(if available) - behind |
|
|
|
|
|
plinth - |
|
|
|
|
|
7. Plinth (removable) |
|
|
|
5. |
|
8. |
Adjustable feet (4) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6. |
|
|
|
7. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8. |
|
|
CONTROL PANEL |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1. On/Off button |
|
|
|
13. |
|
|
|
|
12. |
|
|
(Reset/Drain if pressed |
|
|
|
|
|
|
|
|
|
and held down) |
|||
|
|
|
|
|
|
|
|
|
|
2. Programme button |
|
|
|
|
|
|
|
|
|
|
|
3. |
Colours 15° button |
|
|
|
|
|
|
|
|
|
|
4. |
Fresh Care button |
|
|
|
|
|
|
|
|
|
|
5. |
Dosing Aid button |
|
|
|
|
|
|
|
|
|
|
6. |
Knob (Turn to select/ |
|
|
|
|
|
|
|
|
|
|
Press to confirm) |
|
|
|
|
|
|
|
|
|
|
|
7. Start delay button |
|
|
|
|
|
30’ |
|
|
|
MAX |
|
8. |
Temperature button |
|
|
|
|
|
|
|
|
60° |
|
9. Spin Speed button |
|
|
|
|
|
|
|
|
|
40° |
|
10. Options button |
|
|
|
|
|
|
|
|
|
|
|
(Key lock if pressed and |
|
|
|
|
|
|
|
|
|
|
|
held down) |
|
|
|
|
|
|
|
|
|
|
|
11. Start / Pause button |
|
|
|
|
|
|
|
|
|
|
|
12. Display |
|
|
|
|
|
|
|
|
|
|
|
13. Programmes area |
|
1. |
2. |
3. |
4. |
5. |
6. |
7. |
8. |
9. |
10. |
11. |
|
1
DETERGENT DISPENSER |
1. Main wash compartment |
|
|
• Detergent for the main wash |
|
|
• |
Stain remover |
|
||
|
• |
Water softener |
2. Prewash compartment
• Detergent for the prewash.
3. Softener compartment
• Fabric softener
• Liquid starch
Pour in softener or starch solution only up to the “max” mark.
4. Release button
(Press to remove the detergent dispenser for cleaning).
Detergent recommendations for various types of laundry |
|
|
White robust laundry |
(cold-95°C) |
Heavy duty detergents |
White delicate laundry |
(cold-40°C) |
Mild detergents containing whitener and/or optical brighteners |
Light/pastel colours |
(cold-60°C) |
Detergents containing whitener and/or optical brighteners |
Intensive colours |
(cold-60°C) |
Colour detergents without whitener/optical brighteners |
Black/dark colours |
(cold-60°C) |
Special detergents for black/dark laundry |
FIRST TIME USE
See the section on DAILY USE for information on how to select and start |
• Select the “Cotton” programme at a temperature of 95 °C. |
a programme. |
|
|
• Add a small amount of heavy duty detergent to the |
FIRST CYCLE |
main wash compartment of the detergent dispenser |
When you plug in the washing machine, it will switch on |
(maximum 1/3 of the quantity recommended by the |
automatically. |
detergent manufacturer for lightly soiled laundry) |
To remove any residues from the manufacturing process: |
|
|
• Start the programme without adding any laundry. |
DAILY USE
|
|
See the Use and Care Guide for more details on functions/ |
2.CLOSE THE DOOR |
see the last page for information on how to obtain the Use and Care |
• Make sure that no laundry gets stuck between |
Guide |
door glass and the rubber seal. |
1.LOAD LAUNDRY |
• Close the door so that you can hear it click shut. |
• Prepare your laundry according to the recommendations |
|
in the “HINTS AND TIPS” section. |
|
Make sure that pockets are empty, fasteners closed and ribbons |
|
tied together. |
|
•Open the door and load the laundry. Observe the maximum load sizes given in the separate programme chart.
2
3. OPEN THE WATER TAP
4. SWITCH ON THE WASHING MACHINE
•Press the “On/Off” button until the programme button lights up. An animation appears on the control panel and the appliance plays a sound. The washing machine is then ready for operation.
5. SET THE DESIRED PROGRAMME
GUIDED MODE — the button light will guide you through setting your programme in the following order: Selection of programme/ temperature/spin speed/options. As soon as you confirm a selection by pressing the knob, the button light jumps to the next step.
• Select programme:
Make sure that the programme button lights up.
EN
INDIVIDUAL MODE
After you have switched on the washing machine, you are not forced to follow the GUIDED MODE.
The order in which you choose to set your programme is up to you. To make a setting, first press the relevant button, then turn the knob to select, and finally press the knob to confirm.
The range of temperatures, spin speeds and options depend on the programme selected. It is therefore recommended that you start by selecting the programme.
6. ADD DETERGENT
• If you are not using the Dosing Aid function, pull out the detergent dispenser and add detergent (and additives/ softener) now; observe the dosing recommendations on
the detergent pack.
If you have selected PREWASH or START DELAY, observe the recommendations in the OPTIONS, FUNCTIONS AND INDICATORS section. Then carefully close the detergent dispenser.
•If you are using the “Dosing Aid” function, add detergent later, after you have started the programme. Refer to the OPTIONS, FUNCTIONS AND INDICATORS section for more information.
•After having added detergent/additives, do not open the detergent dispenser to avoid any overflow.
Turn the knob to select the desired programme.
The indicator next to the selected programme lights up.
Confirm the desired programme by pressing the knob.
• Change temperature, if required
If you want to change the temperature indicated on the display, make sure that the Temperature button lights up.
Turn the knob to select the desired temperature, then press the knob to confirm.
• Change spin speed, if required
If you want to change the spin speed indicated on the display, make sure that the Spin button lights up.
Turn the knob to select the desired spin speed, or Rinse hold, then press the knob to confirm.
Refer to OPTIONS, FUNCTIONS AND INDICATORS for more information.
• Select options, if required
If you want to select additional options, make sure that the
Options button lights up. The options which are selectable for
your programme are indicated by the arrows which are lit up
.
Turn the knob to select the desired options. The symbol for the selected option will flash. Press the knob to confirm.
Some options/functions can be selected by pressing the button directly:
Refer to the OPTIONS, FUNCTIONS AND INDICATORS section for more information.
7. START PROGRAMME
• Press and hold “Start/Pause” until the button lights up and stays on; the programme will start.
•If you have selected “Dosing Aid”, the washing machine indicates the recommended detergent amount for your laundry load after the programme starts.
Follow the instructions as indicated in the OPTIONS, FUNCTIONS AND INDICATORS/Dosing Aid section.
8.CHANGE THE SETTINGS OF A PROGRAMME WHICH IS RUNNING, IF REQUIRED
You can still change the settings while a programme is running. The changes will be applied, provided the respective programme phase has not yet finished.
•Press the relevant button (for example the “Spin speed” button to change the spin speed). The selected value will flash for a few seconds.
•While it is flashing, you can adjust the setting by turning the knob. If the value stops flashing before you have adjusted it, press the button again.
•Press the knob to confirm the new setting. If you do not confirm it, the new setting will be confirmed automatically: It will stop
flashing.
The programme will continue automatically.
To change the settings of a programme which is running, you can also:
•Press “Start/Pause” to pause the programme which is running
•Change the settings as desired.
•Press “Start/Pause” again to continue the programme.
3
