Before using the dishwasher, read the user instructions!
ADP 7500

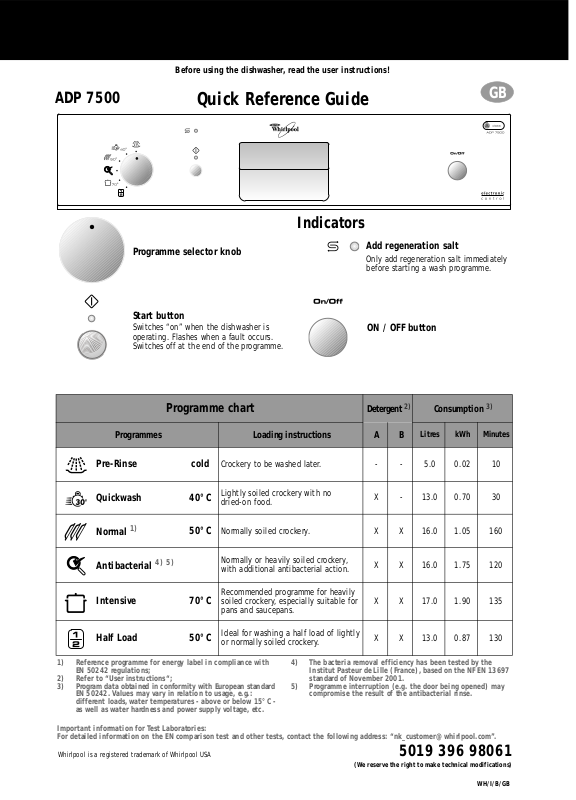

Quick Reference Guide
Programme selector knob
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of th e pr ogramm e .
Programme chart
Indicators
GB
Add regeneration salt
Only add regeneration salt immediately
before starting a wash programme.
ON / OFF button
Detergent
2)
Consumption
3)
Programmes Loading instructions A B
Pre-Rinse cold
Quickwash 40°C
1)
Normal
Antibacterial
4) 5)
Intensive 70°C
Half Load 50°C
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions“;
3) Program data obtained in conformity with European standard
EN 50242. Values may vary in relation to usage, e.g.:
different loads, water temperatures - above or below 15°C as well as water hardness and power supply voltage, etc.
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “[email protected]”.
Whirlpool is a registered trademark of Whirlpool USA
Crockery to be washed later. - - 5.0 0.02 10
Lightly soiled crockery with no
dried-on food.
Normally soiled crockery. X X 16.0 1.05 160
50°C
Normally or heavily soiled crockery,
with additional antibacterial action.
Recommended programme for heavily
soiled crockery, especially suitable for
pans and saucepans.
Ideal for washing a half load of lightly
or normally soiled crockery.
4) The bacteria removal efficiency has been tested by the
Institut Pasteur de Lille (France), based on the NF EN 13697
standard of November 2001.
5) Programme interruption (e.g. the door being opened) may
compromise the result of the antibacterial rinse.
X - 13.0 0.70 30
X X 16.0 1.75 120
X X 17.0 1.90 135
X X 13.0 0.87 130
(We reserve the right to make technical modifications)
Litres kWh Minutes
5019 396 98061
WH/I/B/GB
Page 2
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
How to fill the
detergent dispenser
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
Press the ON/OFF button.
Large compartment
With each wash cycle.
Small compartment
For programmes with pre-wash only.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
The last programme selected will light up.
Select the desired programme (using the specific button or knob).
The corresponding indicator lamp lights up.
A:
ABC
B:
Select options
Press the Start button
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
Only after the START button has switched off: Press the ON/
All the indicator lamps switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
“Change programme”
Press the START button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and press
the START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched o ff d urin g a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
OFF
button.
WH/II/B/GB
Page 3

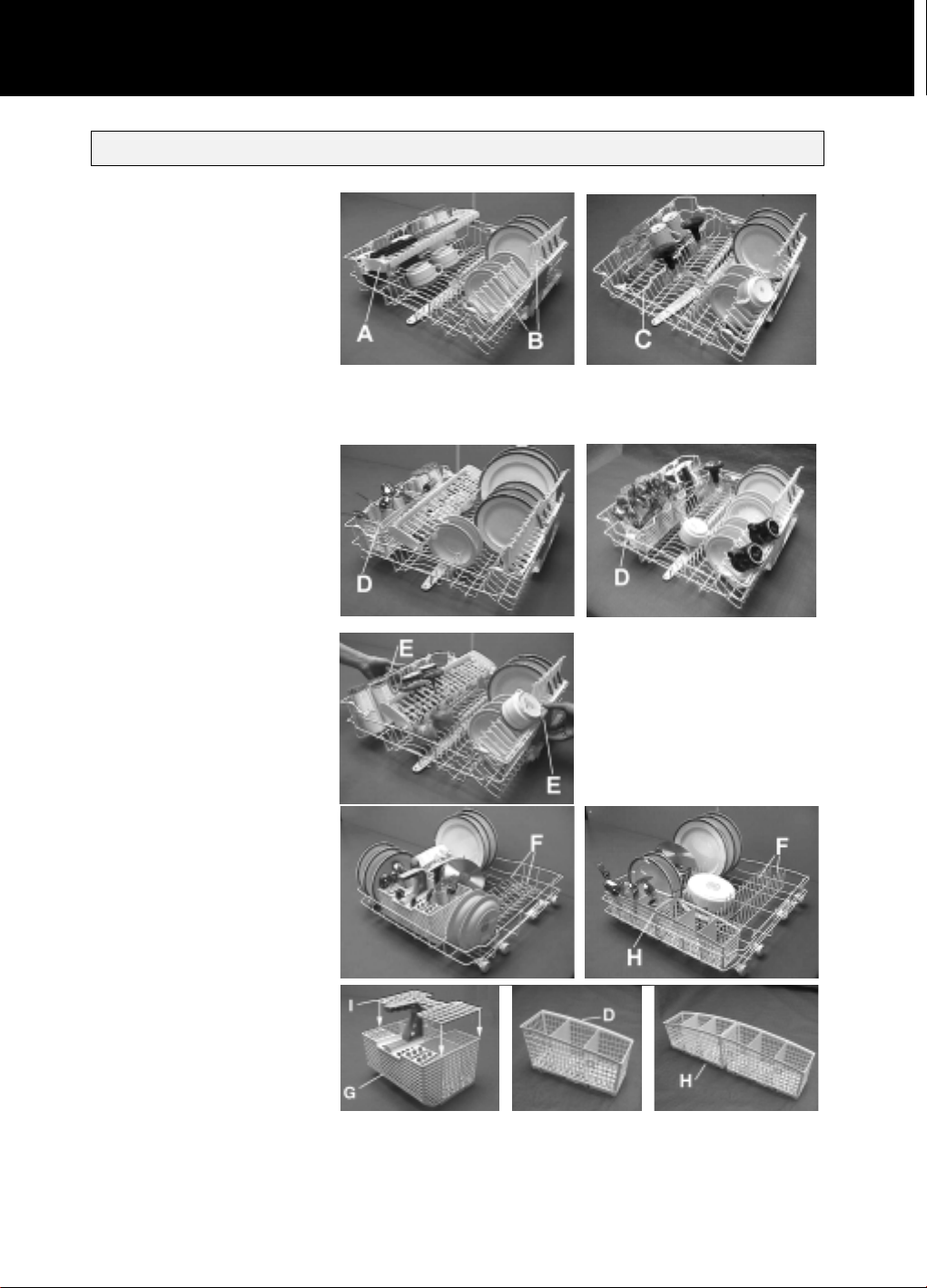

Dishwasher loading instructions and racks provided
Upper rack:
Multi-purpose support (A):
Depending on the position, f or lon ghandles utensils, cups and glasses . M ay
be used in three different position s .
Crockery holders (B):
Depending on the position,
for example plates, cups and
long-stemmed glasses.
Revolving glass support (C):
Depending on the position, f or example
small or long-stemmed glasses.
Long-handled utensils (e.g. carving
forks, knives) must be arranged
with the sharp end facing in
towards the appliance.
1)
2)
depending on the model
Half Load:
Load the upper rack
Place the cutlery basket (D) in the
upper rack.
only
.
Rack height adjustment
(also when loaded):
Lower adjustment:
•
two
rack handles outwards (E)
and lower the rack.
Upper adjustment:
•
handles (E) upwards until the r ack
clicks into place (Factory setting).
The rack must be level on both sides.
pull out the
two
pull the
Lower rack:
Depending on the mod el with fixed or
tilting plate holders (F).
Half Load:
Load the lower rack
Greater washing power, particularly
for plates and saucepans.
Cutlery basket (G) or (H):
Some models are pr ovi d ed with a gri d
(I) that can be fitted onto the cutlery
basket to keep items separated.
Cutlery basket (D) for appliances with
half load only.
Sharp knives and forks that might
cause injury must be placed in the
cutlery basket with the sharp end
facing downwards.
Only use dishwasher-proof crock ery and dishes. Do not use the appliance for items not suitable f or washing in a dishwasher,
for example wooden items , aluminium, plastic utensils , tin, hand-decorated cr ock ery (unglazed), silv er cutlery.
Spare parts which are sold separately:
1)
Multi-purpose support (A) - N. AMH 369 series.
2)
Revolving glass support (C) - N. WGH 1000 series.
only
.
WH/III/GB
Page 4
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem
(* see also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
• No water supply. • Open the tap.
working
If crockery is not
• The appliance does not load
sufficient water.
• There is a power failure. • Insert the plug into the mains socket.
• Starting the selected programme. • The programme can be set to “0” to start.
• Insufficient rinse aid. • Increase dosage *.
• Clean the water supply tap filter.
• Ensure there are no kinks in the water hose.
• Press the Start button.
• Close the door.
• Check the domestic circuit fuse.
perfectly dry
• Residual water in cavities. • Load crockery at an angle.
If crockery is not
perfectly clean
Sandy or grainy residues
Colour of plastic parts
faded
• The water jet does not reach
the crockery.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely .
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
• Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
• Tomato/carrot juice,... • Depending on the material, if necessary use a
• Arrange crockery so that items do not touch each
other.
Load crockery upside down.
detergent with a greater whitening power.
Deposits on crockery
• removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.
• Streaks on glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
• not removable • Insufficient water softening,
Opaque glasses/
calcium deposits.
• Cannot be washed in the dishwasher. • Use suitable glasses.
• Change water hardness setting, if necessary add
salt *.
glasses not sparkling
Rust on cutlery
Identifying appliance
faults
• Not made of stainless steel. • Use suitable cutlery.
• The START indicator lamp flashes.
• Indicator F... (if provided).
• Ensure the filter assembly is not clogged and that
there is no interruption to the water supply
(if necessary , clean th e filters *). Start the pr ogr amme
again. Press the START button for 2 seconds, until the
START indicator lamp switches off. Select a new
programme and press the Start button again.
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the
water supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault.
• The appliance type and model.
• The service code (the number indicated on the adhesive rating plate)
inside the door on the right-hand side.
WH/IV/GB
