Whirlpool FGC355Y, FGP335Y, FGP355Y User Manual

Specifications and Main Features
  • FGP335Y, FGP345Y, FGP355Y, and FGC355Y are the model numbers
  • Continuous-cleaning and standard-cleaning gas ranges are the types of the machines.
  • The method of heating provided is gas.
  • The electric gas cooktops have surface burners fitted with electric ignitors.
  • There is an Adjustable oven temperature control knob for controlling the temperature of the oven.

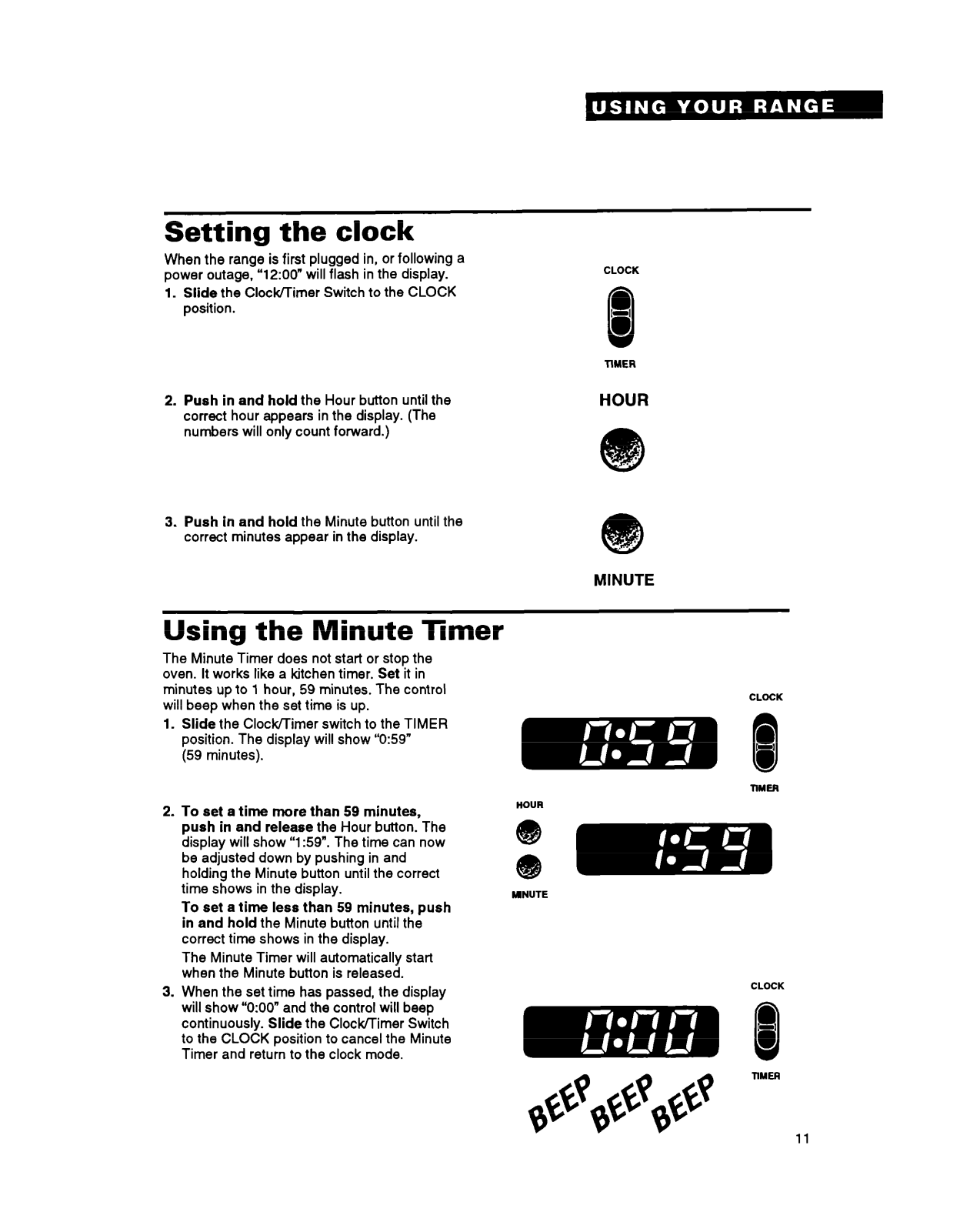

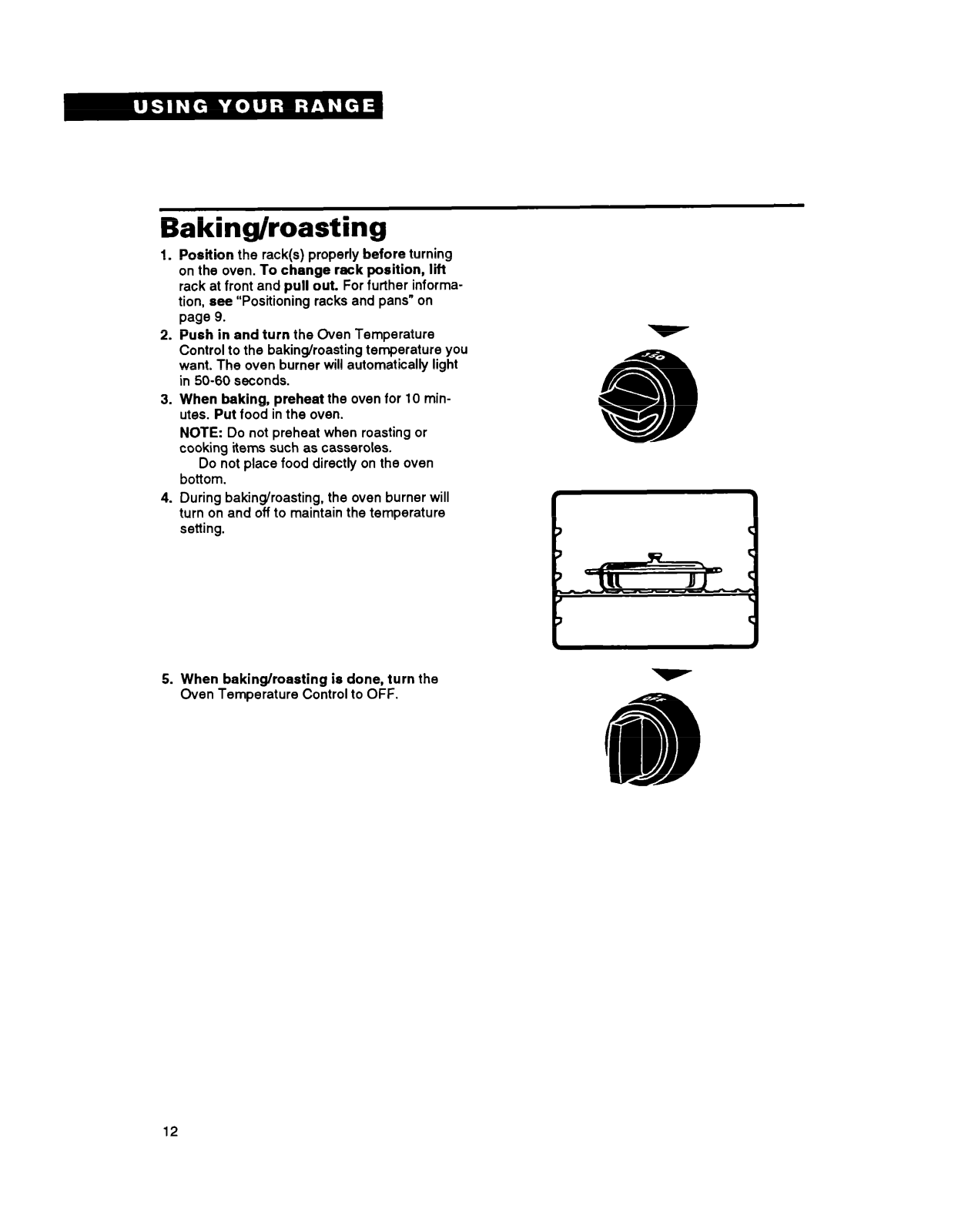

  • The set of features for cooking includes baking, broiling, controlling oven temperature, and a minute timer.

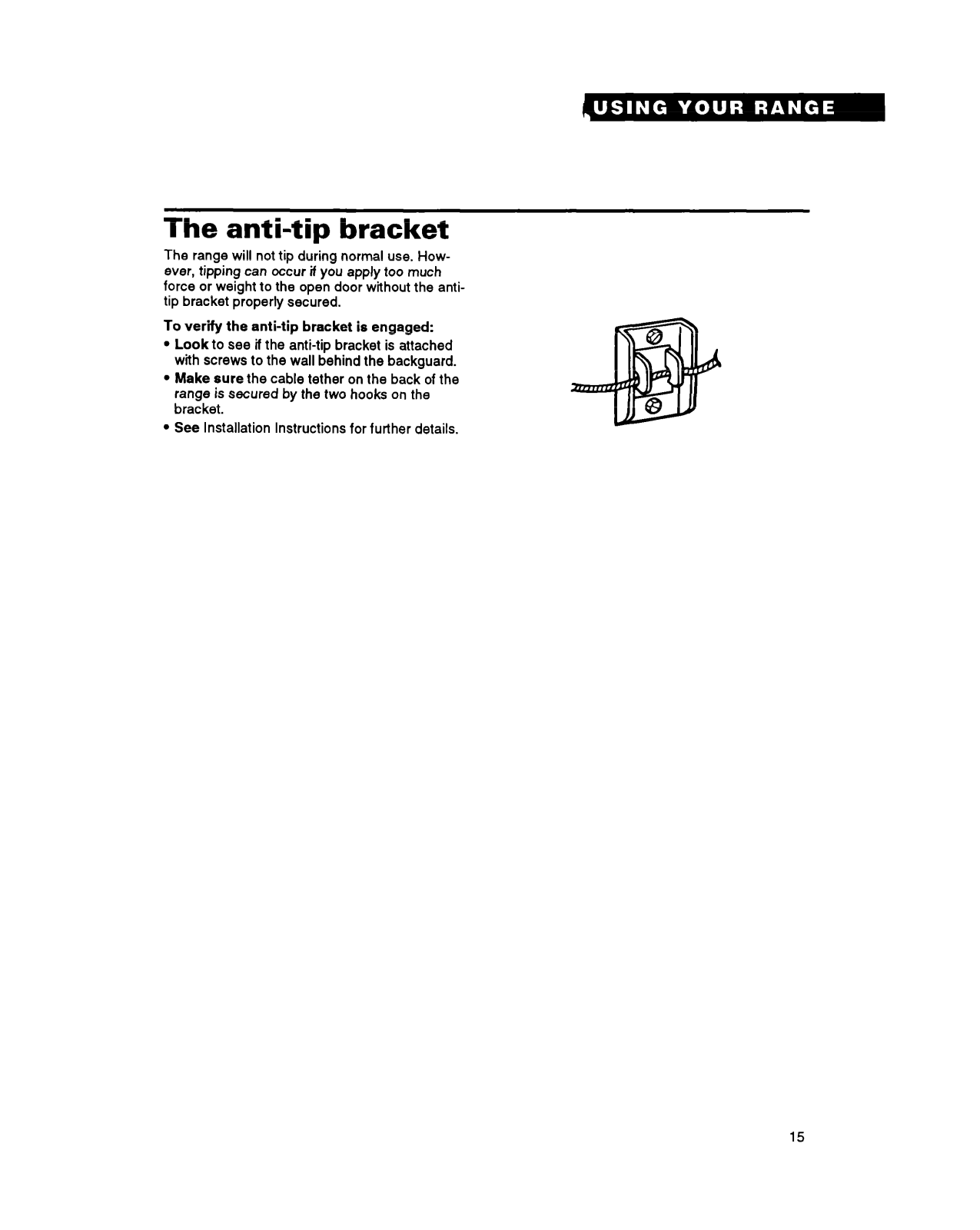

  • To avoid tipping over, anti-tip brackets can be installed. These ought to be included with the gas ranges for safety.
  • To promote long life, durable materials must be employed in the construction of the machines.
Frequently Asked Questions

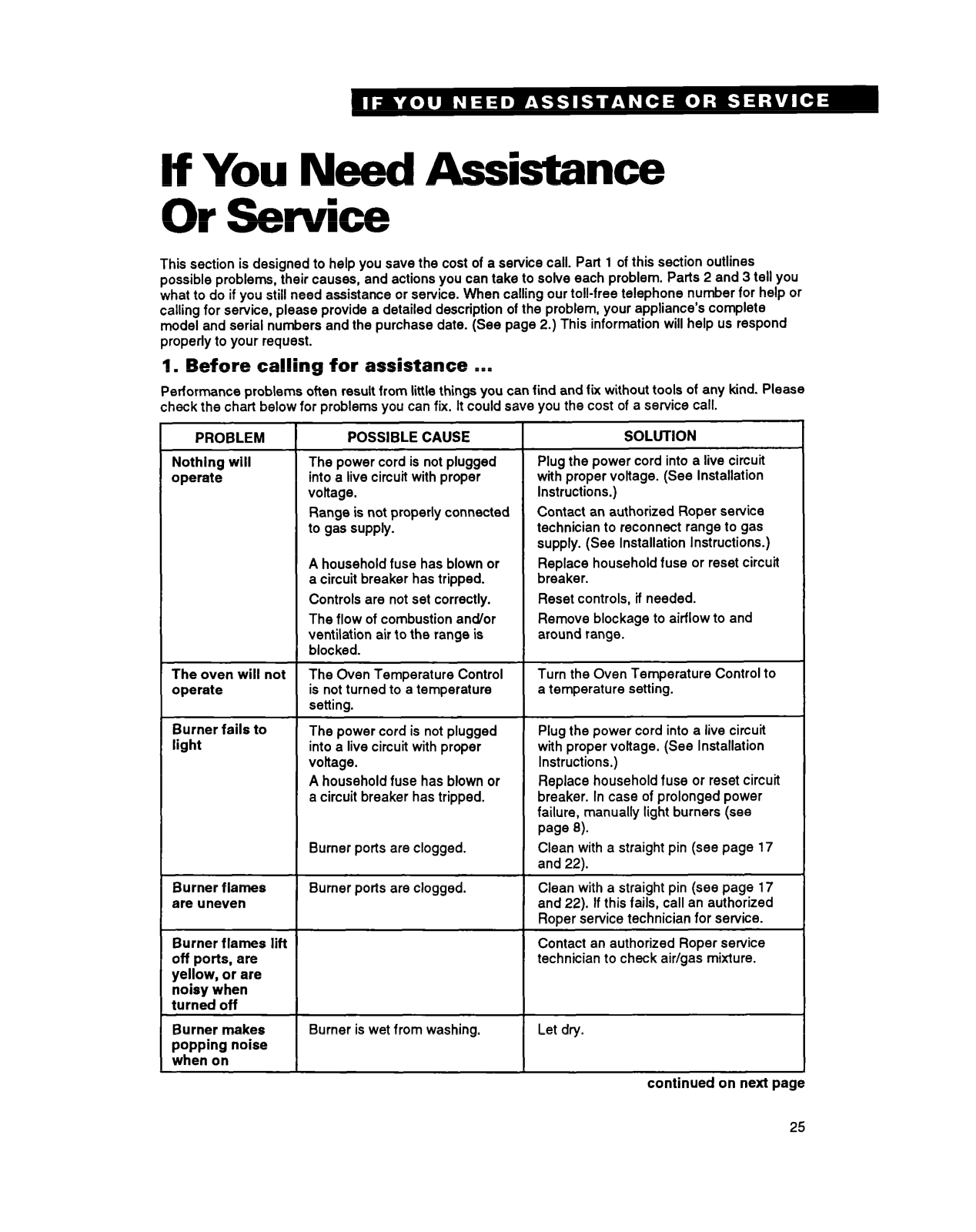

Q: What could be done in a case wherein the burners are not lighting?

A: Verify that the power supply cord is connected to a correctly functioning outlet with the appropriate voltage. In case they are out, then check for blown fuses or reset tripped circuit breakers. Also, unclog the ports of the burners.

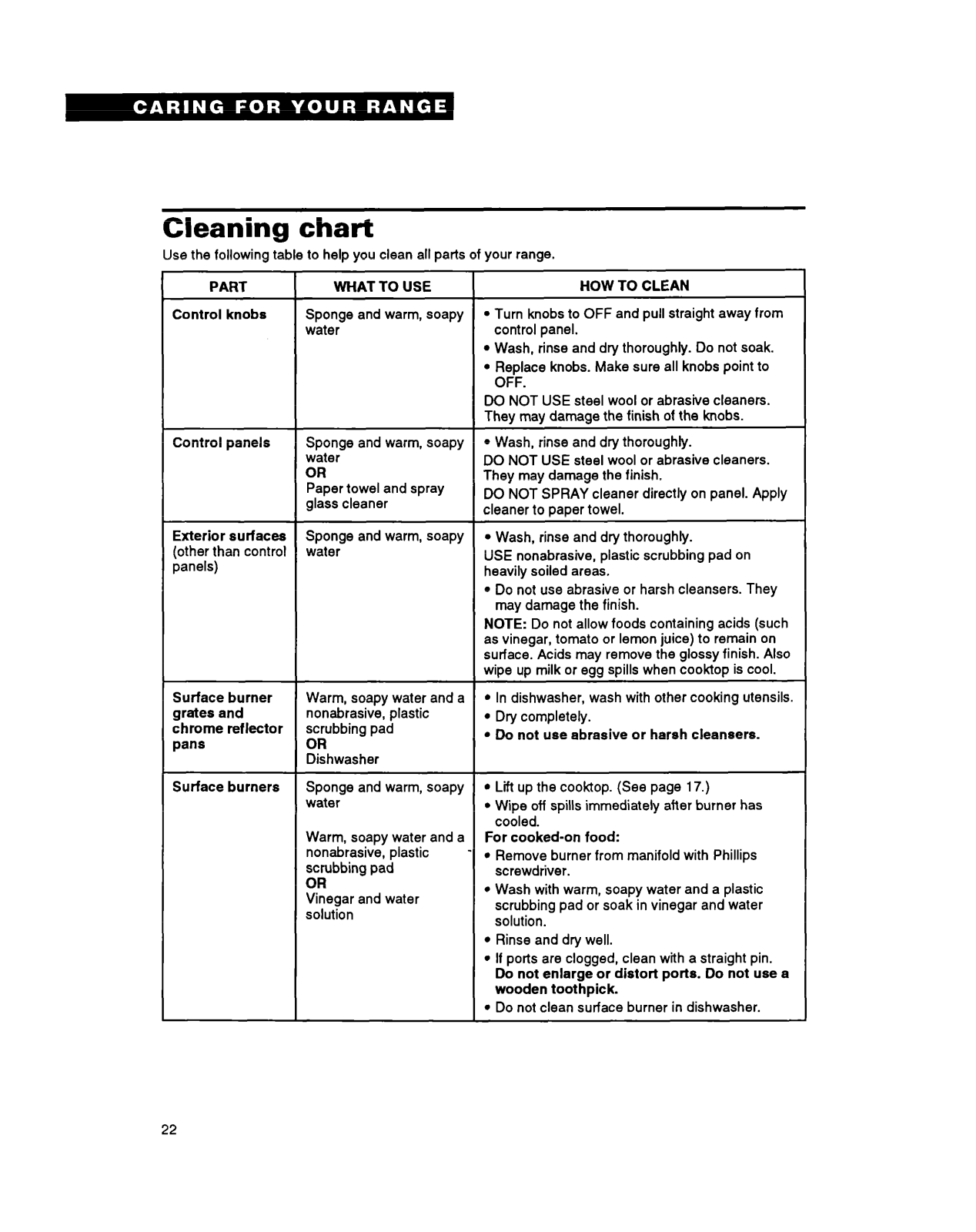

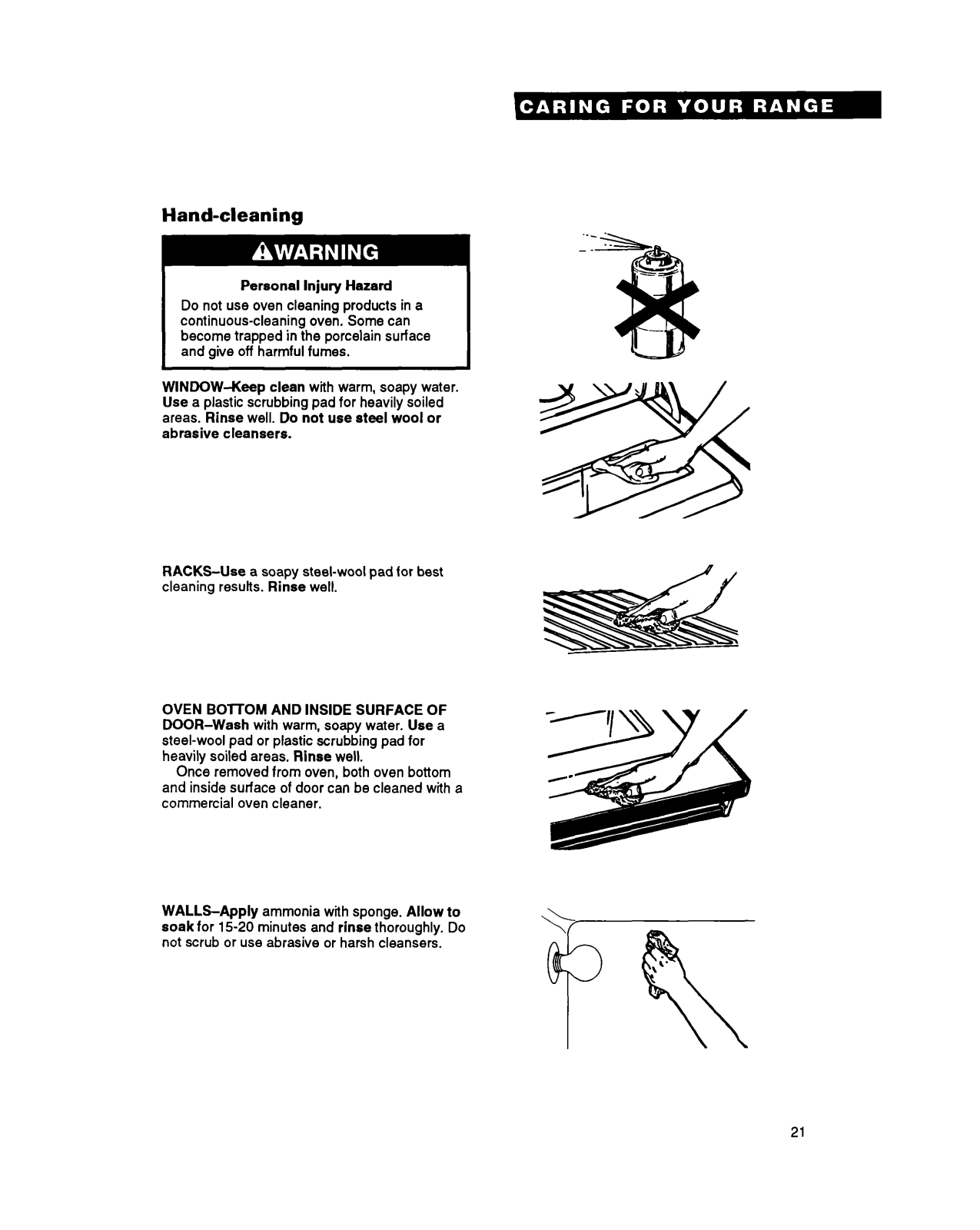

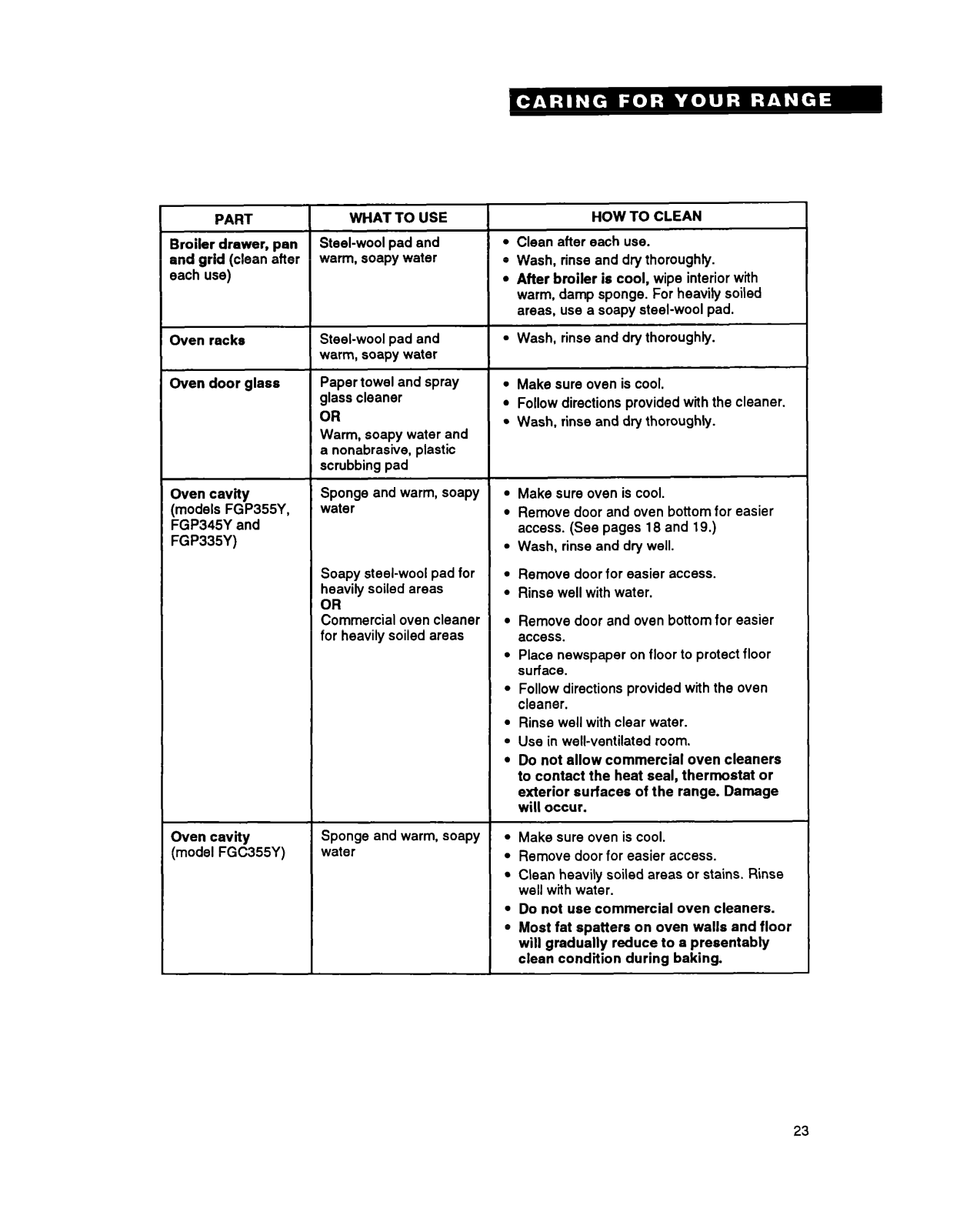

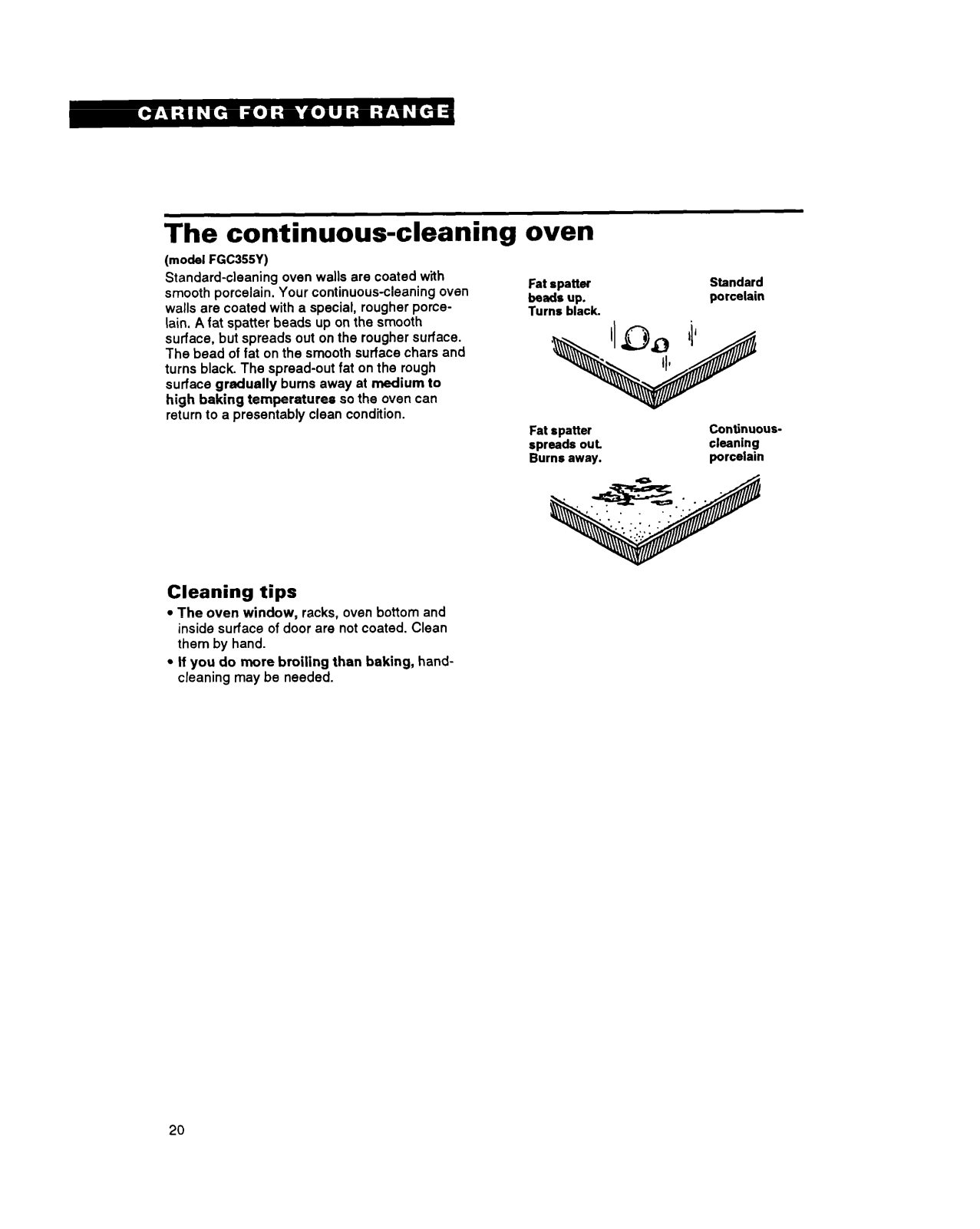

Q: What is the cleaning procedure for the continuous-cleaning oven?

A: Throughout usual baking, continuous-cleaning oven walls has the capability of gradually decreasing the build-up of soil in the oven. If there are heavily soiled areas, or you bm broil too frequently, do as the manual suggests when hand-cleaning the units.

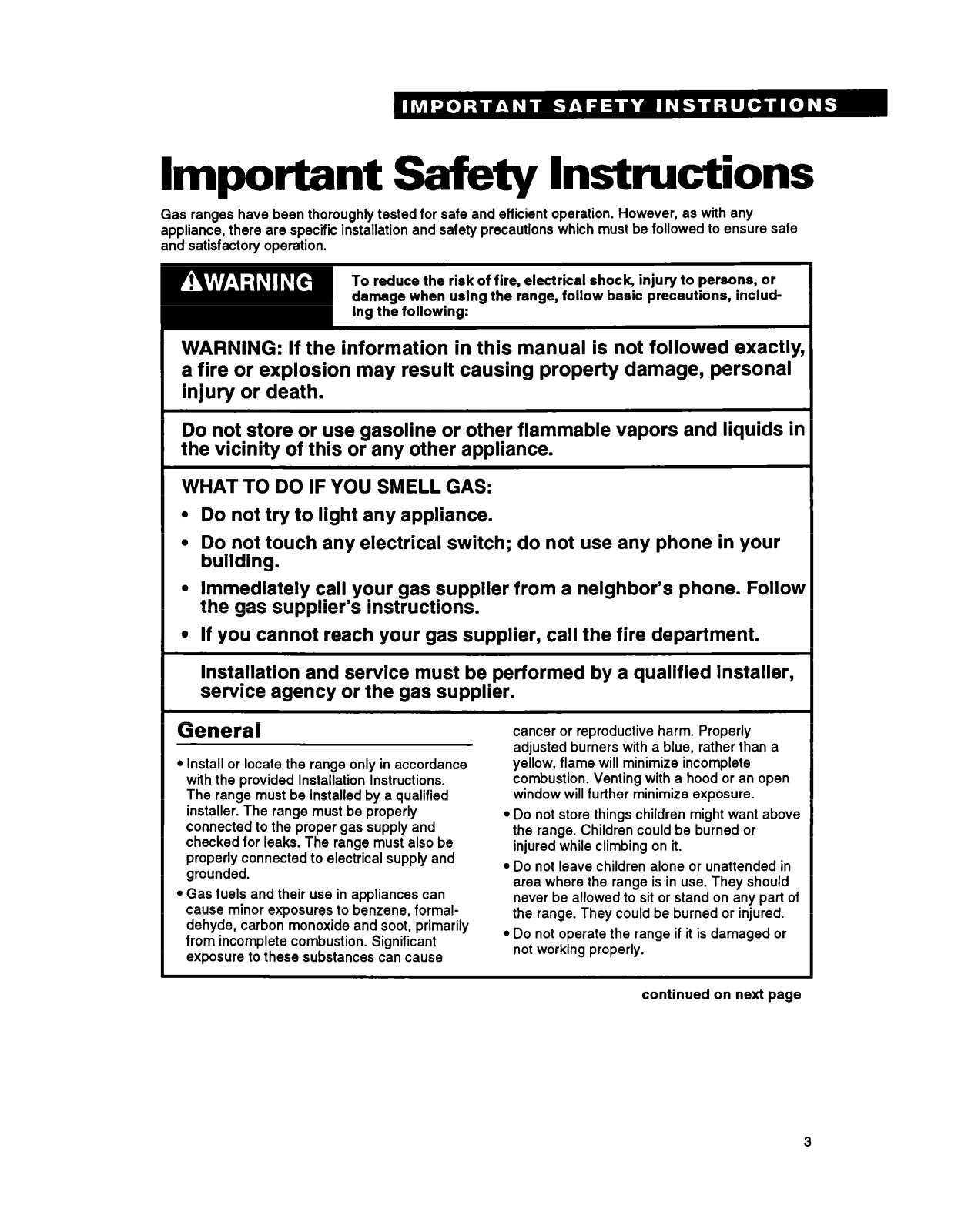

Q: What am I supposed to do when there's a gas smell?

A: Just don’t turn on any appliances. The gas supply should be turned off and the gas company or the fire department should be contacted immediately.

Q: Is it Okay to Treat the Range as a Heater for the Room?

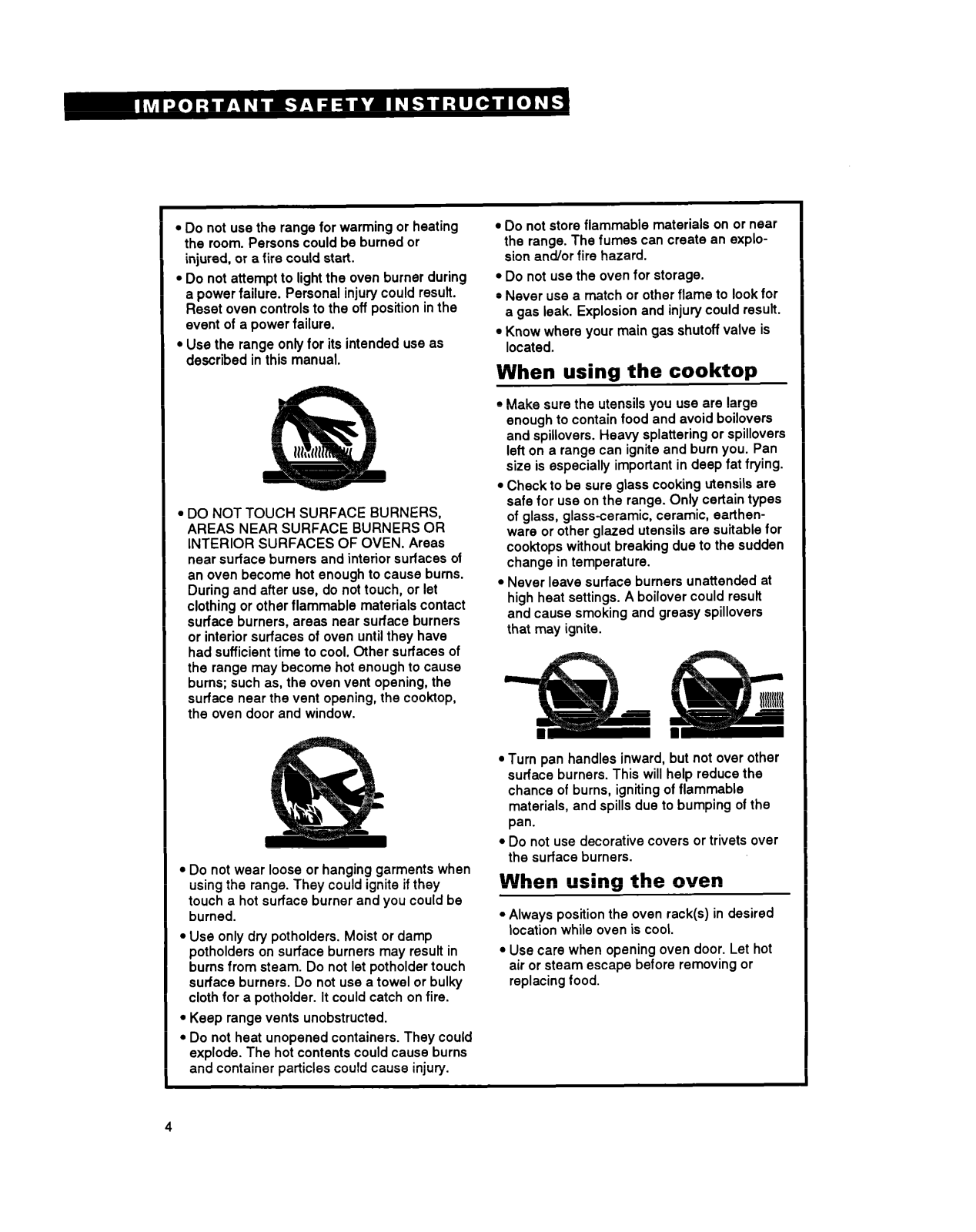

A: It is unsafe to use the range for any heating purposes which include trying to heat a room as this might lead to a burn or fire hazard.

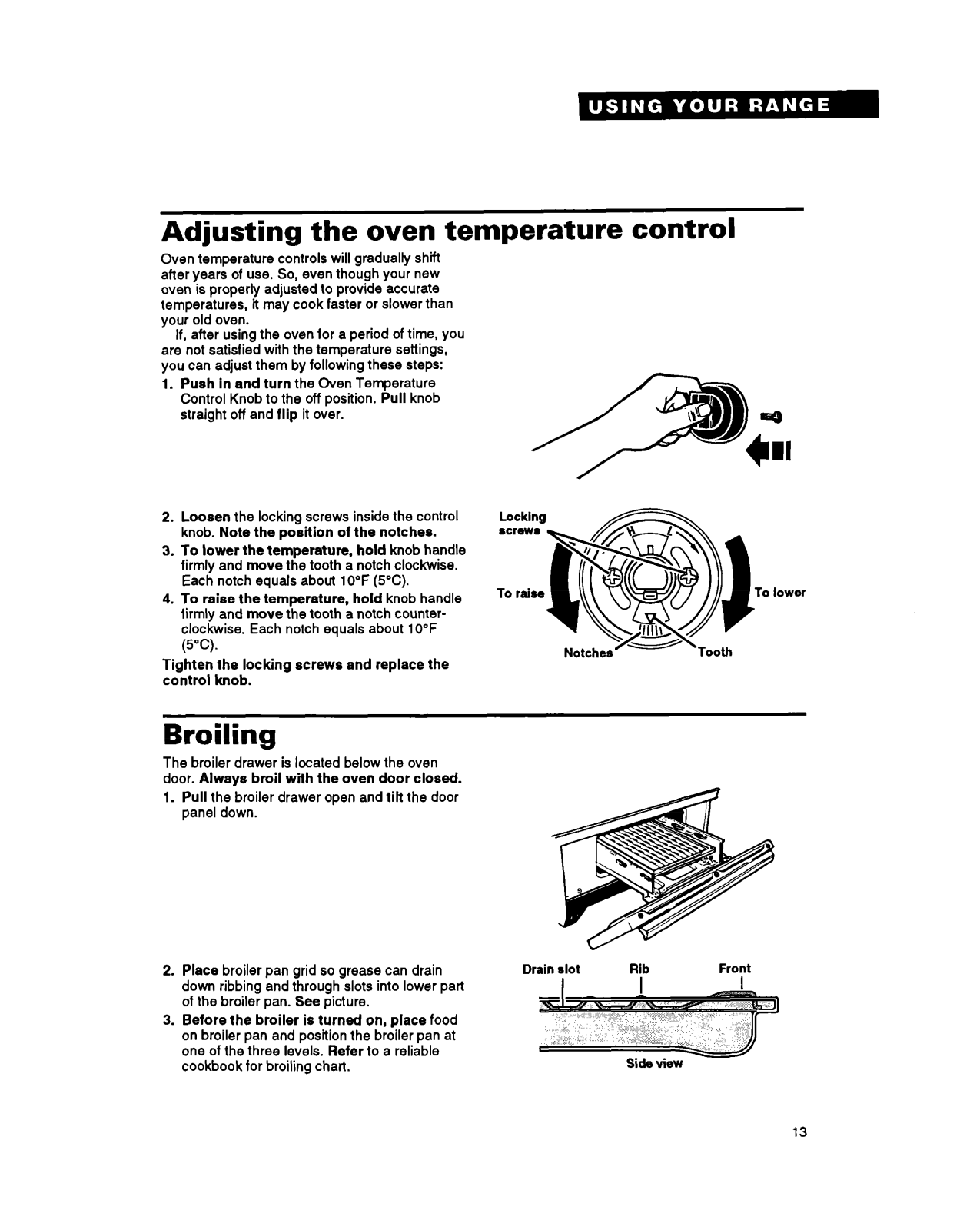

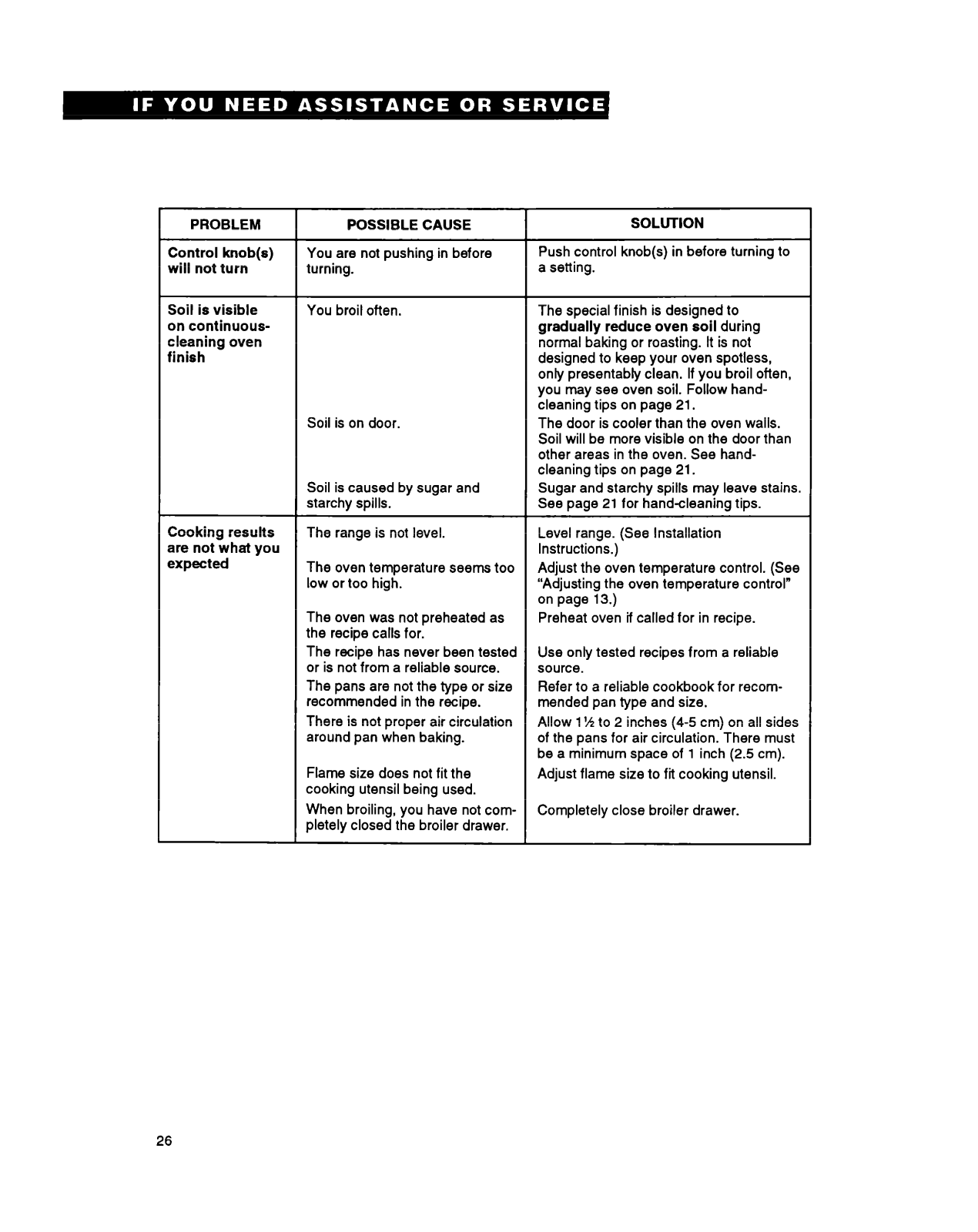

Q: What Can I Do if I Am Not Achieving The Desired Results Using My Oven? How Can I Reprogram the Temperature?

A: To attain satisfactory results then adjust the oven temperature by loosening the locking screws to adjust the temperature control knob, Bear in mind this will require you to shift the adjustment notch in 10-degree increments.

User Manual
Page 1

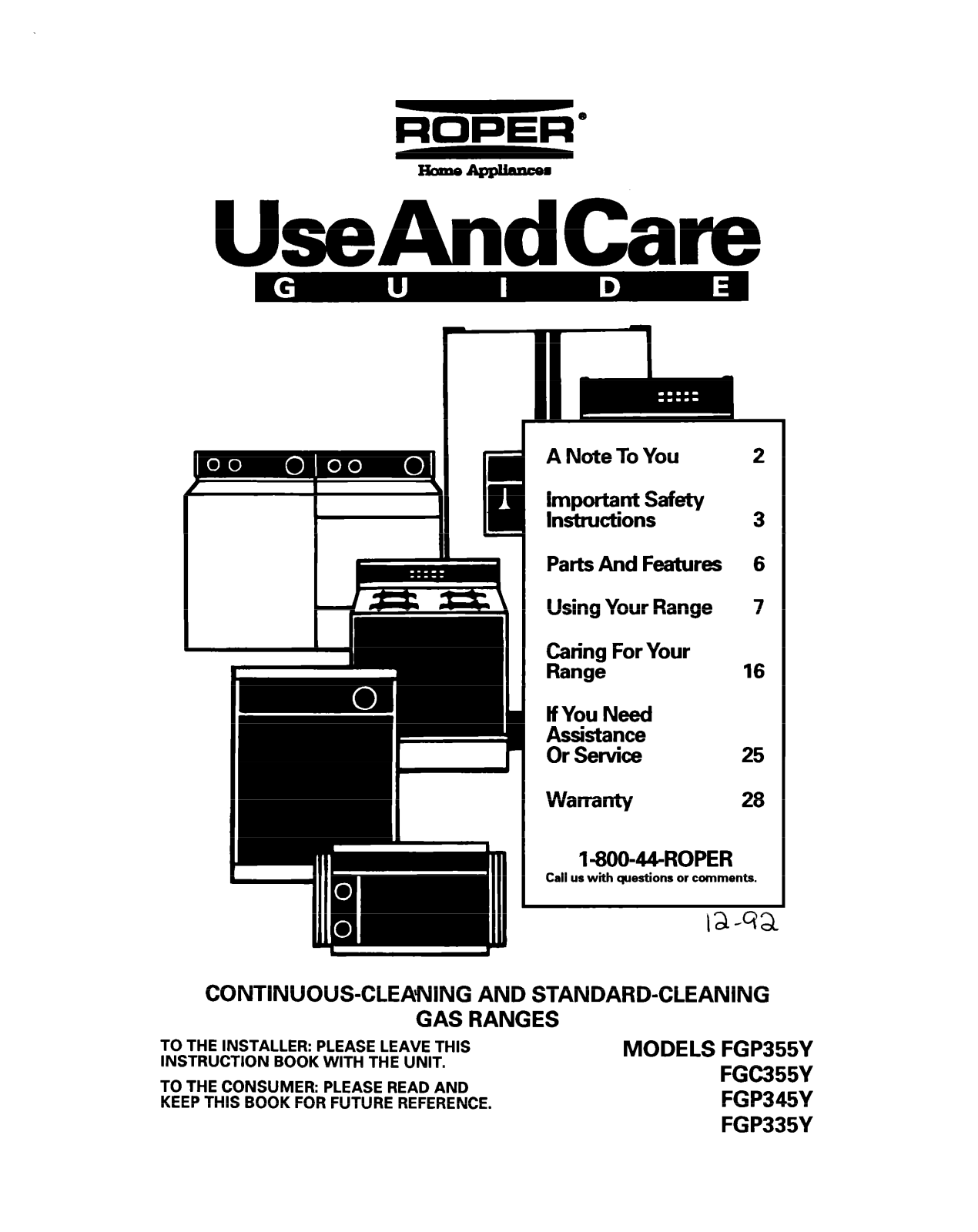

Whirlpool FGC355Y, FGP335Y, FGP355Y User Manual - ManualMachine.com
