Quick guide
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance,
please register your product on
www.whirlpool.eu/register
CONTROL PANEL
1 “ON/OFF” button
2 Programme selector
3 “Start/Pause” button
4 “Spin Speed” button
5 “Intensive Rinse” button
6 “Clean+” button /
“Key lock“ button
7 “Start Delay” button
8 “FreshCare+”
9 “Temperature” button
DISPLAY INDICATORS
Door locked
FreshCare+ activated

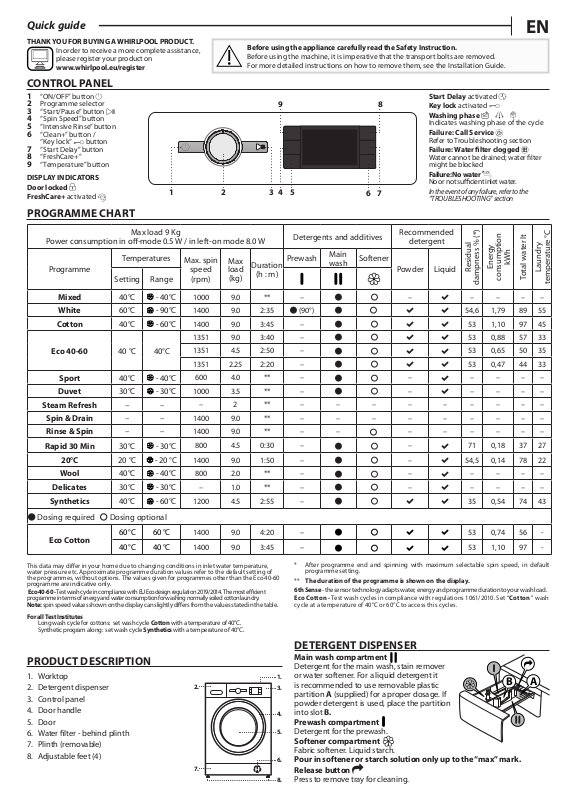

PROGRAMME CHART
Before using the appliance carefully read the Safety Instruction.
Before using the machine, it is imperative that the transport bolts are removed.
For more detailed instructions on how to remove them, see the Installation Guide.
Start Delay activated
Key lock activated
Washing phase
Indicates washing phase of the cycle
Failure: Call Service
Refer to Troubleshooting section
Failure: Water lter clogged
Water cannot be drained; water lter
might be blocked
Failure: No water
No or not sucient inlet water.
In the event of any failure, refer to the
“TROUBLESHOOTING” section
21 5394
+1 +2 +3
1
3
2
786
EN
Power consumption in o -mode 0.5 W / in left-on mode 8.0 W
Max load 9 Kg
Temperatures
Programme
Setting Range
Mixed 40°C - 40°C
White 60°C - 90°C
Cotton 40°C - 60°C
Max. spin
speed
(rpm)
Max
load
(kg)
Duration
(h : m)
1000 9.0 ** –
1400 9.0 2:35
1400 9.0 3:45 –
1351 9.0 3:40 –
Eco 40-60 40 °C 40°C
1351 4.5 2:50 –
1351 2.25 2:20 –
Sport 40°C - 40°C
Duvet 30°C - 30°C
Steam Refresh – –
Spin & Drain – –
Rinse & Spin – –
Rapid 30 Min 30°C - 30°C
20°C 20 °C - 20 °C
Wool 40°C - 40°C
Delicates 30°C - 30°C
Synthetics 40°C - 60°C
600 4.0 ** –
1000 3.5 ** –
– 2 ** – – – – – – – – –
1400 9.0 ** – – – – – – – – –
1400 9.0 ** – –
800 4.5 0:30 –
1400 9.0 1:50 –
800 2.0 ** –
– 1.0 ** –
1200 4.5 2:55 –
Dosing required Dosing optional
Eco Cotton
60 °C 60 °C
40 °C 40 °C
This data may dier in your home due to changing conditions in inlet water temperature,
water pressure etc. Approximate programme duration values refer to the default setting of
the programmes, without options.
programme are indicative only.
Eco 40 -60 - Test wash cyc le in compliance wi th EU Ecodesign regu lation 2019/2014. The most e fficie nt
programm e in terms of energ y and water consumpt ion for washing n ormally soile d cotton laundr y.
Note: spin spe ed values shown on th e display can slightly di ffers from th e values stated in th e table.
For all Test Institutes
Long wash cycle for cottons: set wash cycle Cotton with a temperature of 40°C.
Synthetic program along: set wash cycle Synthetics with a temperature of 40°C.
The values given for programmes other than the Eco 40-60
1400 9.0 4:20 –
1400 9.0 3:45 –
Detergents and additives
Prewash
Main
wash
Softener
(90°)
* After programme end and spinning with maximum selectable spin speed, in default
programme setting.
** The duration of the programme is shown on the display.
6th Sense - the sensor tech nology adapts w ater, energy and progr amme duration to your w ash load.
Eco Cotto n - Test wash cycles in compliance with regulations 1061/2010. Set “Cotton ” wash
cycle at a temperature of 4 0°C or 60°C to access this c ycles.
Recommended
detergent
Powder Liquid
–
Residual
consumption
dampness % (*)
– – – –
kWh
Energy
54,6 1,79 89 55
53 1,10 97 45
53 0,88 57 33
53 0,65 50 35
53 0,47 44 33
–
–
– – – –
– – – –
– – – – – –
–
–
–
–
71 0,18 37 27
54,5 0,14 78 22
– – – –
– – – –
35 0,54 74 43
53 0,74 56 -
53 1,10 97 -
Total water lt
Laundry
temperature °C
PRODUCT DESCRIPTION
1. Worktop
2. Detergent dispenser
3. Control panel
4. Door handle
5. Door
6. Water lter - behind plinth
7. Plinth (removable)
8. Adjustable feet (4)
DETERGENT DISPENSER
Main wash compartment
Detergent for the main wash, stain remover
or water softener. For a liquid detergent it
1.
2.
is recommended to use removable plastic
3.
partition A (supplied) for a proper dosage. If
powder detergent is used, place the partition
into slot B.
4.
Prewash compartment
Detergent for the prewash.
5.
Softener compartment
Fabric softener. Liquid starch.
6.
7.
Pour in softener or starch solution only up to the “max” mark.
Release button
Press to remove tray for cleaning.
8.
A
B
Page 2
PROGRAMMES
For choosing the appropriate programme for your kind of
laundry, always respect the instructions on the care labels
of the laundry. The value given in the tub symbol is the
maximum temperature possible for washing the garment.
Mixed
For washing lightly to normally soiled resilient garments in cotton, linen,
synthetic bres and mixed bres.
White
For washing normally to heavily soiled towels, underwear, table and bed
linen, etc in resilient cotton and linen. Only when the temperature is
selected at 90°C the cycle is provided with a prewash phase before main
washing phase. In this case it is recommended to add detergent both, in
the prewash and main wash section.
Cotton
Normally to heavily soiled and robust cottons .
Eco 40-60
For washing normally soiled cotton garments declared to be washable
at 40 °C or 60 °C, together in the same cycle. This is the standard cotton
programme and the most ecient in terms of water and energy
consumption.
Sport
For washing lightly soiled sports clothing (tracksuits, shorts, etc.). For best
results, we recommend not exceeding the maximum load indicated in
the ‚‘‘PROGRAMME CHART‘‘. We recommend using liquid detergent , and
adding the amount suitable for half-load.
Duvet
Designed for washing eiderdown padded items such as double or single
duvets, cushions and anoraks. It is recommended to load such padded
items in the drum with the edges folded inwards and not to exceed ¾ of
the drum’s volume. For optimal washing, we recommend using a liquid
detergent.
Steam Refresh
This programme refreshes garments by removing bad odours and
relaxing the bres (2 kg, roughly 3 items). Insert dry items only (that are
not dirty) and select programme “Steam Refresh”. Garments will be a
little damp at the end of the cycle and can be worn after a few minutes.
The “Steam Refresh” programme makes ironing easier.
! Not recommended for wool or silk garments.
! Do not add softeners or detergents.
Spin & Drain
Spins the load then empties the water. For resilient garments. If you
exclude the spin cycle, the machine will drain only
Rinse & Spin
Rinses and then spins. For resilient garments.
Rapid 30 Min
For washing lightly soiled garments quickly. This cycle lasts only 30
minutes, saving time and energy.
20°C
For washing lightly soiled cotton garments, at a temperature of 20 °C.
Wool
All wool garments can be washed using programme ‚“Wool“ even
those carryng the “hand-wash only “ label. For best results, use special
detergents and do not exceed max kg declaration of laundry.
Delicates
For washing particularly delicate garments. Preferably turn garments
inside out before washing.
Synthetics
For washing soiled garments made from synthetic bres (such as
polyester, polyacrylic, viscose, etc.) or cotton/synthetic blends.
Eco Cotton
For washing normally soiled cotton garments. At 40°C and 60°C.
FIRST TIME USE
To remove any manufacturing debris select the “Cotton” programme at a
temperature of 60°C. Pour a small quantity of detergent powder into the
main wash compartment of the detergent dispenser (maximum 1/3 of
the quantity the detergent manufacturer recommends for lightly soiled
laundry). Start the programme without adding any laundry.
DAILY USE
Prepare your laundry according to the recommendations in the “HINTS
AND TIPS” section. Load the laundry, close the door, open the water
tap and press the “ON/OFF” button to switch the wasching machine
on, the “Star t/Pause” button ashes. Turn the programme selector
to the desired programme and select any option if needed. The
temperature and spin speed can be changed by pressing the “Temp.”
button or the “Spin Speed” button. Pull out the detergent dispenser and
add the detergent (and additives/softener) now. Observe the dosing
recommendations on the detergent pack. Then close the detergent
dispenser and press the “Start/Pause” button. The “Start/Pause”
button will light up and the door will be locked.
PAUSE A RUNNING PROGRAMME
To pause the wash cycle, press the “Start/Pause” ; the indicator light
will go o and the remaining time on display ash. To start the wash cycle
from the point at which it was interrupted press the button again.
OPEN THE DOOR, IF REQUIRED
After starting a programme, the “Door locked” indicator lights up to
show that the door can not be opened. As long as a wash programme is
running, the door remains locked. To open the door while a programme
is in progress, press the “Start/Pause” to pause the programme.
Provided the water level and/or temperature is/are not too high, the
“Door locked” indicator light goes o and you can open the door.
For example to add or remove laundry. Press the “Start/Pause” button
again to continue the programme.
PROGRAMME END
The “Door locked” indicator light goes o and the display shows
“End”. To switch o the washing machine after programme ends press the
“ON/OFF” button, the lights goes o. If you do not press “ON/OFF”
button, the washing machine will switch o automatically after about a
10 minutes. Close the water tap, open the door and unload the washing
machine. Leave the door ajar to allow the drum to dry.
OPTIONS
! If the selected option is incompatible with the programme set,
the incompatibility will be signalled by a buzzer (3 beeps) and the
corresponding indicator light will ash.
! If the selected option is incompatible with another previously set
option, only the most recent selection will remain active.
Clean+
Clean+ is an option working on 3 dierent levels (Intensive, Daily
and Fast) that are specially designed to set the right washing action,
depending on your cleaning needs:
Intensive : this option is designed for high levels of dirtiness,
removing most stubborn stains.
Daily : this option is designed to remove everyday stains.
Fast : this option is designed to remove lightly soiled stains.
Intensive Rinse
By selecting this option, the eciency of the rinse is increased and
optimal detergent removal is guaranteed. It is particularly useful for
sensitive skin. Press the button once, two or three times to select an
additional 1 +1 , 2 +2 or 3 +3 rinses after the standard cycle rinse and
remove all traces of detergent. Press the button again to go back to the
“Normal rinse” rinse type.
Start Delay
To set the selected programme to start at a later time, press the button
to set the desired delay time. Symbol lights on the display when this
fuction is enabled. To cancel the delayed start, press the button again
untile the value ‚‘‘0‘‘ is shown on the display.
This option enhances washing performance by generating steam
to inhibit the proliferation of the main bad odour sources inside the
machine. After steam phase, the washing machine will perform gentle
tumbling through slow rotations of the drum. option starts after
the cycle ends for a maximum duration of 6h and you can interrupt it at
any time by pressing any button on control panel or turning the knob.
Wait around 5 minutes before door can be opened.
Temperature
Every programme has a predened temperature. If you want to change
the temperature, press the “Temp.” button. The value appears on the
display.
Spin
Every programme has a predened spin speed. If you want to change
the spin speed, press the “Spin Speed” button. The value appears on the
display.
Page 3
Quick guide
Demo mode
To deactivate this function, switch the washing machine OFF. Than press
and hold “Start/Pause” button, within 5 seconds press also
“ON/OFF” button and hold both buttons for 2 seconds.
KEY LOCK
To lock the control panel, press and hold the “Key lock” button
for approximately 3 seconds. The symbol will light up on the
display to indicate that the control panel has been locked (with the
exception of the “ON/OFF“ button). This prevents unintentional
changes to programmes, especially with children near the machine. To
unlock the control panel, press and hold the “Key lock” button for
approximately 3 seconds .
BLEACHING
If you wish to bleach the laundry, load the washing machine and set the
“Rinse & Spin” programme.
Start the machine and wait for it to complete the rst water lling cycle
(roughly 2 minutes). Put the machine in pause mode by pressing the
“Start/Pause” button, open the detergent drawer and pour the bleach
(observe the recommended doses indicated on the package) into the
main wash compartment where the partition was previously mounted.
Restart the cycle by pressing the “Start/Pause” button.
If desired, it is possible to add fabric softener into the appropriate
compartment of the detergent drawer.
HINTS AND TIPS
Sort your laundry according to
Type of fabric/care label (cotton, mixed bres, synthetics, wool, handwash
items). Colour (separate coloured and white items, wash new coloured
items separately). Delicates (wash small items – like nylon stockings – and
items with hooks – like bras – in a cloth bag or pillow case with zip).
Empty all pockets
Objects like coins or lighters can damage your laundry as well as the
drum.
Follow the dosage recommendation / additives
It optimizes the cleaning result, it avoids irritating residues of surplus
detergent in your laundry and it saves money by avoiding waste of
surplus detergent
Use low temperature and longer duration
The most ecient programmes in terms of energy consumption are
generally those that perform at lower temperatures and longer duration.
Observe the load sizes
Load your washing machine up to the capacity indicated in the
“PROGRAMME CHART” table to save water and energy.
Noise and remaining moisture content
They are inuenced by the spinning speed: the higher the spinning
speed in the spinning phase, the higher the noise and the lower the
remaining moisture content.
EN
lter: remove residues in the lter and clean it under running water.
Insert the water lter and reinstall the plinth: Reinsert the water lter
again by turning it in clockwise direction. Make sure to turn it in as far
as it goes; the lter handle must be in vertical position. To test water
tightness of the water lter, you can pour about 1 liter of water into the
detergent dispenser. Then reinstall the plinth.
ACCESSORIES
Contact our After-Sales Service to check if the following accessories are
available for your washing machine model.
Stacking kit shelf
By which your dryer can be xed on top of your washing machine to save
space and to facilitate loading and unloading your dryer in the higher
position.
TRANSPORT AND HANDLING
Never lift the washing machine by holding it at the worktop.
Pull out the mains plug, and close the water tap. Make sure that door
and detergent dispenser are properly closed. Disconnect the inlet hose
from the water tap, and remove the drain hose from your draining point.
Remove all rest water from the hoses, and x them so that they cannot
get damaged during transport. Ret the transport bolts. Follow the
instructions for removing the transport bolts in the INSTALATION GUIDE
in reverse order.
CLEANING & MAINTENANCE
For any cleaning and maintenance, switch o and unplug the washing
machine. Do not use ammable uids to clean the washing machine.
Clean and maintain your washing machine periodically (at least 4 times
per year).
Cleaning the outside of the washing machine
Use a soft damp cloth to clean the outer parts of the washing machine.
Do not use glass or general purpose cleaners, scouring powder or similar
to clean the control panel – these substances might damage the printing.
Checking the water supply hose
Check the inlet hose regularly for brittleness and cracks. If damaged,
replace it by a new hose available through our After-Sales Service or
your specialist dealer. Depending on the hose type: If the inlet hose has
a transparent coating, periodically check if the colour intensies locally. If
yes, the hose may have a leak and should be replaced
Cleaning the water lter / draining residual water
If you used a hot wash programme, wait until the water has cooled down
before draining any water. Clean the water lter regularly, to avoid that
the water cannot drain after the wash due to obstruction of the lter. If
the water cannot drain, the display indicates that the water lter may be
clogged.
Remove the plinth by using the screwdriver: push downwards one side
of the plinth with your hand, then push the screwdriver into the gap
between plinth and front panel and pry open the plinth. Place a broad,
at container beneath the water lter, to collect the drain water. Slowly
turn the lter counterclockwise until water ows out. Let the water ow
out, without removing the lter. When the container is full, close the
water lter by turning it in clockwise. Empty the container. Repeat this
procedure until all the water has drained. Lay a cotton cloth beneath
the water lter, which can absorb a small amount of rest water. Then
remove the water lter by turning it out anti clockwise. Clean the water
Page 4
TROUBLESHOOTING
The washing machine may sometimes not work properly for certain reasons. Before calling the After-sales service, it is recommended to check to see if
the problem can be easily resolved using the following list.
Anomalies: Possible causes / Solution:
• The plug is not inserted into the electrical outlet, or not enough to make contact.
The washing machine does not turn on.
The wash cycle does not start.
• There has been a power failure.
• The door is not fully closed.
• The “ON/OFF” button has not been pressed.
• The “Start/Pause” button has not been pressed.
• The water tap is not open.
• A “Start Delay” has been set.
The washing machine does not ll with
water (the message “h2o” is shown on
the display). “Beep” sound every 5
seconds.
The washing machine loads and drains
water continuously.
The washing machine does not drain or
does not spin.
The washing machine vibrates
excessively during the spin cycle.
The washing machine leaks water.
The machine is locked and the display
ashes, indicating an error code (e.g.
F-01, F-..).
• The water intake hose is not connected to the tap.
• The hose is bent.
• The water tap is not open.
• The mains water supply has been shut o.
• There is not enough pressure.
• The “Start/Pause” button has not been pressed.
• The drain hose has not been installed at 65 to 100 cm from the ground.
• The end of the drain hose is immersed in water.
• The drain connector on the wall does not have an air vent.
• If the problem persists after having performed these checks, close the water tap, shut o the
washing machine, and call the After-sales service. If the dwelling is located on one of the
uppermost oors of a building, a siphon eect can sometimes occur, thus causing the washing
machine to load and drain water continuously. Special anti-siphon valves are available on the
market to prevent these types of problems.
• The programme does not include the draining function: with certain programmes it must be
activated manually.
• The drain hose is bent.
• The drain line is obstructed.
• At the time of installation, the drum was not properly unblocked.
• The washing machine is not level.
• The washing machine is squeezed between furniture and the wall.
• The water intake hose has not been tightened properly.
• The detergent dispenser is clogged.
• The drain hose has not been properly fastened.
• Shut o the machine, disconnect the plug from the outlet, and wait about 1 minute before
turning it back on.
• If the problem persists, call the After-sales service.
Too much foam is formed.
Door is locked, with or without
failure indication, and the
programme does not run.
You can download the H&S INSTRUCTIONS, PRODUCT FICHE and ENERGY DATA by:
• Visiting our website - http://docs.whirlpool.eu
• Using QR code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When
contacting our After-sales Service, please state the codes provided on your product’s identication plate.
• For User’s Repair & Maintenance Information visit www.whirlpool.eu
The model information can be retrieved using the QR-Code reported in the energy label. The label also includes
the model identier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu
• The detergent is not compatible with the washing machine (it must bear the wording “for
washing machines”, “for hand washing and washing machines”, or something similar).
• The dosage was excessive.
• Door is locked in case of power breakdown. Programme will continue automatically as soon as
the mains is available again.
• Washing machine is in a standstill. Programme will continue automatically after the origin of
the standstill does not persist anymore.
xxxxxxxxxxxx
xxxx
400011449930
Loading...
