ELECTRIC RANGE
Use & Care Guide
parts, accessories or service, call: 1-800-44-ROPER (1-800-447-6737).
For questions about features, operation/performance,
or visit our website at...
www.roperappliances.com
Table of Contents...................................................2
8522406
MODELS FES330K FEP330K
FEP320K FEP310K
Page 2
TABLE OF CONTENTS
RANGE SAFETY............................................................... 3
The Anti-Tip Bracket ......................................................... 3
PARTS AND FEATURES.................................................. 6
COOKTOP USE ................................................................... 7
Control Knobs ................................................................... 7
Coil Elements and Burner Bowls ...................................... 7
Home Canning .................................................................. 8
Cookware .......................................................................... 8
OVEN USE ........................................................................... 9
Electronic Clock/Timer...................................................... 9
Display............................................................................... 9
Clock ................................................................................. 9
Timer.................................................................................. 9
Oven Temperature Control ............................................... 9
Aluminum Foil.................................................................. 10
Positioning Racks and Bakeware................................... 10
Bakeware ........................................................................ 11
Oven Vent........................................................................ 11
Baking and Roasting....................................................... 11
Broiling ............................................................................ 11
RANGE CARE.................................................................... 12
Self-Cleaning Cycle......................................................... 12
General Cleaning............................................................. 13
Oven Door ....................................................................... 14
Storage Drawer ............................................................... 14
TROUBLESHOOTING....................................................... 14
ASSISTANCE OR SERVICE ............................................. 15
WARRANTY....................................................................... 16
2
Page 3
RANGE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or
“WARNING.” These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can
The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door
without the anti-tip bracket fastened down properly.
happen if the instructions are not followed.
The Anti-Tip Bracket
Anti-Tip Bracket
Range Foot
WARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns to children
and adults.
Making sure the anti-tip bracket is installed:
• Slide range forward.
• Look for the anti-tip bracket securely attached to floor.
• Slide range back so rear range foot is under anti-tip bracket.
3
Page 4
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using the
range, follow basic precautions, including the
following:
■
WARNING: TO REDUCE THE RISK OF
TIPPING OF THE RANGE, THE RANGE MUST BE
SECURED BY PROPERLY INSTALLED ANTI-TIP
DEVICES. TO CHECK IF THE DEVICES ARE
INSTALLED PROPERLY, SLIDE RANGE FORWARD,
LOOK FOR ANTI-TIP BRACKET SECURELY
ATTACHED TO FLOOR, AND SLIDE RANGE BACK
SO REAR RANGE FOOT IS UNDER ANTI-TIP
BRACKET.
■
CAUTION: Do not store items of interest to
children in cabinets above a range or on the backguard of a range – children climbing on the range to
reach items could be seriously injured.
■
Proper Installation – Be sure the range is properly
installed and grounded by a qualified technician.
■
Never Use the Range for Warming or Heating the
Room.
■
Do Not Leave Children Alone – Children should not
be left alone or unattended in area where the range
is in use. They should never be allowed to sit or
stand on any part of the range.
■
Wear Proper Apparel – Loose-fitting or hanging
garments should never be worn while using the
range.
■
User Servicing – Do not repair or replace any part of
the range unless specifically recommended in the
manual. All other servicing should be referred to a
qualified technician.
■
Storage in or on the Range – Flammable materials
should not be stored in an oven or near surface
units.
■
Do Not Use Water on Grease Fires – Smother fire or
flame or use dry chemical or foam-type extinguisher.
■
Use Only Dry Potholders – Moist or damp
potholders on hot surfaces may result in burns from
steam. Do not let potholder touch hot heating
elements. Do not use a towel or other bulky cloth.
■
DO NOT TOUCH SURFACE UNITS OR AREAS
NEAR UNITS – Surface units may be hot even
though they are dark in color. Areas near surface
units may become hot enough to cause burns.
During and after use, do not touch, or let clothing or
other flammable materials contact surface units or
areas near units until they have had sufficient time
to cool. Among those areas are the cooktop and
surfaces facing the cooktop.
■ Use Proper Pan Size – The range is equipped with
one or more surface units of different size. Select
utensils having flat bottoms large enough to cover
the surface unit heating element. The use of undersized utensils will expose a portion of the heating
element to direct contact and may result in ignition
of clothing. Proper relationship of utensil to burner
will also improve efficiency.
■ Never Leave Surface Units Unattended at High Heat
Settings – Boilover causes smoking and greasy
spillovers that may ignite.
■ Make Sure Reflector Pans or Drip Bowls Are in
Place – Absence of these pans or bowls during
cooking may subject wiring or components underneath to damage.
■ Protective Liners – Do not use aluminum foil to line
surface unit drip bowls or oven bottoms, except as
suggested in the manual. Improper installation of
these liners may result in a risk of electric shock, or
fire.
■ Glazed Cooking Utensils – Only certain types of
glass, glass/ceramic, ceramic, earthenware, or other
glazed utensils are suitable for range-top service
without breaking due to the sudden change in
temperature.
■ Utensil Handles Should Be Turned Inward and Not
Extend Over Adjacent Surface Units – To reduce the
risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil,
the handle of a utensil should be positioned so that
it is turned inward, and does not extend over
adjacent surface units.
■ Do Not Soak Removable Heating Elements –
Heating elements should never be immersed in
water.
■ Do Not Cook on Broken Cooktop – If cooktop
should break, cleaning solutions and spillovers may
penetrate the broken cooktop and create a risk of
electric shock. Contact a qualified technician
immediately.
■ Clean Cooktop With Caution – If a wet sponge or
cloth is used to wipe spills on a hot cooking area,
be careful to avoid steam burn. Some cleaners can
produce noxious fumes if applied to a hot surface.
■ Use Care When Opening Door – Let hot air or
steam escape before removing or replacing food.
■ Do Not Heat Unopened Food Containers – Build-up
of pressure may cause container to burst and result
in injury.
SAVE THESE INSTRUCTIONS
4
Page 5
IMPORTANT SAFETY INSTRUCTIONS
■ Keep Oven Vent Ducts Unobstructed.
■ Placement of Oven Racks – Always place oven
racks in desired location while oven is cool. If rack
must be moved while oven is hot, do not let
potholder contact hot heating element in oven.
■ DO NOT TOUCH HEATING ELEMENTS OR
INTERIOR SURFACES OF OVEN – Heating
elements may be hot even though they are dark in
color. Interior surfaces of an oven become hot
enough to cause burns. During and after use, do
not touch, or let clothing or other flammable
materials contact heating elements or interior
surfaces of oven until they have had sufficient time
to cool. Other surfaces of the appliance may
become hot enough to cause burns – among these
For self-cleaning ranges –
■ Do Not Clean Door Gasket – The door gasket is
essential for a good seal. Care should be taken not
to rub, damage, or move the gasket.
■ Do Not Use Oven Cleaners – No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
■ Clean Only Parts Listed in Manual.
■ Before Self-Cleaning the Oven – Remove broiler pan
and other utensils.
For units with ventilating hood –
■ Clean Ventilating Hoods Frequently – Grease should
not be allowed to accumulate on hood or filter.
■ When flaming foods under the hood, turn the fan on.
surfaces are oven vent openings and surfaces near
these openings, oven doors, and windows of oven
doors.
SAVE THESE INSTRUCTIONS
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list
of substances known to the State of California to cause cancer, birth defects, or other reproductive harm, and
requires businesses to warn of potential exposure to such substances.
WARNING: This product contains a chemical known to the State of California to cause cancer, birth defects, or
other reproductive harm.
This appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde,
carbon monoxide, and toluene.
5
Page 6
PARTS AND FEATURES
This manual covers several different models. The range you have purchased may have some or all of the items listed. The locations and
appearances of the features shown here may not match your model.

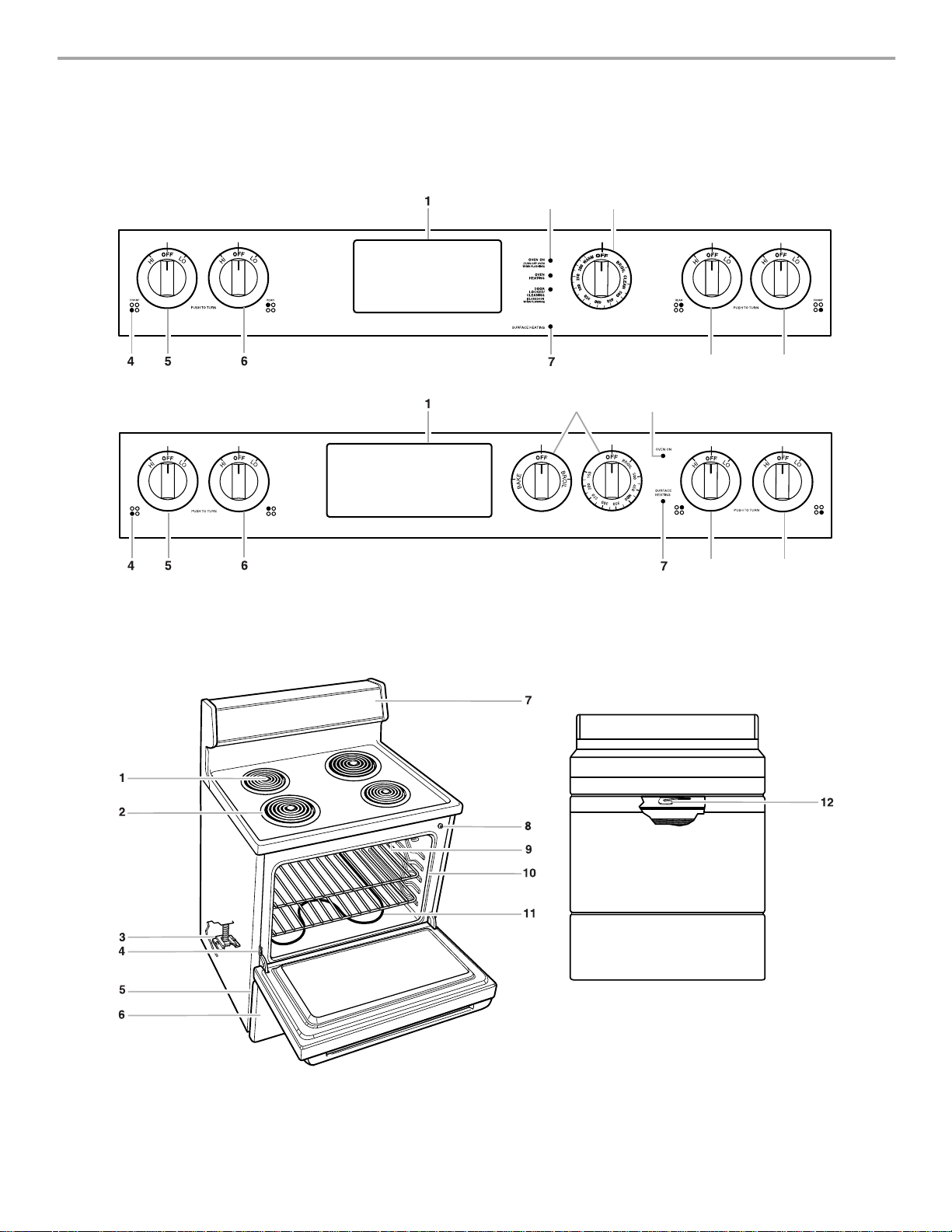

Control Panels
23
Range
Electronic Clock/Timer
1.
(on some models)
Oven Indicator Lights
2.
Oven Temperature Control
3.
Surface Burner Locator
4.
Left Front Burner Control
5.
Left Rear Burner Control
6.
23
Surface Heating Indicator Light
7.
Right Rear Burner Control
8.
Right Front Burner Control
9.
89
89
Oven Vent
1.
Surface Burner
2.
Anti-Tip Bracket
3.
Door Stop Clip
4.
Model and Serial Number Plate
5.
(behind left side of storage drawer)
Storage Drawer
6.
Control Panel
7.
Automatic Oven Light Switch
8.
Broil Element (not shown)
9.
Door Gasket
10.
Bake Element
11.
Self-Clean Latch (on some models)
12.
(on some models)
6
Page 7
COOKTOP USE
Control Knobs
WARNING
Fire Hazard
Turn off all controls when done cooking.
Failure to do so can result in death or fire.

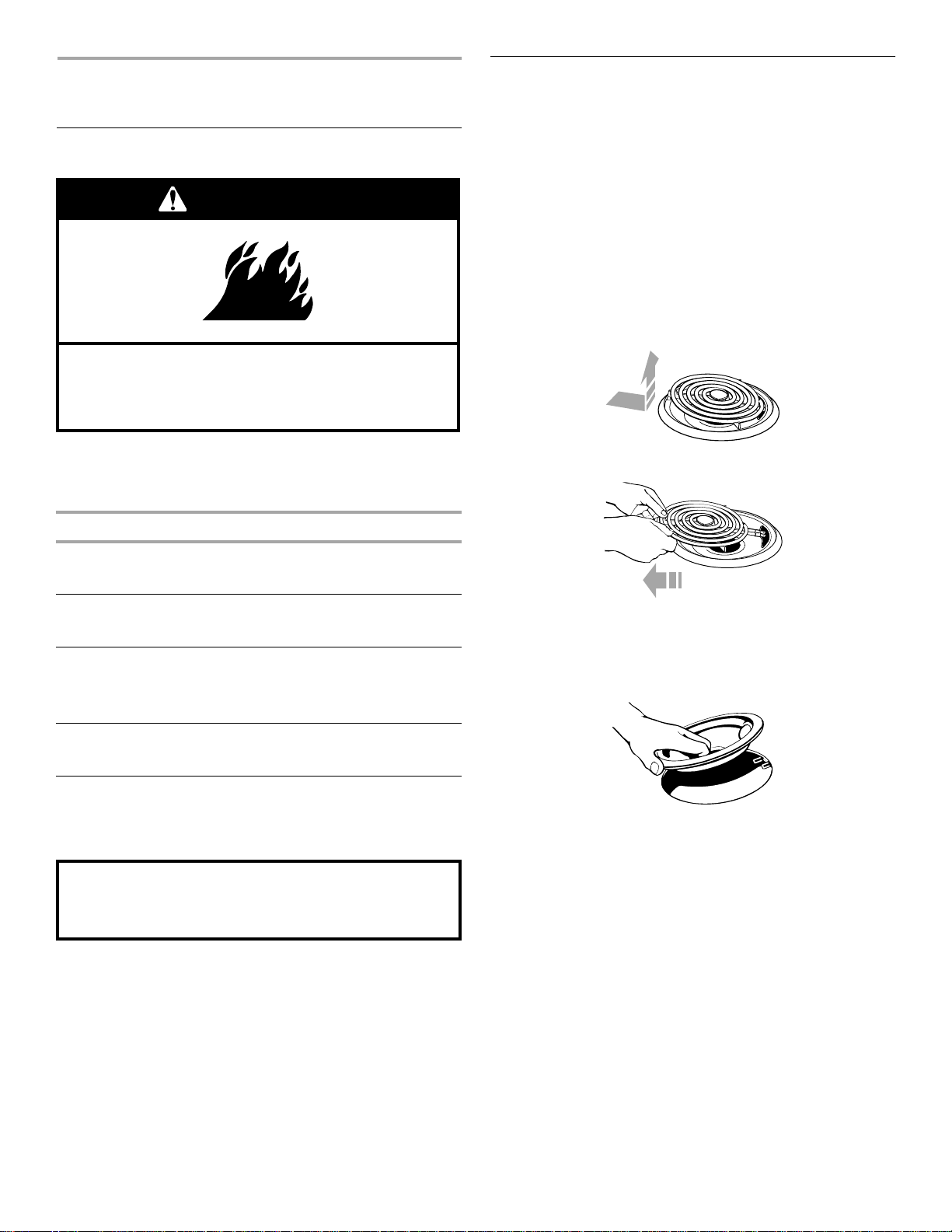

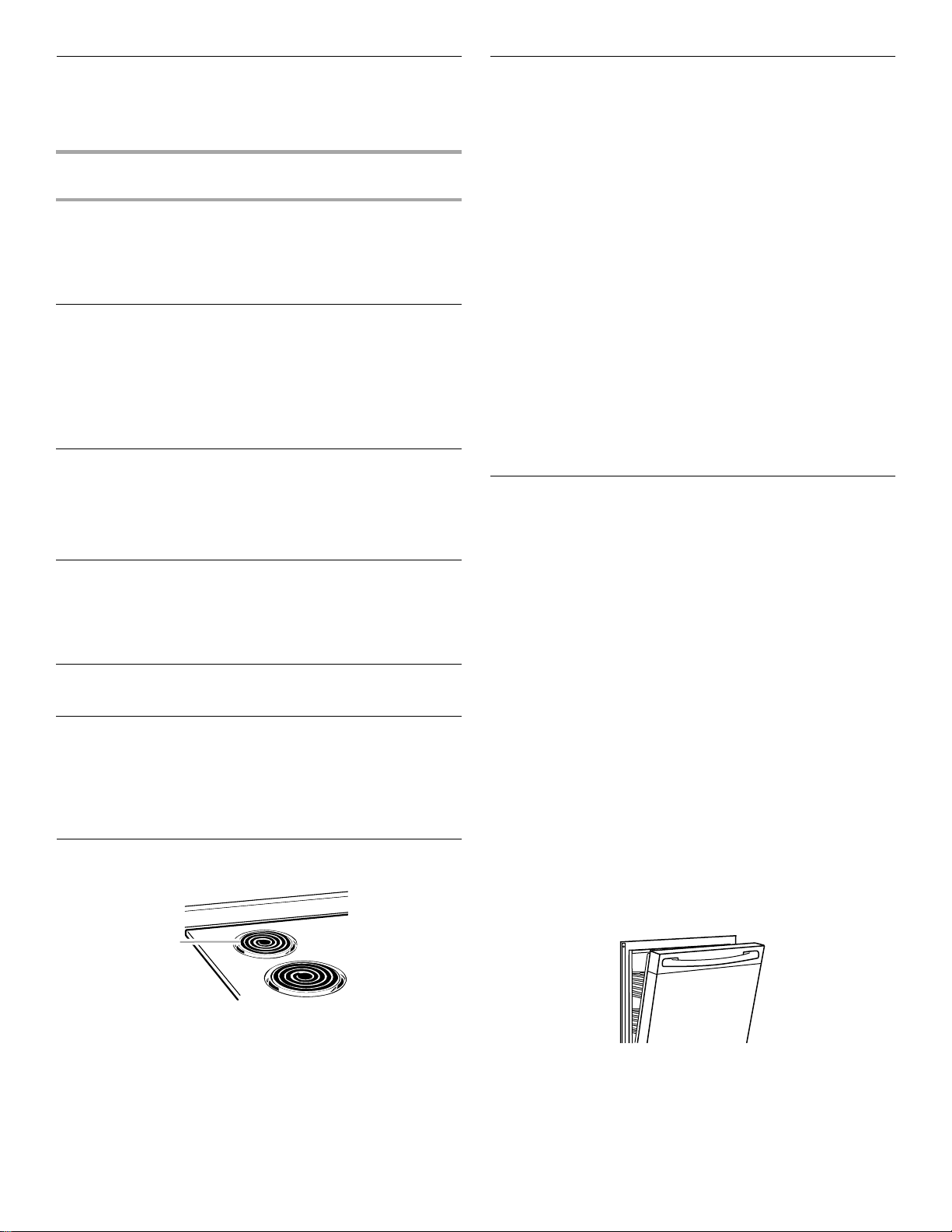

Coil Elements and
Burner Bowls
Coil elements should be level for optimal cooking results. Burner
bowls, when clean, reflect heat back to the cookware. They also
help catch spills.
Cookware should not extend more than 1 in. (2.5 cm) over the
coil element. If cookware is uneven or too large, it can produce
excess heat causing the burner bowl to change color. For more
information, see the “General Cleaning” section.
Before removing or replacing coil elements and burner bowls,
make sure they are cool and the control knobs are off.
To Remove:
Push in the edge of coil element toward the receptacle. Then
1.
lift it just enough to clear the burner bowl.
The control knobs can be set anywhere between HI and LO. Push
in and turn to setting. The surface cooking area locator shows
which element is turned on. Use the following chart as a guide
when setting heat levels.
SETTING RECOMMENDED USE
HI
6-8
[MED- HI]
5
[MED]
2-4
[MED- LO]
LO
REMEMBER:
■ Start food cooking.
■ Bring liquid to a boil.
■ Hold a rapid boil.
■ Quickly brown or sear food.
■ Maintain a slow boil.
■ Fry or sauté foods.
■ Cook soups, sauces and gravies.
■ Stew or steam food.
■ Simmer.
■ Keep food warm.
■ Melt chocolate or butter.
When range is in use or during the
Self-Cleaning cycle, the entire cooktop area may
become hot.
Pull the coil element straight away from the receptacle.
2.
Lift out the burner bowl.
3.
To Replace:
Line up openings in the burner bowl with the coil element
1.
receptacle.
Holding the coil element as level as possible, carefully push
2.
coil element terminal into the receptacle.
When the terminal is pushed into the receptacle as far as it
3.
will go, push down the edge of the coil element opposite the
receptacle.
7
Page 8
Home Canning
When canning for long periods, alternate the use of surface
cooking areas, elements or surface burners between batches.
This allows time for the surrounding areas to cool.
■ Center the canner on the grate or largest surface cooking
area or element. Canners should not extend more than 1 in.
(2.5 cm) outside the cooking area.
■ Do not place canner on two surface cooking areas, elements
or surface burners at the same time.
■ On ceramic glass models, only use flat-bottomed canners.
■ On coil element models, the installation of a Canning Unit Kit
is recommended. If not installed, the life of the coil element
will be shortened. See “Assistance or Service” for ordering
instructions.
■ For more information, contact your local U.S. Government
Agricultural Department Extension Office. Companies who
manufacture home canning products can also offer
assistance.
Cookware
IMPORTANT: Never leave empty cookware on a hot surface
cooking area, element or surface burner.
Ideal cookware should have a flat bottom, straight sides, a wellfitting lid and the material should be of medium-to-heavy
thickness.
Cookware material is a factor in how quickly and evenly heat is
transferred, which affects cooking results. A non-stick finish has
the same characteristics as its base material. For example,
aluminum cookware with a non-stick finish will take on the
properties of aluminum.
Use the following chart as a guide for cookware material
characteristics.
COOKWARE CHARACTERISTICS
*Aluminum
■ Heats quickly and evenly.
■ Suitable for all types of cooking.
■ Medium or heavy thickness is best for
most cooking tasks.
Cast iron
Ceramic or
Ceramic glass
*Copper
Earthenware
Porcelain
enamel-onsteel or cast
iron
Stainless steel
■ Heats slowly and evenly.
■ Good for browning and frying.
■ Maintains heat for slow cooking.
■ Rough surfaces may scratch cooktop.
■ Follow manufacturer’s instructions.
■ Rough surfaces may scratch cooktop.
■ Heats slowly, but unevenly.
■ Ideal results on low to medium heat
settings.
■ Heats very quickly and evenly.
■ Follow manufacturer’s instructions.
■ Use on low heat settings.
■ See stainless steel or cast iron.
■ Heats quickly, but unevenly.
■ A core or base of aluminum or copper
on stainless steel provides even
heating.
*Aluminum and copper may be used as a core or base in
cookware. When used as a base it can leave permanent marks
on the cooktop or grates.
8
Page 9
OVEN USE

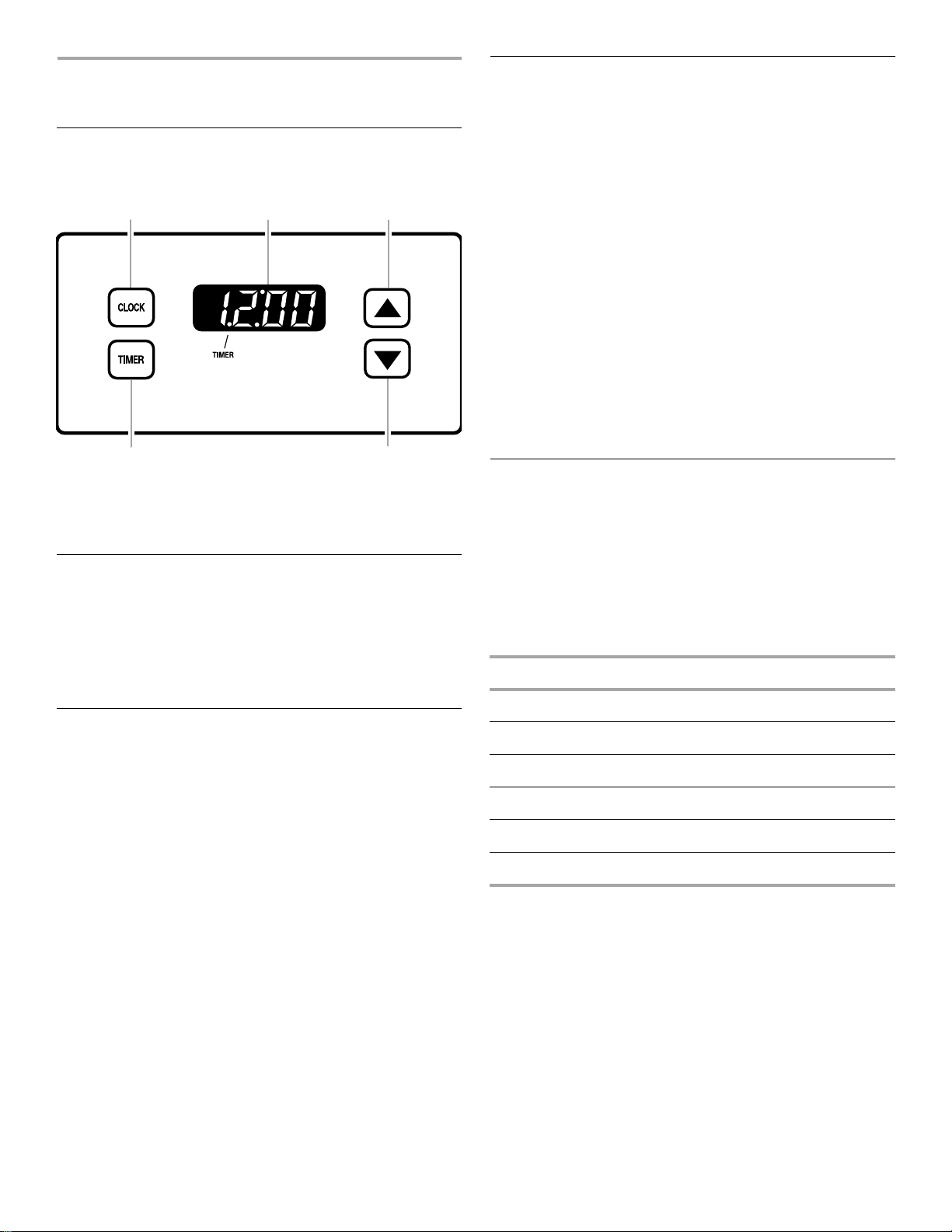

Electronic Clock/Timer
(on some models)
1
5
1.
2.
Clock
Display
3.
4.
Increase
Decrease
5.
Display
When power is first supplied to the appliance, everything on the
display will light up for 5 seconds. Then, the time of day and “PF”
will appear on the display.
Any other time “PF” appears, a power failure occurred. Reset the
clock. See “Clock” section.
When the oven is not in use, the display will show the time of day.
32
4
Timer
Timer
The Timer can be set in minutes and seconds or hours and
minutes and counts down the set time. The Timer does not start
or stop the oven.
To S et:
Press TIMER.
1.
The colon will flash during Timer programming.
To display the time of day while the Timer is counting down,
press CLOCK. Time of day will be displayed 5 seconds
before returning to the Timer countdown.
Press the “up” or “down” arrow pads to set length of time.
2.
Press TIMER.
3.
The Timer will begin counting down 5 seconds after the time
is set.
When there is one minute of time remaining, a single tone will
sound and the display will begin counting down in seconds.
When the Timer reaches zero, the display will show “End”
and four 1-second tones will sound.
To Cancel:
Press TIMER twice in the timer mode.
Oven Temperature Control
IMPORTANT:
temperature because opening the oven door and element or
burner cycling may give incorrect readings.
The oven provides accurate temperatures; however, it may cook
faster or slower than your previous oven, so the temperature
calibration can be adjusted. It can be changed in Fahrenheit only.
A minus sign means the oven will be cooler by the displayed
amount. No sign means the oven will be warmer by the displayed
amount. Use the following chart as a guide.
ADJUSTMENT °F COOKS FOOD
10°F ...a little more
Do not use a thermometer to measure oven
Clock
This is a 12 hour clock and does not show a.m. or p.m.
To S et:
Before setting, make sure the oven and Timer are off.
Press CLOCK.
1.
The colon will flash during clock programming.
Press the “up” or “down” arrow pads to set the time of day.
2.
The time can be changed in either small or 10 minute
increments by pressing a pad briefly or by pressing and
holding a pad.
Press CLOCK. The colon will stop flashing when the clock is
3.
active.
20°F ...moderately more
30°F ...much more
-10°F ...a little less
-20°F ...moderately less
-30°F ...much less
To Adjust Oven Temperature Calibration (on models with
electronic oven control):
Press and hold CLOCK until the oven display shows the
1.
current calibration, for example, “00”, if not yet adjusted or
about 5 seconds.
Press the “up” or “down” arrow pads to increase or to
2.
decrease the temperature in 5°F amounts. The adjustment
can be set between 35°F and -35°F.
Press CLOCK to enter the new temperature.
3.
9
Page 10
To Adjust Oven Temperature Calibration (on models with
manual oven control):
Make sure the oven temperature control knob is in the Off
1.
position. Pull oven temperature control knob straight off and
turn it over.
Loosen the locking screws inside the oven temperature
2.
control knob.
2
1
Aluminum Foil
IMPORTANT:
liners or cookware because permanent damage will occur to the
oven bottom finish.
■ Do not cover entire rack with foil because air must be able to
move freely for best cooking results.
■ To catch spills, place foil on rack below dish. Make sure foil is
at least 1 in. (2.5 cm) larger than the dish and that it is turned
up at the edges.
Do not line the oven bottom with any type of foil,

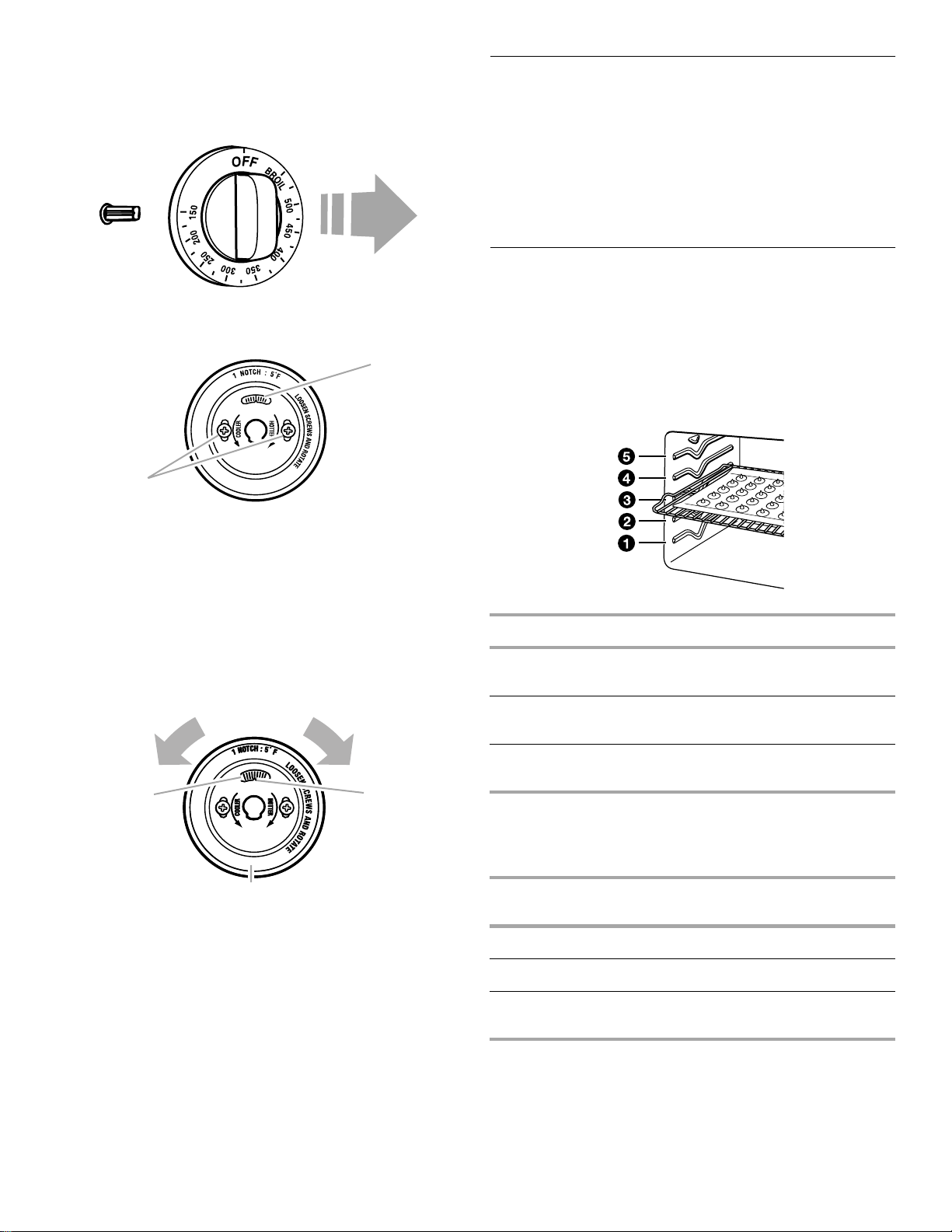

Positioning Racks and Bakeware
IMPORTANT:
door or bottom.
RACKS
Position racks before turning the oven on. Do not move racks
with bakeware on them. Make sure racks are level. To move a
rack, pull it out to the stop position, raise the front edge, then lift
out. Use the following illustration and chart as a guide.
Never place food or bakeware directly on the oven
1. Locking Screws
2. Notches
Adjust temperature.
3.
To lower the temperature, hold the knob handle firmly and
turn skirt counterclockwise to move the tooth a notch to the
left.
To raise the temperature, hold the knob handle firmly and turn
the skirt clockwise to move the tooth a notch to the right.
Each notch equals about 5°F.
1
3
1. Notches
2. Tooth
3. Skirt
Tighten the locking screws and replace knob.
4.
2
FOOD RACK POSITION
Frozen pies, large roasts, turkeys,
angel food cakes
Bundt cakes, most quick breads,
yeast breads, casseroles, meats
Cookies, biscuits, muffins, cakes,
non-frozen pies
1 or 2
2
2 or 3
BAKEWARE
To cook food evenly, hot air must be able to circulate. Allow 2 in.
(5 cm) of space around bakeware and oven walls. Use the
following chart as a guide.
NUMBER OF
PA N ( S )
1 Center of rack.
2 Side by side or slightly staggered.
POSITION ON RACK
10
3 or 4 Opposite corners on each rack. Make sure
bakeware is not directly over another.
Page 11
Bakeware
The bakeware material affects cooking results. Follow
manufacturer’s recommendations and use the bakeware size
recommended in the recipe. Use the following chart as a guide.
BAKEWARE/
RECOMMENDATIONS
RESULTS
Light colored
aluminum
■ Light golden
■ Use temperature and time
recommended in recipe.
crusts
■ Even browning
Dark aluminum
and other
bakeware with
dark, dull and/or
non-stick finish
■ Brown, crisp
crusts
Insulated cookie
sheets or baking
pans
■ Little or no
■ May reduce baking temperatures
25°F.
■ Use suggested baking time.
■ For pies, breads and casseroles, use
temperature recommended in
recipe.
■ Place rack in center of oven.
■ Place in the bottom third of oven.
■ May need to increase baking time.
bottom
browning
Stainless steel
■ Light, golden
■ May need to increase baking time.
crusts
■ Uneven
browning
Stoneware
■ Crisp crusts
Ovenproof
glassware,
■ Follow manufacturer’s instructions.
■ May reduce baking temperatures
25°F.
ceramic glass or
ceramic
■ Brown, crisp
crusts
Oven Vent
Baking and Roasting
Before baking and roasting, position the racks according to the
“Positioning Racks and Bakeware” section. When roasting, it is
not necessary to wait for the oven to preheat before putting food
in, unless recommended in the recipe.
To Bake or Roast:
1. Push in and turn the oven control knob to the desired
temperature setting. The OVEN ON and OVEN HEATING
lights will turn on and the set temperature will appear in the
display for 5 seconds.
On some models, set the oven selector to BAKE and turn the
oven temperature control knob to the desired temperature
setting. The OVEN ON indicator light will turn on and will turn
off once the oven is preheated.
2. Place food in oven.
The bake and roasting elements will turn on and off to keep
the oven temperature at the setting. The OVEN ON indicator
light(s) will turn on and off with the elements.
3. Push in and turn oven control knob to OFF when finished.
On some models, turn both the oven selector and oven
temperature control knob to OFF. The OVEN ON indicator
light will turn off.
Broiling
Broiling uses direct radiant heat to cook food. Changing the
temperature when broiling allows more precise control. The lower
the temperature, the slower the cooking. Thicker cuts and
unevenly shaped pieces of meat, fish and poultry may cook
better at lower broiling temperatures.
■ Use only the broiler pan and grid provided with the range. It is
designed to drain juices and help prevent spatter and smoke.
■ For proper draining, do not cover the grid with foil. The
bottom of the pan may be lined with aluminum foil for easier
cleaning.
■ Trim excess fat to reduce spattering. Slit the remaining fat on
the edges to prevent curling.
■ Pull out oven rack to stop position before turning or removing
food. Use tongs to turn food to avoid the loss of juices. Very
thin cuts of fish, poultry or meat may not need to be turned.
■ After broiling, remove the pan from the oven when removing
the food. Drippings will bake on the pan if left in the heated
oven, making cleaning more difficult.
Before broiling, position rack according to Broiling Chart. It is not
necessary to preheat the oven before putting food in unless
recommended in the recipe. Position food on grid in the broiler
pan, then place it in the center of the oven rack. Close the door to
the broil stop position to ensure proper broiling temperature.
1
1. Oven Vent
The oven vent releases hot air and moisture from the oven, and
should not be blocked or covered. Doing so will cause poor air
circulation, affecting cooking and cleaning results. Never set
plastics, paper or other items that could melt or burn near the
oven vent.
The element can be used when the oven is in use as long as the
cookware does not extend more than 1 in. (2.5 cm) over the
element.
11
Page 12
To Broil:
Push in and turn oven control knob to BROIL.
1.
On some models, set the oven selector and oven temperature
control knob to BROIL. The OVEN ON indicator light will turn
on.
After broiling, turn the oven control knob to OFF.
2.
On some models, turn both the oven selector and oven
temperature control knob to OFF. The OVEN ON indicator
light will turn off.
To Broil at a Lower Temperature:
If food is cooking too fast, turn the oven temperature control
knob counterclockwise until the OVEN ON indicator light goes
off.
To broil food slower from the start of cook time, set the oven
temperature control knob between 170°F and 325°F (77°C and
163°C). These temperature settings let the broil elements cycle
and slow cooking results.
Broiling Chart
For best results, place food 3 in. (7 cm) or more from the broil
element. Times are guidelines only and may need to be adjusted
for individual foods and tastes. Recommended rack positions are
numbered from the bottom (1) to the top (5). For diagram, see the
“Positioning Racks and Bakeware” section.
FOOD
Steak
1 in. (2.5 cm) thick
medium rare
medium
well done
*Ground meat patties
³|₄ in. (2 cm) thick
well done 4 13-14 7-8
Pork chops
1 in. (2.5 cm) thick 4 20-22 10-11
Ham slice, precooked
¹|₂ in. (1.25 cm) thick 4 8-10 4-5
Frankfurters
Lamb chops
1 in. (2.5 cm) thick 4 14-17 8-9
Chicken
bone-in pieces
boneless breasts
Fish
¹|₄- ¹|₂ in.
Fillets
(.6-1.25 cm) thick
Steaks
(2-2.5 cm) thick
* Place up to 9 patties, equally spaced, on broiler grid.
³|₄- 1 in.
RACK
POSITION
4
4
4
45-73-4
3
4
4
4
COOK
TIME
minutes
Side 1 Side 2
14-15
15-16
18-19
17-20
11-16
8-10
16-18
7-8
8-9
9-10
17-20
11-16
4-5
8-9
RANGE CARE
Self-Cleaning Cycle
(on some models)
WARNING
Burn Hazard
Do not touch the oven during the
Self-Cleaning cycle.
Keep children away from oven during
Self-Cleaning cycle.
Do not use commercial oven cleaners in
your oven.
Failure to follow these instructions can result in
burns, or illness from inhaling dangerous fumes.
IMPORTANT:
the fumes given off during the Self-Cleaning cycle. Exposure to
the fumes may result in death to certain birds. Always move birds
to another closed and well ventilated room.
Self-clean the oven before it is heavily soiled. Heavy soil results in
longer cleaning and more smoke.
Keep the kitchen well-ventilated during the Self-Cleaning cycle to
help get rid of heat, odors, and smoke.
Do not block the oven vent(s) during the Self-Cleaning cycle. Air
must be able to move freely. See “Oven Vent(s)” section.
Prepare Oven:
■ Remove the broiler pan, grid, cookware and bakeware and,
on some models, the temperature probe from the oven.
■ Remove any foil from the oven because it may burn or melt,
damaging the oven.
■ Remove oven racks to keep them shiny and easy to slide. If
leaving in, place them on rack positions 2, 3 or 4. For
diagram, see “Positioning Racks and Bakeware”. Racks will
discolor and become harder to slide. See “General Cleaning”
for more information.
■ Hand clean inside door edge and the 1½ in. (3.8 cm) area
around the inside oven cavity frame, being careful not to
move or bend the gasket. This area does not get hot enough
during self-cleaning to remove soil. Do not let water, cleaner,
etc. enter slots on door frame. Use a damp cloth to clean this
area.
■ Wipe out any loose soil to reduce smoke and avoid damage.
At high temperatures, foods react with porcelain. Staining,
etching, pitting or faint white spots can result. This will not
affect cooking performance.
The health of some birds is extremely sensitive to
12
Prepare Cooktop and Storage Drawer:
■ Remove plastic items from the cooktop because they may
melt.
■ Remove all items from the storage drawer.
Page 13
How the Cycle Works
IMPORTANT:
oven may result in discoloring, loss of gloss, hairline cracks and
popping sounds.
The Self-Cleaning cycle uses very high temperatures, burning soil
to a powdery ash.
The oven is preset for a 3 hour 30 minute clean cycle, but the
time can be changed. Suggested clean times are 2 hours 30
minutes for light soil and between 3 hours 30 minutes to 4 hours
30 minutes for average to heavy soil.
Once the oven has completely cooled, remove ash with a damp
cloth.
The heating and cooling of porcelain on steel in the
To Self-Clean:
Before self-cleaning, make sure the door is closed completely
or it will not lock and the cycle will not begin. DOOR
LOCKED/CLEANING light will flash until the door is closed.
Push in and turn the oven control knob to CLEAN.
1.
The door will lock within 6 seconds, and OVEN ON and
HEATING indicator lights will come on.
If the door does not lock, it will try to lock for 1 minute. If the
door fails to lock, the self-cleaning cycle will be canceled and
an error code will be displayed.
Press the “up” or “down” arrow pads to select a clean time
2.
between 2 hours 30 minutes and 4 hours 30 minutes.
During the last 30 minutes of the self-cleaning cycle the oven
will start to cool down. The HEATING light will turn off and
COOL appears in the display.
Once the oven goes below the locked temperature, the OVEN
ON light flashes and DOOR LOCKED/CLEANING light turns
off when door unlocks.
Turn the oven control knob to OFF when finished cleaning.
3.
The OVEN ON light turns off and the time of day appears in
the display.
General Cleaning
IMPORTANT:
the oven and cooktop are cool. Always follow label instructions
on cleaning products.
Soap, water and a soft cloth or sponge are suggested first unless
otherwise noted.
EXTERIOR PORCELAIN ENAMEL SURFACES
Food spills containing acids, such as vinegar and tomato, should
be cleaned as soon as the entire appliance is cool. These spills
may affect the finish.
■ Glass cleaner, mild liquid cleaner or non-abrasive scrubbing
pad:
Gently clean around the model and serial number plate
because scrubbing may remove numbers.
COOKTOP CONTROLS
Do not use steel wool, abrasive cleansers or oven cleaner.
Do not soak.
When replacing knobs, make sure knobs are in the OFF position.
On some models, do not remove seals under knobs.
■ Soap and water or dishwasher:
Pull knobs straight away from control panel to remove.
Before cleaning, make sure all controls are off and
SURFACE UNDER COOKTOP
Do not remove the cooktop to avoid product damage.
For more information, see “Lift-up Cooktop” section.
■ Steel wool pad
OVEN DOOR EXTERIOR
■ Glass cleaner and paper towels or non-abrasive plastic
scrubbing pad:
Apply glass cleaner to soft cloth or sponge, not directly on
panel.
CONTROL PANEL
Do not use abrasive cleaners, steel-wool pads, gritty wash cloths
or some paper towels. Damage may occur.
■ Glass cleaner and soft cloth or sponge:
Apply glass cleaner to soft cloth or sponge, not directly on
panel.
OVEN CAVITY
Do not use commercial oven cleaners.
Food spills should be cleaned when oven cools. At high
temperatures, foods react with porcelain and staining, etching,
pitting or faint white spots can result.
■ Self-Cleaning cycle:
See “Self-Cleaning Cycle” first.
OVEN RACKS
■ Self-Cleaning cycle:
See “Self-Cleaning Cycle” first. Racks will discolor and
become harder to slide. After cleaning, a light coating of
vegetable oil applied to the rack guides will help them slide.
■ Steel wool pad
BROILER PAN AND GRID
Do not clean in the Self-Cleaning cycle.
■ Mildly abrasive cleanser:
Scrub with wet scouring pad.
■ Solution of ¹|₂ cup (125 mL) ammonia to 1 gallon (3.75 L)
water:
Soak for 20 minutes, then scrub with scouring or steel wool
pad.
■ Oven cleaner:
Follow product label instructions.
Porcelain enamel only, not chrome
■ Dishwasher
STORAGE DRAWER
Make sure drawer is cool and empty before cleaning.
For more information, see “Storage Drawer” section.
■ Mild detergent
13
Page 14

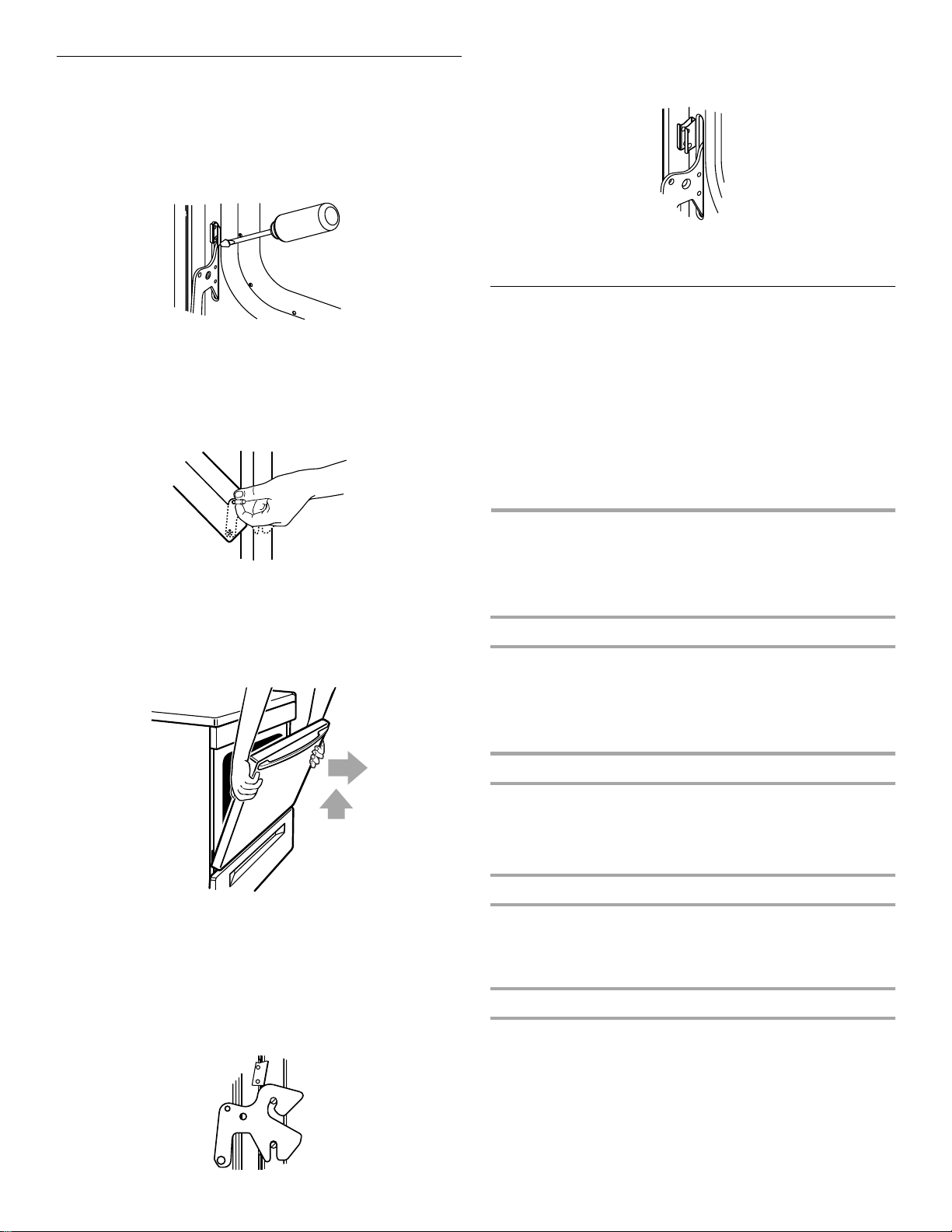

Oven Door
For normal range use, it is not suggested to remove the oven
door. However, if necessary, follow these instructions. The oven
door is heavy.
Before Removing:
Use a putty knife or screwdriver and insert it at the bottom
1.
corner of the door stop clip.
Pry door stop clip free and remove from front frame hinge
2.
slot. Take care not to scratch finish.
Repeat procedure for other door stop clip.
3.
To Remove:
Open the oven door. Insert door removal pins, included with
1.
your range, into both hinge hangers. Do not remove the pins
while the door is removed from the range.
Insert the door stop clip with the angular surface at the top of
4.
the frame hinge slot, then push in the bottom of the clip until
flanges are flush with the front frame.
Open the door completely and remove the door removal pins.
5.
Save door removal pins for future use.
Close the door.
6.
Storage Drawer
The storage drawer can be removed. Before removing, make sure
drawer is cool and empty.
To Remove:
Pull drawer straight out to the first stop.
1.
Lift up the back of the drawer and pull out.
2.
To Replace:
Fit the ends of the drawer rails into the guides in the cavity.
1.
Slide the drawer closed.
2.
Carefully close the door until it rests against the door removal
2.
pins.
Grasp the door on the sides with your fingers on the front of
3.
the door and your thumbs on the inside surface.
Pull door straight up, then toward you. Hinge hangers will
4.
slide out of front frame hinge slot. Do not remove door
removal pins until the door is replaced on the range.
To Replace:
Grasp the door on the sides with your fingers on the front of
1.
the door and your thumbs on the inside surface.
Hold oven door so that the top edge of each hinge hanger is
2.
horizontal. Insert hinge hangers into the front frame hinge
slots.
Tilt top of door toward range. Slide hinge hangers down onto
3.
front frame support pins. Make sure the hinge hangers are
fully seated and engaged on the support pins.
TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the
cost of an unnecessary service call.
Nothing will operate
■
Is the power supply cord unplugged?
Plug into a grounded outlet.
■
Has a household fuse been blown or has the circuit
breaker been tripped?
Replace the fuse or reset the circuit.
Cooktop will not operate
■
Is the control knob set correctly?
Push in knob before turning to a setting.
■
On coil element models, is the element inserted properly?
See “Coil Elements and Burner Bowls” section.
Excessive heat around cookware on cooktop
■
Is the cookware the proper size?
Use cookware about the same size as the surface cooking
area, element or surface burner. Cookware should not extend
more than 1 in. (2.5 cm) outside the cooking area.
Cooktop cooking results not what expected
■
Is the proper cookware being used?
See “Cookware” section.
■
Is the control knob set to the proper heat level?
See “Control Knobs” section.
■
Is the appliance level?
Level the appliance. See the Installation Instructions.
■
On coil element models, is the element inserted properly?
See “Coil Elements and Burner Bowls” section.
14
Page 15
Oven temperature too high or too low
■
Does the oven temperature calibration need adjustment?
See “Oven Temperature Control” section.
Oven indicator lights flash
■
Do the OVEN ON and HEATING indicator lights flash?
See “Assistance or Service” section.
■
Do the HEATING and DOOR LOCKED/CLEANING
indicator lights flash?
The door lock has failed. See “Assistance or Service”
sections.
Self-Cleaning cycle will not operate
■
Is the oven door open?
Close the oven door all the way.
■
Has the function been entered or have the controls been
properly set?
See “Self-Cleaning Cycle” section.
Oven will not operate
■
On some models, is the electronic clock/timer set
correctly?
See “Electronic Clock/Timer” section.
■
Has the oven selector been set to a BAKE or BROIL
function?
See “Baking and Roasting” or “Broiling” sections.
Oven cooking results not what expected
■
Is the appliance level?
Level the appliance. See the Installation Instructions.
■
Is the proper temperature set?
Double-check the recipe in a reliable cookbook.
■
Is the proper oven temperature calibration set?
See “Oven Temperature Control” section.
■
Was the oven preheated?
See “Baking and Roasting” section.
■
Is the proper bakeware being used?
See “Bakeware” section.
■
Are the racks positioned properly?
See “Positioning Racks and Bakeware” section.
■
Is there proper air circulation around bakeware?
See “Positioning Racks and Bakeware” section.
■
Is the batter evenly distributed in the pan?
Check to make sure batter is level in the pan.
■
Is the proper length of time being used?
Adjust cooking time.
■
Has the oven door been opened while cooking?
Oven peeking releases oven heat and can result in longer
cooking times.
■
Are baked items too brown on the bottom?
Move rack to higher position in the oven.
■
Are pie crust edges browning early?
Use aluminum foil to cover the edge of the crust.
ASSISTANCE OR SERVICE
Before calling for assistance or service, please check
“Troubleshooting.” It may save you the cost of a service call. If
you still need help, follow the instructions below.
When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that you
only use FSP
right and work right because they are made with the same
precision used to build every new ROPER
To lo c ate F SP® replacement parts in your area, call our Customer
Interaction Center telephone number or your nearest designated
service center.
Call the Customer Interaction Center toll free at:
1-800-44-ROPER (1-800-447-6737).
Our consultants provide assistance with:
■ Features and specifications on our full line of appliances.
■ Installation information.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Specialized customer assistance (Spanish speaking, hearing
impaired, limited vision, etc.).
■ Referrals to local dealers, repair parts distributors, and
service companies. Whirlpool designated service technicians
are trained to fulfill the product warranty and provide afterwarranty service, anywhere in the United States.
To locate the Whirlpool designated service company in your
area, you can also look in your telephone directory Yellow
Pages.
For further assistance
If you need further assistance, you can write to Whirlpool
Corporation with any questions or concerns at:
Roper Brand Home Appliances
Customer Interaction Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
®
replacement parts. FSP® replacement parts will fit
®
appliance.
15
Page 16
ROPER® RANGE WARRANTY
ONE-YEAR FULL WARRANTY
For one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or
furnished with the product, Whirlpool Corporation will pay for FSP
materials or workmanship. Service must be provided by a Whirlpool designated service company.
Whirlpool Corporation will not pay for:
Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace house fuses or
1.
correct house wiring or plumbing, or to replace light bulbs.
Repairs when your appliance is used in other than normal, single-family household use.
2.
Pickup and delivery. Your appliance is designed to be repaired in the home.
3.
Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God, or use of products not
4.
approved by
Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
5.
Replacement parts or repair labor cost for units operated outside the United States.
6.
Whirlpool Corporation.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not
apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Outside the 50 United States this warranty does not apply. Contact your authorized Roper dealer to determine if another
warranty applies.
If you need service, first see the “Troubleshooting” section of this book. After checking “Troubleshooting,” additional help can be found
by checking the “Assistance or Service” section or by calling the Customer Interaction Center toll free at
(1-800-447-6737)
from anywhere in the U.S.A. Outside the U.S., contact your authorized Roper dealer.
®
replacement parts and repair labor costs to correct defects in
1-800-44-ROPER
10/00
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or
installation date for in-warranty service.
Write down the following information about your appliance to
better help you obtain assistance or service if you ever need it.
You will need to know your complete model number and serial
number. You can find this information on the model and serial
number label/plate, located on your appliance as shown in the
“Parts and Features” section.
Dealer name____________________________________________________
Address ________________________________________________________
Phone number __________________________________________________
Model number __________________________________________________
Serial number __________________________________________________
Purchase date __________________________________________________
8522406
© 2000 Whirlpool Corporation. 12/00
All rights reserved. ® Registered Trademark/TM Trademark of Whirlpool, U.S.A. Printed in U.S.A.
Loading...
