Whirlpool FEP310G, FEP320G, FES330G, FEP330G User Manual

Download
Page 1
Self-Cleaning
And
Standard-Cleaning
Electric Ranges
A Note to You............ 2
Range Safety ............ 3
Range ....................... 9
Using the Self-
Cleaning Cycle........27
Caring for Your
Range ..................... 30
MODELS FEP310G FEP320G
FEP330G FES330G
PART NO. 8053404
Troubleshooting...... 36
Requesting Assistance or
Service ....................38
Index ....................... 39
Warranty ................. 40
TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE READ AND KEEP THIS BOOK FOR FUTURE REFERENCE.
Page 2

A NOTE TO YOU

Thank you for buying a ROPER® appliance.
Your ROPER range gives you all the functionality of name brand appliances at a value price. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable information about how to operate and maintain your appliance properly and safely. Please read it carefully.
Also, please complete and mail the Product Registration Card provided with your appliance. The card helps us notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service for your appliance, you need to know your complete model number and serial number. You can find this informa­tion on the model and serial number label/plate (see the diagram in the “Parts and Features” section).
Please also record the purchase date of your appliance and your dealer’s name, address, and telephone number.
Keep this book and the sales slip together in a safe place for future reference. It is important for you to save your sales receipt showing the date of purchase. Proof of purchase will assure you of in-warranty service.
Model Number __________________________________ Serial Number ___________________________________ Purchase Date __________________________________ Dealer Name ____________________________________ Dealer Address __________________________________ Dealer Phone ___________________________________
2
Page 3
RANGE SAFETY
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you and others. All safety messages will be preceded by the safety alert symbol and the word “DANGER” or
“WARNING.” These words mean:
You will be killed or seriously injured if you don’t
wDANGER
wWARNING
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
follow instructions.
You can be killed or seriously injured if you don’t follow instructions.
wWARNING

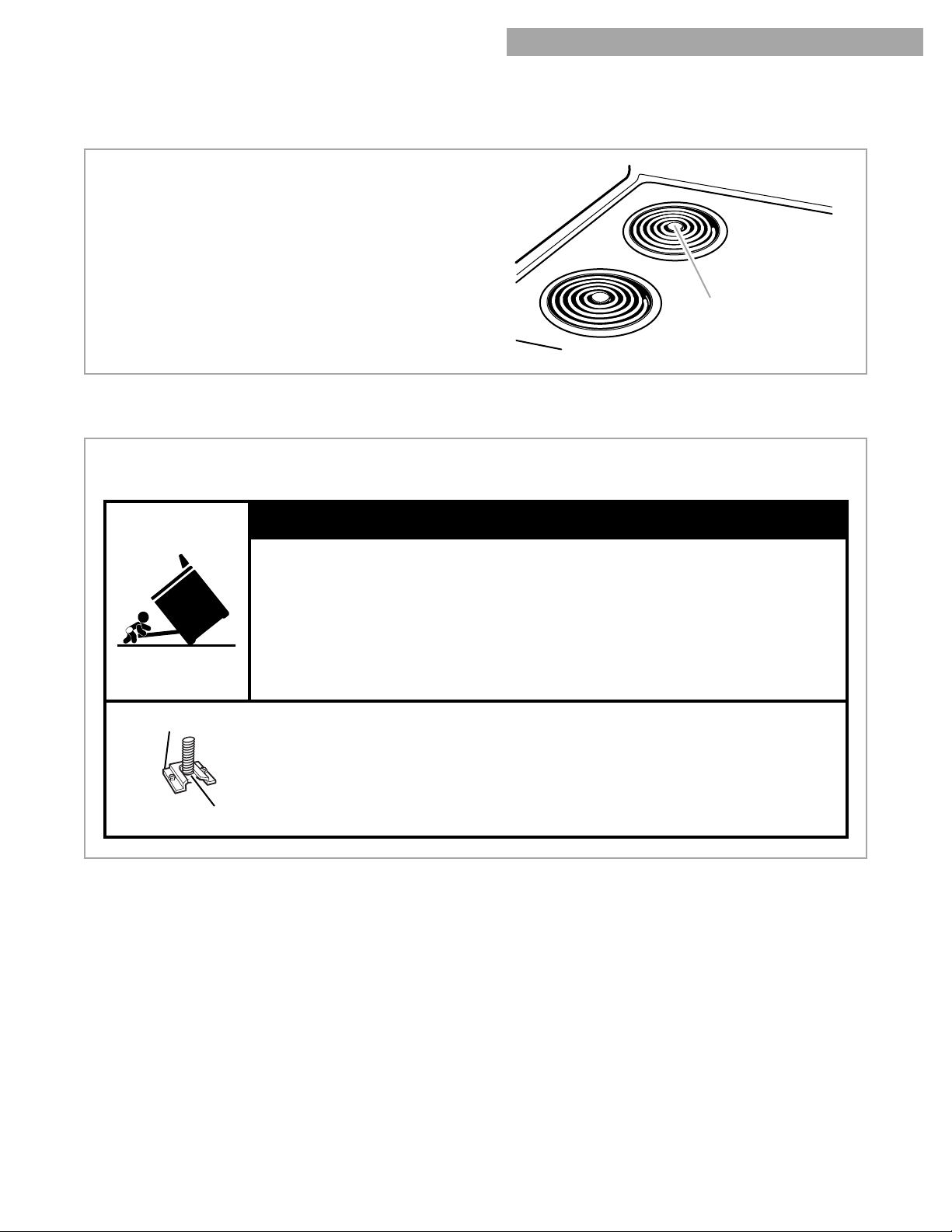

Anti-Tip Bracket
Range Foot
Tip Over Hazard A child or adult can tip the range and be killed. Connect anti-tip bracket to rear range foot. Reconnect the anti-tip bracket, if the range is moved. See the installation instructions for details. Failure to follow these instructions can result in death or serious burns
to children and adults.
Making sure the anti-tip bracket is installed:
Slide range forward.
•
Look for the anti-tip bracket securely attached to floor.
•
Slide range back so rear range foot is under anti-tip bracket.
•
continued on next page
3
Page 4
RANGE SAFETY
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using the range, follow basic precautions, including the following:
WARNING – TO REDUCE THE RISK OF
•
TIPPING OF THE RANGE, THE RANGE MUST BE SECURED BY PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET SECURELY ATTACHED TO FLOOR, AND SLIDE RANGE BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP BRACKET.
CAUTION – Do not store items of interest to
•
children in cabinets above a range or on the backguard of a range – children climbing on the range to reach items could be seriously injured.
Proper Installation – Be sure the range is properly
•
installed and grounded by a qualified technician. Never Use the Range for Warming or Heating
•
the Room. Do Not Leave Children Alone – Children should
•
not be left alone or unattended in area where the range is in use. They should never be allowed to sit or stand on any part of the range.
Wear Proper Apparel – Loose-fitting or hanging
•
garments should never be worn while using the range.
User Servicing – Do not repair or replace any part
•
of the range unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.
Storage in or on the Range – Flammable
•
materials should not be stored in an oven or near surface units.
Do Not Use Water on Grease Fires – Smother
•
fire or flame or use dry chemical or foam-type extinguisher.
Use Only Dry Potholders – Moist or damp
•
potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.
DO NOT TOUCH SURFACE UNITS OR AREAS
•
NEAR UNITS – Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among those areas are the cook-top and surfaces facing the cook-top.
Use Proper Pan Size – The range is equipped
•
with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency.
Never Leave Surface Units Unattended at High
•
Heat Settings – Boilover causes smoking and greasy spillovers that may ignite.
Make Sure Reflector Pans or Drip Bowls Are in
•
Place – Absence of these pans or bowls during cooking may subject wiring or components underneath to damage.
Protective Liners – Do not use aluminum foil to
•
line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire.
Glazed Cooking Utensils – Only certain types of
•
glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for range-top service without breaking due to the sudden change in temperature.
Utensil Handles Should Be Turned Inward and
•
Not Extend Over Adjacent Surface Units – To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.
Do Not Soak Removable Heating Elements –
•
Heating elements should never be immersed in water.
– SAVE THESE INSTRUCTIONS –
4
Page 5
IMPORTANT SAFETY INSTRUCTIONS
RANGE SAFETY
Do Not Cook on Broken Cook-Top – If cook-top
•
should break, cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock. Contact a qualified techni­cian immediately.
Clean Cook-Top With Caution – If a wet sponge
•
or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.
Use Care When Opening Door – Let hot air or
•
steam escape before removing or replacing food. Do Not Heat Unopened Food Containers –
•
Build-up of pressure may cause container to burst and result in injury.
Keep Oven Vent Ducts Unobstructed.
•

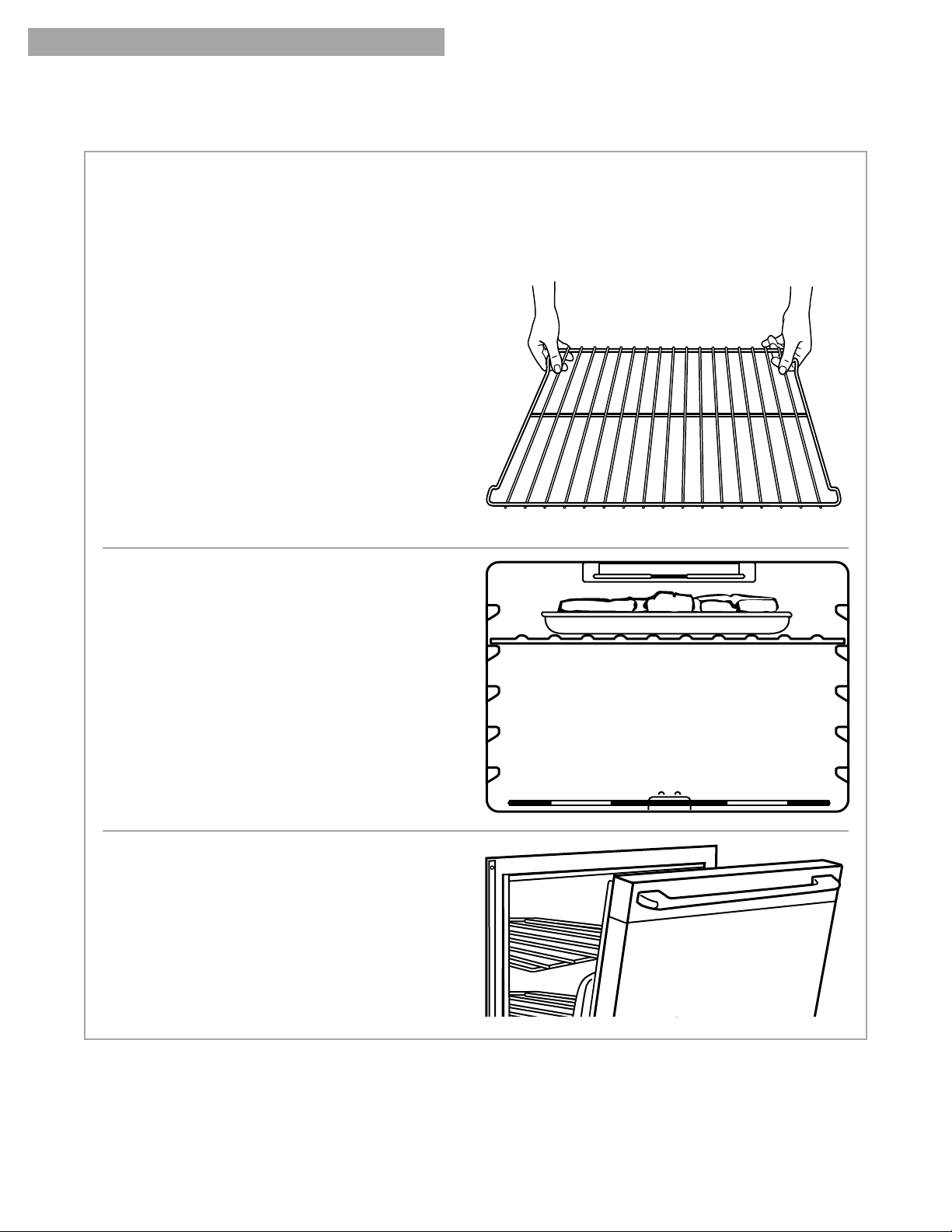

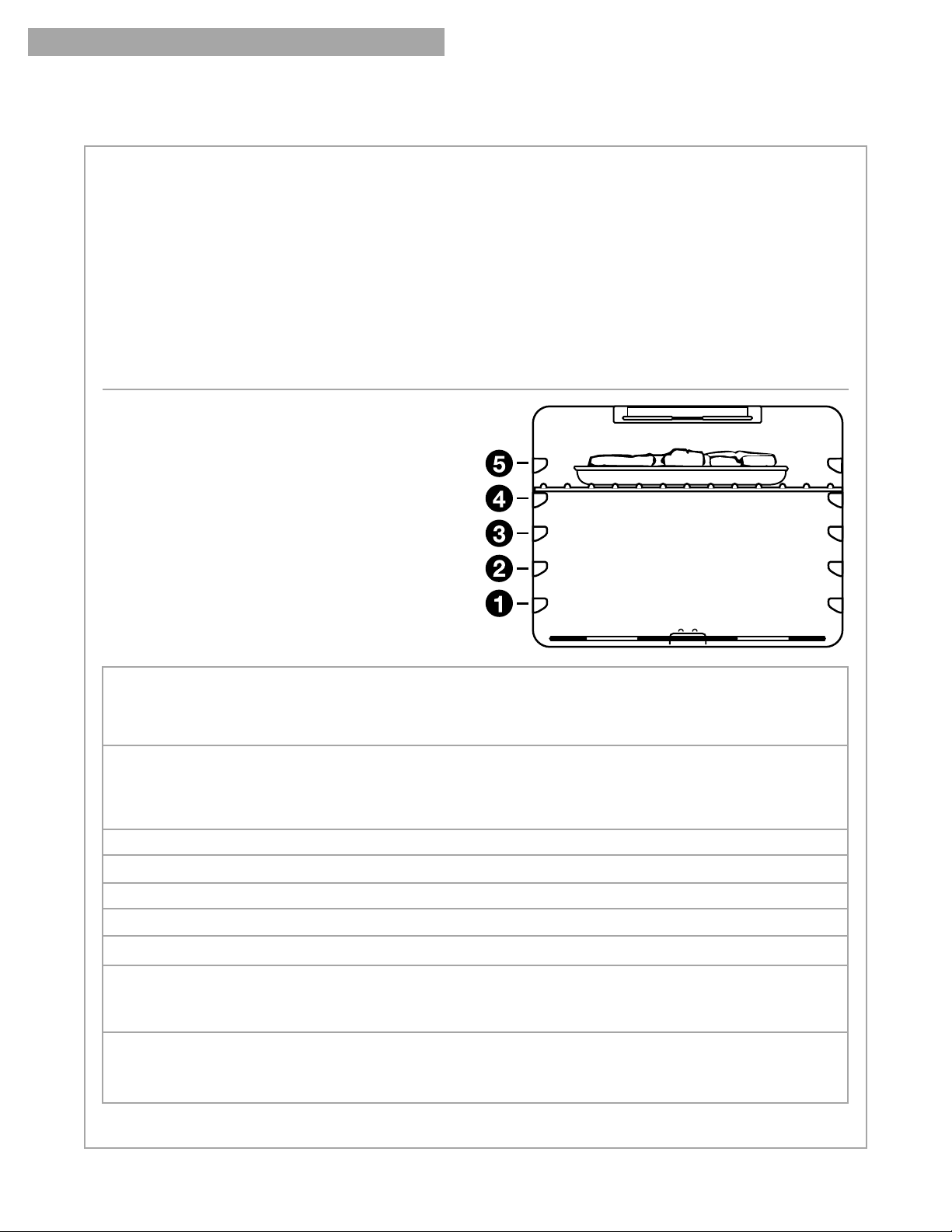

Placement of Oven Racks – Always place oven
•
racks in desired location while oven is cool. If rack must be moved while oven is hot, do not let potholder contact hot heating element in oven.
DO NOT TOUCH HEATING ELEMENTS OR
•
INTERIOR SURFACES OF OVEN – Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns – among these surfaces are oven vent openings and surfaces near these openings, oven doors, and windows of oven doors.
For self-cleaning ranges –
Do Not Clean Door Gasket – The door gasket is
•
essential for a good seal. Care should be taken not to rub, damage, or move the gasket.
Do Not Use Oven Cleaners – No commercial oven
•
cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.
Clean Only Parts Listed in Manual.
•
Before Self-Cleaning the Oven – Remove broiler
•
pan and other utensils.
For units with ventilating hood –
Clean Ventilating Hoods Frequently – Grease
•
should not be allowed to accumulate on hood or filter.
When flaming foods under the hood, turn the fan
•
off. The fan, if operating, may spread the flame.
– SAVE THESE INSTRUCTIONS –
5
Page 6

PARTS AND FEATURES

(Model FES330G shown)
Oven vent
(p. 24)

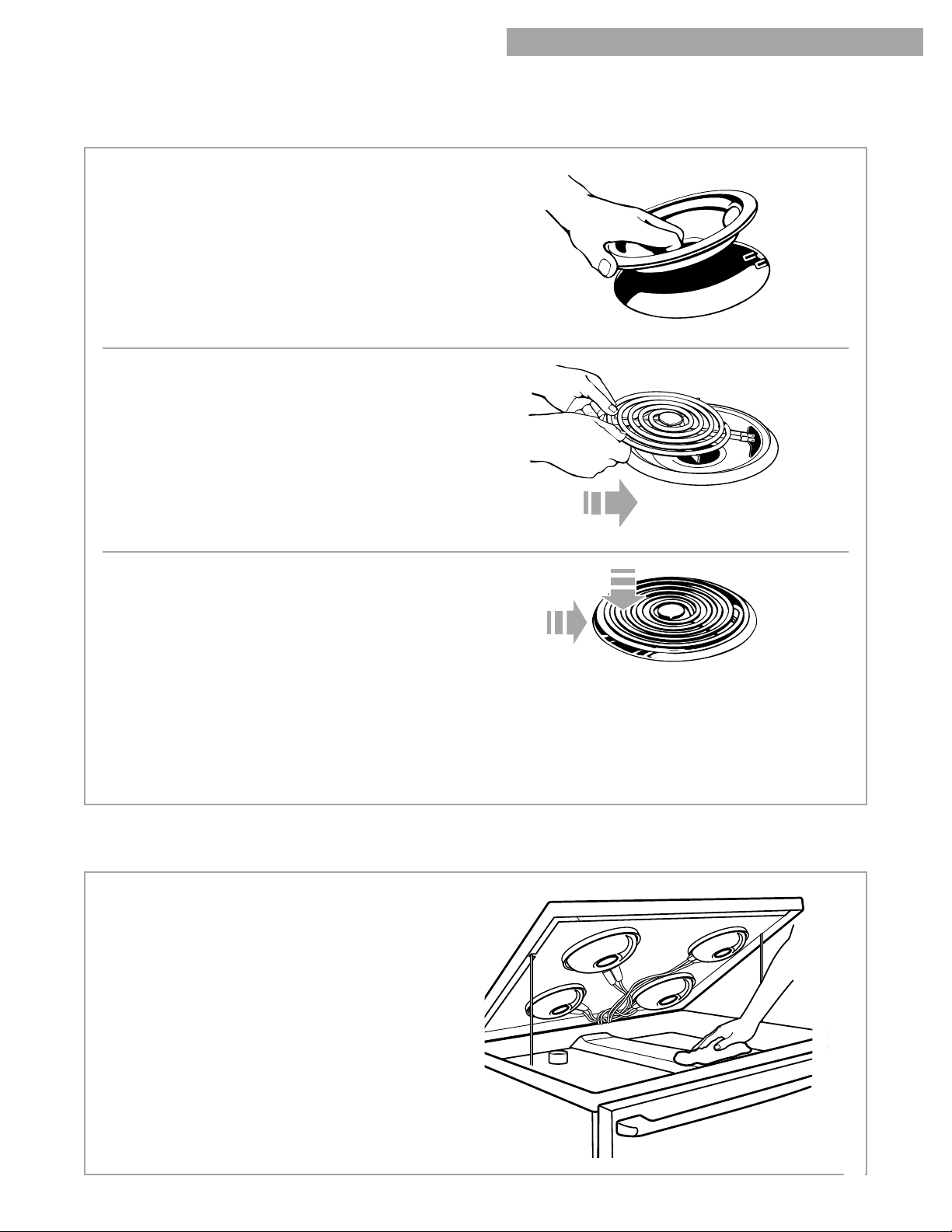

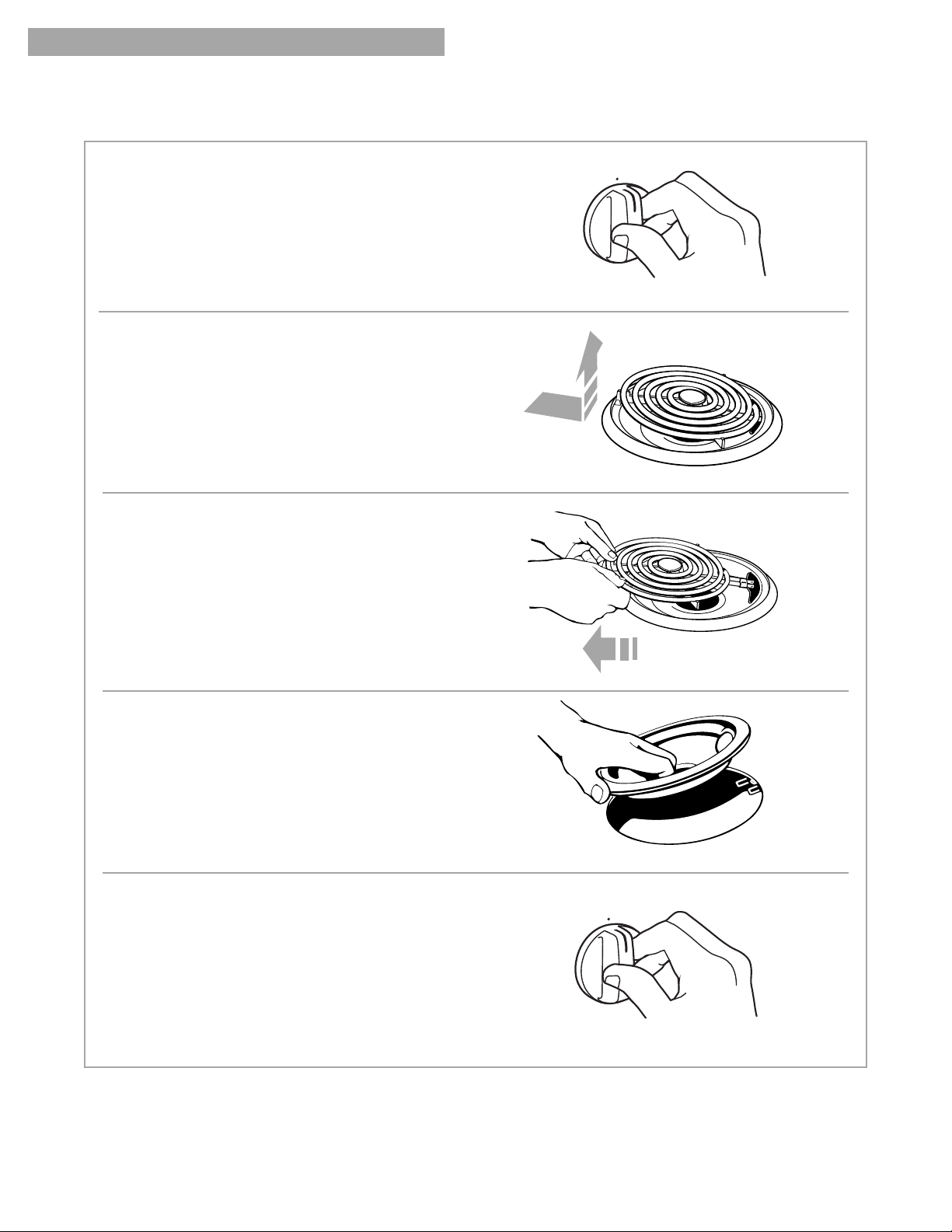

Plug-in coil element with one-piece reflector bowl
(pp. 9, 10, 29, 31, 32)
OVENON
(TURN OFF OVEN WHEN FLASHING)
OVEN
HEATING
DOOR
LOCKED/
TIMER
CLEANING
(CLOSE DOOR
WHEN FLASHING)
Control panel
(pp. 6, 29)

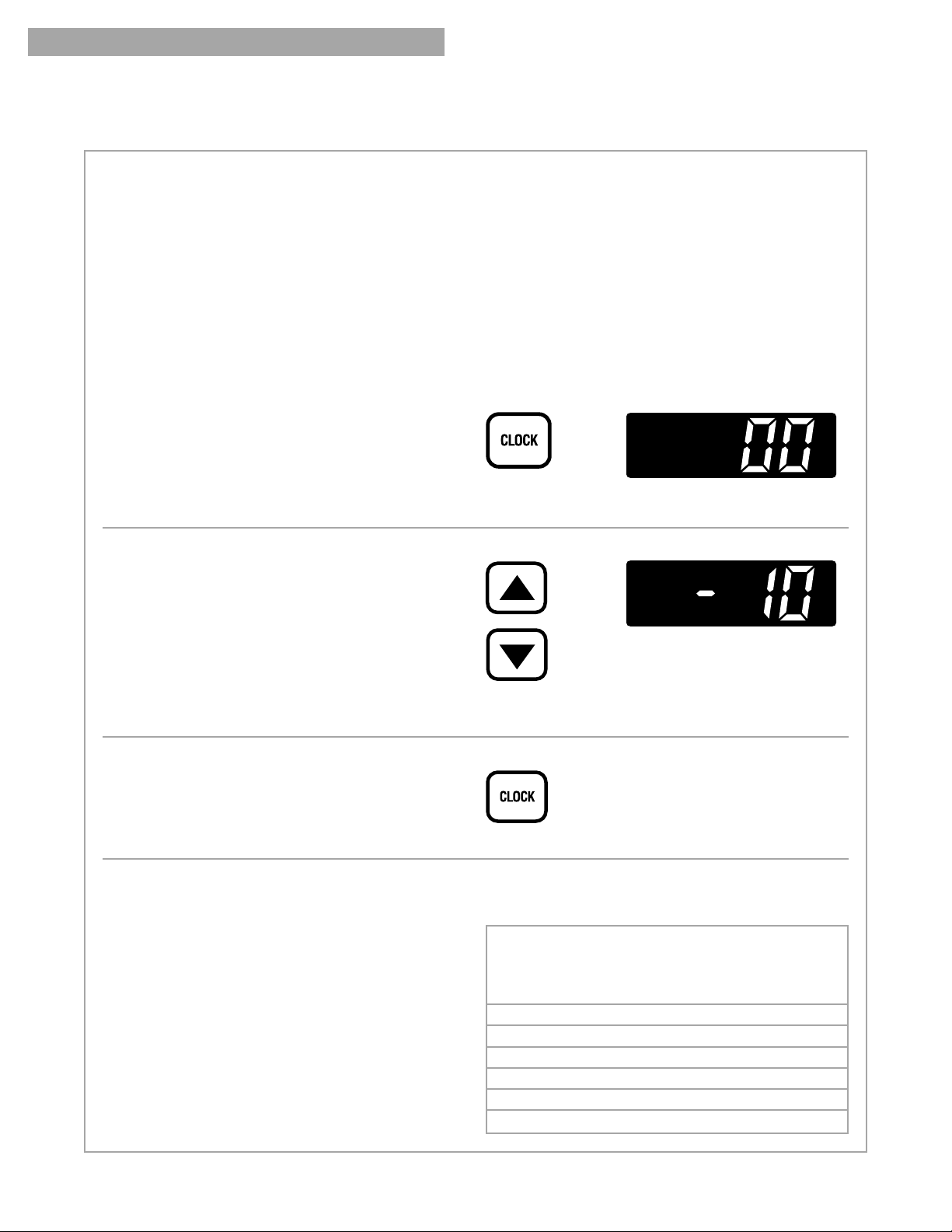

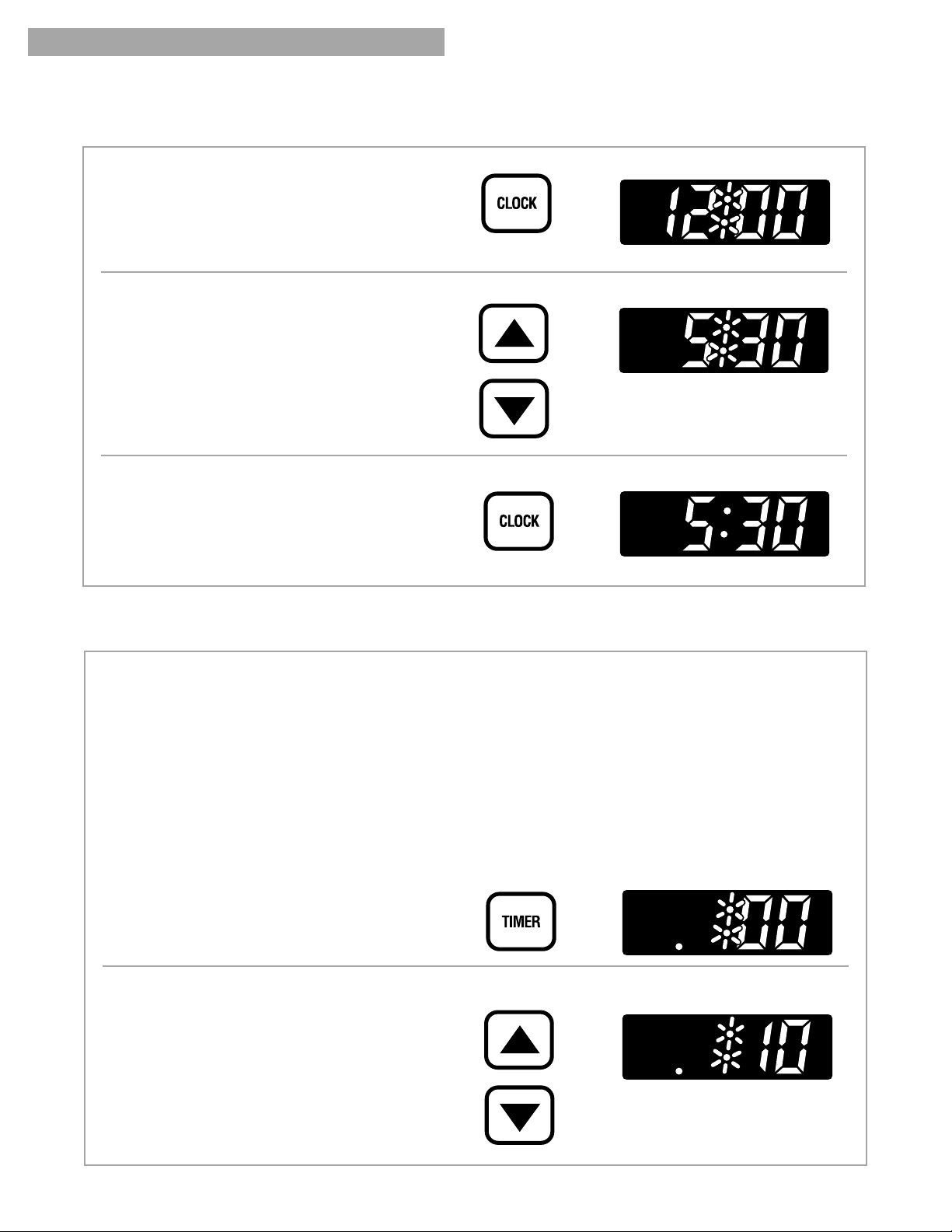

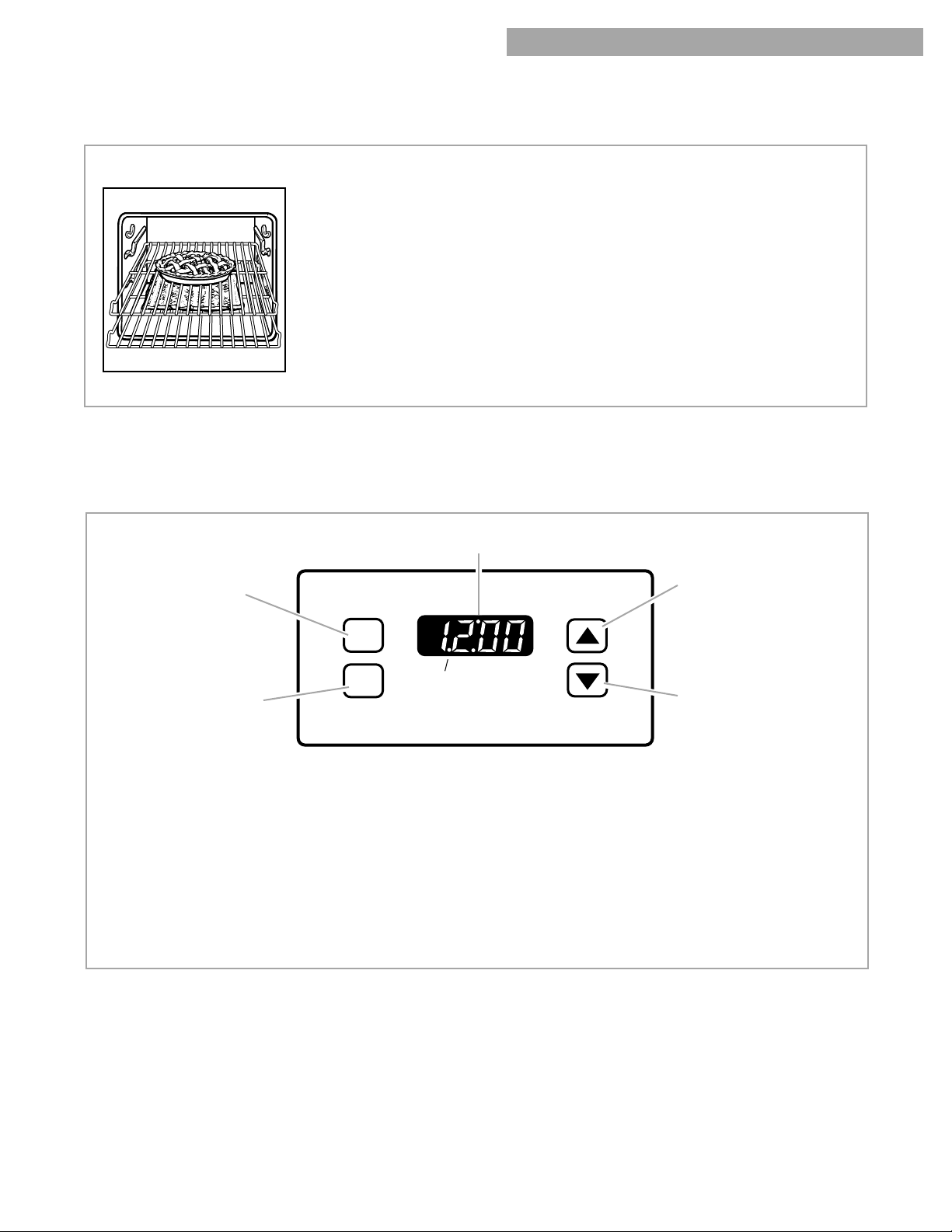

Electronic
clock/timer
(pp. 13, 14, 15)
Door switch
Gasket
(p. 30)
Anti-tip bracket
(p. 24)

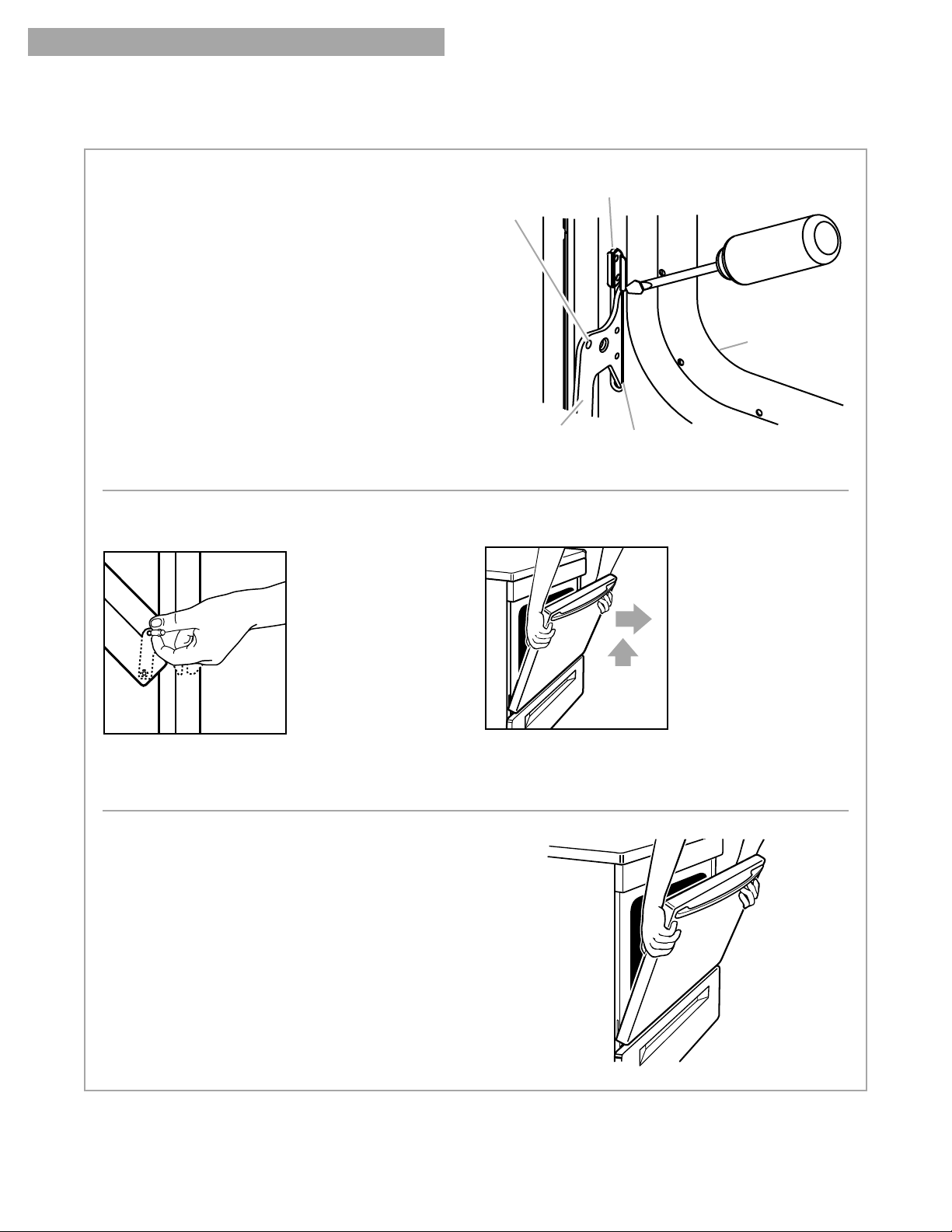

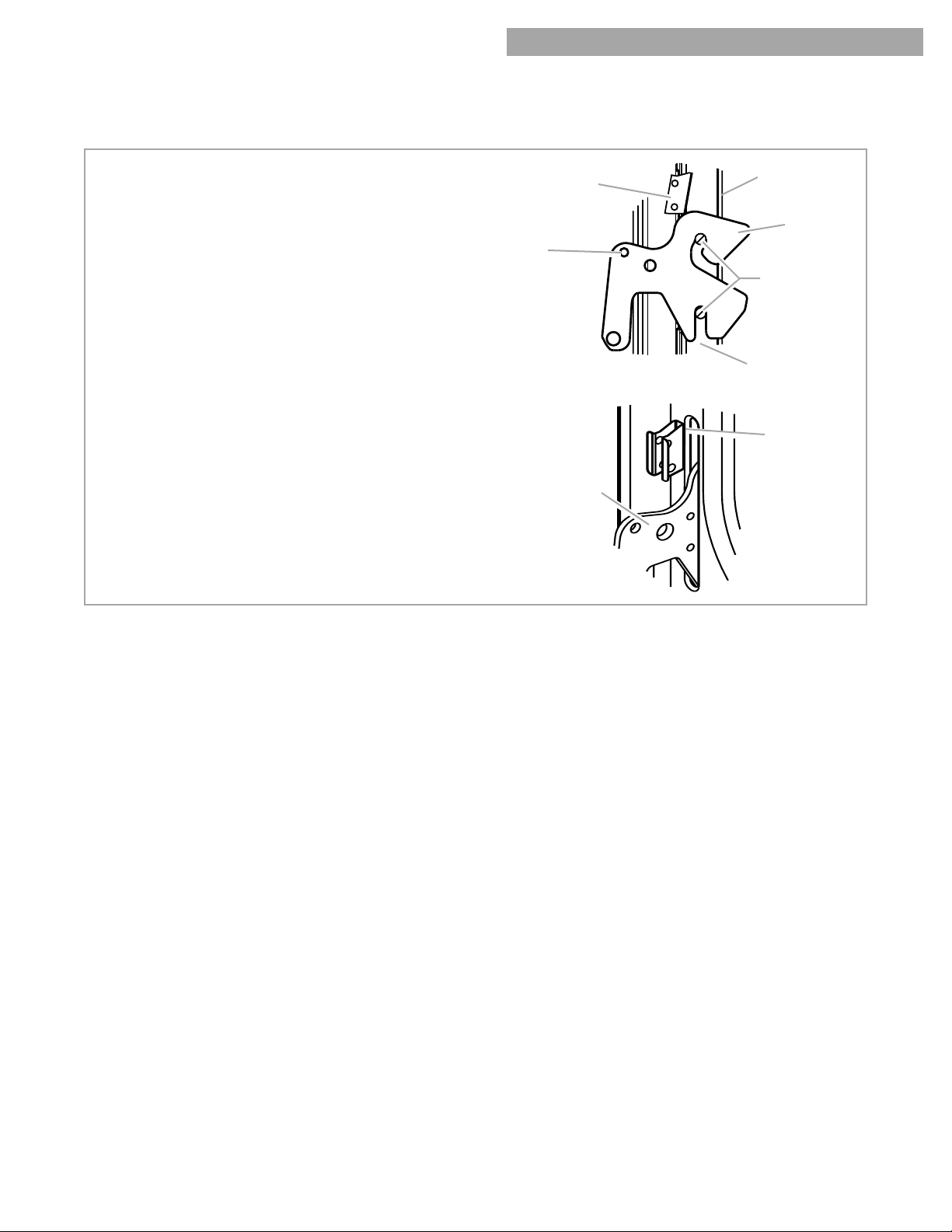

Door stop clip
(pp. 33, 34)
Model and serial number plate
(behind left side of storage drawer)

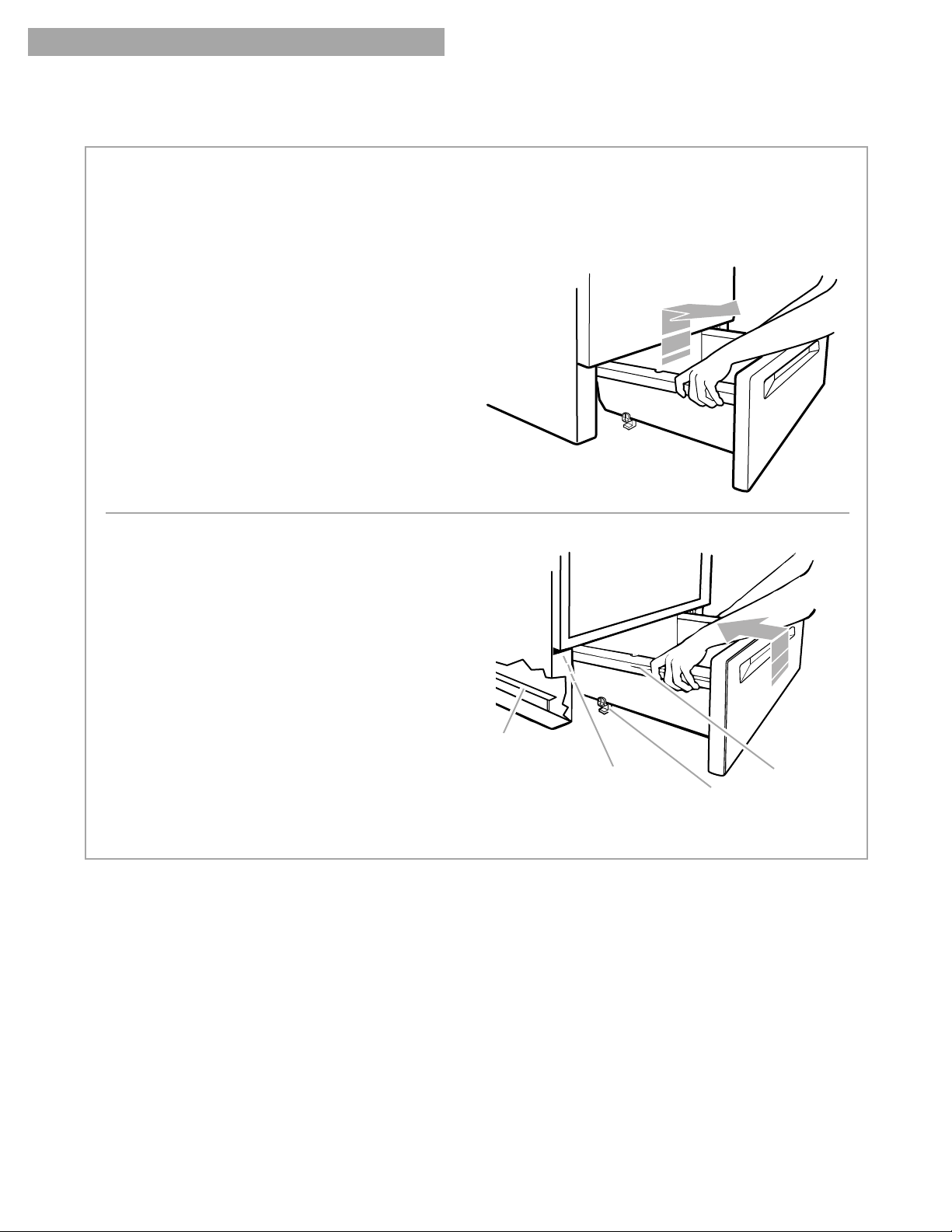

Removable storage drawer
(p. 25)
CONTROL PANEL
Electronic clock/timer

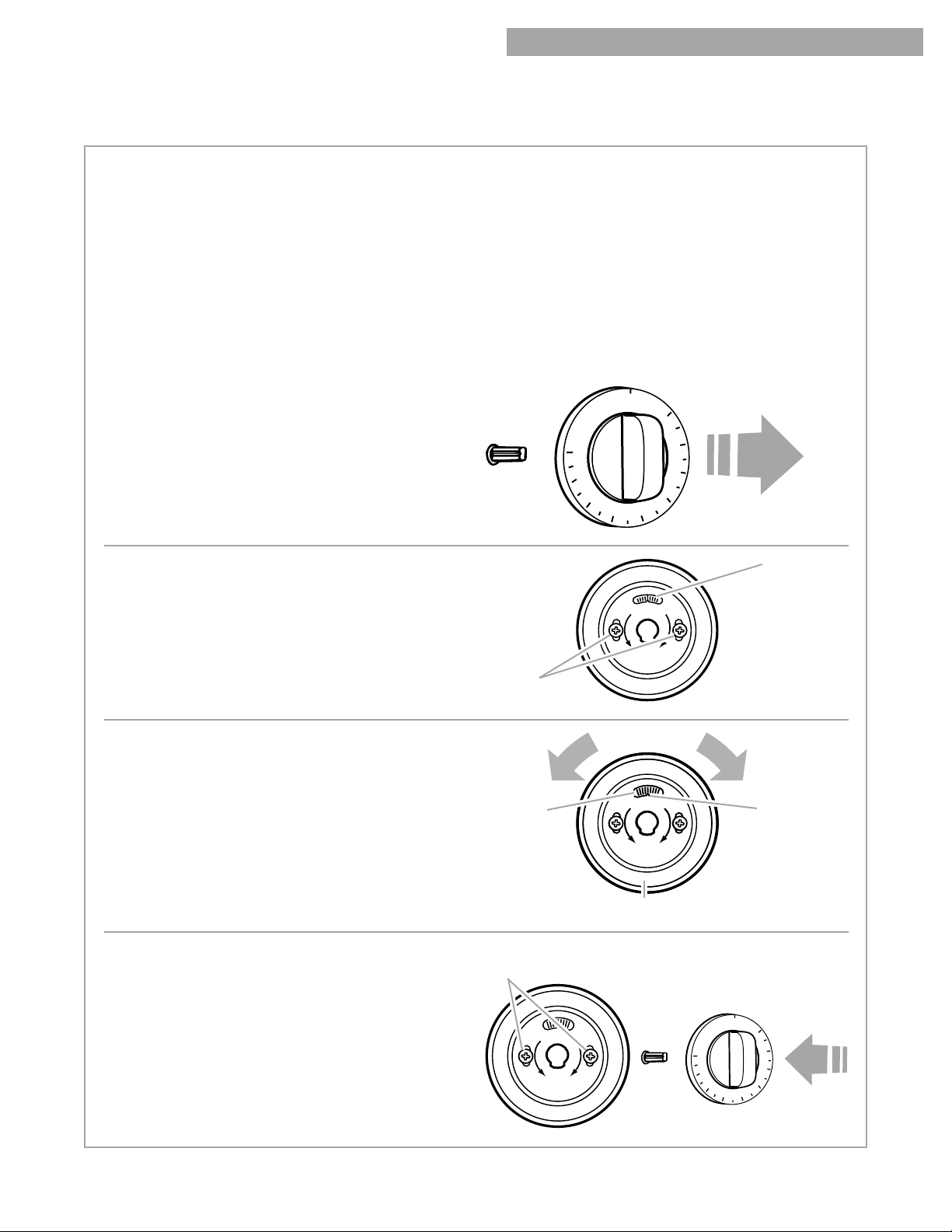

Oven temperature control knob
Broil element
(not shown)
(p. 19)
Bake element
(p. 16)
Coil element marker
(shows which coil element you are setting)
F
F
O
I
H
FRONT
Left front control knob
6
L
O
PUSH TO TURN
F
F
O
L
O
I
H
REAR
Left rear control knob
F
F
F
O
M
OVEN ON
(TURN OFF OVEN
CLOCK
TIMER
TIMER
WHEN FLASHING)
HEATING
LOCKED/
CLEANING
(CLOSE DOOR
WHEN FLASHING)
SURFACE HEATING
OVEN
DOOR
Indicator lights
(lights up when
R
A
B
W
R
O
0
0
I
L
2
0
5
2
C
L
E
A
N
0
0
3
5
0
0
0
5
4
3
5
0
0
0
4
Right rear control knob
F
O
L
O
I
H
REAR
PUSH TO TURN
F
F
O
L
O
I
H
FRONT
Right front control knob
in operation)
Page 7
(Model FEP330G shown)
Oven vent
(p. 24)
PARTS AND FEATURES
F
F
L
O
OVEN ON
F
F
B
R
O
O
I
L
5
0
F
F
O
0
4
B
5
H
0
0
R
I
5
1
O
4
E
0
I
0
L
0
K
A
F
F
O
L
O
I
F
F
H
O
L
O
I
H
FRONT
PUSH TO TURN
REAR
B
TIMER
SURFACE
0
2
HEATING
3
5
0
0
5
2
3
0
0
O
I
F
F
L
H
O
O
I
H
T
REAR
FRON
PUSH TO TURN
Control panel
(pp. 7, 29)
Plug-in coil element with one-piece reflector bowl
(pp. 9, 10, 29, 31, 32)
Anti-tip bracket
(p. 24)
Door stop clip
(pp. 33, 34)
Model and serial number plate
(behind left side of storage drawer)
Removable storage drawer
(p. 25)
Electronic
clock/timer
(pp. 13, 14, 15)
Gasket
(p. 30)
Broil element
(not shown)
(p. 21)
Bake element
(p. 17)
CONTROL PANEL
F
F
F
O
L
O
I
H
PUSH TO TURN
Left front control knob
F
O
L
O
I
H
Left rear control knob
Electronic clock/timer
Oven selector
Oven temperature control knob
Oven on indicator light
(lights up when
Coil element marker
(shows which coil element you are setting)
the oven is heating)
OVEN ON
B
R
O
I
L
5
0
0
4
5
0
SURFACE
H
4
I
0
HEATING
0
3
5
0
Right rear control knob
F
F
O
L
O
I
H
PUSH TO TURN
F
F
O
L
O
I
H
Right front control knob
F
F
F
O
CLOCK
TIMER
TIMER
B
R
E
O
K
I
L
A
B
F
O
0
5
1
0
0
2
0
5
2
0
0
3
Surface heating indicator light
(lights up when a coil element is on)
7
Page 8
PARTS AND FEATURES
(Models FEP310G and FEP320G shown)
Oven vent
(p. 24)
F
F
L
O
O
I
F
F
H
L
O
O
I
H
OVEN ON
F
F
B
R
O
O
I
L
5
0
F
F
0
O
4
B
5
H
0
0
R
I
5
1
O
4
E
0
I
0
L
0
K
0
2
A
F
F
O
L
O
I
F
F
H
O
L
O
I
H
FRONT
PUSH TO TURN
REAR
0
B
5
2
0
REAR
3
5
0
3
0
SURFACE HEATING
FRONT
PUSH TO TURN
Plug-in coil element with one-piece reflector bowl
(pp. 9, 10, 29, 31, 32)
Anti-tip bracket
(p. 24)
Door stop clip
(pp. 33, 34)
Model and serial number plate
(behind left side of storage drawer)
Removable storage drawer
(p. 25)
Control panel
(pp. 8, 29)
Gasket
(p. 30)
Broil element
(not shown)
(p. 21)
Bake element
(p. 17)
CONTROL PANEL
F
F
F
O
I
H
Left front control knob
8
L
O
F
O
L
O
I
H
Left rear control knob
Oven selector
Oven temperature control knob
F
F
O
B
R
E
O
K
I
L
A
B
Surface heating indicator light
(lights up when a coil element is on)
Oven on indicator light
(lights up when the oven is heating)
F
F
O
B
R
O
I
L
5
0
0
5
1
0
0
0
4
5
0
2
H
4
0
I
0
5
0
2
0
3
0
5
0
3
OVEN ON
SURFACE HEATI NG
Coil element marker
(shows which coil element you are setting)
F
F
O
L
O
I
H
Right rear control knob
F
F
O
L
I
H
PUSH TO TURNPUSH TO TURN
Right front control knob
O
Page 9

USING YOUR RANGE

USING THE COIL ELEMENTS

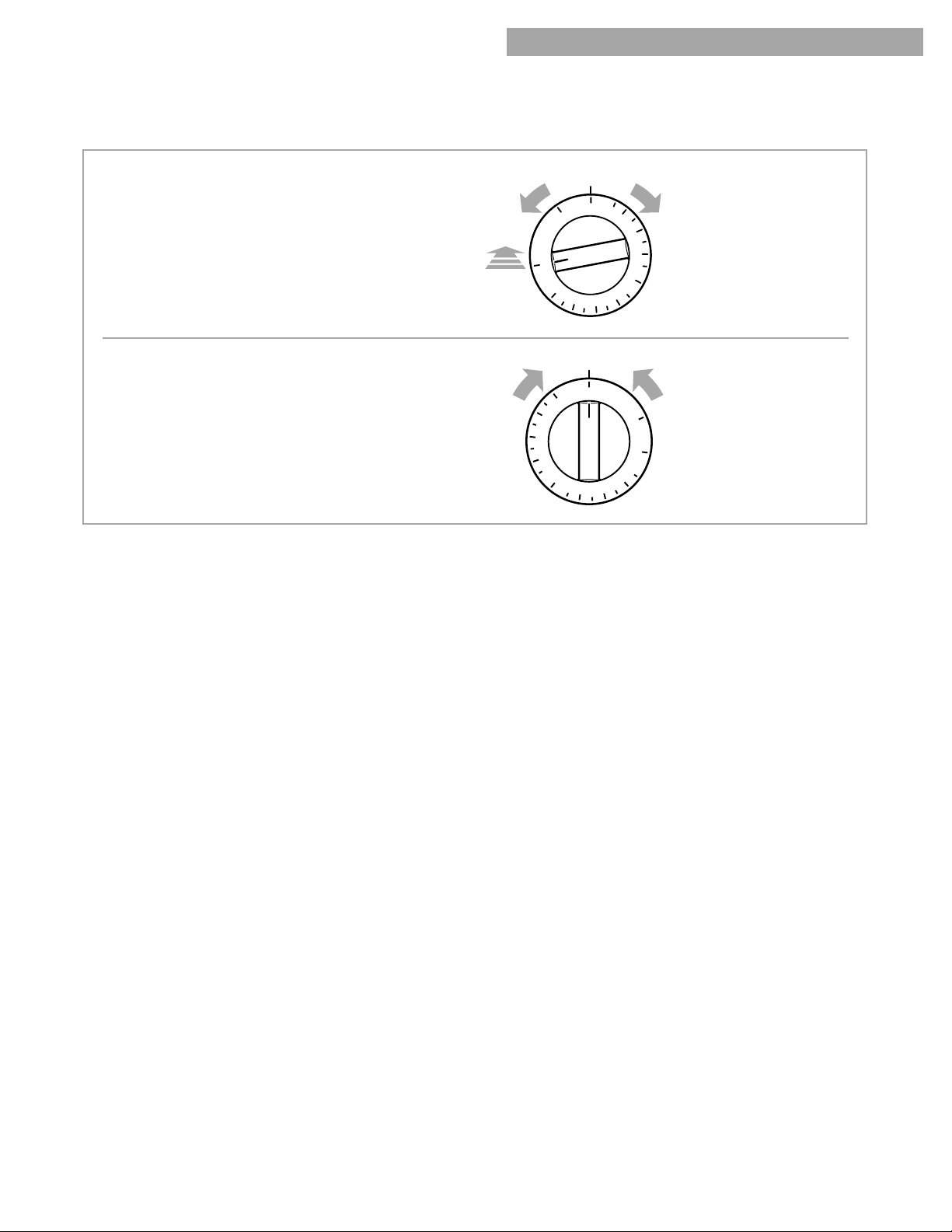

Using the control knobs
Push in the control knobs before turning them to a
setting. You can set them anywhere between HI and OFF.
Coil element heat settings
Use the following chart as a guide.
wWARNING
Fire Hazard Turn off all controls when done cooking. Failure to do so can result in death or fire.
SETTING HI
6-8
5
2-4
LO
RECOMMENDED USE
To start food cooking.
•
To bring liquid to a boil.
•
To hold a boil.
•
To quickly brown or sear food.
•
To maintain a slow boil.
•
To fry poultry or meat.
•
To make pudding, sauce, or gravy.
•
To stew or steam food.
•
To simmer food.
•
To keep food warm.
•
To melt chocolate or butter.
•
9
Page 10
USING YOUR RANGE
USING THE COIL ELEMENTS (CONT.)
Home canning information
To protect your range:
Use flat-bottomed canners on all types of
•
1" 1"
Surface cooking area
centered correctly, trap heat and can cause damage to the cooktop.
Do not place your canner on two coil elements at
•
the same time. The type of material the canner is made of
•
determines the length of heating time. Refer to the “Characteristics of cookware materials” chart later in this section for more information.
When canning for long periods of time, allow
•
elements and the surrounding surfaces to cool down.
Pan
cooktops. Canners with rippled or ridged bottoms do not allow good contact with the surface.
Center the canner over
•
the largest coil element. Do not extend more than one inch outside the coil element. Large diameter canners/pans, if not
Alternate use of the coil elements between
•
batches or prepare small batches at a time. Start with hot water, cover with a lid, and bring
•
to a boil; then reduce heat to maintain a boil or required pressure levels in a pressure canner.
On coil element model, keep your reflector bowls
•
clean so that they will always reflect heat well. For up-to-date information on canning, contact
•
your local U.S. Government Agricultural Department Extension Office or companies who manufacture home canning products.
Optional canning kit
Most water-bath or pressure canners have large diameters. If you do canning with them at high heat settings for long periods of time, you can shorten the life of regular coil elements. This can also damage the cooktop. If you plan to use the cooktop for canning, we recommend the installation of a Canning Kit. Order the kit (Part No. 242905) from your dealer or authorized service company.
Cookware tips
Select a pan that is about the same size as the
•
surface cooking area. Cookware should not extend more than 1 inch (2.5 cm) outside the area.
For best results and greater energy
•
efficiency, use only flat-bottomed cookware that makes good contact with the surface cooking area. Cookware with rounded, warped, ribbed (such as some porcelain enamelware), or dented bottoms could cause uneven heating and poor cooking results.
Cookware designed with slightly indented bottoms
•
or small expansion channels can be used.
Cookware with a non-stick finish has heating
•
characteristics of the base material. Use flat bottom cookware for best heat conduction
•
from the surface cooking area to the cookware. Determine flatness with the ruler test. Place the edge of a ruler across the bottom of the cookware. Hold it up to the light. No light should be visible under the ruler. Rotate the ruler in all directions and look for any light.
Do not leave empty cookware, or cookware which
•
has boiled dry, on a hot surface cooking area. The cookware could overheat, causing damage to the cookware or the surface cooking area.
10
Page 11
USING YOUR RANGE

CHARACTERISTICS OF COOKWARE MATERIALS

The pan material affects how fast heat transfers from the coil element through the pan mater ial and how evenly heat spreads over t he pan bottom. C hoose pans that provide the best cooking results.
Aluminum
Cast iron
Ceramic or ceramic glass
Copper
Earthenware
Porcelain enamel-on-steel or enamel-on-cast iron
Stainless steel
• Heats quickly and evenly.
• Use for all types of cooking.
• Medium or heavy thickness is best for most cooking.
• Used as a core or base in cookware to provide even heating.
• Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Can be coated with porcelain enamel.
• Heats s lo wly a nd uneve nly.
• Use on low to medium settings.
• Follow manufacturer’s instructions.
• Heats very quickly and evenly.
• Used as a core or base in cookware to provide even heating.
• Can be used for cooktop cooking if recommended by the manufacturer.
• Use on low settings.
• See cast iron and stainless steel.
• Heats q uic kly b ut une ve nly.
• A core or base of aluminum or copper on the cookware provides even heating.
• Can be coated with porcelain enamel.
11
Page 12
USING YOUR RANGE

USING THE OVEN

Positioning racks and pans
Place the oven racks where you need them before turning on the oven.
To move a rack, pull it out to the stop position, raise
•
the front edge and lift it out. Be sure the rack(s) is level.
•
Use pot holders or oven mitts to protect your hands
•
if rack(s) must be moved while the oven is hot. For best performance, cook on one rack. Place the
•
rack so the top of the food will be centered in the oven. When cooking with two racks, arrange the racks
•
on the 2nd and 4th rack guides.Two sheets of cookies may be baked if sheets are switched at approximately three quarters of the total bake time. Increase baking time, if necessary.
For best results allow 2 inches of space around
•
each pan and between pans and oven walls.
Hot air must circulate around the pans in the oven
for even heat to reach all parts of the oven. This results in better baking.
Where to place pans:
WHEN YOU HAVE
1 pan 2 pans
3 or 4 pans
PLACE
In center of the oven rack. Side by side or slightly
staggered. In opposite corners on
each oven rack. Stagger pans so no pan is directly over another.
Rack placement for specific foods:
FOOD
Frozen pies, large roasts, turkeys, angel food cakes
Bundt cakes, most quick breads, yeast breads, casseroles, meats
Cookies, biscuits, muffins, cakes, nonfrozen pies
RACK POSITION
1st or 2nd rack guide from bottom
2nd rack guide from bottom
2nd or 3rd rack guide from bottom
NOTE: For information on where to place your rack when broiling, see “Broiling guidelines” later in this section.

BAKEWARE CHOICES

Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe.
BAKEWARE TYPE
Light color ed aluminum
Dark aluminum and other bakeware with dark, dull, and/or non-stick finish
Ovenproof glassware, ceramic glass, or ceramic
Insulated cookie sheets or baking pans
Stainless steel • May need to increase baking time.
BEST USED FOR
• Light golden crusts
• Even browning
• Brown, crisp crusts
• Brown, crisp crusts
• Little or no bottom browning • Place in the bottom third of oven.
• Light, golde n crust s
• Uneven browning
GUIDELINES
• Use temperature and time recommended in recipe.
• May reduce baking temperature 25°F.
• Use sugges t ed ba king time.
• Use temperature and time recommended in recipe for pies, breads, and casseroles.
• Place rack in center of oven.
• May reduce baking temperature 25°F.
• May need to increase baking time.
Stoneware
12
• Crisp crusts
• Follow manufacturer's instructions.
Page 13

USING ALUMINUM FOIL

Use aluminum foil to catch spillovers from pies or
•
casseroles by placing foil on the oven rack below. Foil should be turned up at edges and be at least 1 inch larger than dish.
Do not cover the entire
•
rack with aluminum foil. It will reduce air circula­tion and give you poor cooking results.
USING YOUR RANGE
Do not line the oven bottom with foil or other liners.
•
It could affect the oven surface as well as the quality of your baking.
Place tent-shaped foil loosely over meat or poultry
•
to slow down surface browning for long term roasting. Remove foil for the last 30 minutes.
Use narrow strips of foil to shield piecrust edges if
•
browning too quickly.
THE ELECTRONIC TIME
-OF-
(MODELS FEP33OG AND FES33OG)
Clock pad
(p. 14)
CLOCK
TIMER
Oven timer pad
(p. 14, 15)
Display/clock
When you first plug in the range, a flashing
•
time-of-day (Model FEP330G) or “PF” (Model FES330G) appears in the display. If, after you set the clock (see “Setting the clock” section), the display flashes, your electricity was off for a while. Reset the clock.
When you are not using the oven, the display
•
shows the time of day.
DAY (TOD) CLOCK/TIMER
Electronic display
TIMER
When showing the time of day, the display will
•
show the hour and minutes. When you are using the timer, the display
•
will show seconds for time less than 1 minute, minutes for time less than 1 hour, and hours and minutes for time over 1 hour. The timer indicator light will be lit when in the timer mode.
Increase pad
(p. 14)
Decrease pad
(p. 14)
13
Page 14
USING YOUR RANGE
SETTING THE CLOCK (MODELS FEP
1. Press CLOCK. The colon flashes during
clock programming.
2. Set the time.
Press the “up” (▲) or “down” (▼) pad(s) until the correct time shows on the display.
NOTE: Press a pad briefly to change time by a small amount. Press and hold a pad to change time by 10 minute increments.
3. Press CLOCK again to start the clock. The colon
stops flashing when the clock is active.
33
OG AND FES33OG)
PRESS YOU SEE
PRESS YOU SEE
PRESS YOU SEE
USING THE ELECTRONIC TIMER (MODELS FEP
The timer does not start or stop the oven. It works like a kitchen timer. It can be set in hours and minutes up to 12 hours, 59 minutes. The timer will display minutes for settings under 1 hour and hours and minutes for settings over 1 hour. You will hear four 1-second tones when the set time is up.
NOTE: To display the time of day while the timer is counting down, press CLOCK. Time of day will be displayed for 5 seconds before returning to the timer countdown.
1. Press TIMER. The colon flashes during timer
programming.
2. Set the interval to be timed.
Press the “up” (▲) or “down” (▼) pad(s) until the correct time shows on the display.
The timer will begin counting down 5 seconds after the time is set.
PRESS YOU SEE
PRESS YOU SEE
33
OG AND FES33OG)
14
Page 15
USING YOUR RANGE

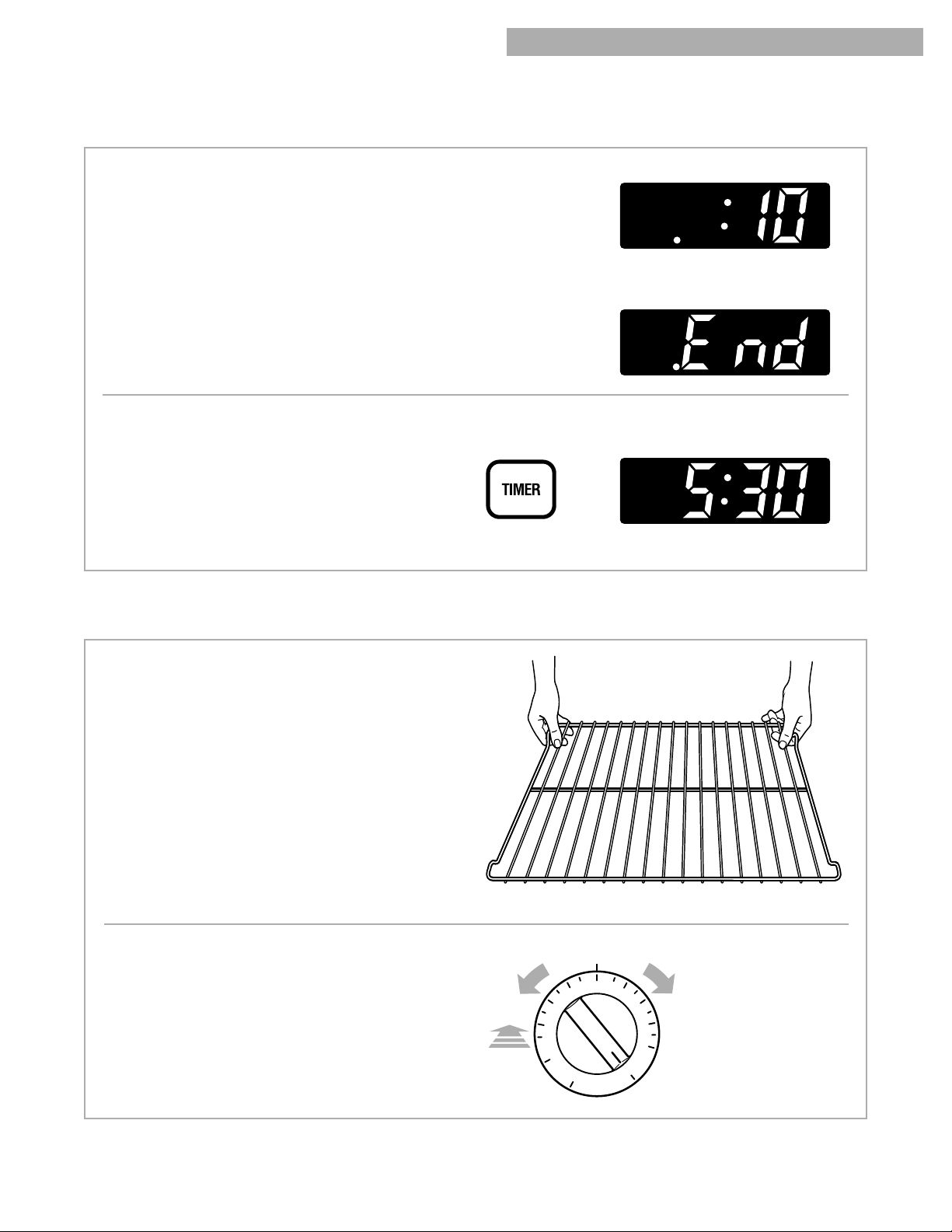

USING THE ELECTRONIC TIMER (MODELS FEP
3. When there is 1 minute of time remaining, you
will hear one tone (Model FEP330G). The display will then begin counting down in seconds.
When the timer countdown reaches zero, the display will show “End” and you will hear four 1-second tones.
To cancel the timer:
Press TIMER twice while in the timer mode.
PRESS YOU SEE
33
OG AND FES33OG) (CONT.)
YOU SEE
(display counts in seconds)
YOU SEE
(time of day)
BAKING/ROASTING (MODEL FES
33
1. Place the racks where you need them in the oven.
For more information, see “Positioning racks and pans” under “Using the oven” earlier in this section.
NOTE: Do not place food directly on the oven door or the oven bottom.
2. Push and turn the oven control knob to the
baking/roasting temperature you want.
NOTE: Do not preheat the oven when roasting.
OG)
PUSH AND TURN
0
5
3
3
0
0
4
0
5
4
0
0
5
N
A
E
L
C
L
I
O
R
B
Front of rack
Rear of rack
0
0
2
5
0
2
0
0
W
A
R
M
O
F
F
YOU SEE
OVEN ON and HEATING lights go on. Set Temperature appears in the display for 5 seconds.
continued on next page
15
Page 16
USING YOUR RANGE
BAKING/ROASTING (MODEL FES
3. Put your food in the oven.
During baking/roasting, the elements will turn on and off to keep the oven temperature at the setting.
NOTE: The top element helps heat during bak­ing/roasting, but does not turn red.
4. After baking/roasting, push and turn the oven
control knob to OFF.
33
OG) (CONT.)
PUSH AND TURN
F
F
O
M
R
A
W
0
0
2
0
5
2
0
0
3
0
5
3
B
R
O
I
L
C
L
E
A
N
5
0
0
4
5
0
0
0
4
YOU SEE
OVEN ON and HEATING lights go out.
Saving energy
To avoid loss of heat, open the oven door as little
•
as possible.
Use a timer to keep track of cooking time.
•
Plan your meals for the most efficient use of the
•
oven by cooking more than one food at a time, or baking while the oven is still hot after cooking a meal.

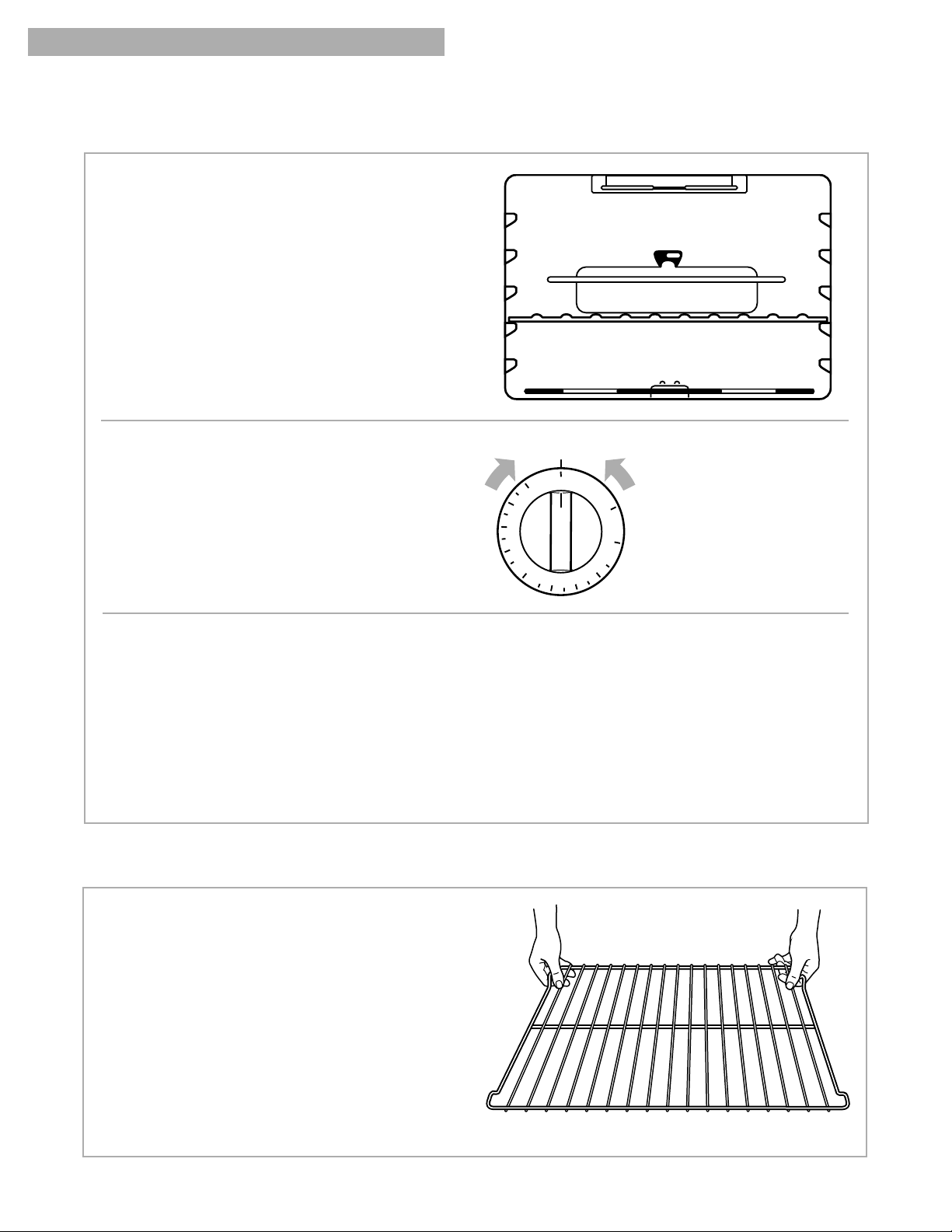

BAKING/ROASTING (MODELS FEP
1. Place the racks where you need them in the oven.
For more information, see “Positioning racks and pans” under “Using the oven” earlier in this section.
NOTE: Do not place food directly on the oven door or the oven bottom.
3
1
OG, FEP
Roasting meats and poultry
For even cooking, place the meat on a rack in a
•
shallow pan. This keeps the meat out of the drip­pings and allows the heat to circulate better.
Use a meat thermometer for the most accurate
•
doneness. Insert it so the tip is in the center of the largest muscle or thickest portion of the meat or poultry. Make sure the thermometer is not touching bone, fat, or the bottom of the pan.
3
2
OG, FEP33OG)
Front of rack
16
Rear of rack
Page 17

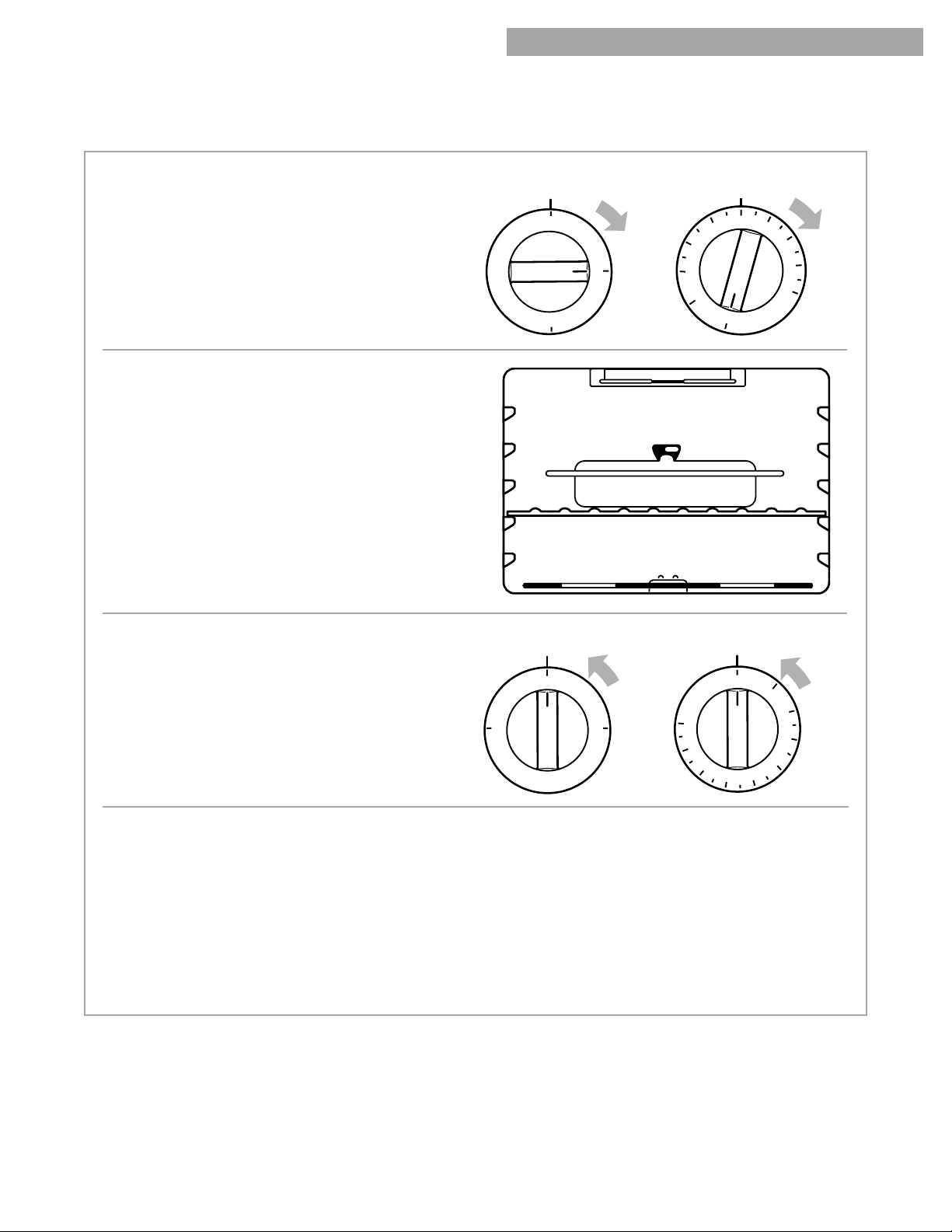

USING YOUR RANGE
BAKING/ROASTING (MODELS FEP
2. Set the oven selector to BAKE and the oven
temperature control knob to the baking/roasting temperature you want.
The oven on indicator light will come on. The oven is preheated when the oven on indicator light first goes off.
NOTE: Do not preheat the oven when roasting.
3. Put your food in the oven.
During baking/roasting, the elements will turn on and off to keep the oven temperature at the setting. The oven on indicator light will turn on and off with the elements.
NOTE: The top element helps heat during baking/roasting, but does not turn red.
3
OG, FEP
1
3
2
OG, FEP33OG) (CONT.)
TURN TURN
K
A
E
B
0
5
O
F
F
B
R
L
I
O
4
0
0
5
L
I
O
R
0
5
3
3
0
0
0
4
B
0
2
5
0
2
0
0
1
5
0
F
F
O
4. After cooking, turn off the oven.
Turn both the oven selector and the oven tem­perature control knob to OFF. The oven on indicator light will go off.
Saving energy
To avoid loss of heat, open the oven door as little
•
as possible.
Use a timer to keep track of cooking time.
•
Plan your meals for the most efficient use of the
•
oven by cooking more than one food at a time, or baking while the oven is still hot after cooking a meal.
TURN TURN
F
F
F
O
B
E
K
A
B
R
O
I
L
F
O
B
R
O
I
L
5
0
0
5
1
0
0
2
0
5
2
0
0
3
0
4
5
0
4
0
0
3
5
0
Roasting meats and poultry
For even cooking, place the meat on a rack in a
•
shallow pan. This keeps the meat out of the drip­pings and allows the heat to circulate better.
Use a meat thermometer for the most accurate
•
doneness. Insert it so the tip is in the center of the largest muscle or thickest portion of the meat or poultry. Make sure the thermometer is not touching bone, fat, or the bottom of the pan.
17
Page 18
USING YOUR RANGE
ADJUSTING THE OVEN TEMPERATURE CONTROL (MODEL FES330G)
Although your new oven is properly adjusted to provide accurate temperatures, it may cook faster or slower than your old oven.
If you are not satisfied with the baking/roasting results, you can change the offset temperature by following the steps below.
NOTE: DO NOT measure oven temperature with a thermometer. Opening the oven door will lower the oven temperature and give you an incorrect reading. Also, the thermometer temperature reading will change as your oven cycles.
1. Press and hold CLOCK for 5 seconds.
The display will show the time of day. Then you will see the current offset temperature, for example “00,” if you have not already adjusted the temperature.
2. Set the new offset temperature.
Press s to raise the temperature or t to lower the temperature in 10°F amounts. You can set the temperature change to as low as -30°F or as high as +30°F. A minus (-) sign will appear before the number when decreasing the temperature setting. The minus sign shows the oven will be cooler by the displayed amount. There is no sign in front of the number when increasing the temperature setting.
3. Press CLOCK to enter the offset temperature.
PRESS YOU SEE
(factory setting of “0”)
PRESS YOU SEE
(example when making oven 10°F cooler)
PRESS YOU SEE
(time of day or minute timer countdown)
How to determine the amount of adjustment needed
The chart at the right tells you how much to adjust the offset temperature to get the cooking results you want. You can figure out cooking results by the amount of browning, moistness, and rising times for baked foods.
18
TO COOK FOOD ...
A little more Moderately more Much more A little less Moderately less Much less
ADJUST BY THIS NUMBER OF DEGREES (FAHRENHEIT)
+10 +20 +30
-10
-20
-30
Page 19
A
DJUSTING THE OVEN TEMPERATURE CONTROL
Although your new oven is properly adjusted to provide accurate temperatures, it may cook faster or slower than your old oven.
If you are not satisfied with the baking/roasting results, you can change the temperature calibration by following the steps below.
NOTE: DO NOT measure the oven temperature with a thermometer. Opening the oven door will lower the oven temperature and give you an incorrect reading. Also, the thermometer temperature reading will change as your oven cycles.
(
MODELS FEP
310G,
USING YOUR RANGE
FEP
320G,
FEP
330
G
)

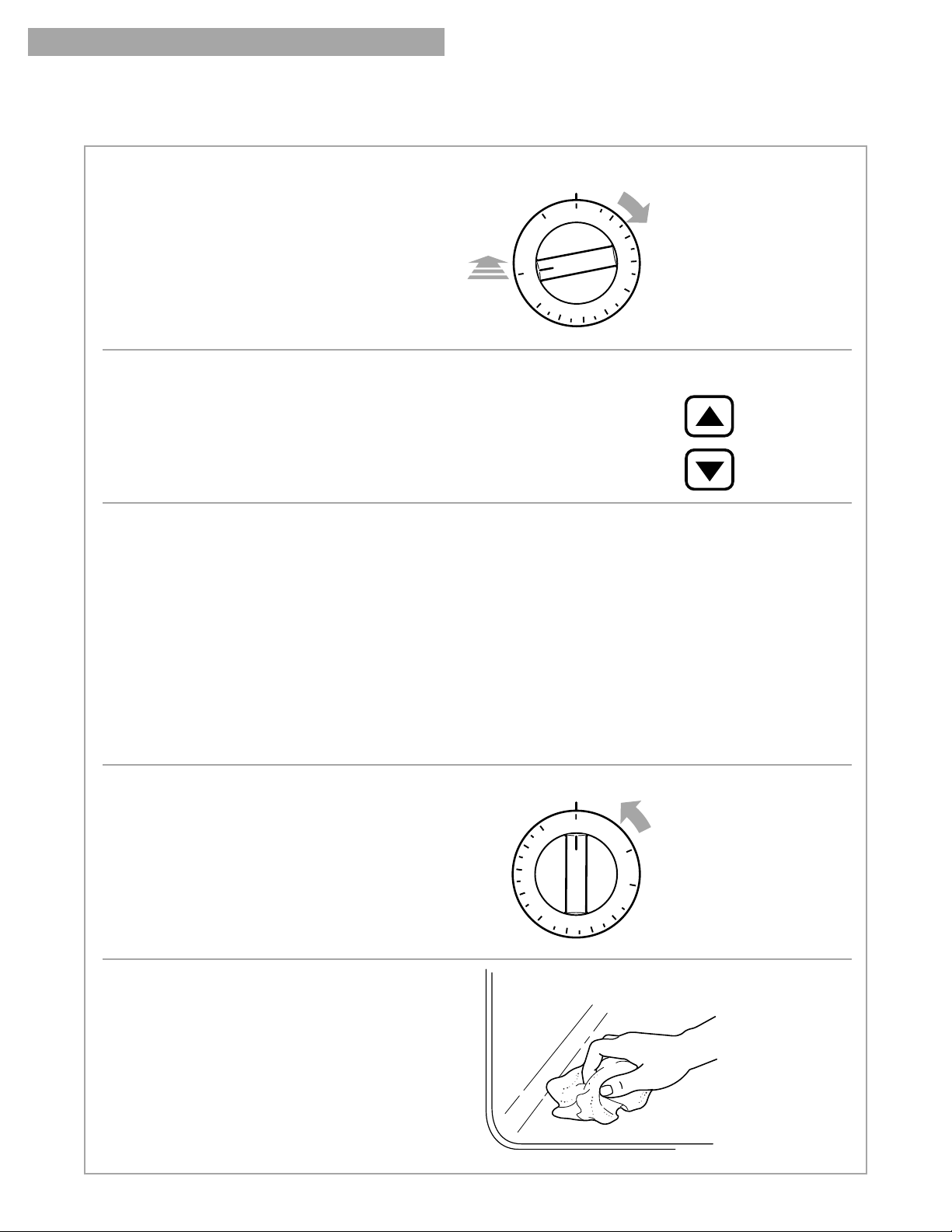

1. Make sure the oven temperature control knob is
turned to the off position. Pull the knob straight
off and flip it over.
2. Loosen the locking screws inside the
control knob.
Note the position of the notches.
3. Adjust the temperature.
To lower the temperature, hold the knob
•
handle firmly and turn the skirt counterclock-
wise to move the tooth a notch to the left. To raise the temperature, hold the knob
•
handle firmly and turn the skirt clockwise to move the tooth a notch to the right.
Each notch equals about 5°F.
F
F
O
B
R
O
I
L
5
0
1
0
O
N
COOLER
0
4
5
0
4
0
0
3
5
H
C
T
:
5
˚
F
L
O
O
S
E
N
S
C
HOTTER
R
E
W
S
A
N
D
R
O
T
A
T
E
Notches
Locking
0
5
1
0
0
2
0
5
2
0
0
3
screws
To lower
H
C
H
:
C
:
T
T
5
5
O
O
˚
˚
N
N
F
F
1
1
Notches Tooth
COOLER
COOLER
HOTTER
HOTTER
L
O
O
S
E
N
S
C
R
E
W
S
A
N
D
R
O
T
A
T
E
To raise
4. Tighten the locking screws and replace the
control knob.
Locking screws
Skirt
H
C
:
T
5
O
˚
N
F
1
COOLER
HOTTER
L
O
O
S
E
N
S
C
R
E
W
S
A
N
D
R
O
T
A
T
E
F
F
O
B
R
O
I
L
5
0
0
5
1
0
0
2
0
5
0
4
5
0
4
0
0
2
3
5
0
0
0
3
19
Page 20
USING YOUR RANGE
BROILING (MODEL FES330G)
NOTES:
Do not preheat when broiling unless your recipe
•
recommends it. Leave the door partly open whenever you use the
•
oven to broil. This lets the oven stay at the proper temperatures.

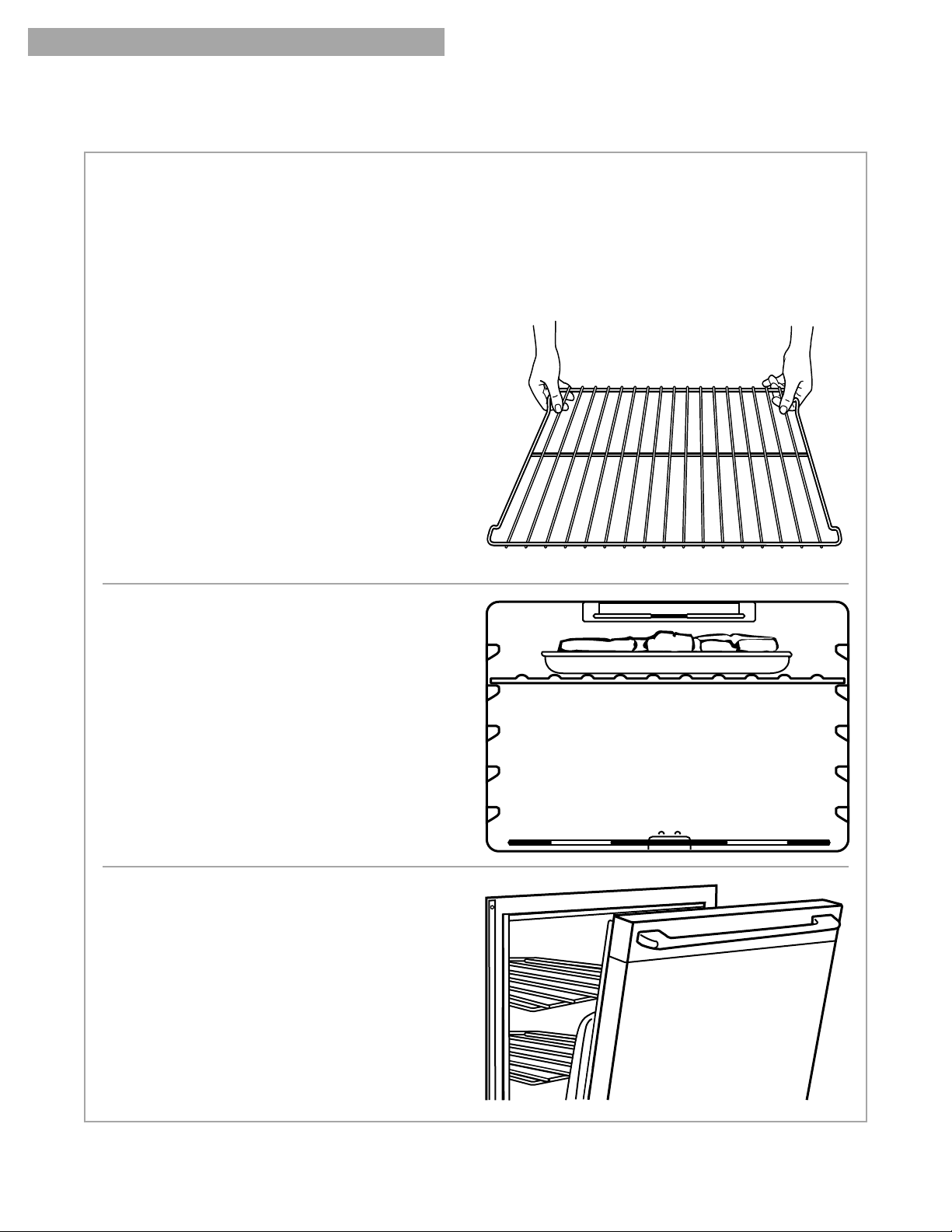

1. Place the rack where you need it in the oven.
You need to place the rack so that the surface of the food is at least 3 inches away from the broil element. See the “Broiling guidelines” section.
Front of rack
2. Put your food on the broiler pan and place the
pan in the center of the oven rack.
3. Close the door to the broil stop position.
The broil stop position lets the door stay open by itself about 5 inches.
Rear of rack
20
Page 21
BROILING (MODEL FES330G) (CONT.)
USING YOUR RANGE
4. Set the oven control knob to BROIL.
5. After broiling, turn the oven control
knob to OFF.
PUSH AND TURN
O
R
I
L
B
N
A
E
L
C
F
F
O
M
R
A
W
0
2
0
5
2
0
PUSH AND TURN
F
F
O
M
R
A
W
0
0
2
0
5
2
0
0
3
0
5
3
4
5
0
0
0
4
YOU SEE
5
0
0
4
5
0
4
0
0
3
5
0
3
0
0
OVEN ON and HEATING lights go on.
YOU SEE
OVEN ON and
C
L
E
A
N
B
R
O
I
L
5
0
0
HEATING lights go out.
21
Page 22
USING YOUR RANGE
BROILING (MODELS FEP310G, FEP320G, FEP330G)
NOTES:
Do not preheat when broiling unless your recipe
•
recommends it. The oven selector must be on BROIL for broiling
•
temperatures. Leave the door partly open whenever you use the
•
oven to broil. This lets the oven stay at the proper temperatures.
1. Place the rack where you need it in the oven.
You need to place the rack so that the surface of the food is at least 3 inches away from the broil element. See the “Broiling guidelines” section.
Front of rack
2. Put your food on the broiler pan and place the
pan in the center of the oven rack.
3. Close the door to the broil stop position.
The broil stop position lets the door stay open by itself about 5 inches.
Rear of rack
22
Page 23
BROILING (MODELS FEP310G, FEP320G, FEP330G) (CONT.)
USING YOUR RANGE
4. Set the oven selector and the oven temperature
control knob to BROIL. The oven on indicator light will come on.
5. After broiling, turn off the oven.
Turn both the oven selector and the oven tem­perature control knob to OFF. The oven on indicator light will go off.
To broil at a lower temperature:
If your food is cooking too fast, turn the oven
•
temperature control knob counterclockwise until the oven on indicator light goes off.

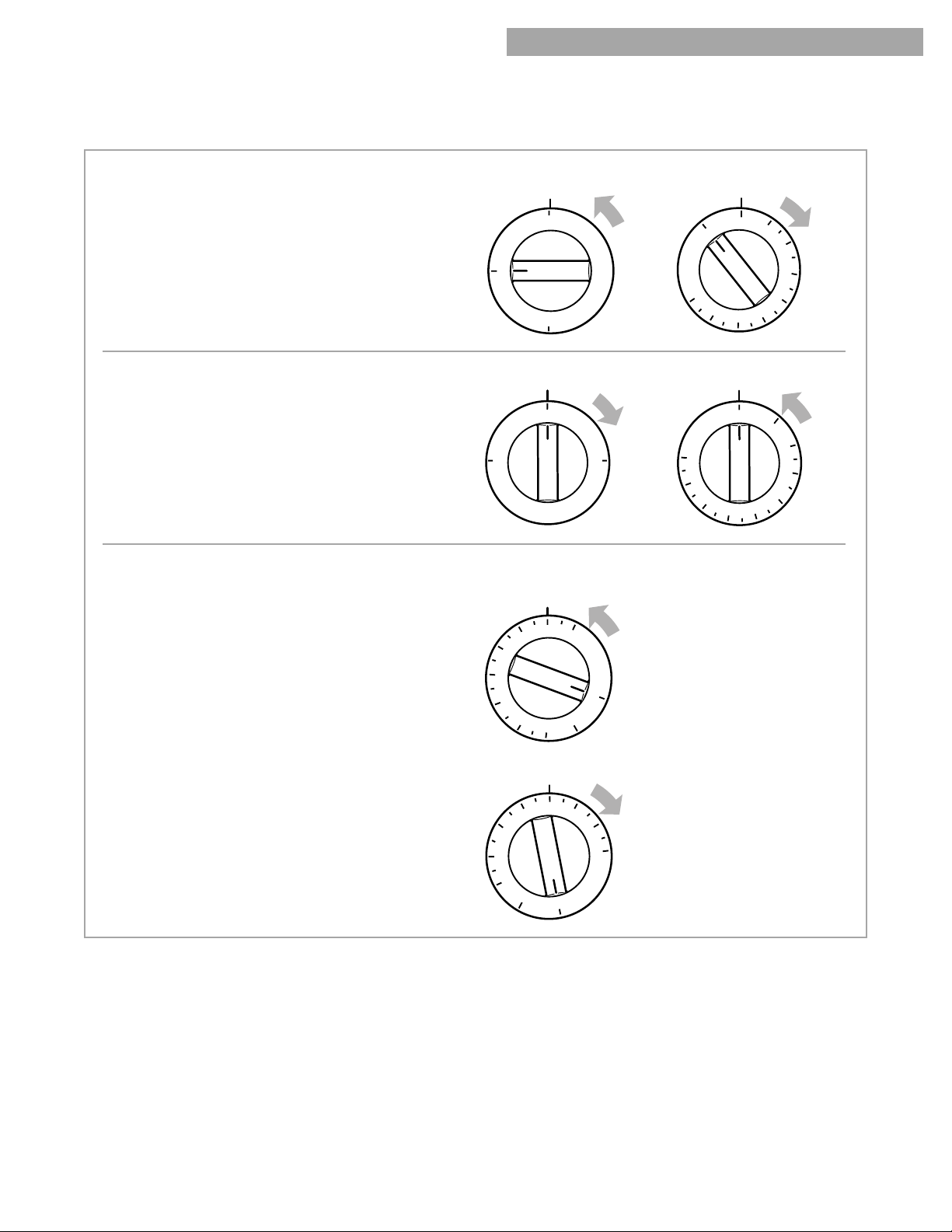

TURN TURN
O
I
L
R
B
F
F
O
B
E
A
K
F
O
0
5
1
TURN TURN
F
F
O
B
E
K
A
B
R
O
I
L
0
5
1
0
0
2
0
TURN
0
0
2
1
5
0
0
5
2
0
0
3
0
5
3
0
0
4
0
5
4
0
O
F
F
B
R
O
I
L
5
0
O
I
L
R
B
5
0
F
0
5
2
0
4
5
0
4
0
0
3
5
0
3
0
0
0
2
2
0
5
F
F
O
B
R
O
I
L
5
0
0
4
5
0
4
0
0
3
5
0
0
0
3
If you want your food to broil slower from the
•
start, set the oven temperature control knob between 170°F and 325°F. These temperature settings let the broil heating element cycle and slow cooking results. The lower the temperature, the slower the cooking.
NOTE: Fish and chicken are some foods that may cook better if you use lower broiling temperatures.
TURN
0
0
4
0
5
4
0
0
5
0
0
3
2
5
0
5
3
L
I
0
2
0
0
1
5
0
O
O
F
R
F
B
23
Page 24
USING YOUR RANGE
BROILING (CONT.)
Broiling guidelines
Use only the broiler pan and grid provided. They
•
are designed to drain extra juices from the cooking surface. This drainage helps prevent spatter and smoke.
To make sure the juices drain well, do not cover
•
the grid with foil. Trim excess fat to reduce spattering. Slit the fat
•
on the edges to prevent curling. Use tongs to turn meat to avoid losing juices.
•
Recommended rack positions are numbered from the bottom (1) to the top (5). For best results, place food 3 inches or more from the broil element.
Pull out oven rack to stop position before turning
•
or removing food. After broiling, remove the pan from the oven
•
when removing the food. Drippings will bake on the pan if left in the heated oven, making cleaning more difficult.
For easier cleaning, line the bottom of the pan
•
with aluminum foil. Clean the pan and grid as soon as possible after each use.
APPROXIMATE TIME
RACK
MEAT Steak, 1" thick
medium rare medium well done
Hamburger Patties, 3⁄4" thick, 1⁄4 lb well done Pork Chops, 1" thick Ham Slice, 1⁄2" thick, precooked Frankfurters Lamb Chops, 1" thick Chicken
bone-in pieces boneless breasts
Fish
fillets 1⁄4-1⁄2" thick steaks, 3⁄4-1" thick
NOTE: Times are guidelines only and may need to be adjusted for individual tastes.
POSITION
4
4 4 4 4 4
3 4
4
SIDE 1
14-15 15-16 18-19
13-14 20-22 8-10 5-7 14-17
17-20 11-16
8-10 16-18
(MINUTES)
SIDE 2
7-8 8-9 9-10
7-8 10-11 4-5 3-4 8-9
17-20 11-16
4-5 8-9
24
Page 25
USING YOUR RANGE

THE OVEN VENT

Hot air and moisture escape from the oven through a vent under the left rear coil element. You can cook on this coil element or keep food warm on it while the oven is on. The vent is needed for air circulation. Do not block the vent by using extra large pans or covers. You will get poor baking/ roasting results.
NOTE: Never leave plastic utensils over the vent. They could melt.
Oven vent

THE ANTI-TIP BRACKET

The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without the anti-tip bracket fastened down properly.
Anti-Tip Bracket
Range Foot
wWARNING
Tip Over Hazard A child or adult can tip the range and be killed. Connect anti-tip bracket to rear range foot. Reconnect the anti-tip bracket, if the range is moved. See the installation instructions for details. Failure to follow these instructions can result in death or serious burns
to children and adults.
Making sure the anti-tip bracket is installed:
Slide range forward.
•
Look for the anti-tip bracket securely attached to floor.
•
Slide range back so rear range foot is under anti-tip bracket.
•
25
Page 26
USING YOUR RANGE

THE STORAGE DRAWER

Use the storage drawer to store cookware. You can remove the storage drawer to make it easier to clean under your range.
Removing the storage drawer:
1. Empty the drawer before you remove it. Pull the
drawer straight out to the first stop. (The stops are small, round objects formed in the slide rail. They keep the drawer from sliding all the way out.) Then lift the front of the drawer and pull it out to the second stop.
2. Lift the back of the drawer slightly and slide it all
the way out.
Replacing the storage drawer:
1. Position the drawer so that the lower drawer
guides rest just inside the front frame lip.
2. Lift the front of the drawer and push it in until the
metal stops on the drawer slide rails clear the upper drawer guides. Then slide the drawer closed.
Lower slide rail
(inside drawer opening)
Upper drawer guides
(on inside walls)
Drawer
slide rail
Lower drawer guide
26
Page 27

USING THE SELF-CLEANING CYCLE

(MODEL FES330G)
wWARNING
Burn Hazard Do not touch the oven during the Self-Cleaning cycle. Keep children away from oven during Self-Cleaning cycle. Do not use commercial oven cleaners in your oven. Failure to follow these instructions can result in burns, or illness from inhaling
dangerous fumes.
BEFORE YOU START
Before you start the Self-Cleaning cycle, make sure you:

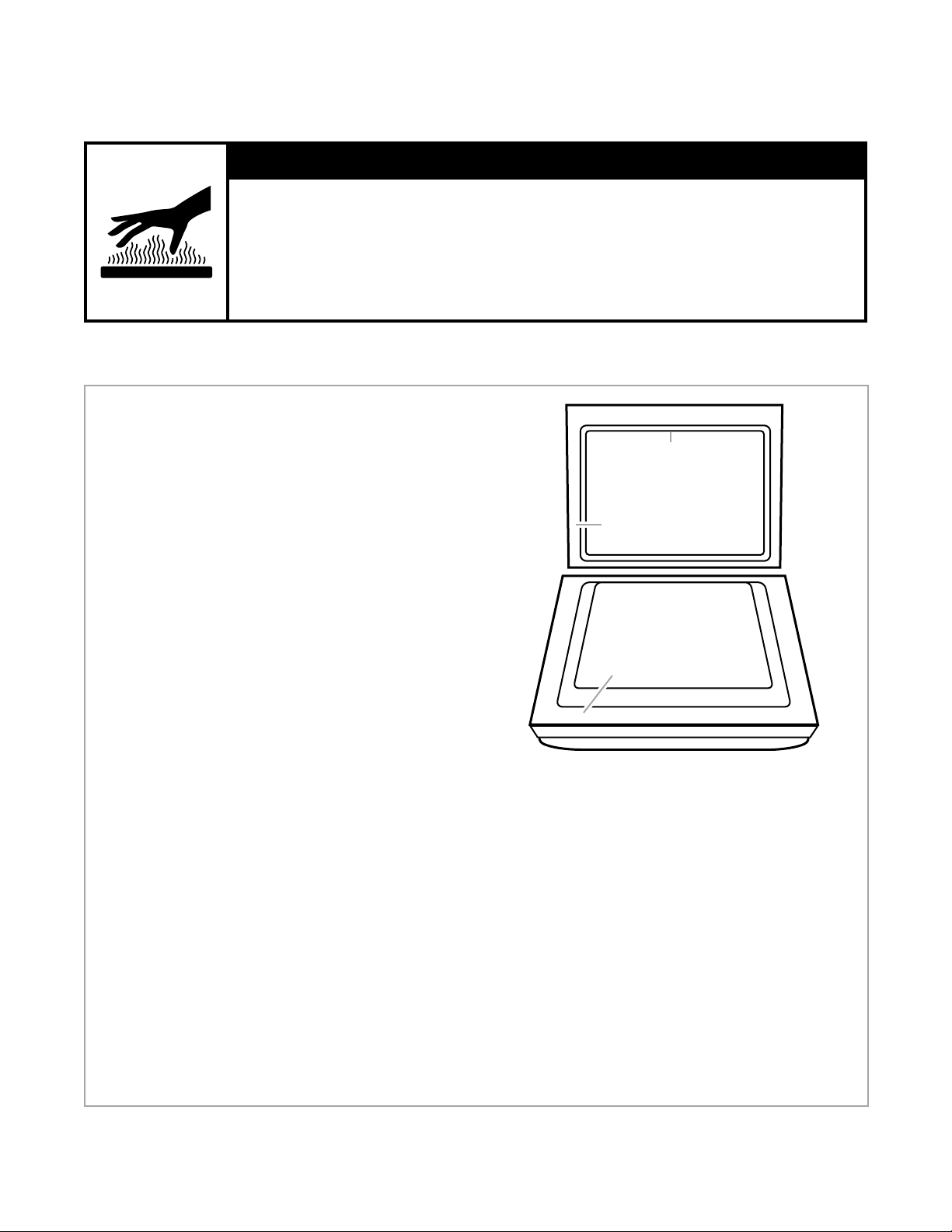

Hand-clean the areas shown. They do not get hot
•
enough during the Self-Cleaning cycle for soil to burn away. Use hot water and detergent or a soapy, steel-wool pad for cleaning.
NOTE: DO NOT clean, move, or bend the gasket. You may get poor cleaning, baking, and roasting.
Do not let water, cleaner, etc.,enter slots on door
•
and frame. Remove the broiler pan and grid and any
•
cookware/bakeware being stored in the oven. Wipe out any loose soil or grease. This will help
•
reduce smoke during the Self-Cleaning cycle. Wipe up food spills containing sugar as soon as
•
possible after the oven cools down. When sugar is heated to a high temperature in the Self­Cleaning cycle, the high temperature can cause the sugar to burn and react with the porcelain. This can cause staining and etching or pitting.
Remove the oven racks from the oven if you want
•
them to remain shiny. You can clean the oven racks in the Self-Cleaning cycle, but they will become harder to slide. (See the “Cleaning chart” in the “Caring for Your Range” section.) If you clean the racks in the Self-Cleaning cycle, place them on the 2nd and 4th rack guides. (The guides are counted from bottom to top.)
Heat and odors are normal during the Self-
•
Cleaning cycle. Keep the kitchen well ventilated by opening a window or by turning on a vent hood or other kitchen vent during the cycle.
IMPORTANT: The health of some birds is ex­tremely sensitive to the fumes given off during the Self-Cleaning cycle. Move birds to another closed and well ventilated room.
TIPS:
Keep the kitchen well ventilated during the Self-
•
Cleaning cycle to help get rid of heat, odors, and smoke.
Clean the oven before it gets heavily soiled.
•
Cleaning a very soiled oven takes longer and results in more smoke than usual.
Do not block the vent during the Self-Cleaning
•
cycle. Air must move freely for best cleaning results. Do not leave plastic utensils on the cooktop. They
•
may melt. Do not leave any foil in the oven during the Self-
•
Cleaning cycle. Foil could burn or melt and damage the oven surface.
The oven light will not work during the Self-
•
Cleaning cycle.
DO NOT hand-clean gasket
Hand-clean frame
Hand-clean door around edge
27
Page 28
USING THE SELF-CLEANING CYCLE
SETTING THE CONTROLS (MODEL FES330G)
1. Set the oven control knob to CLEAN.
The door will lock itself within 6 seconds. If the door has a problem locking, it will try to lock itself for 1 minute. If the door fails to lock, the Self­Cleaning cycle will cancel. An error code will be displayed.
NOTE: Do not attempt to open the door while in the locking mode.
2. Set the cleaning time (optional).
Press the “up” (s) or “down” (t) pad(s) to select a clean time between 2 hours, 30 minutes and 4 hours, 30 minutes.
NOTE: The Self-Cleaning cycle will automatically set a 31/2 hour cycle unless a different time is selected.
3. During the last 30 minutes of the Self-Cleaning
cycle the oven will start to cool down.
Once the oven goes below the locked temperature:
PUSH AND TURN
E
L
A
N
C
L
I
O
R
B
F
F
O
M
R
A
W
0
2
0
5
2
0
YOU SEE
OVEN ON light goes
5
0
0
4
5
0
4
0
0
3
5
0
3
0
0
on. DOOR LOCKED/ CLEANING light flashes until you close door, then is solid. HEATING light goes on when oven starts heating.
PRESS
YOU SEE
OVEN ON and DOOR LOCKED/CLEANING lights are on. HEATING light goes off and COOL appears in display.
YOU SEE
4. Turn the oven control knob to OFF.
5. After the oven is cool, wipe off any residue or ash
with a damp cloth or sponge. If needed, touch up spots with a mild abrasive
cleanser or cleaning sponge.
OVEN ON light flashes. DOOR LOCKED/ CLEANING light goes out when door unlocks.
TURN YOU SEE
F
F
O
M
R
A
W
0
0
2
0
5
2
0
0
3
0
5
3
B
R
O
I
L
C
L
E
A
N
5
0
0
4
5
0
0
0
4
OVEN ON light goes out and time of day appears in display.
28
Page 29
SETTING THE CONTROLS (MODEL FES330G) (CONT.)
USING THE SELF-CLEANING CYCLE
To stop the self-cleaning cycle at any time:
TURN YOU SEE
Turn the oven control knob to OFF.

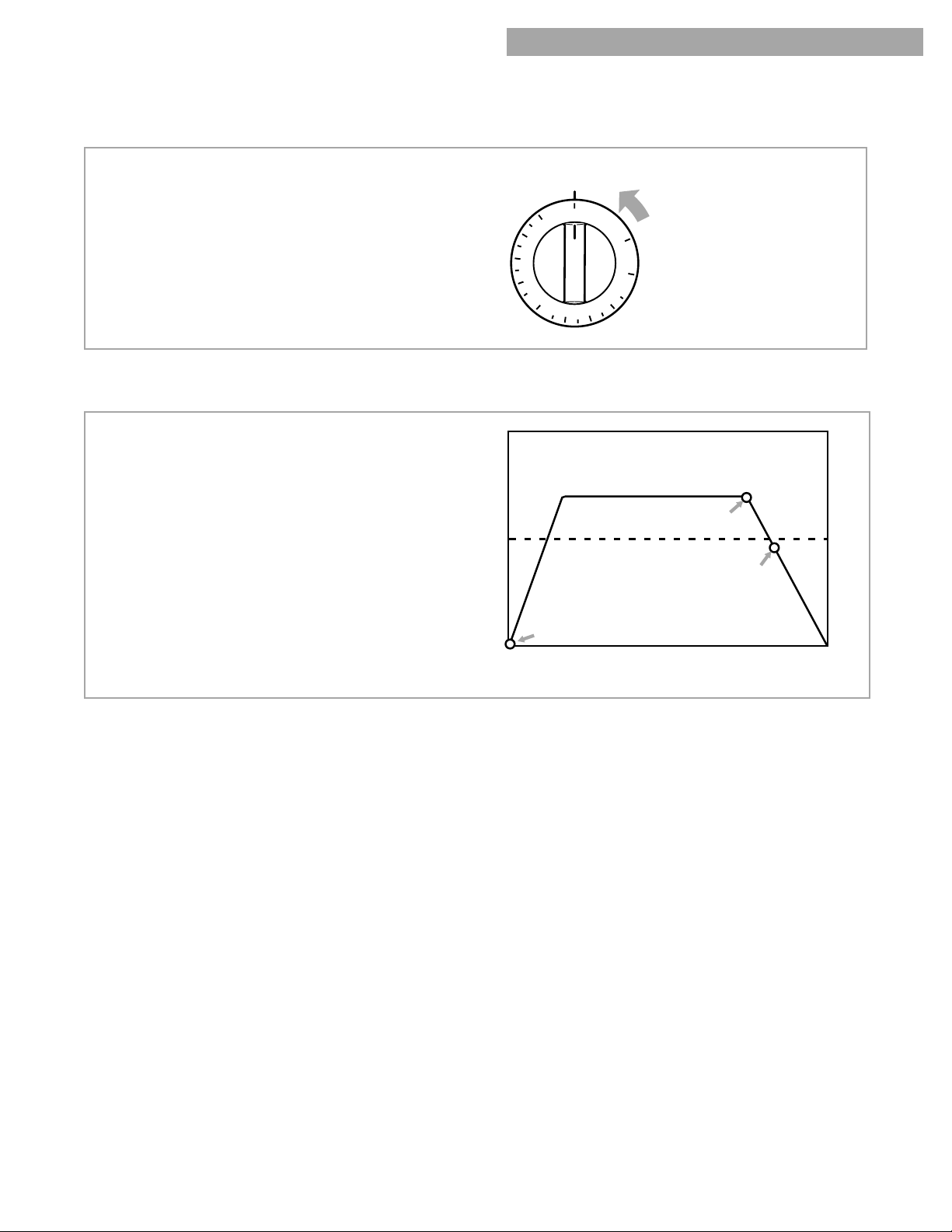

HOW THE CYCLE WORKS (MODEL FES330G)
The Self-Cleaning cycle uses very high heat to burn away soil and grease. During the cycle, the oven gets much hotter than it does for normal baking or broiling. This high heat breaks up the soil or grease and burns it away.
Your oven is automatically preset for a 31⁄2-hour Self-Cleaning cycle.
The graph at the right shows you what happens in a 31⁄2-hour Self-Cleaning cycle. Notice that the heating stops 1⁄2 hour before the 31⁄2-hour setting is up.
T emperature
START 11 2 3 STOP
F
F
O
M
R
A
W
0
0
2
0
5
2
0
0
3
0
5
3
DOOR LOCKS
B
R
O
I
L
A
N
5
0
0
4
5
0
0
0
4
CLEANING CYCLE
( normal broiling temperature )
Time In Hours
C
L
E
875°F ( 468°C )
OVEN SHUT OFF
DOOR UNLOCKS
DOOR LOCKED/ CLEANING light stays on. COOL appears in display until oven goes below locking temperature.
29
Page 30

CARING FOR YOUR RANGE

wWARNING
Explosion Hazard
Do not store flammable materials such as gasoline near this appliance. Doing so can result in death, explosion, or fire.

CLEANING CHART

Before cleaning, always make sure all controls are off and the range is cool. Refer to instructions on all cleaning products before using them to clean your range.
PART CLEANING METHOD SPECIAL INSTRUCTIONS Control Knobs
Soap and water
•
Dishwasher
•
• DO NOT use steel wool or
abrasive cleaners.
• Pull knobs straight away from
control panel.
• Wash, rinse and dry with soft
cloth.
Control Panel
Exterior Surfaces*
(excluding control panel and oven door glass)
Soap and water
•
Spray glass cleaner
•
Soap and water
•
Mild liquid cleaner
•
Spray glass cleaner
•
• Wash, rinse and dry with soft
cloth.
• Apply spray cleaner to paper
towel, do not spray directly on panel.
• DO NOT use abrasive or harsh
cleaners like chlorine bleach, ammonia or oven cleaners.
• Wash, rinse and dry with soft
cloth.
Non-abrasive plastic scrubbing pad
•
Coil Elements • DO NOT clean or immerse in
• Gently clean around the model
and serial plate; too much scrubbing could remove the numbers.
water. Spatters and spills will burn off.
Chrome reflector bowls*
Light to moderate soil
•
Heavy to burned-on soils
•
*When the cooktop is cool, remove all spills and clean. Food spills containing acids, such as vinegar and tomato, may affect the finish.
30
Soap and water
•
Non-abrasive plastic scrubbing pad
•
Dishwasher
•
Solution of 1/2 cup ammonia to
•
1 gallon water
Non-abrasive plastic scrubbing pad
•
Mild abrasive powdered cleanser
•
or commercial oven cleaner
• Wash, rinse and dry with soft
cloth.
• Soak bowls for 20 minutes, then
scrub with plastic pad.
Page 31
CLEANING CHART (CONT.)
PART CLEANING METHOD SPECIAL INSTRUCTIONS Surface under cooktop
Light to moderate soil
•
Heavy soils
•
Soap and water
•
Soapy steel wool pad
•
• Wash, rinse and dry with soft cloth.
• Rinse thoroughly and dry.
CARING FOR YOUR RANGE
Oven door glass
(Models FEP320G, FEP330G and FES330G)
Oven cavity
(Models FEP310G, FEP320G and FEP330G)
Food spills containing
•
sugar and/or milk
Heavily soiled areas
•
Soap and water
•
Non-abrasive plastic scrubbing
•
pad
Spray glass cleaner
•
Soap and water
•
Steel wool pad
•
Commercial oven cleaner
•
• Wash, rinse and dry with soft cloth.
• Wipe with paper towel.
When oven cools, wash, rinse and dry with
•
soft cloth.
Wipe with clean water and dry well.
•
•
Follow the directions that come with the oven cleaner. (Place newspaper on the floor to protect the floor surface.) Wipe well with clean water and dry.
NOTES:
•
Use oven cleaners in a well-ventilated room.
•
Do not let commercial oven cleaners contact the gasket, thermostat, or exterior surfaces of the range. This will cause damage.
•
For easier cleaning, you can remove the oven door. Carefully follow the instructions in the “Removing the oven door” section.
Oven cavity
(Model FES330G)
Food spills containing
•
sugar and/or milk
All other spills
•
Oven racks
(Models FEP310G, FEP320G and FEP330G)
Oven racks
(Model FES330G)
Broiler pan and grid
Soap and water
•
Self-cleaning cycle
•
Soap and water
•
Steel wool pad
•
Soap and water
•
Steel wool pad
•
Self-cleaning cycle
•
Soap and water
•
Steel wool pad
•
Dishwasher
•
Solution of 1/2 cup ammonia to
•
1 gallon water
Mildly abrasive cleanser or
•
commercial oven cleaner
When oven cools, wash, rinse and dry with
•
soft cloth or sponge.
See the “Using the self-cleaning cycle” section.
•
Wash, rinse and dry.
•
Wash, rinse and dry.
•
Place on 2nd and 4th rack guides. Racks
•
will discolor and become harder to slide. After cleaning, apply vegetable oil to rack guides for easier sliding.
Wash, rinse and dry.
•
Soak for 20 minutes, then scrub with plastic
•
scrubbing pad.
31
Page 32
CARING FOR YOUR RANGE

COIL ELEMENTS AND REFLECTOR BOWLS

Removing
1. Make sure all coil elements are off and
cool before removing coil elements and reflector bowls.
2. Push in the edge of the coil element, opposite the
receptacle. Then lift it just enough to clear the reflector bowl.
3. Pull the coil element straight away from
the receptacle.
OFF
BAKE
BAKE
4. Lift out the reflector bowl. See the “Cleaning
chart” earlier in this section for cleaning instructions.
Replacing
1. Make sure all coil elements are off and cool
before replacing coil elements and reflector bowls.
OFF
BAKE
BAKE
32
Page 33
COIL ELEMENTS AND REFLECTOR BOWLS (CONT.)
2. Line openings in the reflector bowl with the coil
element receptacle.
3. Hold the coil element as level as possible with
the terminal just started into the receptacle. Push the coil element terminal into the receptacle.
CARING FOR YOUR RANGE
4. When the terminal is pushed into the receptacle
as far as it will go, push down the edge of the coil element opposite the receptacle.
NOTE: Reflector bowls reflect heat back to the cookware on the coil elements. They also help catch spills. When they are kept clean, they reflect heat better and look new longer.

LIFT-UP COOKTOP

NOTE: Do not drop the cooktop. Damage could result to the porcelain and the cooktop frame.
1. Lift the front of the cooktop at both front corners
until the support rods lock into place.
2. Wipe the surface under the cooktop with warm,
soapy water and a sponge. Use a soapy steel­wool pad on heavily soiled areas.
3. To lower the cooktop, lift the cooktop from both
sides while pressing the support rods back to unlock them. Lower the cooktop into place.
If a reflector bowl changes color, some of your cookware may not be flat enough, or some may be too large for the coil element. In either case, some of the heat that is meant to go into or around cookware goes down and heats the reflector bowl. This extra heat can cause it to change color.
33
Page 34
CARING FOR YOUR RANGE

REMOVING THE OVEN DOOR

For normal use of your range, you do not need to remove the door. However, if you find it necessary to remove the door, follow the instructions in this section.
NOTE: The oven door is heavy. Before removing the door:
1. Use a putty knife or screwdriver and insert it at
the bottom corner of the door stop clip.
2. Pry door stop clip free and remove from front
frame hinge slot. Take care not to scratch porcelain.
3. Repeat procedure for other door stop clip.
Door removal pin hole
Door stop clip
Range
To remove:
1. Open the oven door. Insert door removal pins,
included with your range, into both hinge hangers. Do not remove
the pins while the door is removed from the range.
2. Carefully close the door until it rests against the
door removal pins.
To replace:
NOTE: The door removal pins you inserted must still be in both hinges.
Hinge hanger
Front frame hinge slot
3. Grasp the door on the sides with your fingers on
the front of the door and your thumbs on the inside surface.
4. Pull door straight up, then toward you. Hinge
hangers will slide out of front frame hinge slot.
1. Grasp the door on the sides with your fingers
on the front of the door and your thumbs on the inside surface.
34
Page 35
REMOVING THE OVEN DOOR (CONT.)
CARING FOR YOUR RANGE
2. Hold oven door so that the top edge of each
hinge hanger is horizontal. Insert hinge hangers into the front frame hinge slots.
3. Rotate top of door toward range. Slide hinge
hangers down onto front frame support pins.
NOTE: Make sure the hinge hangers are fully seated and engaged on the support pins.
4. Insert the door stop clip with the angular surface
at the top of the frame hinge slot, then push in the bottom of the clip until flanges are flush with the front frame.
5. Open the door completely and remove the door
removal pins. Save door removal pins for future use.
6. Close the door.
Door stop clip
Door removal pin hole
Door removal pin hole
Range
Hinge hanger
Support pins
Front frame hinge slot
Angular surface of door stop clip
35
Page 36

TROUBLESHOOTING

Most cooking problems often are caused by little things you can find and fix without tools of any kind. Check the lists below and on the next page before calling for assistance or service. If you still need help, see “Requesting Assistance or Service” on page 37.
RANGE DOES NOT WORK
PROBLEM
Nothing works
The oven does not work
The coil elements will not work
CAUSE
The range is not plugged into a properly grounded live outlet with the proper
•
voltage. (See Installation Instructions.) You have blown a household fuse or tripped a circuit breaker.
•
The control knob is not set correctly. Push in the control knobs before
•
turning them.
You have not turned the oven temperature control knob to a temperature
•
setting. You have not set the oven selector to BAKE or BROIL (Models FEP310G,
•
FEP320G, FEP330G).
You have blown a household fuse or tripped a circuit breaker.
•
The coil elements are not plugged in all the way (See “Replacing” on
•
page 31.) You have not set the control knobs correctly. Push the control knobs in
•
before turning them to a setting.
WHEN SELF-CLEANING YOUR OVEN (MODEL FES330G)
PROBLEM
CAUSE
The Self-Cleaning cycle will not work
36
You did not turn the oven control knob to CLEAN.
•
The door is not closed all the way.
•
Page 37
COOKING RESULTS
PROBLEM SOLUTION
TROUBLESHOOTING
Cookware not level on cooktop (Check to see if liquids
are level in cookware) Excessive heat on cooktop
in areas around cookware The oven temperature
seems too low or too high Slow baking or roasting
Baked items too brown on bottom
Unevenly baked items
Crust edge browns before pie is done
Level the range. (See the Installation Instructions.)
•
Insert coil correctly.
•
Use cookware with a flat bottom.
•
Choose cookware the same size or slightly larger than the element.
•
Adjust the oven temperature control. (See “Adjusting the oven temperature
•
control” section.)
Increase baking or roasting time.
•
Increase temperature 25° F.
•
Preheat oven to selected temperature before placing food in when
•
preheating is recommended.
Choose bakeware that will allow 2 inches of air space around all sides.
•
Open oven door to check food when timer signals shortest time suggested
•
in recipe.
Oven peeking can make cooking times longer.
•
Preheat oven to selected temperature before placing food in oven.
•
Choose bakeware that will allow 2 inches of air space around all sides.
•
Position rack higher in oven.
•
Decrease oven temperature 15° to 25° F.
•
Level the range.
•
Bake in center of oven with 2 inches of space around each pan.
•
Check to make sure batter is level in pan.
•
Shield edge with foil.
•
INDICATOR LIGHTS FLASH (MODEL FES330G)
PROBLEM
The oven on and heating indicator lights flash
The heating and door locked/cleaning indica­tor lights flash
If none of these items are causing your problem, see “Requesting Assistance or Service” on page 37.
CAUSE
You cannot bake, broil, or clean. Call for service. (See “If You Need Assis-
•
tance or Service” on page 37.)
The door lock has failed. Call for service. (See “If You Need Assistance or
•
Service” on page 37.)
37
Page 38

REQUESTING ASSISTANCE OR SERVICE

To avoid unnecessary service calls, please check the “Troubleshooting” section. It may save you the cost of a service call. If you still need help, follow the instructions below.
IF YOU NEED ASSISTANCE OR SERVICE
Call our Consumer Assistance Center at
1-616-923-7113. Our consultants
are available to assist you.
When calling: Please know the purchase date, and
the complete model and serial number of your appliance (see the “A Note to You” section). This information will help us better respond to your request.
Our consultants provide assistance with:
Features and specifications on our full line
•
of appliances Installation information
•
Use and maintenance procedures
•
IF YOU NEED REPLACEMENT PARTS
If you need to order replacement parts, we recom­mend that you only use FSP® factory authorized parts. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new ROPER® appliance.
Accessory and repair parts sales
•
Specialized customer assistance (Spanish speak-
•
ing, hearing impaired, limited vision, etc.) Referrals to local dealers, service companies, and
•
repair parts distributors
To locate an authorized service company in your area, you can also look in your telephone directory Yellow Pages.
To locate FSP replacement parts in your area, call our Consumer Assistance Center telephone number or your nearest authorized service center.
FOR FURTHER ASSISTANCE
If you need further assistance, you can write to us with any questions or concerns at:
Roper Brand Home Appliances Consumer Assistance Center c/o Correspondence Dept. 2000 North M-63 Benton Harbor, MI 49022-2692
38
Please include a daytime phone number in your correspondence.
Page 39

INDEX

TOPIC PAGE
ANTI-TIP BRACKET ................................................... 25
ASSISTANCE .............................................................38
BAKING
Aluminum foil .......................................................... 13
Bakeware................................................................ 12
Pans ....................................................................... 12
Racks................................................................ 11, 12
Setting cycle (Model FES330G) ...................................... 15, 16
Setting cycle (Models FEP310G, FEP320G and FEP330G) .. 16, 17
Tips ................................................................... 16, 17
BROILING
Grid...................................................................20, 22
Guidelines............................................................... 24
Pan ............................................................. 20, 22, 24
Rack positions ........................................................ 24
Setting cycle (Model FES330G) .................................... 20, 21
Setting cycle (Models FEP310G, FEP320G and FEP330G) .. 22, 23
CLEANING
Broiler pan and grid ................................................ 31
Coil elements .............................................. 30, 32, 33
Control knobs ......................................................... 30
Control panel ..........................................................30
Exterior surfaces .................................................... 30
Oven cavity ............................................................. 31
Oven door glass ..................................................... 31
Oven racks ............................................................. 31
Reflector bowls ..........................................30, 32, 33
Self-cleaning cycle (Model FES330G) ...................27, 28, 29
Surface under cooktop........................................... 31
COIL ELEMENTS
Coil element marker ............................................. 6-8
Control knobs ....................................................... 6-9
Control setting guide ................................................ 9
Surface heating indicator light ............................. 7-8
TOPIC PAGE
ELECTRONIC TIME-OF-DAY CLOCK/TIMER
(MODELS FEP330G and FES330G)
Clock ...................................................................... 14
Display .................................................................... 13
Timer ................................................................ 14, 15
FEATURES ............................................................... 6-8
LIFT-UP COOKTOP ................................................... 33
MODEL AND SERIAL NUMBER .................................. 2
OVEN DOOR ........................................................ 34, 35
OVEN TEMPERATURE
Adjusting .......................................................... 18, 19
Setting (Model FES330G) ................................................ 15, 21
Setting (Models FEP310G, FEP320G and FEP330G) ..... 17, 23
OVEN VENT ............................................................... 25
PANS..........................................................................12
PARTS...................................................................... 6-8
RACKS .................................................................11, 12
ROASTING
Pans ....................................................................... 12
Racks................................................................ 11, 12
Setting cycle (Model FES330G) .................................... 15, 16
Setting cycle (Models FEP310G, FEP320G and FEP330G) .. 16, 17
Tips ................................................................... 16, 17
SAFETY .................................................................... 3-5
SELF-CLEANING CYCLE (MODEL FES330G)
Before you start ......................................................27
How the cycle works ..............................................29
Setting the controls ................................................28
Tips ......................................................................... 27
SERVICE .................................................................... 38
CONTROL PANEL
Coil element marker ............................................. 6-8
Control knobs ........................................................... 9
Oven on indicator light ......................................... 6-8
Surface heating indicator light .............................7, 8
COOKWARE
Canning .................................................................. 10
Materials .................................................................11
Tips ......................................................................... 10
STORAGE DRAWER ..................................................26
TROUBLESHOOTING ..........................................36, 37
WARRANTY ............................................................... 40
39
Page 40

WARRANTY

ROPER® ELECTRIC RANGE
LENGTH OF WARRANTY FULL ONE-YEAR
WARRANTY
FROM DATE OF PURCHASE
WE WILL NOT PAY FOR A. Service calls to:
1. Correct the installation of your range.
2. Instruct you how to use your range.
3. Replace house fuses or correct house wiring.
4. Replace owner-accessible light bulbs.
B. Repairs when your range is used in other than normal, single-family household use. C. Pickup and delivery. Your range is designed to be repaired in the home. D. Damage to your range caused by accident, misuse, fire, flood, acts of God, or use of products not
approved by us.
E. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
THIS ROPER APPLIANCE IS WARRANTED BY WHIRLPOOL CORPORATION. UNDER NO CIRCUM­STANCES SHALL IT BE LIABLE UNDER THIS WARRANTY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please contact your authorized Roper dealer.
If you need service, first see the “Troubleshooting” section of this book. After checking “Troubleshooting,” additional help can be found by checking the “Requesting Assistance or Service” section or by calling 1-616­923-7113 from anywhere in the U.S.A.
WE WILL PAY FOR
FSP® replacement parts and repair labor to correct defects in materials or workmanship. Service must be provided by an authorized Roper service company.
3/98
PART NO. 8053404
© 1998 Whirlpool Corporation
® Registered Trademark of Whirlpool, U.S.A.
Printed in U.S.A.
4/98
