Use&Care
Self-Cleaning
And
Standard-Cleaning
Electric Ranges
A Note to You............2
Range Safety ........ 3-5
Getting to Know
Your Range ...............6
Using Your
Range .....................10
Using the Self-
Cleaning Cycle........29
Caring for Your
Range .....................32
Troubleshooting......42
Requesting
Assistance or
Service....................44
Index.......................47
Warranty .................48
1-800-44-ROPER
Call us with questions or comments.
MODELS FEP310E, FEP320E, FEP330E,
PART NO. 3196280 Rev. B
FES330E, FES364E
Page 2
A NOTE TO YOU
Thank you for buying a ROPER® appliance.
Your ROPER range gives you all the functionality of name brand appliances at a value price. To ensure that you
enjoy years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable information
about how to operate and maintain your appliance properly and safely. Please read it carefully.
Also, complete and mail the Product Registration Card provided with your appliance. The card helps
us notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service for your appliance, you need to know your complete model number
and serial number. You can find this information on the
model and serial number plate (see the diagrams on
pages 6-9 for the location of the plate). Also, record
the other information shown in the next column.
Keep this book and the sales slip together in a safe place for future reference.
Model Number __________________________________
Serial Number ___________________________________
Purchase Date __________________________________
Dealer Name ____________________________________
Dealer Address__________________________________
Dealer Phone ___________________________________
Our Consumer Assistance Center number is toll-free.
1-800-44
(1
800-447-6737)
-
ROPER
-
2
Page 3
RANGE SAFETY
Your safety is important to us.
This guide contains safety statements under warning
symbols. Please pay special attention to these symbols
and follow any instructions given. Here is a brief
explanation of the use of the symbol.
IMPORTANT SAFETY INSTRUCTIONS
wWARNING
General
Read all instructions before using
•
the range.
Install or locate the range only in accor-
•
dance with the provided Installation
Instructions. The range must be installed
by a qualified installer. The range must
be properly connected to electrical
supply and grounded.
To reduce the risk of fire, electrical shock, injury
to persons, or damage when using the range,
follow basic precautions, including the following:
Do not use the range for warming or
•
heating the room. Persons could be
burned or injured, or a fire could start.
Use the range only for its intended use
•
as described in this manual.
This symbol alerts you to hazards such
as fire, electrical shock, or other injuries.
WARNING: To reduce the risk of tipping
•
the appliance, the appliance must be
secured by a properly installed anti-tip
bracket. To check if the bracket is
installed properly, see “The anti-tip
bracket” on page 27.
CAUTION: Do not store things children
•
might want above the range. Children
could be burned or injured while climbing on it.
Do not leave children alone or unat-
•
tended in area where the range is in use.
They should never be allowed to sit or
stand on any part of the range. They
could be burned or injured.
Do not operate the range if it is
•
damaged or not working properly.
Do not touch surface units, areas near
•
units, heating elements, or interior
surfaces of oven. Surface units and
heating elements may be hot even
though they are dark in color. Areas
near surface units and interior surfaces
of an oven become hot enough to
cause burns. During and after use, do
not touch or let clothing or other flammable materials contact surface units,
areas near units, heating elements, or
interior surfaces of oven until they have
had sufficient time to cool. Other surfaces of the range, such as the oven
vent opening, the surface near the vent
opening, the cooktop, and the oven
door, could also become hot enough to
cause burns.
continued on next page
3
Page 4
RANGE SAFETY
Do not wear loose or hanging garments
•
when using the range. They could ignite
if they touch a hot surface unit and you
could be burned.
Use only dry pot holders. Moist or damp
•
pot holders on hot surfaces could result
in burns from steam. Do not let pot
holder touch hot heating elements. Do
not use a towel or bulky cloth for a pot
holder. It could catch on fire.
Keep range vents unobstructed.
•
Do not heat unopened containers. They
•
could explode. The hot contents could
cause burns and container particles
could cause injury.
Use only cookware approved for oven
•
use. Follow cookware manufacturer’s
instructions, especially when using glass
or plastic cookware.
Do not store flammable materials on or
•
near the range. The fumes could create
an explosion and/or fire hazard.
When using the cooktop
Ceramic glass cooktop model: Do not
•
cook on a broken cooktop. If the cooktop should break, cleaning solutions and
spillovers could penetrate the broken
cooktop and create a risk of electrical
shock. Contact a qualified technician
immediately.
Coil element cooktop models: Make sure
•
the reflector bowls are in place during
cooking. Cooking without reflector bowls
could subject the wiring and components underneath them to damage.
Coil element cooktop models: Do not
•
line reflector bowls with aluminum foil
or other liners. Improper installation of
these liners could result in a risk of
electric shock or fire.
Select a pan with a flat bottom that is
•
about the same size as the surface unit.
If pan is smaller than the surface unit,
some of the heating element will be exposed and could result in the igniting of
clothing or pot holders. Correct pan size
also improves cooking efficiency.
Check to be sure glass cookware is safe
•
for use on the range. Only certain types
of glass, glass-ceramic, ceramic, earthenware, or other glazed cookware are
suitable for cooktops without breaking due
to the sudden change in temperature.
Never leave surface units unattended at
•
high heat settings. A boilover could result
and cause smoking and greasy spillovers
that could ignite.
Turn pan handles inward, but not over
•
other surface units. This will help reduce
the chance of burns, igniting of flammable
materials, and spills due to bumping of
the pan.
4
Page 5
When using the oven
Always position oven rack(s) in desired
•
location while oven is cool. If a rack must
be removed while oven is hot, do not let
pot holder contact hot heating elements
in oven.
Use care when opening oven door. Let
•
hot air or steam escape before removing
or replacing food.
Grease
Grease is flammable. Do not allow
•
grease to collect around cooktop or in
vents. Wipe spillovers immediately.
Do not use water on grease fires. Never
•
pick up a flaming pan. Smother flaming
pan on range by covering with a wellfitting lid, cookie sheet, or flat tray.
Flaming grease outside of pan can be
extinguished with baking soda or, if
available, a multipurpose dry chemical or
foam-type extinguisher.
Care and cleaning
Small amounts of formaldehyde and
•
carbon monoxide are given off in the
Self-Cleaning cycle from fiberglass
insulation and food decomposition.
Significant exposure to these substances
could cause cancer or reproductive
harm. Exposure can be minimized by
venting with a hood or open window and
wiping out excess food spills prior to
self-cleaning.
– SAVE THESE INSTRUCTIONS –
RANGE SAFETY
Do not use oven cleaners. No commer-
•
cial oven cleaner or oven liner protective
coating of any kind should be used in or
around any part of the oven.
Before self-cleaning the oven, remove
•
broiler pan, broiler grid, oven racks, and
other cookware. Do not use your oven to
clean miscellaneous parts unless you
are instructed to do so in this Use and
Care Guide.
Coil element cooktop models: Do not
•
soak removable heating elements in
water. The elements will be damaged
and shock or fire could result.
Ceramic glass cooktop model: Clean
•
cooktop with care. Some cleaners could
produce noxious fumes if applied to a
hot surface. If a wet soft cloth is used to
wipe spills on a hot cooking area, be
careful to avoid steam burns.
Do not clean door heat seal. It is
•
essential for a good seal. Care should
be taken not to rub, damage, or move
the seal. Clean only parts recommended
in this Use and Care Guide.
Do not repair or replace any part of the
•
range unless specifically recommended
in this manual. All other servicing should
be referred to a qualified technician.
Disconnect the electrical supply before
•
servicing the range.
5
Page 6
GETTING TO KNOW YOUR RANGE
This section contains captioned pictures of your range. Use them to learn where all parts and
features are and what they look like. Use the page references to help you quickly find out more
about the part or feature you are interested in.
(Model FES364E shown)
F
F
L
O
O
I
F
F
L
H
O
O
I
Oven vent
(p. 26)
Ceramic glass
cooktop
(pp. 12, 37, 38)
Anti-tip bracket
(p. 27)
Model and
serial number
plate
(behind left side
of storage drawer)
12
11
OFF
0
10
F
F
O
L
O
I
F
F
H
O
L
O
I
H
PUSH TO TURN
REAR
1010
9
2020
8
7
FRONT
OVEN ON
1
(TURN OFF OVEN WHEN FLAWHEN FLASHING)
2
6060
OVEN HEATING
5050
3
DOOR LOCKED / CLEANING
(CLOSE DOOR (CLOSE DOOR WHEN FLAWHEN FLASHING)
4040
4
3030
5
6
SURFACE HEATING
H
NT
REAR
FRO
PUSH TO TURN
Control panel
(pp. 10, 32)
HOHOT SURFT SURFACECE
Automatic oven
light switch
(p. 41)
Broil element
(not shown)
(p. 21)
Bake element
(p. 17)
Removable
storage drawer
(p. 28)
CONTROL PANEL
F
F
F
O
I
H
FRONT
Left front
control knob
6
L
O
PUSH TO TURN
F
O
L
O
I
H
REAR
Left rear
control knob
Clock/minute
timer
12
1
11
OFF
60
0
2
10
50
10
3
9
40
20
4
8
30
5
7
6
Oven control
knob
OVEN ON
(TURN OFF OVEN WHEN FLASHING)
OVEN HEATING
DOOR LOCKED/CLEANING
(CLOSE DOOR WHEN FLASHING)
SURFACE HEATING
Indicator lights
(show you what
your range is doing)
Surface unit marker
(shows which surface
unit you are setting)
F
F
F
O
M
R
C
A
L
W
E
A
0
N
0
2
0
5
2
B
R
O
I
L
0
0
3
5
0
0
0
5
4
3
5
0
0
0
4
F
O
L
O
I
H
REAR
PUSH TO TURN
Right rear
control knob
F
F
O
L
O
I
H
FRONT
Right front
control knob
Page 7
O
F
F
L
O
H
I
O
F
F
L
O
H
I
PUSH TO TURN
PUSH TO TURN
REAR
FRO
NT
O
F
F
L
O
H
I
O
F
F
L
O
H
I
REAR
FRONT
12
11
10
9
8
7
6
5
4
3
2
1
OFF
0
1010
2020
3030
4040
5050
6060
OVEN ON
OVEN HEATING
DOOR LOCKED / CLEANING
(TURN OFF OVEN WHEN FLAEN WHEN FLASHING)
(CLOSE DOOR WHEN FLA(CLOSE DOOR WHEN FLASHING)
SURFACE HEAACE HEATING
(Model FES330E shown)
Oven vent
(p. 26)
Plug-in surface
unit with one-piece
reflector bowl
(pp. 10, 32, 34)
Anti-tip bracket
(p. 27)
Model and
serial number
plate
(behind left side
of storage drawer)
GETTING TO KNOW YOUR RANGE
Control panel
(pp. 10, 32)
Door switch
Broil element
(not shown)
(p. 21)
Bake element
(p. 17)
Removable
storage drawer
(p. 28)
CONTROL PANEL
Surface unit marker
Oven control
knob
OVEN ON
OVEN HEATING
SURFACE HEATING
(shows which surface
unit you are setting)
F
F
F
O
M
R
C
A
L
W
E
A
0
N
0
2
0
5
2
0
B
R
O
I
L
0
3
5
0
0
0
5
4
3
5
0
0
0
4
F
O
L
O
I
H
REAR
PUSH TO TURN
Right rear
control knob
F
F
O
L
O
I
H
FRONT
Right front
control knob
F
F
O
L
O
I
H
FRONT
PUSH TO TURN
Left front
control knob
F
F
O
L
O
I
H
REAR
Left rear
control knob
Clock/minute
timer
12
1
11
OFF
60
0
2
10
50
10
3
9
40
20
4
8
30
5
7
6
(TURN OFF OVEN WHEN FLASHING)
DOOR LOCKED/CLEANING
(CLOSE DOOR WHEN FLASHING)
Indicator lights
(show you what
your range is doing)
7
Page 8
GETTING TO KNOW YOUR RANGE
(Model FEP330E shown)
Oven vent
(p. 26)
OVEN ON
F
F
B
R
O
O
I
L
5
0
F
F
O
0
4
B
12
1
11
OFFOFF
2
60
0
10
5050
3
F
F
O
L
O
I
F
F
H
O
L
O
I
H
PUSH TO TURN
REAR
10
9
40
4
20
30
8
5
7
FRONT
6
5
H
0
0
R
I
5
1
O
4
E
0
I
0
L
0
K
A
B
SURFACE
0
2
HEATING
3
5
0
0
5
2
3
0
0
O
I
F
F
L
H
O
O
I
H
REAR
FRONT
PUSH TO TURN
F
F
L
O
Plug-in surface
unit with one-piece
reflector bowl
(pp. 10, 32, 34)
Anti-tip bracket
(p. 27)
Model and
serial number
plate
(behind left side
of storage drawer)
Removable
storage drawer
(p. 28)
Control panel
(pp. 10, 32)
Broil element
(not shown)
(p. 23)
Bake element
(p. 18)
CONTROL PANEL
F
F
F
O
L
I
H
FRONT
Left front
control knob
8
O
PUSH TO TURN
F
O
L
O
I
H
REAR
Left rear
control knob
Clock/minute
timer
11
10
10
9
20
8
7
Oven
selector
12
1
OFF
60
0
2
50
3
40
4
30
5
6
Temperature
control knob
F
F
O
E
K
A
B
Surface heating
indicator light
(lights up when a
surface unit is on)
Oven on
indicator light
(lights up when
the oven is heating)
F
F
O
B
R
O
I
B
R
O
I
L
L
5
0
0
5
1
0
0
0
4
5
0
2
4
0
0
5
0
2
0
3
0
5
0
3
Right rear
control knob
OVEN ON
SURFACE
HEATING
Surface unit marker
(shows which surface
unit you are setting)
F
F
O
L
O
I
H
REAR
PUSH TO TURN
I
H
Right front
control knob
F
F
O
L
O
FRONT
Page 9
(Models FEP310E and
FEP320E shown)
Oven vent
(p. 26)
GETTING TO KNOW YOUR RANGE
F
F
L
O
O
I
F
F
H
L
O
O
I
H
OVEN ON
F
F
B
R
O
O
I
L
5
0
F
F
0
O
4
B
5
H
0
0
R
I
5
1
O
4
E
0
I
0
L
0
K
0
2
A
F
F
O
L
O
I
F
F
H
O
L
O
I
H
FRONT
PUSH TO TURN
REAR
0
B
5
2
0
REAR
3
5
0
3
0
SURFACE HEATING
FRONT
PUSH TO TURN
Plug-in surface
unit with one-piece
reflector bowl
(pp. 10, 32, 34)
Anti-tip bracket
(p. 27)
Model and
serial number
plate
(behind left side
of storage drawer)
Removable
storage drawer
(p. 28)
Control panel
(pp. 10, 32)
Broil element
(not shown)
(p. 23)
Bake element
(p. 18)
CONTROL PANEL
F
F
F
O
L
O
I
H
FRONT
Left front
control knob
F
O
L
O
I
H
REAR
Left rear
control knob
Oven
selector
Temperature
control knob
F
F
O
B
R
E
O
K
I
L
A
B
Surface heating
indicator light
(lights up when a
surface unit is on)
Oven on
indicator light
(lights up when
the oven is heating)
F
F
O
B
R
O
I
L
5
0
5
1
0
0
0
4
5
0
0
2
4
0
0
5
0
2
0
3
0
5
0
3
OVEN ON
SURFACE HEATI NG
Surface unit marker
(shows which surface
unit you are setting)
F
F
O
L
O
I
H
REAR
Right rear
control knob
F
F
O
L
I
H
PUSH TO TURNPUSH TO TURN
Right front
control knob
O
FRONT
9
Page 10
USING YOUR RANGE
To get the best cooking results, you should use your range the correct way. This section tells
you what you need to know to use your range safely and efficiently.
USING THE SURFACE UNITS
Using the control knobs
Push in the control knobs before turning them to a
setting. You can set
them anywhere between
HI and OFF.
Surface unit heat settings
Use the following chart as a guide.
SETTING
HI
Medium High
Medium
Medium Low
LO
RECOMMENDED USE
To start foods cooking.
•
To bring liquids to a boil.
•
To hold a rapid boil.
•
To fry chicken or pancakes.
•
For gravy, pudding, and icing.
•
To cook large amounts of
•
vegetables.
To keep food cooking after
•
starting it on a higher setting.
To keep food warm until it’s
•
ready to serve.
wWARNING
Fire Hazard
Turn all controls off when done cooking.
Failure to do so can result in death, fire,
or burns.
Energy saving tips
Match the pan to the surface unit size.
•
The pan should have a flat bottom, straight sides,
•
and a well-fitting lid.
To help shorten your cooking time, use the least
•
amount of liquid possible.
Preheat your pans only when recommended and
•
for the shortest time possible.
Start your food on a higher heat setting, then turn
•
the control to a lower setting to finish cooking.
Place a filled pan on the surface unit before
•
turning it on.
Coil element models: Keep your reflector bowls
•
clean for best heat reflection.
10
Page 11
USING THE SURFACE UNITS (CONT.)
USING YOUR RANGE
Cookware tips
Use the correct cookware to prevent damage to
•
the surface unit, cooktop, wiring, and surrounding areas.
If the cookware is too small for the surface unit
•
or the bottom is not flat, the surface unit could
stay glowing red for an extended length of time
causing damage to the unit.
If you start cooking on high, it is important to turn
•
the control down to a lower setting to complete
cooking.
The surface unit could overheat or be damaged
•
if a pot has boiled dry or has been left empty on
a hot surface unit.
Flat bottomed cookware, including woks, can-
•
ners, and teakettles, will provide better contact
with the surface unit and provide the best cooking results.
Warped, dented, and ribbed-bottomed cookware
•
can result in uneven cooking due to incomplete
contact with the surface unit.
Cookware that has been designed with slightly
•
indented bottoms or small expansion channels
can be used.
Choose medium to heavy gauge (thickness)
•
cookware.
The pan material (type of metal or glass) affects
•
how quickly and evenly the pan heats.
Home canning information
To protect your range:
Use flat-bottomed canners/pans for best results.
•
Use the largest surface unit for best results. Also,
•
center over
surface unit
1" 1"
maximum
overhang
Surface
unit
1 inch
Pan
use a canner/pan that
you can center over
the surface unit and
that does not extend
more than one inch
outside the surface unit
area. Large diameter
canners/pans, if not
centered correctly, trap
heat and can cause
damage to the cooktop.
Do not place your canner on 2 surface units at the
•
To keep your elements working for as long as
•
possible:
–Prepare small batches at a time.
–Do not use your elements for canning all day.
On coil element models, keep your reflector bowls
•
clean so that they will always reflect heat well.
Refer to your canner manual for specific
•
instructions.
same time. Too much
heat will buildup and will
damage the cooktop.
Start with hot water.
•
This reduces the time
the control is set on high.
Reduce the heat setting
to the lowest position
needed to keep water
boiling.
Optional canning kit
(Coil element models)
Most water-bath or pressure canners have large
diameters. If you do canning with them at high heat
settings for long periods of time, you can shorten the
life of regular surface units. This can also damage the
cooktop. If you plan to use the cooktop for canning,
we recommend the installation of a Canning Kit.
Order the kit (Part No. 242905) from your Roper
dealer or authorized Roper service company.
11
Page 12
USING YOUR RANGE
USING THE SURFACE UNITS (CONT.)
Using the ceramic glass cooktop
(Ceramic glass cooktop model)
Cooking on the ceramic glass cooktop is similar to
cooking on coil surface
units. There are, however, a few differences:
The cooking surface
•
area will glow red when
the element is turned
on. You will see the
HOTHOT SURF SURFACEACE
temperature setting you chose.
Do not cook foods directly on the cooktop.
•
Do not cook popcorn that comes in prepackaged
•
aluminum containers on the cooktop. The container could leave aluminum marks on the cooktop
that cannot be removed completely.
Lift pots and pans onto and off of the cooktop.
•
Sliding pots and pans on the cooktop could leave
marks that are difficult to remove or could leave
permanent marks.
Dropping a heavy or hard object on the cooktop
•
could crack it. Be careful when using heavy
skillets and large pots. Do not store jars or cans
above the cooktop.
element cycling on and
off – even on the HI
setting – to help the
area stay at the
Do not use the cooktop as a cutting board.
•
Do not allow anything that could melt, such as
•
plastic or aluminum foil, to come in contact with
the cooktop while it is hot.
Sugary spills and soils can cause pitting. See
•
page 37 for more information.
Wiping off the cooktop before and after each use
•
will help keep the surface free from stains and
give you the most even heating. See pages 37
and 38 for care and cleaning suggestions.
Cookware tips
Check for rough spots on the bottom of your
•
metal or glass cookware which could scratch the
ceramic surface.
Make sure the bottoms of pots and pans are clean
•
and dry before using them. Food and water
particles left on the bottoms can leave deposits
on the cooktop when it is heated.
NOTE: Do not leave empty cookware, or cook-
ware which has boiled dry, on a hot surface unit.
The cookware could overheat and damage itself
or the surface unit.

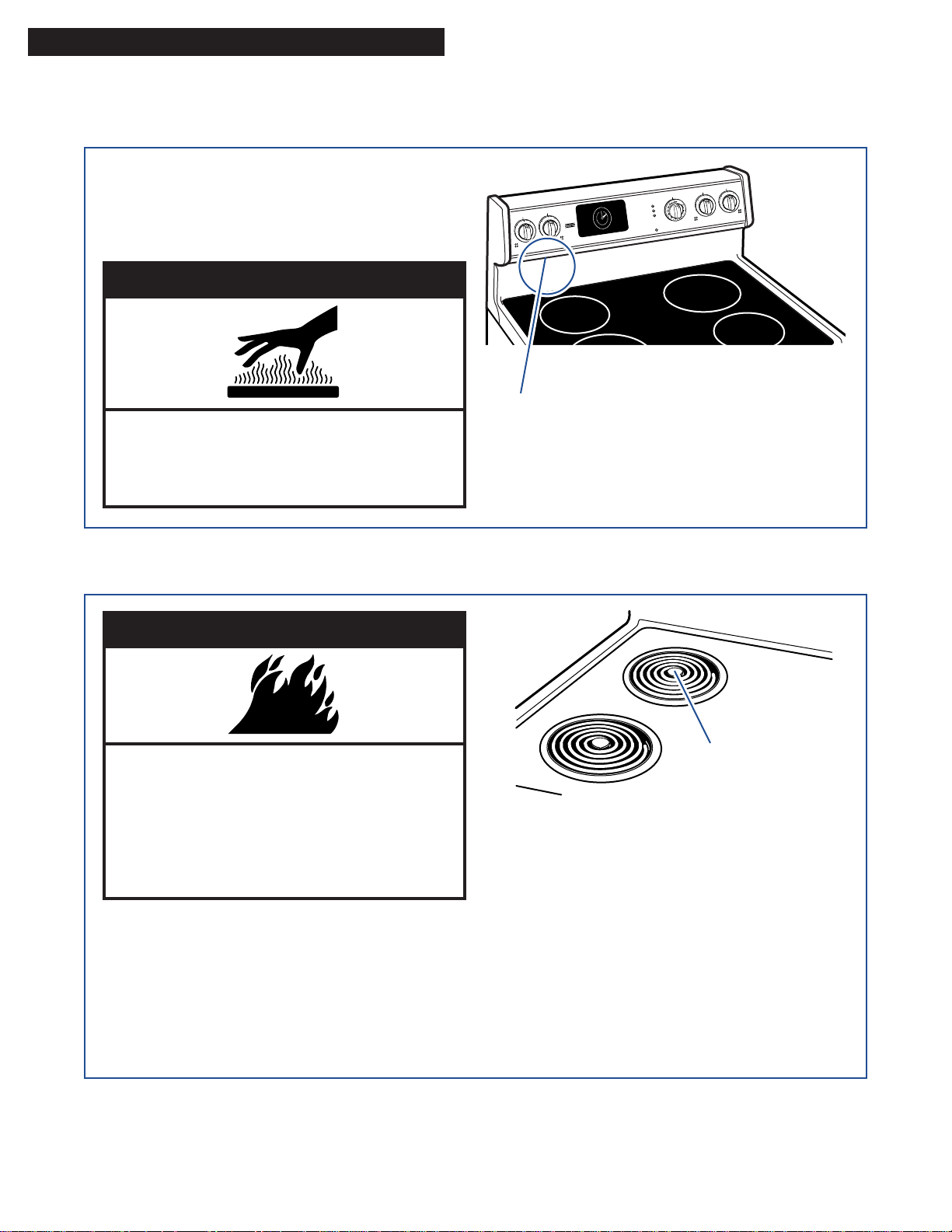

Hot surface indicator light
(Ceramic glass cooktop model)
The Hot Surface Indicator Light on the cooktop will
HOT SURFACE
12
glow when a surface unit becomes
too hot to touch. The Indicator Light
will continue to glow as long as the
surface unit is too hot to touch, even
after it is turned off.
Page 13

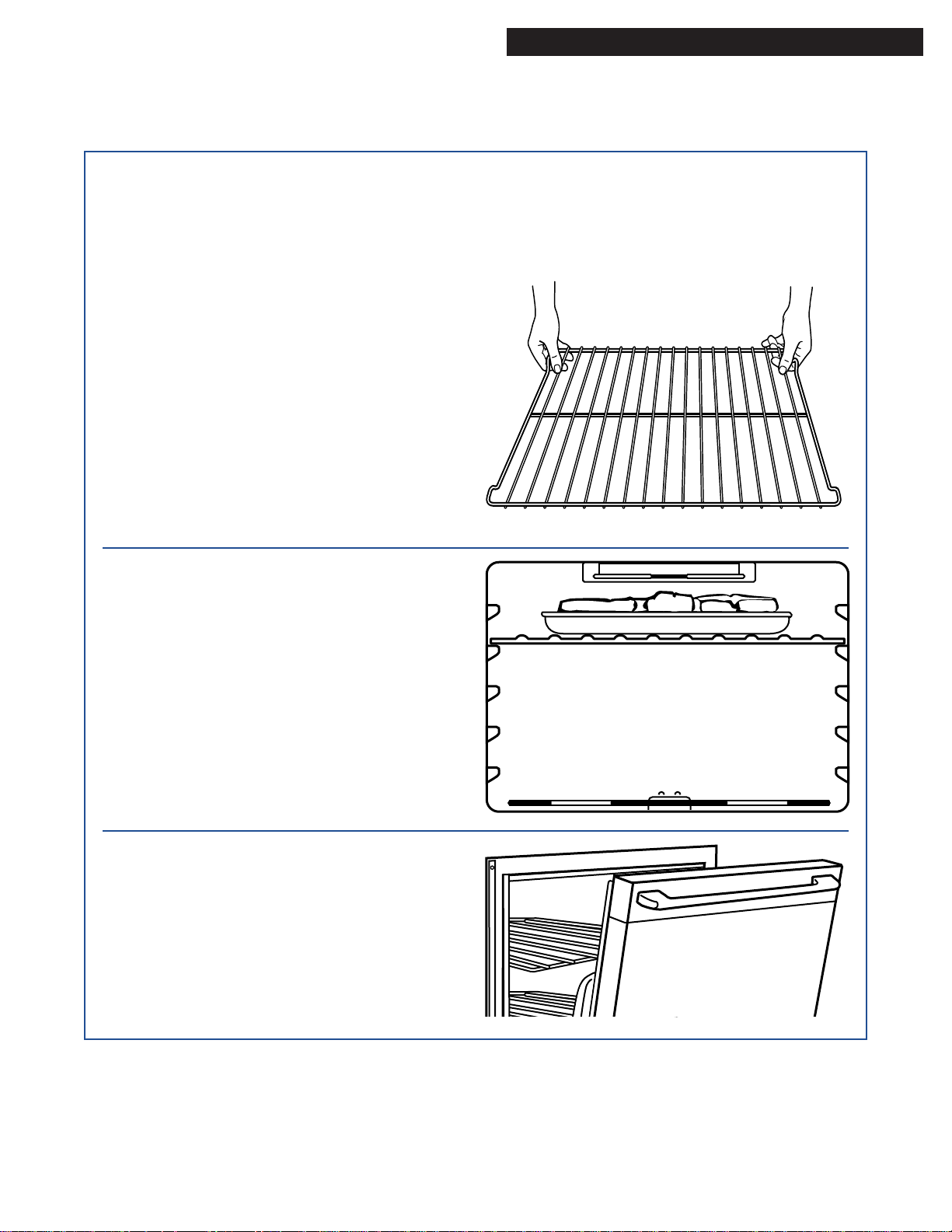

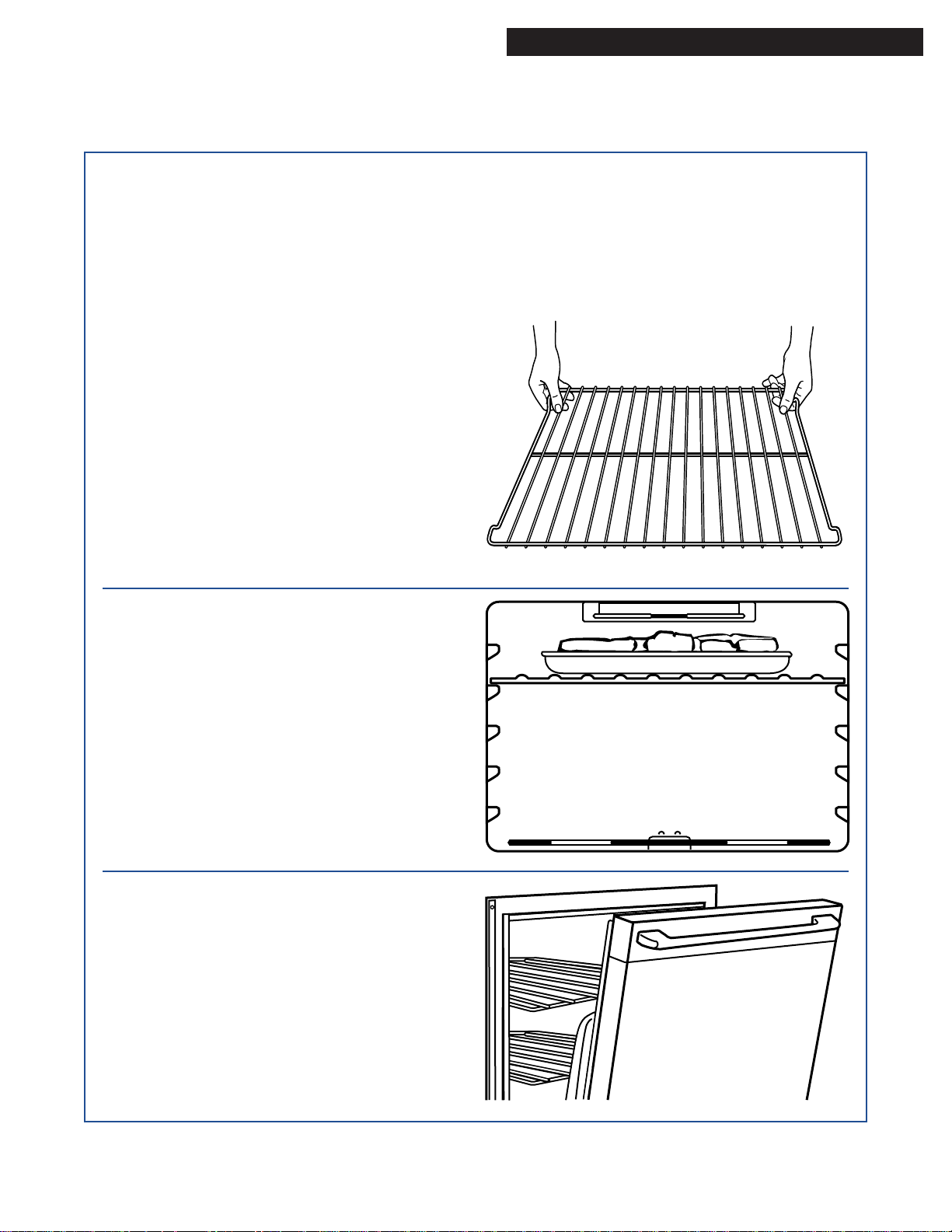

POSITIONING RACKS AND PANS
USING YOUR RANGE
General guidelines
Follow this section carefully to get the best
cooking results.

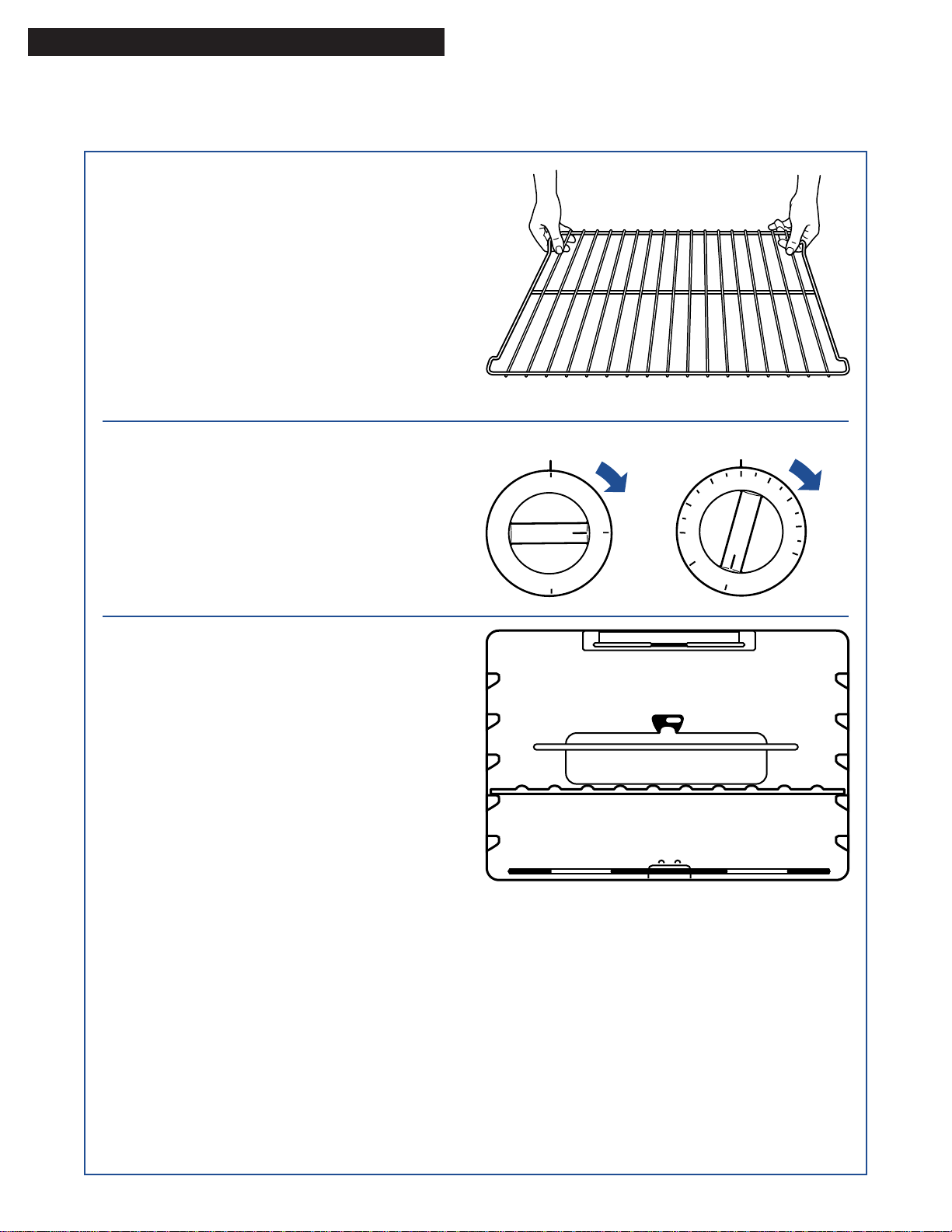

Before turning on the oven, place oven racks
•
where you need them.
To move a rack, pull it out to the stop, raise the
•
front edge, and lift it out.
Be sure the rack(s) is level.
•
Use pot holders or oven mitts to protect your
•
hands if rack(s) must be moved while the oven
is hot.
When baking/roasting with 1 rack, place the
•
rack so the top of the food will be centered in
the oven.
When baking/roasting on 2 racks, arrange the
•
racks on the 2nd and 4th rack guides from the
bottom.
Do not place items on the oven door when it
•
is open.
Using insulated bakeware, ovenproof
glassware, and dark metal pans
When baking with insulated cookie sheets or
•
baking pans, place them in the bottom third of
the oven. You may need to increase the recommended baking times, so test for doneness
before removing from the oven.
When using ovenproof glassware or dark
•
bakeware, reduce the oven temperature by 25°F
but use the same baking time. Because these
pans absorb heat, producing darker bottom
browning and crispier crusts, place the rack in
the center of the oven. When baking pies and
bread, you can use the temperature suggested in
the recipe.

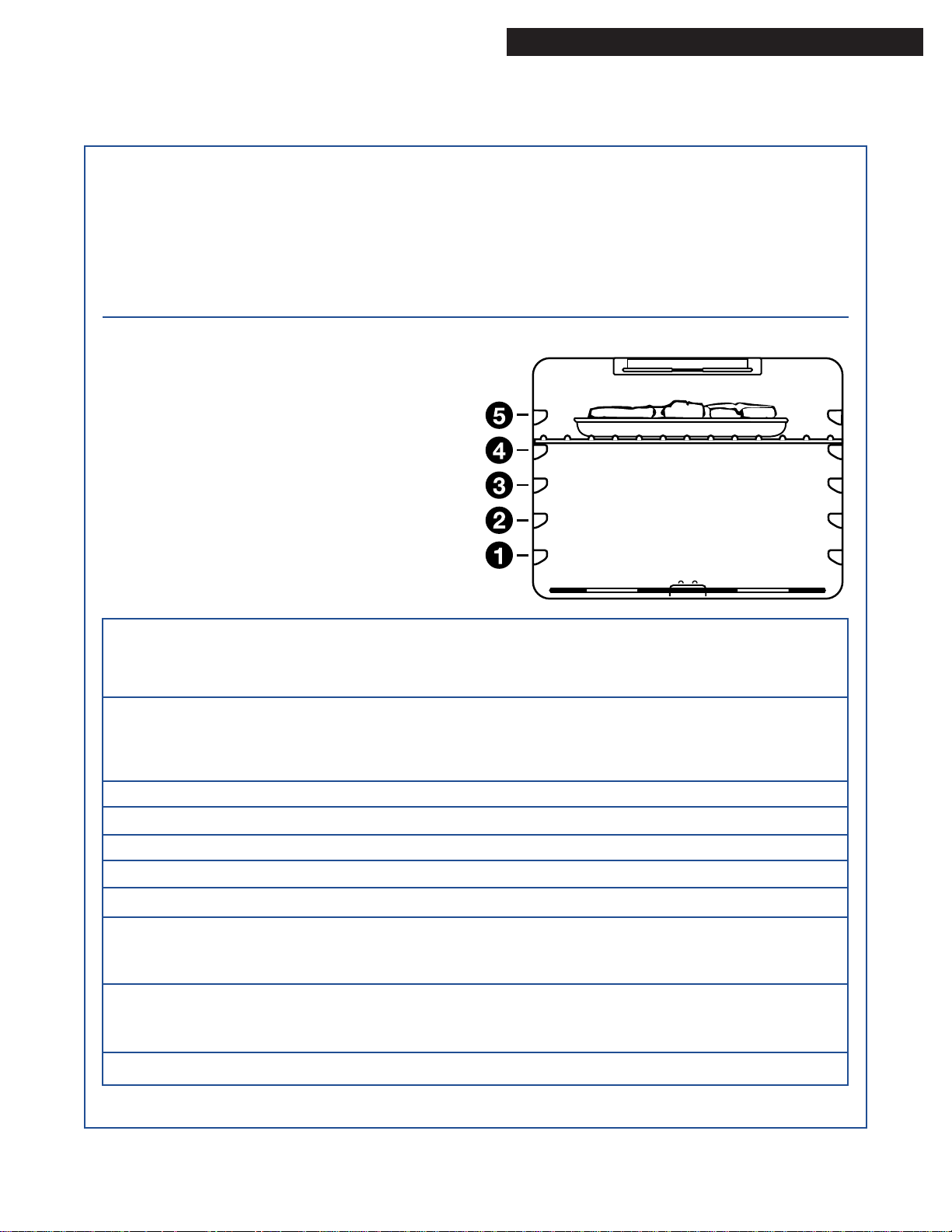

Rack placement for specific foods:
FOOD
Frozen pies, large
roasts, turkeys, angel
food cakes
Bundt cakes, most
quick breads, yeast
breads, casseroles,
meats
Cookies, biscuits,
muffins, cakes,
nonfrozen pies
NOTE: For information on where to place your rack
when broiling, see “Broiling guide” on page 25.
RACK POSITION
1st or 2nd rack
guide from bottom
2nd rack guide
from bottom
2nd or 3rd rack
guide from bottom
13
Page 14
USING YOUR RANGE
FOR BEST AIR CIRCULATION
Hot air must circulate around the pans in the oven
for even heat to reach all parts of the oven. This
results in better baking.
Place the pans so that one is not directly over
•
the other.
For best results, allow 11⁄2-2 inches of space
•
around each pan and between pans and
oven walls.
Use only one cookie sheet in the oven at a time.
•
Where to place pans:
WHEN YOU HAVE
1 pan
2 pans
3 or 4 pans
PLACE
In center of the oven rack.
Side by side or slightly
staggered.
In opposite corner on each
oven rack. Stagger pans
so no pan is directly over
another.
USING ALUMINUM FOIL FOR BAKING
Use aluminum foil to catch spillovers from pies
or casseroles:
Place the foil on the oven rack below the rack
•
with the food. Turn up
the foil edges and make
sure the foil is about
1 inch larger all around
than the dish holding
the food.
Do not cover the entire
•
rack with aluminum foil.
It will reduce air circulation and give you poor
cooking results.
Do not line the oven bottom or the entire oven rack
•
with foil or other liners. It could affect the quality of
your baking.
14
Page 15

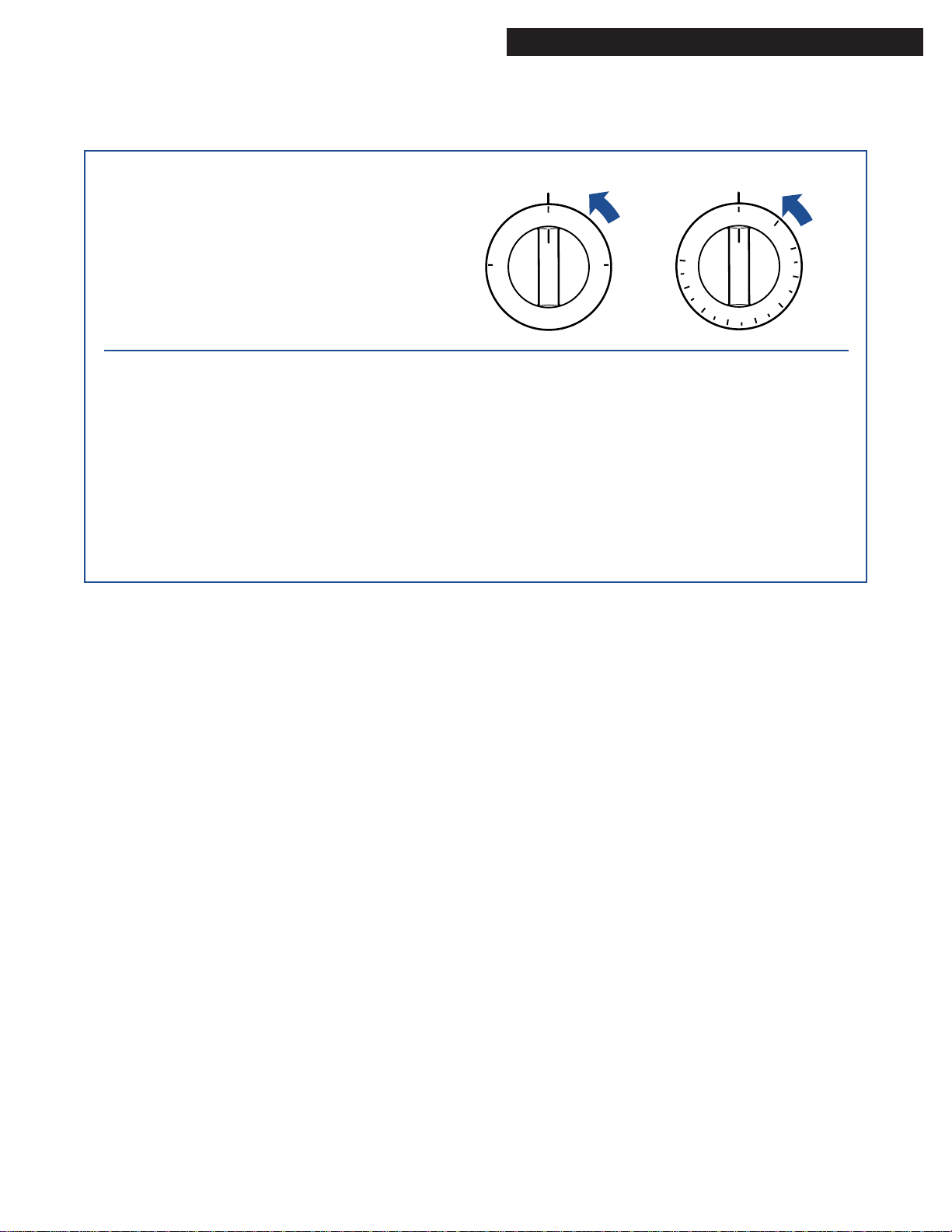

SETTING THE CLOCK (MODELS FEP330E, FES330E, FES364E)
USING YOUR RANGE

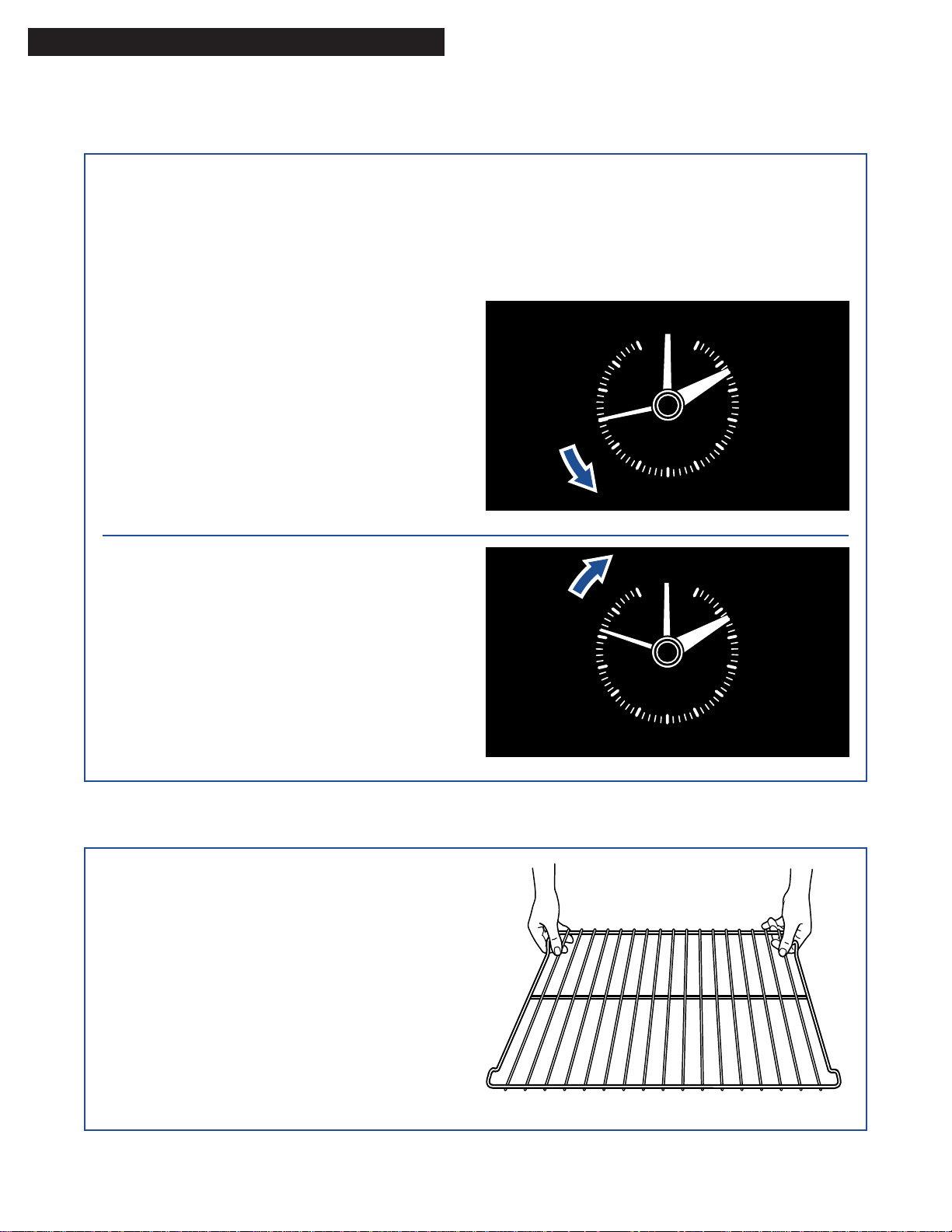

1. Push in the minute timer knob and turn it
clockwise until the clock shows the correct
time of day.
2. Let the minute timer knob pop out. Turn it
clockwise until the minute timer hand points
to OFF.
10
9
10
9
11
10
12
OFF
0
60
1
2
50
3
20
8
7
11
0
10
30
6
12
OFF
60
40
4
5
1
2
50
3
20
8
7
30
40
4
5
6
15
Page 16
USING YOUR RANGE
USING THE MINUTE TIMER (MODELS FEP330E, FES330E, FES364E)
The Minute Timer does not start or stop the oven. It
works like a kitchen timer. Set it in minutes up to an
hour. You will hear a buzzer when the set time is up.
NOTE: Do not push in the knob when setting the
Minute Timer. Pushing in and turning the minute
timer knob changes the clock setting.

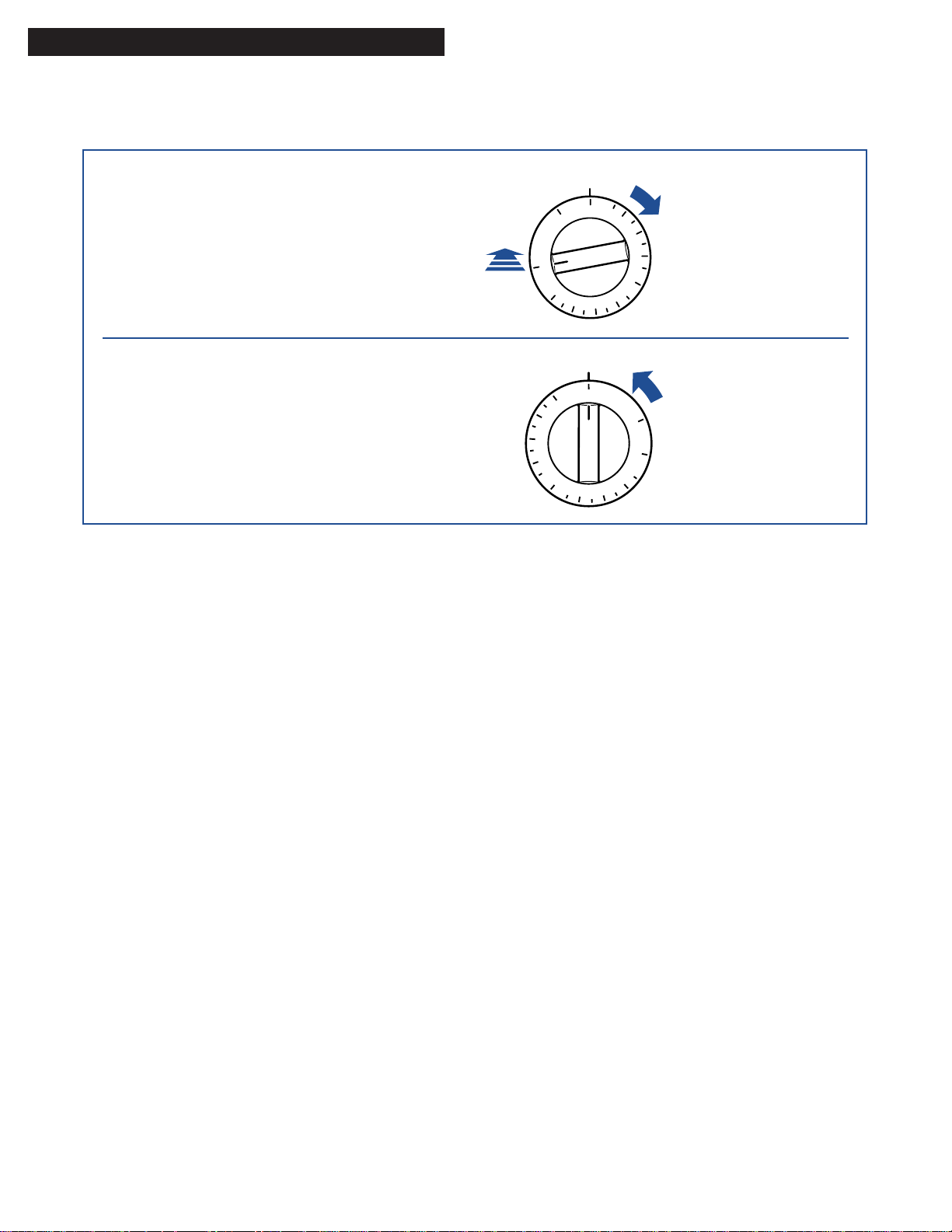

1. Without pushing it in, turn the minute timer knob
counterclockwise until the timer hand passes the
setting you want.
2. Without pushing it in, turn the knob back to the
setting you want.
When the time is up, a buzzer will sound. To stop
the buzzer, turn the minute timer hand to OFF.
10
9
10
9
12
11
OFF
0
10
60
1
2
50
3
20
8
7
11
0
10
30
6
12
OFF
60
40
4
5
1
2
50
3
20
8
7
30
40
4
5
6

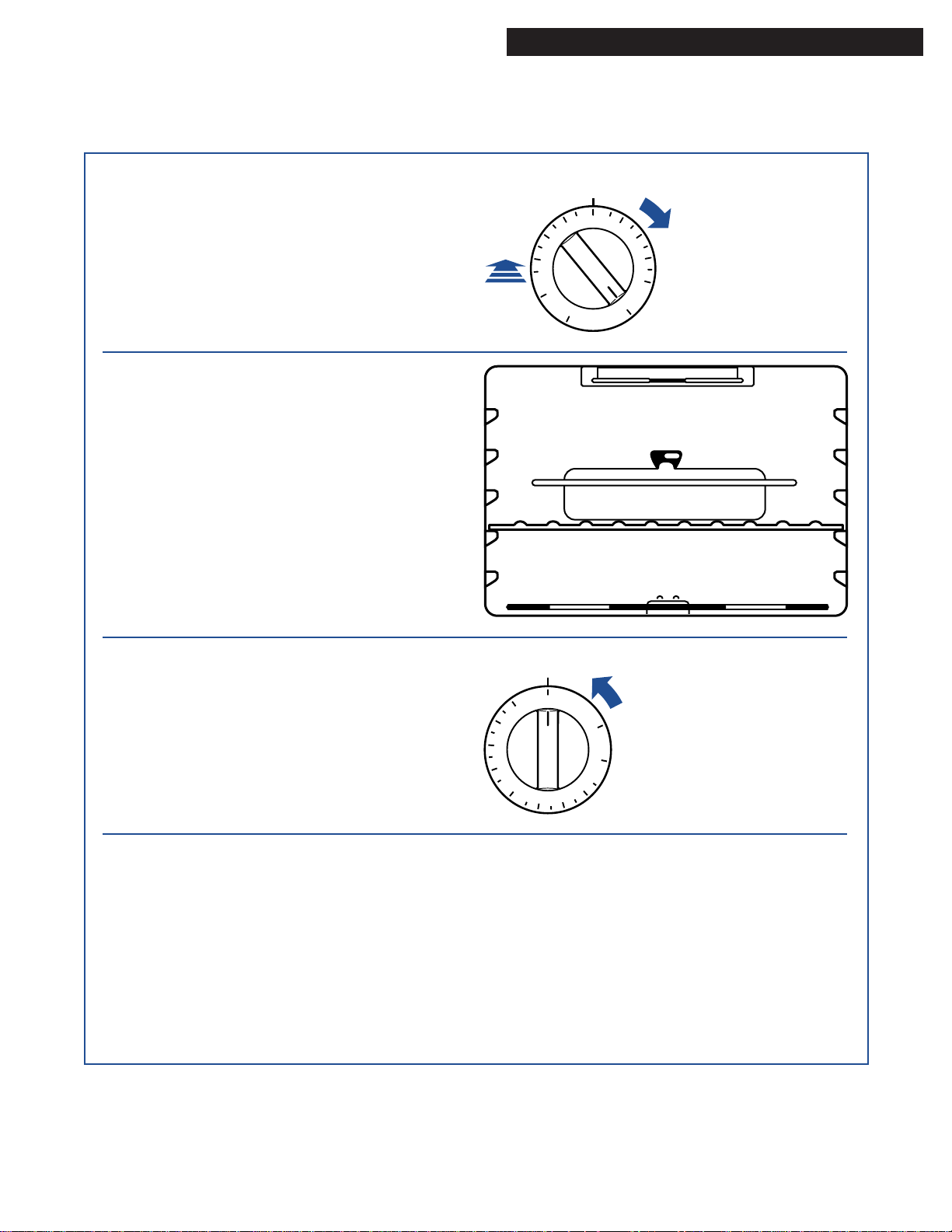

BAKING/ROASTING (MODELS FES330E AND FES364E)
1. Place the racks where you need them.
For more information, see “Positioning racks and
pans” on page 13.
16
Front of rack
Rear of rack
Page 17
BAKING/ROASTING (MODELS FES330E AND FES364E) (CONT.)
USING YOUR RANGE
2. Push and turn the oven control knob clockwise
to the baking/roasting temperature you want.
NOTE: Do not preheat the oven when roasting.
3. Put your food in the oven.
During baking/roasting, the elements will turn on
and off to keep the oven temperature at the
setting.
NOTE: The top element helps heat during
baking/roasting, but does not turn red.
PUSH AND TURN
0
5
3
3
0
0
4
0
5
4
0
0
5
L
I
O
R
B
N
A
E
L
C
YOU SEE
OVEN ON and
0
0
2
5
0
2
0
0
W
A
R
M
O
F
F
HEATING lights
go on.
4. After baking/roasting, turn the oven control knob
to OFF.
Roasting tips
For even cooking, place the meat on a rack in
•
a shallow pan. This keeps the meat out of the
drippings and allows the heat to circulate better.
Use a meat thermometer for the most accurate
•
doneness. Insert it so the tip is in the center of
the largest muscle or thickest portion of the
meat or poultry. Make sure the thermometer is
not touching bone, fat, or the bottom of the pan.
TURN YOU SEE
F
F
O
M
R
A
W
0
0
2
0
5
2
0
0
3
0
5
3
C
L
E
A
N
B
R
O
I
L
5
0
0
4
5
0
0
0
4
OVEN ON and
HEATING lights
go out.
Energy saving tips
“Oven peeking” can make cooking times longer
•
and affect food quality.
Rely on a timer to keep track of cooking time.
•
Plan your meals for the most efficient use of the
•
oven by cooking more than one food at a time.
If possible, plan to bake while the oven is still hot
•
after cooking.
You don’t have to preheat the oven when broiling
•
or roasting.
17
Page 18
USING YOUR RANGE
3
0
0
2
5
0
2
0
0
1
5
0
B
R
O
I
L
5
0
0
4
5
0
4
0
0
3
5
0
O
F
F

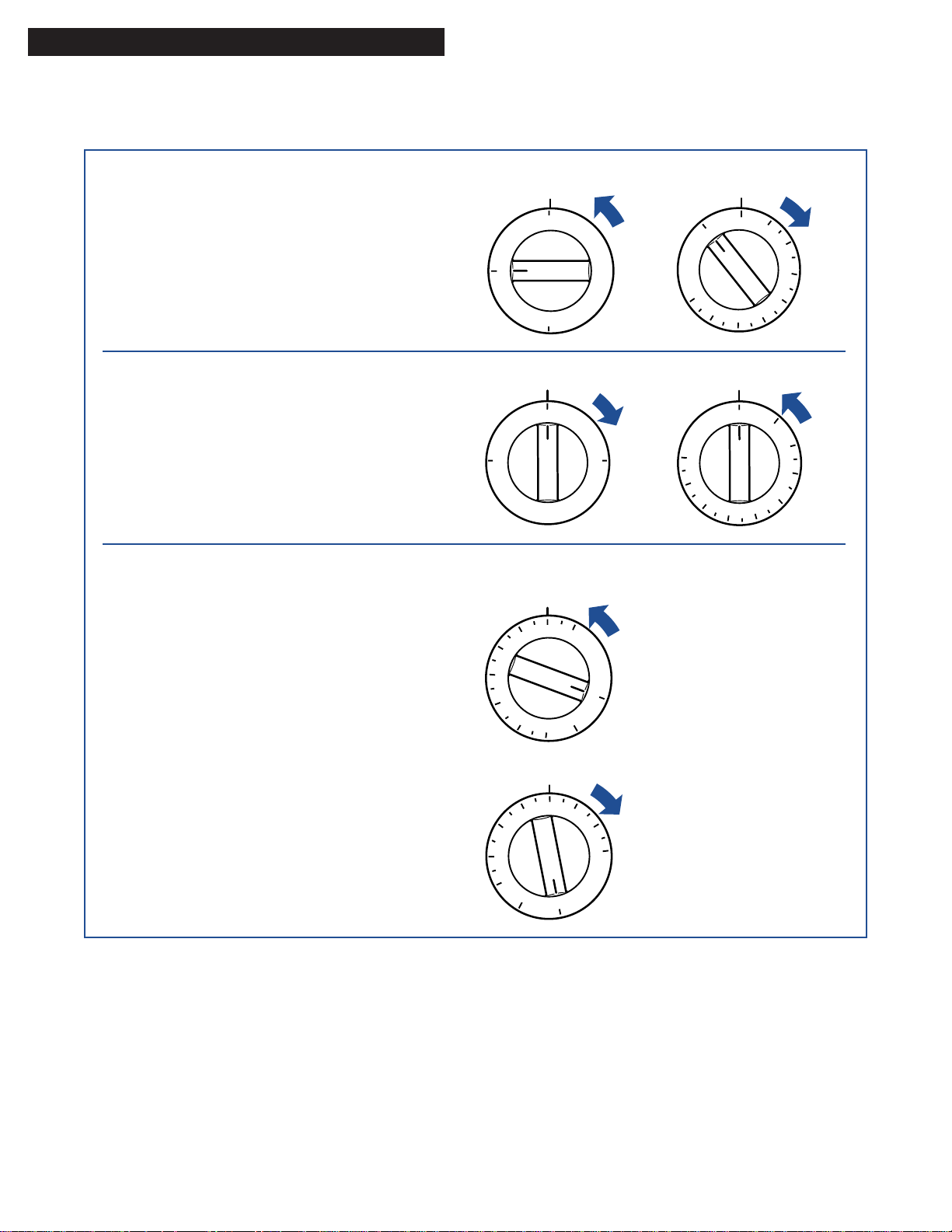

BAKING/ROASTING (MODELS FEP310E, FEP320E, FEP330E)
1. Place the racks where you need them.
For more information, see “Positioning racks and
pans” on page 13.
Front of rack
Rear of rack
2. Set the oven selector to BAKE and the oven
temperature control knob to the baking/roasting
temperature you want.
The oven on indicator light will come on. The
oven is preheated when the oven on indicator
light first goes off.
NOTE: Do not preheat the oven when roasting.
3. Put your food in the oven.
During baking/roasting, the elements will turn on
and off to keep the oven temperature at the
setting. The oven on indicator light will turn on
and off with the elements.
NOTE: The top element helps heat during
baking/roasting, but does not turn red.
TURN TURN
K
A
E
B
O
F
F
B
R
L
I
O
18
Page 19
BAKING/ROASTING (MODELS FEP310E, FEP320E, FEP330E) (CONT.)
USING YOUR RANGE
4. After cooking, turn off the oven.
Turn both the oven selector and the oven temperature control knob to OFF. The oven on
indicator light will go off.
Roasting tips
For even cooking, place the meat on a rack in
•
a shallow pan. This keeps the meat out of the
drippings and allows the heat to circulate better.
Use a meat thermometer for the most accurate
•
doneness. Insert it so the tip is in the center of
the largest muscle or thickest portion of the
meat or poultry. Make sure the thermometer is
not touching bone, fat, or the bottom of the pan.
TURN TURN
F
F
F
O
B
E
K
A
B
R
O
I
L
F
O
B
R
O
I
L
5
0
0
5
1
0
0
2
0
5
2
0
0
0
4
5
0
4
0
0
3
5
0
3
Energy saving tips
“Oven peeking” can make cooking times
•
longer and affect food quality.
Rely on a timer to keep track of cooking time.
•
Plan your meals for the most efficient use of the
•
oven by cooking more than one food at a time.
If possible, plan to bake while the oven is still hot
•
after cooking.
You don’t have to preheat the oven when broiling
•
or roasting.
19
Page 20
USING YOUR RANGE

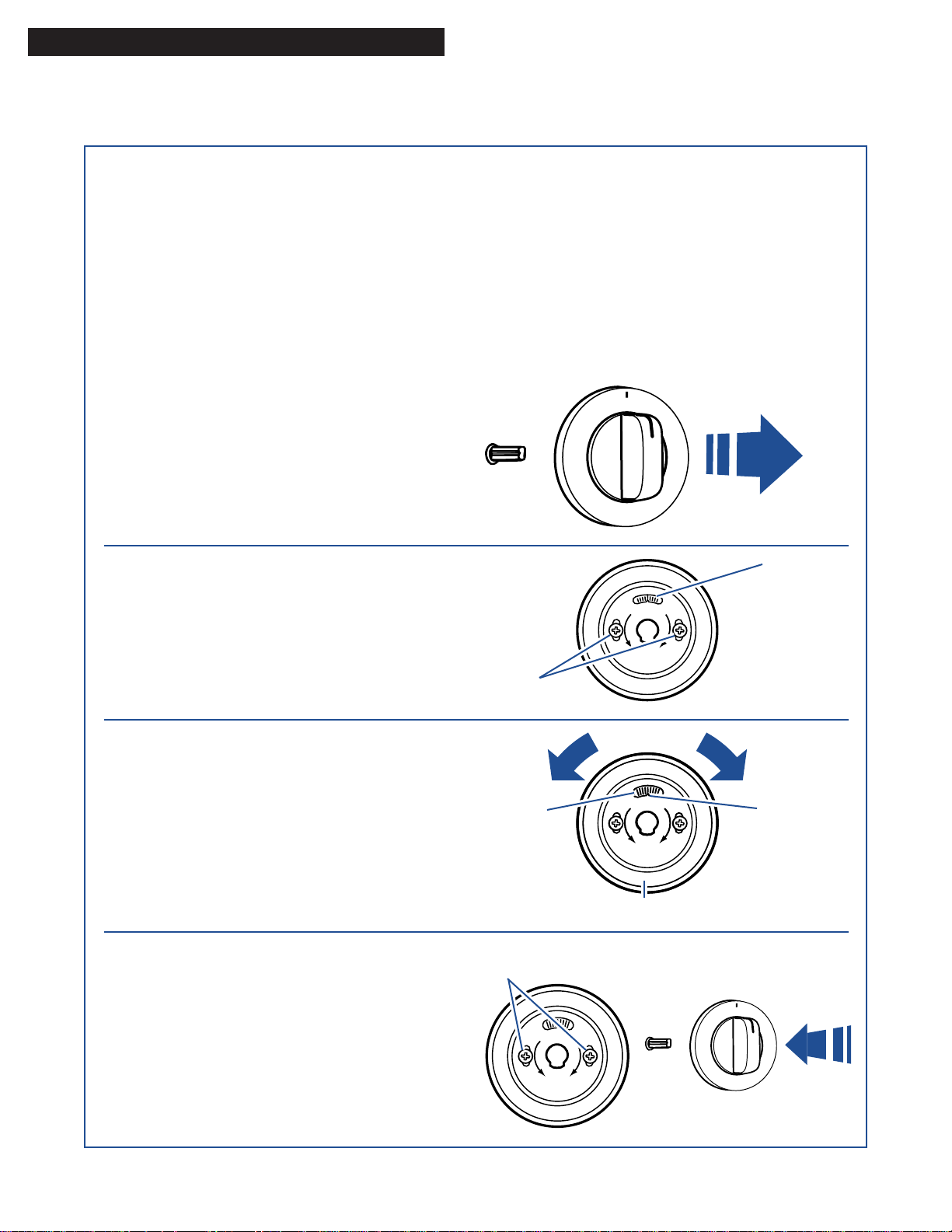

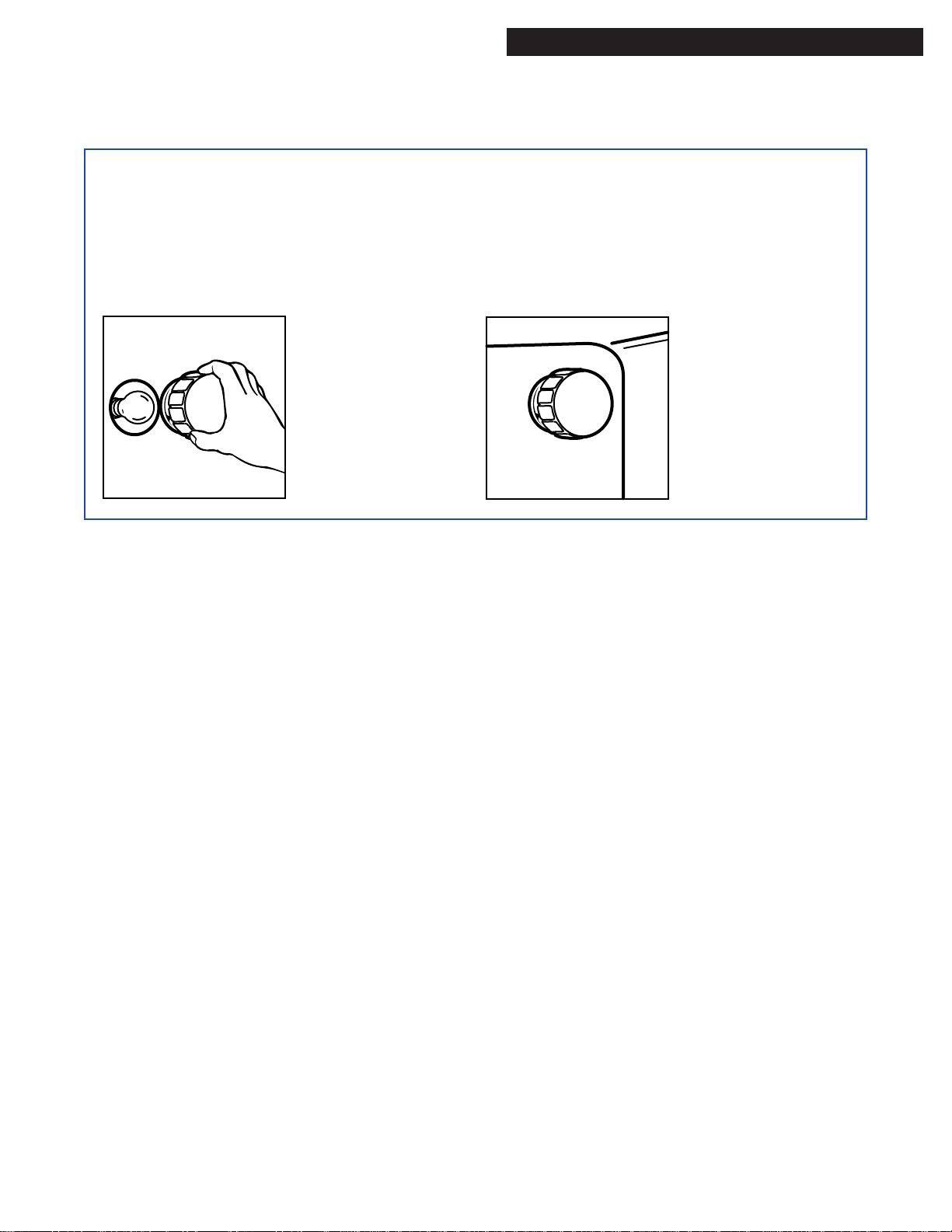

ADJUSTING THE OVEN TEMPERATURE CONTROL
Although your new oven is properly adjusted to
provide accurate temperatures, it may cook faster
or slower than your old oven.
If you are not satisfied with the baking/roasting
results, you can change the temperature calibration
by following the steps below.
NOTE: DO NOT measure the oven temperature with
a thermometer. Opening the oven door will lower
the oven temperature and give you an incorrect
reading. Also, the thermometer temperature reading
will change as your oven cycles.
1. Make sure the oven temperature control knob is
turned to the off position. Pull the knob straight
off and flip it over.
2. Loosen the locking screws inside the
control knob.
Note the position of the notches.
3. Adjust the temperature.
To lower the temperature, hold the knob
•
handle firmly and turn the skirt counterclock-
wise to move the tooth a notch to the left.
To raise the temperature, hold the knob
•
handle firmly and turn the skirt clockwise to
move the tooth a notch to the right.
Each notch equals about 5°F.
F
F
O
Notches
Locking
1
O
N
COOLER
H
C
T
:
5
˚
F
L
O
O
S
E
N
S
C
HOTTER
R
E
W
S
A
N
D
R
O
T
A
T
E
screws
To lower
H
C
H
:
C
:
T
T
5
5
O
O
˚
˚
N
N
F
F
1
1
Notches Tooth
COOLER
COOLER
HOTTER
HOTTER
L
O
O
S
E
N
S
C
R
E
W
S
A
N
D
R
O
T
A
T
E
To raise
4. Tighten the locking screws and replace the
control knob.
20
Locking
screws
Skirt
H
C
:
T
5
O
˚
N
F
1
COOLER
HOTTER
L
O
O
S
E
N
S
C
R
E
W
S
A
N
D
R
O
T
A
T
E
F
F
O
Page 21
BROILING (MODELS FES330E AND FES364E)
NOTES:
Do not preheat when broiling.
•
Leave the door partly open whenever you use the
•
oven to broil. This lets the oven stay at the proper
temperatures.
1. Place the rack where you need it.
You need to place the rack so that the surface of
the food is at least 3 inches away from the broil
element. See “Broiling guide” on page 25.
USING YOUR RANGE
Front of rack
2. Put your food on the broiler pan and place the
pan in the center of the oven rack.
3. Close the door to the broil stop position.
The broil stop position lets the door stay open by
itself about 5 inches.
Rear of rack
continued on next page
21
Page 22
USING YOUR RANGE
BROILING (MODELS FES330E AND FES364E) (CONT.)
4. Set the oven control knob to BROIL.
5. After broiling, turn the oven control
knob to OFF.
PUSH AND TURN
O
R
I
L
B
N
5
A
E
L
C
F
F
O
M
R
A
0
W
0
2
0
5
2
0
TURN
F
F
O
M
R
A
W
0
0
2
0
5
2
0
0
3
0
5
3
4
5
0
0
0
4
YOU SEE
0
0
4
5
0
4
0
0
3
5
0
3
0
OVEN ON and
HEATING lights
go on.
YOU SEE
OVEN ON and
C
L
E
A
N
B
R
O
I
L
5
0
0
HEATING lights
go out.
22
Page 23
BROILING (MODELS FEP310E, FEP320E, FEP330E)
NOTES:
Do not preheat when broiling.
•
The oven selector must be on BROIL for broiling
•
temperatures.
Leave the door partly open whenever you use the
•
oven to broil. This lets the oven stay at the proper
temperatures.
1. Place the rack where you need it.
You need to place the rack so that the surface of
the food is at least 3 inches away from the broil
element. See “Broiling guide” on page 25.
USING YOUR RANGE
Front of rack
2. Put your food on the broiler pan and place the
pan in the center of the oven rack.
3. Close the door to the broil stop position.
The broil stop position lets the door stay open by
itself about 5 inches.
Rear of rack
continued on next page
23
Page 24
USING YOUR RANGE
BROILING (MODELS FEP310E, FEP320E, FEP330E) (CONT.)
4. Set the oven selector and the oven temperature
control knob to BROIL.
The oven on indicator light will come on.
5. After broiling, turn off the oven.
Turn both the oven selector and the oven temperature control knob to OFF. The oven on
indicator light will go off.
If you want to broil at a lower temperature:
If your food is cooking too fast, turn the oven
•
temperature control knob counterclockwise until
the oven on indicator light goes off.
TURN TURN
O
I
L
R
B
F
F
O
B
E
A
K
F
O
0
5
1
TURN TURN
F
F
O
B
E
K
A
B
R
O
I
L
0
5
1
0
0
2
0
TURN
0
0
2
1
5
0
5
2
0
0
3
0
5
3
0
0
4
0
0
O
F
F
B
R
O
5
I
L
4
5
0
0
O
I
L
R
B
5
0
F
0
5
2
0
4
5
0
4
0
0
3
5
0
3
0
0
0
2
2
0
5
F
F
O
B
R
O
I
L
5
0
0
4
5
0
4
0
0
3
5
0
0
0
3
If you want your food to broil slower from the
•
start, set the oven temperature control knob
between 170°F and 325°F. These temperature
settings let the broil heating element cycle and
slow cooking. The lower the temperature, the
slower the cooking.
NOTE: Fish and chicken are some foods that may
cook better if you use lower broiling temperatures.
24
TURN
0
0
4
0
5
4
0
0
5
0
0
3
2
5
0
5
3
L
I
0
2
0
0
1
5
0
O
O
F
R
F
B
Page 25
USING YOUR RANGE USING YOUR RANGE
BROILING TIPS
Use the broiler pan and grid for broiling. They are
•
designed to drain extra liquid and grease away
from the cooking surface. This drainage helps
prevent spatter, smoke, or fire.
Do not cover the broiler grid with foil.
•
To make sure the grease drains well, do not use
•
cookie sheets or similar pans for broiling.
Broiling guide
Recommended rack positions are numbered from
the bottom (1) to the top (5). For best results, turn
meat after approximately 2⁄3 of the broiling time.
Turn chicken pieces after approximately half of
the broiling time. Very thin cuts, such as fish fillets,
may not need to be turned at all. Lobster tails are
not turned.
Place food about 3 inches or more from the broil
•
element.
After broiling, remove the broiler pan from the
•
oven when you remove the food. Drippings will
bake on the pan if you leave it in the heated oven.
MEAT
Steak, 1" thick
medium rare
medium
well done
Hamburger Patties, 3⁄4" thick, 1⁄4 lb well done
Pork Chops, 1" thick
Ham Slice, 1⁄2" thick, precooked
Frankfurters
Lamb Chops, 1" thick
Chicken
bone-in pieces
boneless breasts
Fish
fillets 1⁄4-1⁄2" thick
steaks, 3⁄4-1" thick
Lobster Tails, 6-8 oz
RACK
POSITION
4
4
4
4
4
4
3
4
4
3
APPROXIMATE TIME
(MINUTES)
SIDE 1
14-15
15-16
18-19
13-14
20-22
8-10
5-7
14-17
17-20
11-16
8-10
16-18
17-20
SIDE 2
7-8
8-9
9-10
7-8
10-11
4-5
3-4
8-9
17-20
11-16
4-5
8-9
N/A
Times are guidelines only and may need to be adjusted for individual tastes.
25
Page 26
USING YOUR RANGE
THE OVEN VENT (CERAMIC GLASS COOKTOP MODEL)
Hot air and moisture escape from the oven through
a vent on the backguard below the control panel.
The vent lets air circulate properly. Be careful not
to block the vent, or you could get poor baking/
roasting results.
wWARNING
Burn Hazard
Use pot holders when touching items left
near oven vent.
Failure to do so can result in burns.
I
F
F
H
O
L
O
I
H
PUSH TO TURN
REAR
Oven vent
F
F
L
O
O
I
F
F
L
H
O
O
I
OVEN ON ON
12
1
(TURN N OFF FF OVEN EN WHEN FLAWHEN FLASHINSHING)G)
11
OFF
2
6060
OVEN HEATING
0
10
5050
3
1010
F
F
O
L
O
FRONT
DOOR LOCKED / CLEANING
9
(CLOSE DOOR (CLOSE DOOR WHEN FLAWHEN FLASHINSHING)G)
4040
4
2020
3030
8
5
7
6
SURFACE HEACE HEATING
H
FRONT
REAR
PUSH TO TURN
E
THE OVEN VENT (COIL ELEMENT MODELS)
wWARNING
Fire Hazard
Use pot holders to move items left on the
left rear surface unit.
Keep flammable materials away from the
oven vent.
Failure to do so can result in death, fire,
or burns.
Hot air and moisture escape from the oven through
a vent under the left rear surface unit. You can
cook on this unit or keep food warm on it while the
oven is on. The vent is needed for air circulation.
Do not block the vent by using extra large pans
or covers. You will get poor baking/roasting results.
Oven vent
NOTE: Never leave plastic utensils over the vent.
They could melt.
26
Page 27
USING YOUR RANGE
THE ANTI-TIP BRACKET
The range will not tip during normal use. However, the range can tip if you apply too much force or weight
to the open door without the anti-tip bracket fastened down properly.
wWARNING
Tip Over Hazard
Connect anti-tip bracket to the range.
Reconnect anti-tip bracket, if the range is moved.
Do not push down on the open oven door.
Follow the Installation Instructions.
Do not let children climb onto the oven door.
Failure to follow these instructions can result in death, burns, or other injury.

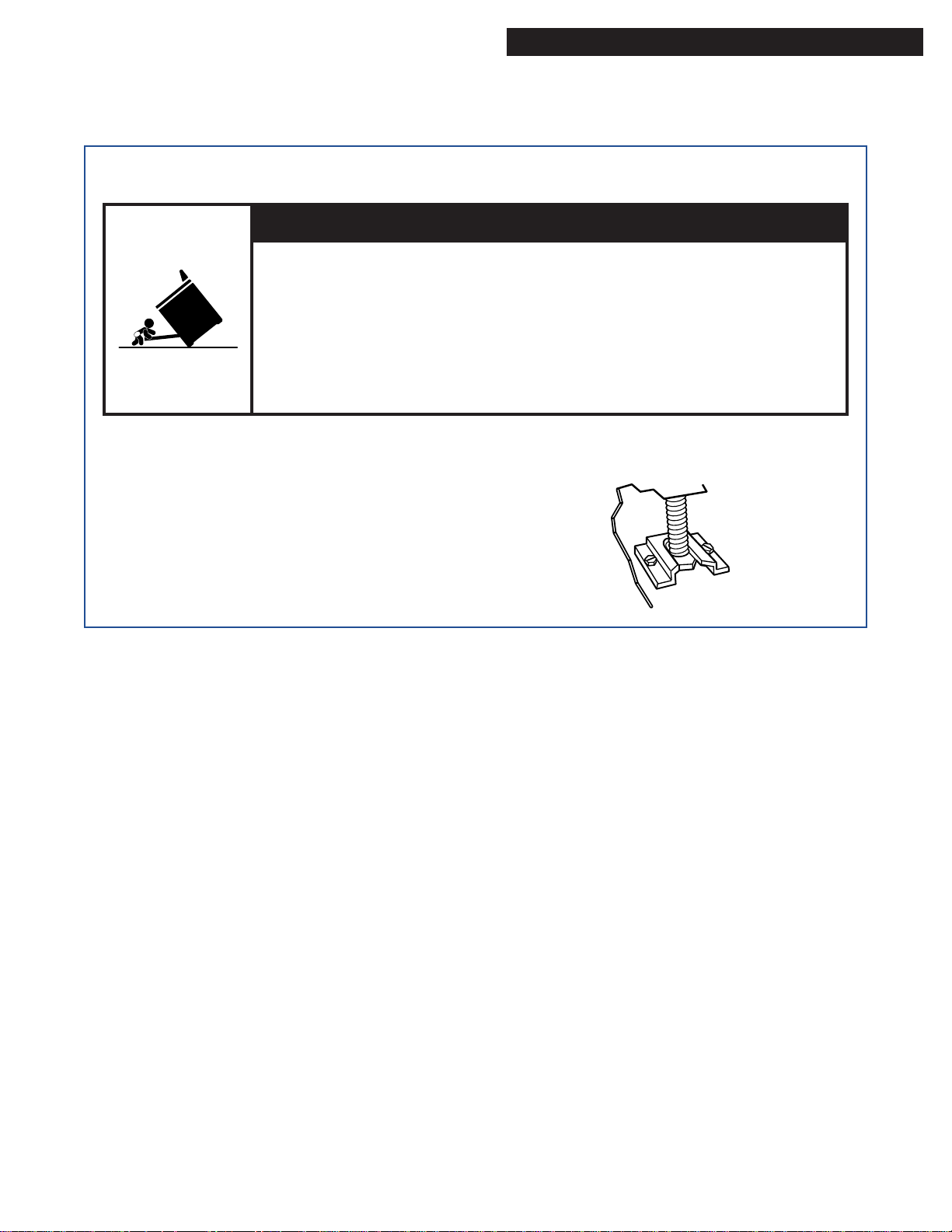

To make sure the anti-tip bracket is fastened
into place:
Remove the storage drawer (see “The storage
•
drawer” on page 28).
Look under the range (you may need a flashlight).
•
Check that a leveling leg is positioned under
the bracket.
See the Installation Instructions for further details.
•
27
Page 28
USING YOUR RANGE
THE STORAGE DRAWER
You can remove the storage drawer to make it
easier to clean under your range and to make sure
the anti-tip floor bracket is installed. Be careful
when handling the drawer.

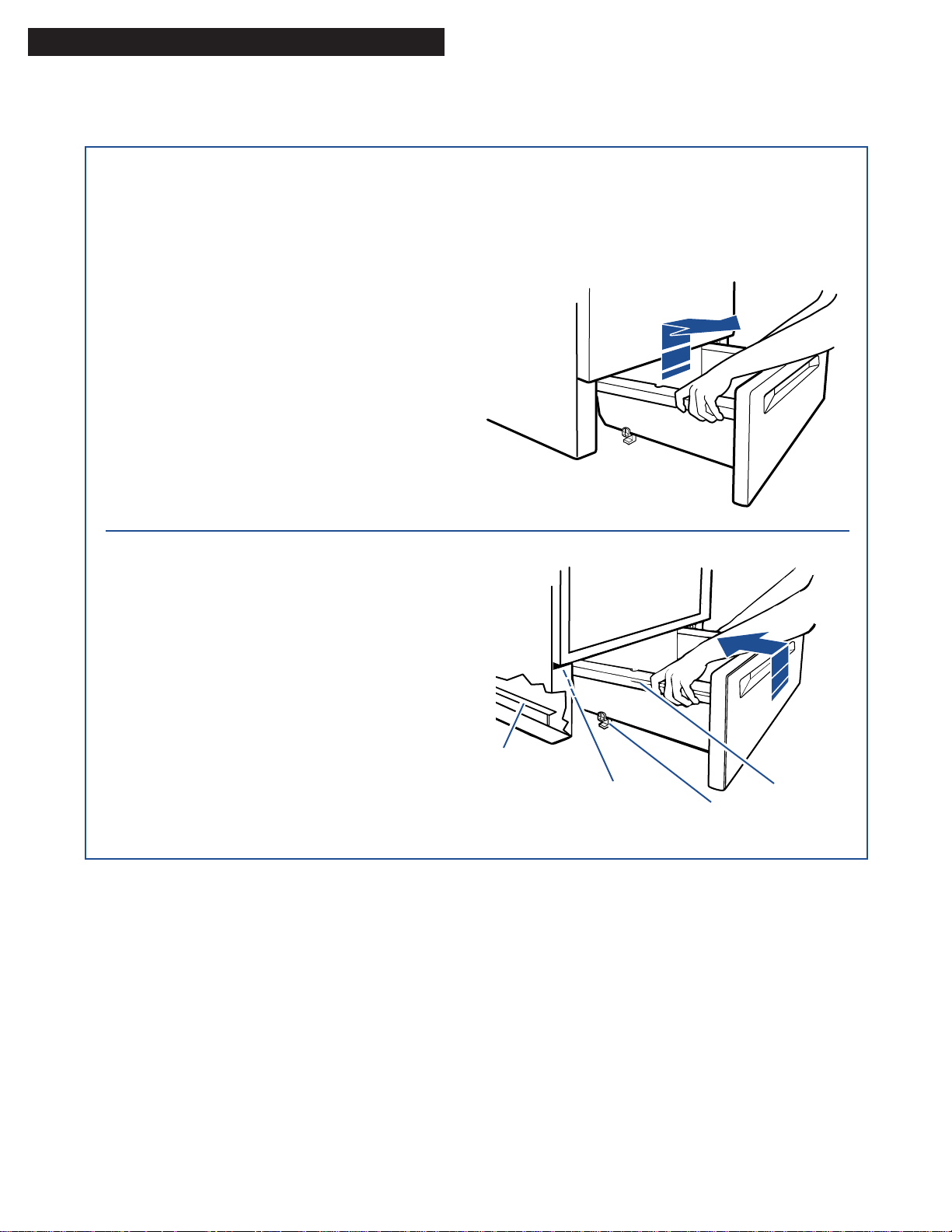

Removing the storage drawer:
1. Empty the drawer before you remove it. Pull the
drawer straight out to the first stop. (The stops
are small, round objects formed in the slide rail.
They keep the drawer from sliding all the way
out.) Then lift the front of the drawer and pull it
out to the second stop.
2. Lift the back of the drawer slightly and slide it all
the way out.
USING YOUR RANGE
Replacing the storage drawer:
1. Fit the ends of the drawer slide rails into the
drawer guides on both sides of the opening.
Also, be sure the lower guide is fitted onto the
lower slide rail.
2. Lift the front of the drawer and push it in until the
metal stops on the drawer slide rails clear the
drawer guides. Then slide the drawer closed.
Lower slide rail
(inside drawer
opening)
Upper drawer
guides
(on inside walls)
Drawer
slide rail
Lower drawer
guide
28
Page 29

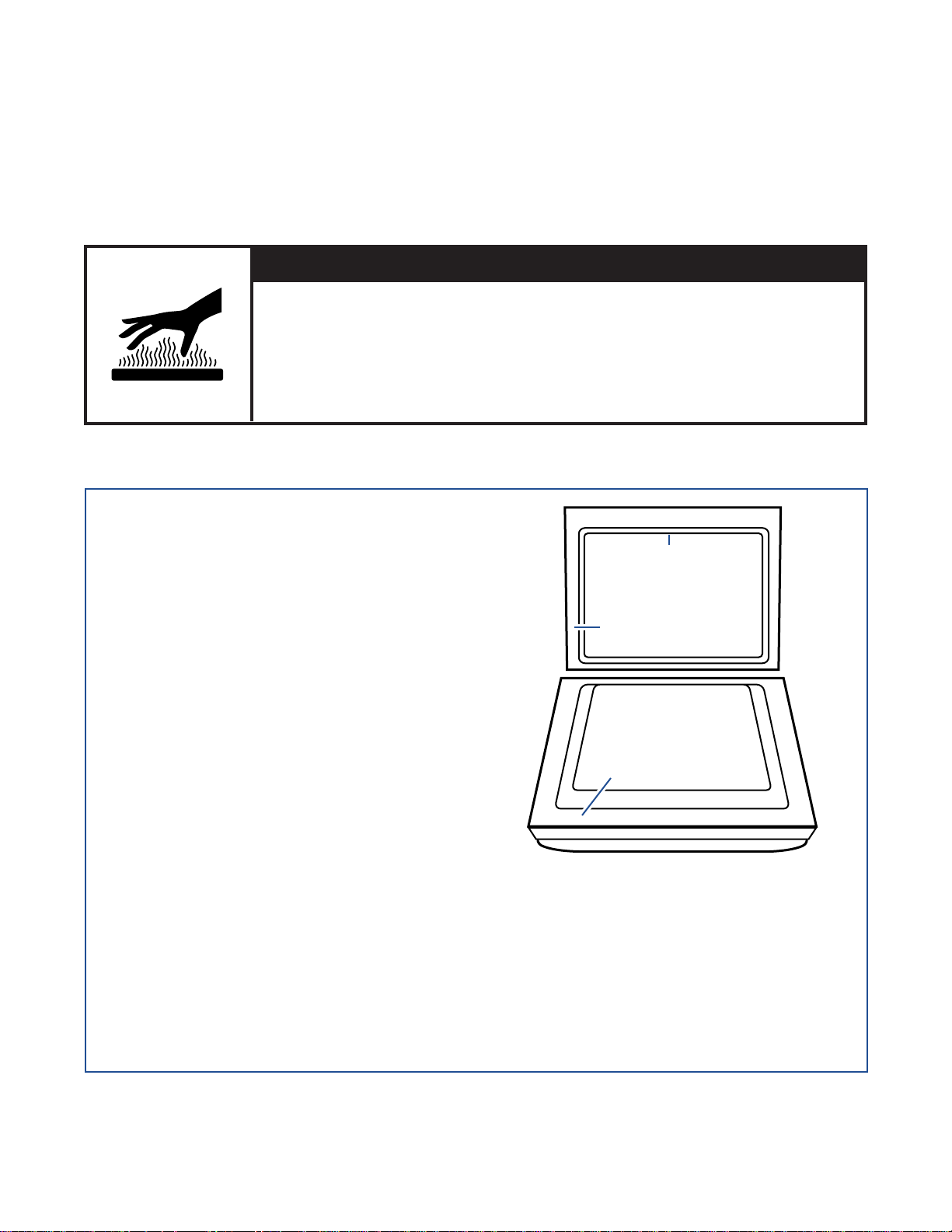

USING THE SELF-CLEANING CYCLE
(MODELS FES330E AND FES364E)
The Self-Cleaning cycle saves you from the toil and mess that often come with hand-cleaning
the inside of the oven. Like the other functions of your range, you run the Self-Cleaning cycle
with the easy-to-use controls. Please review the instructions in this section to keep your
oven spotless.
wWARNING
Burn Hazard
Do not touch the oven during the Self-Cleaning cycle.
Keep children away from oven during Self-Cleaning cycle.
Do not use commercial oven cleaners in your oven.
Failure to follow these instructions can result in burns, or illness from inhaling
dangerous fumes.
BEFORE YOU START
Before you start the Self-Cleaning cycle, make
sure you:
Hand-clean the areas shown. They do not get hot
•
enough during the Self-Cleaning cycle for soil to
burn away. Use hot water and detergent or a
soapy, steel-wool pad for cleaning.
NOTE: DO NOT clean, move, or bend the seal.
You may get poor cleaning, baking, and roasting.
Remove the broiler pan and grid and any pots
•
and pans being stored in the oven.
Wipe out any loose soil or grease. This will help
•
reduce smoke during the Self-Cleaning cycle.
Wipe up food spills containing sugar as soon as
•
possible after the oven cools down. When sugar
is heated to a high temperature in the SelfCleaning cycle, the high temperature can cause
the sugar to burn and react with the porcelain.
This can cause staining and etching or pitting.
Remove the oven racks from the oven if you want
•
them to remain shiny. You can clean the oven
racks in the Self-Cleaning cycle, but they will
become harder to slide. (See page 33.) If you
clean the racks in the Self-Cleaning cycle, place
them on the 2nd and 4th rack guides. (The guides
are counted from bottom to top.)
Heat and odors are normal during the Self-
•
Cleaning cycle. Keep the kitchen well ventilated
by opening a window or by turning on a vent
hood or other kitchen vent during the cycle.
TIPS:
Do not block the vent during the Self-Cleaning
•
cycle. Air must move freely for best cleaning results.
Do not leave plastic utensils on the cooktop. They
•
may melt.
Do not leave any foil in the oven during the Self-
•
Cleaning cycle. Foil could burn or melt and
damage the oven surface.
DO NOT
hand-clean
seal
Hand-clean
frame
Hand-clean
door around
edge
29
Page 30

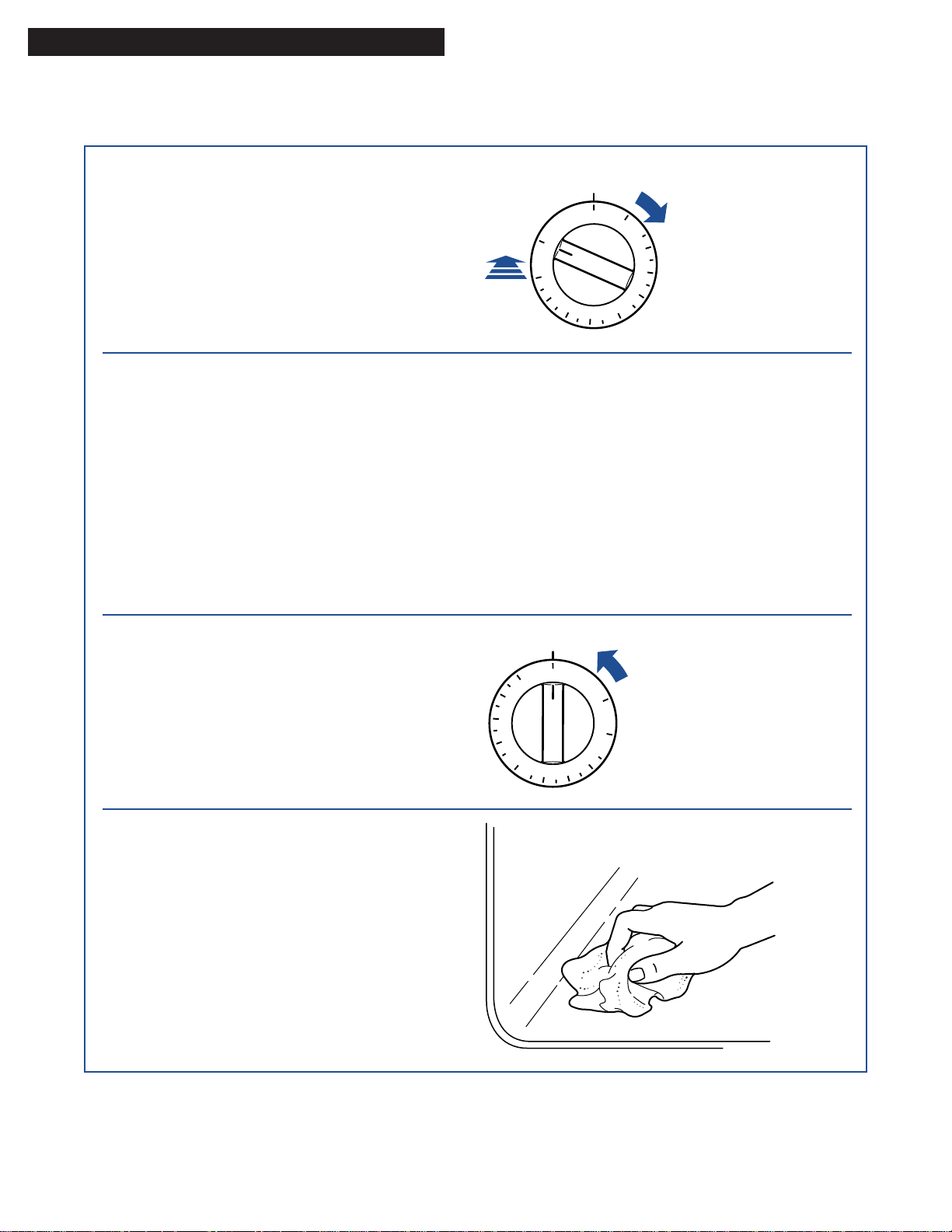

USING THE SELF-CLEANING CYCLE
4
0
0
3
5
0
3
0
0
2
5
0
2
0
0
W
A
R
M
C
L
E
A
N
B
R
O
I
L
5
0
0
4
5
0
O
F
F
SETTING THE CONTROLS
1. Set the oven control knob to CLEAN.
The door will lock itself. If the door has a problem
locking, it will try to lock itself every 12 seconds
for 1 minute. If the door fails to lock, the SelfCleaning cycle will cancel. The Self-Cleaning
cycle will last 4 hours, 30 minutes.
2. During the last 30 minutes of the Self-Cleaning
cycle the oven will start to cool down.
Once the oven goes below the locked
temperature:
PUSH AND TURN
YOU SEE
OVEN ON light goes
on. DOOR LOCKED/
CLEANING light
flashes until you
close door, then is
solid. HEATING light
goes on when oven
starts heating.
YOU SEE
OVEN ON and DOOR
LOCKED/CLEANING
lights are on. HEATING light goes off.
YOU SEE
OVEN ON light
flashes. DOOR
LOCKED/CLEANING
light goes out when
door unlocks.
3. Turn the oven control knob to OFF.
4. After the oven is cool, wipe off any residue or ash
with a damp cloth or sponge.
If needed, touch up spots with a mild abrasive
cleanser or cleaning sponge.
TURN YOU SEE
F
F
O
M
R
A
W
0
0
2
0
5
2
0
0
3
0
5
3
C
L
E
A
N
B
R
O
I
L
5
0
0
4
5
0
0
0
4
OVEN ON light
goes out.
30
Page 31

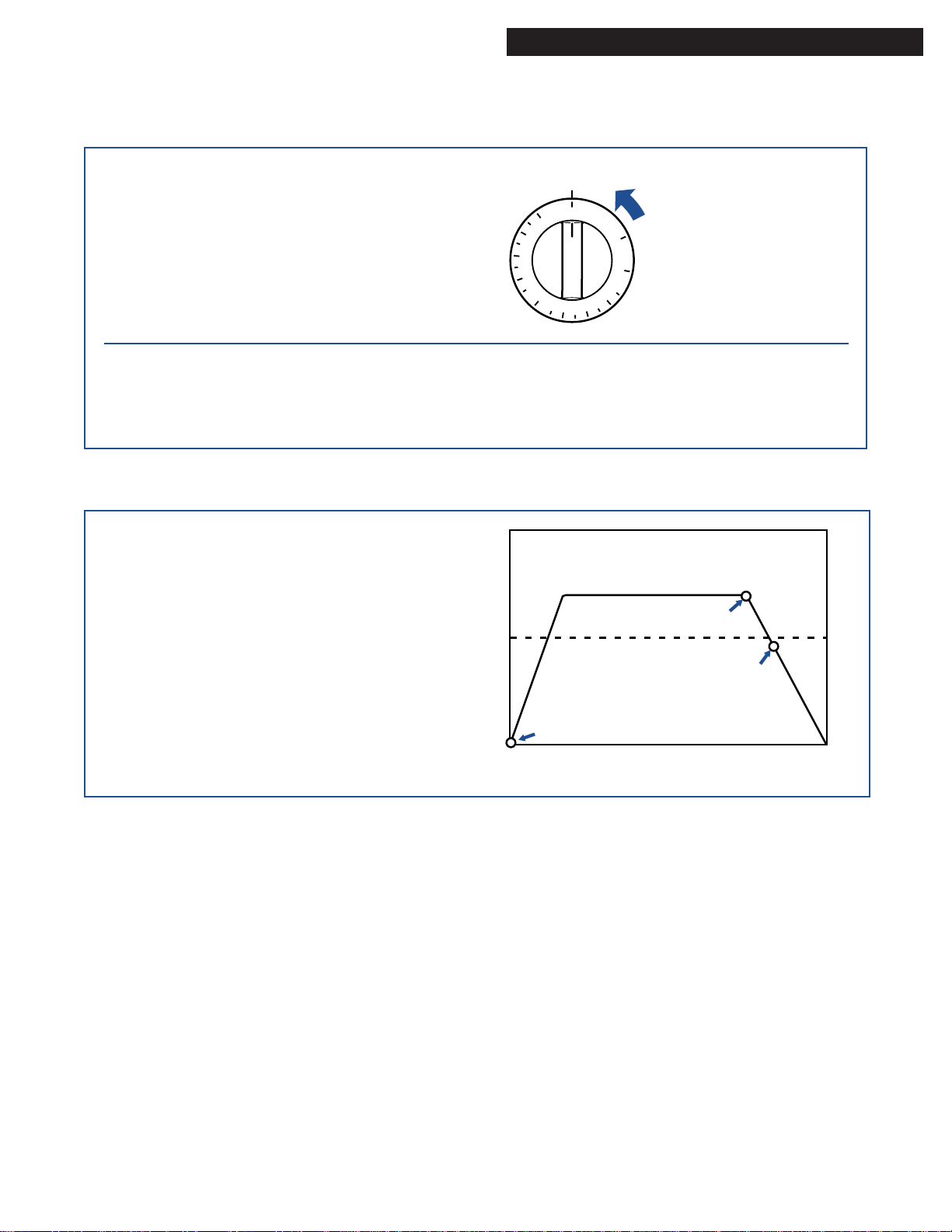

SETTING THE CONTROLS (CONT.)
USING THE SELF-CLEANING CYCLE
To stop the self-cleaning cycle at any time:
Turn the oven control knob to OFF.
Self-cleaning tips
Keep the kitchen well ventilated during the Self-
•
Cleaning cycle to help get rid of heat, odors, and
smoke.
HOW THE CYCLE WORKS
The Self-Cleaning cycle uses very high heat to burn
away soil and grease. During the cycle, the oven
gets much hotter than it does for normal baking or
broiling. This high heat breaks up the soil or grease
and burns it away.
Your oven is automatically preset for a 41⁄2-hour
Self-Cleaning cycle.
The graph at the right shows you what happens
in a 41⁄2-hour Self-Cleaning cycle. Notice that the
heating stops 1⁄2 hour before the 41⁄2-hour setting
is up.
TURN YOU SEE
F
F
O
M
R
A
W
0
0
2
0
5
2
0
0
3
0
5
3
Clean the oven before it gets heavily soiled. Clean-
•
C
L
E
A
N
B
R
O
I
L
5
0
0
4
5
0
0
0
4
ing a very soiled oven takes longer and could cause
an increased amount of smoke.
875°F ( 468°C )
CLEANING CYCLE
OVEN SHUT OFF
( normal broiling temperature )
Temperature
DOOR LOCKS
START 11 2 3 4 STOP
Time In Hours
DOOR LOCKED/
CLEANING light
stays on until oven
goes below locking
temperature.
DOOR UNLOCKS
31
Page 32
CARING FOR YOUR RANGE
Your range is designed so you can care for it easily. You can do most cleaning with items
found around your home. Cleaning your range whenever spills or soiling occurs will help to
keep it looking and working like new.
wWARNING
Explosion Hazard
Do not store flammable materials such as gasoline near the cooktop.
Doing so can result in death, explosion, fire, or burns.
CLEANING CHART
Use this chart to get specific information on cleaning your range. Before cleaning, always make sure all
controls are off and the range is cool.
PART
Control knobs
Control panel
Exterior surfaces
(other than ceramic
glass cooktop and
control panel)
HOW TO CLEAN
1. Turn the knobs off and pull them straight away from the control panel.
2. Wash the knobs with a sponge and warm, soapy water. Rinse and dry
them well. Do not soak them. Do not use steel wool or gritty cleansers,
which can damage the finish of the knobs.
3. Replace the knobs. Make sure all knobs are turned off.
Wash the panel with a sponge and warm, soapy water. Wipe the panel with
•
clean water and dry it well. Do not use steel wool or gritty cleansers,
which can damage the finish.
OR
Wash the panel with a paper towel and spray glass cleaner. Do not spray
•
the cleaner directly on the panel. Apply the cleaner to the paper towel.
Wash with a sponge and warm, soapy water. Wipe with clean water and
•
dry well.
Use a nonabrasive, plastic scrubbing pad on heavily soiled areas.
•
Do not use gritty or harsh cleansers, which can damage the finish.
•
NOTE: Do not let foods containing acids (such as vinegar, tomato, or lemon
juice) remain on the surface. Acids may remove the glossy finish. Also wipe up
milk or egg spills when the cooktop is cool. Be careful when cleaning
around the model and serial number plate; too much scrubbing could
remove the numbers.
Surface units
(Models FEP310E,
FEP320E, FEP330E,
FES330E)
Chrome reflector
bowls
(Models FEP310E,
FEP320E, FEP330E,
FES330E)
Ceramic glass
cooktop
(Model FES364E)
32
You do not have to clean open coil elements because spatters or spills will
•
burn off.
Do not immerse the surface units in water.
•
Wash the reflector bowls with warm, soapy water and a nonabrasive, plastic
•
scrubbing pad. Rinse and dry them well.
Clean the reflector bowls often.
•
Do not use gritty or harsh cleansers.
•
Do not clean the bowls in the Self-Cleaning oven.
•
See pages 37 and 38.
•
Page 33
CLEANING CHART (CONT.)
CARING FOR YOUR RANGE
PART
Broiler pan and grid
Oven racks
Oven door glass
(Models FEP320E,
FEP330E, FES330E,
FES364E)
Oven cavity
(Models FEP310E,
FEP320E, FEP330E)
HOW TO CLEAN
Wash the pan and grid with a steel-wool pad and warm, soapy water. Rinse
•
and dry well.
Do not clean the pan and grid in the Self-Cleaning cycle (Models FES330E
•
and FES364E).
OR
Wash the pan and grid in a dishwasher.
•
Wash with a steel-wool pad and warm, soapy water. Rinse and dry well.
•
OR
Leave the racks in the oven during the Self-Cleaning cycle (Models FES330E
•
and FES364E).
NOTE: If you leave your racks in the oven during the Self-Cleaning cycle, they
will lose their original color and become harder to slide. If you need to, apply a
small amount of vegetable oil to the side rungs to make the racks easier to slide.
Wash with a paper towel and spray glass cleaner or a nonabrasive plastic
•
scrubbing pad and warm, soapy water. Wipe with clean water and dry well.
Follow the directions that come with the cleaner.
•
Wash with a sponge or steel-wool pad and warm, soapy water. Wipe with
•
clean water and dry well.
OR
1. Clean heavily soiled areas with a commercial oven cleaner. Follow the direc-
tions that come with the oven cleaner. (Place newspaper on the floor to
protect the floor surface.)
2. Wipe well with clean water.
NOTES:
Use oven cleaners in a well-ventilated room.
•
Do not let commercial oven cleaners contact the heat seal, thermostat,
•
or exterior surfaces of the range. This will cause damage.
For easier cleaning you can remove the oven door. Carefully follow the
•
instructions on page 39.
Oven cavity
(Models FES330E
and FES364E)
Wipe up food spills containing sugar as soon as possible after the oven cools
•
down. (See “Using the Self-Cleaning Cycle” on page 29.)
See “Using the Self-Cleaning Cycle” on pages 29-31.
•
33
Page 34

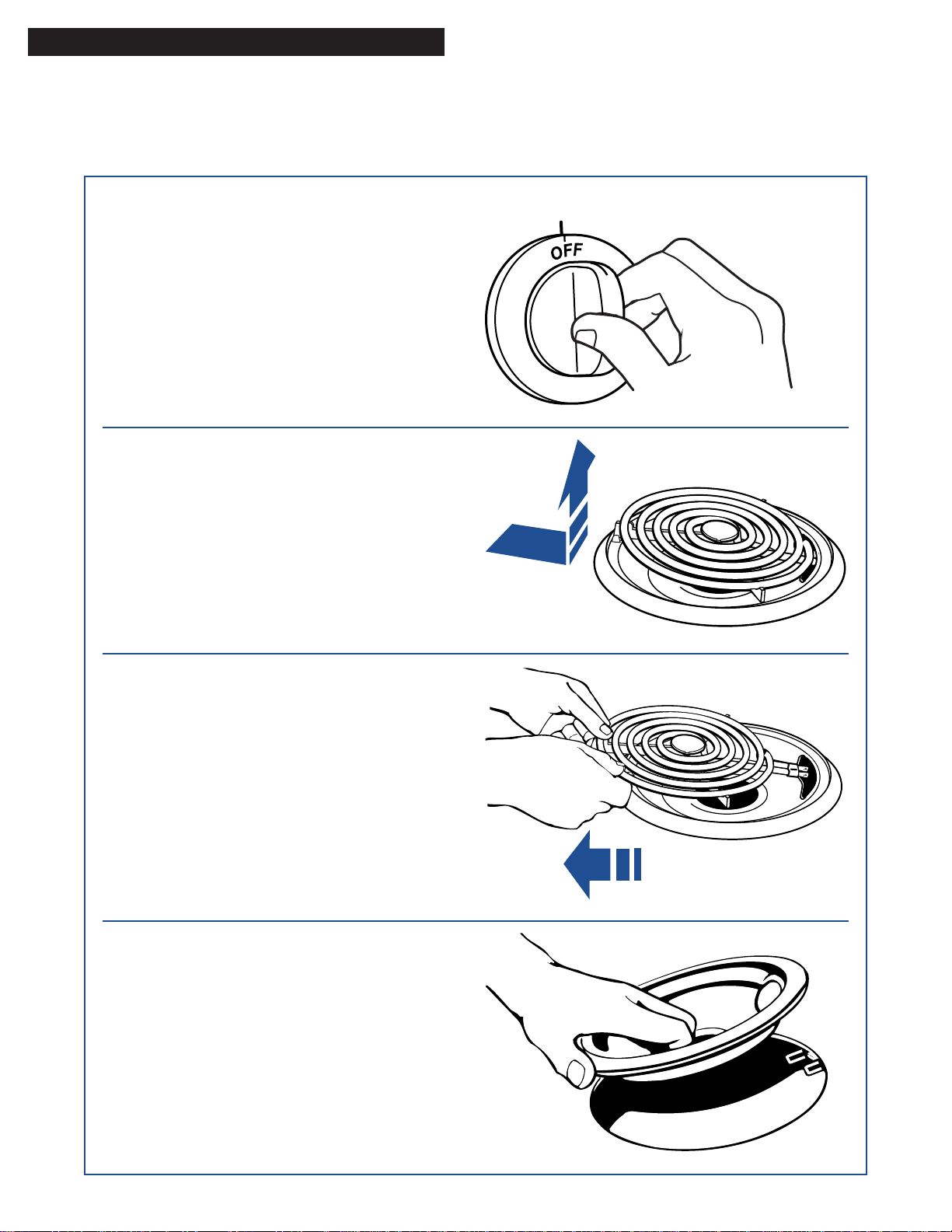

CARING FOR YOUR RANGE
SURFACE UNITS AND REFLECTOR BOWLS
(MODELS FEP310E, FEP320E, FEP330E, FES330E)
Removing
1. Make sure all surface units are off and
cool before removing surface units and
reflector bowls.
2. Push in the edge of the unit, opposite the
receptacle. Then lift it just enough to clear
the reflector bowl.
3. Pull the surface unit straight away from
the receptacle.
4. Lift out the reflector bowl. See “Cleaning chart”
on page 32 for cleaning instructions.
34
Page 35

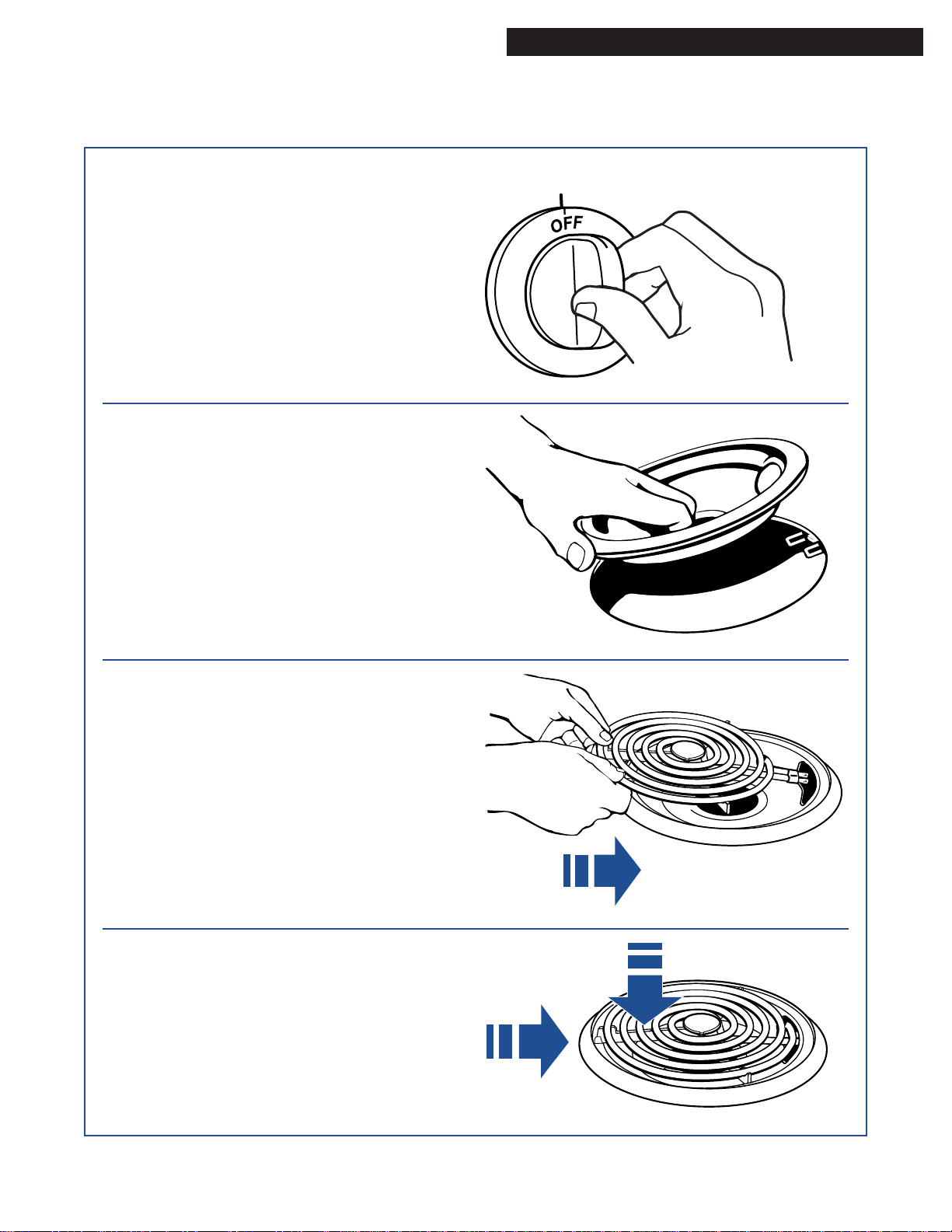

SURFACE UNITS AND REFLECTOR BOWLS (CONT.)
Replacing
1. Make sure all surface units are off and
cool before replacing surface units and
reflector bowls.
2. Line up openings in the reflector bowl with the
surface unit receptacle.
CARING FOR YOUR RANGE
3. Hold the surface unit as level as possible with the
terminal just started into the receptacle. Push the
surface unit terminal into the receptacle.
4. When the terminal is pushed into the receptacle
as far as it will go, push down the edge of the
surface unit opposite the receptacle.
continued on next page
35
Page 36
CARING FOR YOUR RANGE
SURFACE UNITS AND REFLECTOR BOWLS (CONT.)
NOTE: Reflector bowls reflect heat back to the
cookware on the surface units. They also help catch
spills. When they are kept clean, they reflect heat
better and look new longer.
If a reflector bowl changes color, some of your
cookware may not be flat enough, or some may be
too large for the surface unit. In either case, some
of the heat that’s meant to go into or around cookware goes down and heats the reflector bowl. This
extra heat can cause it to change color.

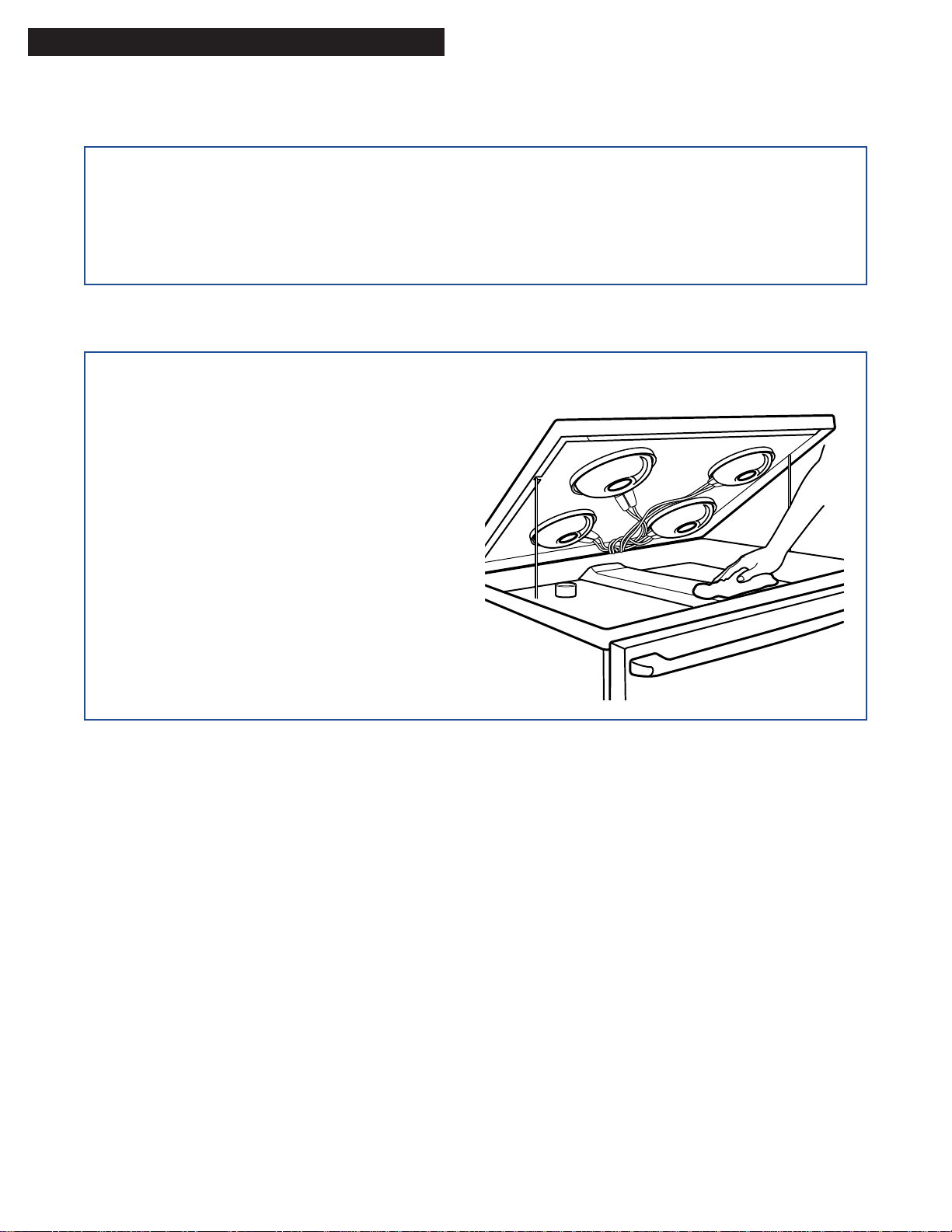

LIFT-UP COOKTOP (MODELS FEP310E, FEP320E, FEP330E, FES330E)
NOTE: Do not drop the cooktop. Damage could
result to the porcelain and the cooktop frame.
1. Lift the front of the cooktop at both front corners
until the support rods lock into place.
2. Wipe the surface under the cooktop with warm,
soapy water and a sponge. Use a soapy steelwool pad on heavily soiled areas.
3. To lower the cooktop, lift the cooktop from both
sides while pressing the support rods back to
unlock them. Lower the cooktop into place.
36
Page 37

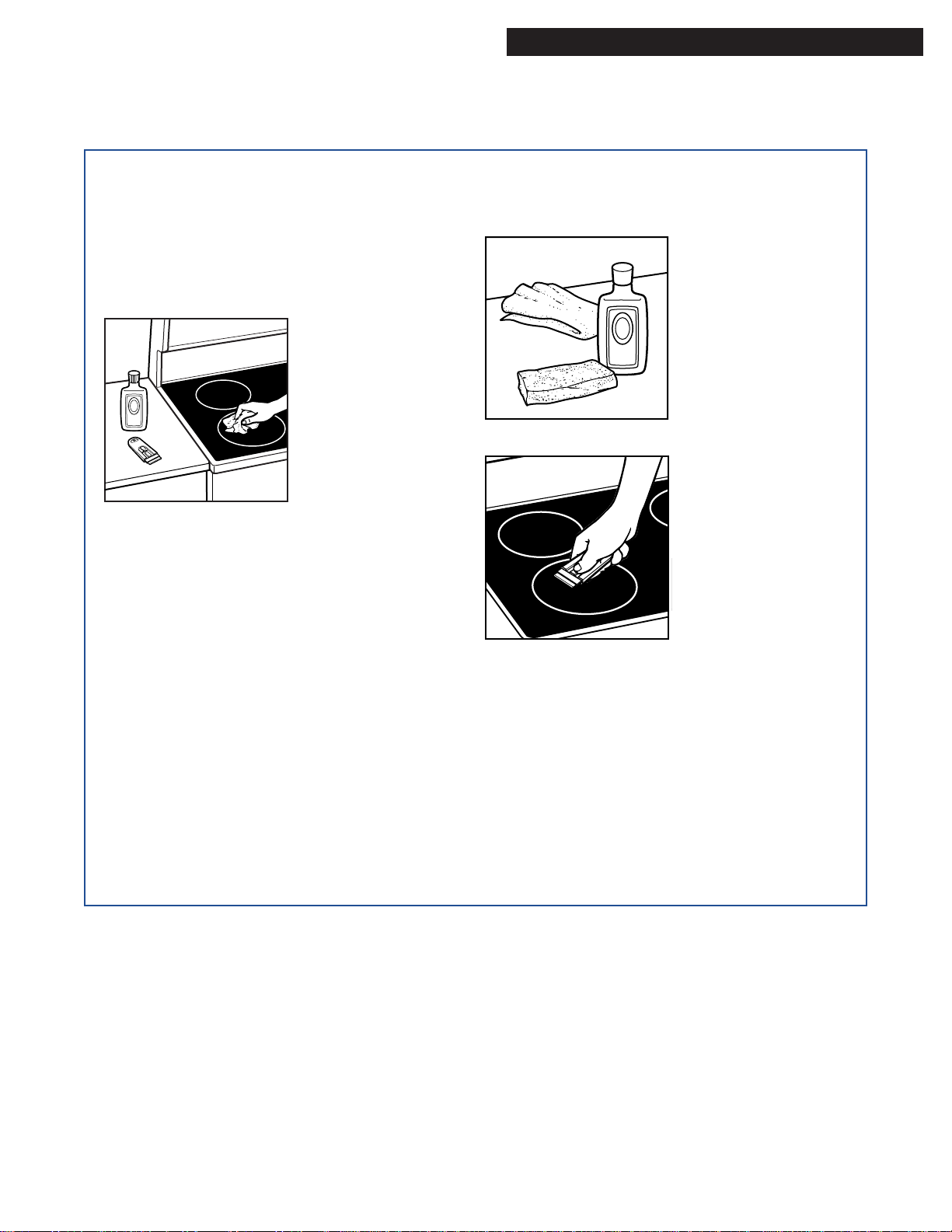

CLEANING THE CERAMIC GLASS COOKTOP (MODEL FES364E)
CARING FOR YOUR RANGE
Your cooktop is designed for easy care. However,
you need to maintain your ceramic glass cooktop
differently than you would standard electric opencoil elements. Foods spilled directly on the cooktop
will not burn off as on open-coil elements. Because
of this, you should keep the surface dust free and
soil free before heating.
Your cooktop has been prepolished at the factory
for improved protection
and easier cleaning.
The Cooktop Polishing Creme included
with your range,
a soft cloth or a
sponge, and a singleedge razor blade in a
holder (see next page
for ordering information)
are all you need
to clean your cooktop. For proper cleaning methods, please review “Cleaning tips” in the next
column and on the next page. Follow them after
each time you use your cooktop. This will ensure
you get the best performance out of your cooktop,
as well as preserve that uniquely elegant look.
Cleaning tips
What to use:
Cooktop Polishing Creme included with your
•
Razor scraper in a holder – Use this scraper to
•
range with a soft cloth
or clean, damp sponge –
This creme has been
developed especially for
cleaning and protecting
your cooktop. When
using the creme, follow
the instructions on the
container.
remove cooked-on soils
from your ceramic glass
cooktop. To avoid
scratches, keep the razor
blade as flat against the
cooktop as possible.
Store razor blades out
of reach of children.
To avoid damaging the cooktop, follow these
instructions:
Remove sugar spills and soils from the cooktop
•
while the surface is still warm to avoid pitting on
the surface.
Marks from sliding metal pans on the cooktop are
•
difficult to remove completely. Use cooktop
polishing creme to clean the area. Several applications may be necessary.
Do not use steel wool, plastic cleaning pads,
•
gritty powdered cleansers, chlorine bleach, rust
remover, ammonia, or glass cleaning products
with ammonia. These products could damage
the cooktop surface.
37
Page 38
CARING FOR YOUR RANGE
CLEANING THE CERAMIC GLASS COOKTOP (CONT.)
Steps to follow:
1. You can wipe off most spills easily using a soft
cloth or clean, damp sponge as soon as the Hot
Surface Indicator Light goes off.
2. For stubborn spills, rub the Cooktop Polishing
Creme into cooked-on soil using a soft cloth.
If some soil remains, leave some creme on the
spot(s) and follow Step 3.
3. Carefully scrape spots with the razor scraper.
4. Finish by polishing the entire cooktop with
Cooktop Polishing Creme and a soft cloth.
To order the Cooktop Polishing Creme (Part No.
3184477) or a razor scraper (Part No. 3183488),
call 1-800-447-6737. You will hear a recording.
Follow the steps to place an order.
How to keep your cooktop looking like new:
IF THERE ARE
Sugary spills
and soils (such
as jellies and
candy syrups)
Dark streaks,
specks, and
discoloration
Metal marks
(from copper
aluminum pans)
Tiny scratches
or abrasions
WHAT TO DO
To prevent pitting on the
cooktop, wipe up with a
soft cloth or clean, damp
sponge while the ceramic
glass surface is still
warm. Remove spills as
soon as possible after
they occur.
Use the Cooktop Polishing
Creme or a nonabrasive
cleanser with a damp soft
cloth or sponge.
Use the Cooktop Polishing
Creme or a gritty cleanser
with a damp soft cloth or
sponge before heating the
cooktop again. If heated
before cleaning, metal
marks may not come off.
Scratches and abrasions
do not affect cooking. After
many cleanings, they will
become less visible. To
prevent scratches and
abrasions, use the Cooktop
Polishing Creme regularly.
38
NOTE: Always wipe your cooktop with clean water
and dry it well after using the cleanser to prevent
streaking or staining.
Page 39

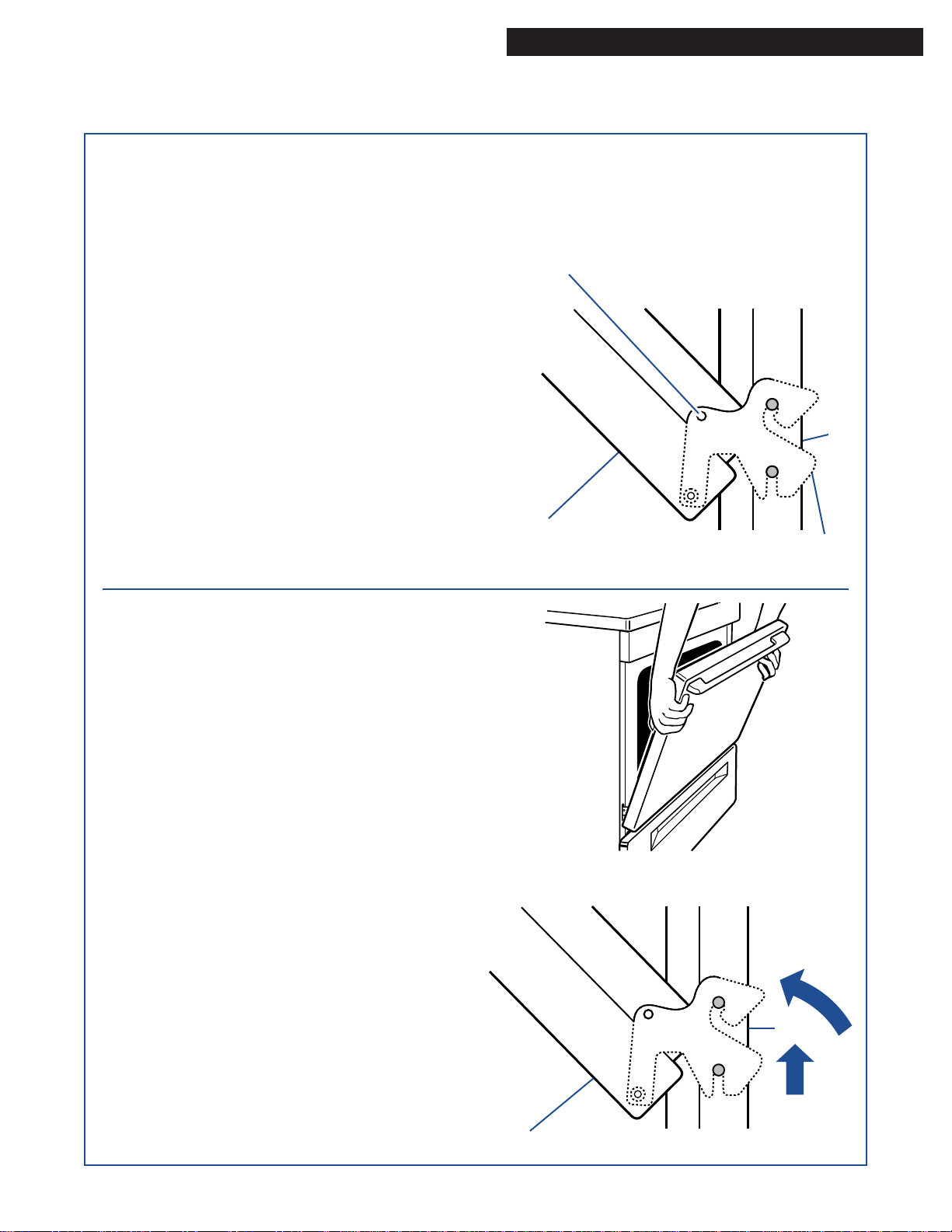

REMOVING THE OVEN DOOR
For normal use of your range, you do not need to
remove the door. However, if you have to remove
the door follow the instructions in this section.
To remove:
1. Open the door about halfway. Insert nails
or screws into both hinge hangers. Do not
remove them while the door is removed
from the range.
2. Close the door as far as the nails or screws
will let you.
CARING FOR YOUR RANGE
Insert nail or
screw here
Range
3. Rotate the door toward the range. Lift up the
door until it stops. Do not use the door handle
to lift the door. Rotate the door toward the floor
and pull it toward you.
Oven door
Hinge
hanger
Rotate
Oven door
Range
Lift up
39
Page 40

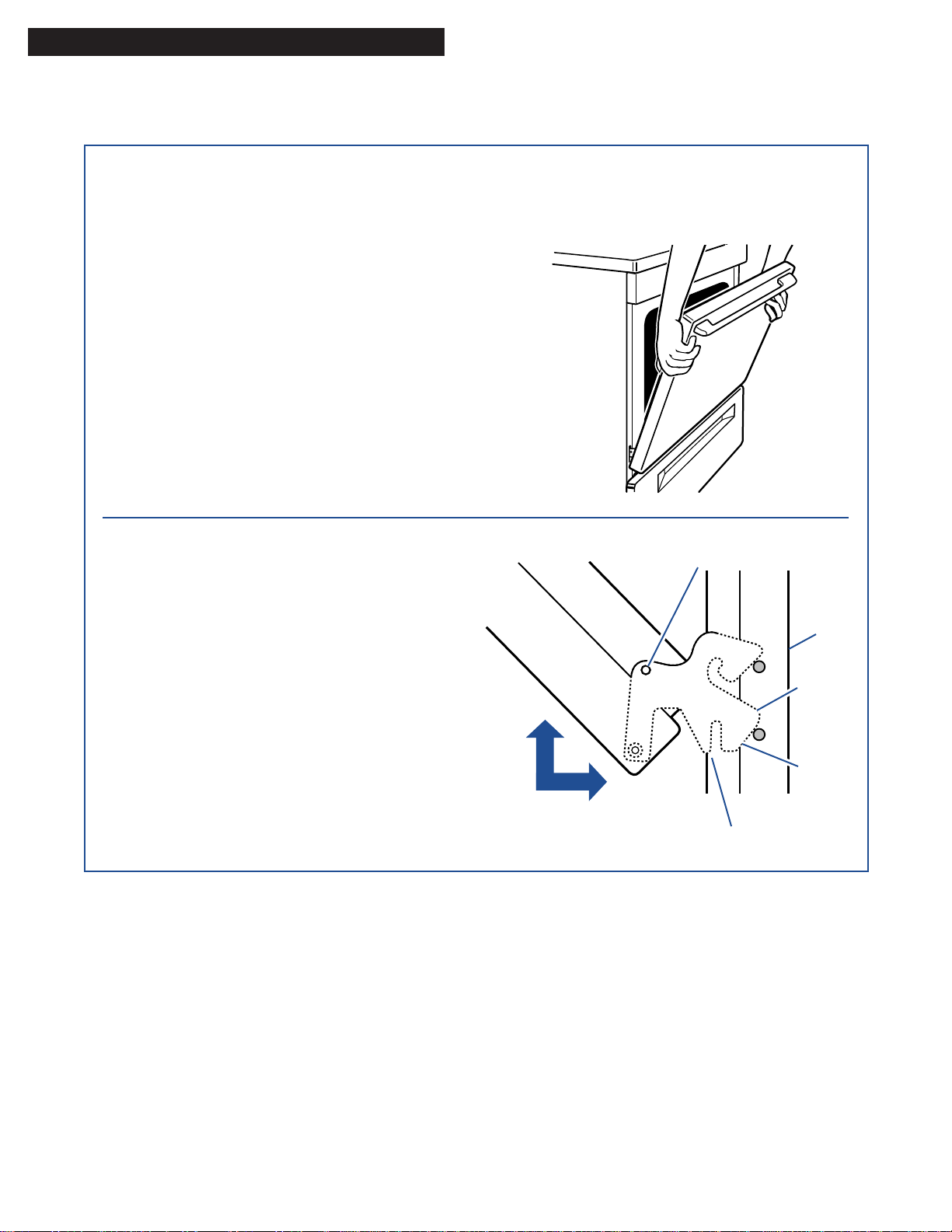

CARING FOR YOUR RANGE
REMOVING THE OVEN DOOR (CONT.)
To replace:
NOTE: The nails or screws you inserted must still be
in both sides of the door.
1. Grasp the door on the sides with your fingers on
the front of the door and your thumbs on the
inside surface.
2. Rest the hinge hanger so that it is flat (at the
bottom of the hinge hanger on the bottom of the
front frame slot).
3. Position the door with the hinge hanger slots
almost parallel to the front frame.
4. Push up and in until the hinge hanger slots
become fastened to the range. Lower the door
and rotate it slightly from the front to the back
until the slots are fully fastened. The hinge
hanger will be close to the bottom of the front
frame slot.
5. Pull door open about halfway and remove the
nails or screws.
6. Close the door.
Oven door
Up
Remove nail
or screw
Range
Hinge
hanger
Hinge
hanger
flat
In
Front frame slot
bottom
40
Page 41
THE OVEN LIGHT (MODEL FES364E)
The oven light will come on when you open the
oven door.
To replace the oven light:
CARING FOR YOUR RANGE
1. Unplug the range or disconnect it at the main
power supply.
2. Remove the glass bulb cover in the back of the
oven by screwing it out
counterclockwise.
3. Remove the light bulb from its socket. Replace
the bulb with a 40-watt appliance bulb.
4. Replace the bulb cover by screwing it in clock-
wise. Plug in the range
or reconnect it at the
main power supply.
41
Page 42
TROUBLESHOOTING
Most cooking problems often are caused by little things you can find and fix without tools of
any kind. Check the lists below and on the next page before calling for assistance or service.
If you still need help, see “Requesting Assistance or Service” on page 44.
RANGE DOES NOT WORK
PROBLEM
Nothing works
The oven does not work
The surface units will
not work
CAUSE
The range is not plugged into a live outlet with the proper voltage.
•
(See Installation Instructions.)
You have blown a household fuse or tripped a circuit breaker.
•
The control knob is not set correctly. Push in the control knobs before
•
turning them.
You have not turned the oven temperature control knob to a temperature
•
setting.
You have not set the oven selector to BAKE or BROIL (Models FEP310E,
•
FEP320E, FEP330E).
You have blown a household fuse or tripped a circuit breaker.
•
The surface units are not plugged in all the way (Models FEP310E, FEP320E,
•
FEP330E, FES330E). (See “Replacing” on page 35.)
You have not set the control knobs correctly. Push the control knobs in
•
before turning them to a setting.
WHEN SELF-CLEANING YOUR OVEN (MODELS FES330E AND FES364E)
PROBLEM
CAUSE
The Self-Cleaning cycle
will not work
42
You did not turn the oven control knob to CLEAN.
•
The door is not closed all the way.
•
Page 43
COOKING RESULTS
TROUBLESHOOTING
PROBLEM
Cooking results are
not what you expected
CAUSE
The oven temperature seems too low or too high. See “Adjusting the oven
•
temperature control” on page 20 to adjust the oven temperature.
You did not preheat the oven before baking (if called for in the recipe).
•
The recipe you are using may need to be altered to improve the taste or
•
appearance of the food.
You are using a pan that is not the correct type or size. Refer to a reliable
•
cookbook or recipe for the recommended pan type and size.
There is not enough air space around the pan when baking. Allow 11⁄2 to
•
2 inches of air space on all sides of the pan.
The cookware is too large or too small for the surface unit being used. The
•
pan should be the same size or slightly larger than the surface unit
being used.
The range is not level. (See the Installation Instructions.)
•
INDICATOR LIGHTS FLASH (MODELS FES330E AND FES364E)
PROBLEM
The oven on and heating
indicator lights flash
CAUSE
You can not bake, broil, or clean. Call for service. (See “If You Need Assis-
•
tance or Service” on page 44.)
The heating and door
locked/cleaning indicator lights flash
If none of these items are causing your problem, see “Requesting Assistance or Service” on page 44.
The door lock has failed. Call for service. (See “If You Need Assistance or
•
Service” on page 44.)
43
Page 44
REQUESTING ASSISTANCE OR SERVICE
To avoid unnecessary service calls, please check “Troubleshooting” on pages 42-43. It may
save you the cost of a service call. If you still need help, follow the instructions below.
IF YOU NEED ASSISTANCE OR SERVICE
Call our Consumer Assistance Center toll free at
1-800-44-ROPER (1-800-447-6737).
Our consultants are available to
assist you.
When calling:
Please know the purchase date, and
the complete model and serial number of your
appliance (see page 2). This information will help us
better respond to your request.
Our consultants provide assistance with:
Features and specifications on our full line
•
of appliances
Installation information
•
Use and maintenance procedures
•
IF YOU NEED REPLACEMENT PARTS
If you need to order replacement parts, we
recommend that you only use FSP® factory
authorized parts. FSP replacement parts will fit
right and work right, because they are made to
the same exacting specifications used to build
every new ROPER® appliance.
Accessory and repair parts sales
•
Do-it-yourself repair help
•
Specialized customer assistance (Spanish speak-
•
ing, hearing impaired, limited vision, etc.)
Referrals to local dealers, service companies, and
•
repair parts distributors
To locate an authorized servicer in your area, you can
also look in your telephone directory Yellow Pages.
To locate FSP replacement parts in your area, call
our Consumer Assistance Center telephone number
or your nearest authorized service center.
FOR FURTHER ASSISTANCE
If you need further assistance, you can write to us
with any questions or concerns at:
Roper Brand Home Appliances
Consumer Assistance Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your
correspondence.
44
If the dealer, authorized servicer, and Roper Brand
Appliance warrantor have failed to resolve your
problem, you can contact the Major Appliance
Consumer Action Program (MACAP). MACAP is a
group of independent consumer experts that voice
consumer views at the highest levels of the major
appliance industry. MACAP will in turn inform us of
your action.
Major Appliance Consumer Action Program
20 North Wacker Drive
Chicago, IL 60606
Page 45
NOTES
45
Page 46
NOTES
46
Page 47
INDEX
This index is alphabetical. It contains all the topics included in this manual, along with the
page(s) on which you can find each topic.
TOPIC PAGE
AIR CIRCULATION.....................................................14
ANTI-TIP BRACKET...................................................27
ASSISTANCE .............................................................44
BAKING
Aluminum foil..........................................................14
Pans .................................................................13, 14
Racks......................................................................13
Setting cycle.....................................................17, 18
Tips...................................................................17, 19
BROILING
Grid.........................................................................25
Guide ......................................................................25
Pan .............................................................21, 23, 25
Rack positions........................................................25
Setting cycle.....................................................22, 24
Tips.........................................................................25
CLEANING
Broiler pan and grid................................................33
Ceramic glass cooktop ....................................37, 38
Control knobs.........................................................32
Control panel ..........................................................32
Exterior surfaces ....................................................32
Oven cavity.............................................................33
Oven door glass ..................................................... 33
Oven racks .............................................................33
Reflector bowls ................................................32, 34
Self-cleaning cycle .................................................29
Surface units ....................................................32, 34
CLOCK.......................................................................15
CONTROL PANEL
Control knobs.........................................................10
Hot surface indicator light ......................................12
Oven on indicator light .........................................8, 9
Surface heating indicator light .............................8, 9
Surface unit markers ............................................ 6-9
COOKWARE
Canning ..................................................................11
Tips...................................................................11, 12
FEATURES ............................................................... 6-9
LIFT-UP COOKTOP ...................................................36
MINUTE TIMER ..........................................................16
MODEL AND SERIAL NUMBER ..................................2
TOPIC PAGE
OVEN DOOR........................................................39, 40
OVEN LIGHT ..............................................................41
OVEN TEMPERATURE
Adjusting ................................................................20
Setting ..............................................................17, 18
OVEN VENT ...............................................................26
PANS....................................................................13, 14
PARTS...................................................................... 6-9
RACKS .......................................................................13
ROASTING
Pans .................................................................13, 14
Racks......................................................................13
Setting cycle.....................................................17, 18
Tips...................................................................17, 19
SAFETY.................................................................... 3-5
SELF-CLEANING CYCLE
Before you start......................................................29
How the cycle works ..............................................31
Setting the controls ................................................30
Tips.........................................................................31
SERVICE ....................................................................44
STORAGE DRAWER ..................................................28
SURFACE UNITS
Ceramic glass cooktop ..........................................12
Control knobs...................................................10, 32
Control setting guide.............................................. 10
Hot surface indicator light ......................................12
Oven on indicator light .........................................8, 9
Surface heating indicator light .............................8, 9
Surface unit markers ............................................ 6-9
Tips.........................................................................10
TIPS
Bakeware................................................................13
Broiling ...................................................................25
Cookware .........................................................11, 12
Energy saving .............................................10, 17, 19
Roasting ...........................................................17, 19
Self-cleaning...........................................................31
TROUBLESHOOTING..........................................42, 43
WARRANTY ...............................................................48
47
Page 48
WARRANTY
ROPER® ELECTRIC RANGE
LENGTH OF WARRANTY
FULL ONE-YEAR
WARRANTY
FROM DATE OF PURCHASE
WE WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of your range.
2. Instruct you how to use your range.
3. Replace house fuses or correct house wiring.
4. Replace owner-accessible light bulbs.
B. Repairs when your range is used in other than normal, single-family household use.
C. Pickup and delivery. Your range is designed to be repaired in the home.
D. Damage to your range caused by accident, misuse, fire, flood, acts of God, or use of products not
approved by us.
E. On ceramic glass cooktop model, repairs to ceramic glass cooktop if it has not been cared for as
recommended in this Use and Care Guide.
F. Repairs to parts or systems caused by unauthorized modifications made to the appliance.
THIS ROPER APPLIANCE IS WARRANTED BY WHIRLPOOL CORPORATION. UNDER NO CIRCUMSTANCES SHALL IT BE LIABLE UNDER THIS WARRANTY FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please contact your authorized
Roper dealer.
If you need service, first see the “Troubleshooting” section of this book. After checking “Troubleshooting,”
additional help can be found by checking the “Requesting Assistance or Service” section or by calling our tollfree telephone number, 1-800-44-ROPER (1-800-447-6737), from anywhere in the U.S.A.
WE WILL PAY FOR
FSP® replacement parts and repair labor to correct defects in materials or
workmanship. Service must be provided by an authorized Roper service
company.
3/96
PART NO. 3196280 Rev. B
© 1996 Whirlpool Corporation
® Registered Trademark of Whirlpool, U.S.A.
Printed in U.S.A.
7/96
Loading...
