use&care guide
NO-FROST
UPRIGHT
Model EV15HEXP
:rs, Freeiers, Relrigeralor-Freezers, Ice Makers, Dishwashers, Built-In Ovens, and Surface Units, Ranges, Microwave Ovens, Trash Compactors, Room Air Conditioners, Dehumidil
Page 2
Please read this Use and Care Guide before you do anything else.
This booklet tells you howto start your freezer,
clean if and adjust controls.
Treat your new freezer with care. Use it only to
do what home freezers are designed to do.
Parts and features
Copy your Model and Serial Numbers here...
When you need service, or call with a question,
have this information ready
1. Complete Model and Serial Numbers (from the
plate located as shown)
2. Purchase date from sales slip
Copy this information in these spaces Keep this
book, your warranty and sales slip together in a
handy place There is no warranty registration to re
turn Proof-of-purchase is all that Is required for in
warranty service
Model Number
Serial Number
Purchase Date
Service Company and Telephone Number
Page 3
Contents
SAFETY FIRST............................................... 3
BEFORE YOU PLUG IT IN.............................. 3
Install Properly
Level Freezer
Remove Sales Labels
Clean It ...................................................... 4
Plug It In .................................................... 4
USING YOUR FREEZER................................. 5
Setting the Temperature Control
Adjusting the Temperature Control
Cooling Freezer First ................................. 5
The Power Saving Control
Removing and Adjusting Freezer Shelf. , 5
Adjusting the Freezer Shelves
Changing the Light Bulb
Removing the Bottom Basket
The Key Eject Lock
Safety first
Child entrapment and suffocation are not
things of the past. Junked or abandoned
freezers are still dangerous...even if they will
"just sit in the garage a few days."
If you are getting rid of your old freezer,
do it sdfely. Pledse redd the enclosed
safety sheet from the Association of Home
Appliance Manufacturers Help prevent
accidents.
...........................................
.............................................
...............................
...............
.........
.........................
..................
.............................
....................
....................................
c 1985 Whirlpool Corporation
5
The Signal Light
4
4
4
5
5
5
6
6
6
Optional Automatic Ice Maker
Energy Saving Tips.................................... 7
CLEANING YOUR FREEZER
Cleaning Chart
FREEZING FOOD IN YOUR FREEZER
Packaging and Sealing Food
To Wrap Foods
Loading
Storing Frozen Food
VACATION AND MOVING CARE
IF YOU NEED SERVICE OR ASSISTANCE 11
1, Before Calling for Assistance
2, If You Need Assistance
3, If You Need Service............................. 11
4, If You Flave a Problem
....................................................
.........................................
..........................................
.........................................
................................
....................
.........................
........
.....................
.................
..............
.......................
........................
Page
6
7
7
8
9
9
9
10
10
10
11
11
11
Before you plug it in
IMPORTANT
Before using your freezer, you are personally re
sponsible for making sure fhaf it,..
• is installed and levelled on a floor that will hold the
weight, and in an area suitable for its size and use,
• is connected only to the right kind of outlet, with the
right electrical supply and grounding. (Refer to
your "Electrical Requirements and Grounding
Instructions,")
• is used only for jobs expected of home freezers,
• is not near an oven, radiator or other heat source.
' is properly maintained.
‘ is out of the weather,
' IS used in an area where the room temperature
will not exceed 110’F (43,3'’C)
is not run where there are explosive fumes,
is not used by those who may not understand
how it should be used
is not loaded with food before it has time to get
properly cold.
Page 4
Install properly...
Check the strength of the floor It should hold the
weight of a fully loaded freezer
2 Pick a safe place, indoors, away from in
flammables such as gasoline.
3 Allow 3 inches (7,5 cm) air space on top of freezer
for proper ventilation.
4 Allow at least an inch (2,5 cm) between the
freezer condenser, on the back of the unit, and
the wall
5 Allow*/, inch (1 25 cm) on each side of the freezer
for ease of installation
6, If the freezer is to be in a corner, you might want to
leave extra space on the hinge side so the door
can be opened wider.
Remove sales labels...
Remove the Consumer Buy Guide label and any
inside labels before using the freezer.
To remove any remaining giue:
1 Rub briskly with thumb to make a ball, then
remove
OR
2. Soak area with dishwashing detergent solution (1
teaspoon detergent in 1 quart warm water) be^
fore removing glue as described in step 1
DO NOT USE rubbing alcohoi or fiammable or
toxic solvents, such as acetone, gasoline, car
bon tetrachloride, etc. These can damage the
surtace finish.
NOTE: DO NOT REMOVE the Tech Sheet fas
tened under the freezer at the front.
Clean it...
Clean your freezer before
using it See cleaning
instructions on page 7,
Plug it in...
Level freezer...
so the door will stay open at any position.
This freezer has 2 threaded leveling legs that are
shipped in a separate package,
1. Screw these legs all the way into bolt holes In the
bottom front corners of the freezer,
2. Slide the freezer into place.
3. Adjust front legs to level the freezer,
- To raise front, turn legs counterclockwise.
- To lower front, turn legs clockwise.
4. Check with level
5. After freezer is fully loaded, recheck with level.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused
and properly grounded electrical supply is required.
It is recommended that a separate circuit sen/ing only
this appliance be provided. Use a receptacie
which cannot be turned off with a switch or puli
chain. Do not use an extension cord.
Attach retaining clip over power cord plug from
literature package inside the freezer.
Page 5
Using your freezer

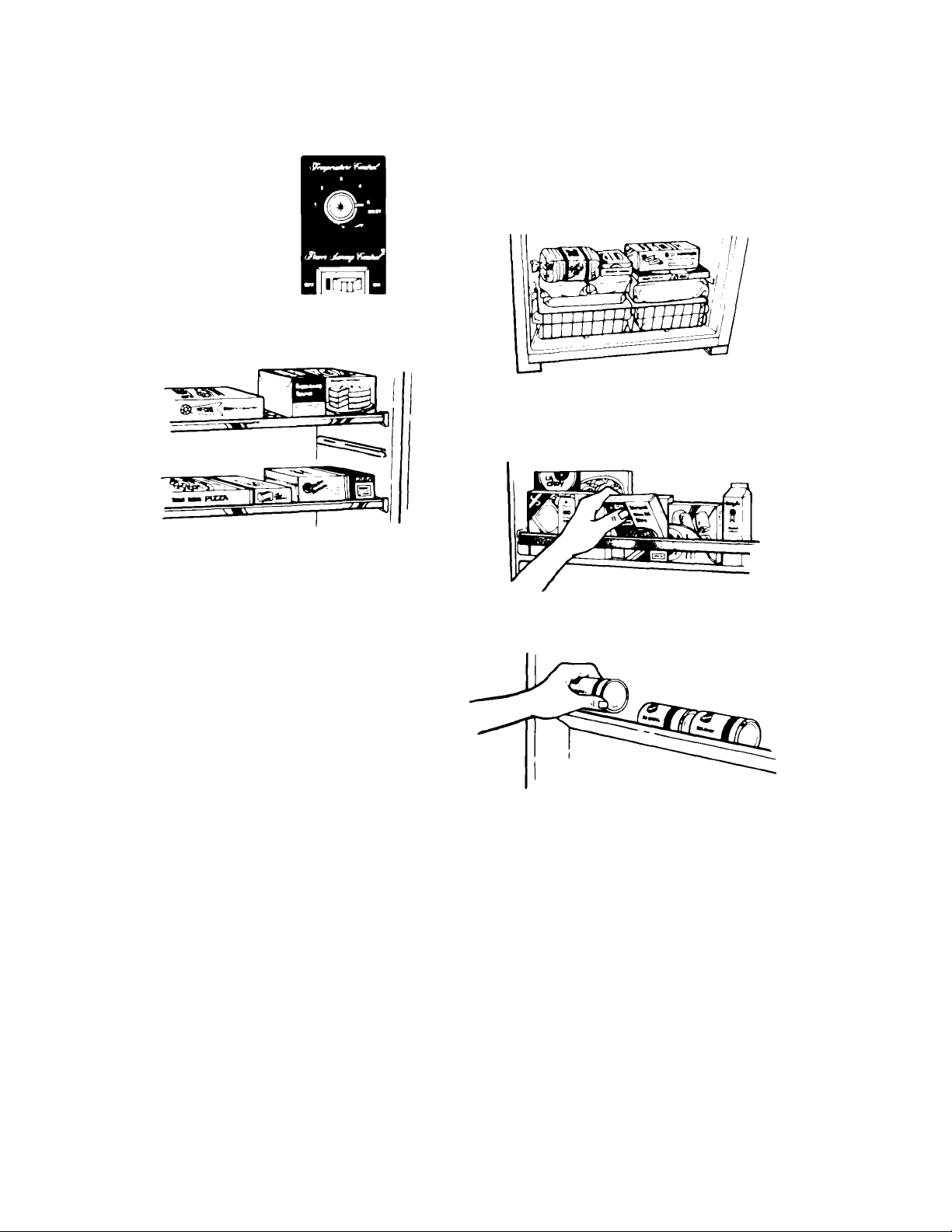

Setting the temperature control... Adjusting the temperature control...
To start, turn control to the middle of the dial. This 1 ■ Turn control to higher number for colder temper
setting IS designed to maintain the temperature at atures.
or near 0 F(- 17,8 °C) under normal operating 2 Turn to lower number for less cold temperatures,
conditions, ^
Cooling freezer first...
1 Allow freezer to cool 6 to 8 hours before filling with
frozen food.
2 Let it cool overnight before adding large amount
of unfrozen food.
Note: When freezer is first started, the compressor
will run constantly until the cabinet is cooled It may
m

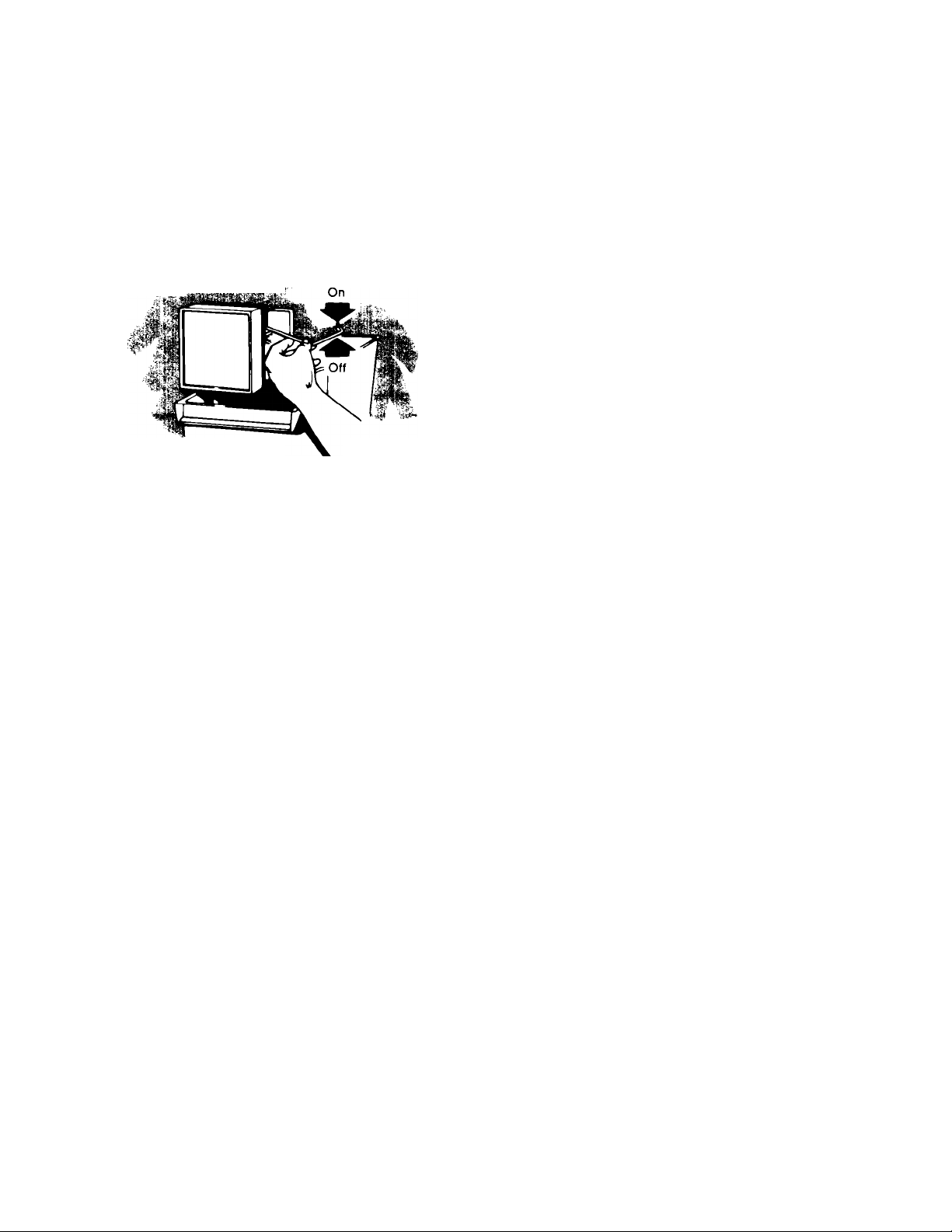

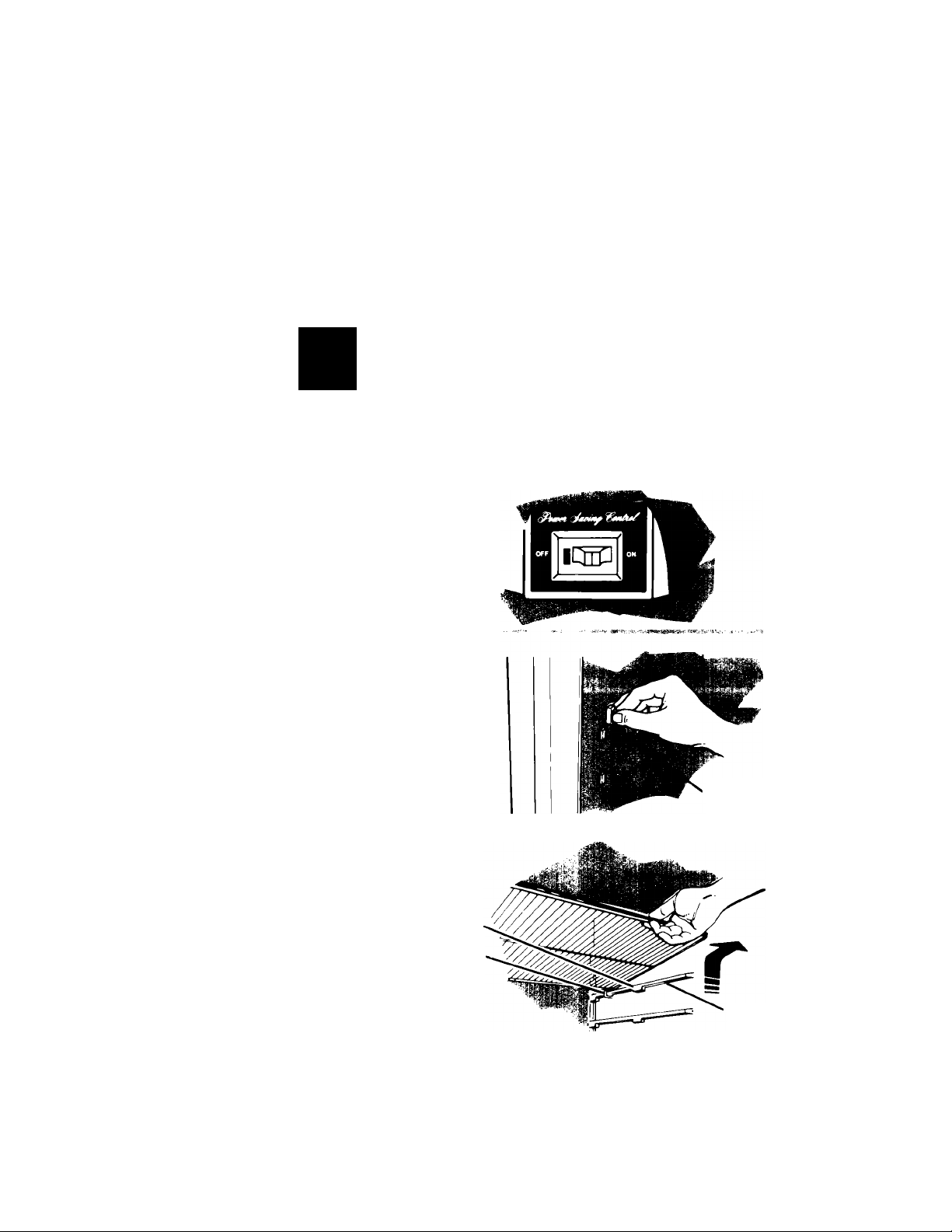

The Power Saving Control...
operates electric heaters. These heaters help pre
vent moisture from forming on the outside of the
freezer when humidity is high.
1, Use the OFF setting to save energy when humidity is
low.
2. Use the ON setting only if moisture forms on the out
side of the freezer.
take up to 6 to 8 hours or longer, depending on room
temperature and the number of times the freezer
door IS opened
After the cabinet is cooled, the compressor will
turn ON and OFF as needed to keep the freezer at
the proper temperature
Removing and adjusting the top freezer shelf...
To remove shelf:
1. Lift front, then back off supports.
2, Replace in reverse order.
To adjust shelf:
1, Remove shelf
2, Remove supports by sliding upwards
3, Replace supports on desired level
4, Replace shelf
Adjusting the freezer shelves...
To remove shelf:
1 Remove food from shelf
2, Slide shelf straight out to stop
3 Lift front
4 Slide the rest of the way out
To replace shelf:
1, Fit back of shelf on top of guides with wire stops on
bottom of guides
2 Lift front, then slide shelf until it clears the guide
stops.
Guide Stop
Shelf Stop
Shelf Support
Shelf Guide
Page 6

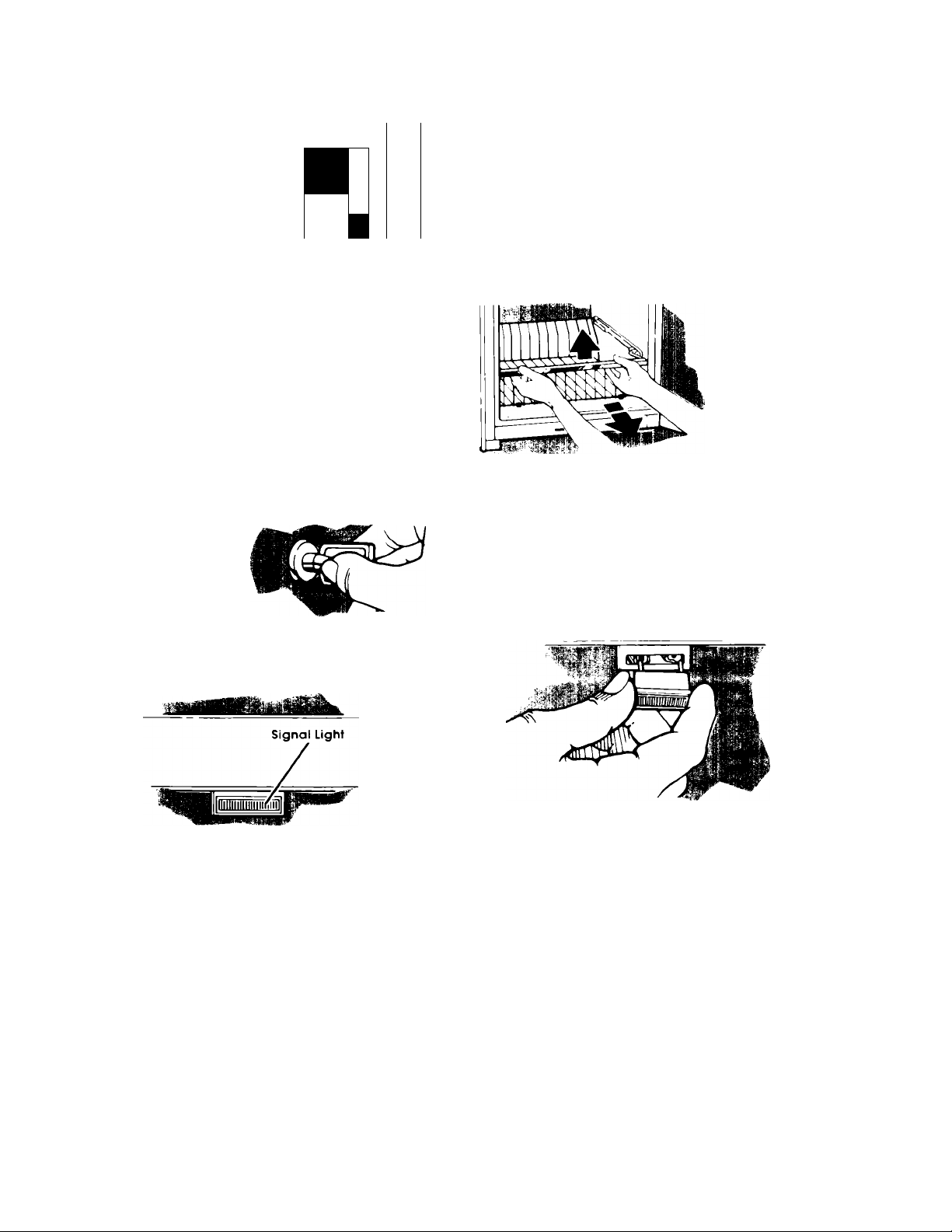

Changing the light bulb...
Light Shield.
•
f
Removing the bottom basket...
To remove:
1, Lift front of basket out of supports,
2, Pull out.
To replace:
1. Position back of basket on the rear wall supports
2. Lower front into place
Lift the Front,
Then Pull Out.
The key eject lock...
entrapment
can help reduce the hazard of child
WARNING: To avoid possible shocks, first unplug
freezer or turn off electricity leading
to freezer at the main power supply.
1. Remove the light shield from the side of the control
panel. Depress the back of the shield to release the
tabs, then pull away
2. Replace bulb with a 40-watt appliance bulb.
3. Replace the light shield. Insert the shield tabs in the
slots, then press the shield to snap into place,
4. Plug in power cord or switch on eleotricity.
To lock or unlock the freezer you must hold the
key in the lock while turning The lock is spring
loaded so the key cannot be left in the lock
If the key is lost, contact your WHIRLPOOL
dealer for a replacement Always give the com
plete model and serial number of your freezer
when requesting a replacement key.
The signal light...
automatically warns of any unexpected
power failure.
If the signal light is not glowing, immediately check:
• for power interruption,
• for an unplugged power cord,
• for a burned out signal light.
To replace burned out signal light:
1, Unplug power cord from outlet.
2. Open the freezer door.
3. Unplug burned out light and replace with one of
same wattage and size. Signal light can be
ordered from your WHIRLPOOL dealer.
Part No. 1103680
4, Close freezer door and plug power cord into outlet.
Page 7
Optional automatic ice maker...
If you have the automatic ice maker accessory or
plan to add one later (Part No. ECKMF-83 and wiring
harness 1103831), there are a few things you will need
to know:
• The ON ' OFF lever is a wire signal arm
Down ..for making ice automatically.
Up to shut off the ice maker
• Shake the bln occasionally to keep cubes sepa
rated, and to obtain increased storage capacity.
Lower Signal
Arm to Start It.
Arm to Stop Ice Maker.
Raise Signal
Energy saving tips...
You can help your freezer use less electricity,
• Check door gasket and level freezer to assure a
good door seal.
• Clean the condenser coils regularly.
• Keep door openings to a minimum. Remove several
items at one time. Keep contents organized to elimi
nate searching.
• Fill to capacity. Follow recommended procedures
for freezing foods. See pages 9 and 10
• It is normal for ice crescents to be attached by a
corner. They will break apart easily.
• You will hear water running when ice maker is
working. You'll hear ice fall into the bin. Don't let
these sounds bother you
• The ice maker will not operate until the freezer is
cold enough to make ice. This can take overnight.
• Because of new plumbing connections, the first
ice may be discolored or off-flavored. Discard the
first few batches of ice
• If you remove the ice bin, raise the signal arm to
shut off the ice maker. When you return the bin,
push it all the way in and lower the arm to the ON
position.
• If cubes are stored too long, they may develop an
off-flavor , like stale water. Throw them away. They
will be replaced. Cubes in the ice bin can also
become smaller by evaporation
• The ice maker water supply should not be soft
ened water. The chemicals could damage the ice
maker molds.
• Set Temperature Control to provide temperatures
around O'F ( -17,8'-C), There is no need to store foods
below O F.
• Keep door locked to ensure door closure.
• Keep Power Saving Control on CFF when humidity is
low.
Cleaning your freezer
This freezer is a No-Frost model and defrosts automatically Complete
cleaning, however, should be done at least once a year
To clean:
1 Turn Temperature Control to CFF
2 Unplug power cord
3 Take out all food
Note: Wrap frozen foods and packages in several
layers of newspaper and cover with a blanket Food
will stay frozen for several hours
4. Remove shelves and basket,
5, Clean freezer according to the following directions.
WARNING: When moving the freezer, wipe up
any water that may have spilled
from the defrost pan. Spilled water
can cause slipping and injury.
After cleaning:
1, Replace shelves and basket.
2, Plug in power cord.
3, See directions for "Setting the Temperature Con
trol," page 5,
Page 8
Cleaning chart...
Part What to use How to clean
Removable parts (shelves, basket, etc.)
Sponge or cloth; mild
detergent and warm
water
Wash with warm water and a mild detergent
Rinse and dry
Outside
Inside walls
(Freezer should be
allowed to warm
up so cloth won't stick.)
Door liner and gasket
Sponge, cloth or paper
towel; mild detergent;
appliance wax (or good
auto paste wax]
• Wash with warm water and a mild de
tergent Do not use abrasive or harsh
cleansers.
• Rinse and dry
• Wax painted metal surfaces at least
twice a year with appliance wax or a
good auto paste wax. Apply wax with
a clean, soft cloth. Do not use wax
on plastic parts.
Waxing painted metal surfaces provides rust protection.
Sponge, soft cloth or
paper towel; baking
soda, warm water,
mild detergent.
DO NOT USE cleaning waxes, concentrated detergents, bleaches
or cleansers containing petroleum on plastic because they may
damage these parts.
Sponge, soft cloth or
paper towel; mild deter
Wash with warm water and mild detergent;
OR with solution of 2 tablespoons (26 g) baking
soda to 1 quart ( 95 L) warm water.
Rinse and dry
Wash with warm water and mild detergent
Rinse and dry
gent and warm water
DO NOT USE cleaning waxes, concentrated detergents, bleaches
or cleansers containing petroleum on plastic because they may
damage these parts.
Defrost pan (behind
freezer on top of
compressor)
Condenser coils
Sponge, soft cloth or
paper towel; mild deter
gent and warm water.
Use vacuum cleaner
with brush attachment.
WARNING: Watch out
for sharp wire ends at
top of condenser
coils. They can cause
injury or damage
brush.
Slide freezer out away from wall
Wash defrost pan with warm water and mild
detergent Do not remove defrost pan to
clean.
Rinse and dry, '
Make sure defrost drain tube points into pan.
Slide freezer back into place.
• Slide freezer out away from the wall
• Clean dust and lint from condenser coils behind
the freezer at least every other month
Page 9
Freezing food in your freezer

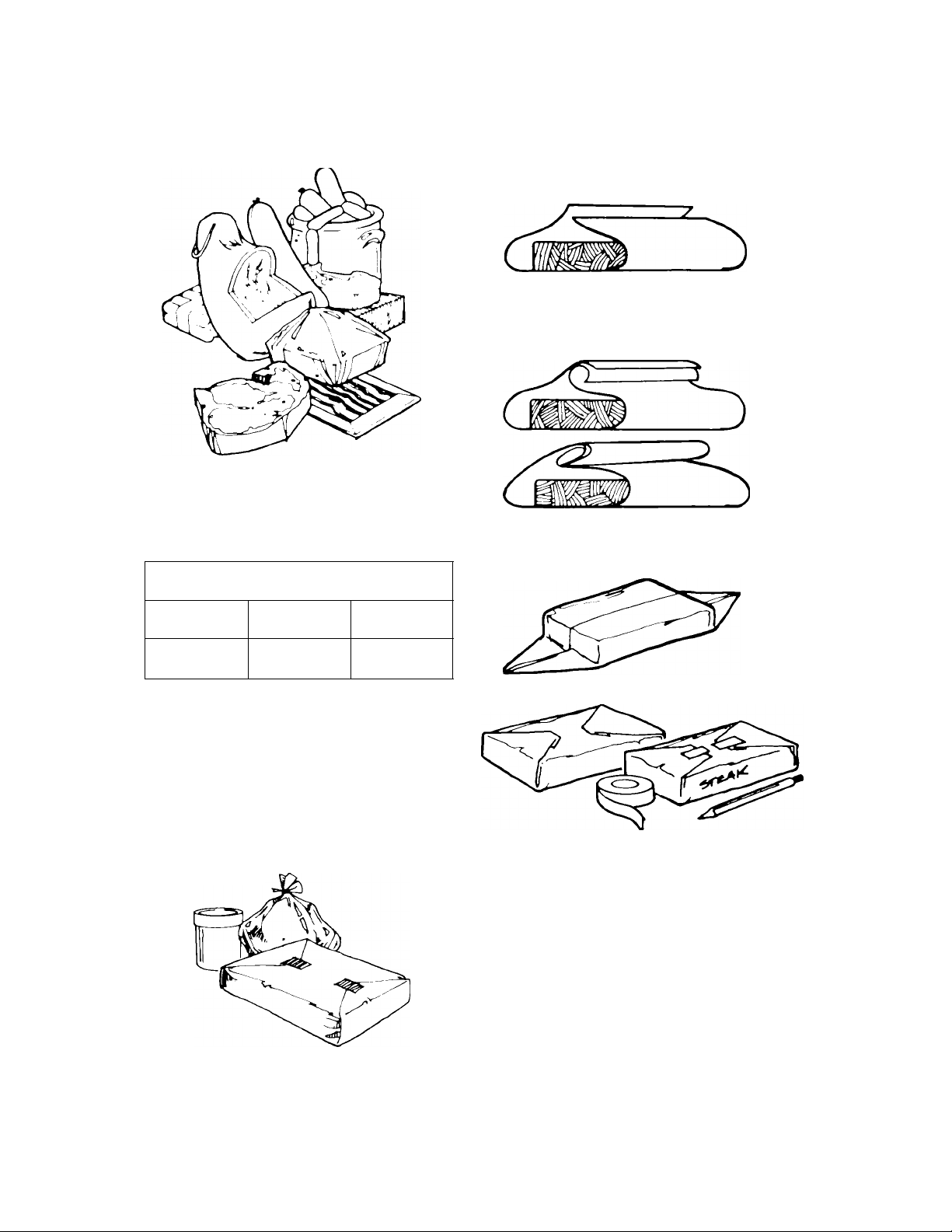

To nrap foods...
1. Cut sheet of wrapping material about onethird longer than distance around food to be
wrapped. Place wrapping sheet on flat sur
face with food in center of sheet.
When freezer has cooled to a safe storage
temperature, it may be loaded with frozen food.
When you plan to freeze unfrozen food, see
the following chart for the amount to freeze at
one time.
POUNDS OF FOOD
TO FREEZE AT ONE TIME*
Size of
Freezer
15 cj fi
(433 l;
'These amounts are based on USDA recommen
dations If too many packages of unfrozen food
are packed at one time into the freezer, the rate
of freezing is too slow. Poor quality products result.
Meat or
Fish
30 IDS
(135 kg I
Vegetables
or -rur
45 lbs
20 25 kg I
2. Bring front and back of wrapping together
and fold in toward food, making at least two
one-inch (2.5 cm) folds until food fits tightly
against wrapping.
3. Crease ends close to food to eliminate air
pockets.
Packaging and sealing food...
Airtight packaging is important in freezing
foods. Containers and wrappings should be
moisture and vapor-proof and packages should
be sealed carefully to keep moisture in and air
out.
Freezer burn can result if food is not properly
wrapped. When this happens, food dehydrates
and is of poor quality.
4. Press all air from package. Fold each end over
twice. Make sure fold is tighf and fasten
against end of package with freezer tape.
NOTE: When packaging meats that have not
been boned, pad sharp edges with extra wrap
or use stockinette to protect against tearing or
puncturing.
Use heavy-duty aluminum freezer foil, kraft pa
per with cellophane bonded to it, special freezer
bags, jars, cartons and freezer sealing tape for
packaging your food items. You'll find them at the
supermarket or freezer dealer.
See the “Freezer Guide” for complete Infor
mation and tips on home freezing.
Page 10
Loading...
1. Before freezing large quantities of food, turn Tem
perature Control to highest setting and let freezer
operate for several hours. After loading all food
Items, return Temperature Control to the usual
setting.
2. To speed freezing, lay packages in a single layer
so each rests on the surface of a shelf. Leave space
between packages.
3. Add more unfrozen food after first load is
frozen (approximately 18 to 24 hours). Door storage - Store packages on the door
Storing frozen food...
After food is frozen, stack packages anywhere
in the freezer. Packages should not extend be
yond the shelf edge or they may keep the door
from closing and sealing properly
Basket - Store heavy and bulky packages here.
Basket should be in place at all times for proper
air circulation. '
shelves behind the retaining bar.
Vacation and moving care
Vacations...
Arrange for someone to make regular checks of
your freezer to make sure it is operating and electricity
has not been interrupted
Shutting off and moving...
II freezer is shut oft for more than 24 hours;
Remove and store all food
2. Unplug freezer
3. Clean thoroughly See "Cleaning your freezer,"
page 7
4. Block door open for air circulation. Turn lock to
locked position with door open. Place blocks be
tween door and cabinet and tape in place with
self adhesive filament ’ape
10
Juice can shelves - Store juice cans on door as
shown.
If you move the freezer:
1. Remove shelves and basket,
2. Tape doors shut.
3. Do not place objects inside cabinet.
4. Level properly to ensure good door seal
WARNING:
Do not allow children near the freezer when the
door is blocked open. They may become in
jured or trapped.
When moving the freezer, clean up any water
that may have spilled from the defrost pan.
Spilled water can cause slipping and injury.
C ros’an freezer see Using your freezer,' page 5
Page 11
If you need service or assistance, we suggest
you follow these four steps:
!• Before calling for assistance... 2. If you need assistance*...
Performance problems often result from little things
you can find and fix yourself without tools of any kind.
If the electricity goes off:
Learn how long the power will be off by calling the
power company
• If service is to be interrupted 24 hours or less, keep
the freezer closed. Most food will stay frozen,
• If service is to be interrupted longer than 24 hours,
do this:
1. Remove all unfrozen food and store in a frozen
food locker, OR...
2. Place 2 lbs, (0,9 kg) of dry ice in freezer for every
cu, ft, of freezer space. This will keep frozen foods
for 2 to 4 days. Wear gloves to protect your hands
from dry ice burns,
3. If neither food locker storage or dry ice is avail
able, use or can perishable food at once,
• The length of time food will stay frozen depends on
several factors. For instance; a full freezer will remain
cold longer than a freezer partially filled. And a
freezer full of meat will stay cold longer than a
freezer filled with baked goods. Also, if the food still
contains ice crystals, it may be safely refrozen, al
though the quality and flavor may be affected. Use
this food as soon as convenient. If the condition of
the food is poor or is in any way questionable, it is
wise to dispose of it.
If your freezer stops running:
• Is the power supply cord plugged into a live circuit
with the proper voltage'l’ (See page 4 )
• Have you checked your home's main fuses or circuit
breaker box'l’
• Is the Temperature Control turned ON't’
If the compressor seems to run too long:
• Is the condenser, located on the back of the freezer,
free of dust and lint?
• Is there enough air circulation space above and in
back of the freezer?
• On hot summer days or if the room is hot, the com
pressor will run longer to provide the correct amount
of cooling,
• If large amounts of unfrozen food have been put
into the freezer, the compressor will run longer.
FSP IS a registered irademark of Whirlpool
Corporation for quality parts Look for this symbol
ASP
of quality whenever you need a replacement part
for your Whirlpool appliance FSP replacement
parts will fit right and work right, because they are
made to the same exacting specifications used
to build every new Whirlpool appliance
Call Whirlpool COOL-LINE ’ service assisfance
felephone number. Dial free from:
Continental U.S.................................(800) 253-1301
Michigan............................................(800) 632-2243
Alaska & Hawaii
..............................
and talk with one of our trained Consultants, The Con
sultant can instruct you in how to obtain satisfactory
operation from your appliance or, if service is neces
sary, recommend a quaiified service company in
your area
3. If you need service*...
AVhirlpool
r£C//-CA/^f
FRANCHISED SERVICE
CARE service in your area, call our COOL-LINE service
assistance telephone number (see Step 2) or look in
your telephone directory Yellow Pages under
APPLIANCES - HOUSEHOLD- ELECTRICAL APPLIANCES-
MAJOR - SERVICE & REPAIR MAJOR - REPAIRING & PARTS
WHIR LP OO L A PP LI ANC ES WHIR LP OOL A PP LIA NC ES
FRAN CH IS ED TE CH -CA RE S ERV IC E FRA NC HI SED T EC H-C AR E S ER VI CE
SER\'ICl-: COMP-WIKS
XYZ SE RV ICE C O
123 Ma ple
WASHING MACHINES. DRYERS
WHIR LP OO L a pp li anc es
XYZ SE RV ICE C O
4. If you have a problem*...
Call our COOL-LINE service assistance telephone
number (see Step 2) and talk with one of our Consul
tants, or if you prefer, write to
Mr Stephen E Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2000 US-33 North
Benton Harbor, Ml 49022
'If you must call or write, please provide: model
number, serial number, date of purchase, and a com
plete description of the problem. This information is
needed in order to better respond to your request for
assistance.
OR
999- 99 99 123 Ma pie 999- 9
& IRONERS-SERVICING
FRAN CH IS ED TE CH -CA RE S ERV IC E
*.23 M ap le 999- 99 99
XYZ SE RV ICE C O
OR
.S7--7M !cy (■()\}l’A.\iys
(800) 253-1121
Whirlpool has a na
tionwide network of
franchised TECH-CARE"
Service Companies
TECH-CARE service
technicians are trained
to fulfill the product
warranty and provide
after-warranty service,
anywhere in the United
States, To locate TECH-
sy.KMcf-: roMi'AXiys
11
Page 12
Whirlpool
Making your world a little easier.
Home Appliances
Part No. 1104098
©1985 Whirlpool Corporation
; Makers. Dishwashers, Built-In Ovens, and Surface Units. Ranges. Microwave Ovens, Trash Compactors, Room Air Conditioners. Dehumidifiers, Automatic Washers. Clothes Dryr
Printed in U.S.A.
Loading...
