Whirlpool EV 1038 Product Sheet

GB

A. Programme selector

B. “Start Delay” button
C. Programme sequence indicator

(over the line)
Start delay indicator (next to the line)

D. “Variable spin” button

E. “Start(Pause)” button

F. “Reset” button

G. “Door open” indication

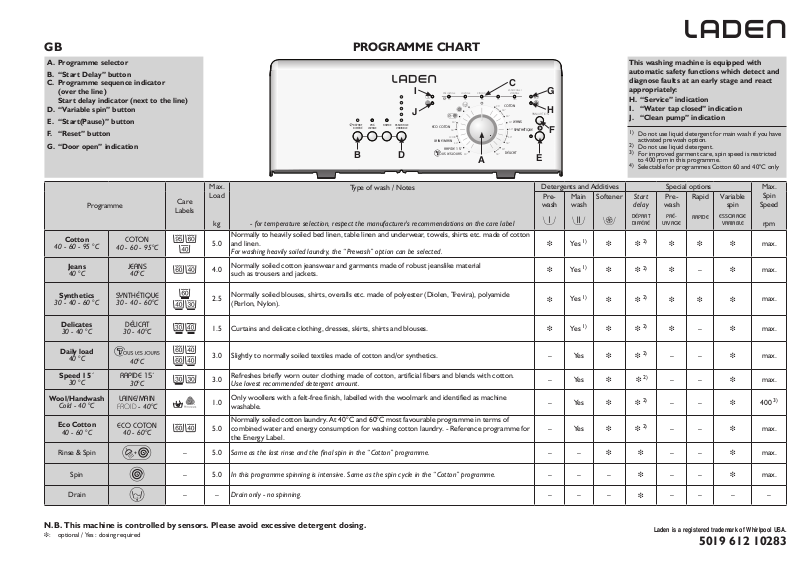

PROGRAMME CHART

DÉPART
DIFFÉRÉ

LAVAGE

RAPIDE

ESSORAGE

PRÉ-

B D

VARIABLE

I

J

ECO COTON

LAVAGE

PRÉLAVAGE

1h 3h 6h 9h 12 h

40°

60°

FROID

LAINE/MAIN

40°

RAPIDE 15’

40°

OUS LES JOURS

RINÇAGE

A

This washing machine is equipped with
automatic safety functions which detect and

C

ESSORAGE/

VIDANGE

95°

COTON

60°

40°

JEANS

40°

60°

SYNTHÉTIQUE

40°

30°

40°

DÉLICAT

30°

ANNULATION

E

G

H

F

diagnose faults at an early stage and react
appropriately:
H. “Service” indication
I. “Water tap closed” indication
J. “Clean pump” indication

1)

Do not use liquid detergent for main wash if you have

activated prewash option.

2)

Do not use liquid detergent.

3)

For improved garment care, spin speed is restricted

to 400 rpm in this programme.

4)

Selectable for programmes Cotton 60 and 40°C only

Programme

Cotton

40 - 60 - 95 °C

Jeans

40 °C

Synthetics

30 - 40 - 60 °C

Delicates

30 - 40 °C

Daily load

40 °C

Speed 15´

30 °C

Wool/Handwash

Cold - 40 °C

Eco Cotton

40 - 60 °C

COTON

40 - 60 - 95°C

JEANS

40°C

SYNTHÉTIQUE

30 - 40 - 60°C

DÉLICAT

30 - 40°C

40°C

RAPIDE 15´

30°C

LAINE/MAIN

FROID - 40°C

ECO COTON

40 - 60°C

Care

Labels

Max.

Type of wash / Notes

Load

kg

- for temperature selection, respect the manufacturer's recommendations on the care label

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton

5.0

and linen.

For washing heavily soiled laundry, the “Prewash” option can be selected.

Normally soiled cotton jeanswear and garments made of robust jeanslike material

4.0
such as trousers and jackets.

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide

2.5
(Perlon, Nylon).

1.5 Curtains and delicate clothing, dresses, skirts, shirts and blouses.

3.0 Slightly to normally soiled textiles made of cotton and/or synthetics. – Yes

Refreshes briefly worn outer clothing made of cotton, artificial fibers and blends with cotton.

3.0

Use lovest recommended detergent amount.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine

1.0
washable.

Normally soiled cotton laundry. At 40°C and 60°C most favourable programme in terms of

5.0

combined water and energy consumption for washing cotton laundry. - Reference programme for
the Energy Label.

Detergents and Additives Special options Max.

Pre-

wash

i

i

i

i

– Yes

– Yes

– Yes

Rinse & Spin – 5.0 Same as the last rinse and the final spin in the “Cotton” programme. – –

Main
wash

Yes

Yes

Yes

Yes

1)

1)

1)

1)

Softener Start

delay

DÉPART
DIFFÉRÉ

i i

i i

i i

i i

i i

i i

i i

i i

i i

Pre-

wash

PRÉ-

LAVAGE

2)

i i i

2)

i

2)

i i i

2)

i

2)

– –

2)

– –

2)

– –

2)

– –

– –

Rapid

RAPIDE

–

–

Variable

spin

ESSORAGE

VARIABLE

i

i

i

i

i

i

i

Spin

Speed

rpm

max.

max.

max.

max.

max.

max.

400

max.

max.

3)

Spin – 5.0 In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme. – – –

Drain – – Drain only - no spinning. – – –

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

i: optional / Yes : dosing required

i

i

– –

i

– – – –

Laden is a registered trademark of Whirlpool USA.

5019 612 10283

max.

CONSUMPTION DATA

Programme

Temperature

(°C)

Load

(kg)

Water

(l)

Energy

without “Rapid”

(kWh)

Approx. Programme Duration (hrs : min)

without “Rapid” with “Rapid”

Cotton 95 5.0 50* 1.70 2:05 1:55
Cotton 60 5.0 47 0,95 2:20 1:45
Cotton 40 5.0 47 0.64 2:05 1:30

Jeans 40 4.0 41 0.58 1:44 –
Synthetics 60 3.0 50* 0.90 2:05 1:14
Synthetics 40 3.0 40 0.50 1:50 0:59

Delicates 40 1.5 50 0.55 0:45 –

Daily load 40 3.0 40 0.45 1:00 –

Speed 15´ 30 3.0 30 0.15 0:15 –
Wool/Handwash 40 1.0 40 0.55 0:35 –
Wool/Handwash cold 1.0 40 0.40 0:30 –

Eco Cotton** 60 5.0 47 0.89 2:45 –
Eco Cotton** 60 2.5 32 0.68 2:10 –

Eco Cotton 40 5.0 47 0.65 2:00 –

Eco Cotton** 40 2.5 32 0.52 1:45 –

Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in the home may vary with
respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.Water and energy consumption refer
to the default setting of the programmes; selecting special options or modifying spin speed or temperature will change the consumption data.

The programme duration may differ from the values indicated above as it depends on the operation conditions applicable at that time (see also
“Troubleshooting Guide” in your Instructions for Use).
* To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.
** Reference Programmes for Energy Label.

PREPARATION OF THE WASH CYCLE

1. Load the machine, close the drum doors and check

that they are properly locked.

2. Add detergent and eventual additives as described on

the front page and in your Instructions for Use.

3. Close the lid.

4. Turn the programme selector to the desired

programme and temperature. The lamp next to the
“Start(Pause)” button blinks. The indication lamp
of the predefined spin speed lights up.

SELECT THE DESIRED OPTION(S)

Selecting or deselecting an option can be done at
any time during the programme. The option will be
applied as long as the corresponding programme
phase has not been executed yet.

“Prewash” button

• Only for heavily soiled loads (for example sand,
granular dirt). Increases the cycle time by approximat
ely 20 min.

“Rapid” button

• Enables quicker washing by shortening the
programme duration.

• Recommendable for small loads or only lightly soiled
laundry.

“Variable spin” button

• Every programme has a predefined spin speed.

• Press the button to set another spin speed.

• If spin speed “0” is selected, the final spinning is

cancelled but intermediate spin peaks remain during
the rinse. The water is drained out only.

START DELAY

The “Start delay” button allows the user to run the
machine at his convenience, for example at night when
electricity is cheaper.

• Select programme, spin speed and options.

• Press the “Start delay” button several times to

select a delay time of 1, 3, 6, 9 or 12 hours. The
corresponding indicator lamp lights up.

• Start the countdown of the “Start delay” by pressing
“Start(Pause)”. the lamp over the “Start delay”
button blinks, and it goes off when the programme
starts.

• Once having pressed the “Start(Pause)” button,
the countdown of the time delay begins. When the
programme starts, the start delay indicator light
goes off and is replaced by the programme sequence
indication.

• After the “Start(Pause)” button has been pressed,
the number of hours preselected can be reduced by
pressing again the “Start delay” button.

To cancel the “Start delay”
..before you press the “Start(Pause)” button:

• Turn the programme selector to another position or
press the “Reset” button.

..after having pressed the “Start(Pause)” button:

• Press the “Reset” button for at least 3 second. The
start delay indicator light goes off.

PROGRAMME START

Open the tap and press the “Start(Pause)” button.
The indication lamp next to the “Start(Pause)” button
lights up. The programme sequence indicator shows the
current programme phase, running from left to right
through Wash, Rinse, Spin/Drain. When the programme
phrase is finised, the corresponding indication goes out.

• Note: If there is a power interruption or if the
appliance is disconnected during the cycle, the
programme will run again from the point where it
was interrupted.

“DOOR OPEN” INDICATION

Before starting and after end of a programme, the lamp
lights to show the the lid can be opened. As long as a
wash programme is running, the lid remains locked and
must on no account be forced open. In case you have
an urgent need to open it during a running programme,
refer to “Cancel a running programme before the end”.

FAILURE INDICATIONS

In case of any failures or irregularities, consult the
“Troubleshooting Guide” in your Instructions for Use.

“Service”

Lighting up of the “Service” indication can be caused
by a fault in an electrical component. Refer to the
“Troubleshooting Guide” in your “Instructions for Use”;
if the fault persists, contact our After Sales Service.

“Water tap closed”

The appliance has no or insufficient water supply. Open
the water tap: if the indications still lights up, refer to the
“Troubleshooting Guide” in the Instructions for Use.

“Clean pump”

Waste water is not pumped out. Check whether the
drain hose is kinked or the filter must be cleaned: in the
latter case refer to the Instructions for Use (“Removing
the Filter”).

PROGRAMME END

• All the lights of the programme sequence indicator
are off, and the “Door open” indication lights up.

1. Turn the programme selector to the “Off/
O”position.

2. Close the water tap.

3. Open lid and drum and unload the machine.

4. Leave the lid open for some time to allow the
interior of the machine to dry.

CHANGE PROGRAMME AND/OR OPTIONS
AFTER PROGRAMME START

• Press the “Start(Pause)” button to pause the
programme. The light flashes.

• Select the new programme, any options and another
spin speed if you want.

• Press the “Start(Pause)” button again. The new
programme continues at the same position where
the previous programme was interrupted. Do not
add detergent for this programme.

CANCEL (RESET) A RUNNING PROGRAMME
BEFORE THE END

The “Reset” button cancels a programme before the
end. Press the “Reset” button for at least 3 seconds.
Any existing water is drained out before the door can
be opened.

Laden is a registered trademark of Whirlpool USA.
