use&care guide
AUTOMATIC
DRYERS
Electric Model
LE5795XM
and
Gas Model
LG5796XM
.wave Ovens, Trash Compactors, Room Air Conditioners, Oehumidifiers, Automatic Washers, Clothes Dryers, Freezers, Relrigerator-Freeze
Ui
1
Page 2
Parts and features
CYCLE CONTROL KNOB
TEMPERATURE SELECTOR
LAUNDRY
INFORMATION CENTER
■START BUTTON
LINT SCREEN
-DRYER DRUM
MODEL
ANDSERIAL
NUMBER PLATE
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
1. Complete Model and Serial Numbers
(from the plate located as shown).
2. Purchase date from sales slip.
Copy this information in these spaces.
Keep this book in the Laundry Information
Center with your “Dryer Guide,” sales slip
and warranty.
Please complete and mail the Owner
Registration Card furnished with this
product.
_____________
Model Number
Serial Number
Purchase Date
Service Company
Telephone Number
Remove the Con
sumer Buy Guide la
bel before using
your dryer. It will be
easier to remove.
Wipe out the
dryer drum with a
damp cloth to re
move dust from stor
ing or shipping.
Contents
YOUR RESPONSIBILITIES .
SAFETY FIRST
SELECTING A CYCLE AND
STARTING YOUR DRYER ..
OPERATING INSTRUCTIONS
DRYING TIPS
FLUFF AIR Setting
TUMBLE PRESS® Setting
...................
................
......
©1986 Whirlpool Corporation
Page
. 2
. 3
. 3
. 4
. 6
. 6
. 6
. 7
. 7
. 7
. 8
. 8
Lint Signal
LINT SCREEN
LINT REMOVAL
CARING FOR YOUR DRYER
Cleaning Dryer Interior
Vacation Care
IF YOU NEED SERVICE OR
ASSISTANCE
1. Before Calling for
Assistance .......................
2. If You Need Assistance .. 11
3. If You Need Service ........
4. If You Have a Problem ,..
...........................
.......................
.....................
____
.....................
........................
8
9
9
10
10
10
11
11
11
11
Page 3
Your
Responsibilities
Read this "Use and Care Guide"
and yaur "Dryer Guide" carefully for
important use and safety information.
You are personally responsible for
making sure that your dryer...
• is installed by a qualified insfaller.
• is properly maintained.
• is installed in an area protected
from the weather.
• is properly installed and leveled in
a well ventilated room* on a floor
that can support the weight.
Safety first
ALWAYS unplug the power sup
ply cord or turn off electrical
power before attempting to
service the dryer. Shut off the
GAS VALVE if yours is a gas dryer.
ALWAYS shut off the gas valve
before leaving on vacation.
NEVER use flammable fluids
(dry-cleaning solvents, gasoline,
kerosene) in or near your dryer.
ALWAYS hand launder or air dry
fabrics treated with flammable
fluids before putting them into
your dryer.
NEVER dry items containing
wax or paint in the dryer. The
fumes can create a FIRE HAZARD.
FIRE HAZARD and DAMAGE to
some materials can result from:
• drying heat-sensitive mate
rials with heat (see page4).
• operating the dryer with the
lint screen loose, damaged or
missing.
• allowing lint to build up inside
the dryer (see page9).
NEVER allow children to oper
ate, play with, or crawl inside
the dryer.
• SAVE THESE INSTRUCTIONS
• is located in an area where the tem
perature is above 45°F (7.2°C).
• is connected to the right kind of out
let, electric supply and grounding*
• is properly connected to fuel and
exhaust systems*
• is used only for jobs normally ex
pected of home clothes dryers.
• is not run where there may beexplo-
sive fumes.
• is not used by children or anyone
unable to operate it properly.
*See the "Installation Instructions" for
complefe information.
NEVER operate the dryer it...
• it is not working right.
• it is damaged.
• parts are missing.
• all panels are not in place.
DO NOT let dust, lint, paper,
rags, chemicals, etc., pile up
around or under the dryer. DO
NOT install against drapes or
curtains.
• FOR YOUR SAFETY •
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRI
CAL SWITCHES.
3. EXTINGUISH ANY OPEN
FLAME.
4. IMMEDIATELY CALL
YOUR GAS SUPPLIER.
•FOR YOUR SAFETY*
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY
OF THIS OR ANY OTHER
APPLIANCE.
Page 4
Selecting a cycle
and starting
your dryer
Before starting your dryer, be
sure laundry is sorted and loaded
properly (see your"Dryer Guide").
Be sure the door is tightly closed.
SUGGESTED SUGGESTED
TYPE OF LOAD CYCLE TEMPERATURE
COTTONS-LINENS HEAVY
EXTRA HEAVY - Bedspreads, HIGH
mattress pads, quilts
HEAVYWEIGHT FABRICS - Towels, ,
jeans, corduroys, work clothes .......... AUTOMATIC PERM T PRESS
MEDIUMWEIGHT COTTONS - REGULAR MED
Sheets, pillowcases, cotton
undenwear, diapers
LIGHTWEIGHT COTTONS - Batistes, KNITS GENTLE
organdies, lingerie .................................................................. *-OW
PERMANENT PRESS, SYNTHETICS
AND BLENDS
HEAVYWEIGHT FABRICS -Work clothes, AUTOMATIC PERM’T PRESS
MEDIUMWEIGHT FABRICS - Shirts, play PRESS
clothes, sheets, slacks.........................
LIGHTWEIGHT FABRICS - Lingerie, KNITS GENTLE
blouses, dresses ..................................................................... LOW
...........................
.............................
Ch rt 1
..........
PERMANENT MED
KNITS DCDM T DDCCC
HEAVYWEIGHT - Cottons, rayons, AUTOMATIC MED
blends, T-shirts,slacks, shirts
LIGHTWEIGHT - Synthetics (polyester, wess
acrylic, etc.) and blends, lingerie, KNITS GENTLE
blouses, dresses .................................................................... LOW
LIGHTWEIGHT AND DELICATE FABRICS AUTOMATIC gckjti c
Sheer Curtains (2 or 3 panels) ............... PERMANENT
Gauze, lace, etc
RUBBER, PLASTIC, HEAT-SENSITIVE
FABRICS
FOAM RUBBER - Pillows, bras,
stuffed toys ................................................... TIMED FLUFF
PLASTIC - Shower curtains, DRYING AIR
tablecloths
RUBBER-BACKED RUGS
OLEFIN. POLYPROPYLENE. SHEER NYLON .
WARNING: Drying these and other heat-sensitive
materials with heat can damage them or be a FIRE HAZARD.
............................................
............................................
.......................
................
pfpmanent
PRESS
_________________
_______________
Page 5

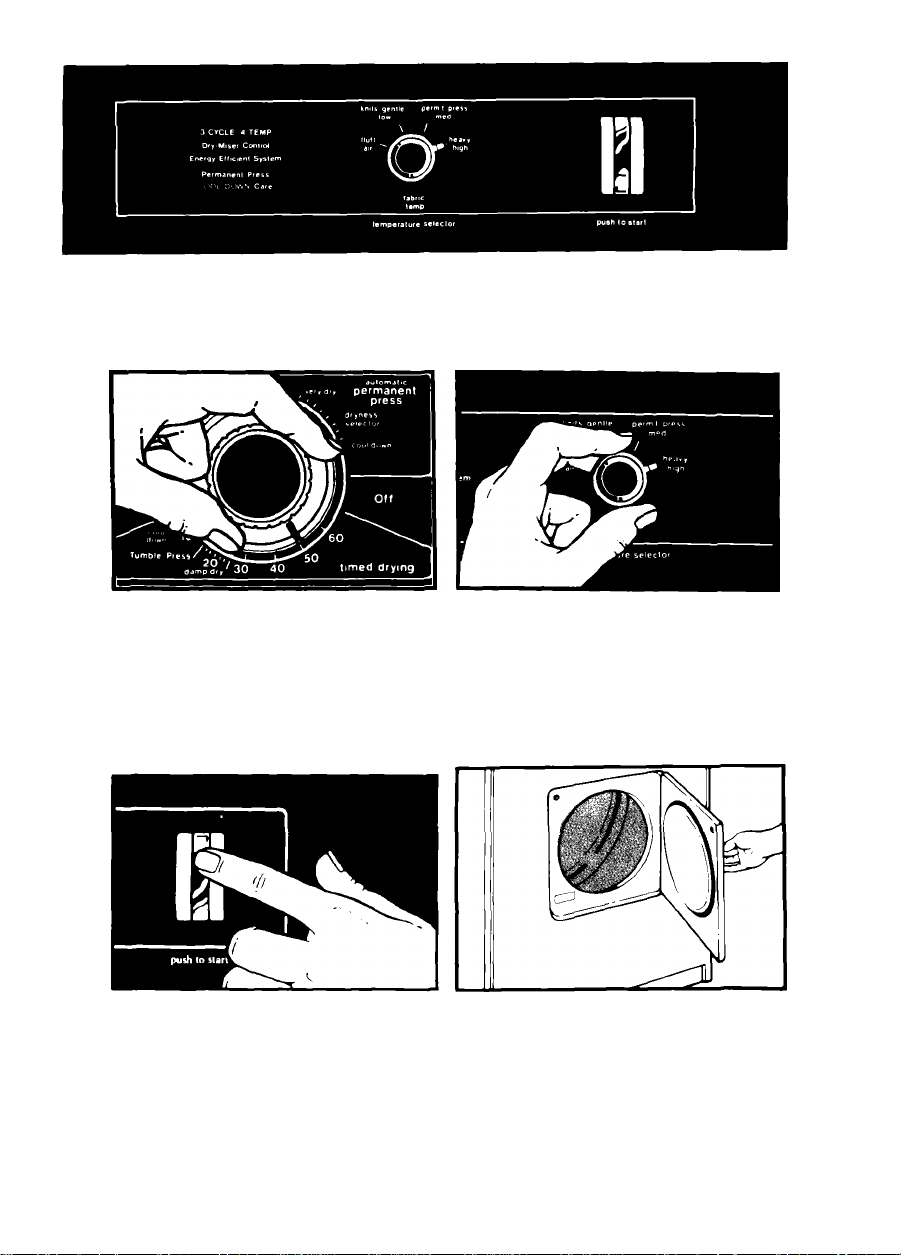

Select a
1.CYCLE
Set TEMPERATURE
2. SELECTOR
Turn the Control Knob either way to
point to the cycle and setting you
want. See page 6 for information on
the cycles.
Push the
3. START Button
The dryerwill start tumbling when
you push the START Button.
Changing a setting
The setting can be changed atany
time by turning the Control Knob to a
new setting.
The Cycle Control Knob should point to OFF when the dryer is not in use.
Turn the Temperature Selector to the
needed drying temperature.
To stop and restart
the dryer
To stop the dryer, open the door (or
turn the Control Knob to OFF).
To restart the dryer, close the door,
select cycle, if necessary, and push
START.
5
Page 6
Operating instructions

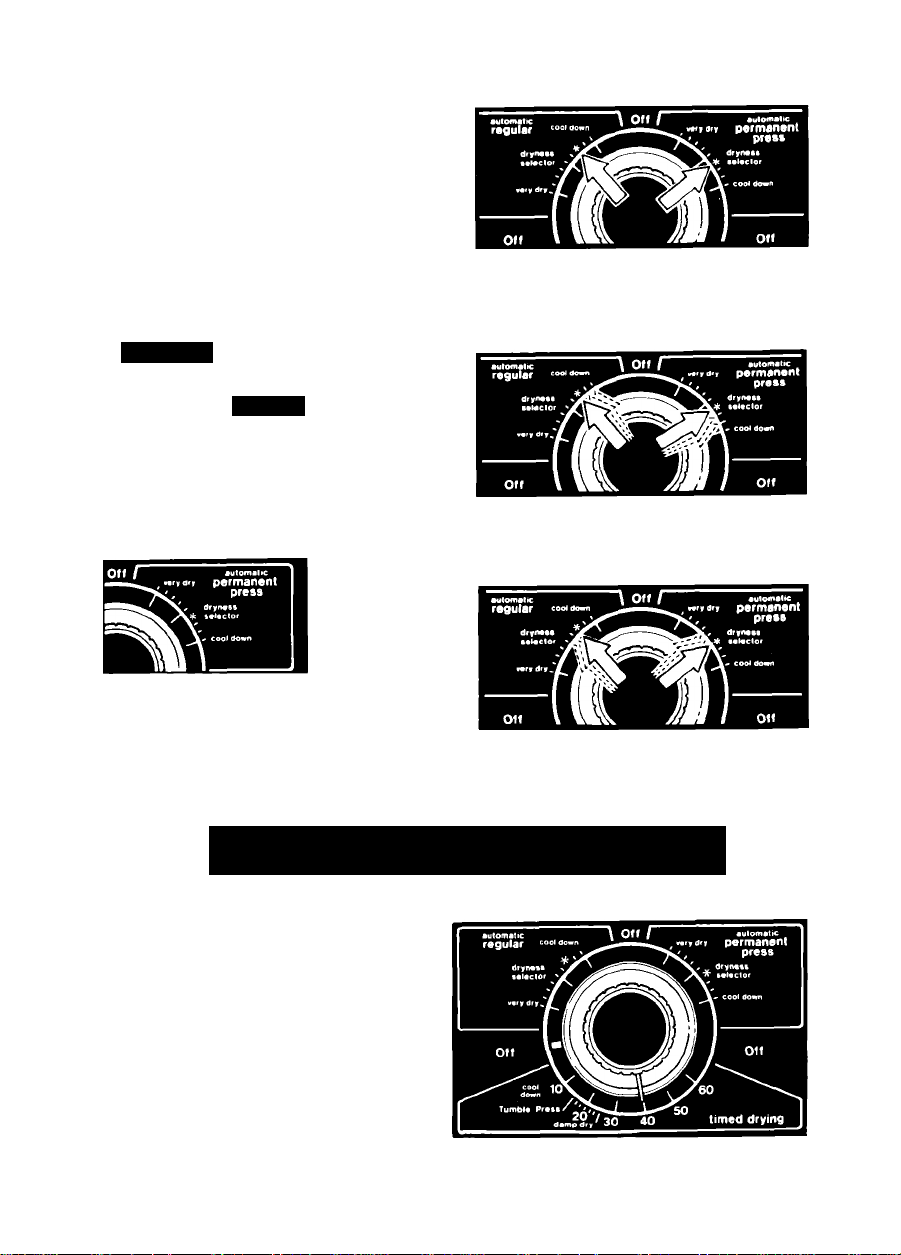

The automatic cycles
The automatic cycles allow you
to select the degree of dryness you
prefer for the clothes being dried.
The Control Knob moves and stops
several times until the load reaches
the dryness setting you selected. Then
the knob automatically moves to
OFF and tumbling stops.
•wtomalte
reQuIar cool d
weight cotton items. The load tum
bles without heat during the iast 5
minutes.This helps make the load
easier to handle.
press, knits and other synthetic fab
rics. The load tumbles without heat
during the last 10 minutes. This helps
keep wrinkles from setting in.
Use
AUTOMATIC
REGULAR to
dry heavy
and medium-
Use
AUTOMATIC
PERMANENT
PRESS to dry
permanent
Forthe first few loads,setthe Control
Knob to point to an* in either auto
matic cycle. When the dryer stops,
feel the dried items.
If items ore drierthan you like, use
a setting to the right of the*the next
time you dry a similar load.
If items are not as dry as you like,
use a setting to the left of the * the
next time you dry a similar load.
OVERDRYING CAN CAUSE SHRINKAGE, STATIC CLING
AND DAMAGE TO SOME FABRICS.
Hmed drying
Use the TIMED DRYING Cycle for
any load you want to dry by time. For
example: small loads, large bulky
items, items to be fluffed or dusted
with the FLUFF AIR heat setting.
• Turn the Control Knob to the number
of minutes you want - from 10 to 60.
• The last 10 minutes of this cycle are
without heat — a cool-down time. This
helps make the load easier to
handle.
Page 7
Drying tips
FLUFF AIR
The dryer does not heat when the
Temperature Selector is set on FLUFF
AIR. This setting can be used to tluff
bedding, plastic tablecloths, foam
rubber pillows,stuffed toys, sneakers,
etc.
1. Turn the Temperature Selector to
FLUFF AIR,
2. Turn the Control Knob to the num
ber of minutes you want in the
TIMED DRYING Cycle.
3. Push the START Button.
WARNING: Drying plas
tic or rubber items
with heat may damage
the items or be a FIRE
HAZARD.
TUMBLE PRESS® Setting
The TUMBLE PRESS setting removes
wrinkles from dry clothing such as
items that may have been packed
in a suitcase, closet, or items not
removed from the dryer.
1. Set Temperature Selector to HEAVY
HIGH.
2. Set Control Knob to TUMBLE PRESS.
3. Push START Button.
The load will tumble in heated air
for 5 minutes. The heat shuts off and
the dryer continues to tumble the
load for 10 more minutes.
For best results, TUMBLE PRESS only
a few items at a time. Put them on
hangers or fold them as soon as the
dryer stops.
Page 8
Mixed loads Drying times
When drying a load with different
kinds and weights of fabrics, use the
cycle suggested forthe lightest
fabrics. When the dryer stops, remove
dry items and reset the control.
To reduce wrinkling, take the load
from dryer as soon as tumbling stops.
This is important for permanent press,
knits and synthetic fdbrics.

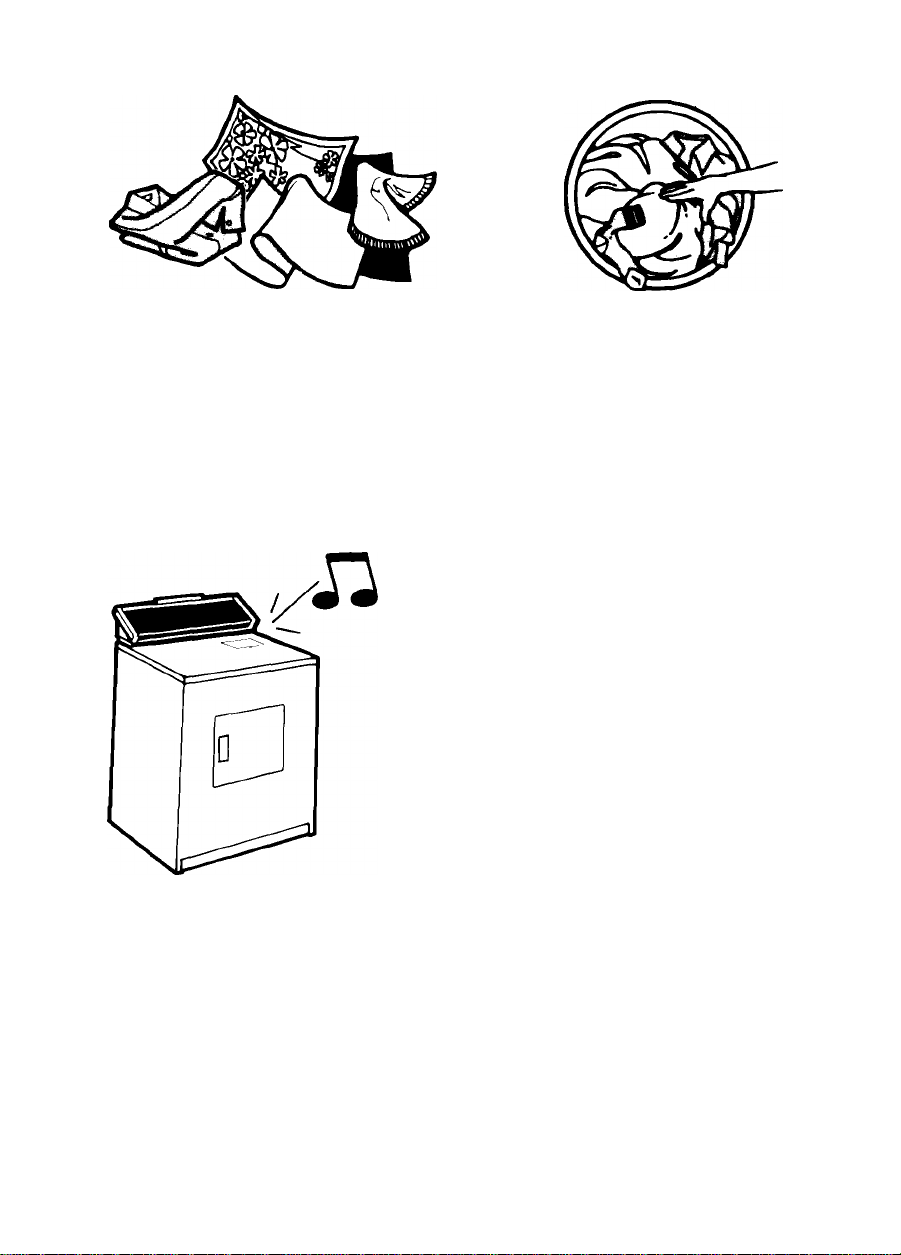

Lint signal
Clean lint screen before each load. If you
neglect to clean your lint screen, the signal will
sound. The (whistle tone) signal lets you know
the air flow is being restricted. Restricted air flow
reduces drying efficiency.
Turn off the dryer and clean the lint screen as
shown on page 9.
Drying times will vary depending on:
• amount of moisture in the clothes.
• type and weight ofthe fabric.
• size of the load.
• room temperature around the
dryer.
• temperature of the wash rinse
water.
• amount of lint in the lint screen.
• dryertemperature selection.
See page 6 in your"Dryer Guide"
for more information.
Page 9

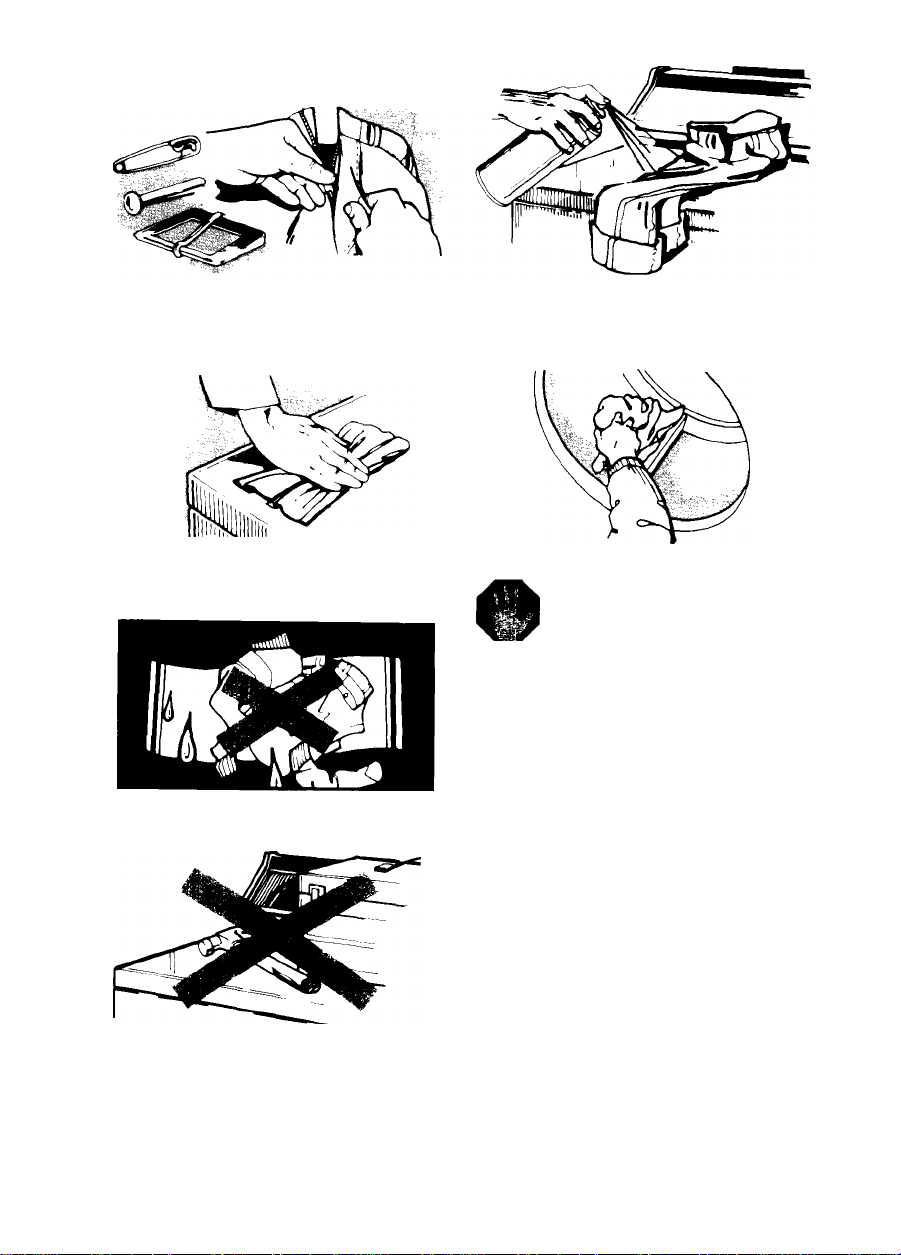

Lint screen
Clean the lint screen before each load. A screen blocked by lint can
Increase drying time and may be a FIRE HAZARD.
Open the lid and pull the lint screen
straight out.
WARNING: DO NOT run the
dryer with the lint screen
O
heating, can damage fabrics and
can be a
loose, damaged or missing.
Doing so can cause over
FIRE HAZARD.
ROLL the lint off the screen
with your fingers.
DO NOT rinse or wash the screen.
Push the screen firmly back into
place.
Lint removal
Lint can gather inside the dryer and create a fire hazard. This lint
should be removed every 2 to 3 years, or more often, depending on
dryer usage.
Cleaning should be done only by a qualified person.
WARNING:
All PI • Avoid electrical shock
A hazard - unplug power
^ ^ supply cord or turn off
electrical power.
• Avoid injury or damage - do not
put hands inside cabinet.
• Make sure dryer is cool.
1. Remove back panel (electric)
or lower access panel (gas).
2. Avoid damaging wires,
thermostats, funnel or Igniter.
3. Remove lint from shaded area see a rt - with a soft brush or
vacuum cleaner.
4. Replace panel; reconnect and
re-level dryer.
Page 10
Caring for your dryer
Remove loose and sharp objects
from pockets and cuffs before drying ■
pins, buckles, etc. Close metal
zippers.
Wipe otf all spills with a damp, soft
cloth. Spills allowed to remain may
dull or damage the finish.
Never leave wet or damp laundry
in your dryer.
Sharp or heavy objects should
never be put on or in the dryer.
Check pockets for bolts, nuts, etc.
Some pretreatment products can
damage dials, consoles and finish.
Do not use these products on or
near your dryer.
Cleaning dryer interior
WARNING: Betore
cleaning interior, unplug
__
power supply cord, or
turn off electrical power to
avoid electrical shock hazard.
Garments which contain unstable dyes,
such as denim blue jeans or bright
ly colored cotton items, may discolor
the dryer interior. If the interior
is discolored, clean with one of the
following methods to avoid staining
later load items.
Powdered laundry detergent and very warm water
Make a paste with detergent and
very warm water. Apply paste to
a soft cloth and scrub
excess dye is removed. Wipe thor
oughly with a damp cloth. Tumble
a load of rags.-OR-
Liquid spray household cleaner
Spray on stained area. Rub with a
cloth until all excess dye is re
moved. Tumble a load of rags.
area until all
10
Vacation care
• Unplug power cord or turn off elec
trical power.
• For gas dryers, close gas valve.
• Clean lint screen.
Page 11
If you need service or
assistance,
we suggest you follow
L Before ealling for
assistanee...
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
If your dryer does not run:
• Is the power supply cord plugged
into a live circuit with the proper volt
age?
• Is the door closed tightly?
• Did you push the START Button?
• Have you checked your home's
main fuses or circuit breaker box?
If your dryer does not heat:
• The AIR setting is without heat.
• The last minutes of heat settings are
without heat.
• Is the gas turned on? It not, turn the
Control Knob to OFF. Turn on gas.
Wait 5 minutes. Reset controls and
start.
• An electric dryer uses a circuit
breaker or 2 fuses. If one fuse is
blown, the dryer may run, but not
heat.
If drying time seems iong:
• Is the lint screen clean?
• See page 7 of this book and paged
of your "Dryer Guide."
2. If you need
assistance*...
Call Whirlpool COOL-LINE’ serv
ice assistance telephone number.
Dial free from:
Continental U.S. . (800) 253-1301
Michigan
Alaska & Hawaii (800) 253-1121
and talk with one of our trained Con
sultants. The Consultant can instruct
you in howto obtain satisfactory oper
ation from your appliance or, if serv
ice is necessary, recommend a
qualified service company in your
area.
..............
(800) 632-2243
these four steps:
3. K you need service*...
Whirlpool has
a nationwide
network of fran
chised TECH-CARE"
Service Compa
nies. TECH-CARE
service technicians are trained to
fulfill the product warranty and pro
vide after-warranty service, any
where in the United States. To locate
TECH-CARE service in your area, call
our COOL-LINE service assistance
telephone number (see Step 2) or look
in your telephone directory Yellow
Pages under:
APPLIANCES -HOUSEHOLD- ELECTRICAL APPLIANCES-
MAJOR- SERVICE & REPAIR MAJOR- REPAIRING & PARTS
WHIRLPOOL APPLIANCES WHIRLPOOL APPLIANCES
franchised TECH-CARE SERVICE FRaNCHISEO TECH-CARE SERVICE
SERVICE COMPA SiKS SERVICE COMPANIES
XYZ SERVICE CO SERVICE CO
123 Maple
..........................
XYZ SERVICE CO
If you have a
problem*...
Call our COOL-LINE service as
sistance telephone number (see Step
2) and talk with one of our Consultants,
or if you prefer, write to:
Mr. Robert Stanley
Division Vice President
Whirlpool Corporation
2000 US-33, North
Benton Harbor, Ml 49022
*lf you must call or write, please pro
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor
mation is needed in order to better re
spond to your request for assistance.
OR
999-9999 123 Maple
OR
WASHING MACHINES. DRYERS
& IRONERS- SERVICING
SERVICE COMPANIES
123 Maple
............................
999-9999
.............................
999-9999
Page 12
AVhirlpool
Making your world a little easier.
UJ/^rr\^ ^ Ar\r»llQn/^CiO
Home ^ Appliances
Part No. 3387066 Rev. A
©1986 Whirlpool Corporation
matic Washers, Clothes Dryers. Freezers. Relrieerator-Freezers, Ice Mahers. Dishwashers. Built-In Dvens and Surface Units. Ranges. Micr
p
Printed in U.S.A.
№
pwwB
1 §llllllw
Loading...
