Please read this
Use and Care Guide
before you do anything else...
This booklet tells you how to start your
refrigerator, clean it, move shelves and adjust
controls. It even tells you what new sounds to
expect from your refrigerator.
Treat your new refrigerator with care. Use it
only to do what home refrigerators are designed
to do.

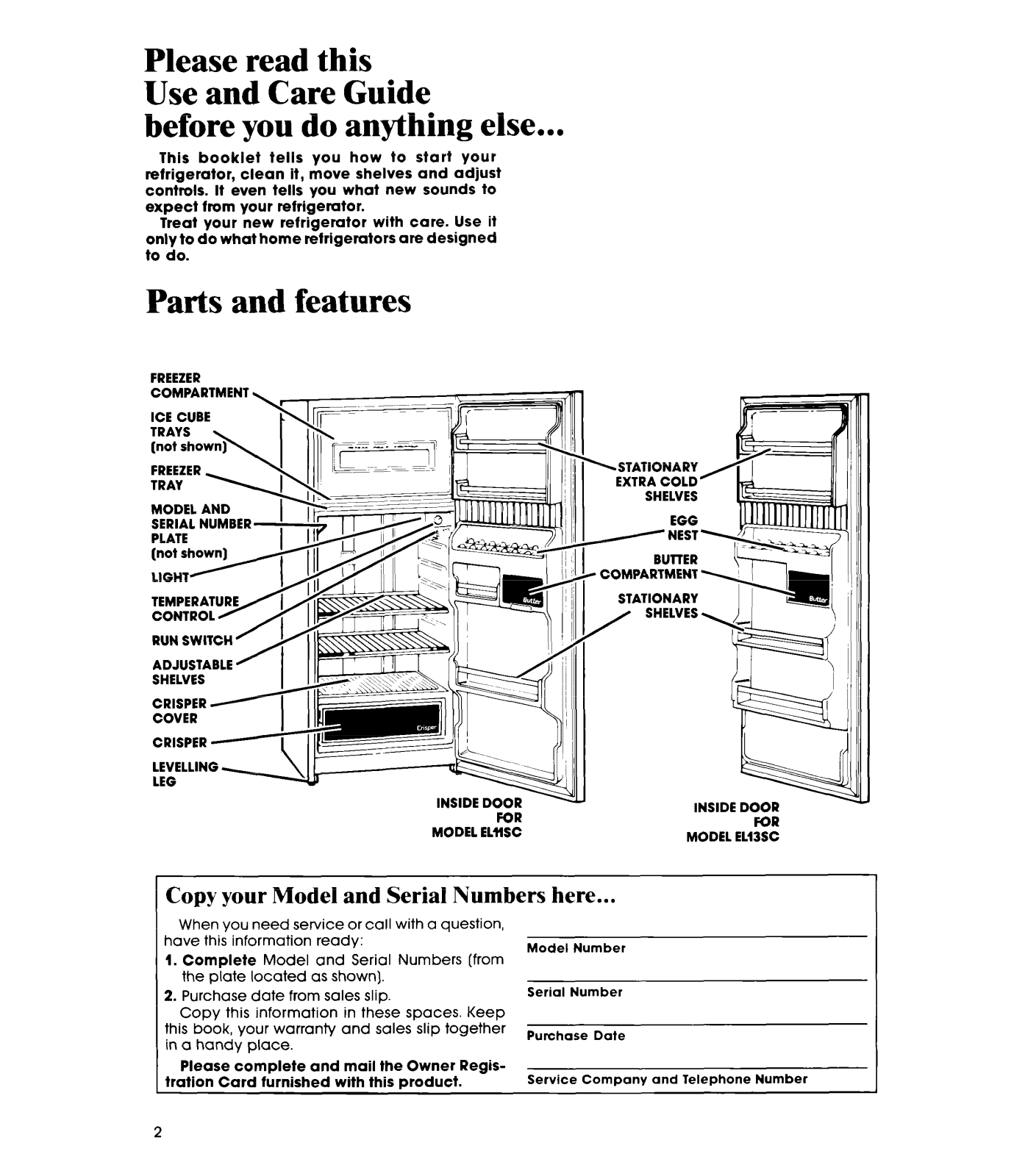

Parts and features
FREEZER
COMPARTMENT
FREEZER
TRAY ’
MODEL AND
SERIAL NUMBER
PLATE
RUN SWITCH
SHELVES
CRISPER/
COVER
CRISPER
LEVELING -
LEG
--
t NSX
FOR
MODEL ELtlSC
Copy your Model and Serial Numbers here...
When you need service or call with a question,
have this information ready:
1. Complete Model and Serial Numbers (from
the plate located as shown).
2. Purchase date from sales slip.
Copy this information in these spaces. Keep
this bobk, your warranty and sales.slip together
in a handy place.
Please complete and mail the Owner Regis-
tration Card furnished with this product.
Model Number
Serial Number
Purchase Date
Service Company and Telephone Number
EXTRA COLD
STATIONARY
FOR
MODEL ELl3SC
2

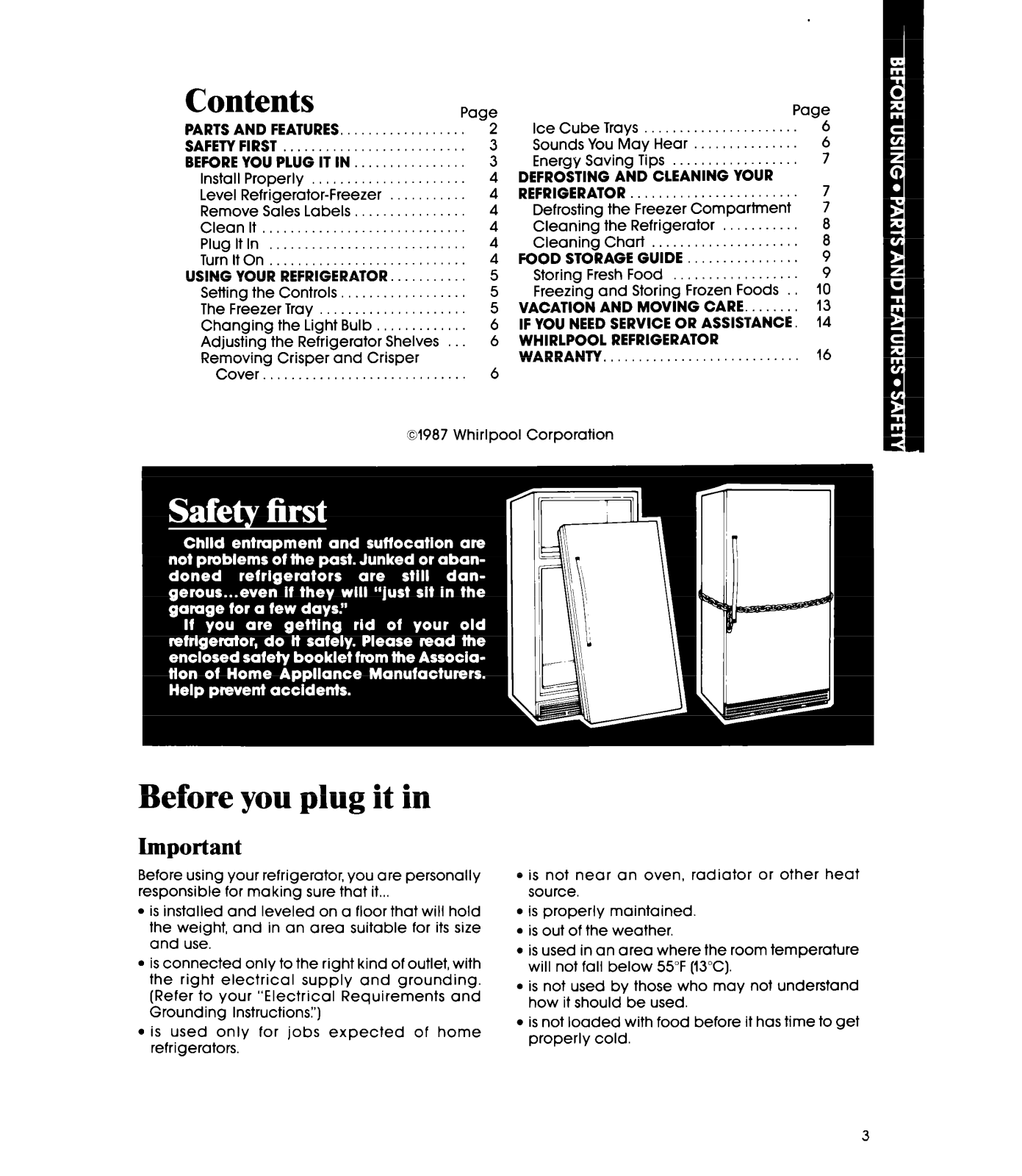

Contents
PARTS AND FEATURES. ..............
SAFETY FIRST .......................
BEFORE YOU PLUG IT IN .............
Install Properly ...................
Level Refrigerator-Freezer ........
Remove Sales Labels .............
Clean It ..........................
Plug It In .........................
TurnttOn.. .......................
USING YOUR REFRIGERATOR ........
Setting the Controls. ..............
The Freezer Tray ..................

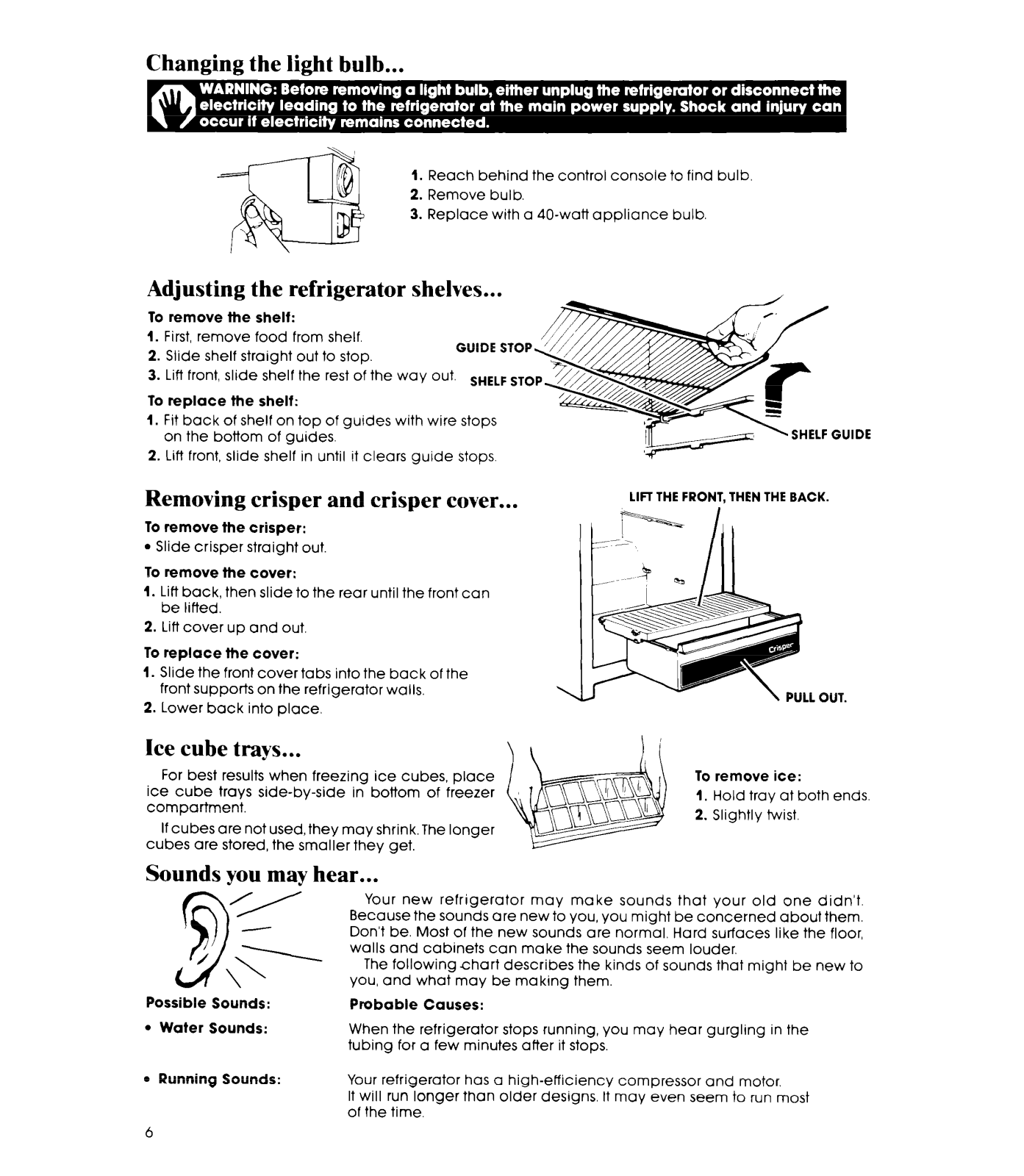

Changing the Light Bulb ..........
Adjusting the Refrigerator Shelves
Removing Crisper and Crisper
Defrosting the Freezer Compartment
Cleaning the Refrigerator
4
Cleaning Chart . . . . .
4
FOOD STORAGE GUIDE . .

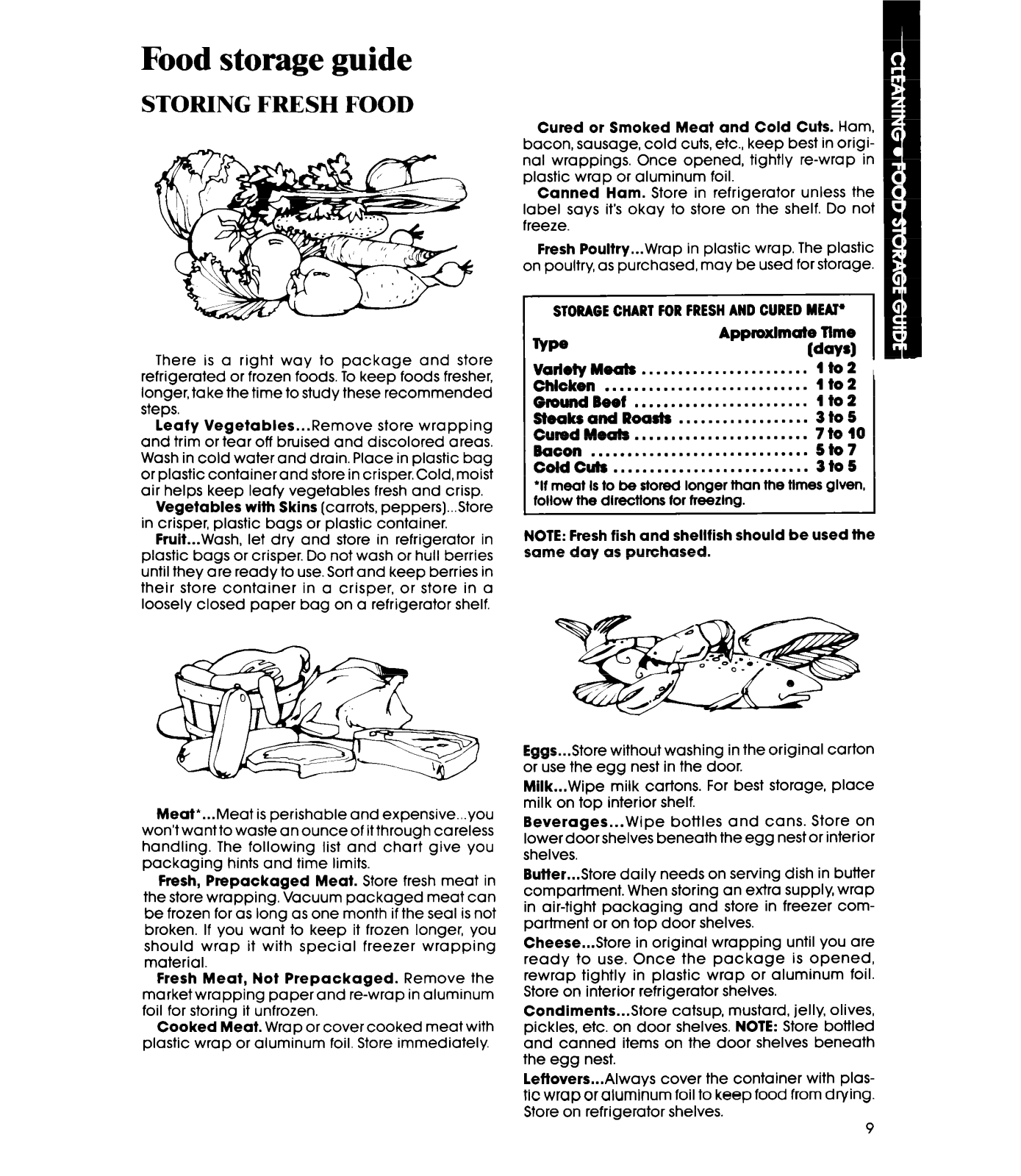

Storing Fresh Food
5
. .
Freezing and Storing Frozen Foods

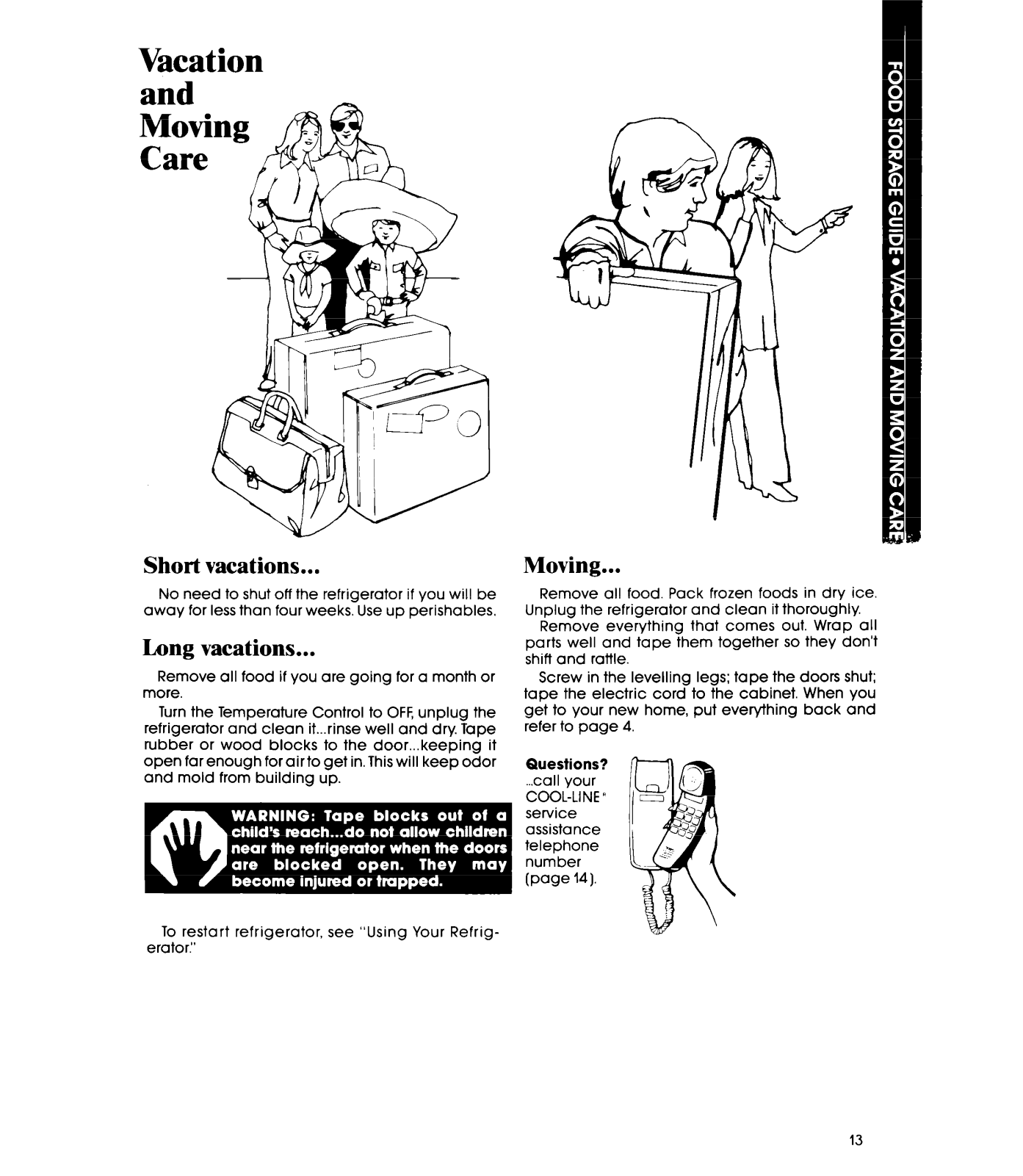

VACATION AND MOVING CARE.. .
z
IF YOU NEED SERVICE OR ASSISTANCE.
6
WHIRLPOOL REFRIGERATOR
6
WARRANTY. .
6
Paae
-6
6
7
7
7
il
9
9
10
13
14
16
Before you plug it in
Important
Before using your refrigerator, you are personally
responsible for making sure that it...
l
is installed and leveled on a floor that will hold
the weight, and in an area suitable for its size
and use.
l
is connected only to the right kind of outlet, with
the right electrical supply and grounding.
(Refer to your “Electrical Requirements and
Grounding Instructions:‘)
l
is used only for jobs expected of home
refrigerators.
l
is not near an oven, radiator or other heat
source.
l
is properly maintained.
l
is out of the weather.
l
is used in an area where the room temperature
will not fall below 55°F (13°C).
l
is not used by those who may not understand
how it should be used.
l
is not loaded with food before it has time to get
properly cold.

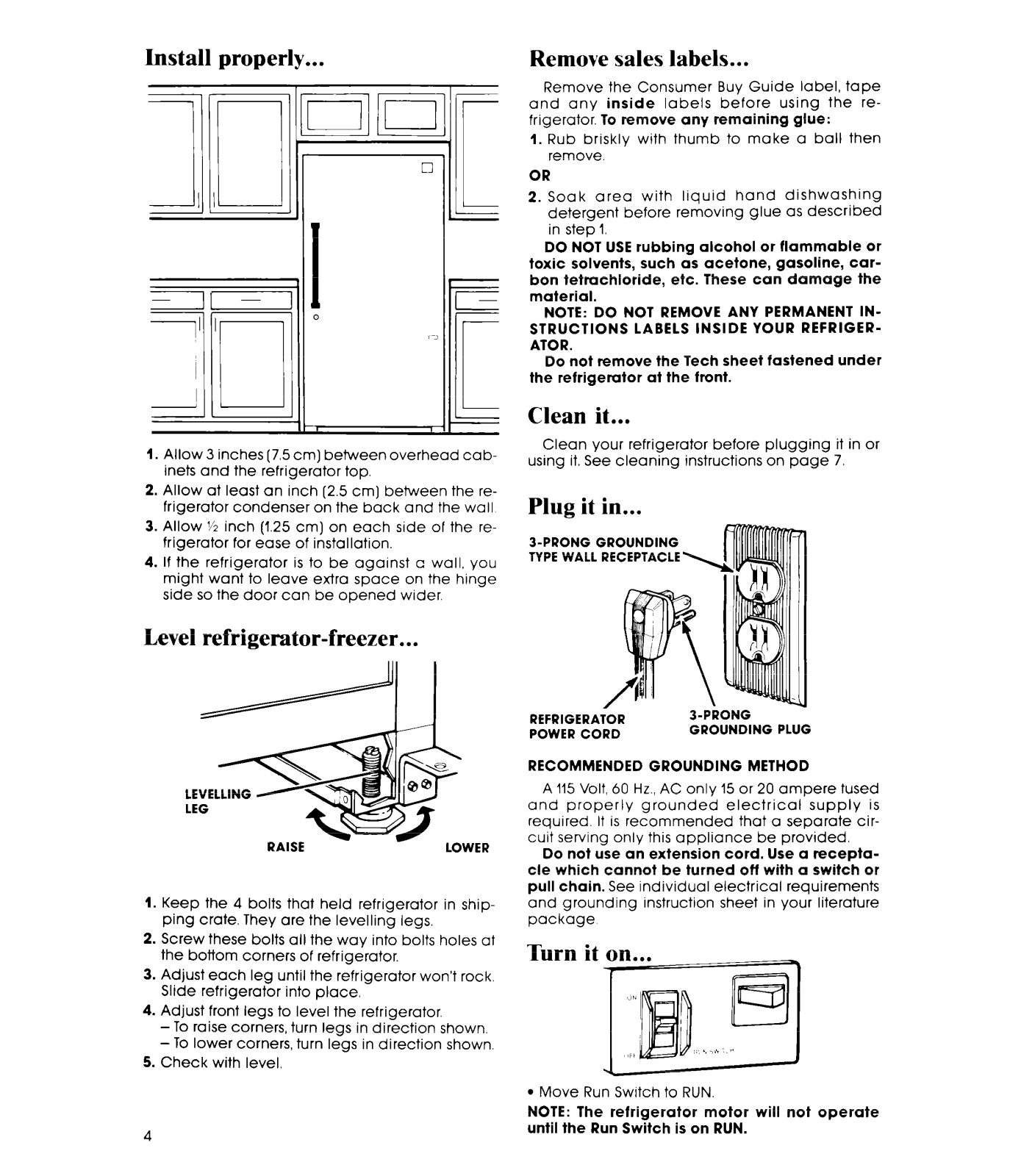

Install properly...
1. Allow 3 inches (7.5 cm) between overhead cabinets and the refrigerator top.
2. Allow at least an inch (2.5 cm] between the refrigerator condenser on the back and the wall
3. Allow li2 inch (1.25 cm) on each side of the refrigerator for ease of installation.
4. If the refrigerator is to be against c wall, you
might want to leave extra space on the hinge
side so the door can be opened wider.
Remove sales labels...
Remove the Consumer Buy Guide label, tape
and any inside labels before using the refrigerator. To remove any remaining glue:
1. Rub briskly with thumb to make a ball then
remove.
OR
2. Soak area with liquid hand dishwashing
detergent before removing glue as described
in step 1.
DO NOT USE rubbing alcohol or flammable or
toxic solvents, such as acetone, gasoline, car-
bon tetrachloride, etc. These can damage the
material.
NOTE: DO NOT REMOVE ANY PERMANENT INSTRUCTIONS LABELS INSIDE YOUR REFRIGERATOR.
Do not remove the Tech sheet fastened under
the refrigerator at the front.
Clean it...
Clean your refrigerator before plugging it in or
using it. See cleaning instructions on page 7.
Plug it in...
3-PRONG GROUNDING
TYPE WALL RECEPTACLE
Level refrigerator-freezer. . .
LEVE
LEG
RAISE
1. Keep the 4 bolts that held refrigerator in shipping crate. They are the levelling legs.
2. Screw these bolts all the way into bolts holes at
the bottom corners of refrigerator.
3. Adjust each leg until the refrigerator won’t rock.
Slide refrigerator into place.
4. Adjust front legs to level the refrigerator.
-To raise corners, turn legs in direction shown.
-To lower corners, turn legs in direction shown.
5. Check with level.
4
LOWER
REFRIGERATOR
POWER CORD
RECOMMENDED GROUNDING METHOD
A 115 Volt, 60 Hz., AC only 15 or 20 ampere tused
and properly grounded electrical supply is
required. It is recommended that a separate circuit serving only this appliance be provided.
Do not use an extension cord. Use a receptacle which cannot be turned off with a switch or
pull chain. See Individual electrical requirements
and grounding instruction sheet in your literature
package
l
Move Run Switch to RUN.
NOTE: The refrigerator motor will not operate
until the Run Switch is on RUN.
3-PRC
GROUNDING PLUG
Using your refrigerator

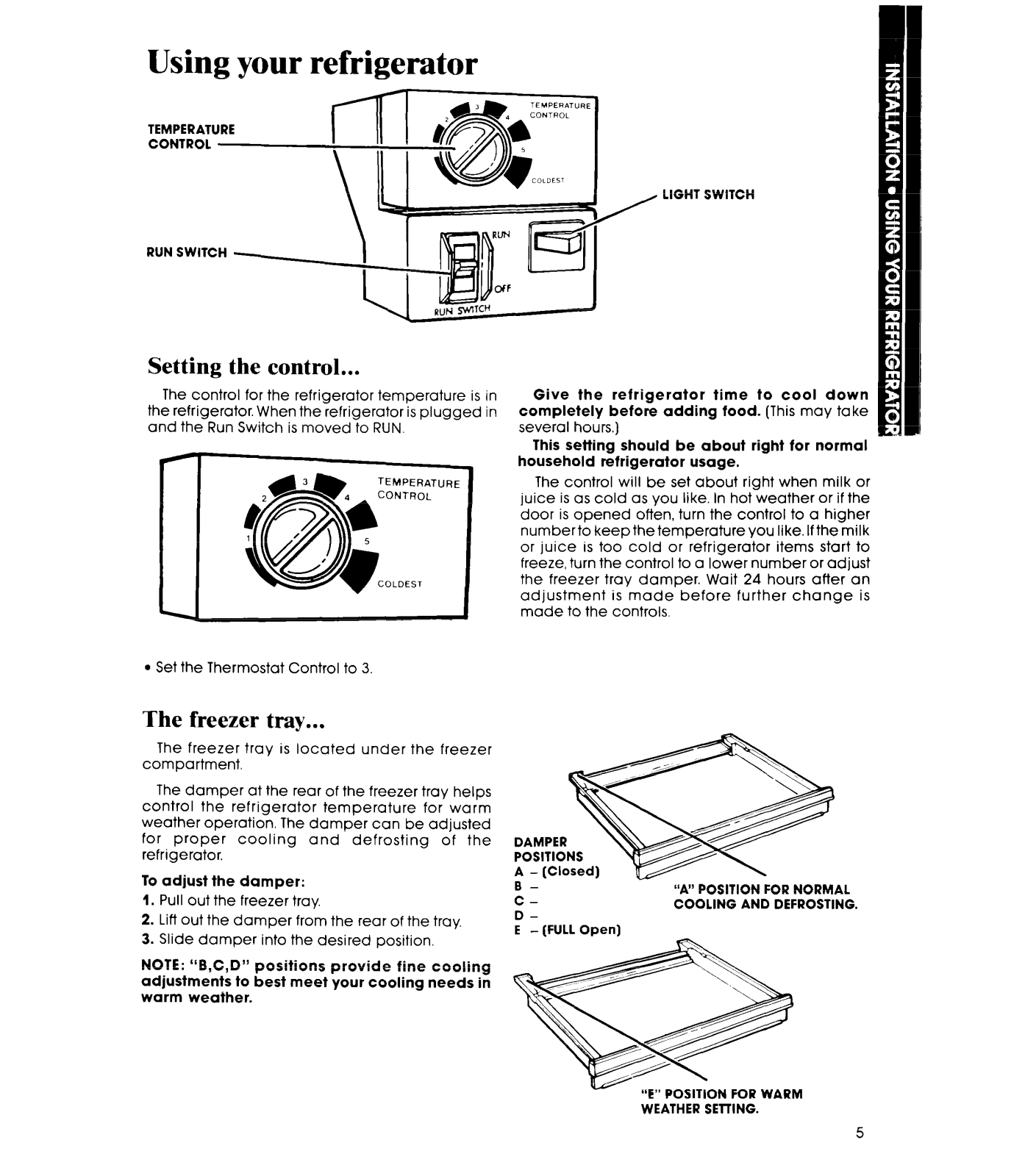

TEMPERATURE
CONTROL
Setting the control...
The control for the refrigerator temperature is in
the refrigerator. When the refrigerator is plugged in
and the Run Switch is moved to RUN.
LIGHT SWITCH
Give the refrigerator time to cool down
completely before adding food. (This may take
several hours.)
This setting should be about right for normal
household refrigerator usage.
The control will be set about right when milk or
juice is as cold as you like. In hot weather or if the
door is opened often, turn the control to a higher
number to keep the temperature you like. If the milk
or juice is too cold or refrigerator items start to
freeze, turn the control to a lower number or adjust
the freezer tray damper. Wait 24 hours after an
adjustment is made before further change is
made to the controls.
l
Set the Thermostat Control to 3.
The freezer tray...
The freezer tray is located under the freezer
compartment.
The damper at the rear of the freezer tray helps
control the refrigerator temperature for warm
weather operation. The damper can be adjusted
for proper cooling and defrosting of the
refrigerator.
To adjust the damper:
1. Pull out the freezer tray.
2. Lift out the damper from the rear of the tray.
3. Slide damper into the desired position.
NOTE: “B&D” positions provide fine cooling
adjustments to best meet your cooling needs in
warm weather.
B-
C-
DE - IFULL Open1
“A” POSITION FOR NORMAL
COOLING AND DEFROSTING.
“E” POSITION FOR WARM
WEATHER SElllNG.
