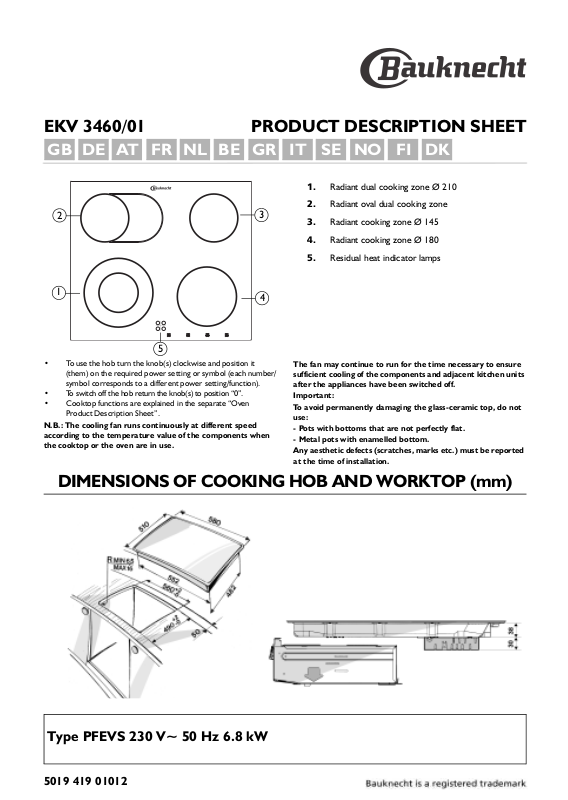

Whirlpool EKV 3460 IN-1 PROGRAM CHART

EKV 3460/01 PRODUCT DESCRIPTION SHEET

DK

GB DE AT FR NL BE GR IT SE NO FI

1.

Radiant dual cooking zone Ø 210

2.

2

3

Radiant oval dual cooking zone

3.

Radiant cooking zone Ø 145

4.

Radiant cooking zone Ø 180

5.

Residual heat indicator lamps

1

4

5

• To use the hob turn the knob(s) clockwise and position it
(them) on the required power setting or symbol (each number/
symbol corresponds to a different power setting/function).

• To switch off the hob return the knob(s) to position “0”.

• Cooktop functions are explained in the separate “Oven
Product Description Sheet”.

N.B.: The cooling fan runs continuously at different speed
according to the temperature value of the components when
the cooktop or the oven are in use.

The fan may continue to run for the time necessary to ensure
sufficient cooling of the components and adjacent kitchen units
after the appliances have been switched off.
Important:

To avoid permanently damaging the glass-ceramic top, do not
use:

- Pots with bottoms that are not perfectly flat.

- Metal pots with enamelled bottom.
Any aesthetic defects (scratches, marks etc.) must be reported
at the time of installation.

DIMENSIONS OF COOKING HOB AND WORKTOP (mm)

Type PFEVS 230 V~ 50 Hz 6.8 kW

5019 419 01012

Assembly

If the worktop is made of wood

A)

appropriate brackets, spring clips and screws
provided.



Position the 4 clips (A) around the cooktop frame,
in the slots provided, see Fig. 1



Measure the centre of the vertical sides of the cut
out a shown in Fig. 2.



Position the centre of the brackets (C) on the
centre of the side previously identified.



The upper edge of the brackets must be flush with
the worktop surface.



Secure using the 4 screws (B) provided that should
screwed into the pre-prepared holes.



Insert the cook hob into the pre-prepared hole
ensuring that the clips (A) lodge into the bracket
slots provided (C Fig. 4 e 5).

, use the

Fig. 1

Fig. 3

Fig. 4

A

Fig. 2

C

B

A

If the worktop is made of marble or other

B)

materials (plastic compounds, ceramics, stone,
etc.)

, the hob must be fitted by means of brackets
code 4819 310 18528.
(to be ordered from After-Sales Service if not
provided).



Fit the hob into the worktop.



Position the brackets (C) as shown in the figure, in
accordance with the thickness of the worktop.



Secure the screws (E) in holes (D).

Fig. 5

Top min. 20 mm

Top max. 50 mm
