Whirlpool EKS 5460-1 IN, EKS 5460 IN PROGRAM CHART

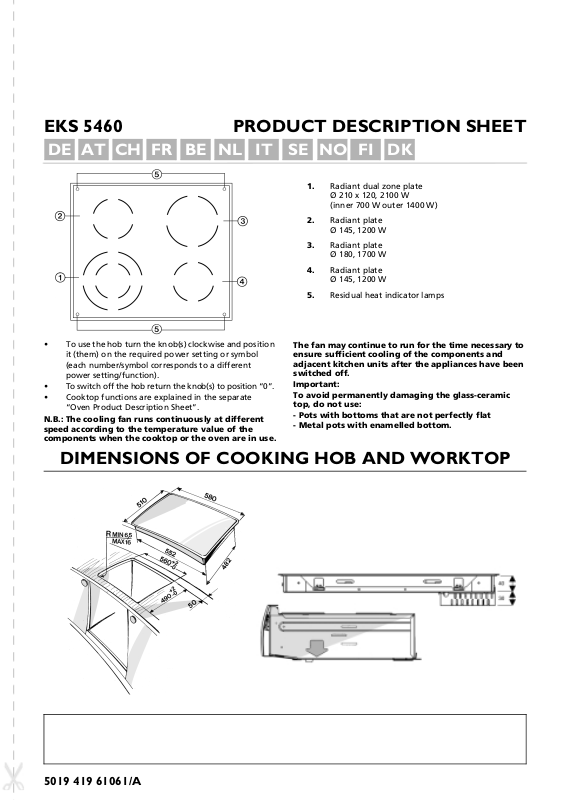

EKS 5460 PRODUCT DESCRIPTION SHEET
NO
DE AT CH FR BE NL IT SE
• To use the hob turn the knob(s) clockwise and position
it (them) on the required power setting or symbol
(each number/symbol corresponds to a different
power setting/function).
• To switch off the hob return the knob(s) to position “0”.
• Cooktop functions are explained in the separate
“Oven Product Description Sheet”.
N.B.: The cooling fan runs continuously at different
speed according to the temperature value of the
components when the cooktop or the oven are in use.
The fan may continue to run for the time necessary to
ensure sufficient cooling of the components and
adjacent kitchen units after the appliances have been
switched off.
Important:
To avoid permanently damaging the glass-ceramic
top, do not use:
- Pots with bottoms that are not perfectly flat
- Metal pots with enamelled bottom.
1.
2.
3.
4.
5.
FI DK
Radiant dual zone plate
Ø 210 x 120, 2100 W
(inner 700 W outer 1400 W)
Radiant plate
Ø 145, 1200 W
Radiant plate
Ø 180, 1700 W
Radiant plate
Ø 145, 1200 W
Residual heat indicator lamps
DIMENSIONS OF COOKING HOB AND WORKTOP
5019 419 61061/A
