EKS 3482 |

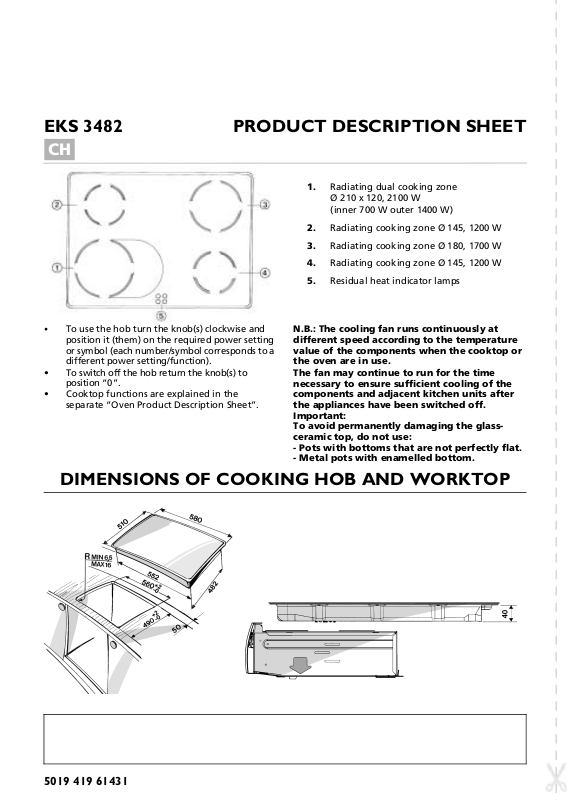

PRODUCT DESCRIPTION SHEET |
|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
|
|
CH |
•To use the hob turn the knob(s) clockwise and position it (them) on the required power setting or symbol (each number/symbol corresponds to a different power setting/function).
•To switch off the hob return the knob(s) to position “0”.
•Cooktop functions are explained in the separate “Oven Product Description Sheet”.
1.Radiating dual cooking zone
Ø 210 x 120, 2100 W
(inner 700 W outer 1400 W)
2.Radiating cooking zone Ø 145, 1200 W
3.Radiating cooking zone Ø 180, 1700 W
4.Radiating cooking zone Ø 145, 1200 W
5.Residual heat indicator lamps
N.B.: The cooling fan runs continuously at different speed according to the temperature value of the components when the cooktop or the oven are in use.
The fan may continue to run for the time necessary to ensure sufficient cooling of the components and adjacent kitchen units after the appliances have been switched off. Important:
To avoid permanently damaging the glassceramic top, do not use:
-Pots with bottoms that are not perfectly flat.
-Metal pots with enamelled bottom.
DIMENSIONS OF COOKING HOB AND WORKTOP
5019 419 61431
