Page 1

Use And Care

A Note To You 2 Important Safety

Instructions 3 Parts And Features 4 Before Using Your

Refrigerator 5 Using Your

Refrigerator 7 Caring For Your

Refrigerator 21 Food Storage Guide 24

If You Need Assistance Or Service

Warranty

Call us with questions or comments.

NO-FROST REFRIGERATOR-FREEZERS

WITH THIRSrCg.ajg'“

1-800-253-1301

MODEL ED22DL

26 28

Page 2

A NOTE TO YOU

A Note To You

Thank you for buying a Whirlpool* appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience went into its manufacturing. To ensure that you enjoy many years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable information on how to operate and maintain your appliance properly and safely. Please read it carefully. Also, please com plete and mail the Ownership Registration Card provided with your appliance. This will help us notify you about any new information on your appliance.

Your safety Is Important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and follow any instructions given. Here is a brief explanation of the use of each symbol.

Awarning

This symbol will help alert you to such dangers as personal injury, burns, fire and electrical shock.

This symbol will help you avoid actions which could cause product damage (scratches, dents, etc.) and damage to your personal property.

Acaution

Our Consumer Assistance Center number, 1-800-253-1301, Is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first see “If You Need Assistarwe Or Service” on page 26. If you need further help, feel free to call our Consumer Assistance Center. When calling, you will need to know your appliance’s complete model number and serial number. You can find this information on the model and serial number label (see diagram on page 4). For your convenience, we have included a handy place below for you to record these numbers, the purchase date from the sales slip and your dealer's name arxJ telephone number. Keep this book and the sales slip together in a safe place for future reference.

Model Number Serial Number Purchase Date

Dealer Name Dealer Phone

Page 3

IMPORTANT SAFETY INSTRUCTIONS

Important Saféty Instructions

^WARNING

• Read all instructions before using the refrigerator.

• Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still danger ous ... even if they will “just sit in the garage a few days.”

If you are getting rid of your old refrig

erator, do it safely.

• Never allow children to operate, play with, or crawl inside the refrigerator.

To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions:

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

■ Install and level the refrigerator on a floor that will hold the weight and in an area

suitable for its size and use.

• Do not install the refrigerator near an oven,

radiator or other heat source.

• Do not use the refrigerator in an area

where the room temperature will fall below 55°F(13°C).

• Keep the refrigerator out of the weather.

• Connect the refrigerator only to the proper

kind of outlet, wKh the correct electrical supply arid grounding.

• Do not load the refrigerator wKh food

before it has time to get properly cold.

• Use the refrigerator only for the uses described in this manual.

• Properly maintain the refrigerator.

• Be sure the refrigerator is not used by anyone unable to operate it properly.

• Never clean refrigerator parts with flammabie fluids. The fumes can create a fire hazard or explosion.

• FOR YOUR SAFETY •

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THE FUMES CAN CREATE A FIRE HAZARD OR

EXPLOSION.

Page 4

PARTS AND FEATURES

Parts And Features

This section contains captioned illustrations. Use them to become familiar with where all parts and features are located and what they look like.

Modei and serial

Automatic ice maker with cubed and crushed ice

Controi panei Light

number label (on side wall)

compartment

Adjustable

Spillguard™

Utility

slide-out

shelves

Slide-out freezer baskets

Temperaturecontrolled meat drawer

Adjustable door bins

Meat drawer temperature control (on side wall)

Control panel

Leveling rollers (behind base grille)

Tail-bottle

retainer

Deep

adjustable

door bins

with bin

glides

Crisper light

HumidKy-

controll^

crisper

Base grille

Freezer control

Refrigerator control

Page 5

BEFORE USING YOUR REFRIGERATOR

Before Using Your Refrigerator

In This Section

Cleaning it Plugging it in

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it and level it.

.............................................

.........................................

Page

5 5

Installing it properiy................................6

Leveling it

..............................................

Cleaning it

Removing packaging materials

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To remove any remaining glue:

• Rub briskly with thumb to make a ball, then remove.

• Soak area with liquid hand-dishwashing detergent before removing glue as described above. Do not use sharp instruments, rubbing alcohol, flammable fluids or abrasive cleaners. These can damage the material. See “Important Safety Instructions" on page 3.

NOTE: Do not remove any permanent instruction labels inside your refrigerator. Do

not remove the Tech Sheet fastened under

the refrigerator at the front.

Cleaning it before use

After removing all packaging materials, clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 21-22.

Page

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused and properly grounded electrical supply is required. It is recommended that a separate circuit serving only this appliance be provided. Use a receptacle which cannot be turned off with a switch or pull chain. Do not use an extension cord.

See Electrical Requirements and Ground ing Instructions Sheet in your Literature Package.

3-prong grounding type wall receptacle

Refrigerator power cord

3-prong grounding plug

Page 6

BEFORE USING YOUR REFRIGERATOR

Installing it properly

1. Allow inch (1.25 cm) space on each side and at the top of the refrigerator for ease of installation.

2. If the refrigerator is to be against a wall, you might want to leave extra space on the hinge side ciosest to the wall so the door can be opened wider.

3. The refrigerator can be flush against the wall.

4. Make sure ice maker water supply has been connected. Refer to Installation Instructions.

Leveling it

Your refrigerator has 2 front leveling screws-one on the right and one on the left. To adjust one or both of these, follow the

directions below.

1. Remove base grille. (See page 18.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock wise.

4. Check with level.

5. Replace base grille. (See page 18.)

Right to raise;

Page 7

USING YOUR REFRIGERATOR

Using Your Refrigerator

In This Section

Setting the controls Changing the control settings

Adjusting the door bins.........................9

Adjusting the door bin glides Removing the tail-bottle retainer Adjusting the refrigerator shelves ..10 Using the egg bin Removing the crisper and

crisper cover.......................................11

Adjusting the crisper

humidity control Removing the meat drawer

and cover............................................12

Adjusting the meat drawer

temperature.........................................12

Removing the snack bin......................13

To obtain the best possible results from your refrigerator, it is important that you operate it properly. This section tells you how to set the controls, remove and adjust some of the fea

tures in your refrigerator, and how to save energy.

..........................

...............

................

................................

.................................

Page

.....

.............

Adjusting the wine rack

Removing the freezer baskets

Removing the freezer shelf..................13

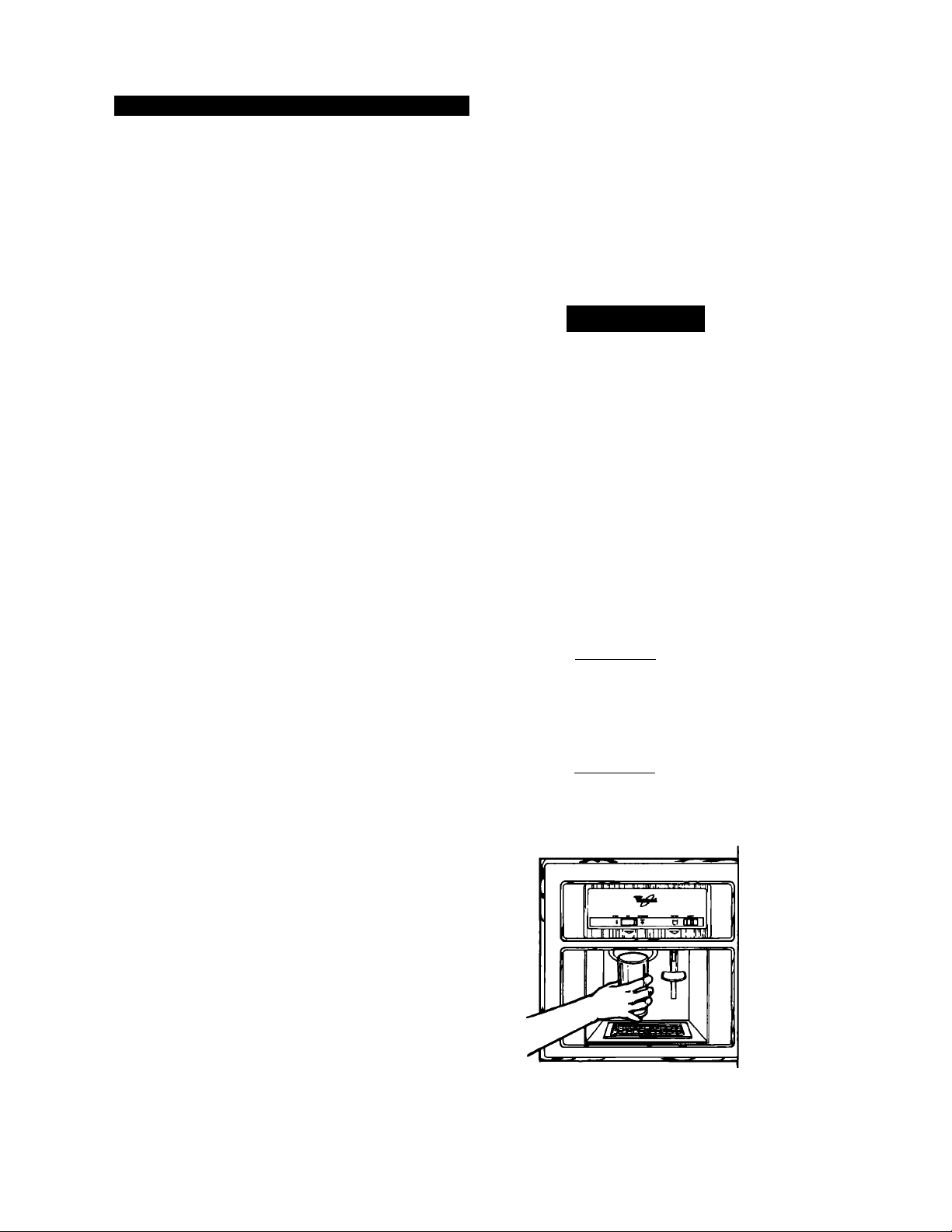

Using the THIRSTCRUSHER^**

dispensing system

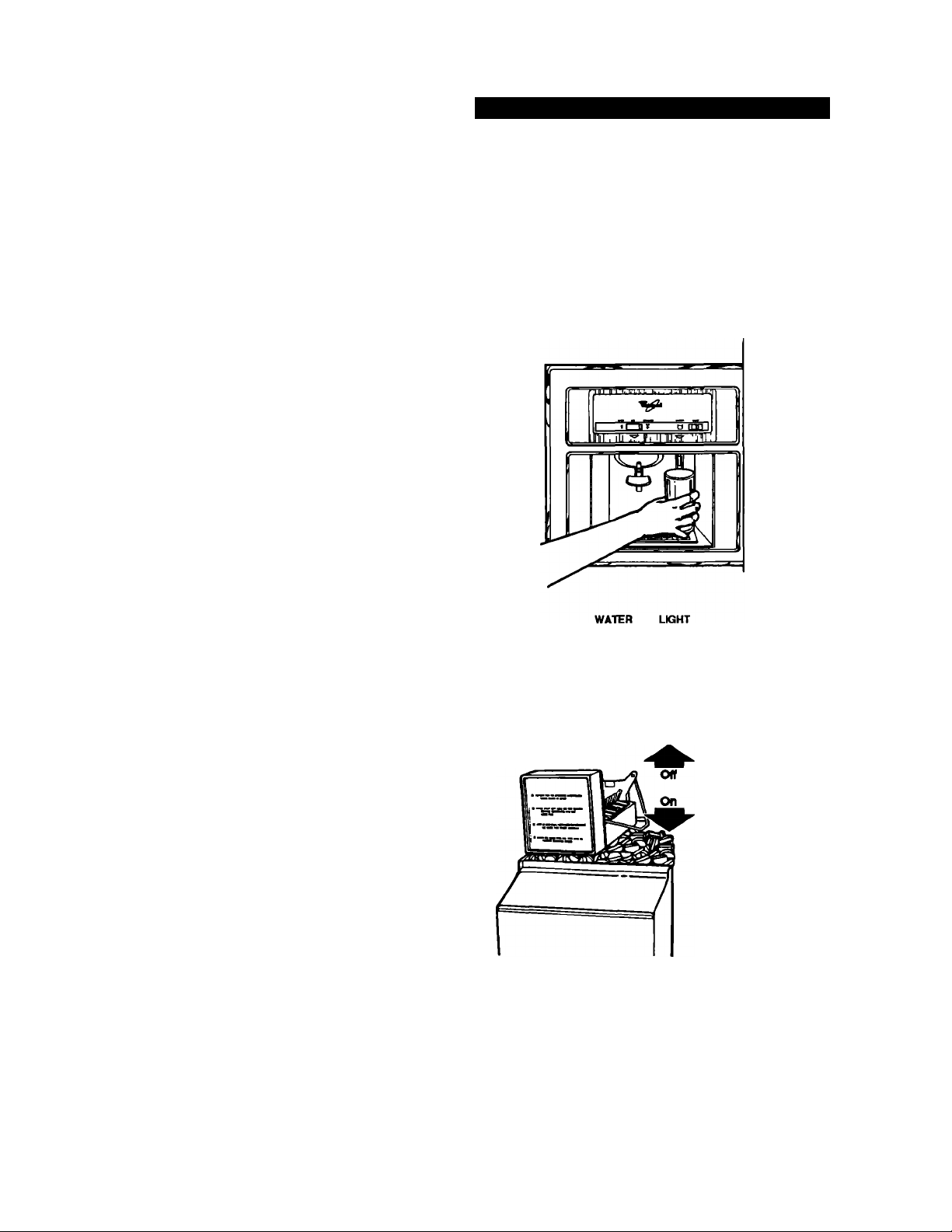

Using the automatic ice maker Removing the ice maker

storage bin..........................................16

Solving common ice maker/

dispenser problems

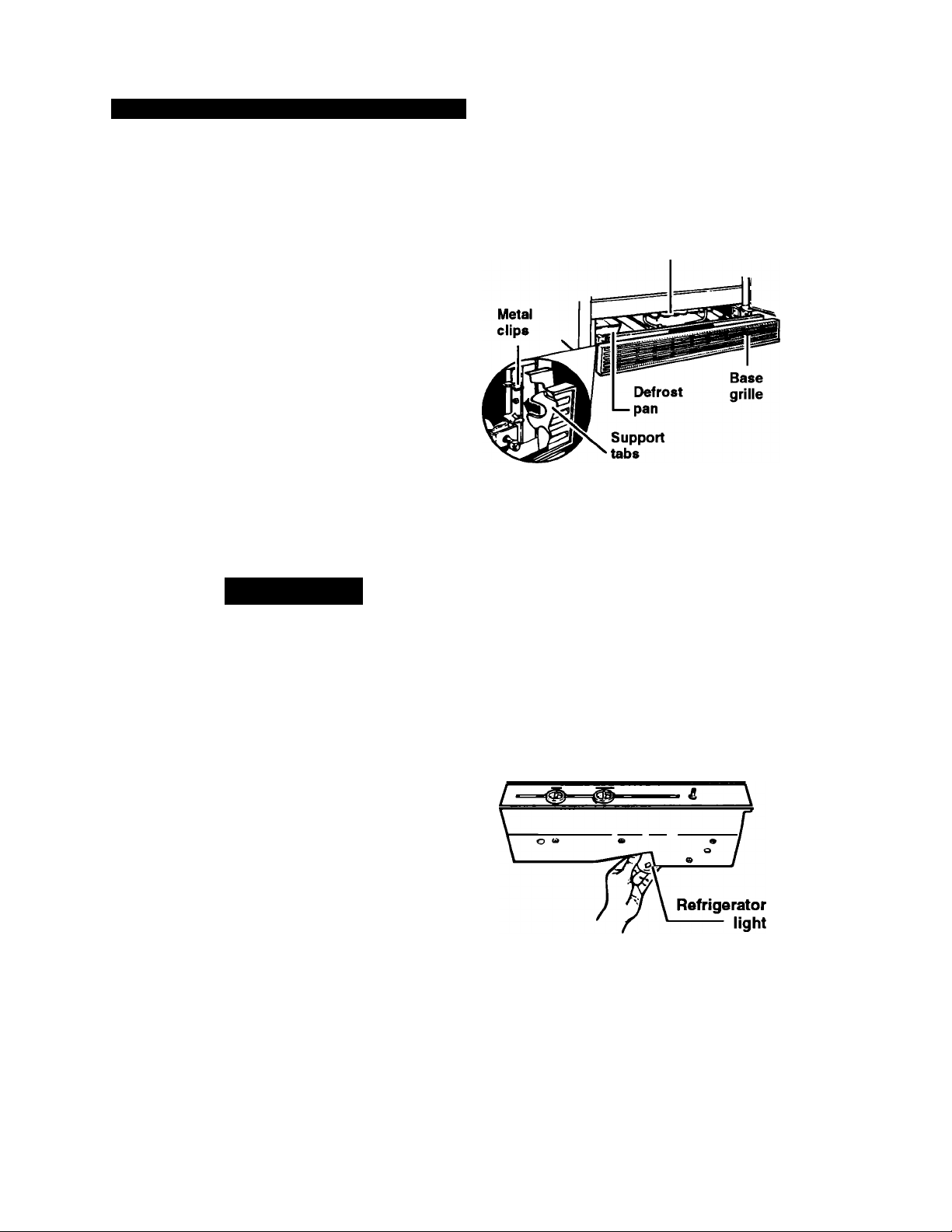

Removing the base grille.....................18

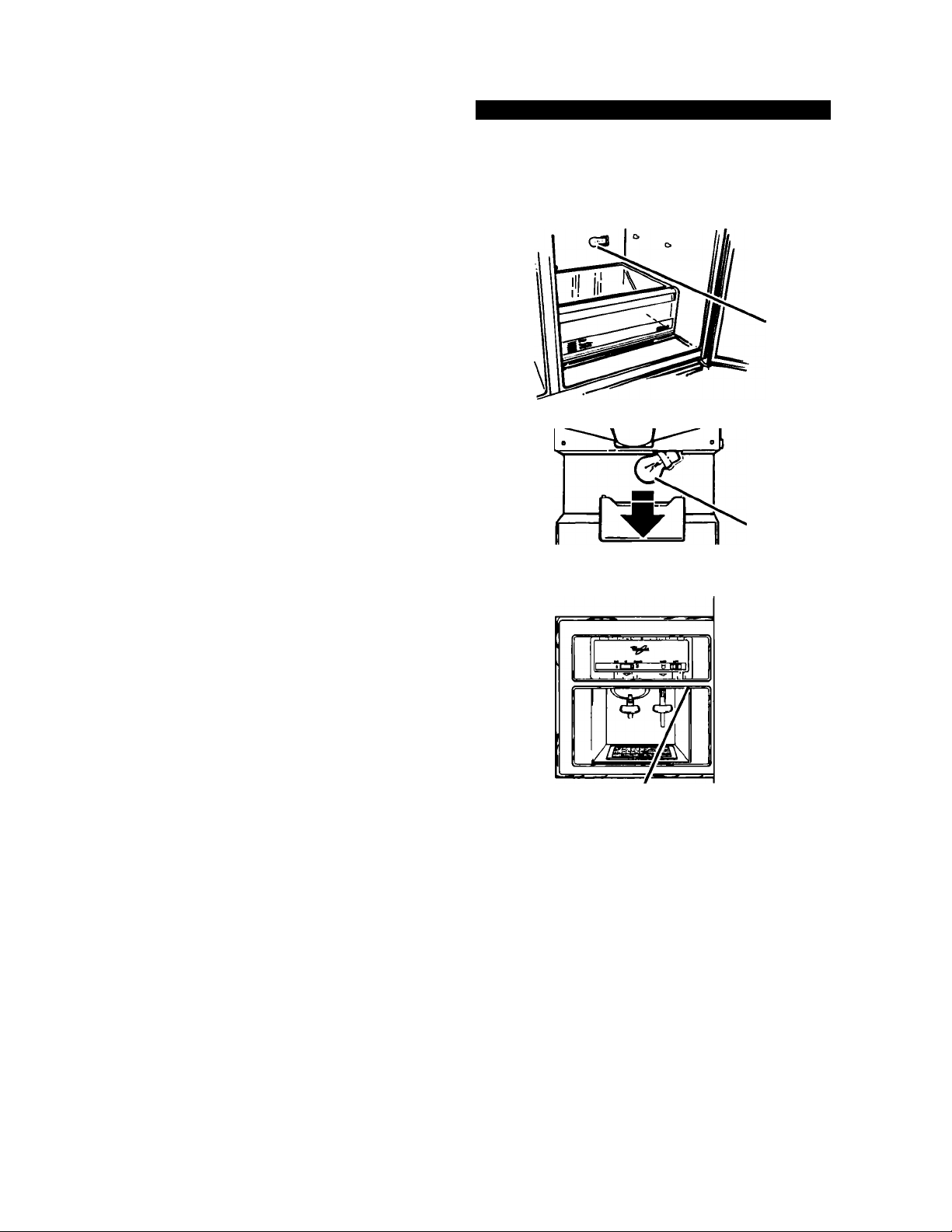

Changing the light bulbs Understanding the sounds

you may hear

Saving energy

......................................

.....................................

.......................

..............................

............................

.....................

.............

Page

13 13

20 20

Setting the controls

Controls for the refrigerator and freezer are in the refrigerator. When you plug in the refrigerator for the first time;

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from 1 (warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from

A (warmest) to C (coldest).

REFHGERATOR

Page 8

USING YOUR REFRIGERATOR

3. Give the refrigerator time to cool down completely before adding food. This may take several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls are set correctly

when milk or juice is as cold as you like

and when ice cream is firm. If you need to adjust these settings, see “Changing the control settings” below.

NOTE: The Automatic Exterior Moisture control continuously guards against rroisture build-up on the outside of your refrigerator cabinet. This control does not have to be set or adjusted.

Changing the control settings

If you need to adjust temperatures in refrigerator or freezer, use the settings listed in the chart below as a guide. If you have questions, call our Consumer Assistance Center number, 1-800-253-1301.

CONDITION: Refrigerator

section too warm

Freezer section too warm

Refrigerator section too cold

Ice not

made fast

enough

Both sections too warm

REASON:

• Door opened often

• Large amount of food added

• Room temperature too warm

• Door opened often

• Large amount of food added

• Very cold room temperature (can’t cycle often enough)

• Controls not set correctly

for your conditions

• Heavy ice usage

• Very cold room temperature (can’t cycle often enough)

• Door opened often

• Large amount of food added

• Very warm or very cold room

temperatures

• Adjust the Refrigerator Control first.

• Wait at least 24 hours between adjustments.

• Then adjust the Freezer Control if needed.

RECOMMENDED CONTROL SETTINGS:

Refrigerator

Freezer

Refrigerator

Freezer

Refrigerator

Freezer B

Refrigerator

Freezer

Refrigerator

Freezer

4 A

3 C

4 B

Page 9

USING YOUR REFRIGERATOR

Adjusting the door bins

To remove door bins:

1. Lift bin up.

2. Pull bin straight out.

To replace door bins:

1. Slide bin in above desired support button.

2. Push down until it stops.

Adjusting the door bin glides

Use the bin glides to secure odd-shaped items or to separate other items.

1. Grasp glide.

2. Slide glide along bin.

Removing the tail-bottle retainer

The tail-bottle retainer fits onto any door bin

in your refrigerator. The retainer helps to hold tail-bottles in place when opening and

closing the refrigerator door.

To remove tail-bottle retainer:

1. Grasp center of retainer.

2. Pull up and off of bin.

To replace tail-bottle retainer:

1. Position retainer above desired door bin.

2. Gently push retainer down onto bin.

3. Make sure both side notches sit firmly against bin.

Notch

Page 10

USING YOUR REFRIGERATOR

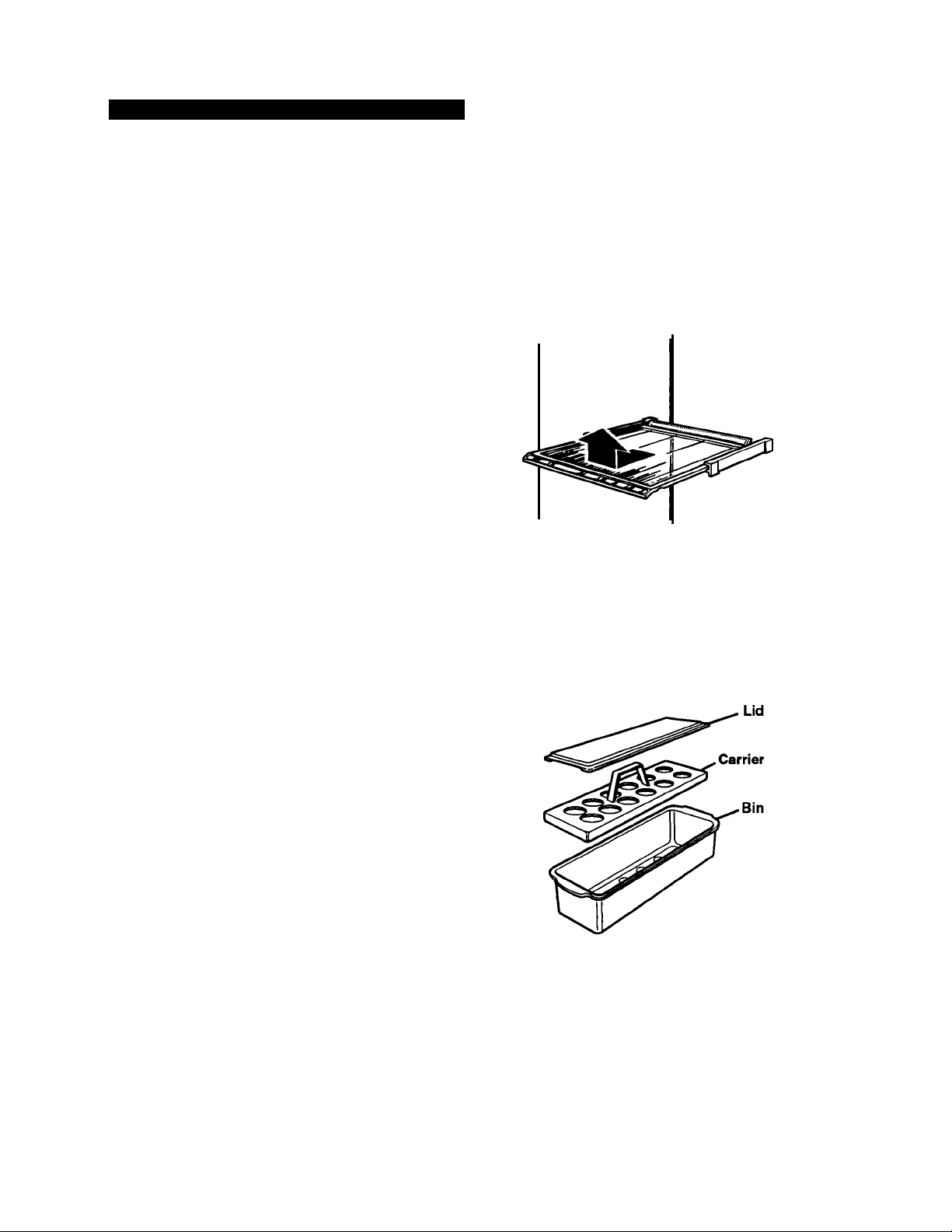

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way you use your refrigerator. Glass shelves are strong enough to hold bottles, milk and other

heavy food items.

To remove glass shelves:

1. Remove items from shelf.

2. Slide shelf out with an even, constant pull.

3. Lift front and slide the rest of the way out.

To move shelf guides to a new position:

1. Lift front of guide. Pull guide forward off rear support. Repeat for other guide.

2. To replace guide, push guide onto rear support. Push front of guide down onto support.

Be careful when

handling glass items.

To replace glass shelves:

1. Guide rear of shelf into shelf guide.

2. Slide shelf into place.

Using the egg bin

The egg bin has three pieces - the lid, the

egg carrier, and the bin. Use the egg bin to hold one, two or three dozen eggs.

To hold one dozen eggs:

Place a dozen eggs into the egg carrier. Then place the egg carrier into the bin and cover with the lid.

To hold two dozen eggs:

Place two dozen eggs bose in the bin and cover them with the lid. Use the carrier to transport eggs between bin and your cooking area.

To hold three dozen eggs:

Place two dozen eggs loose in the bin.

Invert the lid and place it on the bin. Place a dozen eggs, in the carton, on top of the lid.

Use the carrier to transport eggs between the bin and your cooking area.

Page 11

USING YOUR REFRIGERATOR

Removing the crisper and crisper cover

To remove the crisper:

1. Slide the crisper straight out to the stop.

2. Lift the front slightly.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Hold cover firmly with both hands and lift front of cover off supports.

2. Lift cover out by pulling up and out.

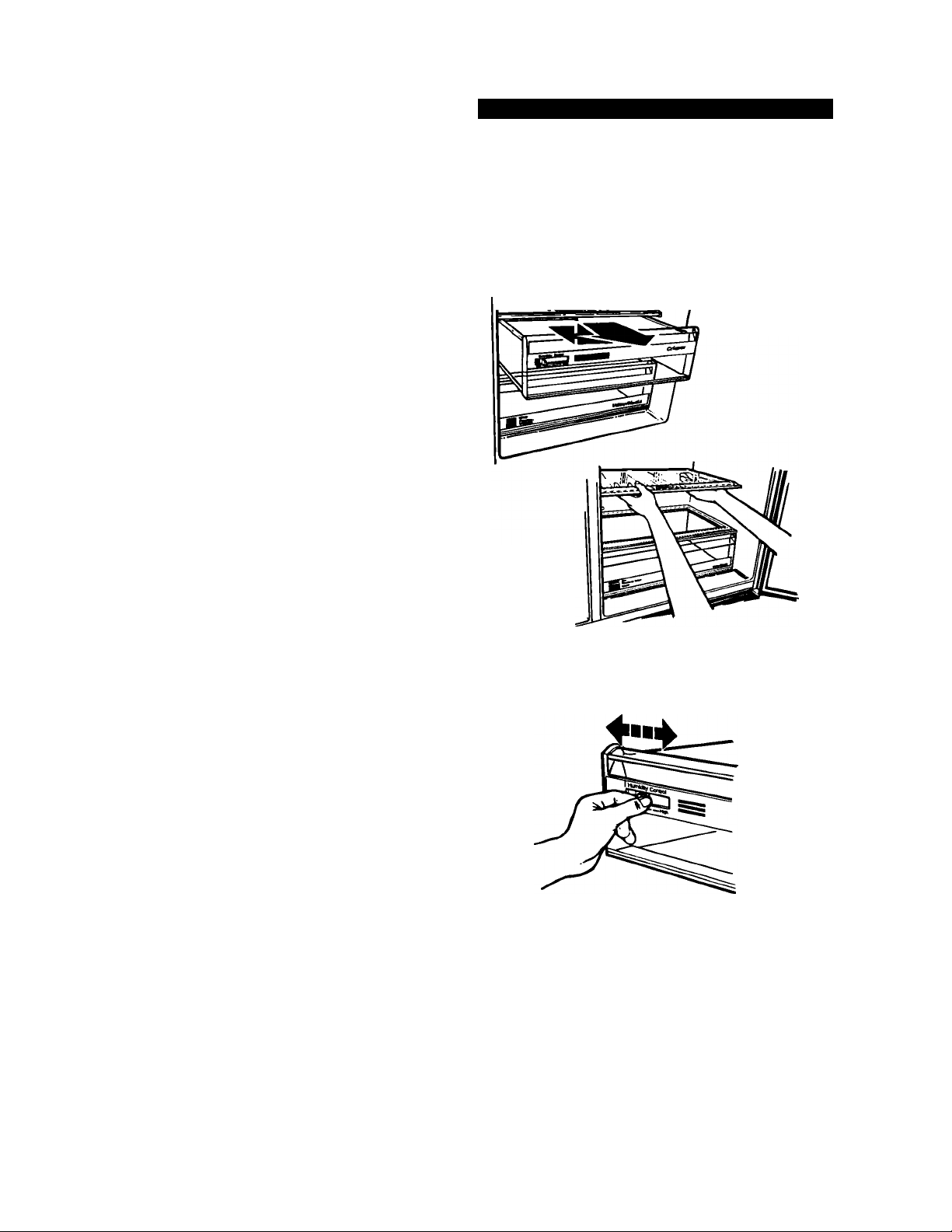

To replace the cover:

1. Fit back of cover into notch supports on walls of refrigerator.

2. Lower front into place.

/} stop, lift the front

ki pg,| again.

Lift the cover

front, then the back.

Pull out to the

Adjusting the crisper humidity controi

You can control the amount of humidity in the moisture-sealed crisper.

• The control can be adjusted to any setting

between LOW and HIGH.

• LOW (open) lets moist air out of the

crisper for best storage of fruits and vegetables with skins.

• HIGH (closed) keeps moist air in the

crisper for best storage of fresh, leafy vegetables.

Page 12

USING YOUR REFRIGERATOR

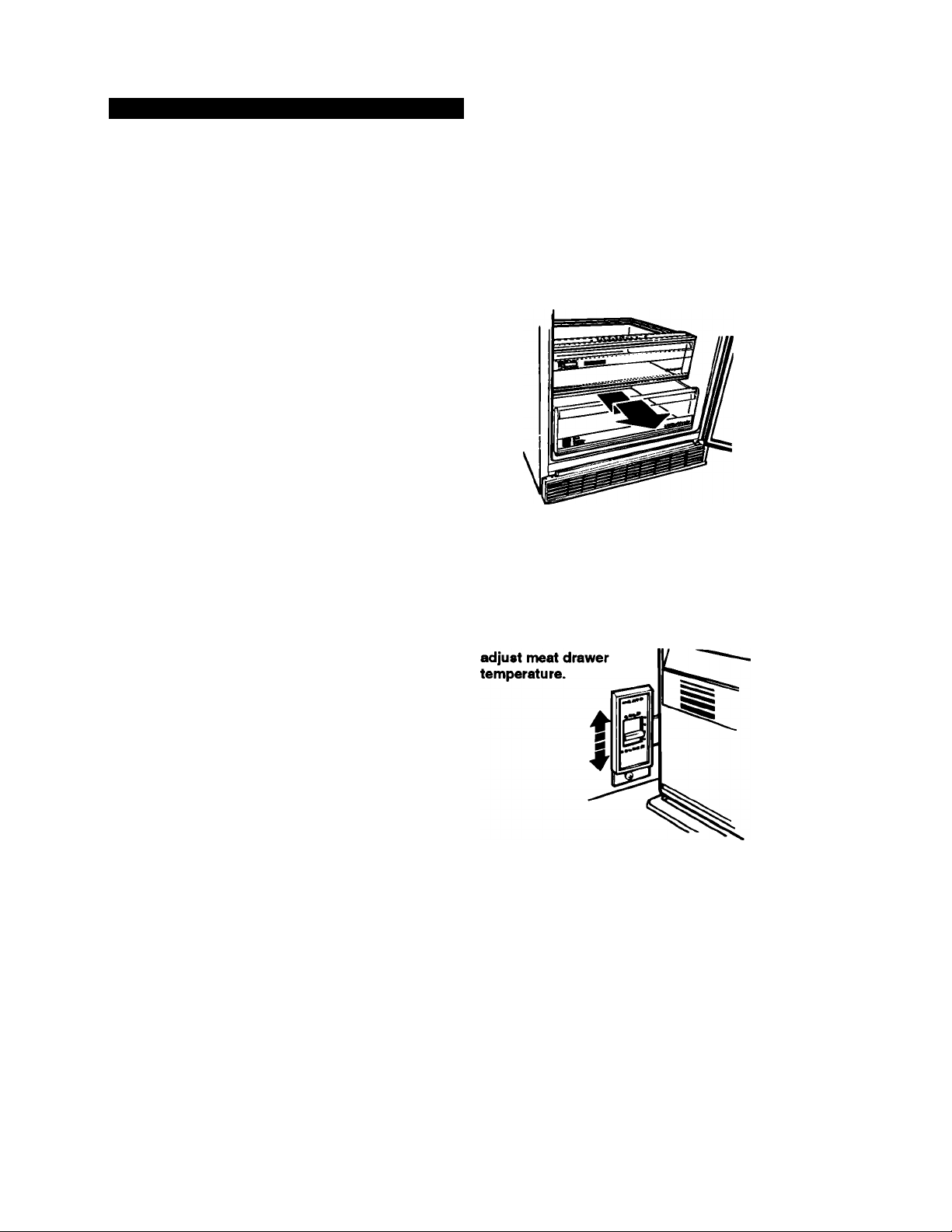

Removing the meat drawer and cover

To remove the meat drawer:

1. Slide the meat drawer straight out to the stop.

2. Lift the front slightly.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Remove meat drawer and crisper.

2. Lift front of cover off supports.

3. Lift cover out by pulling up and out.

To replace the cover:

1. Fit back of cover into notch supports on walls of refrigerator.

2. Lower front into place.

3. Replace meat drawer and crisper.

Pull out to the stop, lift

the front and pull again.

Adjusting the meat drawer temperature

Cold air flows against the meat drawer through an opening between the freezer and the refrigerator. This helps keep the meat drawer colder than the rest of the refrigera tor for better storage of meats.

Slide the control to let more or less cold air

through.

Use control to

Page 13

USING YOUR REFRIGERATOR

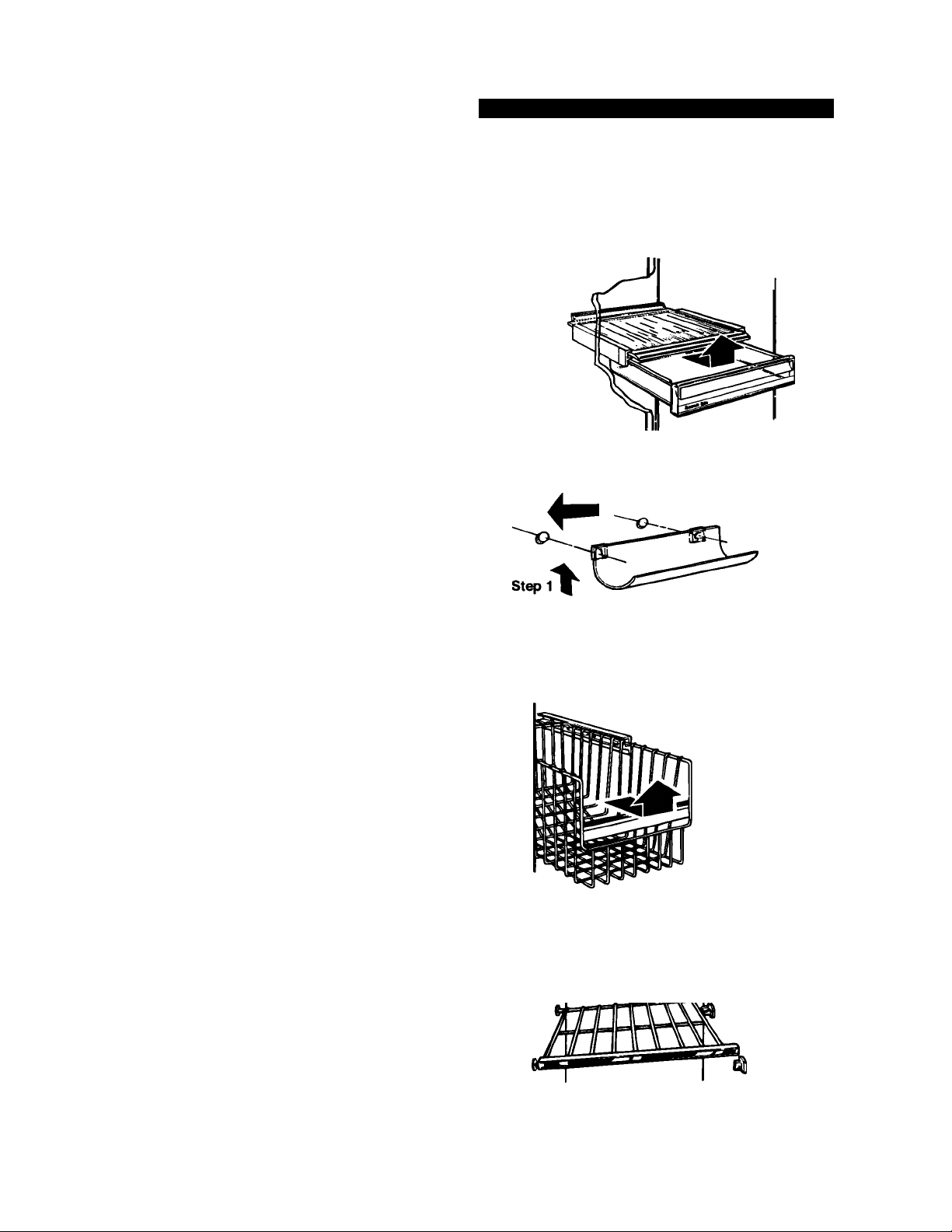

Removing the snack bin

To remove the snack bin:

1. Slide snack bin straight out to the stop with an even, constant motion.

2. Lift the front.

3. Slide bin out the rest of the way.

4. Replace in reverse order. and pull again.

Adjusting the wine rack

To remove the wine rack:

1. Lift front of wine rack.

2. Pull rack off rear support.

3. Replace in reverse order.

Step 2

Removing the freezer baskets

To remove a basket:

1. Slide basket out to the stop.

2. Lift the front to clear the stop.

3. Slide basket out the rest of the way.

To replace a basket:

1. Place basket on the slides.

2. Make sure the wire stops clear the front of the slides.

3. Slide basket in all the way.

Removing the freezer sheif

To remove the shelf:

1. Lift right side of shelf off supports.

2. Slide shelf out of shelf support holes.

3. Replace in reverse order.

Pull out to the stop, lift

the front and pull

again.

Page 14

USING YOUR REFRIGERATOR

Using the THIRSTCRUSHER^ dispensing

system

The ice dispenser

Ice dispenses from the ice maker storage bin in the freezer. When you press the dispenser bar, a trapdoor opens in a chute between the dispenser and the ice bin. Ice moves from the bin and falls through the chute. When you release the dispenser bar, a buzzing sound may be heard for a few seconds as the trapdoor closes. The dis penser system will not operate when the

freezer door is open.

For crushed ice, cubes are crushed before being dispensed. This may cause a slight delay when dispensing crushed ice. Noise from the ice crusher is normal, and pieces of ice may vary in size.

When changing from CRUSHED to CUBE, a few ounces of crushed ice will be dis pensed along with the first cubes.

Tumbling ice and pressure can break a fragile glass. Use a sturdy glass when dispensing ice or water.

Failure to do so could result in personal

injury or breakage.

Awarning

Personal Injury Hazard

To dispense ice:

1. For cubed ice, move Ice Selector Switch

to CUBE position.

For crushed ice, move Ice Selector

Switch to CRUSHED position.

2. Press a sturdy glass against the ice dispenser bar. Hold glass close to dispenser opening so ice does not fall outside of glass.

3. Remove the glass to stop dispensing.

NOTE: The first few batches of ice may have an off-flavor from new plumbing and parts. Throw the ice away. Also, take large amounts of ice from the ice bin, not through

the dispenser.

CUBE ICE CHUSHED

CUBE ICE CRUSHED

Page 15

The water dispenser

Chilled water comes from a tank behind the meat drawer. It holds approximately 1 'h quarts (1.5 L). When the refrigerator is first

hooked up, press the water dispenser bar with a glass or jar until you draw and discard 2 or 3 quarts (1.9 to 2.8 L). The water you draw and discard rinses the tank and pipes.

Allow several hours to chill a new tankful.

NOTE: The small tray beneath the dispenser

is designed to evaporate small spills. There is

no drain in this tray. Do not pour water into it.

To dispense water:

1. Press a sturdy glass against the water dispenser bar.

2. Remove the glass to stop dispensing.

NOTE: Dispense enough water every week to maintain a fresh supply.

USING YOUR REFRIGERATOR

The dispenser light

To turn on night light, slide dispenser LIGHT

switch to the left. See page 19 for directions for changing the dispenser light bulb.

Using the automatic ice maker

Here are a few things you will want to know about your automatic ice nnaker:

• The ON/OFF lever is a wire signal arm.

DOWN to make ice automatically. UP to shut off the ice maker.

NOTE: Do not turn ice maker on until it is

connected to the water supply. Instructions

for ice maker water supply hookup are attached to the back of the refrigerator cabinet.

• It is normal for ice crescents to be attached

by a corner. They break apart easily.

• The ice maker will not operate until the

freezer is cold enough to make ice. This can take overnight.

• If ice is not being made fast enough and

more ice is needed, turn the Refrigerator Control toward a higher number. Wait a day and, if necessary, turn the Freezer Control toward C.

tJ D

UP to

stop ice

maker.

DOWN to

start ice

maker.

Page 16

USING YOUR REFRIGERATOR

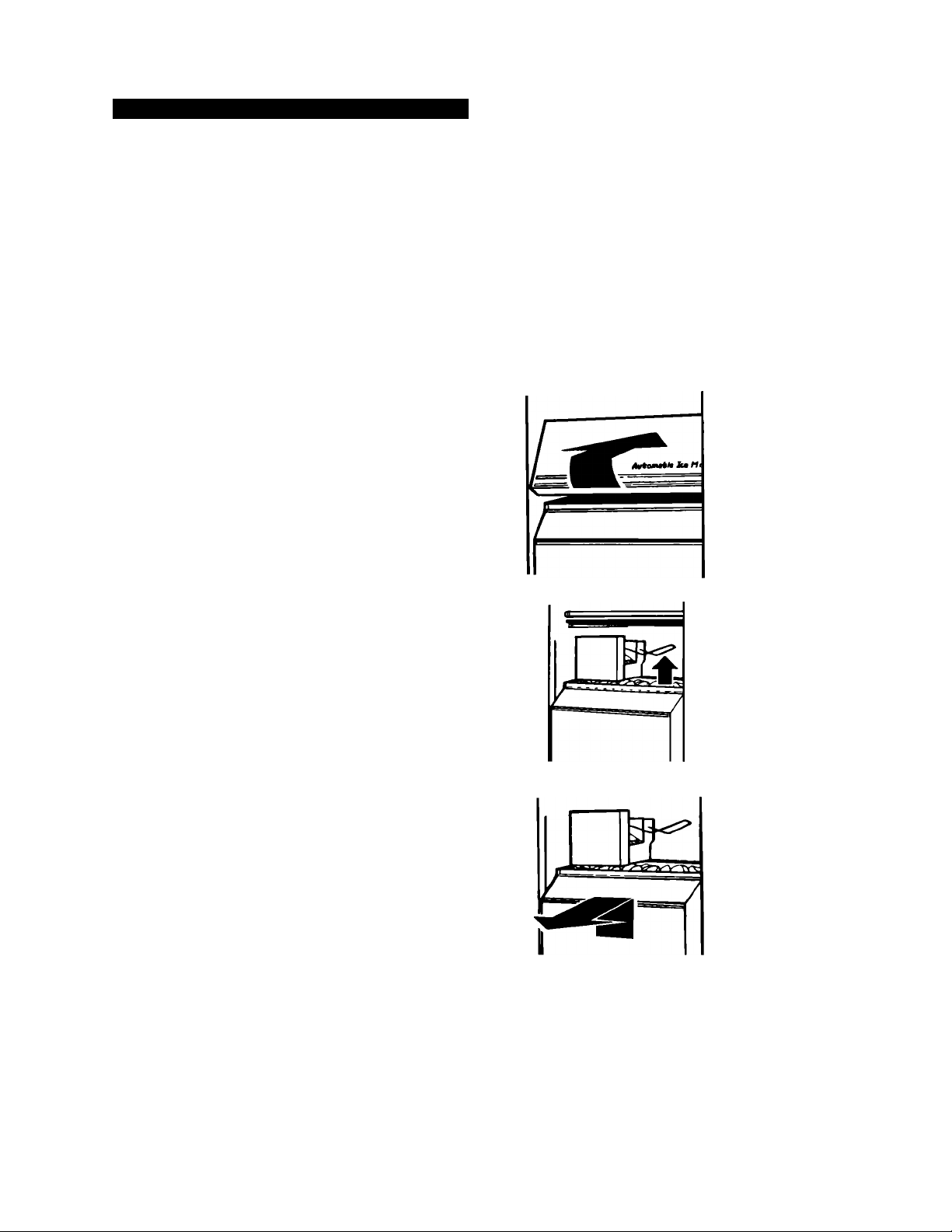

Removing the ice maker storage bin

Remove, empty and clean the storage bin if:

• the ice dispenser has not, or will not, be used for a week or rriore.

• a power failure causes ice in the bin to melt and freeze together.

• the ice dispenser is not used regularly.

To remove ice bin:

1. Pull the coveting panel out from the bottom and slide it to the rear.

2. Lift the signal arm so it clicks into the OFF (up) position. Ice can still be dispensed, but no more can be made.

3. Lift the front of the storage bin and pull it out.

4. Empty the ice bin. Use hot or warm water

to melt the ice if necessary. Never use

anything sharp to break up ice in the bin. This can damage the bin and dis penser mechanism.

5. Wash with mild detergent. Rinse well. Do not use harsh or abrasive cleaners or solvents.

6. When replacing the bin, make sure it is pushed in all the way. Then push the

signal arm down to the ON position to

restart ice production.

Page 17

USING YOUR REFRIGERATOR

Solving common ice maker/dispenser problems

PROBLEM Ice dispenser

won’t work

Ice dispenser stops working

Off-taste or odor in ice

CAUSE

• Freezer door open

• Ice bin not properly installed

• Wrong ice in bin

• Dispenser not used for extended periods, causing ice cubes to melt together

• Ice dispenser bar held in too long

• Ice attracts airborne odors; old ice

• Water quality

• Foods not properly wrapped

• Ice bin and freezer may need cleaning

• Plumbing to ice maker

• New ice maker

SOLUTIONS

• Close the freezer door.

• Make sure bin is pushed in all the way.

• Use only crescents from ice maker.

Shake the bin occasionally to keep cubes separated and to increase storage room.

• Dump old ice and make a new supply.

• Wait about 3 minutes for the dispenser motor to reset.

• Large amounts of ice should be taken from the bin, not through the dispenser.

• Dump old ice and make a new supply. Store excess ice in covered container.

■ Water containing minerais (such as sulfur) may require a filter to remove.

• Good water quality is important for good ice quality. Try to avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt from a malfunctioning softener) can damage the ice maker mold and lead to poor ice quality. If a softened water supply cannot be avoided, make sure the water softener is operating properly and well maintained.

• Wrap properly. See pages 24 and 25.

• Clean freezer and ice bin. See cleaning chart on pages 21 and 22.

• Follow Installation Instructions for proper ice maker water supply hookup. (See back of refrigerator cabinet.)

• The first few loads of ice from a new ice maker may have an off-taste. Dump ice and make a new supply.

Page 18

USING YOUR REFRIGERATOR

Removing the base grille

To remove the grille:

1. Open both doors.

2. Pull base grille forward to release the support tabs from the metal clips.

3. Do not remove Tech Sheet fastened

behind the grille.

To replace the grille:

1. Line up grille support tabs with metal clips.

2. Push firmly to snap into place.

3. Close the doors. See cleaning instructions for defrost pan and

condenser coils on page 22.

Changing the light bulbs

Â WARNING

Electrical Shock Hazard

Before removing a light bulb, either

unplug the refrigerator or disconnect the electricity leading to it at the main power supply.

Failure to do so could result in per sonal injury.

Condenser coils

To change refrigerator light:

1. Disconnect refrigerator from power supply.

2. Reach behind the Control Console to remove bulb.

3. Replace bulb with a 40-watt appliance bulb.

4. Reconnect refrigerator to power supply.

Page 19

To change crisper light:

1. Disconnect refrigerator from power supply.

2. Pull top of light shield forward until it snaps free.

3. Lower light shield to clear bottom supports.

4. Pull light shield straight out to renrKtve.

5. Replace bulb with a 40-watt appliance bulb.

6. Replace light shield in reverse order.

7. Reconnect refrigerator to power supply.

To change light below ice bin:

1. Disconnect refrigerator from power supply.

2. Push in sides of light shield until it snaps free.

3. Replace bulb with a 40-watt appliance bulb.

4. Replace light shield.

5. Reconnect refrigerator to power supply.

USING YOUR REFRIGERATOR

Crisper

light

Light

below

ice bin

To change dispenser area light:

1. Disconnect refrigerator from power supply.

2. Reach through dispenser area to remove bulb.

3. Replace with a heavy-duty 10-watt bulb, which can be purchased from your Whirlpool dealer.

4. Reconnect refrigerator to power supply.

NOTE: Not all commercial appliance bulbs will fit your refrigerator. Be sure to replace a bulb with one of the same size and shape.

Dispenser area light

Page 20

USING YOUR REFRIGERATOR

Understanding the sounds you may hear

Your new refrigerator may make sounds that

your old one didn't. Because the sounds are

new to you, you might be concerned about

them. Don’t be. Most of the new sounds are

normal. Hard surfaces like the floor, walls

and cabinets can make the sounds seem

louder.

The following describes the kinds of

sounds that might be new to you, and what

may be making them.

Slight hum, soft hiss

You may hear the refrigerator’s fan motor and moving air.

Water sounds

When the refrigerator stops running, you may hear gurgling in the tubing for a few minutes after it stops. You may also hear defrost water running into the defrost water pan.

Ice maker sounds

• trickling water

• thud (clatter of ice) You may hear buzzing (from the water

valve), trickling water and the clatter of ice dumped into the bin.

Clicking or snapping sounds

The thermostat makes a definite click when

the refrigerator stops running. It also makes

a sound when the refrigerator starts. The defrost timer will click when the defrost cycle starts.

Saving energy

You can help your refrigerator use less electricity.

• Check door gaskets for a tight seal. Level the cabinet to be sure of a good seal.

• Clean the condenser coils regularly.

• Open the door as few times as possible. Think about what you need before you open the door. Get everything out at one time. Keep food organized so you won’t have to search for what you want. Close door as soon as food is removed.

Running sounds

Your refrigerator has a high-efficiency

compressor and motor. It will run longer than

older designs. It may even seem to run most

of the time.

• Go ahead and fill up the refrigerator, but don’t overcrowd it so air movement is blocked.

• It is a waste of electricity to set the refrig erator and freezer to temperatures colder than they need to be. If ice cream is firm in the freezer and drinks are as cold as your family likes them, that’s cold enough.

• Make sure your refrigerator is not next to a heat source such as a range, water heater, furnace, radiator or in direct sunlight.

Page 21

CARING FOR YOUR REFRIGERATOR

Caring For Your Refrigerator

In This Section

Cleaning your refrigerator Vacation and moving care

Your refrigerator is built to give you many years of dependable service. However, there are a few things you can do to help extend its product life. This section tells you how to clean your

refrigerator arud what to do when going on vacation, moving or during a power outage.

..............

.............

Page

.........

21 Power interruptions

.........

........................

..............

Page

Cleaning your refrigerator

Both the refrigerator and freezer sections

defrost automatically. However, clean both

about once a month to prevent odors from building up. Wipe up spills right away.

To clean your refrigerator, turn the Refrig erator Control to OFF, unplug it, take out all removable parts and clean the refrigerator

according to the following directions.

PART Removable parts

(shelves, crisper, etc.)

Outside

WHAT TO USE HOW TO CLEAN Sponge or cloth with mild

detergent and warm water

Sponge, cloth or paper towel with mild detergent, warm water and an appliance wax (or good auto paste wax)

Refrigeration system tubes are located near the defrost pan and can become hot. Remove and install defrost pan

carefully.

Failure to do so could result in personal

injury.

• Hand wash, rinse and dry thor-

• Wash outside of cabinet. Do not

• Rinse and dry thoroughly.

• Wax painted metal surfaces at least

^WARNING

Personal Injury Hazard

oughly.

use abrasive or harsh cleaners.

twice a year. Apply wax with a clean, soft cloth. Waxing painted metal surfaces provides rust protection. Do not wax plastic parts.

Inside walls (allow freezer to warm up so cloth won’t stick)

Sponge, soft cloth or paper towel with baking soda or mild detergent and warm water

• Wash with mixture of warm water and;

- mild detergent, or

- baking soda (2 tablespoons [26 g]

to 1 quart [.95 L] of water).

• Rinse and dry thoroughly.

continued on next page

Page 22

CARING FOR YOUR REFRIGERATOR

PART Door liners and

gaskets

Plastic parts

(covers and panels)

Defrost pan

Condenser coils Vacuum cleaner

WHAT TO USE HOW TO CLEAN

Sponge, soft cloth or paper towel with mild detergent and warm water

Soft, clean sponge or soft, clean cloth with mild detergent and warm water

Sponge or ctoth with mild detergent and warm water

with extended

narrow attachment

• Wash, rinse and dry thoroughly.

DO NOT USE cleaning waxes, concen trated detergents, bieaches or cieaners containing petroieum on piastic parts.

• Wash, rinse and dry thoroughly.

DO NOT USE paper towels, window sprays, scouring cleansers or flam mable fluids. These can scratch or damage material. See “Important Safety

Instructions” on page 3.

• Remove base grille. (See page 18.)

• To remove defrost pan, lift pan over wire brace (remove tape; if any).

• Wash, rinse and dry thoroughly.

• Replace with notched corner to the rear. Push it in all the way.

• Make sure defrost pan drain tube is pointing into pan.

• Replace base grille.

• Remove base grille.

• Vacuum coils when dusty or dirty. Coils may need to be cleaned as often as every other month.

• Replace base grille.

Floor under refrigerator

Floor cleaners

Vacation and moving care

Short vacations

No need to shut off the refrigerator if you will be away for less than four weeks.

1. Use up any perishables.

2. Freeze other items.

3. Raise ice maker signal arm to OFF (up) position.

4. Shut off water supply to ice maker.

5. Empty the ice bin.

• Roll refrigerator out only as far as the water supply line allows.

• Clean floor.

• Roll refrigerator back into place.

• Check to see if the refrigerator is level.

Page 23

CARING FOR YOUR REFRIGERATOR

Long vacations

If you will be gone a month or more:

1. Remove all food from the refrigerator.

2. Turn off the water supply to the ice maker at least one day ahead of time.

3. When the last load of ice drops, turn off the ice maker. Make sure all ice is

dispensed out of the ice maker mecha nism.

4. Unplug the refrigerator.

5. Clean it, rinse well and dry.

6. Tape mbber or wood blocks to the tops of

both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

Awarning

Personal Injury Hazard

Do not allow children to climb on, play

near or climb inside the refrigerator

when the doors are blocked open.

They may become injured or trapped.

Moving

When you are moving the refrigerator to a new home:

1. Turn off the water supply to the ice maker at least one day ahead of time.

Disconnect the water line.

After the last load of ice drops, lift the

3. signal arm to the OFF (up) position.

Remove all food from the refrigerator.

4. Pack all frozen food in dry ice.

5. Unplug the refrigerator.

Clean it thoroughly. Rinse well and dry.

7. Take out all removable parts, wrap them

well, and tape them together so they don’t shift and rattle.

Screw in the leveling rollers.

10. Tape the doors shut and tape the power supply cord to the cabinet.

When you get to your new home, put everything back and refer to page 5. Also, remember to reconnect the water supply line.

To restart refrigerator, see “Using Your

Refrigerator” on page 7.

Power interruptions

If electricity goes off, call the power com pany. Ask how long power will be off.

1. If service will be interrupted 24 hours or less, keep both doors closed. This helps food stay frozen.

2. If service will be interrupted longer than 24 hours:

(a) Remove all frozen food and store in a

frozen food locker. OR (b) Place 2 lbs. (0.9 kg) of dry ice in

freezer for every cubic foot of freezer space. This will keep food frozen for 2 to 4 days. Wear gloves to protect your hands from dry ice burns.

available, use or can perishable food at once.

3. A full freezer stays cold longer than a partly filled one. A freezer full of meat

stays cold longer than a freezer full of

baked goods. If food contains ice crystals, it may be safely refrozen, although the

quality and flavor may be affected. If the condition of the food is poor, or if you feel

it is unsafe, dispose of it.

Questions 7

Call our Consumer Assistance Center telephone number, 1-800-253-1301.

Page 24

FOOD STORAGE GUIDE

Food Storage Guide

There is a correct way to package and store refrigerated or frozen food. To keep food fresher,

longer, take the time to study these recommended steps.

Storing fresh food

Wrap or store food placed in the refrigerator in airtight and nwisture-proof material. This prevents food odor and taste transfer

throughout the refrigerator. For dated

products, check code date to ensure freshness.

Leafy vegetables

Remove store wrapping and trim or tear off bruised and discolored areas. Wash in cold water and drain. Place in plastic bag or

plastic container and store in crisper.

Vegetables with skins

(carrots, peppers)

Store in crisper, plastic bags or plastic

container.

Fruit

Wash, let dry and store in refrigerator in

plastic bags or crisper. Do not wash or hull

berries until they are ready to use. Sort and

keep berries in their original container in a

crisper, or store in a loosely closed paper

bag on a refrigerator shelf.

Eggs

Store without washing in egg bin provided,

or in the original carton on an interior shelf.

Milk

Wipe milk cartons. For best storage, place

milk on interior shelf.

Butter or margarine

Keep opened butter in covered dish or

closed compartment. When storing an extra

supply, wrap in freezer packaging and

freeze.

Cheese

Store in the original wrapping until you are ready to use it. Once opened, rewrap tightly in plastic wrap or aluminum foil.

Leftovers

Cover leftovers with plastic wrap or alumi num foil. Plastic containers with tight lids can also be used.

Meat

Store most meat in original wrapping as long as it is airtight and moisture proof. Rewrap if necessary. See the following chart for

storage times.

APPROXIMATE TIME

TYPE Chicken Ground beef Steaks and roasts 3 to 5 Cured meats

Bacon Cold cuts Variety meats

*lf storing meat longer than the times given,

follow the directions for freezing.

NOTE: Use fresh fish and shellfish the same day as purchased.

(DAYS)*

1 to 2 1 to 2

7 to 10

5 to 7

3to5

1 to 2

Page 25

Storing frozen food

The freezer section is designed for storage of commercially frozen food and for freezing food at home.

NOTE: For further information about prepar ing food for freezing or food storage times,

contact your local Cooperative Extension

Service or check a freezer guide or reliable

cookbook.

Packaging

The secret of successful freezing is in the

packaging. The way you close and seal the

package must not allow air or moisture in or out. Packaging done in any other way could cause food odor and taste transfer through out the refrigerator and drying of frozen food.

FOOD STORAGE GUIDE

Freezing

Do not expect your freezer to quick-freeze

any large quantity of food. Put no more

unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 pounds of food per cubic foot of freezer space). Leave enough space for air to circulate around packages. Be careful to

leave enough room at the front so the door can close tightly.

Storage times will vary according to the quality of the food, the type of packaging or wrap used (airtight and moisture-proof) and the storage temperature, which should be 0“F(-17.8°C).

Packaging recommended for use:

• Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps (made from a saran film)

Follow package or container instructions for

proper freezing methods.

Do not use:

• Bread wrappers

• Non-polyethylene plastic containers

• Containers without tight lids

• Waxed paper

• Waxed-coated freezer wrap

• Thin, semi-permeable wrap

The use of these wrappings could cause food odor, taste transfer and drying of frozen food.

Page 26

IF YOU NEED ASSISTANCE OR SERVICE

If You Need Assistance Or

Service

Performance problems often result from little things you can fix without tools. Please read the

chart below before calling for service on your appliance.

1. Before calling for assistance ...

Listed in this chart are the nfx>st common problen^ consumers run into with their appliances.

Please read through this and see if it can solve your problem.

PROBLEM CHECK THE FOLLOWING Your refrigerator

will not

operate

Is the power supply cord firmly plugged into a live circuit with proper

voltage?

Has a household fuse or circuit breaker blown/tripped? Is the Refrigerator Control set to the OFF position?

The lights do not work

The ice maker does not work

You hear unfamil iar sounds or a rattling^ingling noise

There is water in the defrost pan

The motor seems to run too much

Is the power supply cord firmly plugged into a live circuit with proper

voltage?

Has a household fuse or circuit breaker bbwn/tripped? Is a bulb burned out? Is the freezer cold enough to make ice? It could take overnight for

the freezer to reach the proper temperature.

Is the ON/OFF lever in the ON (down) position? Is the water valve turned on? Does the water line have a clog or leak? Is something on top of or behind the refrigerator?

Some new sounds are normal. See “Understanding the sounds you may hear^ on page 20.

This is normal on hot, muggy days. Make sure the refrigerator is level so the pan does not overflow.

Are the condenser coils dirty? Has the door been opened often? Has a large amount of food been

added at one time? The motor naturally runs longer if these things happen.

Is the room hot? If the room is too warm, the motor runs longer to

keep the unit cool.

Page 27

IF YOU NEED ASSISTANCE OR SERVICE

2. If you need assistance*...

Call Whirlpool Consumer Assistance Center telephone number. Dial toll-free from anywhere in the U.S.A.:

1-800-253-1301

and talk with one of our trained consultants. The consultant can instruct you in how to obtain satisfactory operation from your appliance or, if service is necessary, recommend a qualified service company in your area.

If you prefer, write to:

Mr. William Clark

Consumer Assistance Representative Whirlpool Corporation 2000 N State Route 63

Benton Harbor, Ml 49022-2692

Please iriclude a daytime phone number in

your correspondence.

3. If you need service*...

Whirlpool has a nationwide network of authorized Whirlpool* service companies. Whirlpool service technicians are trained to fulfill the product warranty and provide after warranty service, anywhere in the United States. To locate the authorized Whirlpool service company in your area, call our Consumer Assistance Center telephone number (see Step 2) or look in your tele phone directory Yellow Pages under:

• APPUANCE-HOUSEHOLD-

MAJOR, SERVICE A REPAIR

- Sae: Whirlpool Appliances or Authorized Whirlpool Service (Example: XYZ Service Co.)

•WASHING MACHINE8 A

DRYERS» SERVICE A REPAIR

■ See: Whirlpool Applimces or Authorized Whirlpool Service (Example: XYZ Service Co.)

4. If you need FSP* replace ment parts ...

FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this syrribol of quality whenever you need a replacement part for your Whirlpool appli ance. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new Whirlpool appliance.

To locate FSP replacement parts in your area, refer to Step 3 above or call the Whirlpool Consumer Assistance Center number in Step 2.

5. If you are not satisfied with

how the problem was solved ...

• Contact the Major Appliance Consumer

Action Panel (MACAP). MACAP is a group of independent consumer experts that voices consumer views at the highest levels of the major appliance industry.

• Contact MACAP only when the dealer,

authorized servicer and Whirlpool have failed to resolve your problem.

Major Appliance Consumer Action Panel 20 North Wacker Drive Chicago, IL 60606

• MACAP will in turn inform us of

your action.

*When asking for help or service:

Please provide a detailed description of the problem, your appliance’s complete model and serial nun^ers, artd the purchase date. (See page 2.) This information will help us respond properly to your request.

Page 28

WHIRLPOOL'

Refrigerator Warranty

LENGTH OF WARRANTY FULL ONE-YEAR

WARRANTY

From Date of Purchase

FULL FIVE-YEAR WARRANTY

From Date of Purchase

WHIRLPOOL WILL NOT PAY FOR A. Service calls to:

1. Con’ect the installation of your refrigerator.

2. Instruct you how to use your refrigerator.

3. Replace house fuses or con'ect house wiring or plumbing.

4. Replace light bulbs.

B. Repairs when your refrigerator is used in other than normal, single-family household

use.

C. Pickup and delivery. Your refrigerator is designed to be repaired in the home.

D. Damage to your refrigerator caused by accident, misuse, fire, flood, acts of God or use

of products not approved by Whirlpool. E. Any food loss due to product failure. F. Repairs to parts or systems caused by unauthorized modifications made to the

appliance.

WHIRLPOOL WILL PAY FOR

FSP* replacement parts and repair labor to correct

defects in materials or workmanship. Service must be

provided by an authorized Whirlpool service company. FSP replacement parts and repair labor to correct defects

in materials or workmanship in the sealed refrigeration system. These parts are:

1. Compressor 4. Drier

2. Evaporator 5. Connecting tubing

3. Condenser

Service must be provided by an authorized Whirlpool

service company.

WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE QUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Outside the United States, a different warranty may apply. For details, please contact your authorized Whirlpool distributor or military exchange.

If you need service, first see the “If You Need Assistance Or Service" section of this book. After checking “If You Need Assistance Or Service,” additional help can be found by calling our Consumer Assistance Center telephone number, 1-800-253-1301, from anywhere

in the U.S.A.

Printed on recycled paper-

10% po8t‘0onsumer waste

50% recovered materials

PART NO. 2175944

O 1994 Whirlpool Corporation

• Registered Trademark/TM Trademark of Whirlpool, U.S.A. Printed in U.S.A.
