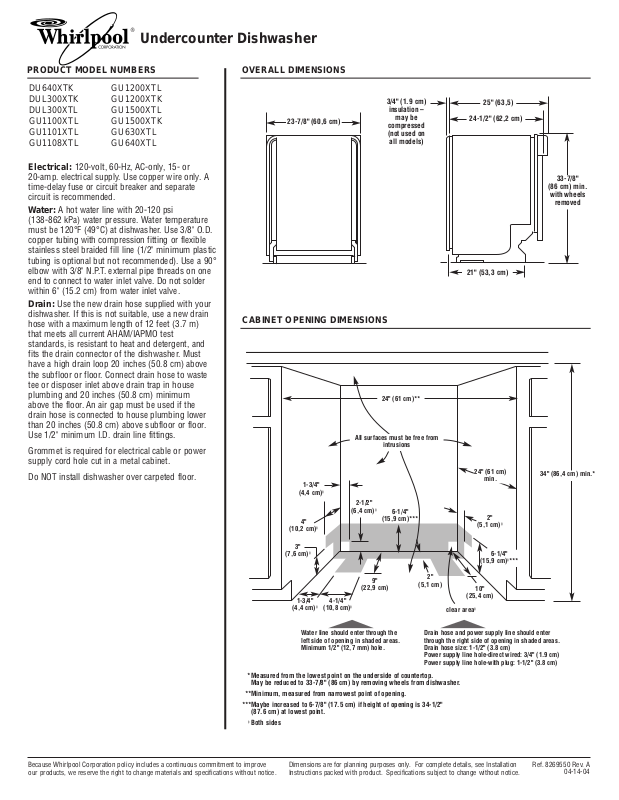

Whirlpool DU640XTKQ, DUL300XTKB, DUL300XTKQ, DUL300XTKS, DUL300XTKT Dimension Guide

®

Undercounter Dishwasher

PRODUCT MODEL NUMBERS

DU640XTK GU1200XTL

DUL300XTK GU1200XTK

DUL300XTL GU1500XTL

GU1100XTL GU1500XTK

GU1101XTL GU630XTL

GU1108XTL GU640XTL

Electrical: 120-volt, 60-Hz, AC-only, 15or 20-amp. electrical supply. Use copper wire only. A time-delay fuse or circuit breaker and separate circuit is recommended.

Water: A hot water line with 20-120 psi (138-862 kPa) water pressure. Water temperature

must be 120°F (49°C) at dishwasher. Use 3/8" O.D. copper tubing with compression fitting or flexible stainless steel braided fill line (1/2" minimum plastic tubing is optional but not recommended). Use a 90° elbow with 3/8" N.P.T. external pipe threads on one end to connect to water inlet valve. Do not solder within 6" (15.2 cm) from water inlet valve.

Drain: Use the new drain hose supplied with your dishwasher. If this is not suitable, use a new drain hose with a maximum length of 12 feet (3.7 m) that meets all current AHAM/IAPMO test standards, is resistant to heat and detergent, and fits the drain connector of the dishwasher. Must have a high drain loop 20 inches (50.8 cm) above the subfloor or floor. Connect drain hose to waste tee or disposer inlet above drain trap in house plumbing and 20 inches (50.8 cm) minimum above the floor. An air gap must be used if the drain hose is connected to house plumbing lower than 20 inches (50.8 cm) above subfloor or floor. Use 1/2" minimum I.D. drain line fittings.

Grommet is required for electrical cable or power supply cord hole cut in a metal cabinet.

Do NOT install dishwasher over carpeted floor.

OVERALL DIMENSIONS

23-7/8" (60,6 cm)

3/4" (1.9 cm) 25" (63,5) insulation –

may be 24-1/2" (62,2 cm) compressed

(not used on all models)

33-7/8"

(86 cm) min. with wheels removed

21" (53,3 cm)

CABINET OPENING DIMENSIONS

24" (61 cm)**

All surfaces must be free from intrusions

1-3/4"

(4,4 cm)‡

2-1/2"

(6,4 cm)‡ 6-1/4"

4" (15,9 cm)*** (10,2 cm)‡

3" (7,6 cm)‡

	9"	2"
		(5,1 cm)
	(22,9 cm)

1-3/4" 4-1/4"

(4,4 cm)‡ (10,8 cm)‡

24" (61 cm)
				34" (86,4 cm) min.*
min.
2"
(5,1 cm)‡

6-1/4"

(15,9 cm)‡***

10" (25,4 cm)

clear area‡

Water line should enter through the	Drain hose and power supply line should enter
left side of opening in shaded areas.	through the right side of opening in shaded areas.
Minimum 1/2" (12,7 mm) hole.	Drain hose size: 1-1/2" (3.8 cm)
	Power supply line hole-direct wired: 3/4" (1.9 cm)
	Power supply line hole-with plug: 1-1/2" (3.8 cm)

*Measured from the lowest point on the underside of countertop.

May be reduced to 33-7/8" (86 cm) by removing wheels from dishwasher.

**Minimum, measured from narrowest point of opening.

***Maybe increased to 6-7/8" (17.5 cm) if height of opening is 34-1/2" (87.6 cm) at lowest point.

‡ Both sides

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation	Ref. 8269550 Rev. A
Instructions packed with product. Specifications subject to change without notice.	04-14-04
