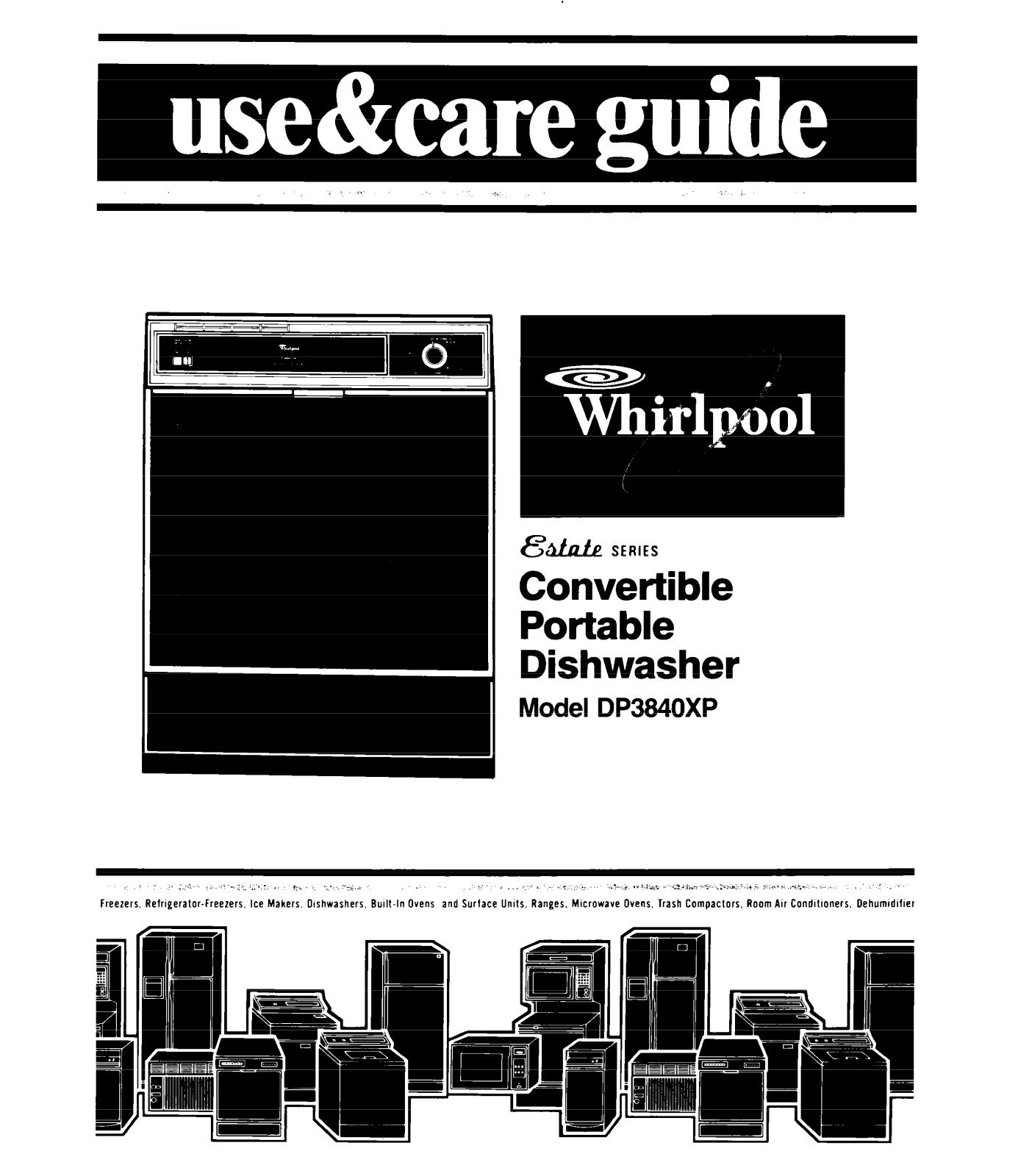

Whirlpool DP3840XP User Manual
&hi!& SERIES
Convertible
Portable
Dishwasher
Model DP3840XP
/ ,
: ,-,I ..; :, ,, L : ,,
Freezers, Reirlgerator-Freezers. Ice Makers. Olshwashers. Built-In Ovens and Surface Units. Ranges. MIcrawave Ovens, Trash Compactors, Room Air Condltloners. Oehumldlfler
,;. . . . .-.-
.7x
,. ,.,, L .i j. .I-
I .,li.#L. ..:ig,y-*. ..:L.>L-:..*.. :,,m,.; .+-..
.,,_. .‘_.

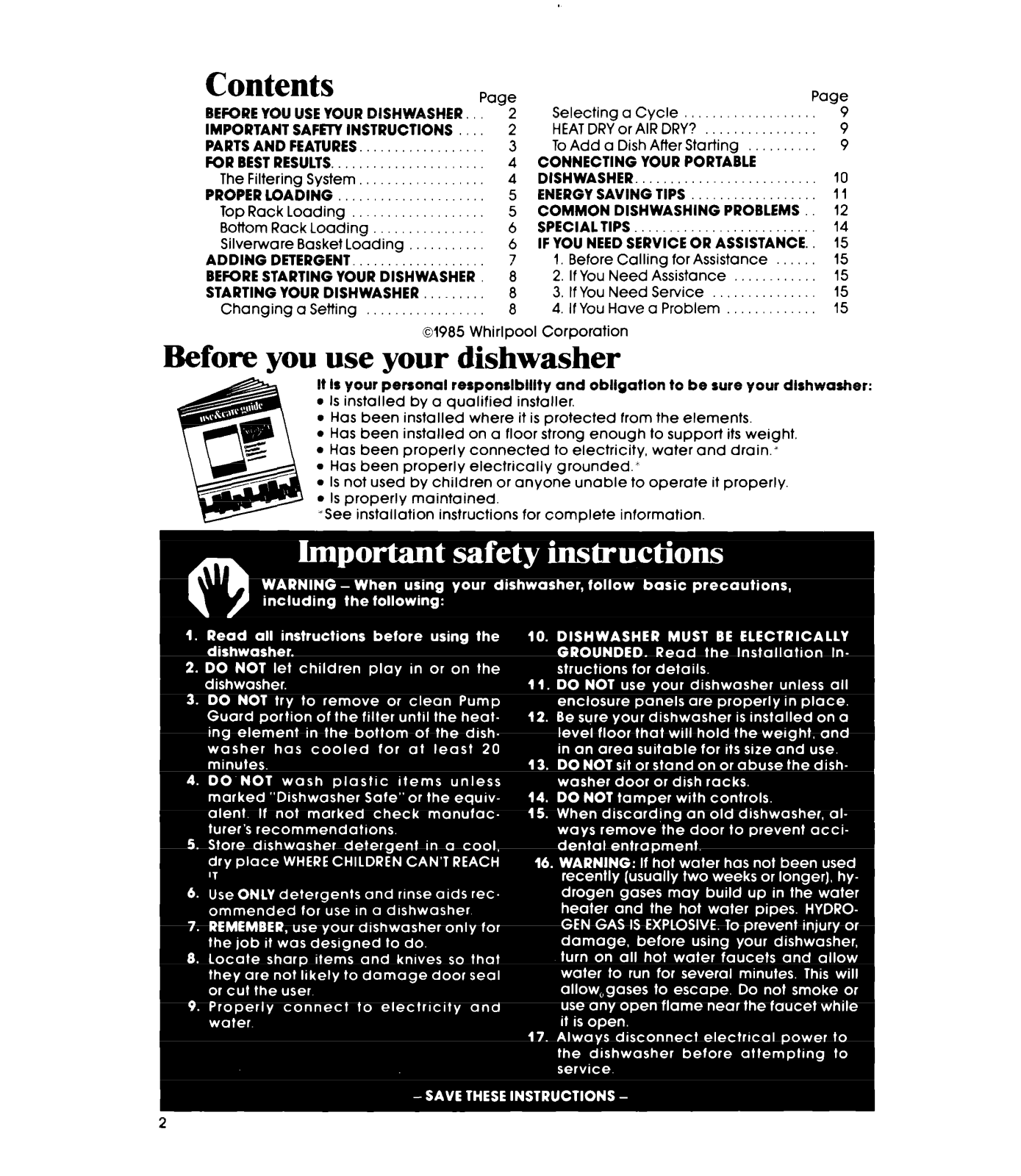

Contents
BEFORE YOU USE YOUR DISHWASHER.
-2
IMPORTANT SAFEtY INSTRUCTIONS
PARTS AND FEATURES.
FOR BEST RESULTS.
The Filtering System,
PROPERLOADING.....................
Top Rack Loading
Bottom Rack Loading
Silverware Basket Loading
ADDING DETERGENT..
BEFORE STARTING YOUR DISHWASHER
STARTING YOUR DISHWASHER 8
Changing a Setting
01985 Whirlpool Corporation
Before you use your dishwasher
It Is your personal rerponslblllty and obllgatlon to be sure your dlshwasher:
l
Is installed by a qualified installer.
l
Has been installed where it is protected from the elements.
l
Has been installed on a floor strong enough to support its weight.
l
Has been properly connected to electricity, water and drain.-
* Has been properly electrically grounded.’
l
Is not used by children or anyone unable to operate it properly.
l
Is properly maintained.
-See installation instructions for complete information.

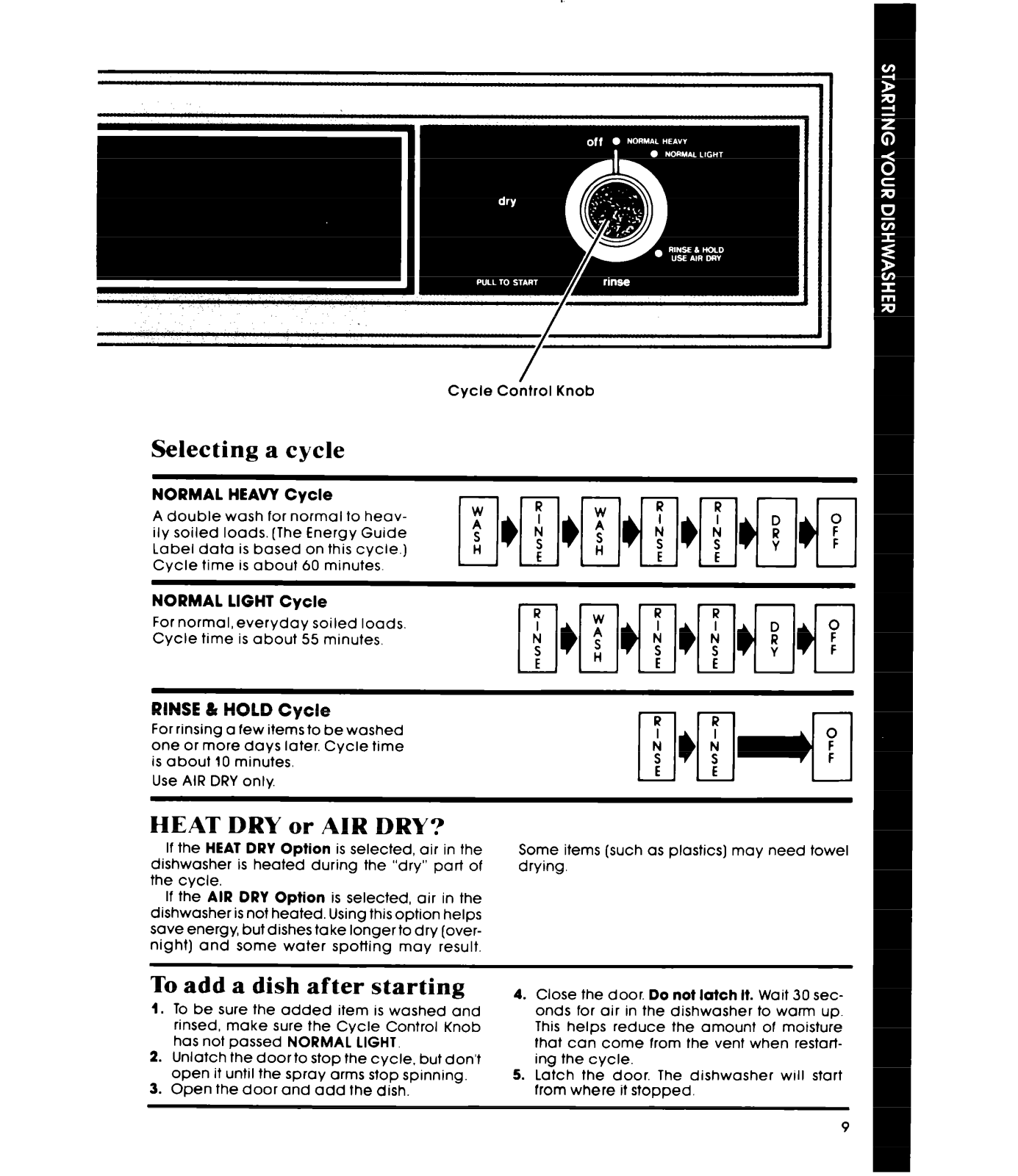

Selecting a Cycle
HEAT DRY or AIR DRY?
2
To Add a Dish After Starting
3

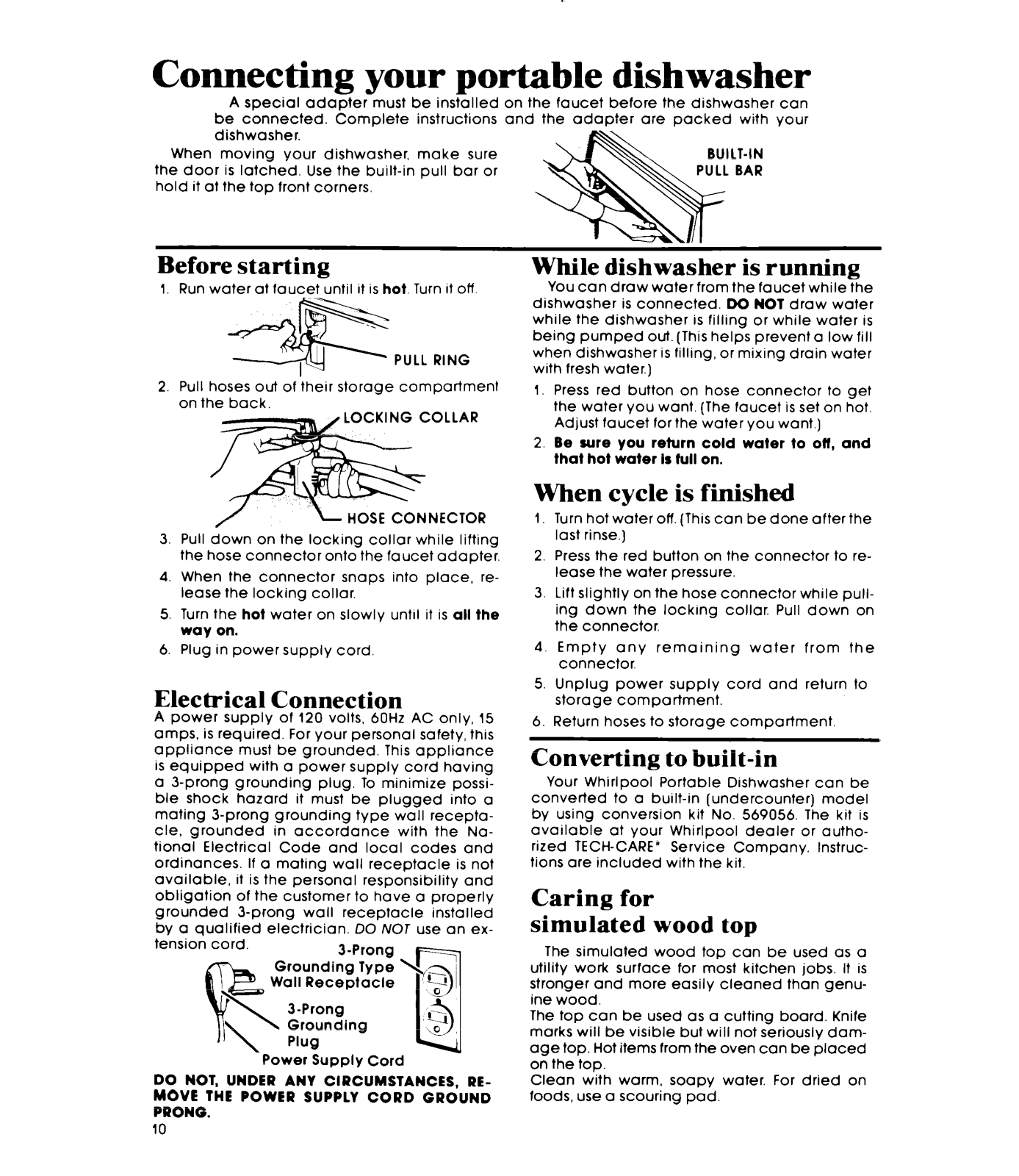

4 CONNECTING YOUR PORTABLE
4 DISHWASHER..
5 ENERGY SAVING TIPS

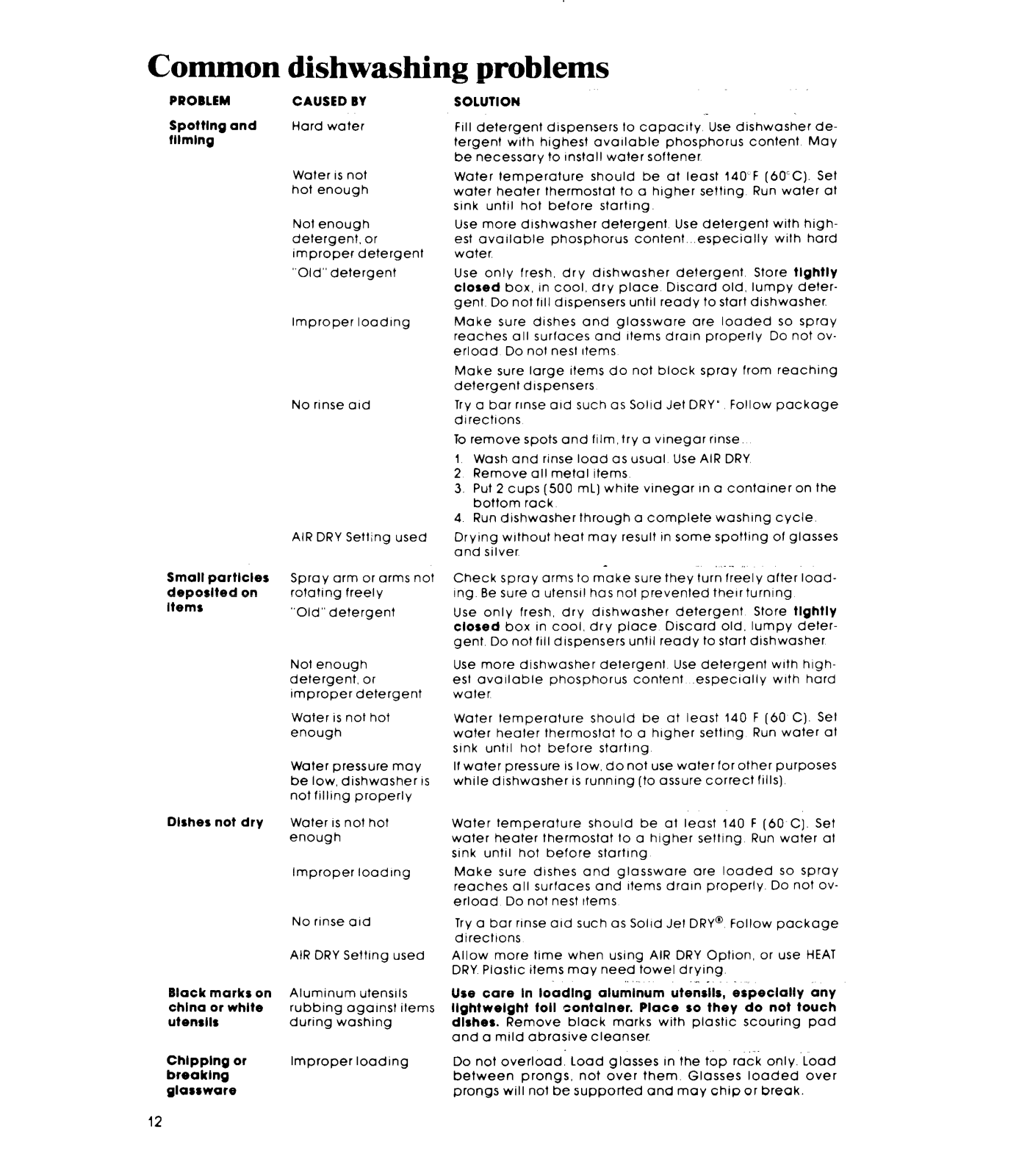

5 COMMON DISHWASHING PROBLEMS 12

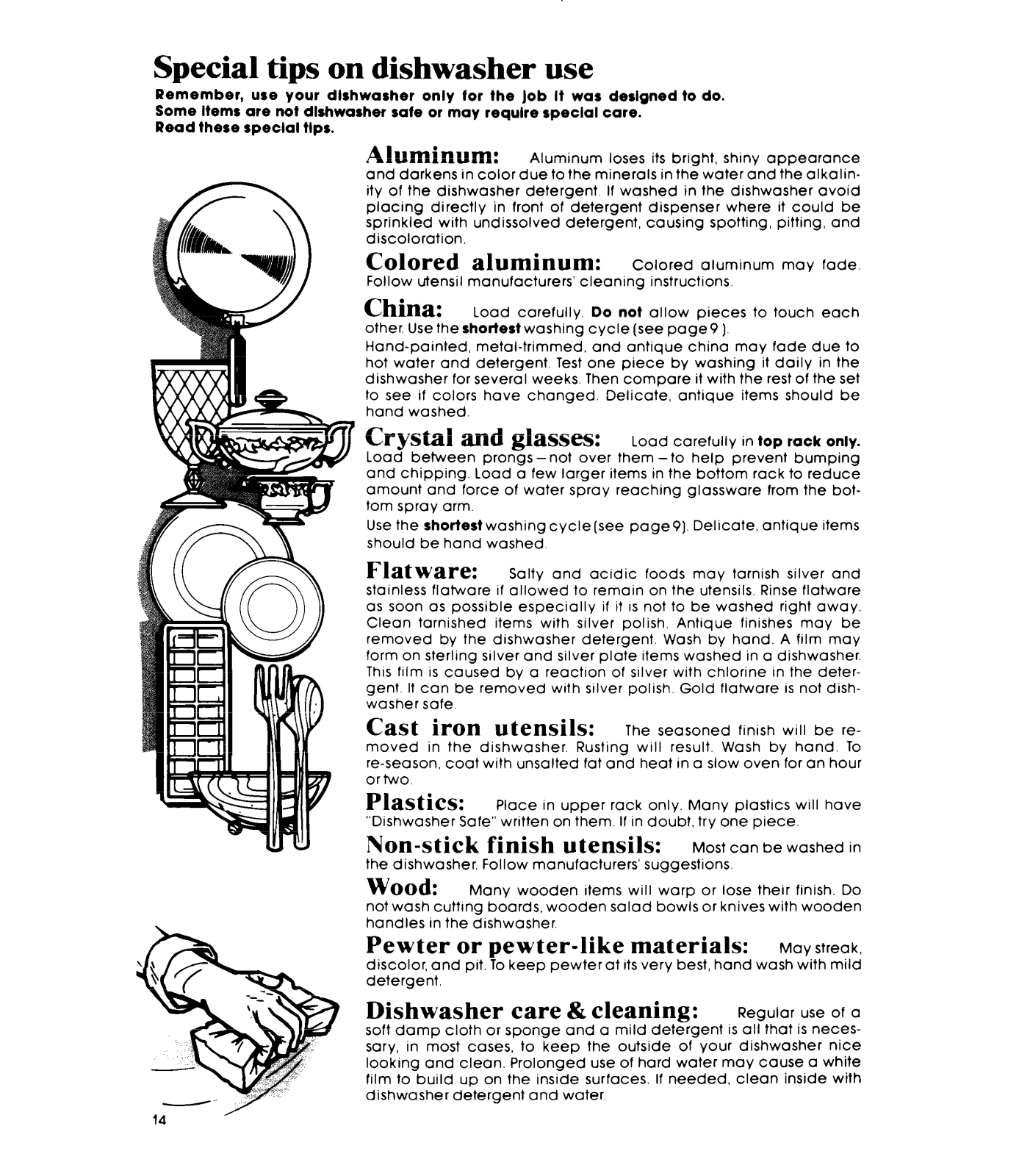

6 SPECIALTIPS
6 IF YOU NEED SERVICE OR ASSISTANCE..
1. Before Calling for Assistance
7
2. If You Need Assistance
8
3. If You Need Service
4. If You Have a Problem
8
- 9
9
9
10
11
14
15
15
15
15
15

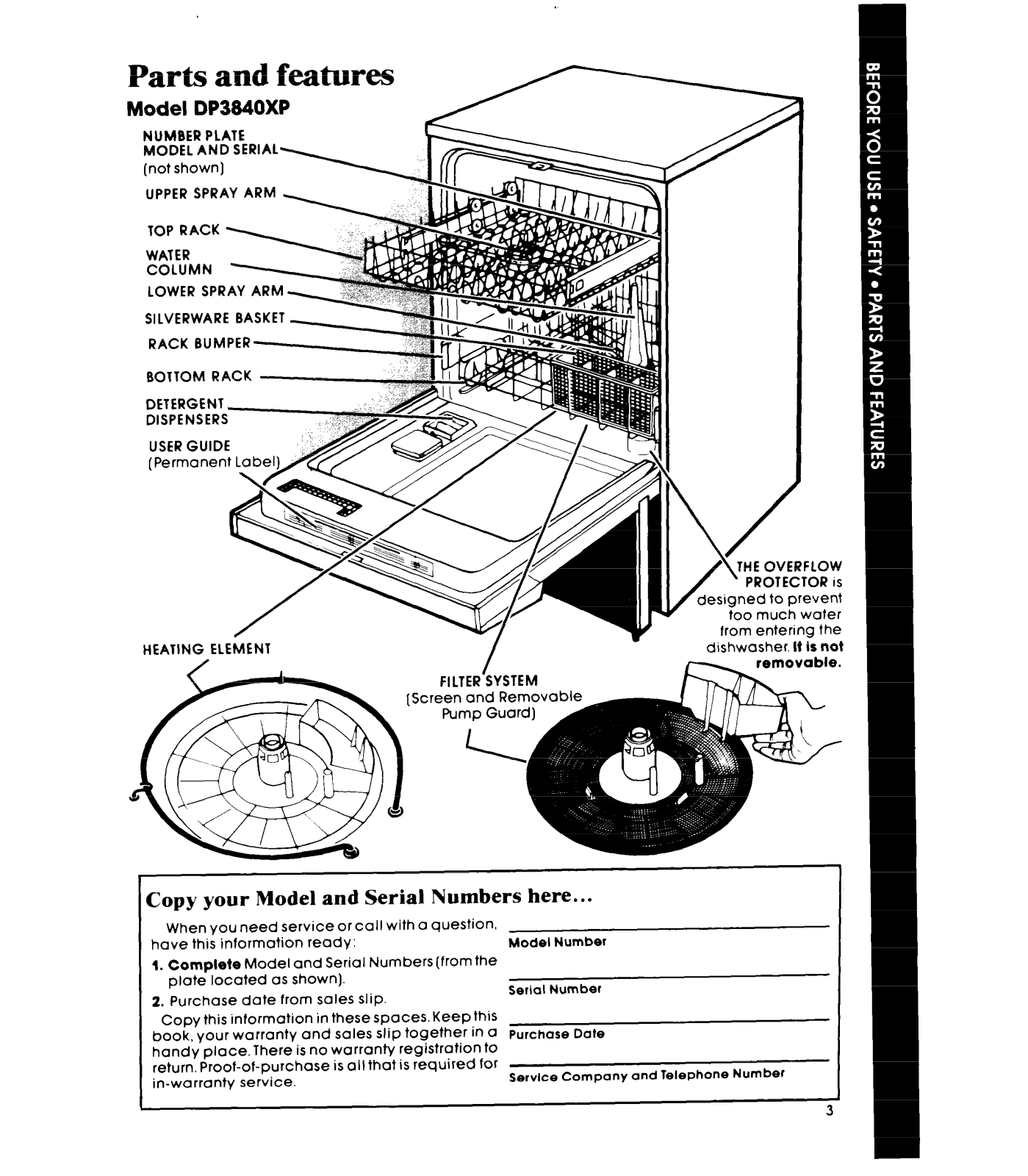

Parts and features
Model DP3840XP
NUMBER PLATE
TOP RACK \
WATER
.._ _.-
COLUMN
LOWER SPRAY ARM
SILVERWARE BASKET
RACK BUMPER
BOTTOM RACK
DETERGENT
DISPENSERS
USER GUIDE
(Permanent Label),/@@/
‘.
6, i
._.
.’
HEATING ELEMENT
[Screen and
/
Removab
Copy your Model and Serial Numbers here. . .
When you need service or call with a question,
have this information ready:
1. Complete Model and Serial Numbers(from the
plate located as shown).
2. Purchase date from
Copy this information in these spaces. Keep this
book, your warranty and sales slip together in a
handy place.There is no warranty registration to
return. Proof-of-purchase is all that is required for
in-warranty service.
SCIleS
slip.
Model Number
Serial
Number
Purchase bate
Servlce
Company and Telephone
THE OVERFLOW
PROTECTOR is
designed to prevent
too much water
from entering the
dishwasher. It Is not
- removable.
Number
For Best Results

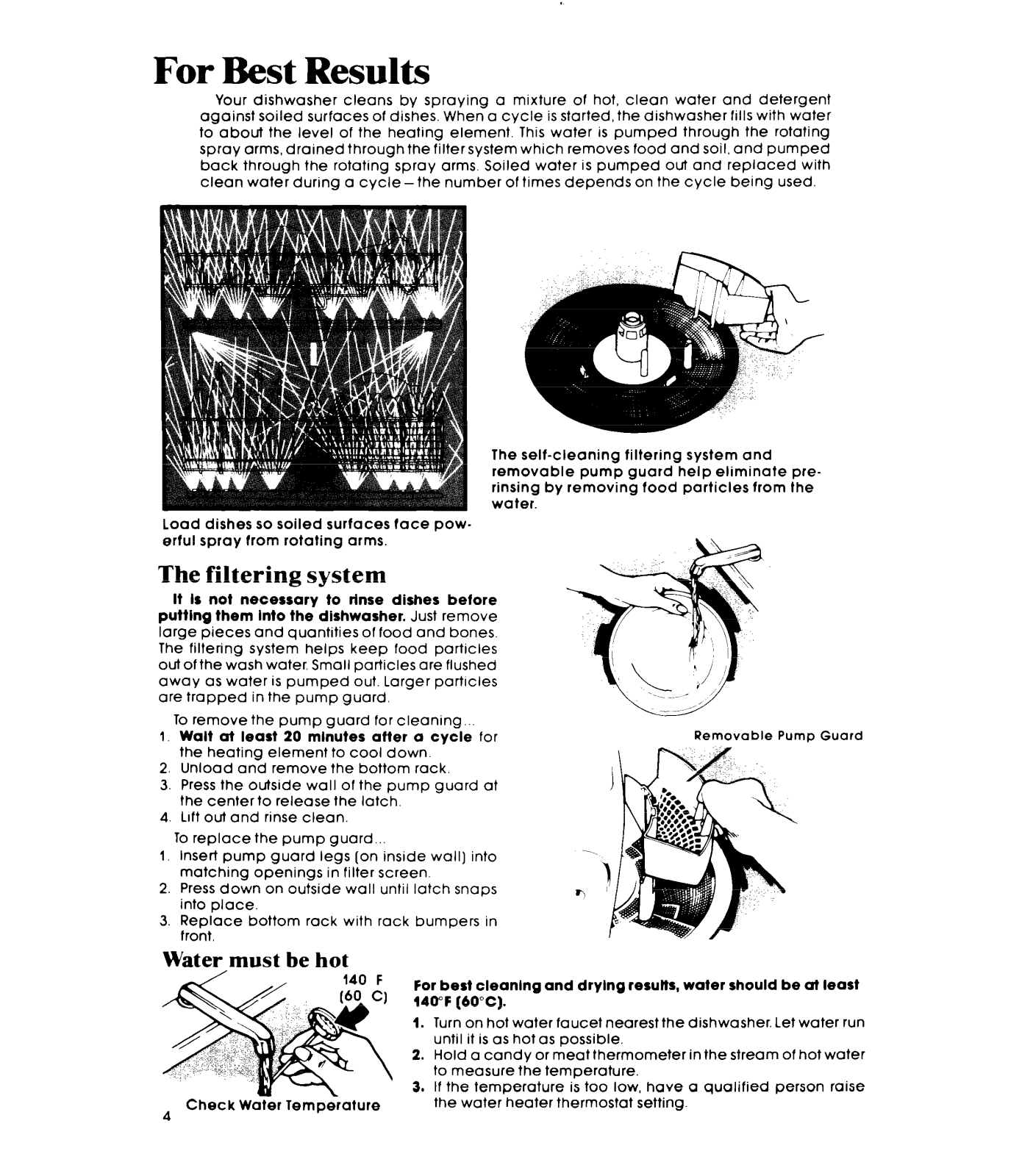

Your dishwasher cleans by spraying a mixture of hot, clean water and detergent
against soiled surfaces of dishes. When a cycle is started, the dishwasher fills with water
to about the level of the heating element. This water is pumped through the rotating
spray arms, drained through the filter system which removes food and soil, and pumped
back through the rotating spray arms. Soiled water is pumped out and replaced with
clean water during
Load dishes so soiled surfaces face pow-
erful spray from rotating arms.
a cycle-the
number of times depends on the cycle being used.
The self-cleaning filtering system and
removable pump guard help eliminate prerinsing by removing food particles from the
water.
The filtering system
It Is not necessary to rtnse dishes before
putting them Into the dishwasher. Just remove
large pieces and quantities of food and bones.
The filtering system helps keep food particles
out of the wash water. Small particles are flushed
away as water is pumped out. Larger partrcles
are trapped in the pump guard.
To remove the pump guard for cleaning...
1. Walt at least 20 mlnutes after a cycle for
the heating element to cool down.
2. Unload and remove the bottom rack.
3. Press the outside wall of the pump guard at
the centerto release the latch.
4. Lrft out and rinse clean.
To replace the pump guard...
1. Insert pump guard legs [on inside wall] into
matching openings in filter screen.
2. Press down on outside wall until latch snaps
into place.
3. Replace bottom rack with rack bumpers in
front.
Water must be hot
For best cleaning and drying results, water should be at least
140°F (60°C).
Turn on hot water faucet nearest the dishwasher. Let water run
1.
until it is as hot as possible.
Hold a candy or meat thermometer in the stream of hot water
2.
to measure the temperature.
If the temperature is too low, have a qualified person raise
3.
Check Water Temperature
4
the water heater thermostat setting.
Removable Pump Guard
Proper loading
Always load dishes so soiled surfacesare reached by spray from rotating spray arms.
Water must be able to drain off completely for best drying results. Be careful to separate
items so spray can reach all surfaces.

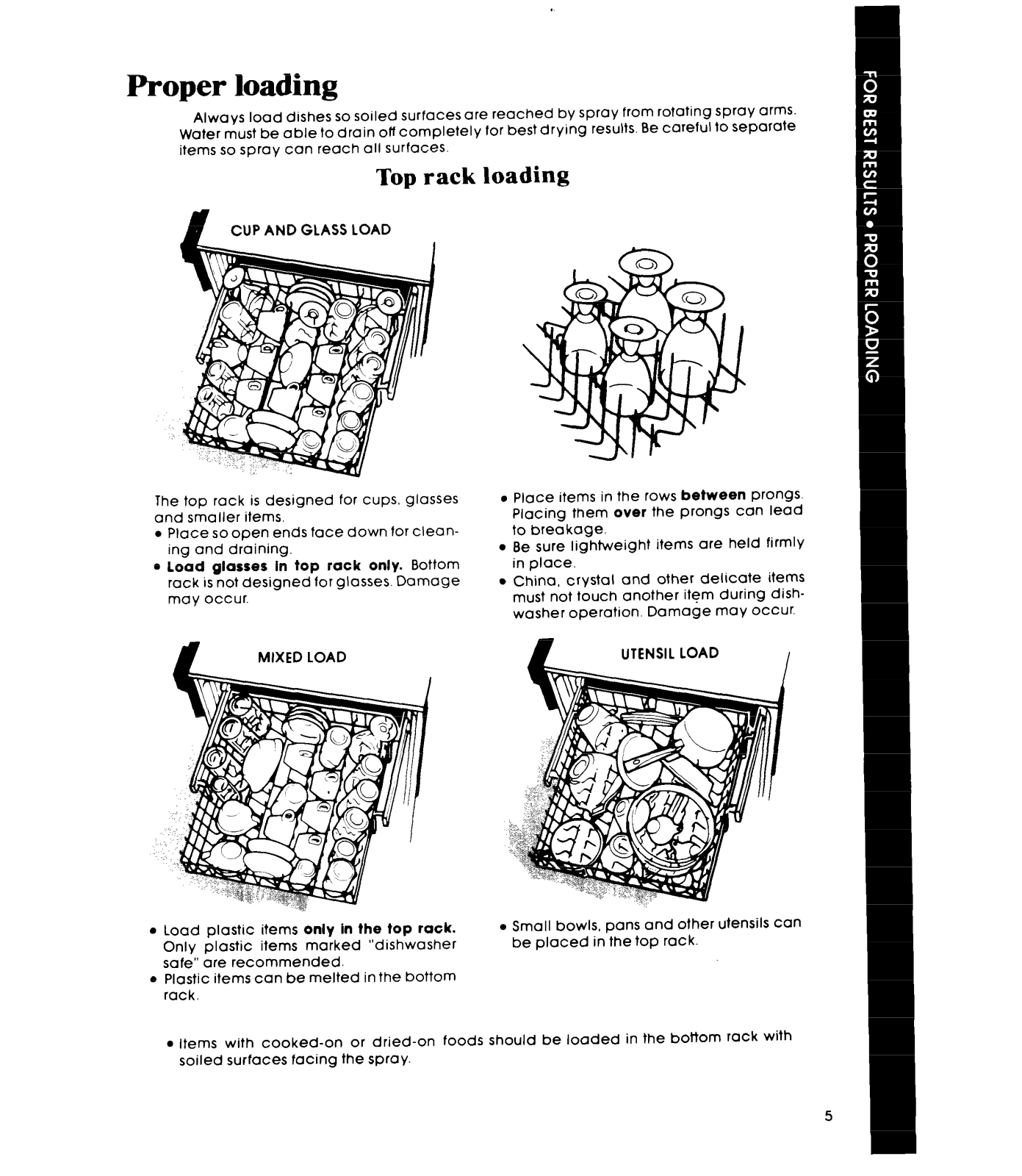

Top rack loading
The top rack is designed for cups, glaSSeS
and smaller items
l
Place so open ends tace down for cleaning and draining.
l
load glasses in top rack only. Bottom
rack is not designed for glosses. Damage
may occur.
l
Place items in the rows between prongs.
Placing them over the prongs can lead
to breakage.
l
Be sure lightweight items are held firmly
in place.
l
China, crystal and other delicate items
must not touch another item during dishwasher operation. Damage may occur.
l
l
Load plastic items only in the top rack.
Only plastic items marked “dishwasher
Small bowls, pans and other utensils can
be placed in the top rack.
safe” are recommended.
l
Plastic items can be melted in the bottom
rack.
0 Items with cooked-on or dried-on foods should be loaded in the bottom rack with
soiled surfaces facing the spray.
