INSTRUCTIONS FOR USE
BEFORE USING THE APPLIANCE
SAFEGUARDING THE ENVIRONMENT
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
HOW TO OPERATE THE FREEZER
COMPARTMENT
HOW TO DEFROST AND CLEAN THE FREEZER
HOW TO CLEAN THE REFRIGERATOR
COMPARTMENT
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE
AFTER-SALES SERVICE
INSTALLATION
ELECTRICAL CONNECTION
67
BEFORE USING THE APPLIANCE
Your new appliance is designed to be used in
•
the household and similar applications such as:
- kitchen areas in shops, offices and other
working environments
- farm houses
- by clients in hotels, motels, residences, bed
& breakfasts.
To ensure best use of your appliance,
carefully read the operating instructions
which contain a description of the product
and useful advice.
Keep these instructions for future
reference.
After unpacking the appliance, make sure it is
1.
not damaged and that the door closes properly.
Any damage must be reported to the dealer
within 24 hours of delivery of the appliance.
Wait at least two hours before switching the
2.
appliance on in order to ensure that the
refrigerant circuit is fully efficient.
Installation and electrical connection must be
3.
carried out by a qualified technician according
to the manufacturer’s instructions and in
compliance with local safety regulations.
Clean the inside of the appliance before using it.
4.
SAFEGUARDING THE ENVIRONMENT
1.Packaging
The packing material is 100% recyclable and
bears the recycling symbol. For disposal, comply
with local regulations. Keep the packing
materials (plastic bags, polystyrene parts, etc.)
out of the reach of children, as they are a
potential source of danger.
2.Scrapping/Disposal
The appliance is manufactured using recyclable
material.
This appliance is marked in compliance with
European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring the correct disposal of this
appliance, you can help prevent potentially
negative consequences for the environment and
health.
The symbol on the appliance, or on the
accompanying documents, indicates that this
appliance should not be treated as domestic
waste but must be taken to a special collection
centre for the recycling of electrical and
electronic equipment.
When scrapping the appliance, make it unusable
by cutting off the power cable and removing the
doors and shelves so that children cannot easily
climb inside and become trapped.
Scrap the appliance in compliance with local
regulations on waste disposal, taking it to a
special collection centre; do not leave the
appliance unattended even for a few days, since
it is a potential source of danger for children.
For further information on the treatment,
recovery and recycling of this product, contact
your competent local office, the household
waste collection service or the shop where you
purchased the appliance.
Information:
This appliance does not contain CFCs.
The refrigerant circuit contains R134a (HFC) or
R600a (HC) (see the rating plate inside the
appliance).
Appliances with Isobutane (R600a): isobutane is
a natural gas with low environmental. Caution is
required, however, since isobutane is
flammable. Therefore, it is essential to ensure
that refrigerant pipelines are not damaged.
This product may contain Fluorinated
Greenhouse Gases covered by the Kyoto
Protocol; the refrigerant gas is inside a
hermetically sealed system.
Refrigerant gas: R134a has a Global Warming
Potential of (GWP) 1300.
Declaration of conformity
This appliance has been designed for preserving
food and is manufactured in compliance with
Regulation (CE) No. 1935/2004.
This appliance has been designed, manufactured
and marketed in compliance with:
safety objectives of the “Low Voltage”
•
Directive 2006/95/CE (which replaces
73/23/CEE and subsequent amendments);
the protection requirements of Directive
•
“EMC” 2004/108/CE.
Electrical safety of the appliance can only be
guaranteed if it is correctly connected to an
approved earthing system.
68
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
INSTALLATION
The appliance must be handled and installed
•
by two or more persons.
Be careful not to damage the floors (e.g.
•
parquet) when moving the appliance.
During installation, make sure the appliance
•
does not damage the power cable.
Make sure the appliance is not installed near a
•
heat source.

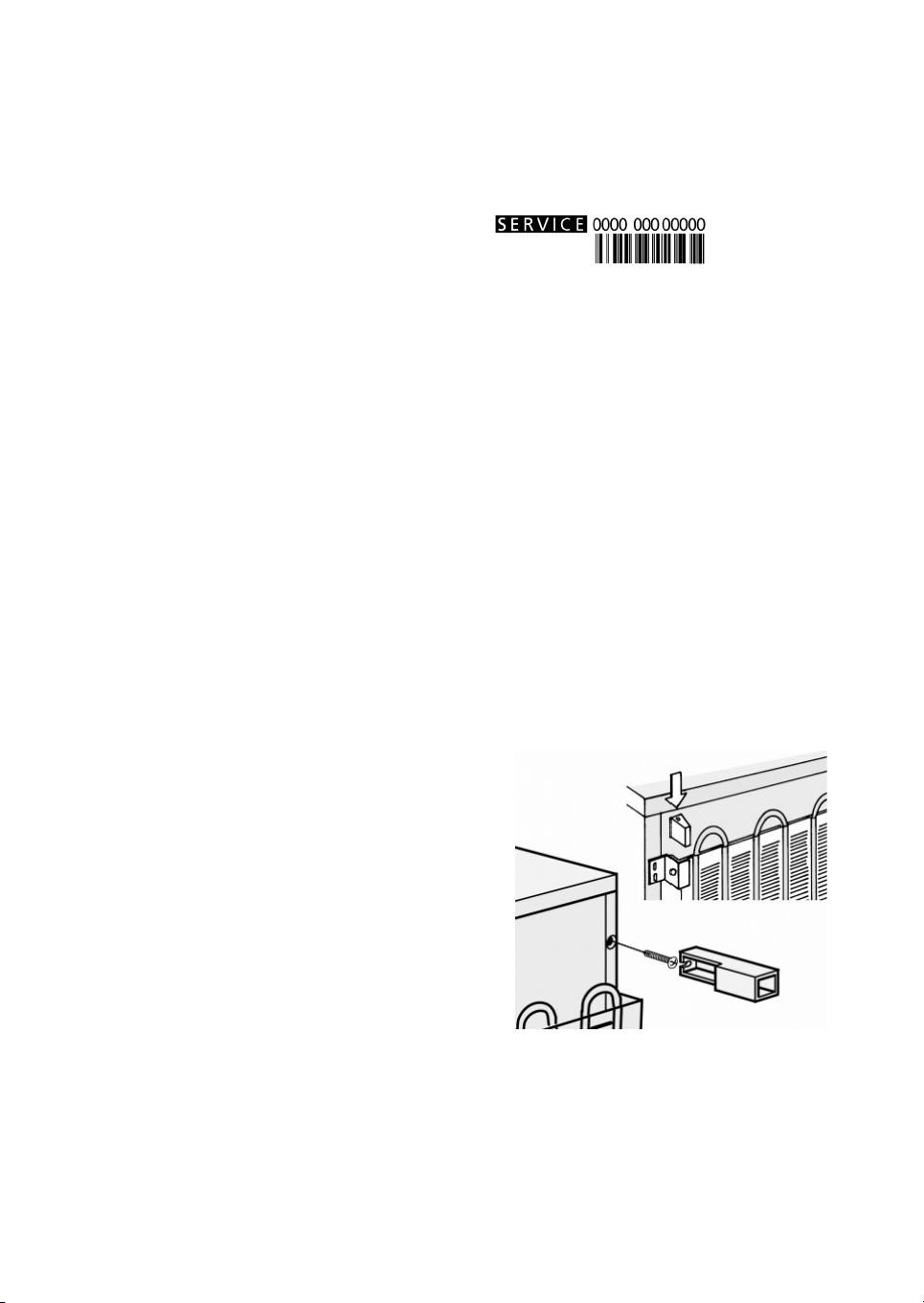

To guarantee adequate ventilation, leave a
•
space on both sides and above the appliance
and follow the installation instructions.
Keep the appliance ventilation openings free.
•
Do not damage the appliance refrigerant
•
circuit pipes.
Install and level the appliance on a floor strong
•
enough to take its weight and in a place
suitable for its size and use.
Install the appliance in a dry, well ventilated
•
place. The appliance is designed to operate in
areas where the temperature comes within
the following ranges, according to the climatic
class given on the rating plate.
The appliance may not work properly if it is
left for a long time at a temperature outside
the specified range.
Climatic Class Amb. temp.
SN From 10 to 32 From 50 to 90
N From 16 to 32 From 61 to 90
ST From 16 to 38 From 61 to 100
T From 16 to 43 From 61 to 110
Make sure the voltage specified on the rating
•
plate corresponds to that of your home.
Do not use single/multi adapters or extension
•
cords.
For the water connection, use the pipe
•
supplied with the new appliance; do not reuse
that of the previous appliance.
Power cable modification or replacement
•
must only be carried out by qualified
personnel or After-sales Service.
It must be possible to disconnect the
•
appliance from the power supply by
unplugging it or by means of a mains two-pole
switch installed upline of the socket.
(°C)
Amb. temp.
(°F)
SAFETY
Do not use the appliance to store aerosol cans
•
or receptacles containing propellants or
flammable substances.
Do not store or use petrol, flammable liquids
•
or gas in the vicinity of this or other electrical
appliances. The fumes can cause fires or
explosions.
Do not use mechanical, electric or chemical
•
means other than those recommended by the
Manufacturer to speed up the defrost process.
Do not use or place electrical devices inside
•
the appliance compartments if they are not of
the type expressly authorised by the
Manufacturer.
This appliance is not intended for use by
•
persons (including children) with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
To avoid the risk of children becoming
•
trapped and suffocating, do not allow them to
play or hide inside the appliance.
Do not swallow the contents (non-toxic) of
•
the ice packs (in some models).
Do not eat ice cubes or ice lollies immediately
•
after taking them out of the freezer since they
may cause cold burns.
USE
Before carrying out any maintenance or
•
cleaning operation, unplug the appliance or
disconnect it from the power supply.
All appliances equipped with an automatic
•
icemaker and water dispenser must be
connected to a water supply that only delivers
drinking water (with mains water pressure of
between 0.17 and 0.81 Mpa (1.7 and 8.1 bar)).
Automatic ice-makers and/or water dispensers
not directly connected to the water supply must
be filled with drinking water only.
Use the refrigerator compartment only for
•
storing fresh food and the freezer
compartment only for storing frozen food,
freezing fresh food and making ice cubes.
Do not store glass containers with liquids in
•
the freezer since they may burst.
The Manufacturer declines any liability if
the above advice and precautions are not
respected.
69
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
This appliance is a refrigerator with a start freezer
compartment.
Defrosting of the refrigerator compartment is completely
automatic.
The refrigerator can operate at ambient temperatures between
+10°C and +38°C. Optimal performance is obtained at
temperatures between +16°C and +32°C.
Switching on the refrigerator for the first time
Insert the plug into the mains socket.
The thermostat is used to adjust the temperature of both
compartments: refrigerator and freezer.
How to adjust the temperature of the compartments:
For correct operation and optimum storage of food,
1.
instructions given in the enclosed product sheet for
thermostat adjustment.
To adjust the temperature in the refrigerator compartment,
2.
turn the thermostat control knob:
•lowest/MIN
temperatures;
• highest/MAX
temperatures.
Thermostat set to●: no operation, no light.
Note:
The ambient air temperature, frequency of door opening and the
position of the appliance can affect internal temperatures. These
factors must be taken into account when setting the thermostat.
How to use the refrigerator compartment
Position the food as illustrated in the figure.
A. Cooked food
B. Fish, meat
C. Fruit and vegetables
D. Bottles
E. Eggs
F. Butter, cheese and dairy products
Notes:
The space between the shelves and the rear wall of the
•
refrigerator compartment must be unobstructed to allow
circulation of air.
Do not place food in direct contact with the rear wall of the
•
refrigerator compartment.
Do not place hot food in the refrigerator or freezer.
•
Store liquids in closed containers.
•
Storing vegetables with a high water content can result in
•
condensation in the crisper drawer: this will not affect the
correct operation of the appliance.
numbers for the
numbers for the
LEAST COLD
COLDEST
internal
follow
internal
70
HOW TO OPERATE THE FREEZER
COMPARTMENT
The freezer is a star
This compartment can be used to store frozen foods for the
period of time indicated on packaging. The freezer can also
be used to freeze fresh food by positioning it on the rack;
place frozen food in the lower part of the compartment so
that there is no contact with fresh food that has yet to be
frozen.
The quantity of fresh food that can be frozen in 24 hours is
shown on the rating plate.
Important:
Before freezing, wrap and seal fresh food in:
aluminium foil, cling film, air and water-tight plastic bags,
•
polythene containers with lids or freezer containers suitable for
freezing fresh food.
In the event of a power cut, the freezer compartment will
•
maintain a sufficiently low temperature for food storage.
However, it is advisable to avoid opening the compartment door
during such periods.
Important:
The table alongside shows the recommended maximum
storage time for frozen fresh foods.
When purchasing frozen food products:
Ensure that the packaging is not damaged (frozen food in
•
damaged packaging may have deteriorated). If the package is
swollen or has damp patches, it may not have been stored under
optimal conditions and defrosting may have already begun.
When shopping, leave frozen food purchases until last and
•
transport the products in a thermally insulated cool bag.
Place the items in the freezer compartment as soon as you get
•
home.
If food has defrosted even partially, do not re-freeze it.
•
Consume within 24 hours.
Avoid, or reduce temperature variations to the minimum.
•
Respect the best-before date on the package.
Always observe the storage information on the package.
•
Making ice cubes
Fill the ice cube tray 3/4 with water and place it at the bottom of
•
the freezer compartment.
Do not use sharp or pointed instruments to detach the tray if it
is stuck to the compartment bottom.
compartment.
MONTHS
FOOD
71
HOW TO DEFROST AND CLEAN THE FREEZER
Defrost the freezer compartment once or twice a year,
or when the ice on the walls reaches a thickness of about
3 mm. If possible, defrost the freezer when it is nearly
empty.
Remove the food from the freezer, wrap in a newspaper
1.
and group together in a cool place or in a portable cooler.
2. Disconnect the appliance from the mains power
.
supply
Leave the door open to allow the frost to melt.
3.
Remove the defrost water from the compartment bottom.
4.
Clean the interior using a sponge dampened in a solution of
5.
warm water and neutral detergent.
Do not use abrasive products.
Rinse the interior and dry thoroughly.
6.
Note: Do not use sharp or pointed metal instruments to
scrape off ice; do not heat the freezer compartment
artificially.
HOW TO CLEAN THE REFRIGERATOR
COMPARTMENT
Periodically clean the inside of the refrigerator
compartment.
Defrosting of the refrigerator compartment is
completely automatic.
Droplets of water on the rear wall of the refrigerator
compartment indicate that the periodic automatic defrost cycle
is in progress.
The defrost water is automatically routed to a drain outlet and
into a container from which it evaporates.
Clean the defrost water drain outlet regularly using the tool
supplied with the appliance in order to ensure defrost water is
removed correctly.
Before carrying out any cleaning operations, disconnect the
appliance from the power supply.
Use a sponge dampened in lukewarm water and/or neutral
•
detergent.
Rinse the interior and dry with a soft cloth.
•
Do not use abrasive products.
72
CARE AND MAINTENANCE
For built-in appliances
Periodically clean air vents with a vacuum cleaner or a
•
brush (see
Clean the outside using a soft cloth.
•
figure A
Freestanding appliances
Periodically clean the condenser at the rear of the
•
appliance with a vacuum cleaner or a brush (see
Long vacation
Empty the refrigerator and freezer compartments.
1.
Disconnect the appliance from the mains power supply.
2.
Defrost the freezer compartment, and clean and dry both
3.
compartments.
Leave the doors open to prevent formation of unpleasant
4.
odours.
).
figure B
).
Fig. A
TROUBLESHOOTING GUIDE
1. The appliance is not working.
Is there a power failure?
•
Is the plug properly inserted in the socket?
•
Is the double-pole switch on?
•
Has the fuse blown?
•
Is the power cord in perfect condition?
•
Is the thermostat set to● (Stop)?
•
2. Temperature inside the compartments is
not low enough.
Is the door shut properly?
•
Is the appliance installed near a heat source?
•
Is the thermostat setting correct?
•
Are the air circulation grilles blocked?
•
3. Temperature inside the refrigerator
compartment is too low.
Is the thermostat setting correct?
•
4. Water collects at the bottom of the
refrigerator compartment.
Is the defrost water drain blocked?
•
5. The inside light is not working.
Perform the checks for problem 1, then:
Disconnect the appliance from the mains power
•
supply.
To inspect the bulb, refer to the instructions and
illustration on the attached table.
Check the bulb and if necessary replace it.
•
Replace using maximum 15W bulb.
6. Excessive frost build-up in the freezer
compartment
Is the door shut properly?
•
Is food obstructing proper door closure?
•
Notes:
• The front edge of the appliance may be hot.
This prevents the formation of condensation
and is not a defect.
• Gurgling and hissing noises due to expansion
in the refrigerant circuit are normal.
Fig. B
73
AFTER-SALES SERVICE
Before contacting After-Sales Service:
See if you can solve the problem yourself with the
1.
help of the “Troubleshooting guide”).
Switch the appliance on again to see if the
2.
problem persists.
If it does, switch off and wait for about an hour
before switching on.
If the problem persists after this course of action,
3.
contact After-sales Service.
Specify:
the nature of the problem,
•
the model,
•
the Service number (the number after the word
•
INSTALLATION
Install the appliance away from heat sources.
•
Install the appliance in a dry, well-ventilated place.
•
Do not obstruct the top and bottom vent zones.
•
Clean the inside (see chapter “How to clean the
•
refrigerator compartment”).
Fit the accessories supplied.
•
Electrical Connection
• Electrical connections must be made in
accordance with local regulations.
Voltage and power consumption are indicated on
•
the rating plate (at the side of the crispers).
Freestanding appliances (not built-in)
Fit the spacers (if supplied) on the rear of the
•
condenser positioned at the back of the appliance
(see figure).
To optimize appliance efficiency, leave a 5 cm gap
•
above the appliance and make sure that adjacent
kitchen units are sufficiently distanced to allow air
circulation.
Ensure that the appliance is level, using the front
•
adjustment feet if necessary.
SERVICE on the data plate on the inside of the
appliance),
your full address,
•
your telephone number and area code.
•
Note: The direction of door opening can be
• Regulations require that the appliance is
earthed. The manufacturer declines all
liability for injury to persons or animals and
for damage to property resulting from
failure to observe the above procedures and
reminders.
If the plug and socket are not of the same type,
•
have the socket replaced by a qualified
electrician.
Do not use extension leads or adapters.
•
Disconnecting the appliance
It mus t be pos sib le t o di sco nne ct t he a ppl ian ce b y
•
unplugging it or by means of a two-pole switch
fitted upline of the socket.
74
ELECTRICAL CONNECTION
For Great Britain only
Warning - this appliance must be earthed
Fuse replacement
If the mains lead of this appliance is fitted with a BS 1363A
13amp fused plug, to change a fuse in this type of plug use an
A.S.T.A. approved fuse to BS 1362 type and proceed as
follows:
Remove the fuse cover (A) and fuse (B).
1.
Fit replacement 13A fuse into fuse cover.
2.
Refit both into plug.
3.
Important:
The fuse cover must be refitted when changing a fuse and if
the fuse cover is lost the plug must not be used until a
correct replacement is fitted.
Correct replacement are identified by the colour insert or
the colour embossed in words on the base of the plug.
Replacement fuse covers are available from your local
electrical store.
Socket outlet / plug
If the fitted plug is not suitable for your socket outlet, please
contact Whirlpool Service on 0870 600 8989 for further
instruction. Please do not attempt to change plug yourself.
This procedure needs to be carried out by a qualified
Whirlpool technician in compliance with the manufactures
instructions and current standard safety regulations.
For the Republic of Ireland only
The information given in respect of Great Britain will
frequently apply, but a third type of plug and socket is also
used, the
2-pin, side earth type. In this case, the wire which is
coloured GREEN AND YELLOW must be connected to the
EARTH contact, and the two wires to the two pins,
irrespective of colour. The supply to the socket must be
fitted with a 16 amp fuse.
75
Loading...
