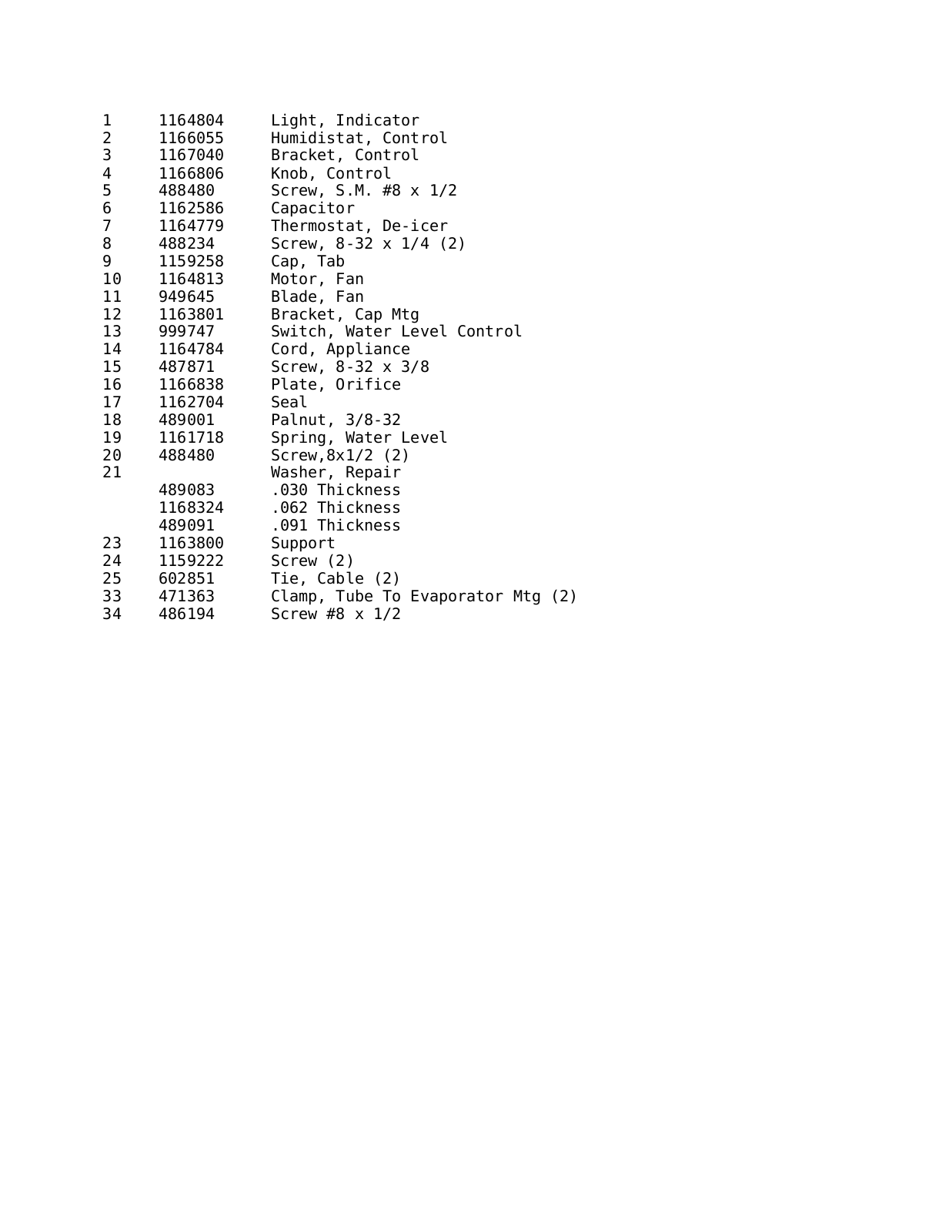

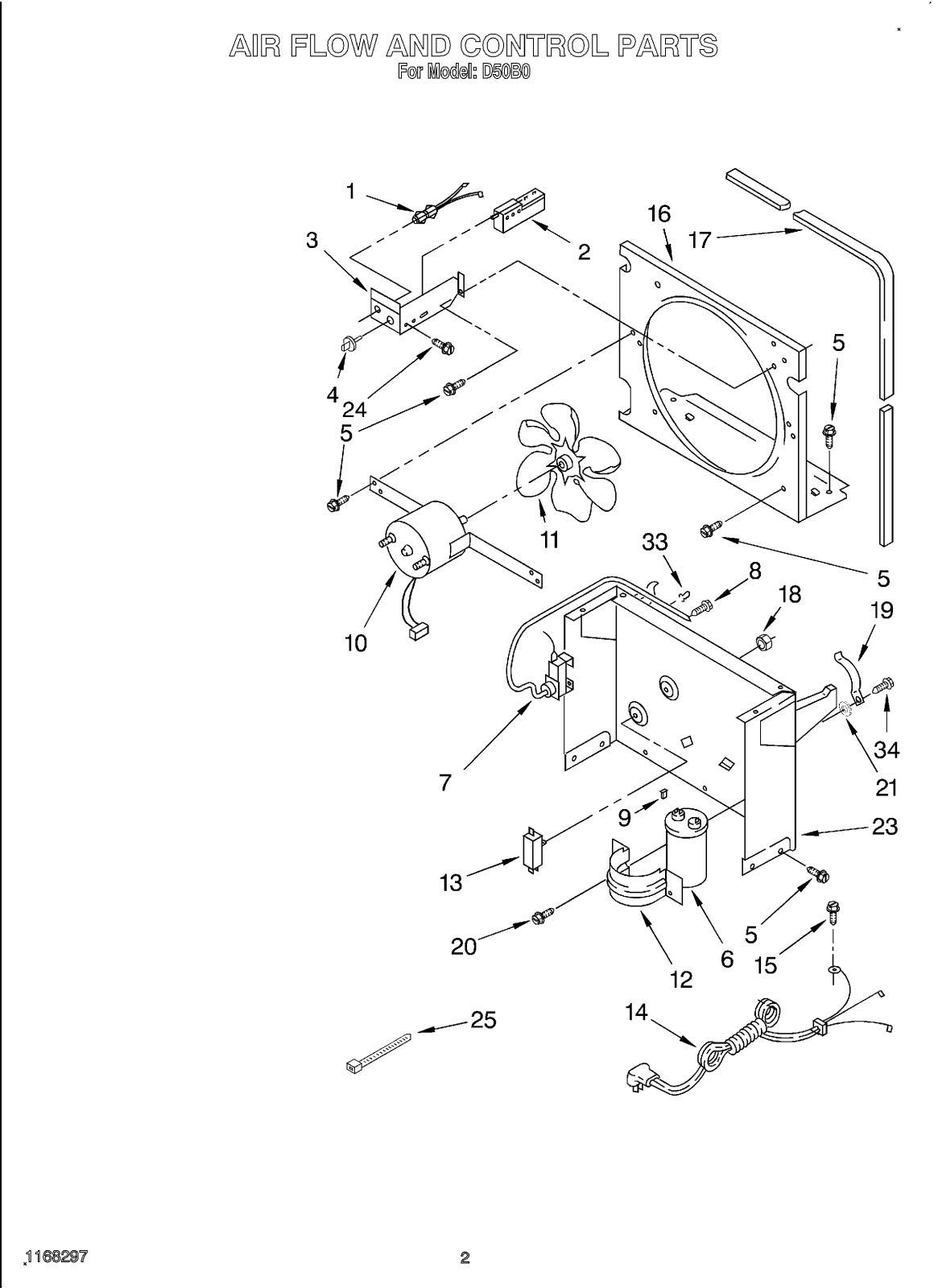

1 1164804 Light, Indicator
2 1166055 Humidistat, Control
3 1167040 Bracket, Control
4 1166806 Knob, Control
5 488480 Screw, S.M. #8 x 1/2
6 1162586 Capacitor
7 1164779 Thermostat, De-icer
8 488234 Screw, 8-32 x 1/4 (2)
9 1159258 Cap, Tab
10 1164813 Motor, Fan
11 949645 Blade, Fan
12 1163801 Bracket, Cap Mtg
13 999747 Switch, Water Level Control
14 1164784 Cord, Appliance
15 487871 Screw, 8-32 x 3/8
16 1166838 Plate, Orifice
17 1162704 Seal
18 489001 Palnut, 3/8-32
19 1161718 Spring, Water Level
20 488480 Screw,8x1/2 (2)
21 Washer, Repair
489083 .030 Thickness
1168324 .062 Thickness
489091 .091 Thickness
23 1163800 Support
24 1159222 Screw (2)
25 602851 Tie, Cable (2)
33 471363 Clamp, Tube To Evaporator Mtg (2)
34 486194 Screw #8 x 1/2

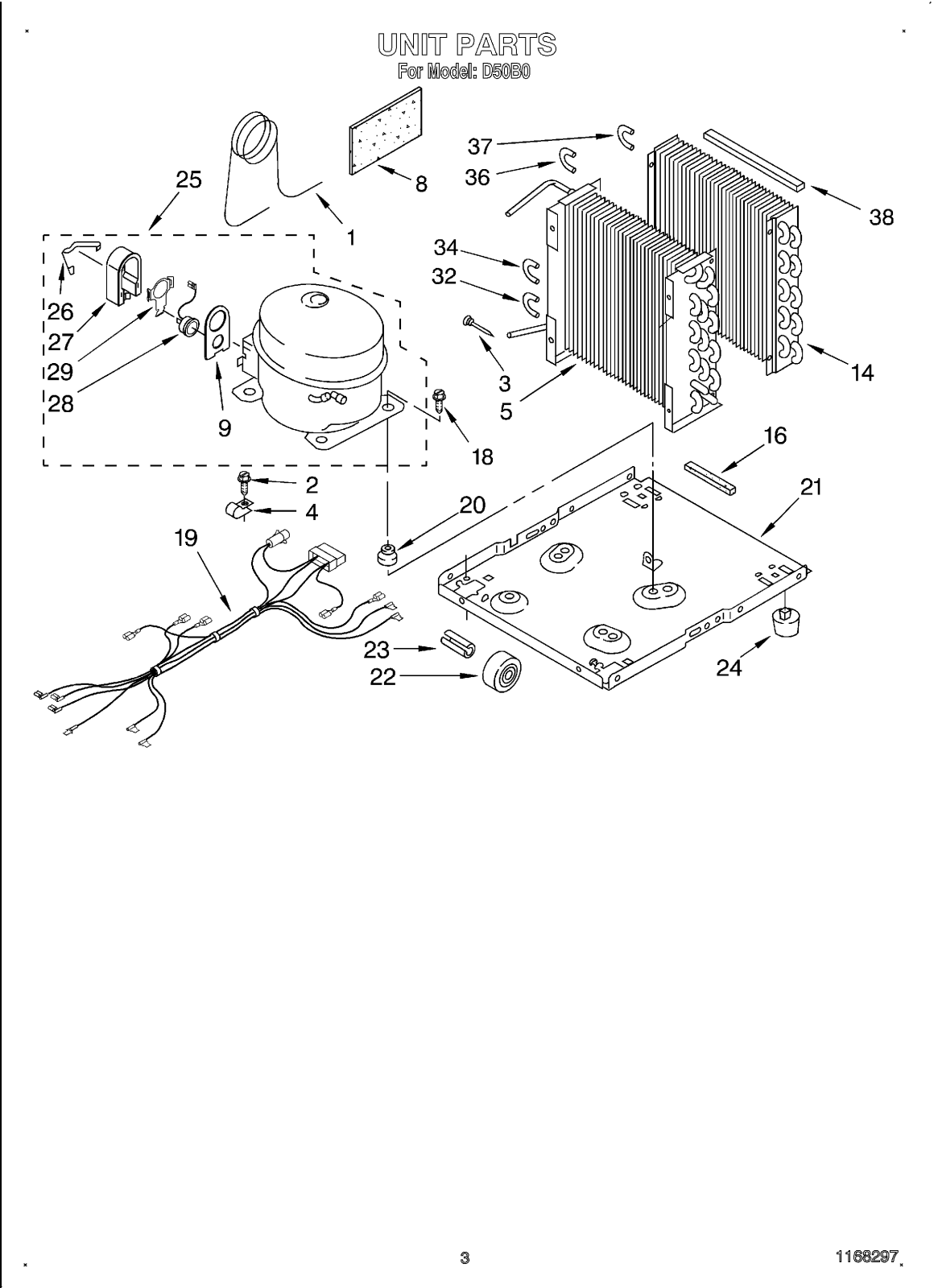

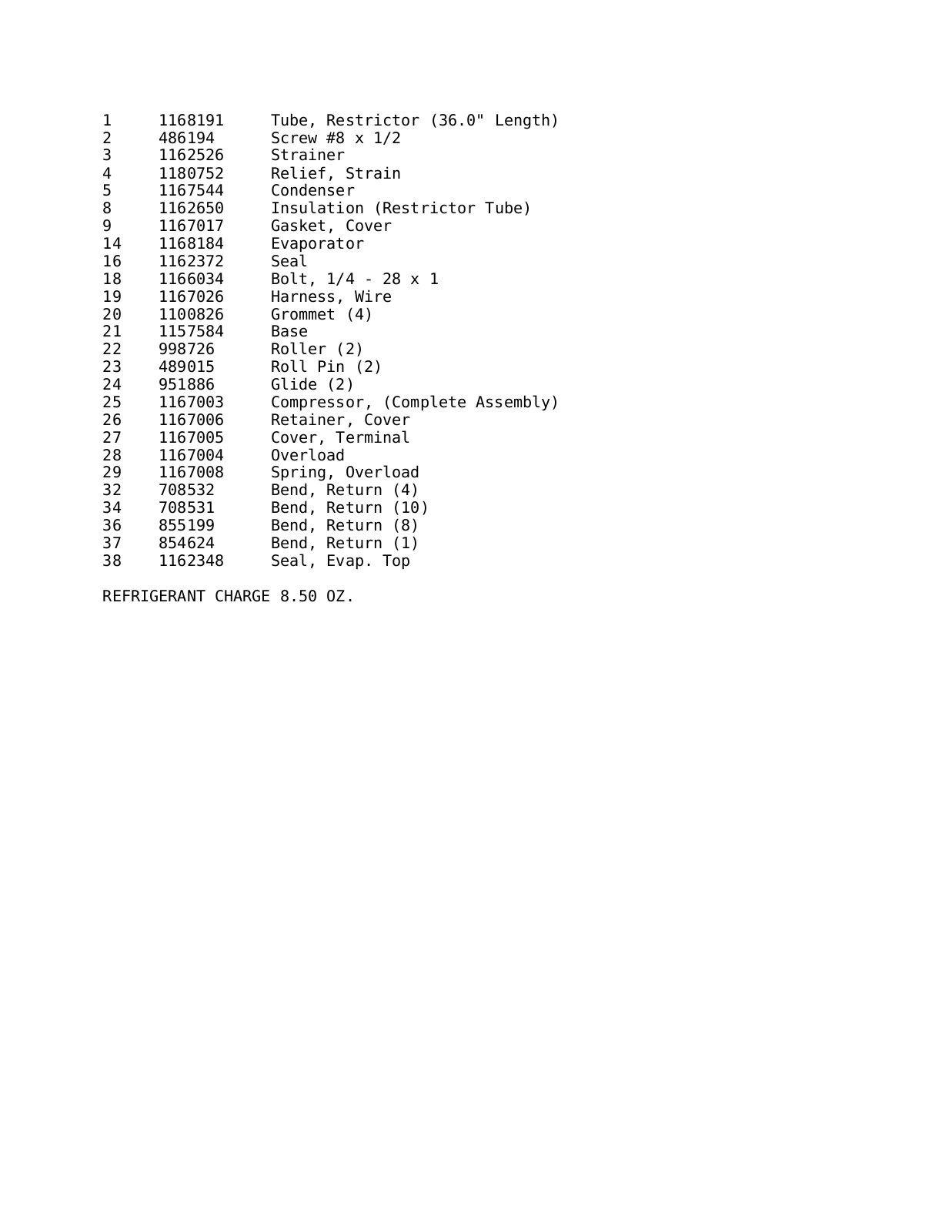

1 1168191 Tube, Restrictor (36.0" Length)
2 486194 Screw #8 x 1/2
3 1162526 Strainer
4 1180752 Relief, Strain
5 1167544 Condenser
8 1162650 Insulation (Restrictor Tube)
9 1167017 Gasket, Cover
14 1168184 Evaporator
16 1162372 Seal
18 1166034 Bolt, 1/4 - 28 x 1
19 1167026 Harness, Wire
20 1100826 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
23 489015 Roll Pin (2)
24 951886 Glide (2)
25 1167003 Compressor, (Complete Assembly)
26 1167006 Retainer, Cover
27 1167005 Cover, Terminal
28 1167004 Overload
29 1167008 Spring, Overload
32 708532 Bend, Return (4)
34 708531 Bend, Return (10)
36 855199 Bend, Return (8)
37 854624 Bend, Return (1)
38 1162348 Seal, Evap. Top
REFRIGERANT CHARGE 8.50 OZ.

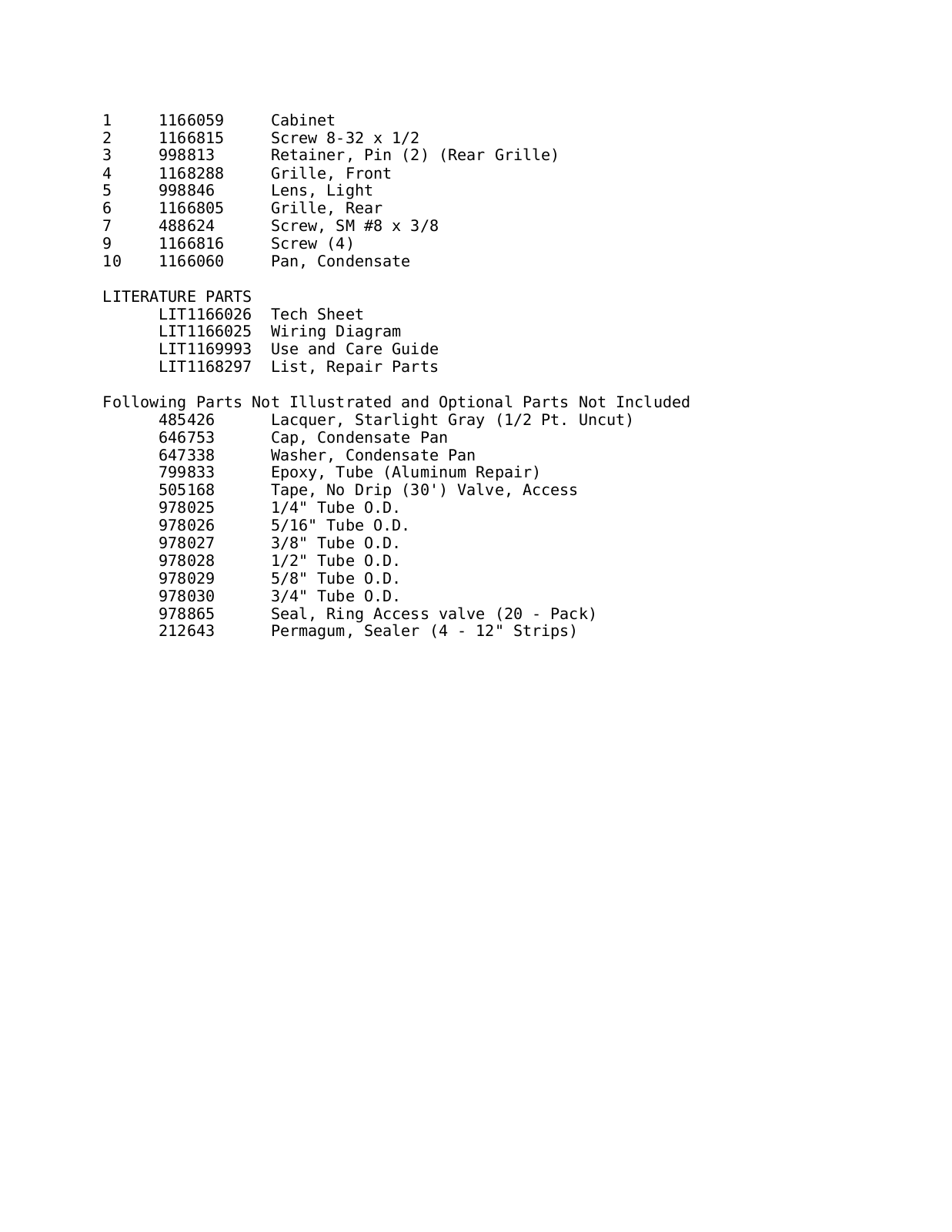

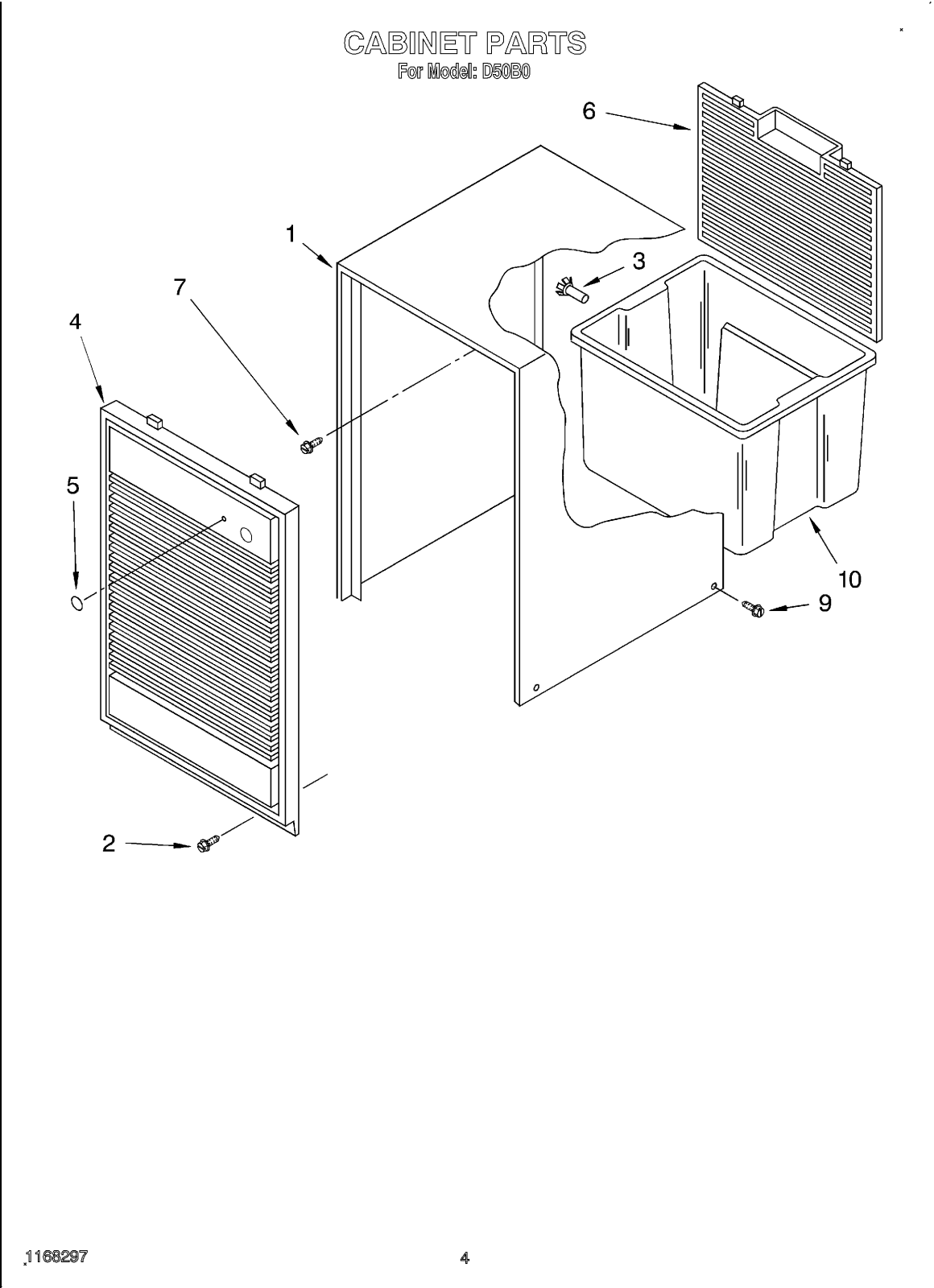

1 1166059 Cabinet
2 1166815 Screw 8-32 x 1/2
3 998813 Retainer, Pin (2) (Rear Grille)
4 1168288 Grille, Front
5 998846 Lens, Light
6 1166805 Grille, Rear
7 488624 Screw, SM #8 x 3/8
9 1166816 Screw (4)
10 1166060 Pan, Condensate
LITERATURE PARTS
LIT1166026 Tech Sheet
LIT1166025 Wiring Diagram
LIT1169993 Use and Care Guide
LIT1168297 List, Repair Parts
Following Parts Not Illustrated and Optional Parts Not Included
485426 Lacquer, Starlight Gray (1/2 Pt. Uncut)
646753 Cap, Condensate Pan
647338 Washer, Condensate Pan
799833 Epoxy, Tube (Aluminum Repair)
505168 Tape, No Drip (30') Valve, Access
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865 Seal, Ring Access valve (20 - Pack)
212643 Permagum, Sealer (4 - 12" Strips)
