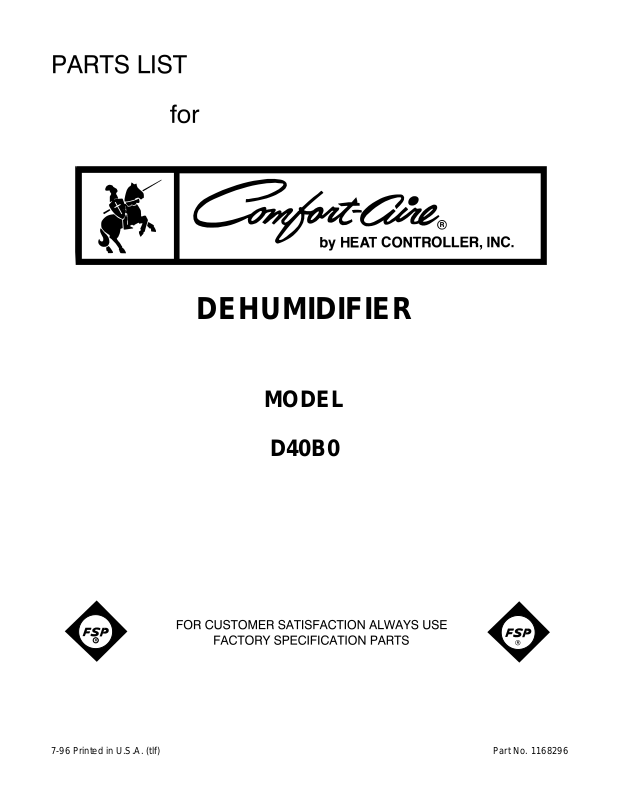

Page 1
DEHUMIDIFIER
MODEL
D40B0
7-96 Printed in U.S.A. (tlf)
Part No. 1168296
Page 2
UNIT PARTS
For Model: D40B0
Illus. Part
No. No. DESCRIPTION
2 1168191 Tube, Restrictor
(36.0" Length)
3 1162526 Strainer
4 950058 Relay
5 1167544 Condenser
7 1167574 Deicer, Bimetal
8 1162650 Insulation
(Restrictor Tube)
9 950061 Spring, Overload
10 1163837 Overload
11 708531 Bend Return (10)
12 950055 Cover, Terminal
13 950056 Retainer, Cover
14 1168186 Evaporator
16 1162372 Seal
18 1166034 Bolt,
1/4-28 x 1 (4)
19 1167561 Harness, Wire
1168296
Illus. Part
No. No. DESCRIPTION
20 1100826 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
23 489015 Roll Pin-2.0 LG
24 951886 Glide-Natural (2)
25 1164774 Compressor,
(Complete
Assembly)
26 708532 Bend, Return (4)
27 855199 Bend, Return (8)
28 854624 Bend, Return (1)
29 486194 Screw #8 x 1/2
30 1162348 Seal, Evaporator
Top
31 1180752 Relief, Strain
2
Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
LIT1168183
LIT1167573
LIT1169993
LIT1168296
Tech Sheet
Wiring Diagram
Use and Care Guide
Repair Parts List
REFRIGERANT CHARGE
8.75 OZ.
Following Parts Not Illustrated
and Optional Parts Not Included
1162476 PTC Start Device
1162477 PTC Clamp
1162377 Wire Assy. (2)
488480 Screw 8-18 x 1/2
Page 3

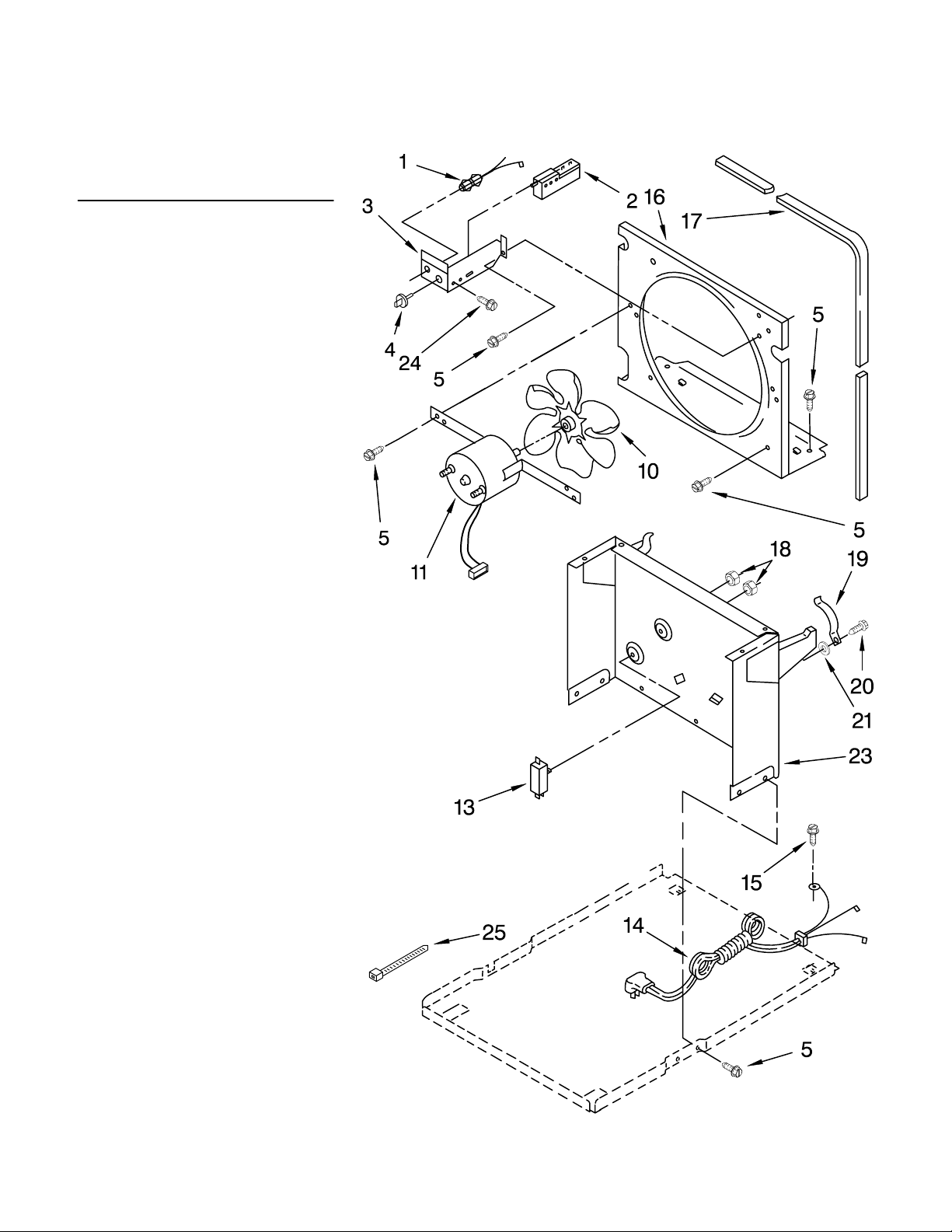

AIR FLOW AND CONTROL PARTS
Illus. Part
No. No. DESCRIPTION
1 1164804 Light, Indicator
2 1166055 Humidistat,
Control
3 1167040 Bracket, Control
4 1166806 Knob, Control (1)
5 488480 Screw,
S.M. #8 x 1/2
10 949645 Blade, Fan
11 1164813 Motor, Fan
13 999747 Switch, Water
Level Control
14 1164784 Cord, Appliance
15 487871 Screw,
8-32 x 3/8
16 1166838 Plate, Orifice
17 1162704 Seal
18 489001 Palnut, 3/8-32
19 1161718 Spring, Water
Level
20 486194 Screw #8 x 1/2
21 Washer, Repair
489083 .030 Thickness
489091 .045 Thickness
1168324 .062 Thickness
23 1163800 Support
24 1159222 Screw
25 602851 Tie, Cable (3)
For Model: D40B0
3
1168296
Page 4

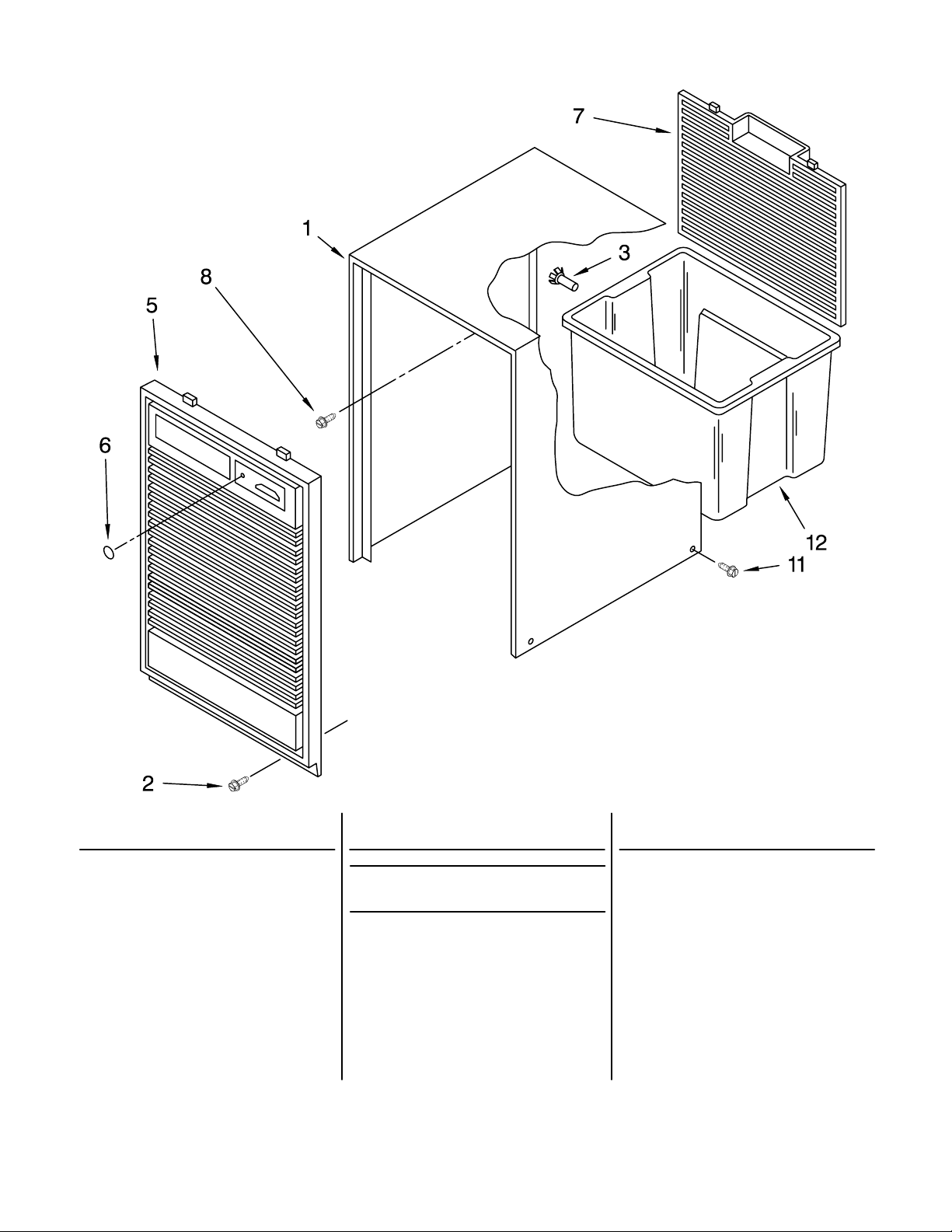

CABINET PARTS
For Model: D40B0
Illus. Part
No. No. DESCRIPTION
1 1166059 Cabinet
2 1166815 Screw,
8-32 x 1/2 (2)
3 998813 Retainer, Pin (2)
(Rear Grille)
5 1168288 Grille, Front
6 998846 Lens, Light
7 1166805 Grille, Rear
8 488624 Screw, 8 x 3/8
11 1166816 Screw (4)
12 1166060 Pan, Condensate
1168296
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
and Optional Parts Not Included
485426 Lacquer, Starlight
Gray (1/2 Pt.
Uncut)
646753 Cap, Condensate
Pan
647338 Washer, Cap
(Condensate Pan)
799833 Epoxy, Tube
(Aluminum Repair)
4
Illus. Part
No. No. DESCRIPTION
505168 Tape,
No Drip (30’)
Valve, Access
978025 1/4" Tube O.D.
978026 5/16"Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865 Seal, Ring
Access Valve
(20 Pack)
212643 Permagum
(4 - 12" Strips)
