Whirlpool D40a1, D40a1 Installation Template

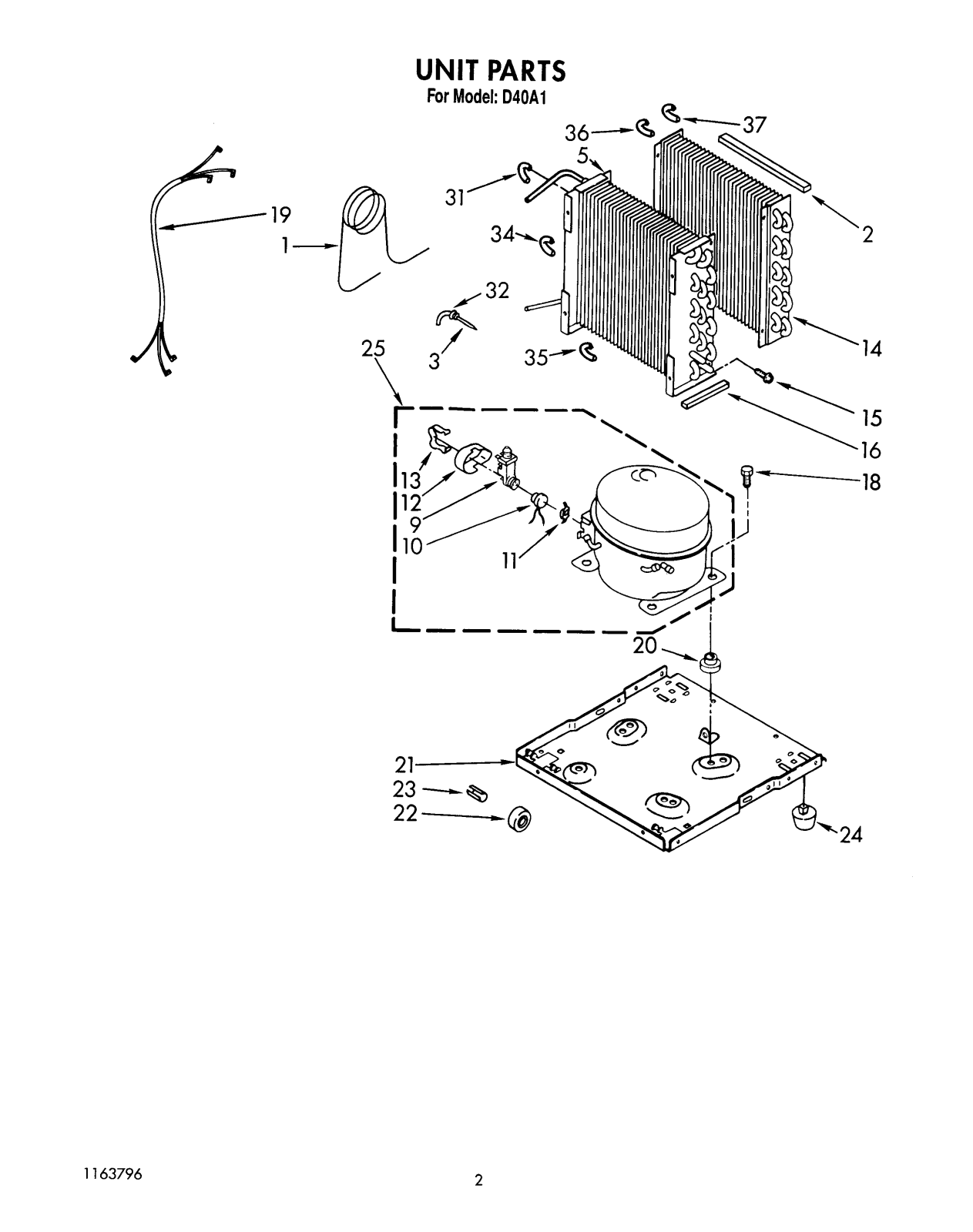

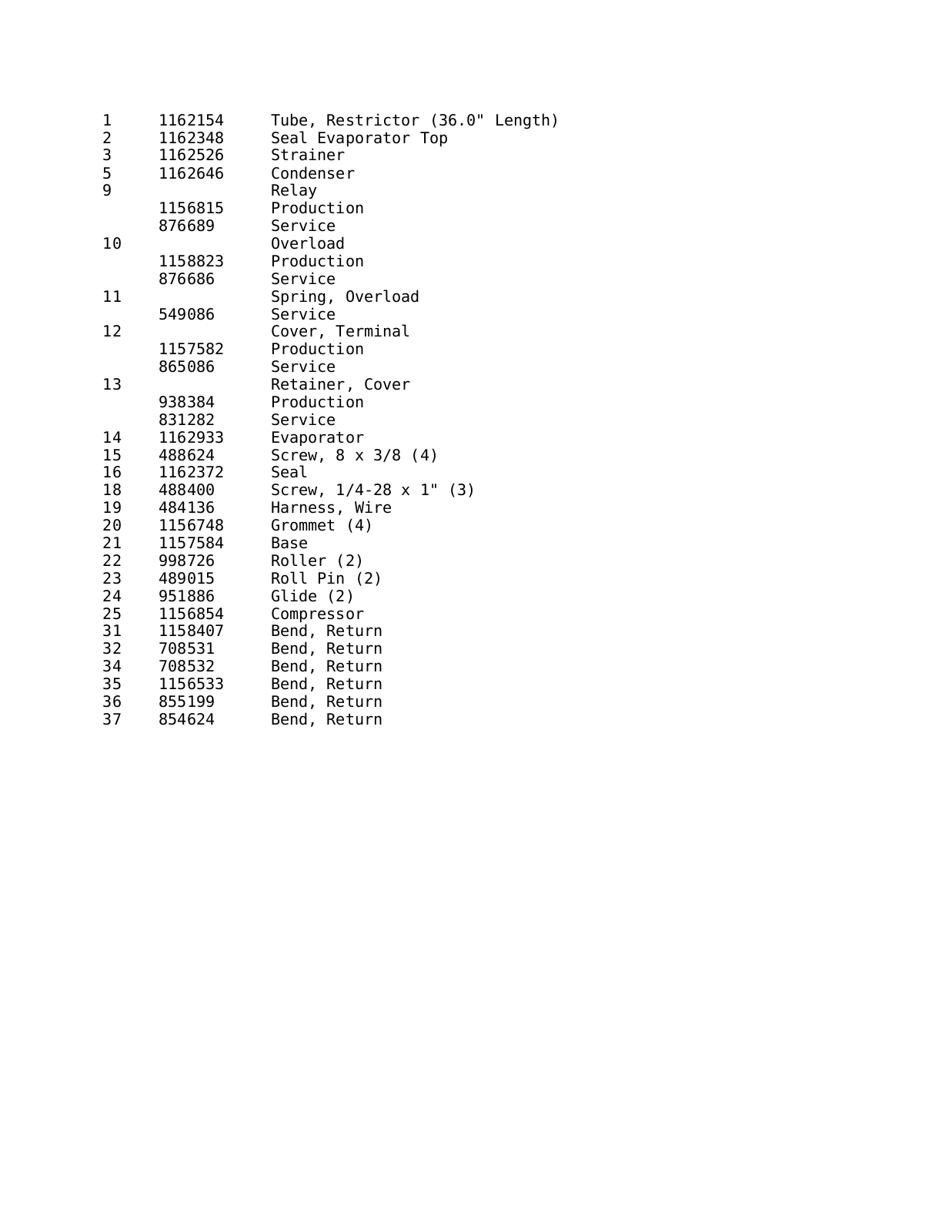

1 1162154 Tube, Restrictor (36.0" Length)
2 1162348 Seal Evaporator Top
3 1162526 Strainer
5 1162646 Condenser
9 Relay

1156815 Production
876689 Service

10 Overload

1158823 Production
876686 Service

11 Spring, Overload

549086 Service

12 Cover, Terminal

1157582 Production
865086 Service

13 Retainer, Cover

938384 Production

831282 Service
14 1162933 Evaporator
15 488624 Screw, 8 x 3/8 (4)
16 1162372 Seal
18 488400 Screw, 1/4-28 x 1" (3)
19 484136 Harness, Wire
20 1156748 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
23 489015 Roll Pin (2)
24 951886 Glide (2)
25 1156854 Compressor
31 1158407 Bend, Return
32 708531 Bend, Return
34 708532 Bend, Return
35 1156533 Bend, Return
36 855199 Bend, Return
37 854624 Bend, Return
