Whirlpool D40a0, D40a0 Installation Template

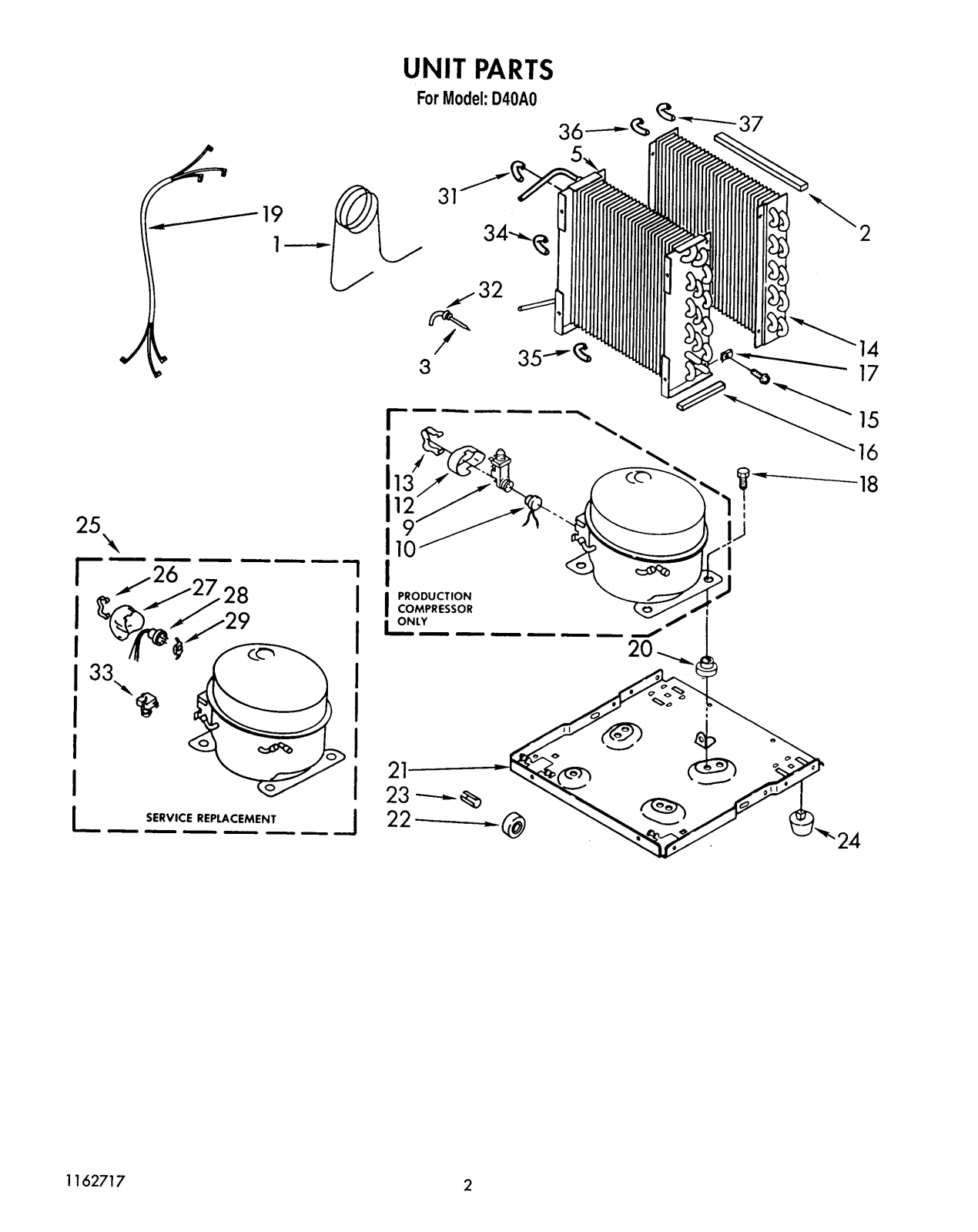

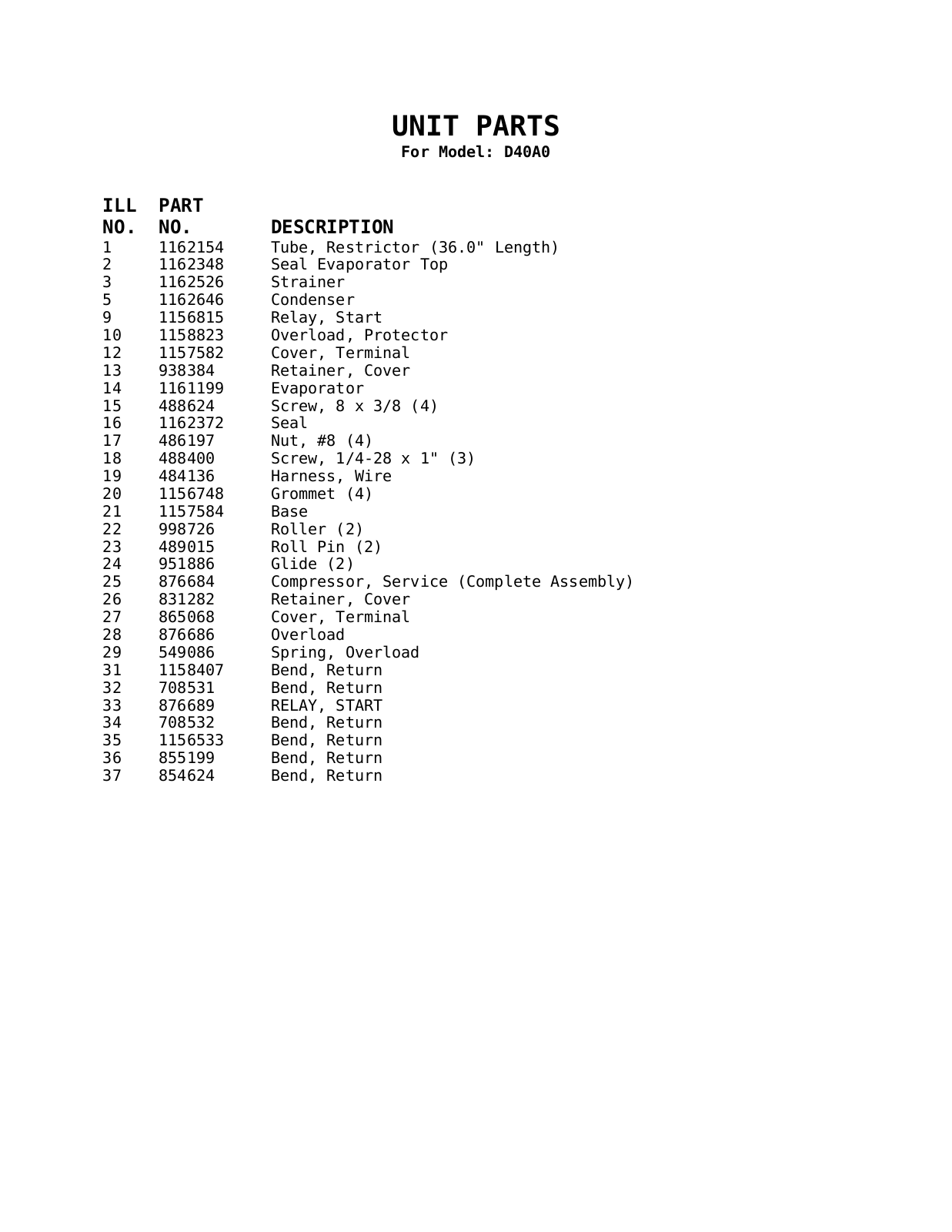

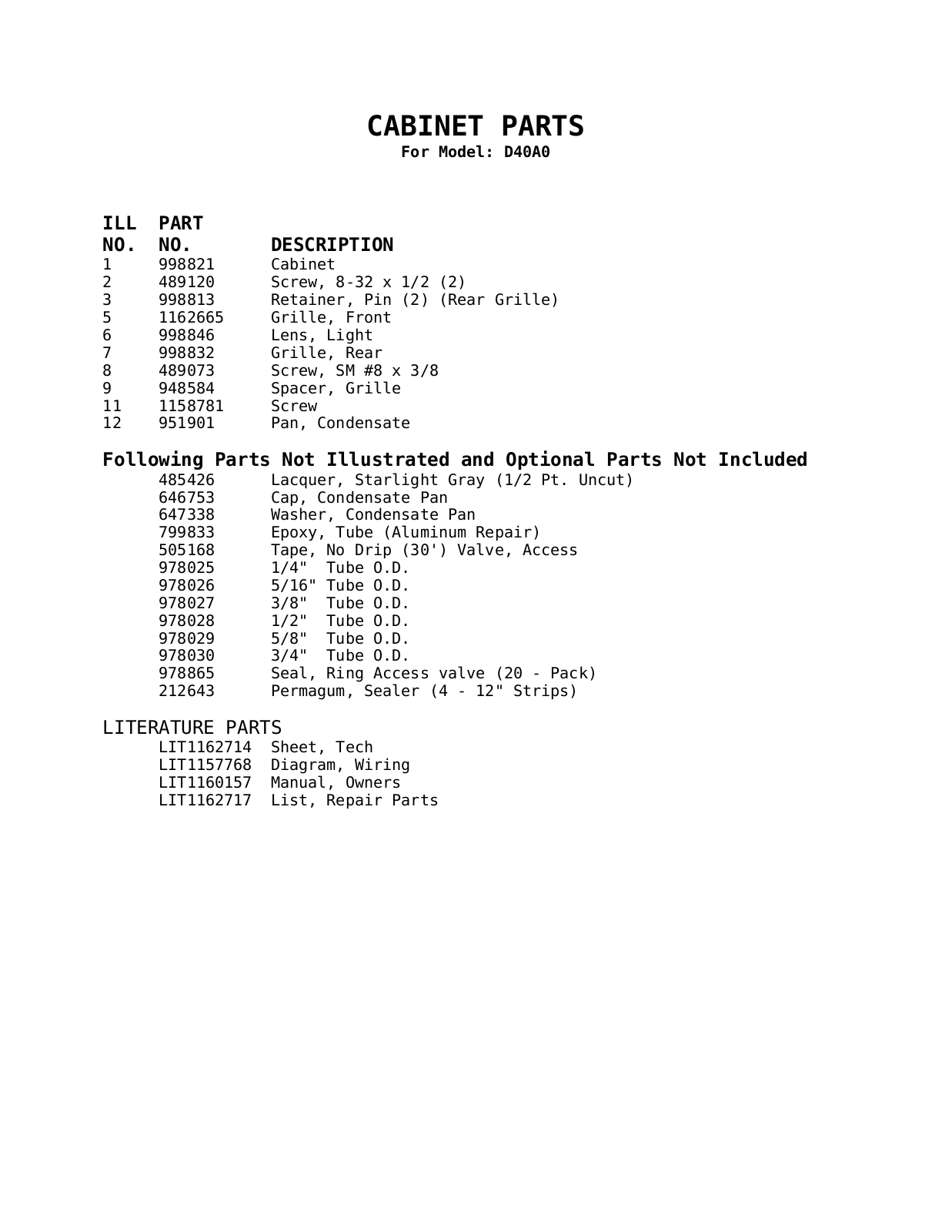

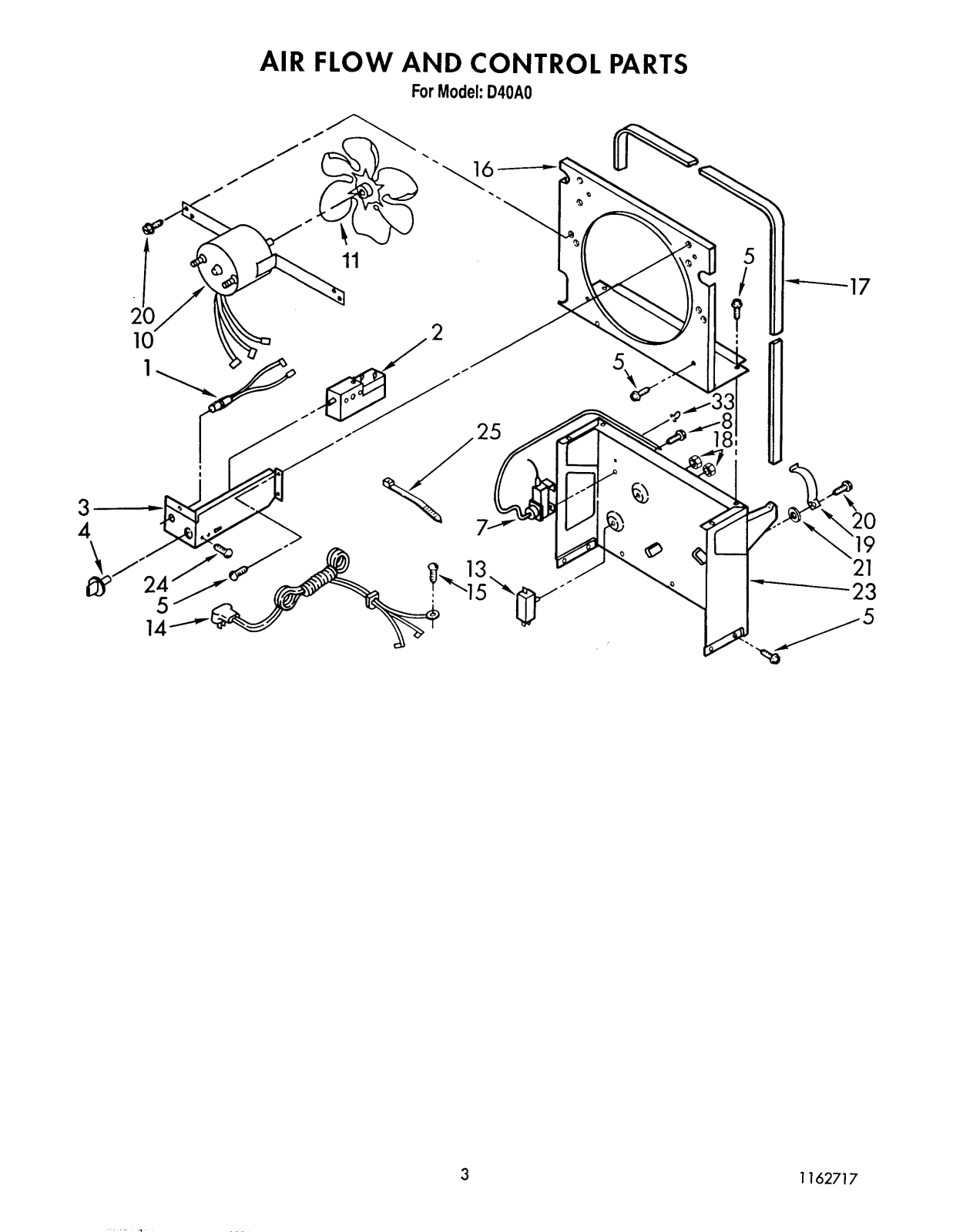

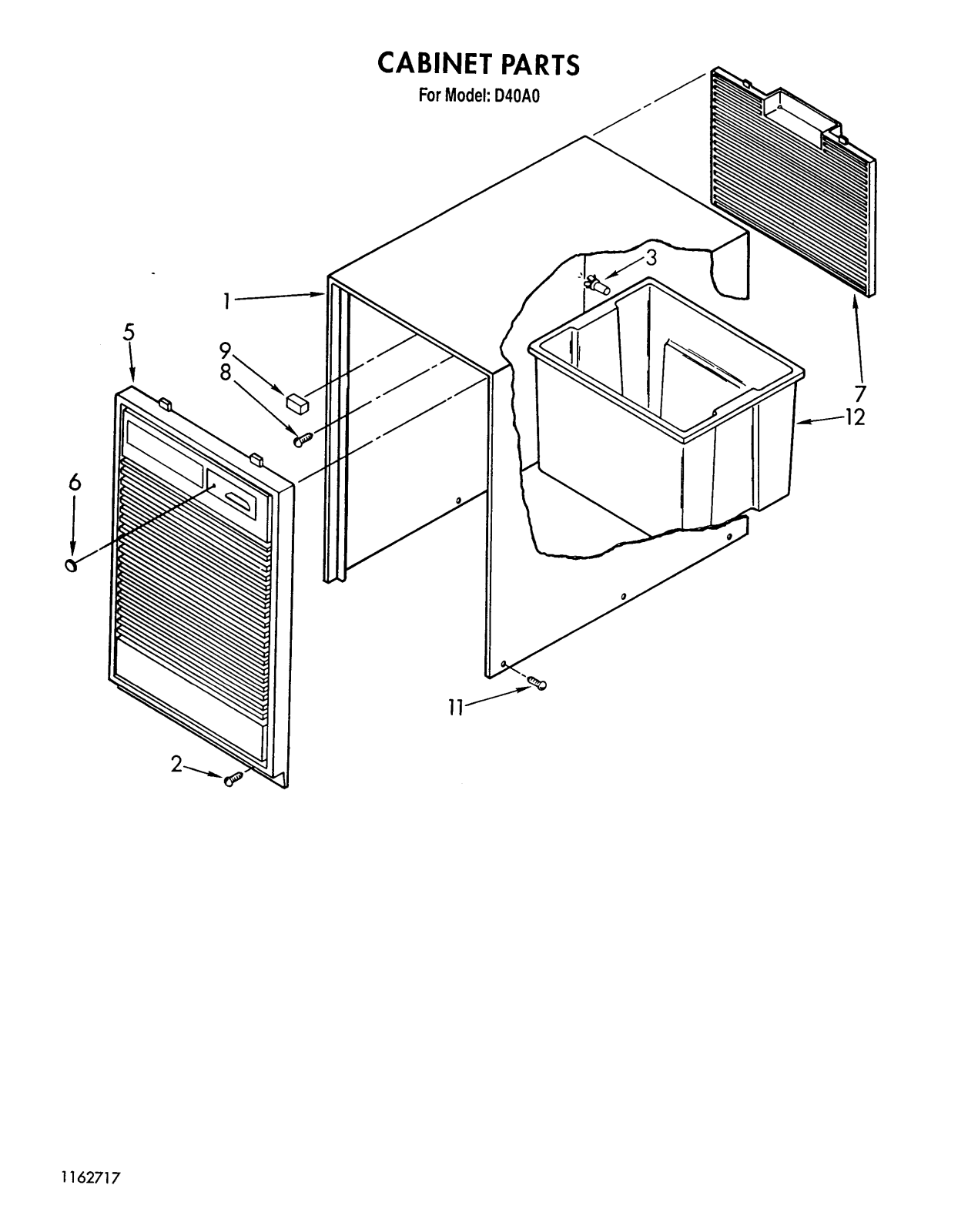

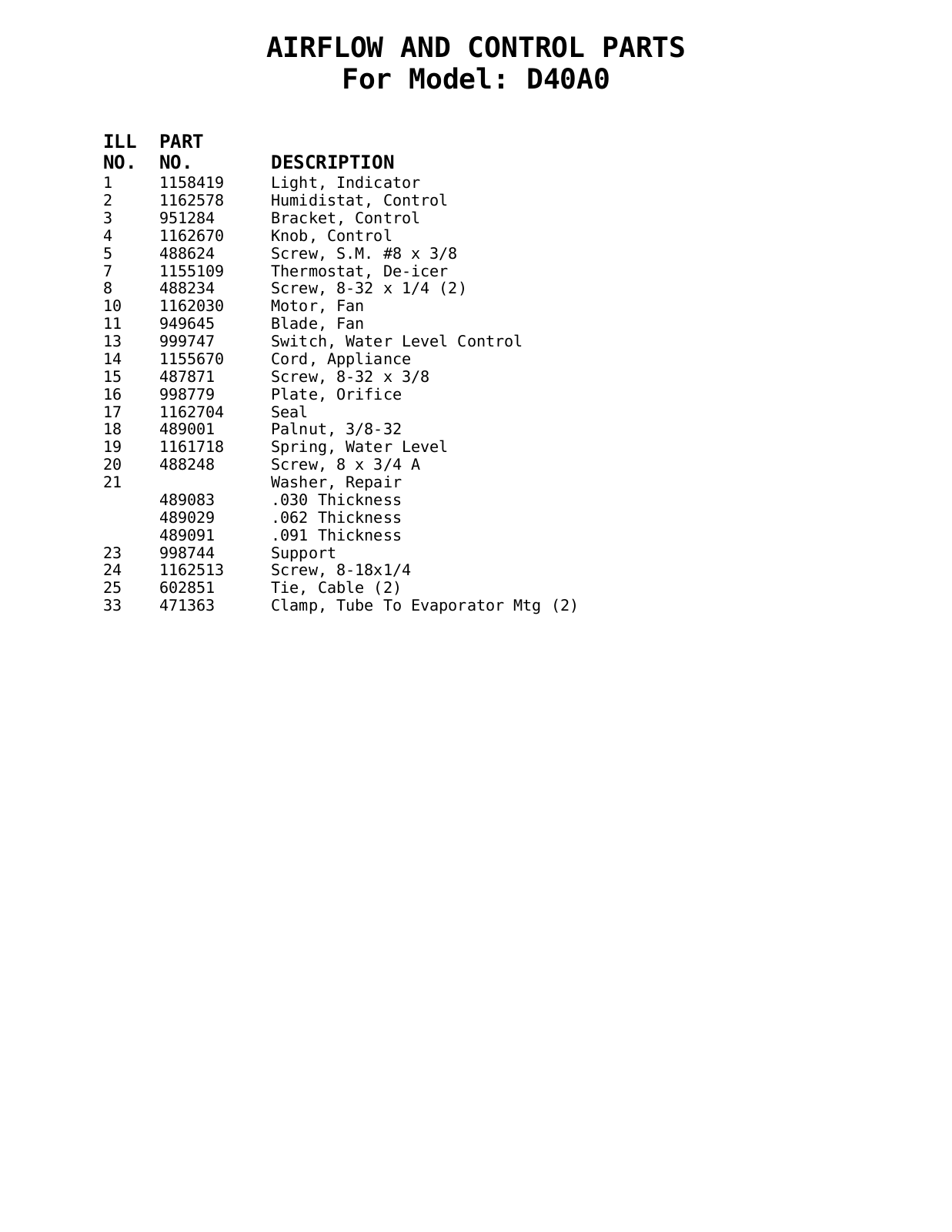

UNIT PARTS

For Model: D40A0

ILL PART
NO. NO. DESCRIPTION

1 1162154 Tube, Restrictor (36.0" Length)
2 1162348 Seal Evaporator Top
3 1162526 Strainer
5 1162646 Condenser
9 1156815 Relay, Start
10 1158823 Overload, Protector
12 1157582 Cover, Terminal
13 938384 Retainer, Cover
14 1161199 Evaporator
15 488624 Screw, 8 x 3/8 (4)
16 1162372 Seal
17 486197 Nut, #8 (4)
18 488400 Screw, 1/4-28 x 1" (3)
19 484136 Harness, Wire
20 1156748 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
23 489015 Roll Pin (2)
24 951886 Glide (2)
25 876684 Compressor, Service (Complete Assembly)
26 831282 Retainer, Cover
27 865068 Cover, Terminal
28 876686 Overload
29 549086 Spring, Overload
31 1158407 Bend, Return
32 708531 Bend, Return
33 876689 RELAY, START
34 708532 Bend, Return
35 1156533 Bend, Return
36 855199 Bend, Return
37 854624 Bend, Return
