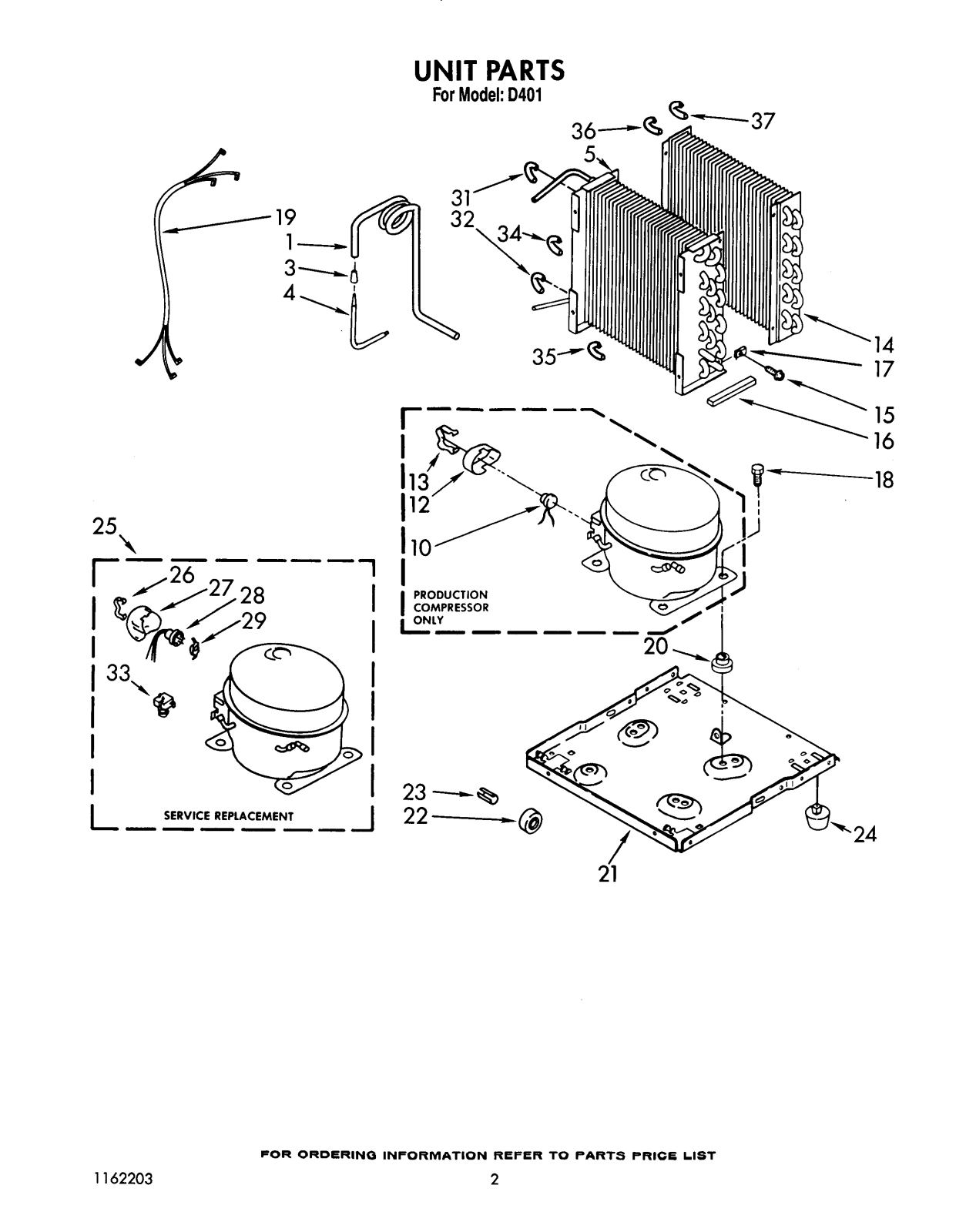

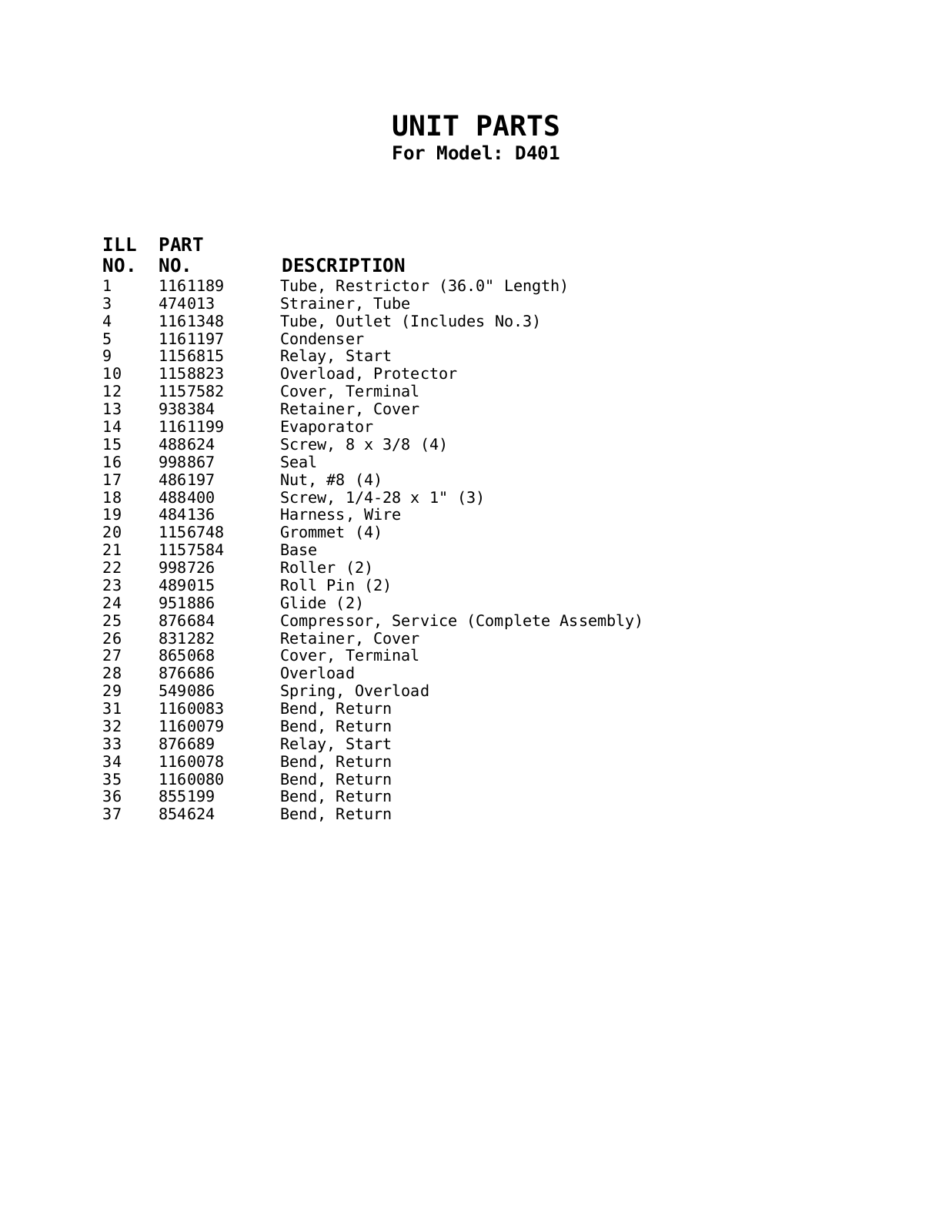

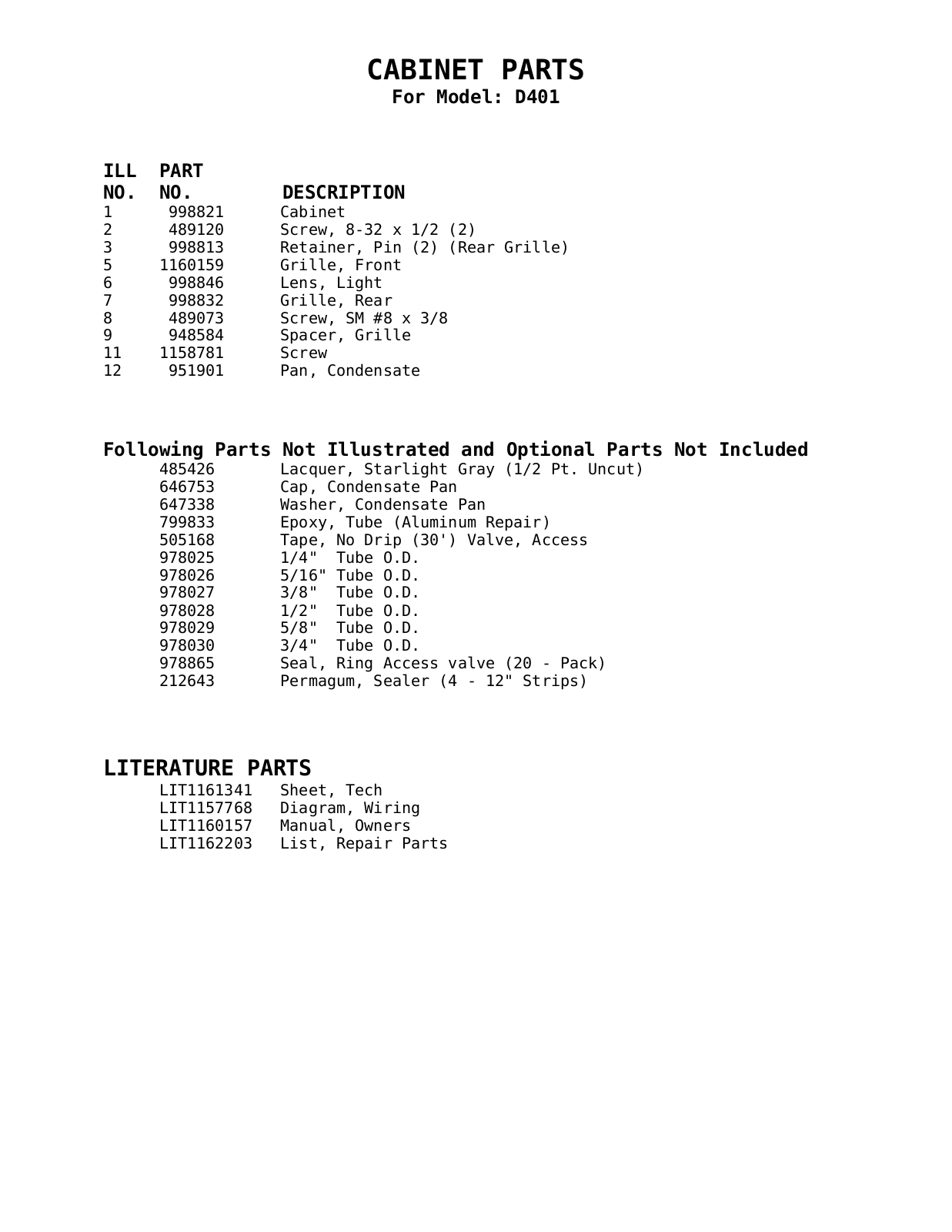

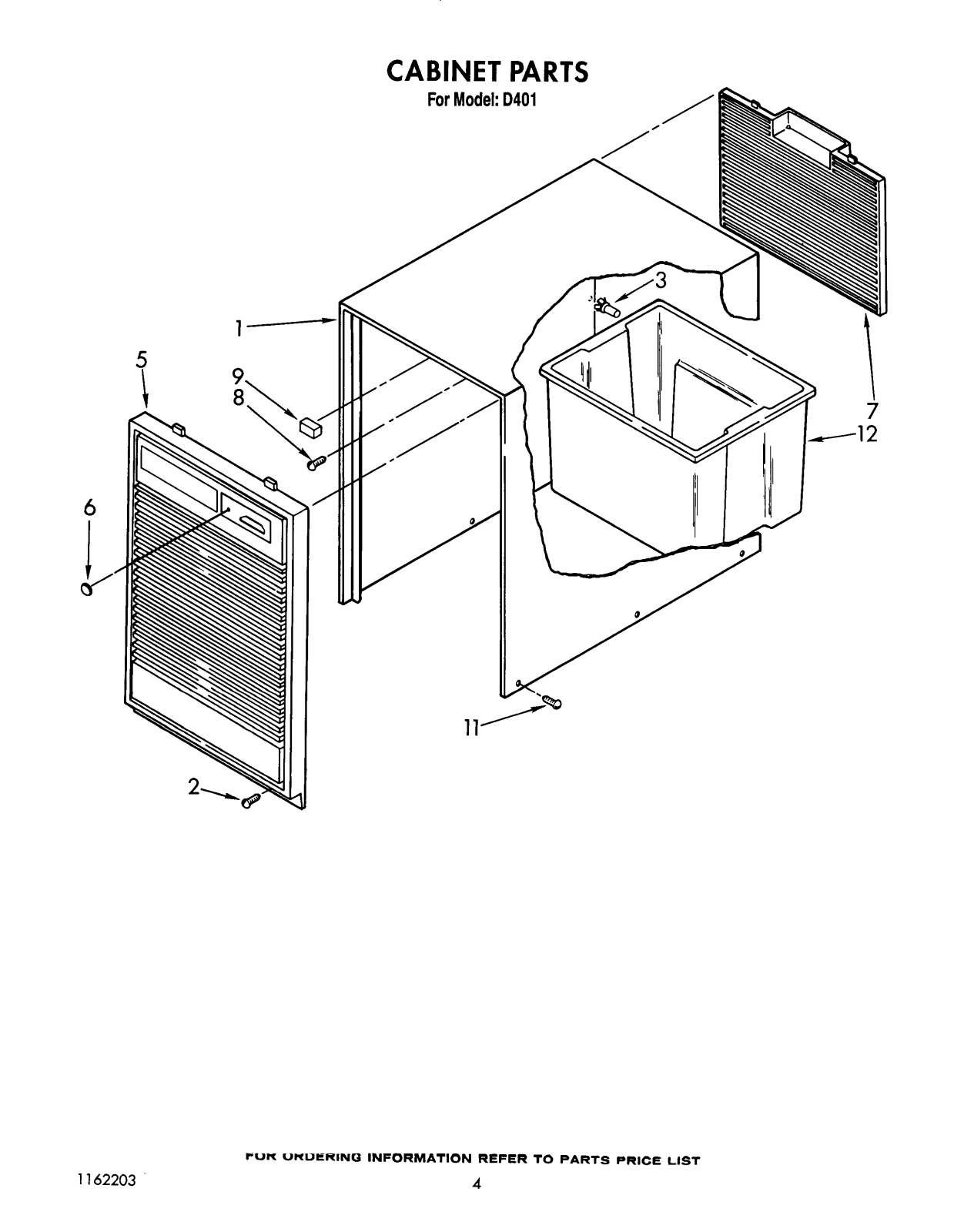

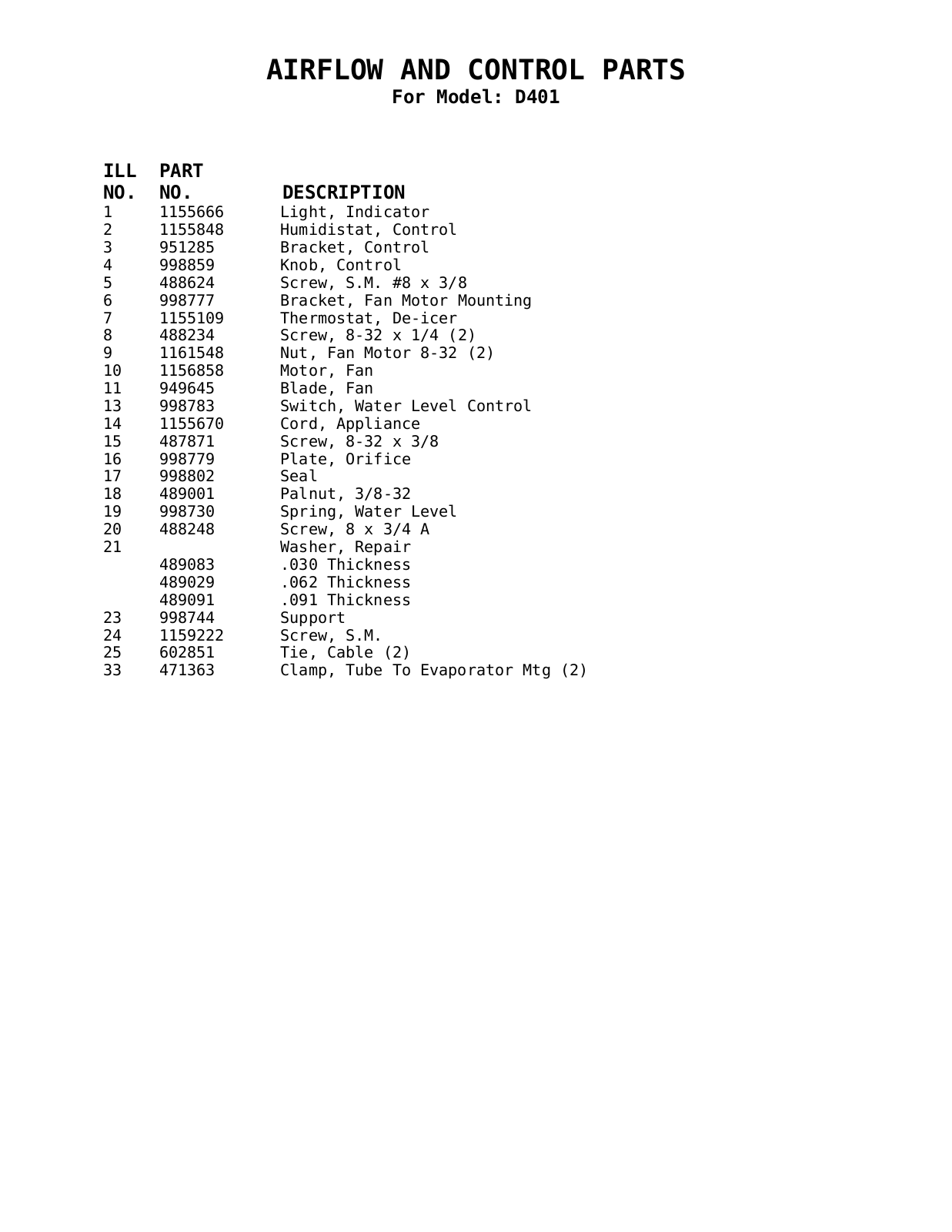

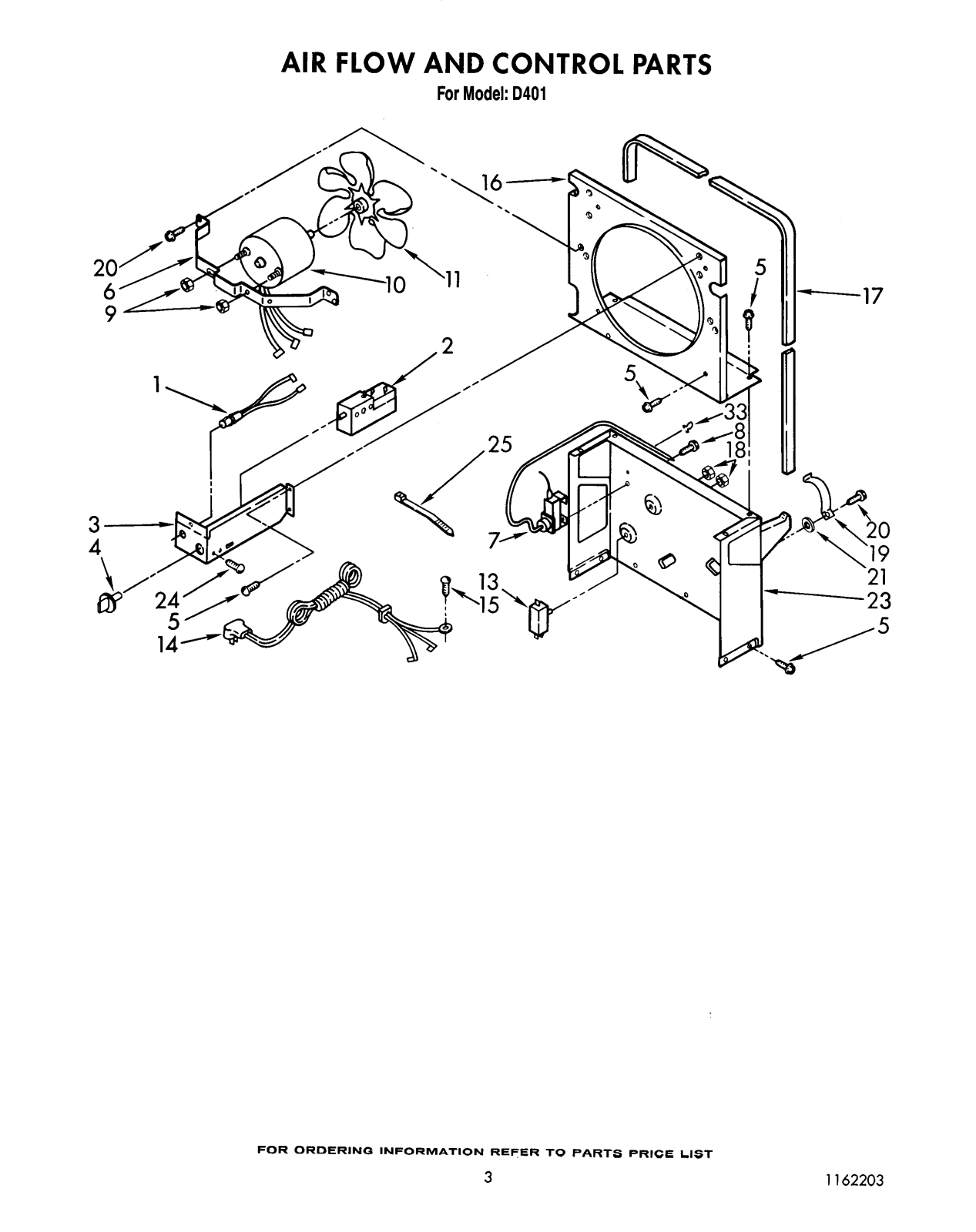

UNIT PARTS

For Model: D401

ILL PART
NO. NO. DESCRIPTION

1 1161189 Tube, Restrictor (36.0" Length)
3 474013 Strainer, Tube
4 1161348 Tube, Outlet (Includes No.3)
5 1161197 Condenser
9 1156815 Relay, Start
10 1158823 Overload, Protector
12 1157582 Cover, Terminal
13 938384 Retainer, Cover
14 1161199 Evaporator
15 488624 Screw, 8 x 3/8 (4)
16 998867 Seal
17 486197 Nut, #8 (4)
18 488400 Screw, 1/4-28 x 1" (3)
19 484136 Harness, Wire
20 1156748 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
23 489015 Roll Pin (2)
24 951886 Glide (2)
25 876684 Compressor, Service (Complete Assembly)
26 831282 Retainer, Cover
27 865068 Cover, Terminal
28 876686 Overload
29 549086 Spring, Overload
31 1160083 Bend, Return
32 1160079 Bend, Return
33 876689 Relay, Start
34 1160078 Bend, Return
35 1160080 Bend, Return
36 855199 Bend, Return
37 854624 Bend, Return
