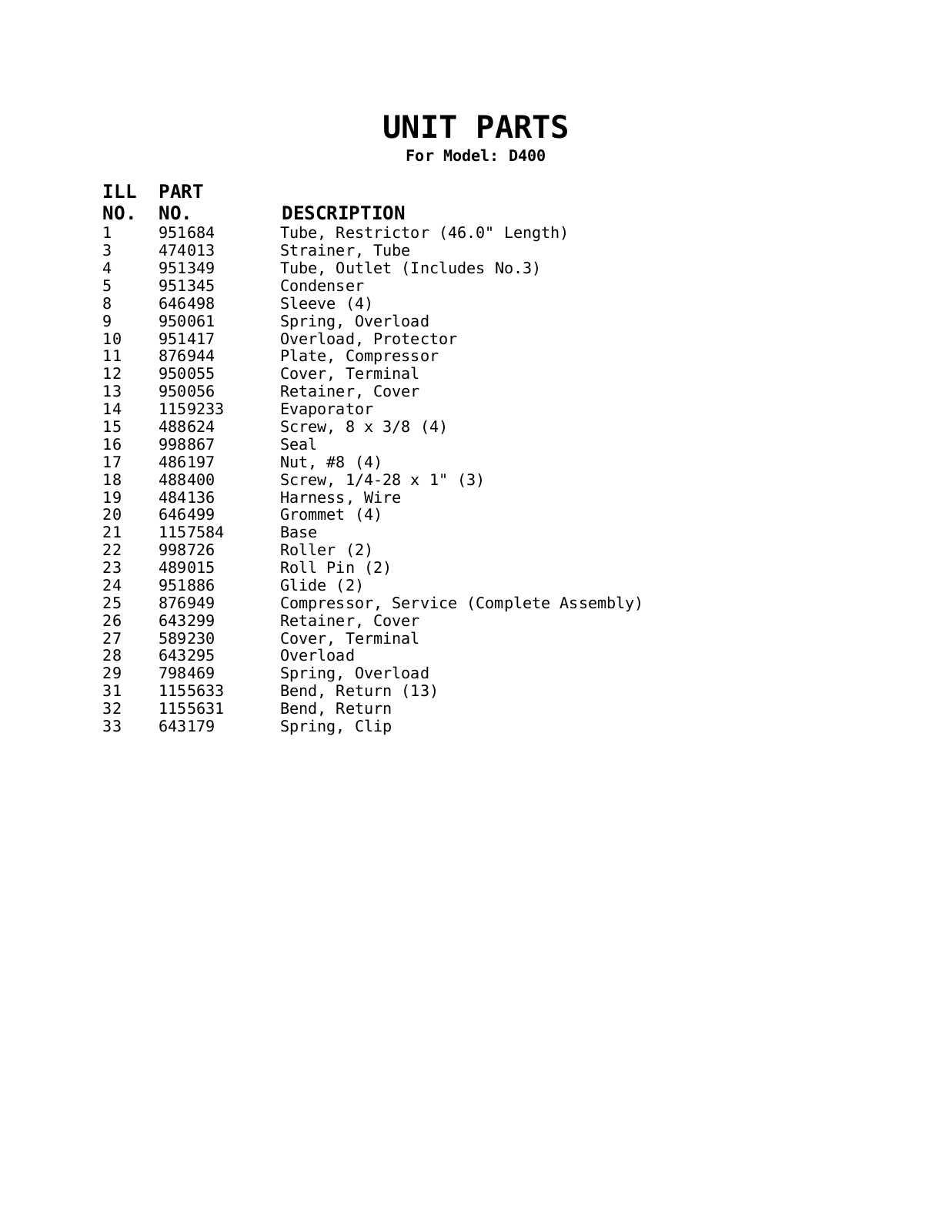

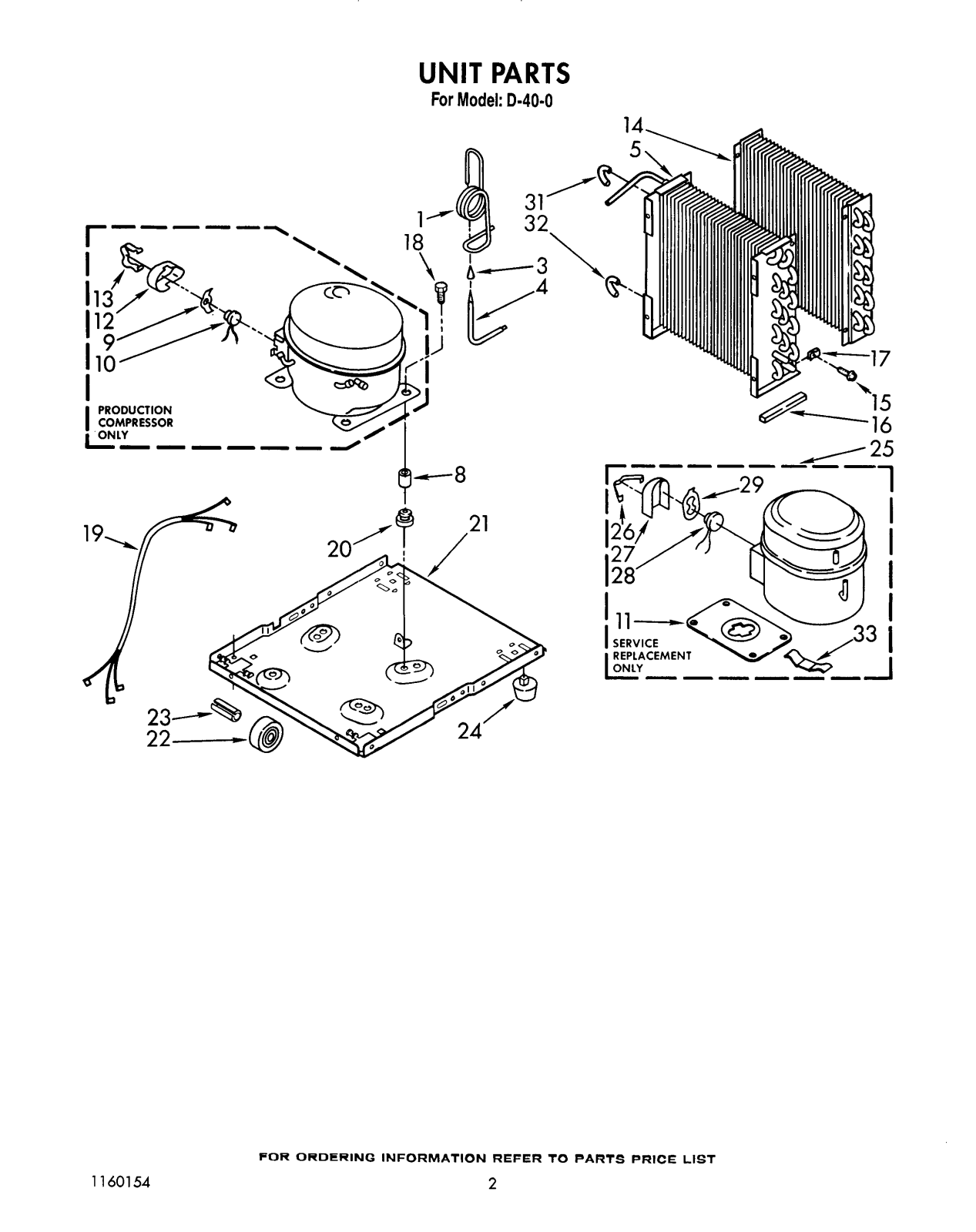

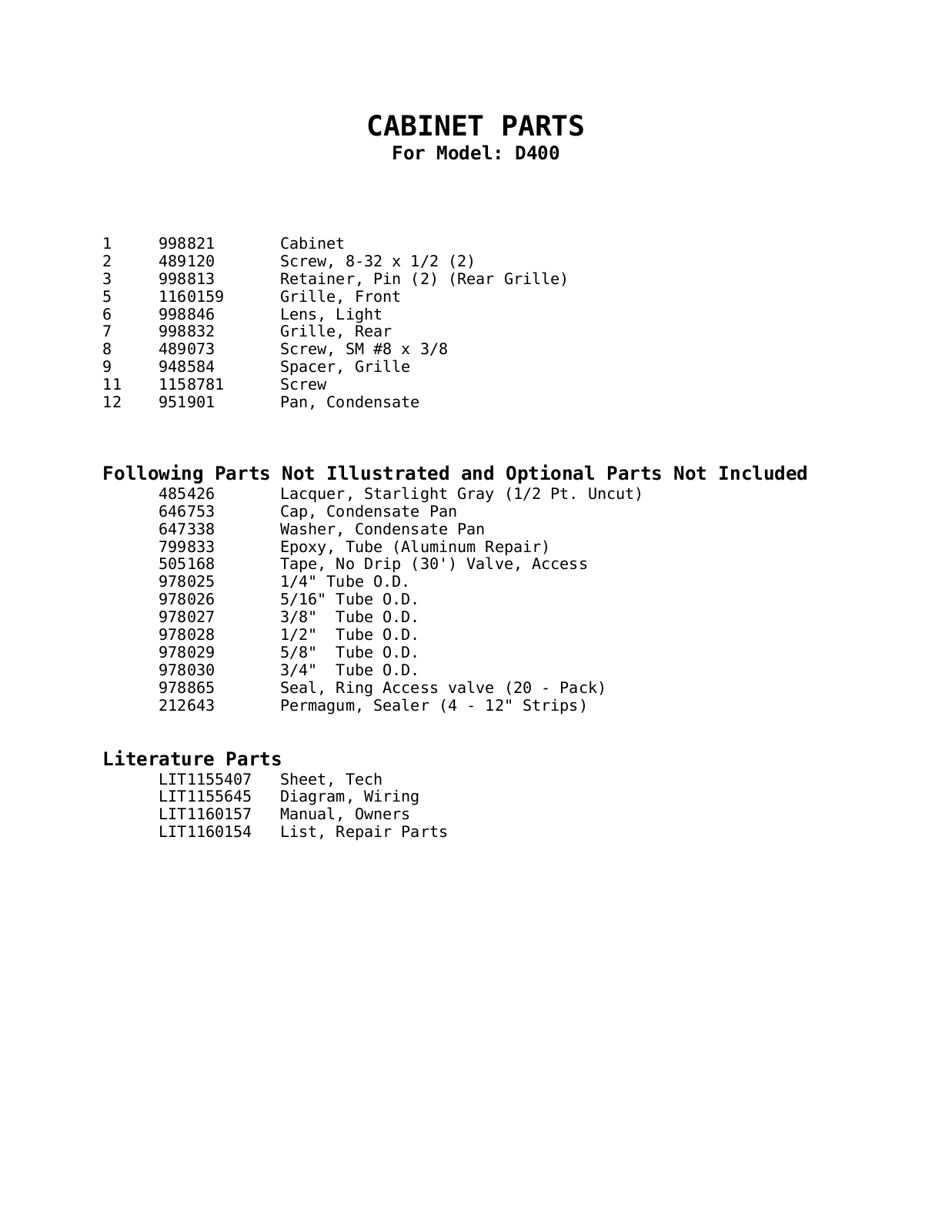

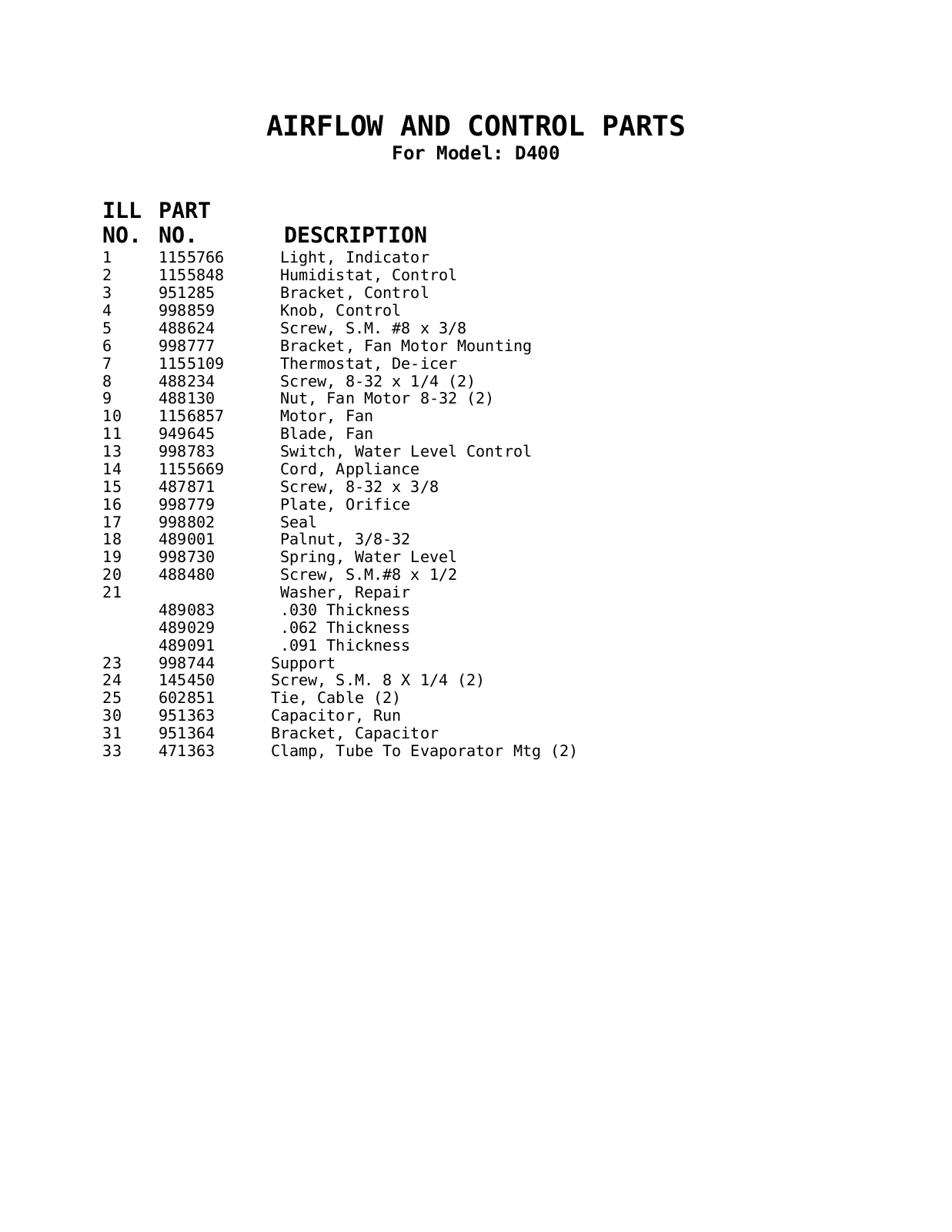

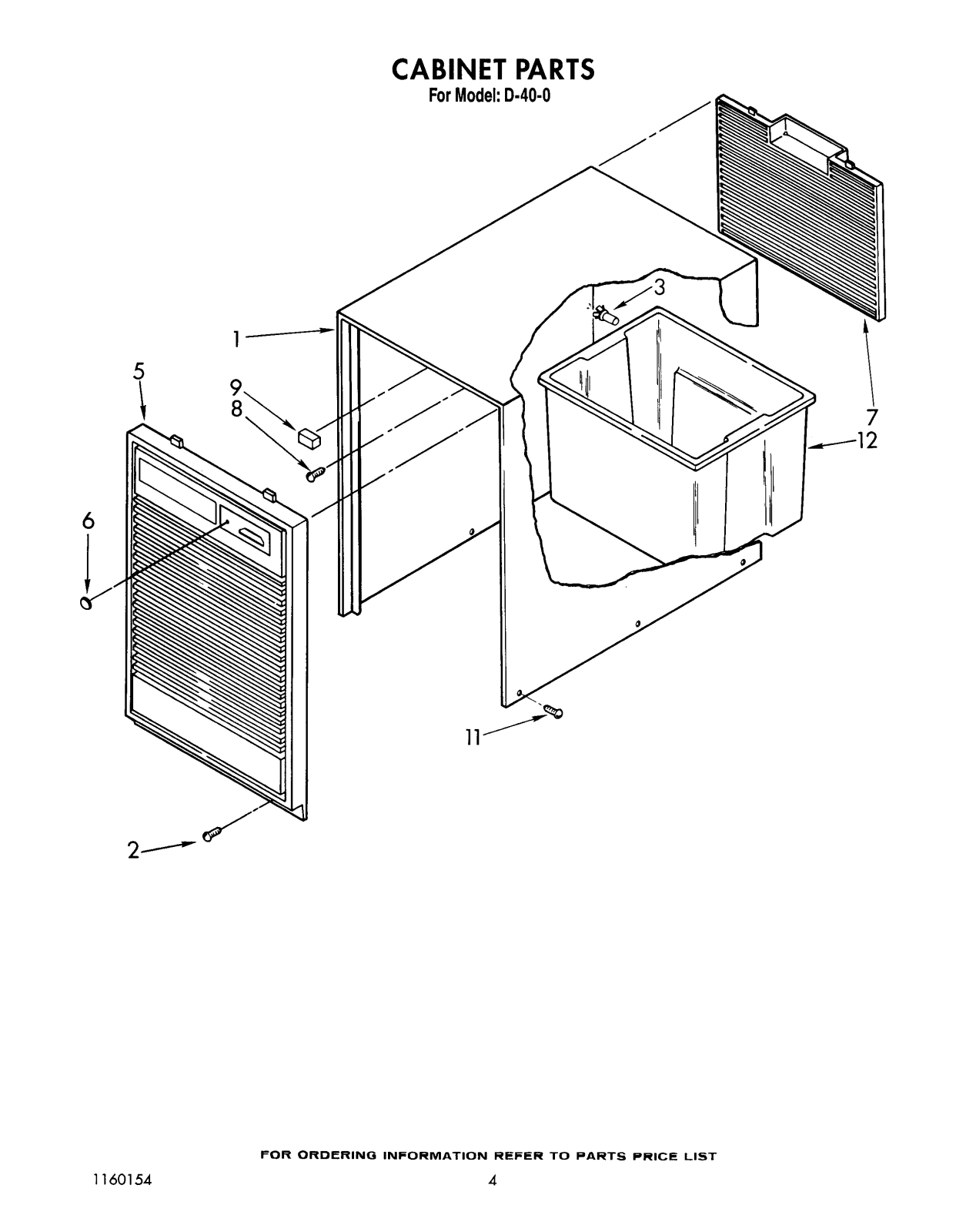

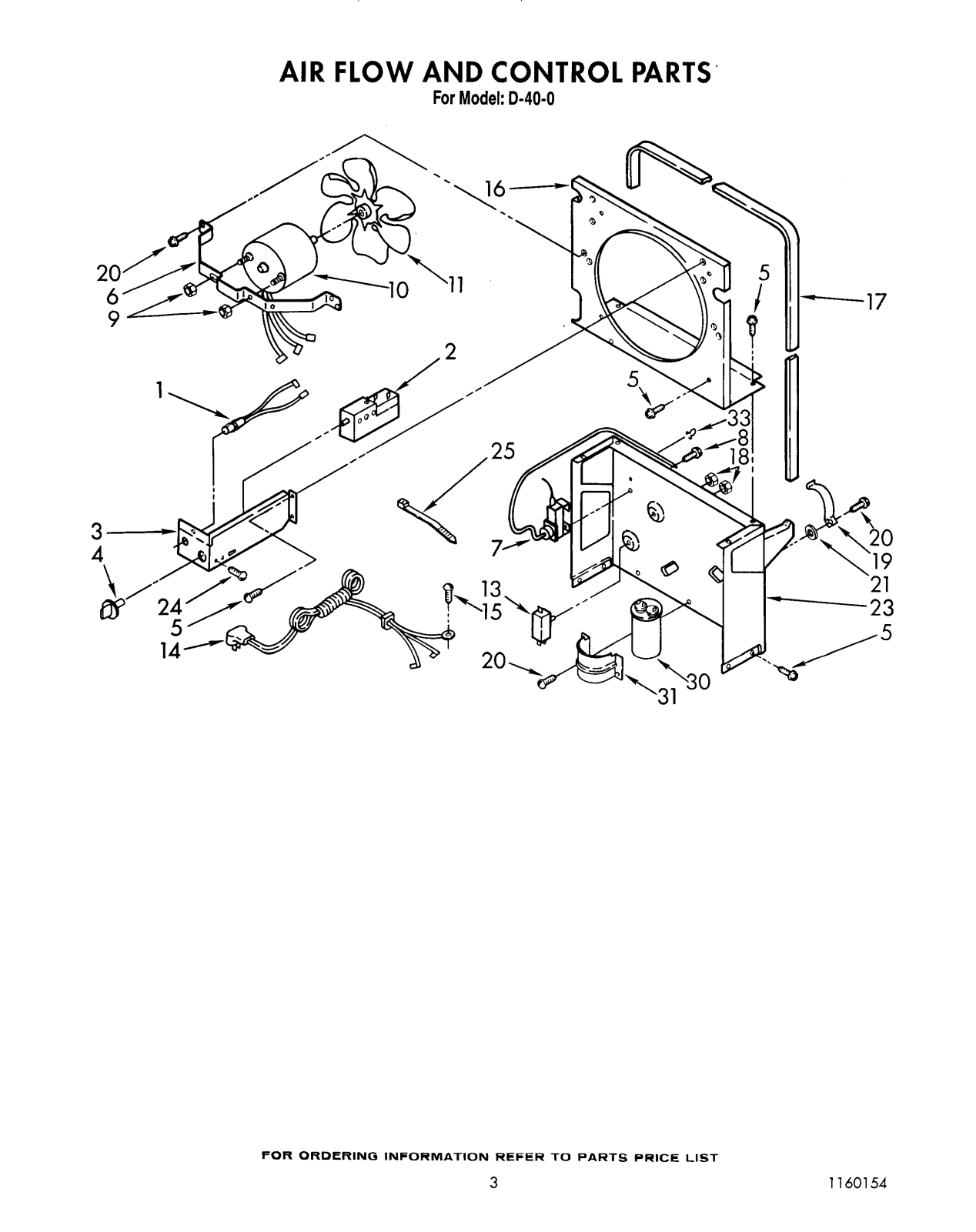

UNIT PARTS

For Model: D400

ILL PART
NO. NO. DESCRIPTION

1 951684 Tube, Restrictor (46.0" Length)
3 474013 Strainer, Tube
4 951349 Tube, Outlet (Includes No.3)
5 951345 Condenser
8 646498 Sleeve (4)
9 950061 Spring, Overload
10 951417 Overload, Protector
11 876944 Plate, Compressor
12 950055 Cover, Terminal
13 950056 Retainer, Cover
14 1159233 Evaporator
15 488624 Screw, 8 x 3/8 (4)
16 998867 Seal
17 486197 Nut, #8 (4)
18 488400 Screw, 1/4-28 x 1" (3)
19 484136 Harness, Wire
20 646499 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
23 489015 Roll Pin (2)
24 951886 Glide (2)
25 876949 Compressor, Service (Complete Assembly)
26 643299 Retainer, Cover
27 589230 Cover, Terminal
28 643295 Overload
29 798469 Spring, Overload
31 1155633 Bend, Return (13)
32 1155631 Bend, Return
33 643179 Spring, Clip
