Whirlpool D30b0 Installation Template

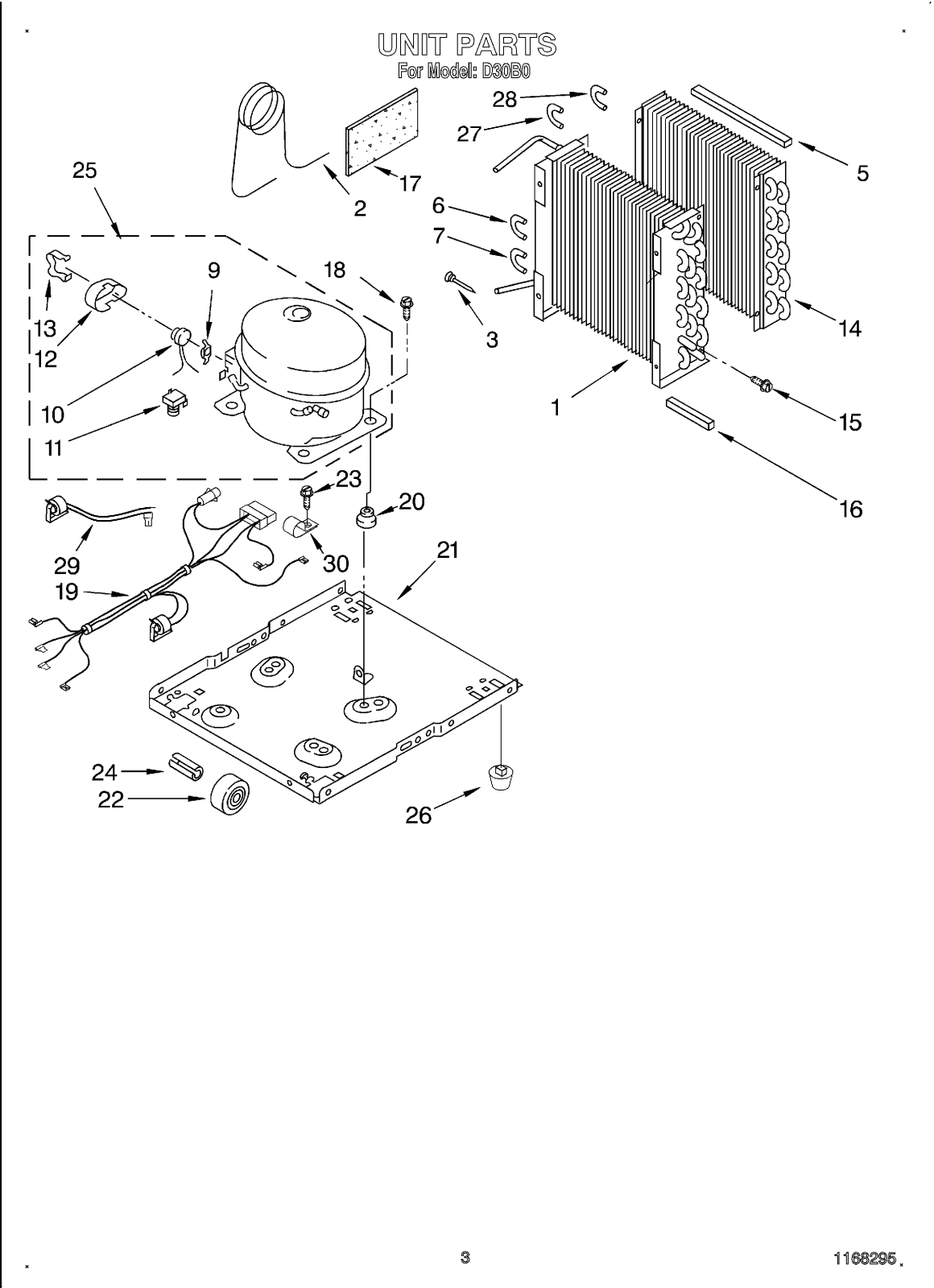

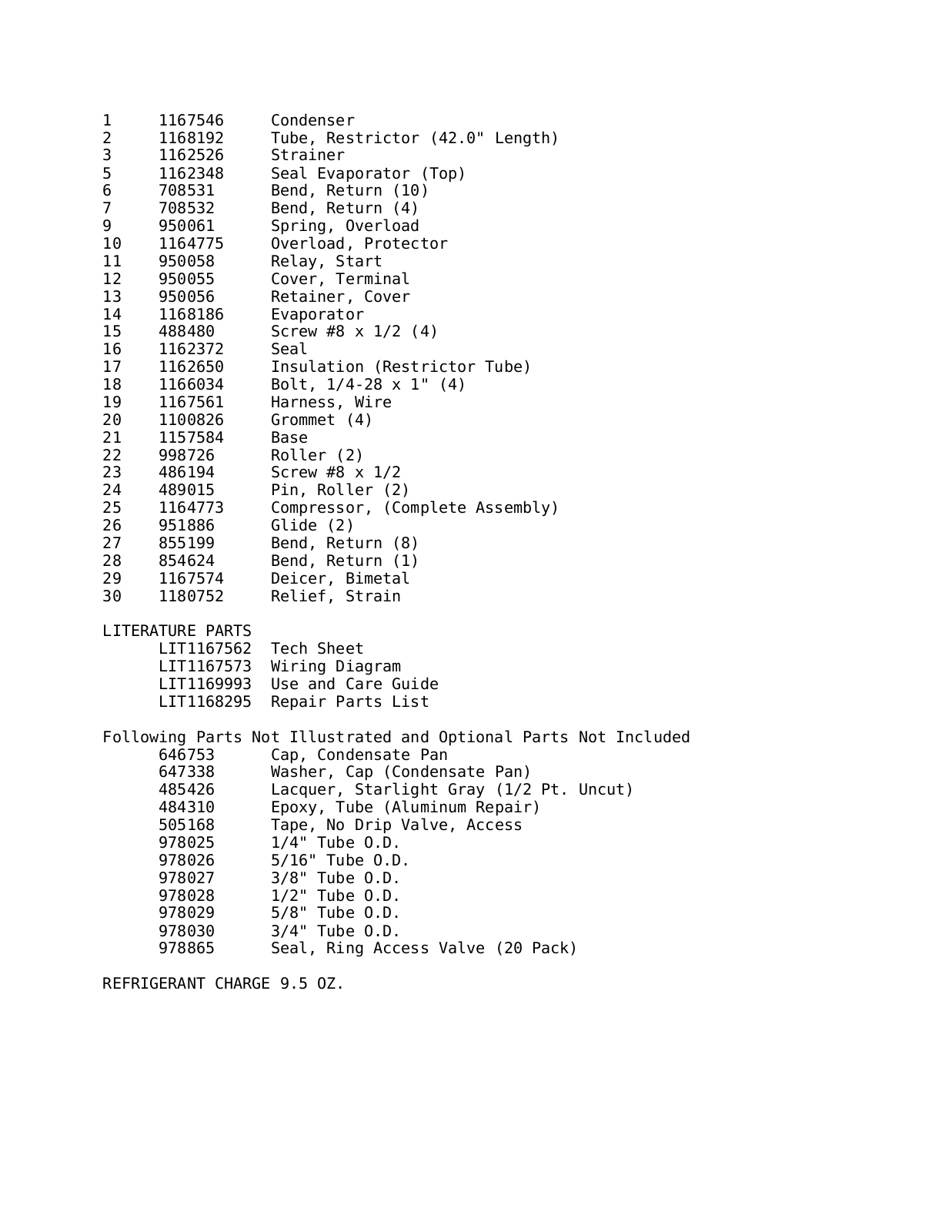

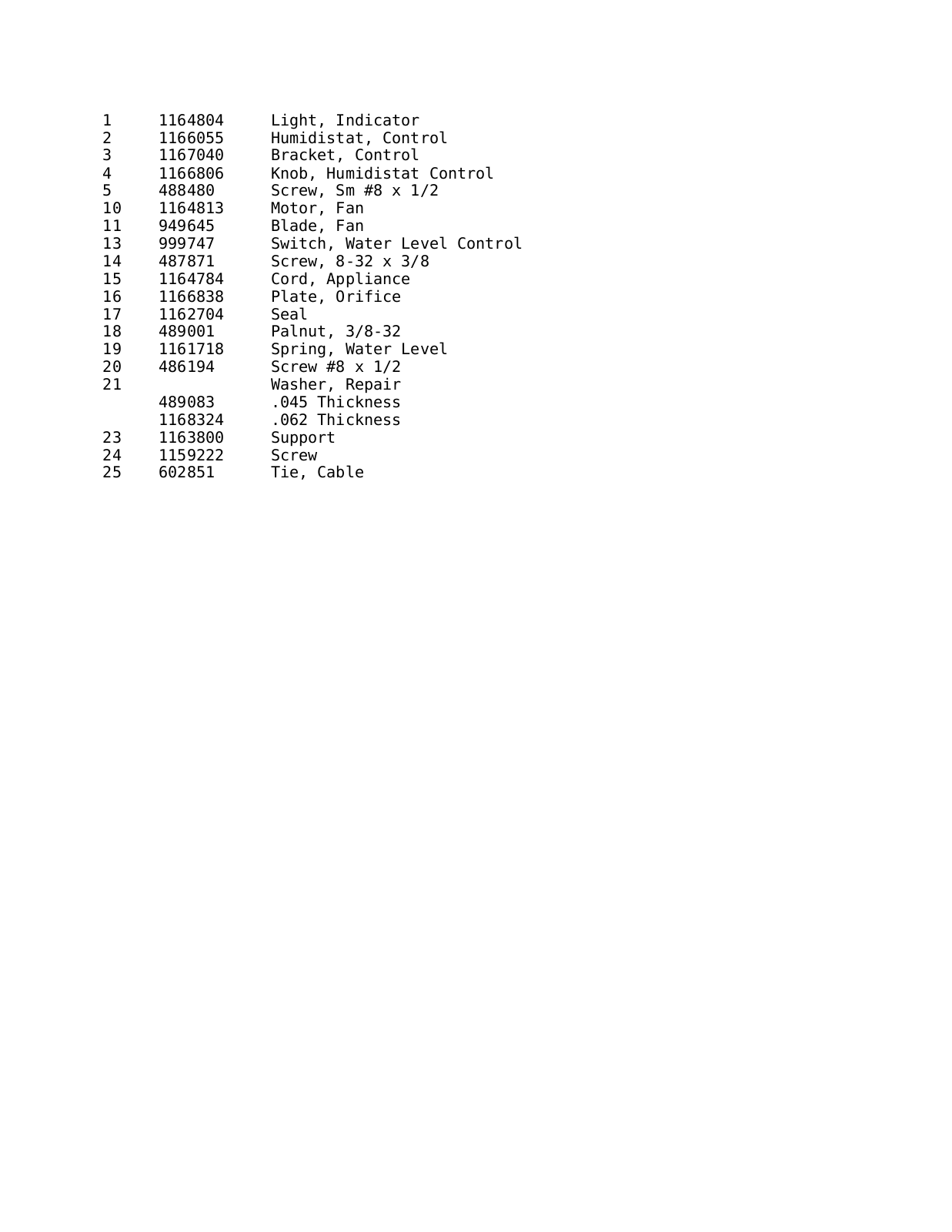

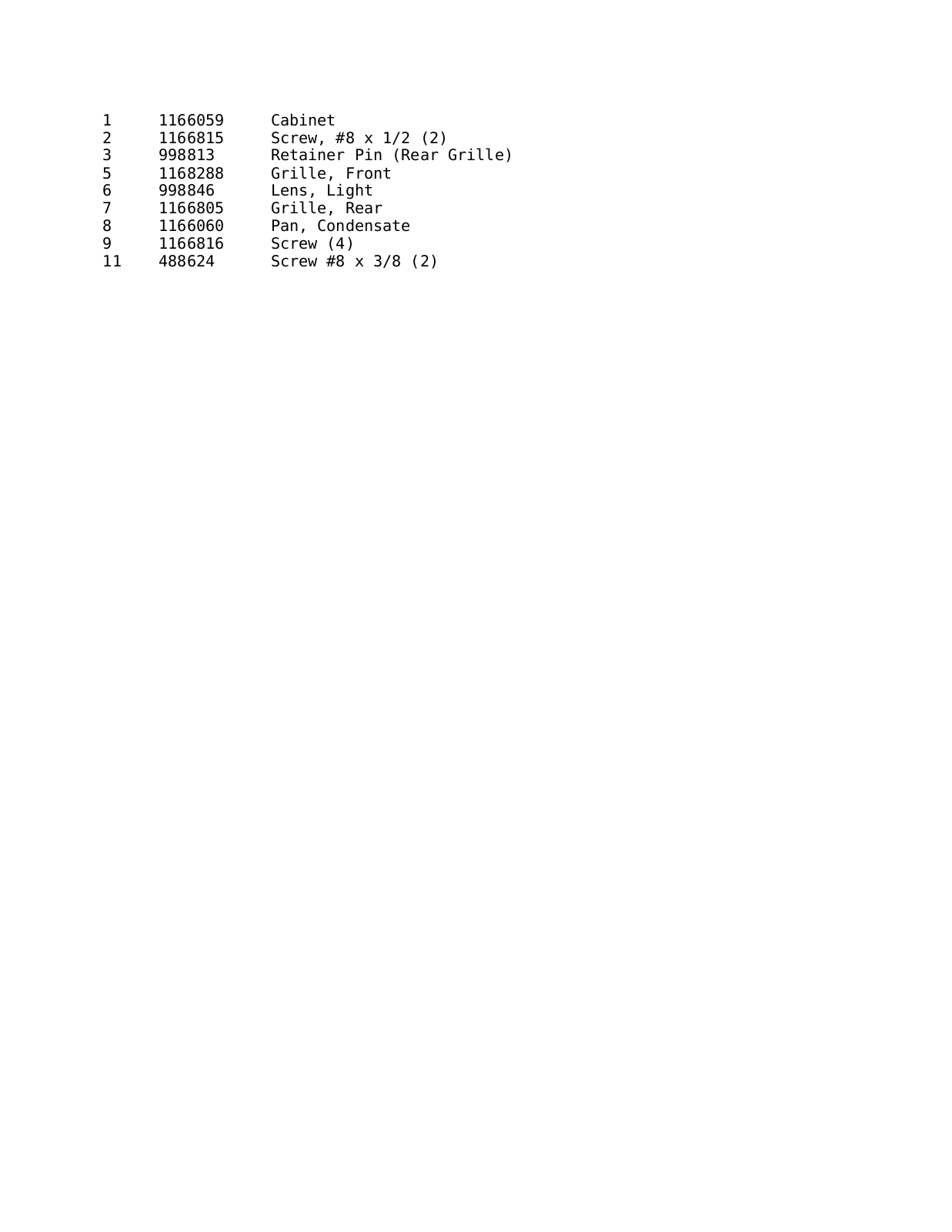

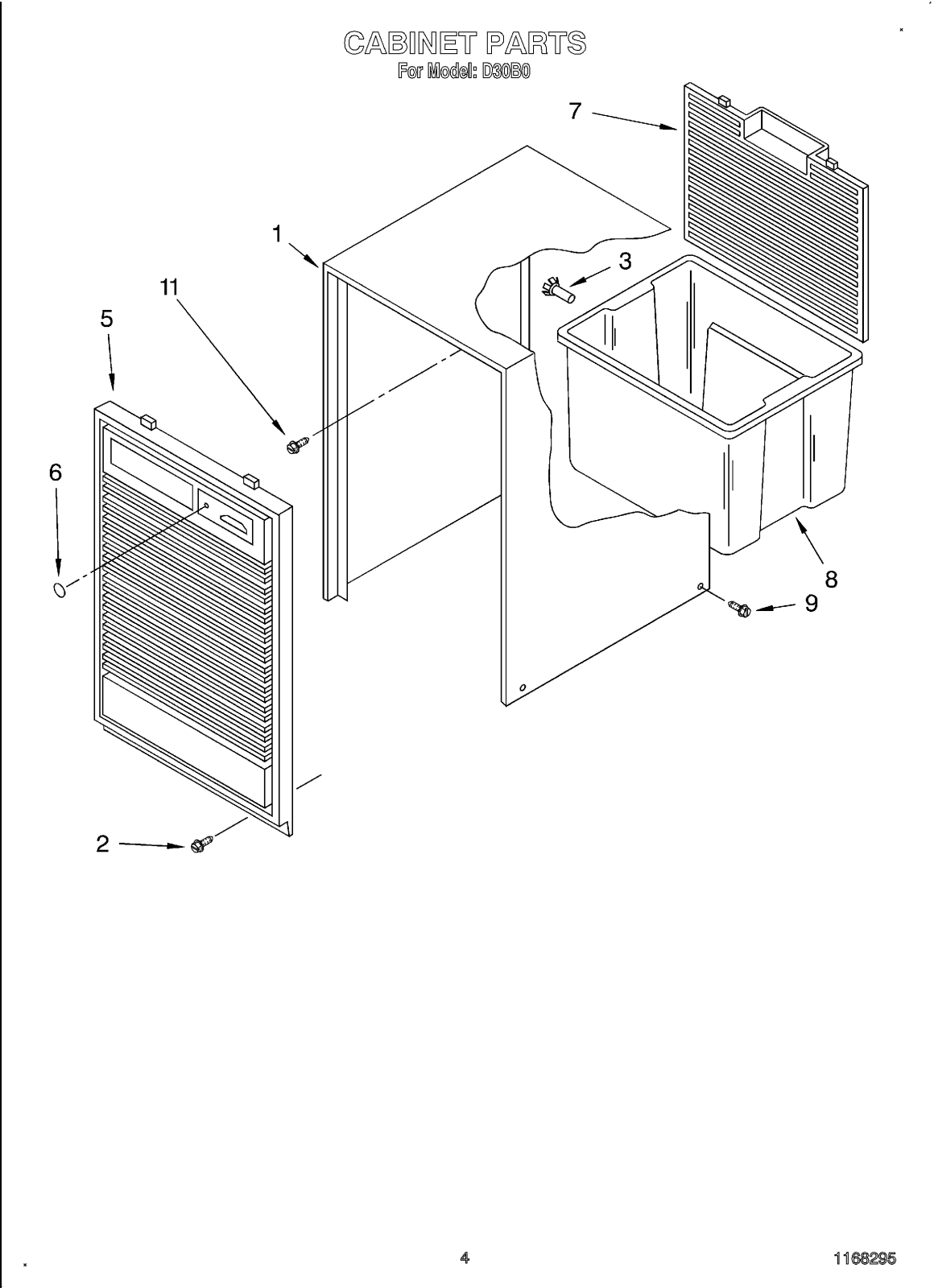

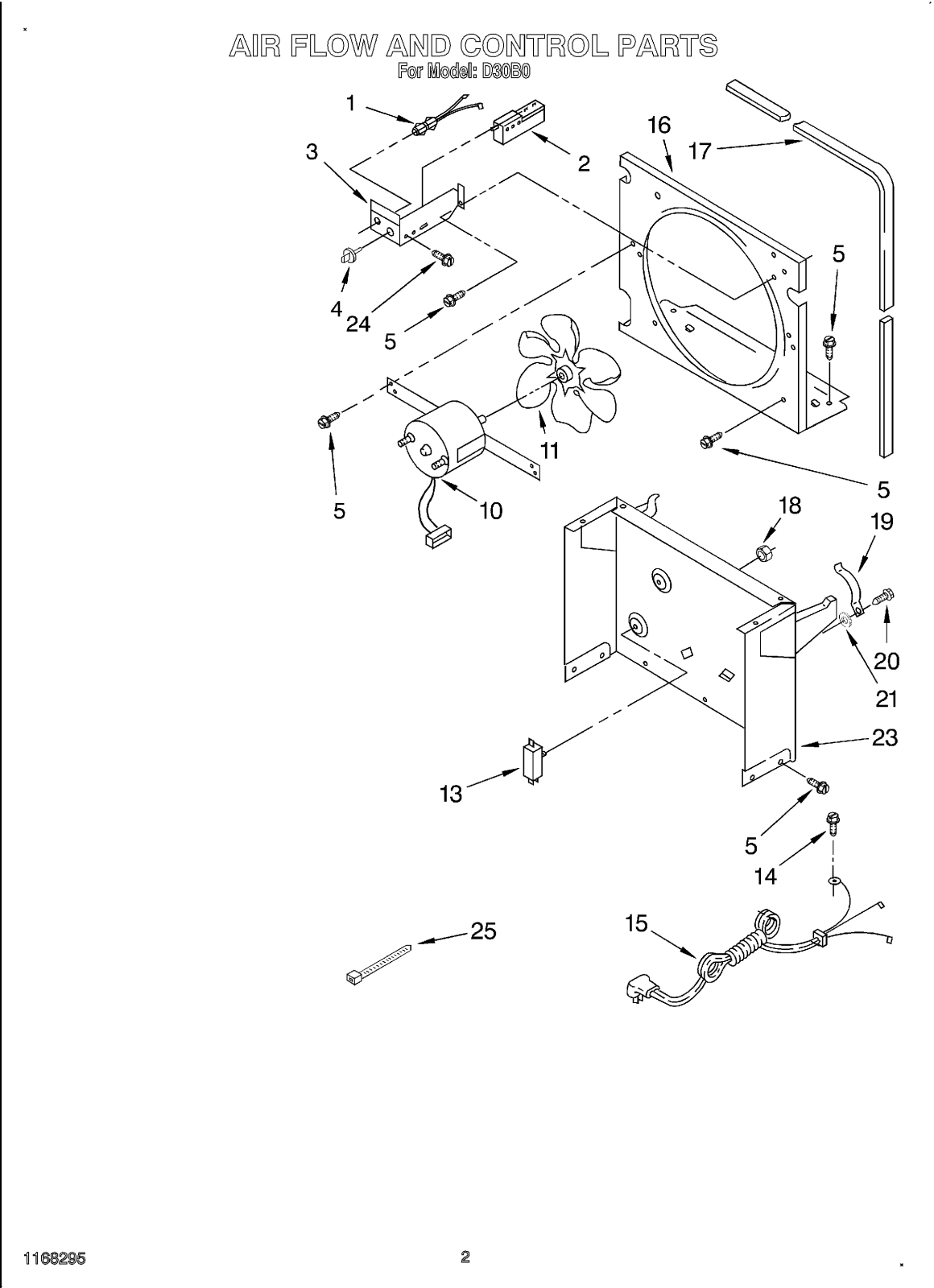

1 1164804 Light, Indicator
2 1166055 Humidistat, Control
3 1167040 Bracket, Control
4 1166806 Knob, Humidistat Control
5 488480 Screw, Sm #8 x 1/2
10 1164813 Motor, Fan
11 949645 Blade, Fan
13 999747 Switch, Water Level Control
14 487871 Screw, 8-32 x 3/8
15 1164784 Cord, Appliance
16 1166838 Plate, Orifice
17 1162704 Seal
18 489001 Palnut, 3/8-32
19 1161718 Spring, Water Level
20 486194 Screw #8 x 1/2
21 Washer, Repair

489083 .045 Thickness

1168324 .062 Thickness
23 1163800 Support
24 1159222 Screw
25 602851 Tie, Cable
