Whirlpool D30a3, D30a3 Installation Template

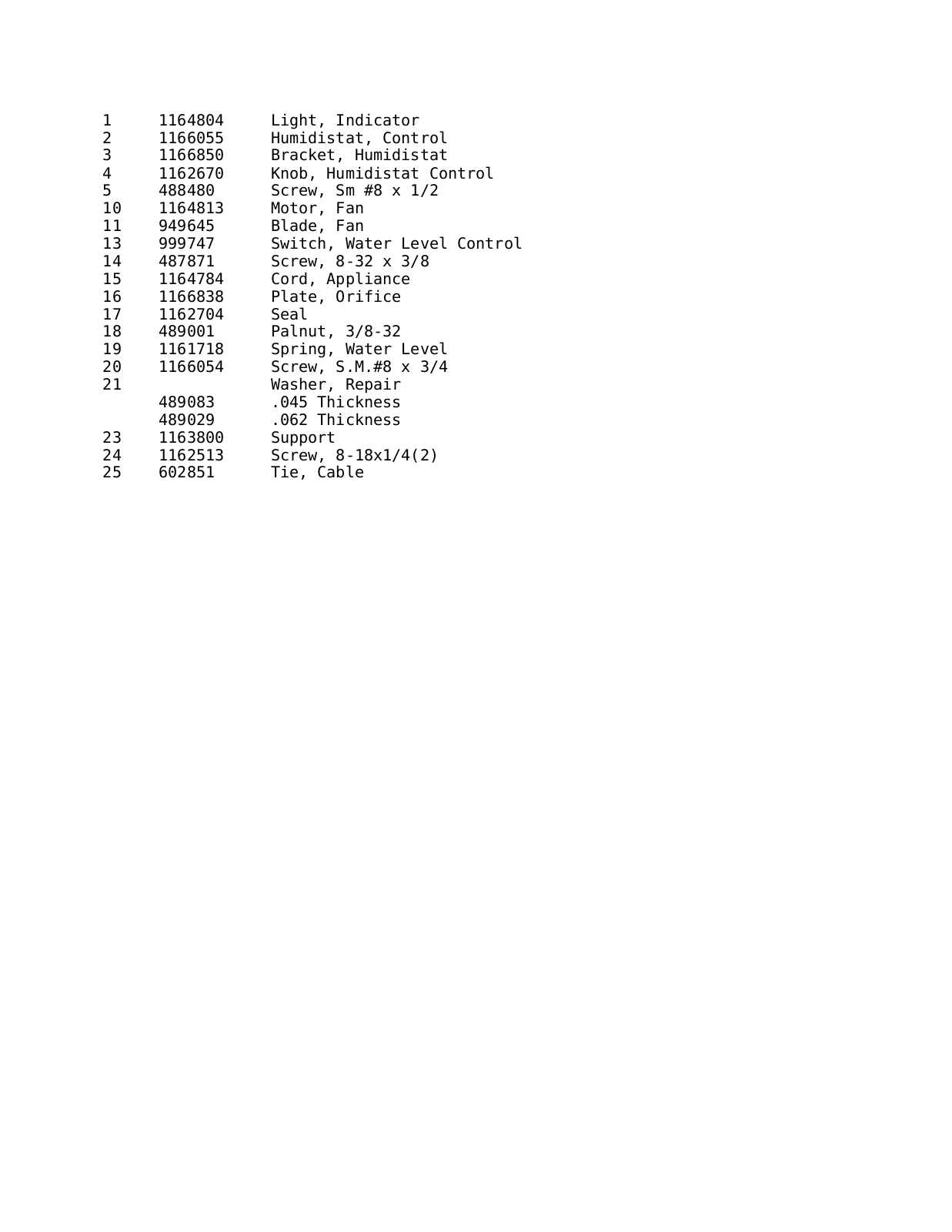

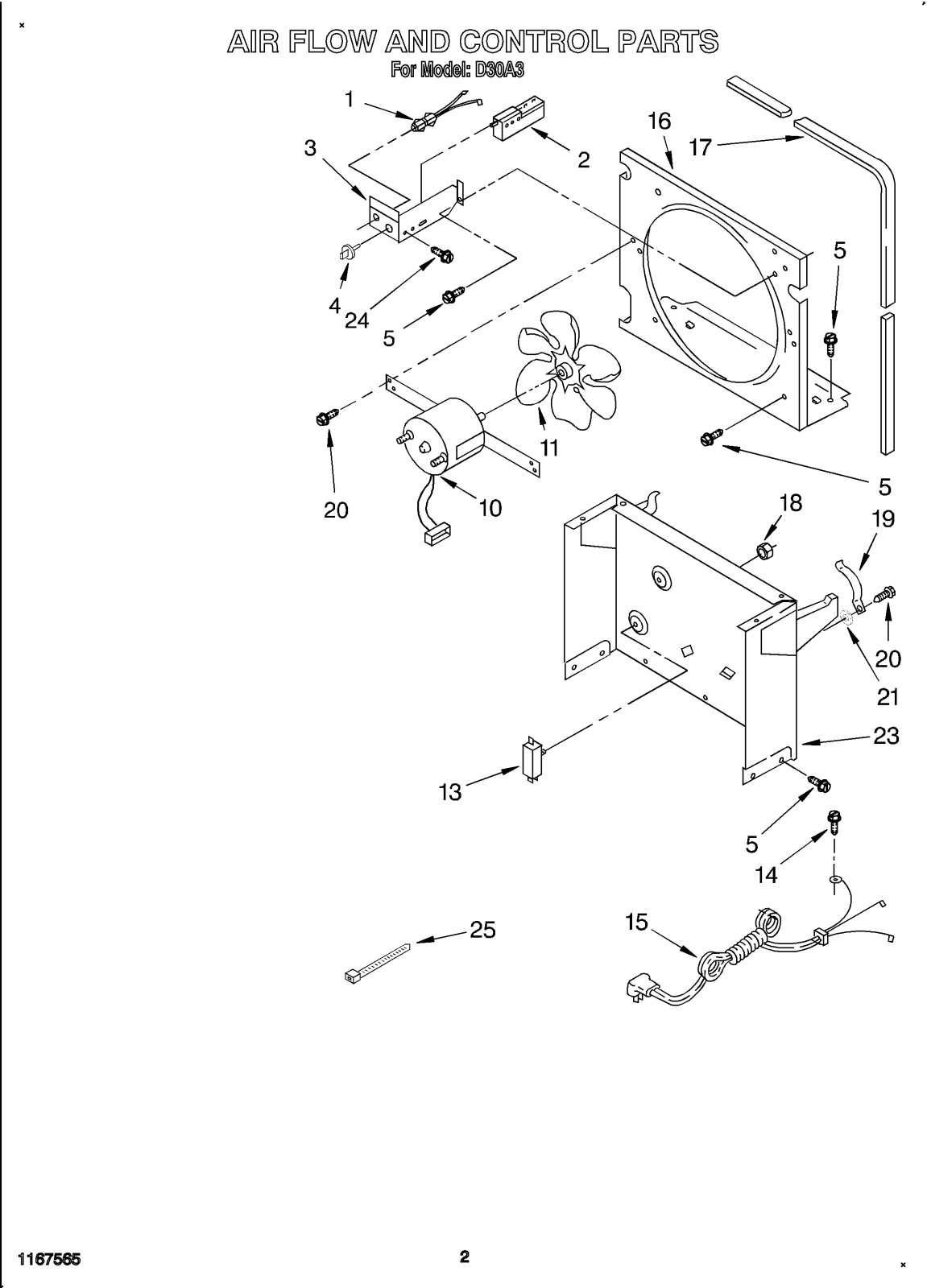

1 1164804 Light, Indicator 2 1166055 Humidistat, Control 3 1166850 Bracket, Humidistat 4 1162670 Knob, Humidistat Control 5 488480 Screw, Sm #8 x 1/2 10 1164813 Motor, Fan 11 949645 Blade, Fan 13 999747 Switch, Water Level Control 14 487871 Screw, 8-32 x 3/8 15 1164784 Cord, Appliance 16 1166838 Plate, Orifice 17 1162704 Seal 18 489001 Palnut, 3/8-32 19 1161718 Spring, Water Level 20 1166054 Screw, S.M.#8 x 3/4 21 Washer, Repair
489083 .045 Thickness
489029 .062 Thickness 23 1163800 Support 24 1162513 Screw, 8-18x1/4(2) 25 602851 Tie, Cable
