Page 1
Page 2
Page 3

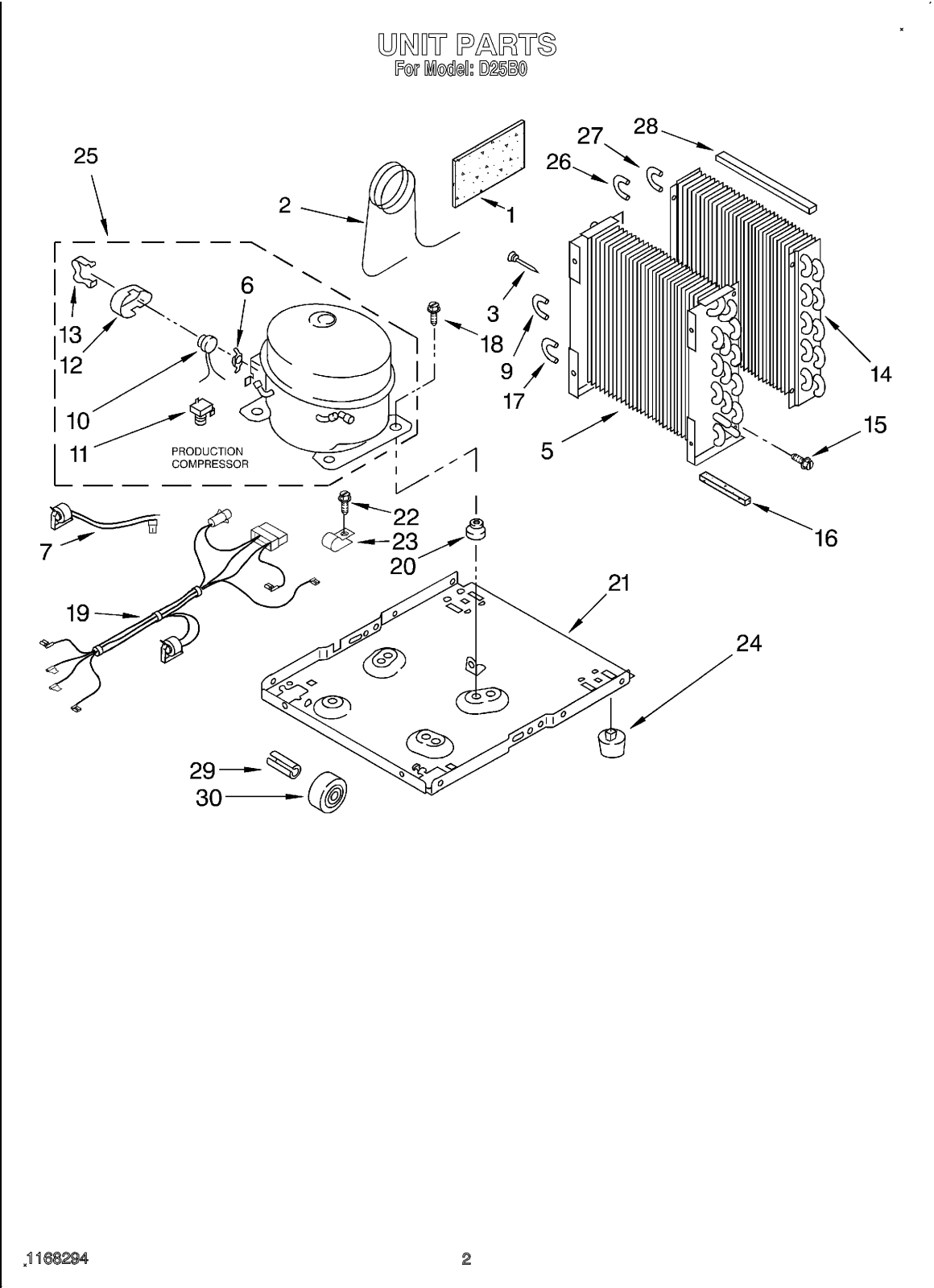

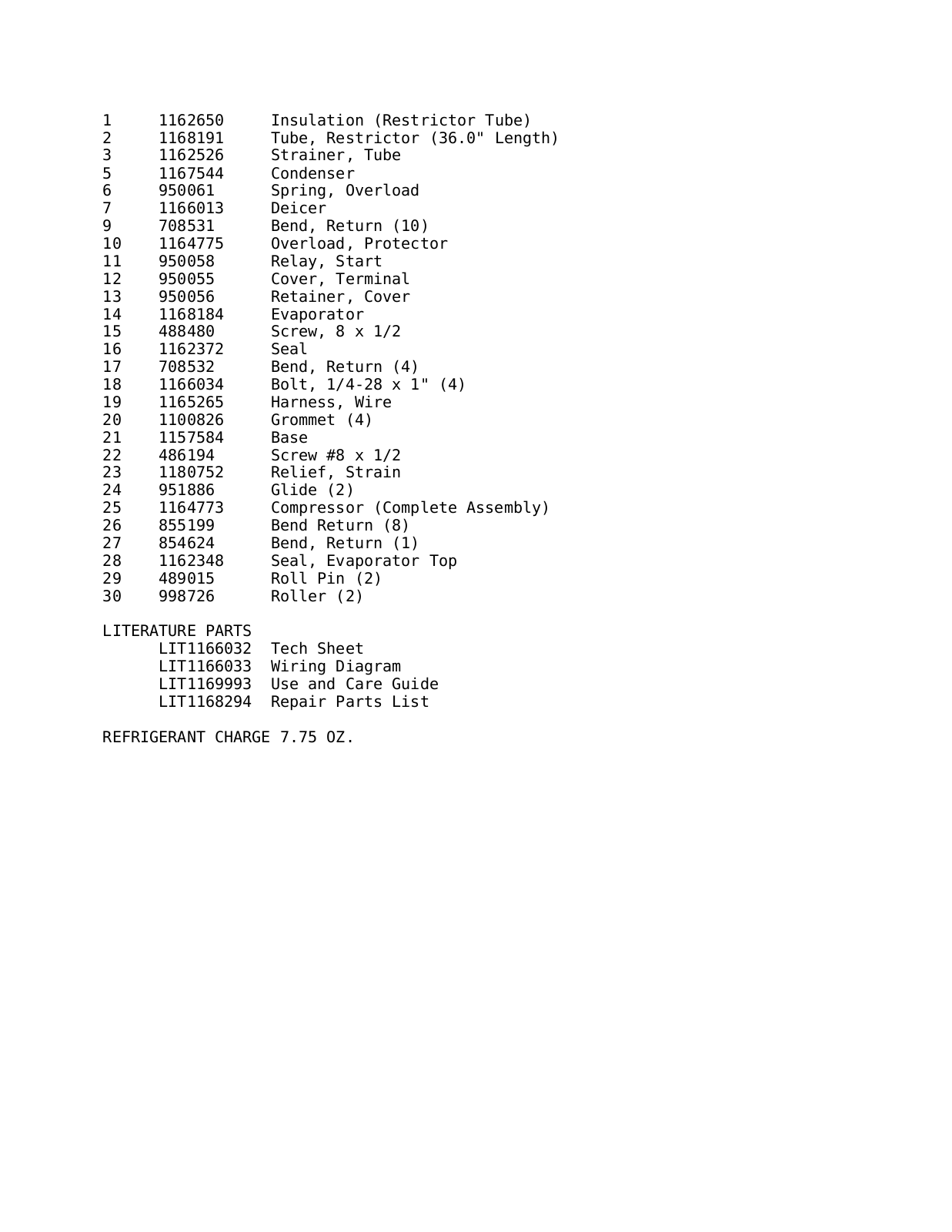

1 1162650 Insulation (Restrictor Tube)
2 1168191 Tube, Restrictor (36.0" Length)
3 1162526 Strainer, Tube
5 1167544 Condenser
6 950061 Spring, Overload
7 1166013 Deicer
9 708531 Bend, Return (10)
10 1164775 Overload, Protector
11 950058 Relay, Start
12 950055 Cover, Terminal
13 950056 Retainer, Cover
14 1168184 Evaporator
15 488480 Screw, 8 x 1/2
16 1162372 Seal
17 708532 Bend, Return (4)
18 1166034 Bolt, 1/4-28 x 1" (4)
19 1165265 Harness, Wire
20 1100826 Grommet (4)
21 1157584 Base
22 486194 Screw #8 x 1/2
23 1180752 Relief, Strain
24 951886 Glide (2)
25 1164773 Compressor (Complete Assembly)
26 855199 Bend Return (8)
27 854624 Bend, Return (1)
28 1162348 Seal, Evaporator Top
29 489015 Roll Pin (2)
30 998726 Roller (2)
LITERATURE PARTS
LIT1166032 Tech Sheet
LIT1166033 Wiring Diagram
LIT1169993 Use and Care Guide
LIT1168294 Repair Parts List
REFRIGERANT CHARGE 7.75 OZ.
Page 4
Page 5

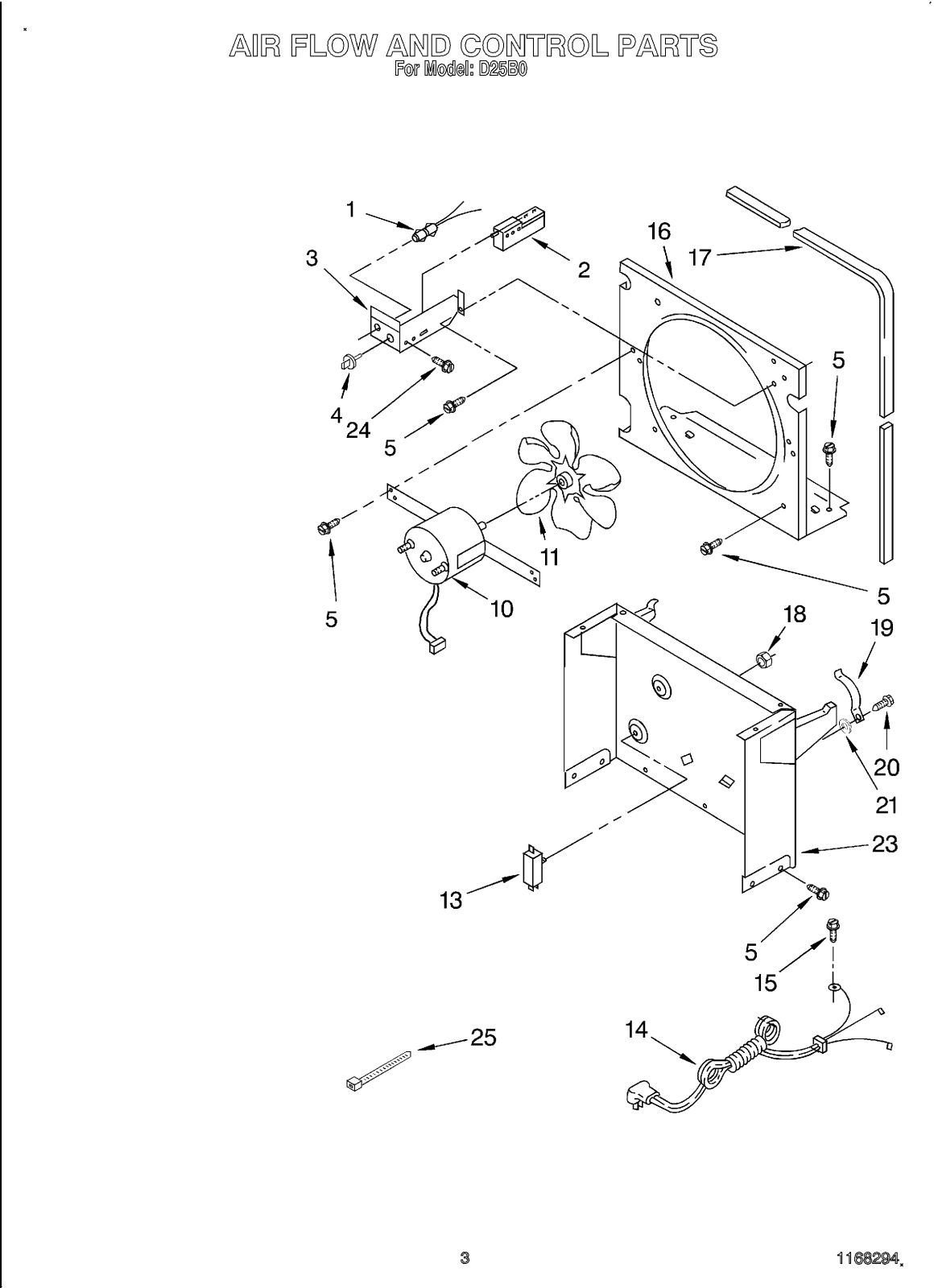

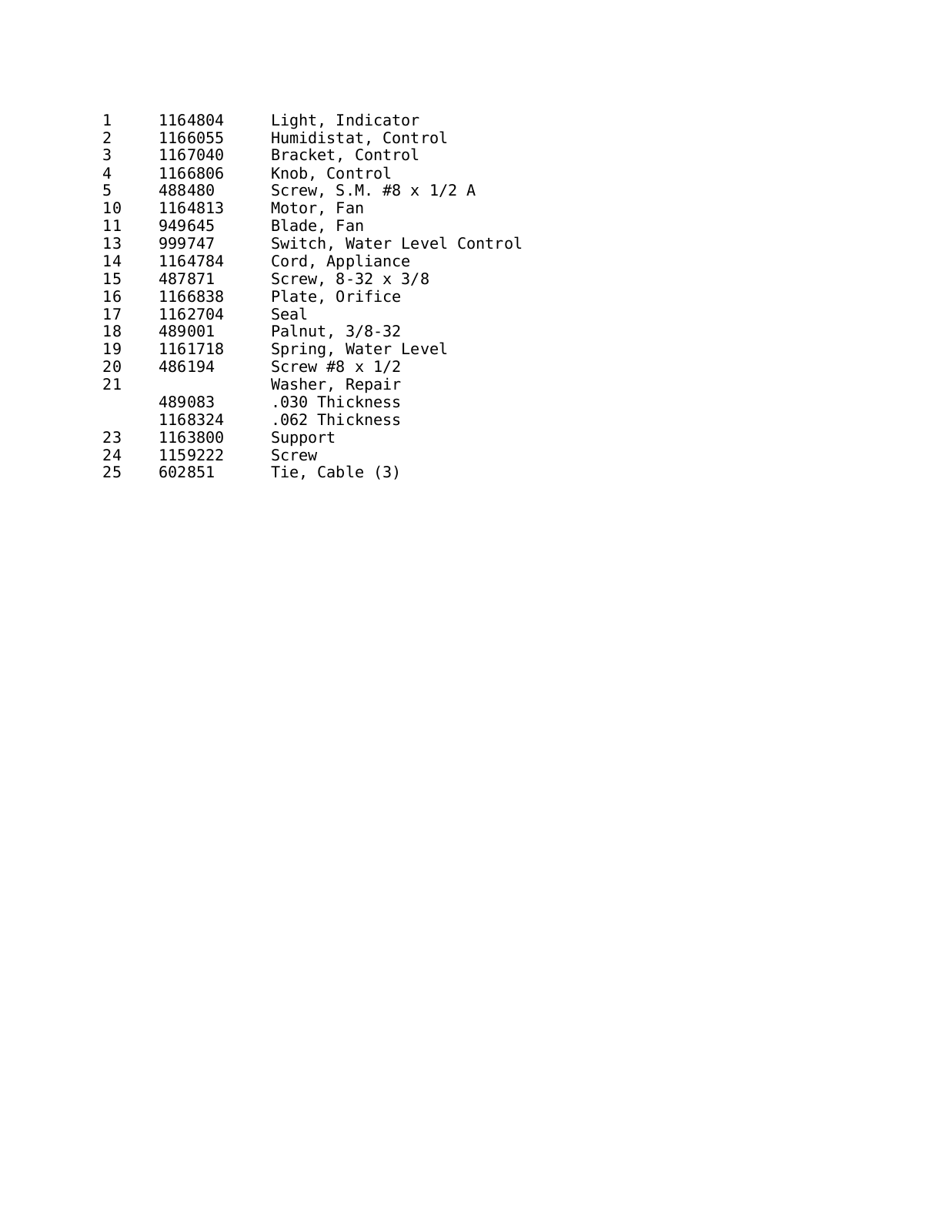

1 1164804 Light, Indicator
2 1166055 Humidistat, Control
3 1167040 Bracket, Control
4 1166806 Knob, Control
5 488480 Screw, S.M. #8 x 1/2 A
10 1164813 Motor, Fan
11 949645 Blade, Fan
13 999747 Switch, Water Level Control
14 1164784 Cord, Appliance
15 487871 Screw, 8-32 x 3/8
16 1166838 Plate, Orifice
17 1162704 Seal
18 489001 Palnut, 3/8-32
19 1161718 Spring, Water Level
20 486194 Screw #8 x 1/2
21 Washer, Repair
489083 .030 Thickness
1168324 .062 Thickness
23 1163800 Support
24 1159222 Screw
25 602851 Tie, Cable (3)
Page 6
Page 7

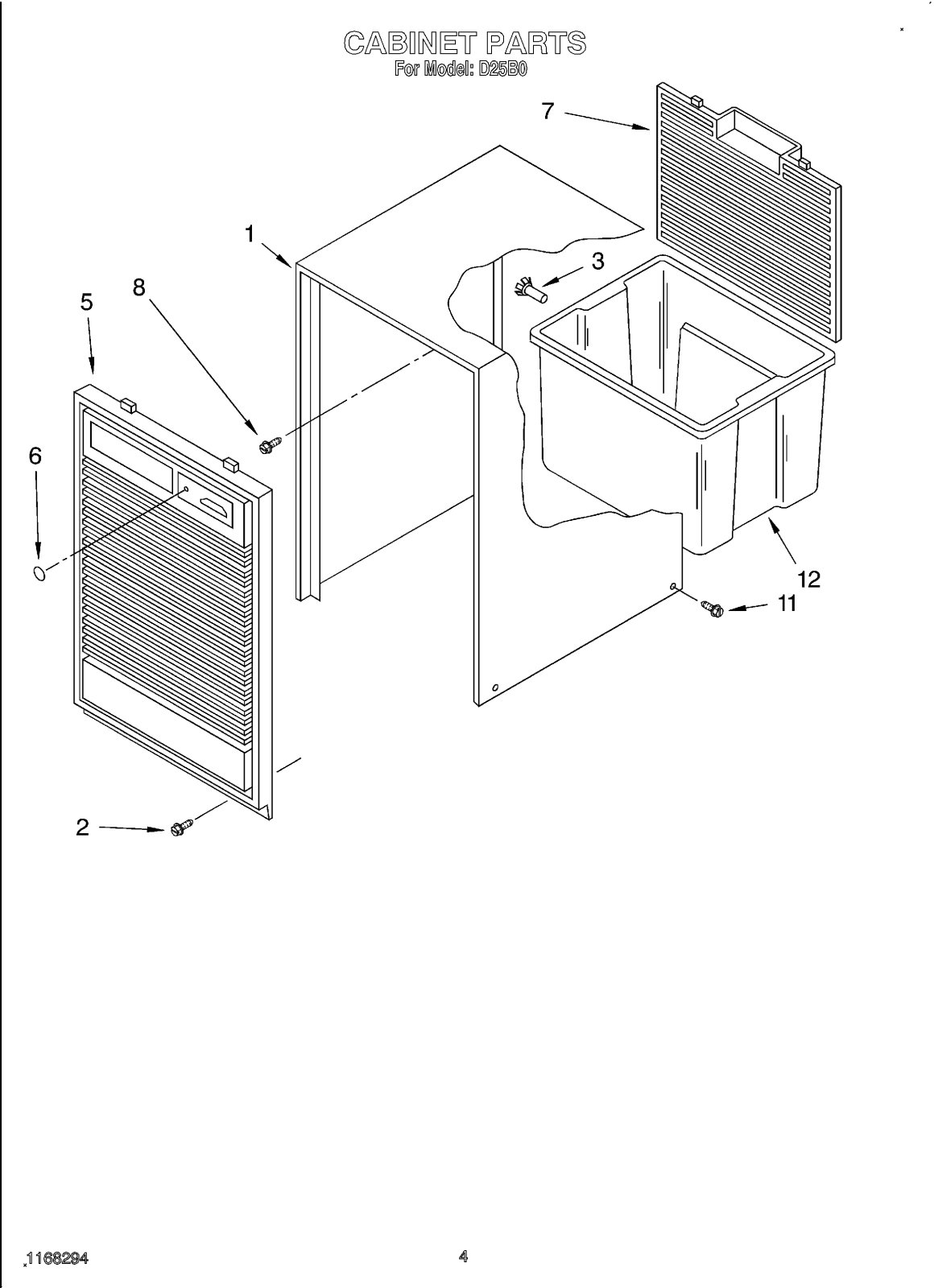

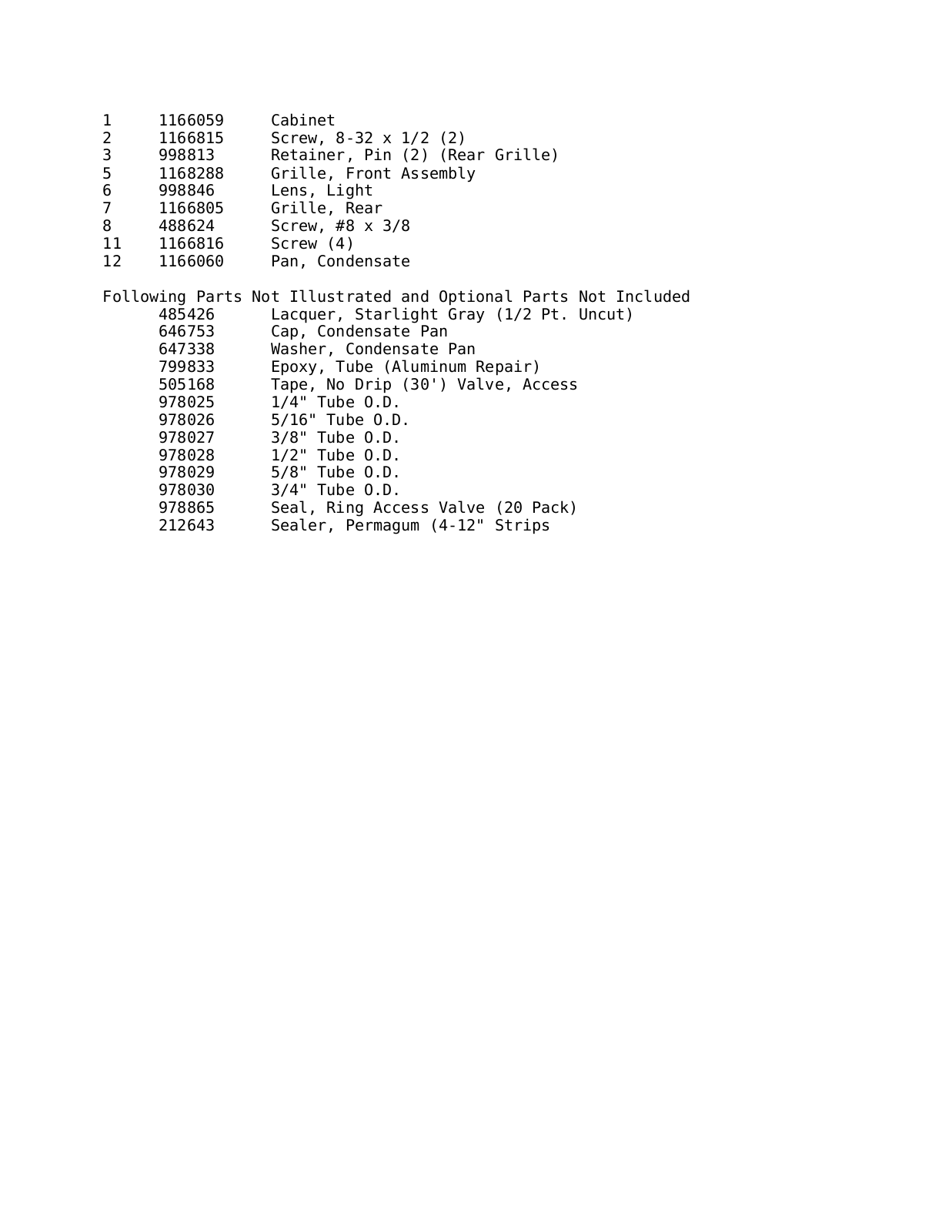

1 1166059 Cabinet
2 1166815 Screw, 8-32 x 1/2 (2)
3 998813 Retainer, Pin (2) (Rear Grille)
5 1168288 Grille, Front Assembly
6 998846 Lens, Light
7 1166805 Grille, Rear
8 488624 Screw, #8 x 3/8
11 1166816 Screw (4)
12 1166060 Pan, Condensate
Following Parts Not Illustrated and Optional Parts Not Included
485426 Lacquer, Starlight Gray (1/2 Pt. Uncut)
646753 Cap, Condensate Pan
647338 Washer, Condensate Pan
799833 Epoxy, Tube (Aluminum Repair)
505168 Tape, No Drip (30') Valve, Access
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865 Seal, Ring Access Valve (20 Pack)
212643 Sealer, Permagum (4-12" Strips
