2 1162154 Tube, Restrictor
3 1162526 Strainer, Tube
4 646498 Sleeve
5 1163097 Condenser
6 950061 Spring, Overload
7 1166013 Deicer
8 1158407 Bend, Return (1)
9 708531 Bend, Return (8)
10 1164775 Overload, Protector
11 950058 Relay, Start
12 950055 Cover, Terminal
13 950056 Retainer, Cover
14 1161199 Evaporator
15 488480 Screw, 8 x 1/2
16 1162372 Seal
17 708532 Bend, Return (4)
18 1166034 Bolt, 1/4-28 x 1" (4)
19 1165265 Harness, Wire
20 646499 Grommet (4)
21 1157584 Base
23 1156533 Bend, Return (1)
24 951886 Glide (2)
25 1164773 Compressor (Complete Assembly)
26 855199 Bend Return (8)
27 854624 Bend, Return (1)
28 1162348 Seal, Evaporator Top
29 489015 Roll Pin (2)
30 998726 Roller (2)
LITERATURE PARTS
LIT1166032 Sheet, Tech
LIT1166033 Wiring Diagram
LIT1162709 Use and Care Guide
LIT1166001 List, Repair Parts
REFRIGERANT CHARGE 7.75 OZ.

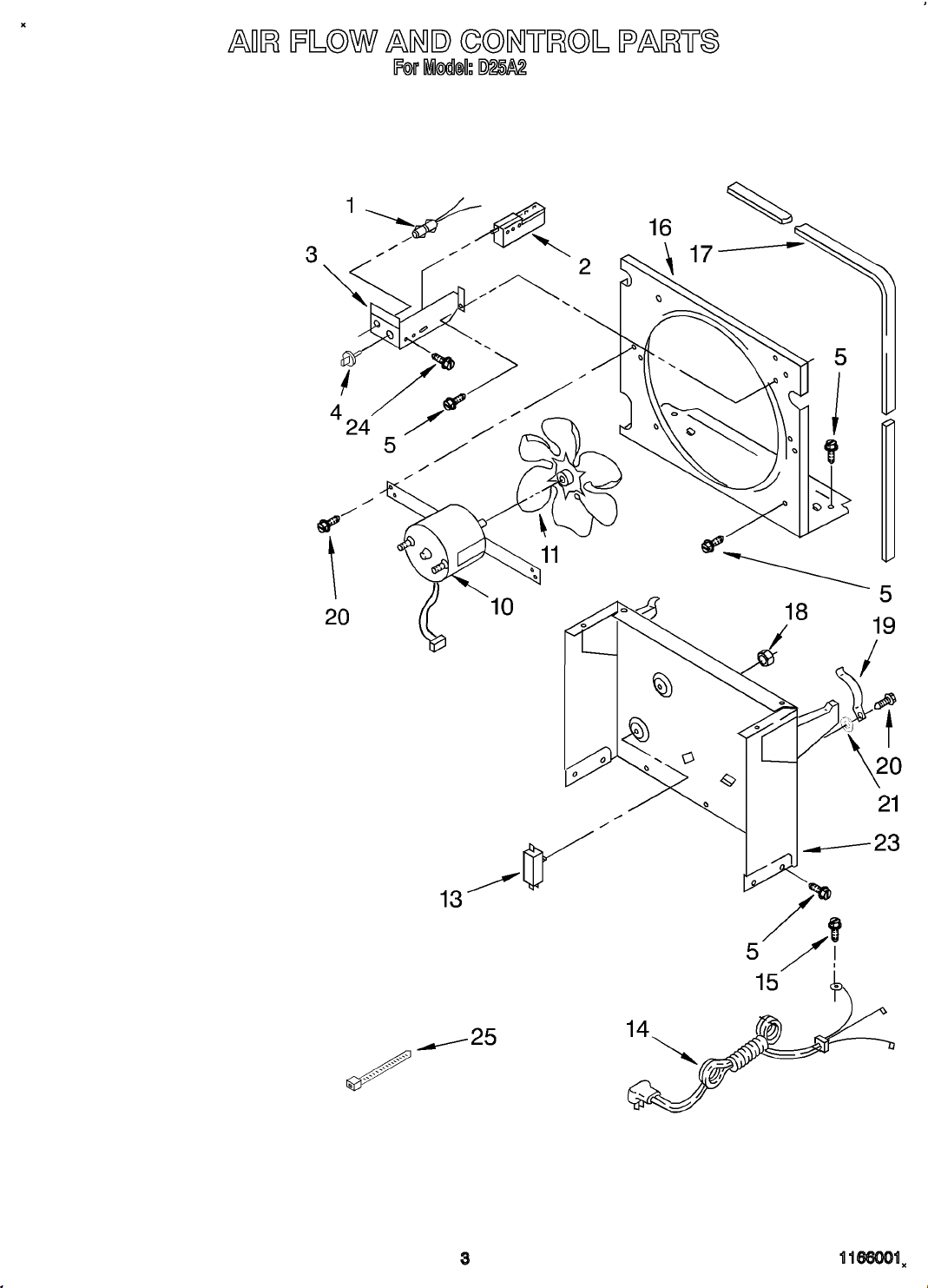

1 1164804 Light, Indicator
2 1162578 Humidistat, Control
3 951284 Bracket, Control
4 1162670 Knob, Control
5 488480 Screw, S.M. #8 x 1/2 A
10 1164813 Motor, Fan
11 949645 Blade, Fan
13 999747 Switch, Water Level Control
14 1164784 Cord, Appliance
15 487871 Screw, 8-32 x 3/8
16 998779 Plate, Orifice
17 1162704 Seal
18 489001 Palnut, 3/8-32
19 1161718 Spring, Water Level
20 1166054 Screw 8-18 x 5/8
21 Washer, Repair
489083 .030 Thickness
489029 .062 Thickness
23 1163800 Support
24 1162513 Screw, 8-18 x 1/4
25 602851 Tie, Cable (3)
1 998821 Cabinet
2 1164763 Screw, 8-32 x 1/2 (2)
3 998813 Retainer, Pin (2) (Rear Grille)
5 1162665 Grille, Front Assembly
6 998846 Lens, Light
7 998832 Grille, Rear
8 489073 Screw, #8 x 3/8
9 948584 Spacer, Grille
11 1158781 Screw,
12 951901 Pan, Condensate
Following Parts Not Illustrated and Optional Parts Not Included
485426 Lacquer, Starlight Gray (1/2 Pt. Uncut)
646753 Cap, Condensate Pan
647338 Washer, Condensate Pan
799833 Epoxy, Tube (Aluminum Repair)
505168 Tape, No Drip (30') Valve, Access
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865 Seal, Ring Access Valve (20 Pack)
212643 Sealer, Permagum (4-12" Strips)
