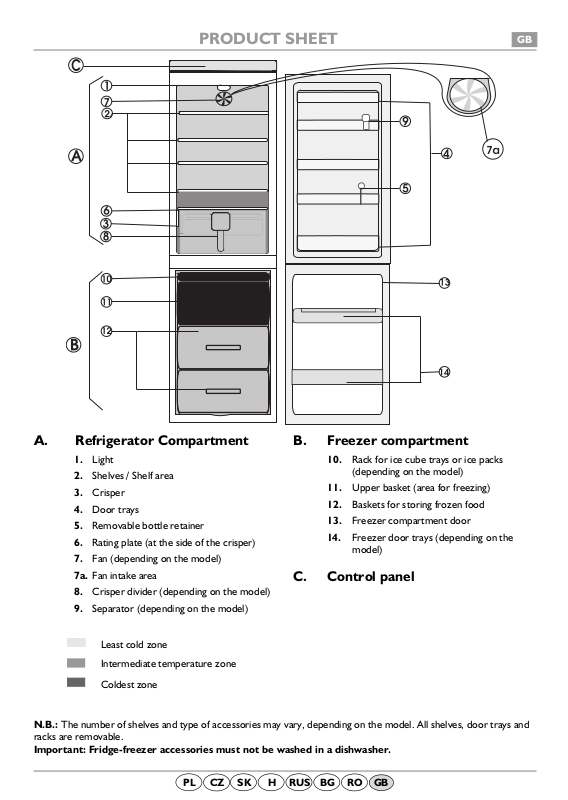

Whirlpool ARC 5722, CZE 236A/AL PROGRAM CHART

PRODUCT SHEET

A. Refrigerator Compartment

Light

Shelves / Shelf area

Crisper

Door trays

Removable bottle retainer

Rating plate (at the side of the crisper)

Fan (depending on the model)

Fan intake area

7a.

Crisper divider (depending on the model)

Separator (depending on the model)

Least cold zone Intermediate temperature zone

Coldest zone

The number of shelves and type of accessories may vary, depending on the model. All shelves, door trays and

N.B.:

racks are removable.

Important: Fridge-freezer accessories must not be washed in a dishwasher.

SK H RUS BG

B. Freezer compartment

Rack for ice cube trays or ice packs

10.

(depending on the model) Upper basket (area for freezing)

11.

Baskets for storing frozen food

12.

Freezer compartment door

13.

Freezer door trays (depending on the

14.

model)

C. Control panel

The fridge-freezer is switched on by means of the thermostat located on the frame/top section or on front panel. This thermostat is used to adjust the temperature in both the refrigerator and freezer compartments.

Control panel features

Thermostat knob (depending on model)

Appliance internal temperature control:

Thermostat set to Thermostat set to Thermostat set to

The recommended thermostat setting: 3-4/Med position.

Fan (depending on the model)

The fan gives more even temperature distribution inside the refrigerator compartment, thus allowing better conservation of stored food.

The fan can be switched by pressing the specific button (if provided - depending on the model).

Important:

The electronic device activates the fan when it is necessary.

DO NOT obstruct

The fridge-freezer can operate at ambient temperatures between +16°C and + 38°C.

Ambient air temperature, the frequency of door opening and the position of the appliance can affect the internal

Note:

temperatures of the appliance. These factors must be taken into account when setting the thermostat.

0/Off: 1-min: 7-max:

the fan is electrically operated.

the fan area (7a) with food.

appliance switched off.

minimum maximum

refrigeration.
