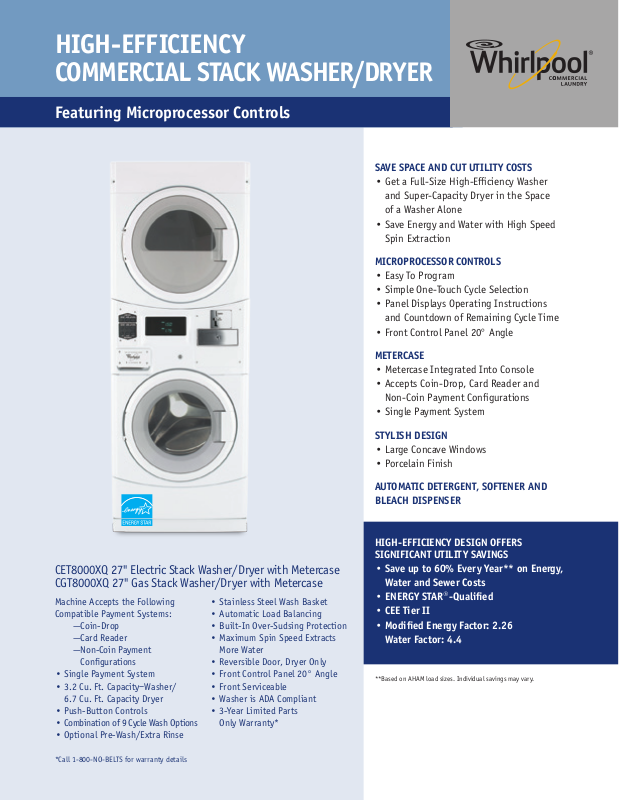

Whirlpool CGT8000XQ Specification Sheet

HIGH-EFFICIENCY COMMERCIAL STACK WASHER/DRYER

Featuring Microprocessor Controls

SAVE SPACE AND CUT UTILITY COSTS

• Get a Full-Size High-Efﬁciency Washer and Super-Capacity Dryer in the Space of a Washer Alone

• Save Energy and Water with High Speed Spin Extraction

MICROPROCESSOR CONTROLS

• Easy To Program

• Simple One-Touch Cycle Selection

• Panel Displays Operating Instructions and Countdown of Remaining Cycle Time

• Front Control Panel 20° Angle

CET8000XQ 27" Electric Stack Washer/Dryer with Metercase CGT8000XQ 27" Gas Stack Washer/Dryer with Metercase

Machine Accepts the Following Compatible Payment Systems: —Coin-Drop —Card Reader — Non-Coin Payment

Conﬁgurations

• Single Payment System

• 3.2 Cu. Ft. Capacity–Washer/

6.7 Cu. Ft. Capacity Dryer

• Push-Button Controls

• Combination of 9 Cycle Wash Options

• Optional Pre-Wash/Extra Rinse

• Stainless Steel Wash Basket

• Automatic Load Balancing

• Built-In Over-Sudsing Protection

• Maximum Spin Speed Extracts More Water

• Reversible Door, Dryer Only

• Front Control Panel 20° Angle

• Front Serviceable

• Washer is ADA Compliant

• 3-Year Limited Parts Only Warranty*

METERCASE

• Metercase Integrated Into Console

• Accepts Coin-Drop, Card Reader and Non-Coin Payment Conﬁgurations

• Single Payment System

STYLISH DESIGN

• Large Concave Windows

• Porcelain Finish

AUTOMATIC DETERGENT, SOFTENER AND BLEACH DISPENSER

HIGH-EFFICIENCY DESIGN OFFERS SIGNIFICANT UTILITY SAVINGS

• Save up to 60% Every Year** on Energy, Water and Sewer Costs

• ENERGY STAR®-Qualiﬁed

• CEE Tier II

• Modiﬁed Energy Factor: 2.26 Water Factor: 4.4

* *Based on AHAM load sizes. Individual savings may vary.

*Call 1-800-NO-BELTS for warranty details

HIGH-EFFICIENCY COMMERCIAL STACK WASHER/DRYER

Featuring Microprocessor Controls

Whirlpool® High-Efﬁciency Commercial Stack Washer/Dryer Microprocessor Controls

STACKED UNIT SPECIFICATIONS

MODELS

WASHER SPECIFICATIONS

MOTOR

120V, 60Hz, variable-speed, high-eff iciency, switched reluctance Yes Wash — HP (kWh) .09 (.07) Extract — HP (kWh) .54 (.40) Average kilowatt hour per cycle 0.07

CAPACITY

Volume — (liters) 3.2 (91) Diameter — in. (mm) 21.6 (547) Depth — in. (mm) 13.4 (341) Drain hose length — ft. (m) 6 (1.83)

DRYER SPECIFICATIONS

MOTOR

Single-phase, thermoprotected against overload, auto-reset Yes HP (kw) Capacity — cu. f t. (cu. m) 6.7 (.17)

AIRFLOW

Electric models — cfm (cmm) 220 (6.2) Gas models — cfm (cmm) 230 (6.5) Tumble speed — RPM 50± 1

EXHAUST DUCT DIAMETER — IN. (mm) ELECTRICAL REQUIREMENTS

CET model — Voltage 240V/60Hz CGT model — Voltage 120V/60Hz

BREAKER/FUSE REQUIREMENTS

CET model — Amps 30 CGT model — Amps 15

HEATING ELEMENT RATING

CET model — Electric heating element – watts 5,600 CGT model — BTU/hr. (kcal/hr.) 24,000 (6,048)

ADJUSTABLE LEVELING LEGS COLOR

White Yes

APPROXIMATE WEIGHT

Crated — lbs. (kg) 383 (173) Uncrated — lbs. (kg) 372 (169)

DIMENSIONS

Width — in. (mm) 27 (686) Depth — in. (mm) 29.5 (749) Height — in. (mm) 74 (1880)

* Use a 4" (101.6mm) diameter rigid aluminum or galvanized steel duct. Never use plastic, nonmetal

or combustible duct. Because of continuous product improvement, Whirlpool reserves the right to change specifications without notice.

CET8000XQ CGT8000XQ

(.19)

4 (101.6)*

Yes

Number Of

90° Turns

Box Hood and Angled Hood Louvered Style Style

0 135 ft. ( 41.2 m) 129 ft. ( 39.3 m) 1 125 ft. ( 38.1 m) 119 ft. ( 36.3 m) 2 115 ft. ( 35.1 m) 109 ft. ( 33.2 m) 3 106 ft. ( 32.3 m) 100 ft. ( 30.5 m) 4 98 ft. ( 29.9 m) 92 ft. (28.0 m)

Box Hood and Angled Hood Louvered Style Style

0 76 ft. ( 23.2 m) 62 ft. (18.9 m) 1 71 ft. ( 21.6 m) 57 ft. (17.4 m) 2 67 ft. ( 20.4 m) 53 ft. (16.2 m) 3 65 ft. ( 19.8 m) 51 ft. (15.6 m) 4 63 ft. ( 19.2 m) 49 ft. (14.9 m)

MAXIMUM EXHAUST DUCT LENGTH

PER NUMBER OF TURNS

Rigid Metal Vent

Flexible Metal Vent

3-YEAR LIMITED PARTS ONLY WARRANTY

For a period from the date of original purchase through the time listed above, the designated parts that fail in normal commercial use will be repaired or replaced free of charge for the part itself, with the owner paying all other costs, including labor, transportation and customs duty. Chemical damage is excluded from all warranty coverage. See complete warranty for details.

To Locate a Distributor Near You, Please Visit www.whirlpoolcommerciallaundry.com/distributor, or Call 1-800-NO-BELTS.

WL100343A 8/11
