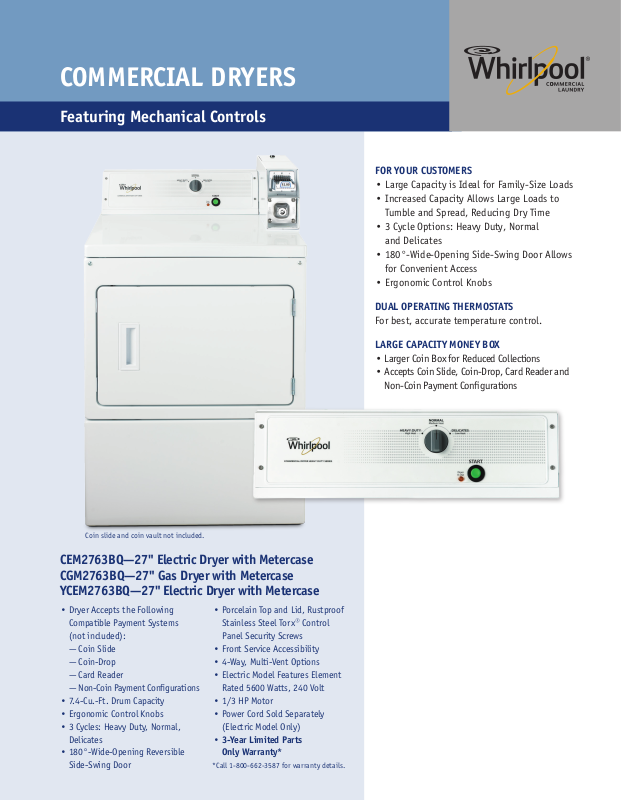

Whirlpool CGM2763BQ Specification Sheet

COMMERCIAL DRYERS

Featuring Mechanical Controls

FOR YOUR CUSTOMERS

• Large Capacity is Ideal for Family-Size Loads

• Increased Capacity Allows Large Loads to Tumble and Spread, Reducing Dry Time

• 3 Cycle Options: Heavy Duty, Normal and Delicates

• 180°-Wide-Opening Side-Swing Door Allows for Convenient Access

• Ergonomic Control Knobs

DUAL OPERATING THERMOSTATS

For best, accurate temperature control.

LARGE CAPACITY MONEY BOX

• Larger Coin Box for Reduced Collections

• Accepts Coin Slide, Coin-Drop, Card Reader and

Non-Coin Payment Conﬁgurations

Coin slide and coin vault not included.

CEM2763BQ—27" Electric Dryer with Metercase CGM2763BQ—27" Gas Dryer with Metercase YCEM2763BQ—27" Electric Dryer with Metercase

• Dryer Accepts the Following Compatible Payment Systems (not included): — Coin Slide — Coin-Drop — Card Reader — Non-Coin Payment Conﬁgurations

• 7.4-Cu.-Ft. Drum Capacity

• Ergonomic Control Knobs

• 3 Cycles: Heavy Duty, Normal, Delicates

• 180°-Wide-Opening Reversible Side-Swing Door

• Porcelain Top and Lid, Rustproof Stainless Steel Torx® Control Panel Security Screws

• Front Service Accessibility

• 4-Way, Multi-Vent Options

• Electric Model Features Element Rated 5600 Watts, 240 Volt

• 1/3 HP Motor

• Power Cord Sold Separately (Electric Model Only)

• 3-Year Limited Parts Only Warranty*

*Call 1-800-662-3587 for warranty details.

COMMERCIAL DRYERS

Featuring Mechanical Controls

Whirlpool® Commercial Dryers Mechanical Controls

DRYER SPECIFICATIONS

MODELS CEM2763BQ/YCEM2763BQ CGM2763BQ GENERAL INFORMATION

Modern design and look with metal console and ergonomic control knobs. 4-way venting.

DRUM VOLUME 7.4 Cu. Ft. 7.4 Cu. Ft. MOTOR 1/3 HP Single-Speed Motor with Built-In

ELECTRICAL REQUIREMENTS

HEATER TYPE Electric Gas* HEATER/BURNER RATING OPERATIONAL AMPERAGE Motor—4.0 AMPS, No Load

SHIPPING WEIGHT (EST.) 154 lbs. Crated, 140 lbs. Uncrated 154 lbs. Crated, 140 lbs. Uncrated DIMENSIONS

Cabinet Width—in. (mm) 27 (686) 27 (686)

Cabinet Depth—in. (mm) 29.25 (743) 29.25 (743) Cabinet Height—in. (mm) at Metercase Top 43.25 (1099) 43.25 (1099)

*Burner orifices are available for manufactured, natural, mixed and LP gas with varying BTU ratings.

Metercase Model Accepts the Following Payment

Systems: Coin Slide, Coin-Drop, Card Reader

Overload Protector

3-Wire Nominal 240/208 Volt, 60 Hz, A.C.

Standard 30-Amp Breaker/Fuse Circuit per Dr yer

Heater—23.33 AMPS @ 240 Volt—27.33 Total

(Subject to Local Codes)

Heater Rated at 5600 Watts

Metercase Model Accepts the Following Payment

Systems: Coin Slide, Coin-Drop, Card Reader

1/3 HP Single-Speed Motor with Built-In

Overload Protector

3-Wire, 120 Volt, 60 Hz, A.C. Standard 15-Amp Breaker/Fuse Circuit per Dryer

(Subject to Local Codes)

22,000 BTU Natural Gas

Motor—4.0 AMPS, No Load

Dimensions are for planning purposes only. For complete information, see installation instructions packed with product.

3-YEAR LIMITED PARTS ONLY WARRANTY

For a period of time from the date of original purchase through the time listed above, the designated parts that fail in normal commercial use will be repaired or replaced free of charge for the part itself, with the owner paying all other costs, including labor, transportation and customs duty. Chemical damage is excluded from all warranty coverage. See complete warranty for details.

Exhaust Information All dryers require the equivalent of a 4-inch diameter exhaust duct. Rigid metal duct is recommended. Failure to properly exhaust the dryer will result in improper operation.

# of 90° turns 4" Hood 2 1⁄2" Hood

Maximum length of 4" diameter rigid metal duct

0 64 Ft. 58 Ft.

1 54 Ft. 48 Ft.

2 44 Ft. 38 Ft.

3 35 Ft. 29 Ft.

4 27 Ft. 21 Ft.

Maximum length of 4" diameter flexible metal duct

0 36 Ft. 28 Ft.

1 31 Ft. 23 Ft.

2 27 Ft. 19 Ft.

3 25 Ft. 17 Ft.

4 23 Ft. 15 Ft.

To Locate a Distributor Near You, Please Visit www.whirlpoolcommerciallaundry.com/distributor, or call 1-800-662-3587.

WY130108 5/13
