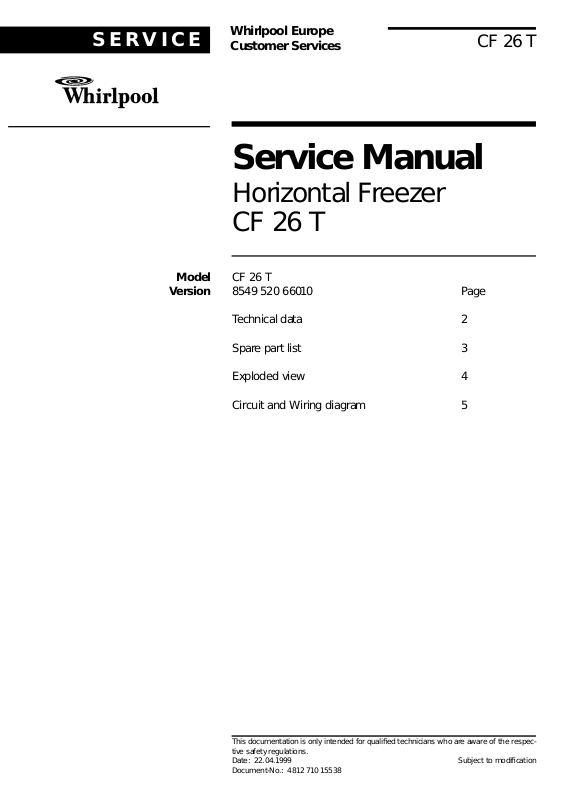

SERVICE
Model CF 26 T
Version 8549 520 66010 Page
Whirlpool Europe
Customer Services
Service Manual
Horizontal Freezer
CF 26 T
CF 26 T
Technical data 2
Spare part list 3
Exploded view 4
Circuit and Wiring diagram 5
This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
Date: 22.04.1999 Subject to modification
Document-No.: 4812 710 15538
Page 2
22.04.1999 / Page 2 CF 26 T Whirlpool Europe
Doc. No: 4812 710 15538 8549 520 66010 Customer Service
Technical data
Dimensions
Height 86.7 cm
Width 80.6 cm
Depth 60 cm
Capacity
gross 245 l
Electrical connection
Voltage 110 - 127 V
Frequency 50 - 60 Hz
Power consumption
SERVICE
in 24 hours 1.13 kWh
Freezing capacity
in 24 hours 14 kg
Compressor
Type GL 60 AD
Capacity (CECOMAF) 133 W
Refrigerant
Type R 134 a
Quantity 120 g
Thermostat switching value
Switch on temperature min. - 14 ˚C
Switch on temperature max. - 23.5 ˚C
Switch off temperature min. - 20 ˚C
Switch off temperature max. - 29.5 ˚C
Page 3
SERVICE
Spare part list
Model CF 26 T
Service No. 854952066010
Version 854952066010
Pos. No. 12NC Code Description
012 0 4819 462 48511 Foot
040 0 4819 417 19585 Hinge
040 1 4819 417 19584 Hinge
040 7 4819 462 58187 Cover,hinge
040 8 4819 462 58354 Cover,hinge
101 0 4819 442 69242 Door,freezer
111 0 4819 498 78464 Handle,door
111 8 4819 462 88135 Handle,cover
130 2 4819 417 38118 Lock
130 3 4819 401 18332 Hook
130 4 4819 532 58291 Washer
130 5 4819 462 58402 Cover ,lock
130 6 4819 404 79522 Support
241 0 4819 458 68203 Basket
252 0 4819 418 79816 Thermostathous.
Whirlpool Europe CF26T 22.04.1999 / Page 3
Customer Service 8549 520 66010 Doc. No: 4812 710 15538
252 1 4819 462 88091 Cover
301 0 4819 459 48912 Frame
321 0 4819 381 18251 Lens
321 1 4819 381 18252 Lens
335 0 4819 411 29585 Knob thermostat
339 0 4819 535 98662 Rod
350 0 4812 134 18001 Pilot lamp
350 2 4812 134 48228 Pilot lamp
402 0 4819 360 58749 Compressor GL60AD
442 0 4819 361 18486 Motor
442 1 4819 404 79496 Bracket
443 0 4819 515 38001 Fan wheel
491 0 4819 462 79805 Cover
561 0 4819 282 28722 Protect,motor
561 2 4819 290 68367 Connectionblock ,Zanussi
566 2 4819 271 29077 Thermostat A04-0282-29
614 0 4819 280 68398 Relay
740 0 4819 121 18326 Capacitor
740 3 4819 466 68644 Fixation
740 4 4819 404 79471 Holder
764 0 4819 480 28144 Dryer
781 0 4819 462 88134 Panel f.drain
Page 4
22.04.1999 / Page 4 CF 26 T Whirlpool Europe
Doc. No: 4812 710 15538 8549 520 66010 Customer Service
Exploded view
SERVICE
Page 5
SERVICE
Whirlpool Europe CF 26 T 22.04.1999 / Page 5
Customer Service 8549 520 66010 Doc. No: 4812 710 15538
Circuit and Wiring diagram
