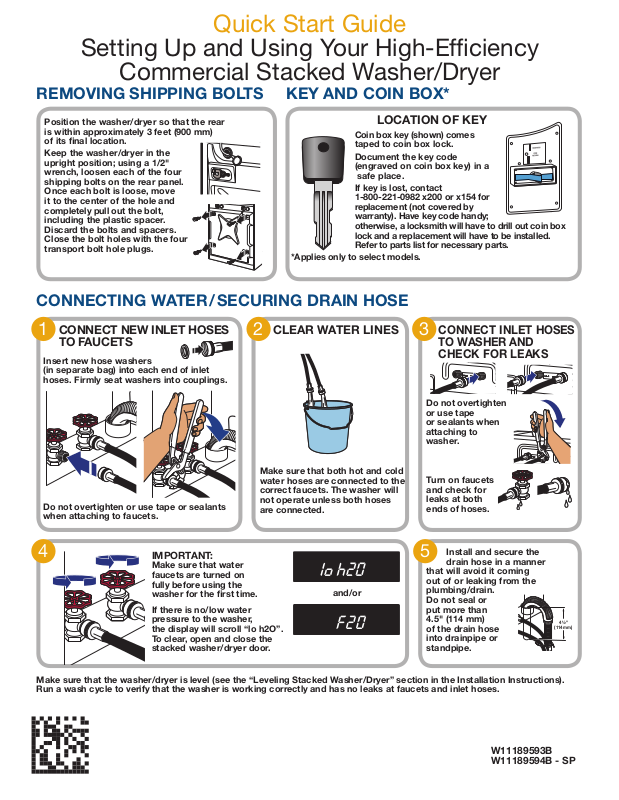

Quick Start Guide
Setting Up and Using Your High-Efficiency
Commercial Stacked Washer/Dryer
REMOVING SHIPPING BOLTS
Position the washer/dryer so that the rear is within approximately 3 feet (900 mm) of its final location.
Keep the washer/dryer in the upright position; using a 1/2" wrench, loosen each of the four shipping bolts on the rear panel.
Once each bolt is loose, move it to the center of the hole and
completely pull out the bolt, including the plastic spacer.
Discard the bolts and spacers. Close the bolt holes with the four transport bolt hole plugs.
KEY AND COIN BOX*
LOCATION OF KEY
Coin box key (shown) comes taped to coin box lock.
Document the key code (engraved on coin box key) in a safe place.
If key is lost, contact 1-800-221-0982 x200 or x154 for
replacement (not covered by warranty). Have key code handy;
otherwise, a locksmith will have to drill out coin box lock and a replacement will have to be installed. Refer to parts list for necessary parts.
*Applies only to select models.
CONNECTING WATER/SECURING DRAIN HOSE
1 |
CONNECT NEW INLET HOSES |
2 |
CLEAR WATER LINES |
TO FAUCETS |
|
Insert new hose washers
(in separate bag) into each end of inlet hoses. Firmly seat washers into couplings.
3 CONNECT INLET HOSES TO WASHER AND CHECK FOR LEAKS
Do not overtighten or use tape
or sealants when attaching to washer.
Do not overtighten or use tape or sealants when attaching to faucets.
Make sure that both hot and cold water hoses are connected to the correct faucets. The washer will not operate unless both hoses are connected.
Turn on faucets and check for leaks at both ends of hoses.
4 |
IMPORTANT: |
|
5 |
Install and secure the |
|
|
Make sure that water |
|
|
drain hose in a manner |
|
|
|
that will avoid it coming |
|
||
|
faucets are turned on |
|
|
||
|
|
out of or leaking from the |
|
||
|
fully before using the |
|
|
||
|
and/or |
plumbing/drain. |
|
||
|
washer for the first time. |
|
|||
|
Do not seal or |
|
|||
|
|
|
|
||
|
If there is no/low water |
|
put more than |
|
|
|
pressure to the washer, |
|
4.5" (114 mm) |
114 mm |
|
|
the display will scroll “lo h2O”. |
|
of the drain hose |
4½"1 |
|
|
|
(11(4 /mm)2") |
|||
|
|
|
|
|
|
|
To clear, open and close the |
|
into drainpipe or |
|
|
|
stacked washer/dryer door. |
|
standpipe. |
|
|
Make sure that the washer/dryer is level (see the “Leveling Stacked Washer/Dryer” section in the Installation Instructions). Run a wash cycle to verify that the washer is working correctly and has no leaks at faucets and inlet hoses.
W11189593B
W11189594B - SP
