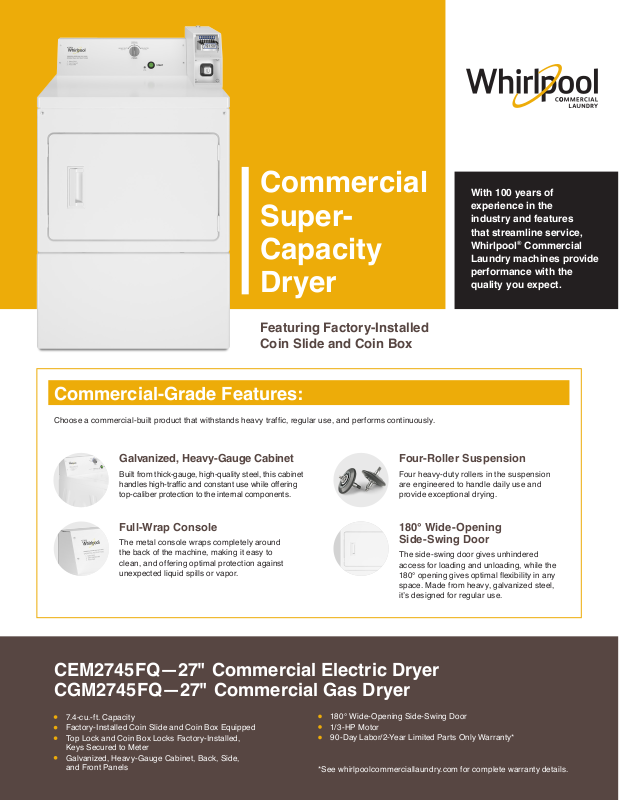

Whirlpool CEM2745FQ Specs
Commercial
SuperCapacity
Dryer
Featuring Factory-Installed
Coin Slide and Coin Box
Commercial-Grade Features:
Choose a commercial-built product that withstands heavy trafc, regular use, and performs continuously.
With 100 years of
experience in the
industry and features
that streamline service,
Whirlpool® Commercial
Laundry machines provide
performance with the
quality you expect.
Galvanized, Heavy-Gauge Cabinet
Built from thick-gauge, high-quality steel, this cabinet
handles high-trafc and constant use while offering
top-caliber protection to the internal components.
Full-Wrap Console
The metal console wraps completely around
the back of the machine, making it easy to
clean, and offering optimal protection against
unexpected liquid spills or vapor.
Four-Roller Suspension
Four heavy-duty rollers in the suspension
are engineered to handle daily use and
provide exceptional drying.
180° Wide-Opening
Side-Swing Door
The side-swing door gives unhindered
access for loading and unloading, while the
180° opening gives optimal exibility in any
space. Made from heavy, galvanized steel,
it’s designed for regular use.
CEM2745FQ—27" Commercial Electric Dryer
CGM2745FQ—27" Commercial Gas Dryer
7.4-cu.-ft. Capacity
Factory-Installed Coin Slide and Coin Box Equipped
Top Lock and Coin Box Locks Factory-Installed,
Keys Secured to Meter
Galvanized, Heavy-Gauge Cabinet, Back, Side,
and Front Panels
180° Wide-Opening Side-Swing Door
1/3 -HP Motor
90-Day Labor/2-Year Limited Parts Only Warranty*
*See whirlpoolcommerciallaundry.com for complete warranty details.
Side View Back View
Side View Back View
11/2"
(38 mm)
5
1
/2"
(140 mm)
103/4
"
(273 mm)
371/2"
(953 mm)
(gas models)
43"
(1092 mm)
with Coin
Box
131/2"
(343 mm)
Electric
Gas
27"
(686 mm)
3
1
/4"
(83 mm)
36"
(914 mm)
(electric models)
4" dia
(102 mm)
13
1
/2"
(343 mm)
Commercial Super-Capacity Dryer
Featuring Factory-Installed Coin Slide and Coin Box
Dryer Specifications
Model
Motor Size—HP (kw)
Airow (CFM)—CEM/CGM Model 178/183
Electric Heating Element (Watts) Domestic/Canada 5,600
Gas Rating—BTU/hr. (kcal/hr.) 22,000
Gas Inlet Size 3/8 N.P.T.
Capacity
Cylinder volume—cu. ft. (liters) 7.4 (210)
Cylinder diameter—in. (mm) 26.26 (667)
Cylinder depth—in. (mm) 23.2 (590)
Dimensions
Width—in. (mm) 27 (686)
Depth—in. (mm) 29.25 (743)
Height—in. (mm) 43 (1,092)
Door opening—in. (mm) 20.25 (514)
Exhaust duct diameter—in. (mm) 4 (101.6)
Crated Dimensions
Width—in. (mm) 28.8 (731)
Depth—in. (mm) 30.8 (782)
Height—in. (mm) 44.65 (1,134)
Approximate Weight
Uncrated—lbs. (kg) CEM/CGM model 130 (59)/135 (61.2)
Crated—lbs. (kg) CEM/CGM model 140 (63.5)/145 (65.8)
Electrical Requirements
Electrical rating—voltage/HZ CEM/CGM Model 240V/60Hz/120V/60Hz
Breaker/Fuse—amps CEM/CGM Model 30/15
Warranty 2-Year Limited
Dimensions are for planning purposes only. See specic instructions for proper installation. Because of
continuous product improvement, Maytag reserves the right to change specications without notice.
CEM2745FQ (Electric)
CGM2745FQ (Gas)
1/3 (.25)
35"
(889 mm)
1"
(25 mm)
11/2"
(38 mm)
5
(140 mm)
291/4"
(743 mm)
26"
(660 mm)
1
8
/4"
(210 mm)
31/4"
(83 mm)
1
/2"
7
(191 mm)
27"
(686 mm)
Electric
131/2"
(343 mm)
Gas
1
/2"
1
13
(343 mm)
/2"
103/4
(273 mm)
4" dia
(102 mm)
(914 mm)
"
(electric models)
31/4"
(83 mm)
36"
(953 mm)
(gas models)
371/2"
43"
(1092 mm)
with Coin
Box
2-YEAR LIMITED PARTS ONLY WARRANTY
For the rst two years from the date of purchase, when this major appliance is installed, maintained and operated according to the instructions
attached to or furnished with the product, Whirlpool will pay for factory-specied replacement parts to correct defects in materials or workmanship
that existed when this commercial appliance was purchased.
®/™ © 2017 Whirlpool. All rights reserved.
Whirlpool Corporation • Benton Harbor, Michigan 49022 U.S.A.
WY 170 0 57 4 /17
