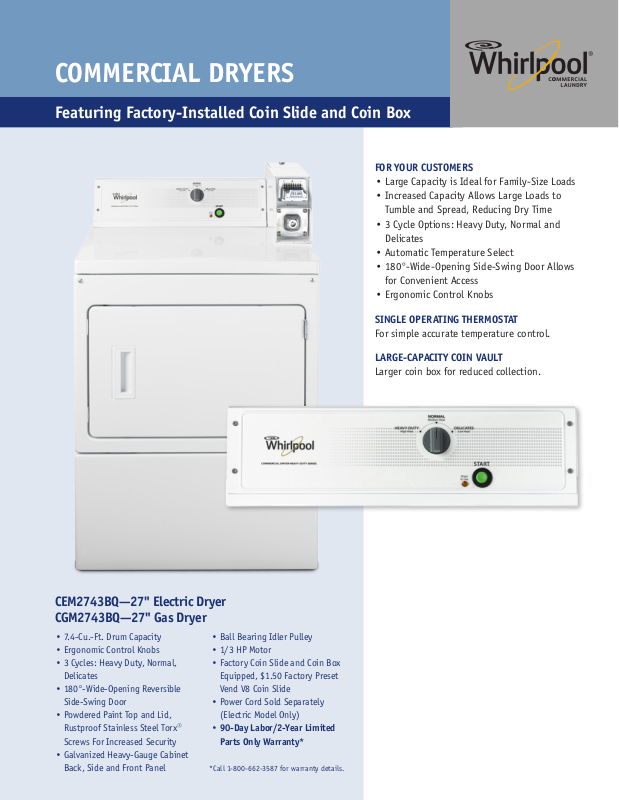

Whirlpool CEM2743BQ, CGM2743BQ Specification Sheet

COMMERCIAL DRYERS

Featuring Factory-Installed Coin Slide and Coin Box

FOR YOUR CUSTOMERS

• Large Capacity is Ideal for Family-Size Loads

• Increased Capacity Allows Large Loads to Tumble and Spread, Reducing Dry Time

• 3 Cycle Options: Heavy Duty, Normal and Delicates

• Automatic Temperature Select

• 180°-Wide-Opening Side-Swing Door Allows for Convenient Access

• Ergonomic Control Knobs

SINGLE OPERATING THERMOSTAT

For simple accurate temperature control.

LARGE-CAPACITY COIN VAULT

Larger coin box for reduced collection.

CEM2743BQ—27" Electric Dryer CGM2743BQ—27" Gas Dryer

• 7.4-Cu.-Ft. Drum Capacity

• Ergonomic Control Knobs

• 3 Cycles: Heavy Duty, Normal, Delicates

• 180°-Wide-Opening Reversible Side-Swing Door

• Powdered Paint Top and Lid, Rustproof Stainless Steel Torx® Screws For Increased Security

• Galvanized Heavy-Gauge Cabinet Back, Side and Front Panel

• Ball Bearing Idler Pulley

• 1/3 HP Motor

• Factory Coin Slide and Coin Box

• Power Cord Sold Separately

• 90-Day Labor/2-Year Limited

*Call 1-800-662-3587 for warranty details.

Equipped, $1.50 Factory Preset Vend V8 Coin Slide

(Electric Model Only)

Parts Only Warranty*

COMMERCIAL DRYERS

Featuring Factory-Installed Coin Slide and Coin Box

Whirlpool® Commercial Dryers Factory-Installed Coin Slide and Coin Box

DRYER SPECIFICATIONS

MODELS CEM2743BQ CGM2743BQ GENERAL INFORMATION

Modern design and look with metal console and ergonomic control knobs.

DRUM VOLUME 7.4 Cu. Ft. 7.4 Cu. Ft. MOTOR 1/3 HP Single-Speed Motor with Built-In

ELECTRICAL REQUIREMENTS

HEATER TYPE

HEATER/BURNER RATING OPERATIONAL AMPERAGE Motor—4.0 AMPS, No Load

SHIPPING WEIGHT (EST.) 159 lb. crated, 145 lb. uncrated 159 lb. crated, 145 lb. uncrated DIMENSIONS

Width — in. (mm) 27 (686) 27 (686)

Depth — in. (mm) 29.25 (743) 29.25 (743) Height — in. (mm) at Metercase Top 43.25 (1099) 43.25 (1099)

*Burner orifices are available for manufactured, natural, mixed and LP gas with varying BTU ratings.

Coin Vault Model, Factory-Installed Coin Slide

and Coin Box, $0-$2 per Cycle

Overload Protector

3-Wire Nominal 240/208 Volt, 60 Hz, A.C.

Standard, 30-Amp Breaker/Fuse Circuit per Dr yer

(Subject to Local Codes)

Electric Gas*

Heater Rated at 5600 Watts

Heater—23.33 AMPS @ 240 Volt—27.33 Total

Coin Vault Model, Factory-Installed Coin Slide

and Coin Box, $0-$2 per Cycle

1/3 HP Single-Speed Motor with Built-In

Overload Protector

120 Volt, 60 Hz, A.C. Standard,

15-Amp Breaker/Fuse Circuit per Dryer

(Subject to Local Codes)

22,000 BTU Natural Gas

Motor—4.0 AMPS, No Load

Dimensions are for planning purposes only. For complete information, see installation instructions packed with product.

Exhaust Information All dryers require the equivalent of a 4-inch diameter exhaust duct. Rigid metal duct is recommended. Failure to properly exhaust the dryer will result in improper operation.

# of 90° turns 4" Hood 2 1⁄2" Hood

Maximum length of 4" diameter rigid metal duct

0 64 Ft. 58 Ft.

1 54 Ft. 48 Ft.

2 44 Ft. 38 Ft.

3 35 Ft. 29 Ft.

4 27 Ft. 21 Ft.

Maximum length of 4" diameter flexible metal duct

0 36 Ft. 28 Ft.

1 31 Ft. 23 Ft.

2 27 Ft. 19 Ft.

3 25 Ft. 17 Ft.

4 23 Ft. 15 Ft.

To Locate a Distributor Near You, Please Visit www.whirlpoolcommerciallaundry.com/distributor, or call 1-800-662-3587.

WY130106 4/13
