Whirlpool CB 60 PL E-EV FAN PRODUCT SHEET

33122agb.fm5 Page 1 Tuesday, July 18, 2000 2:54 PM

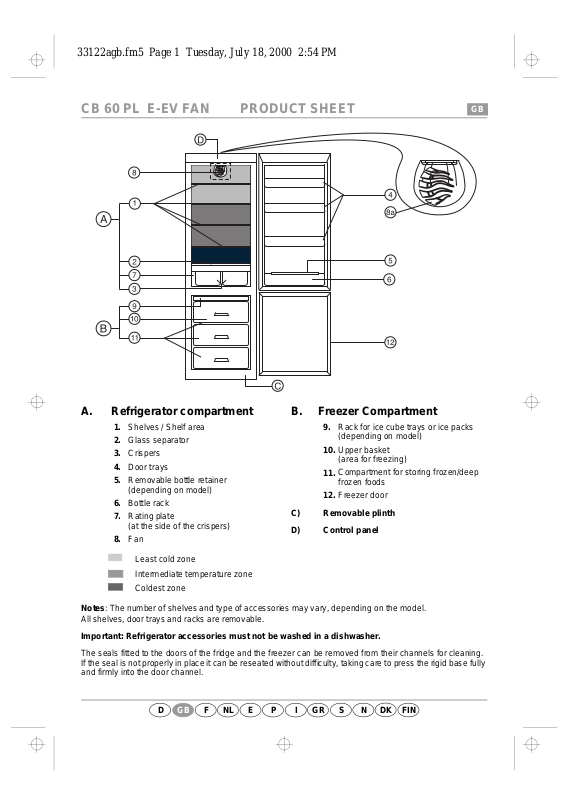

CB 60 PL E-EV FAN PRODUCT SHEET

A. Refrigerator compartment

Shelves / Shelf area

Glass separator

Crispers

Door trays

Removable bottle retainer

(depending on model) Bottle rack

Rating plate

(at the side of the crispers) Fan

Least cold zone Intermediate temperature zone Coldest zone

: The number of shelves and type of accessories may vary, depending on the model.

Notes

All shelves, door trays and racks are removable.

Important: Refrigerator accessories must not be washed in a dishwasher.

The seals fitted to the doors of the fridge and the freezer can be removed from their channels for cleaning. If the seal is not properly in place it can be reseated without difficulty, taking care to press the rigid base fully and firmly into the door channel.

B. Freezer Compartment

Rack for ice cube trays or ice packs

(depending on model) Upper basket

10.

(area for freezing) Compartment for storing frozen/deep

11.

frozen foods Freezer door

12. C) Removable plinth D) Control panel

GB ID F NL E P GR

S N FIN

33122agb.fm5 Page 2 Tuesday, July 18, 2000 2:54 PM

CB 60 PL E-EV FAN

CONTROL PANEL

1. Refrigerator temperature control knob

with OFF position for refrigerator compartment.

2. Refrigerator Supercool/Turbocool button; the yellow LED lights up (3).

3. Green LED: indicates refrigerator compartment operation. Yellow LED: indicates “Supercool/Turbocool” operation.

4. Freezer temperature control knob with appliance general switch off position.

5. “Eco/Öko” position to freeze small amounts of food.

Fan:

The fan gives more even temperature distribution inside the refrigerator compartment, thus allowing better conservation of stored food.

Important:

The fan will run ONLY when the compressor is in operation. Do not obstruct the fan intake area (8a) with food.

This appliance is equipped with a system that allows the selection of the freezer compartment only.

Refrigerator compartment internal temperature control

Thermostat set to 7°/Min: internal temperature least cold Thermostat set to °C/Max: internal temperature coldest Thermostat set to Off: switches off the refrigerator compartment only.

Recommended thermostat setting: 5°/Med position.

Freezer compartment internal temperature control

Thermostat set to ECO/Öko: internal temperature least cold Thermostat set to °C/Max: internal temperature coldest Thermostat set to Off: switches off both the refrigerator and the freezer compartments.

Recommended thermostat setting: ECO/Öko position. Note: The ambient air temperature, the frequency of opening the door and the position of the appliance can

affect the internal temperatures of the refrigerator. These factors must be taken into account when setting the thermostat.

Replacing bulbs:

This product uses a special bulb; to replace do not unscrew. Pull towards the inside of the appliance.

6. Fast freeze button; the yellow LED

lights up (7).

7. Green LED: indicates freezer compartment operation. Yellow LED: indicates fast freeze operation.

8. Refrigerator light switch. Pull the switch to switch off the light. Important: the appliance is off when the thermostat knobs are turned to the Off position and the switch has been pulled.

9. FreezerRed LED temperature alarm.

5019 100 33122/A
